LG Large Screen Signage Display

110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B
LG Large Screen Signage Display, 110UM5K-B

Key Features

  • Brightness : 500 nit (Typ.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 17 mm (Even bezel)
  • Built-in Speaker (10 W + 10 W)
  • Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor
More
A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

UHD Large Screen Signage Display with LG webOS Platform

*All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.
UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.



* Actual images available may differ from the example images shown.

A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

One signage on the wall has a built-in speaker which renders rich audio.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

* Internal Built-in Speaker Support (L/R max 10 W)

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

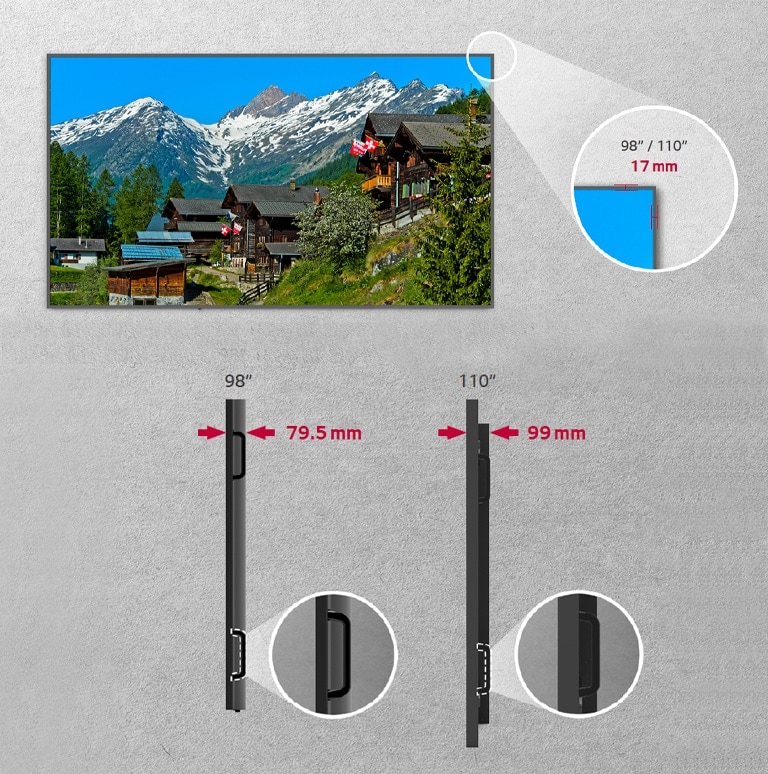

The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm.

The AV control system helps users control the UM5K

Compatible with AV Control System

The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Print

All Spec

ACCESSORY

  • Basic

    Remote Controller(include battery 2 ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS232C Gender

POWER

  • Power Supply

    AC 100-240 V~, 50/60 Hz

  • Power Type

    Built-In Power

SOUND

  • Speaker (Built-in)

    10 W+10 W

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

FEATURE - HARDWARE

  • Wi-Fi/BT (Built-in)

    Yes

  • Auto Brightness Sensor

    Yes

  • Internal Memory (eMMC)

    16 GB

  • Local Key Operation

    Yes

  • Power Indicator

    Yes

  • Temperature Sensor

    Yes

CERTIFICATION

  • ERP / Energy Star

    Yes / No

  • EMC

    FCC Class "A" / CE / KC

  • Safety

    CB / NRTL

CONNECTIVITY

  • RJ45 (LAN) In

    Yes(1)

  • Audio In

    Yes(1)

  • Audio Out

    Yes(1)

  • DP In

    Yes(1), HDCP2.2/1.3

  • DVI-D In

    Yes(1), HDCP1.4

  • HDMI In

    Yes(3), HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4

  • HDMI Out

    Yes(1)

  • IR In

    Yes(1)

  • RS232C In

    Yes(1), 4 pin Phone-jack

  • RS232C Out

    Yes(1), 4 pin Phone-jack

  • Touch USB

    USB 2.0 Type A(1)

  • USB In

    USB 2.0 Type A(1)

MECHANICAL SPECIFICATION

  • VESA™ Standard Mount Interface (mm)

    1500 x 600

  • Bezel Width

    Even bezel : 17 mm

  • Carton Dimensions (W x H x D, mm)

    2680 x 1730 x 320 mm

  • Monitor Dimensions (W x H x D, mm)

    2474 x 1408 x 99 mm

  • Packed Weight

    110 kg

  • Weight (Head)

    80 Kg

PANEL

  • Color Depth (Number of Colors)

    8 bits + FRC, 1.07 Billion colors

  • Aspect Ratio

    16:09

  • Back Light Type

    Direct

  • Color Gamut

    DCI-P3 88 %

  • Dynamic CR

    1,000,000:1

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    16x7

  • Portait / Landscape

    No / Yes

  • Refresh Rate

    120 Hz

  • Response Time

    8 ms (G to G)

  • Screen Size

    279.4 cm (110)

  • Surface Treatment (Haze)

    1 %

  • Viewing Angle (H x V)

    178 x 178

FEATURE - SOFTWARE

  • Group Manager

    Yes

  • Local Contents Scheduling

    Yes

  • OS Ver. (webOS)

    webOS6.0

  • PBP

    Yes(4)

  • PIP

    Yes

  • Play Via URL

    Yes

  • Screen Share

    Yes

POWER CONSUMPTION

  • Others - BTU (British Thermal Unit)

    1,501 BTU/Hr

  • DPM

    0.5 W

  • Max.

    570 W

  • Power off

    0.5 W

  • Smart Energy Saving (70%)

    1,945 BTU/Hr

  • Typ.

    440 W

SOFTWARE COMPATIBILITY

  • Mobile CMS

    Yes

  • SuperSign Cloud

    Yes

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

Leaflet

extension : pdf
UM5K-Leaflet-India-241021.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
