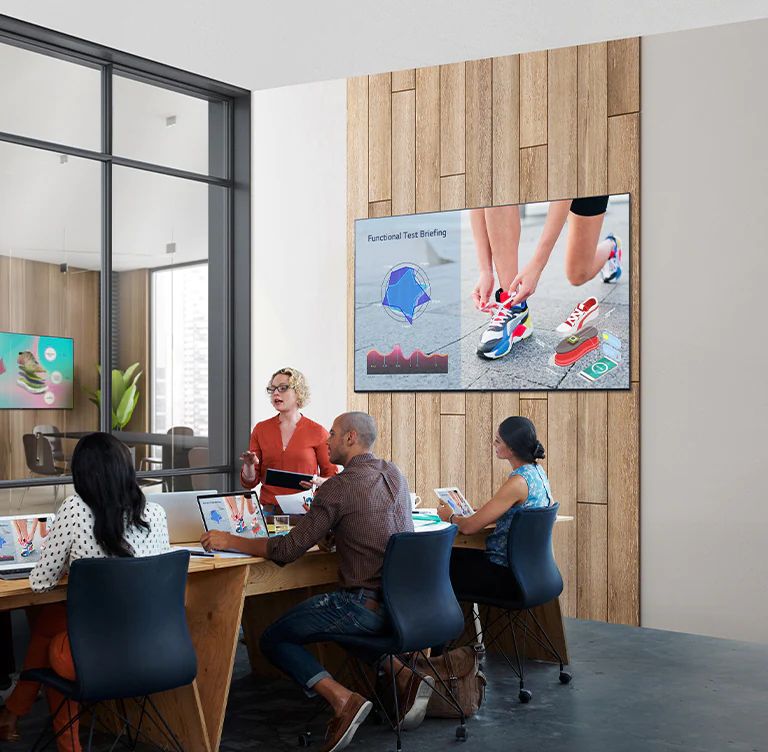

There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left.

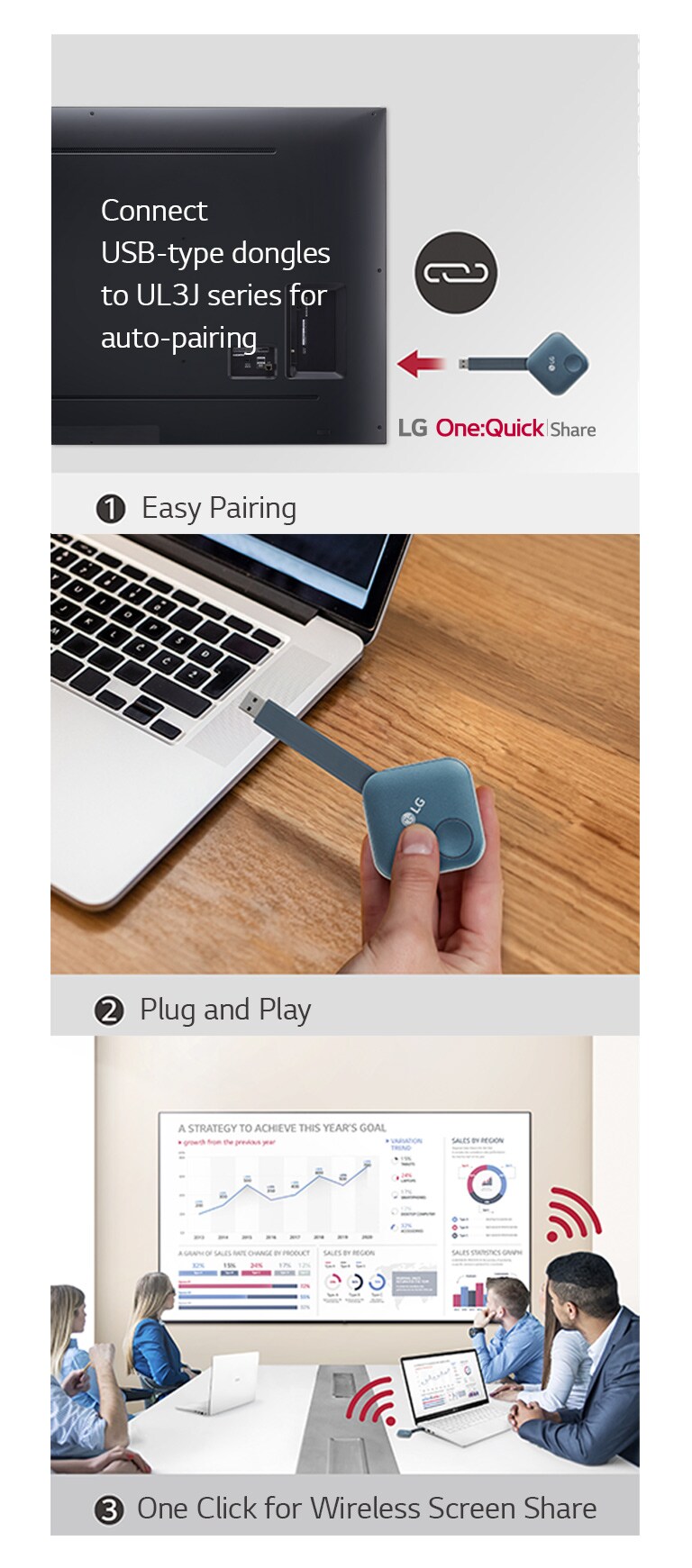

"This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall."
*Users need to set up Soft AP enabled at Network Menu of the Signage.
**Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
***LG One:Quick Share needs to be purchased separately.

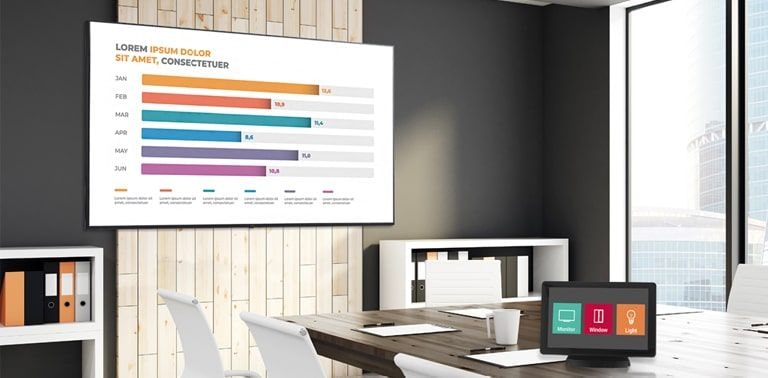

*Initial setting from display is required for Crestron Connected® compatibility.
**Network based control.

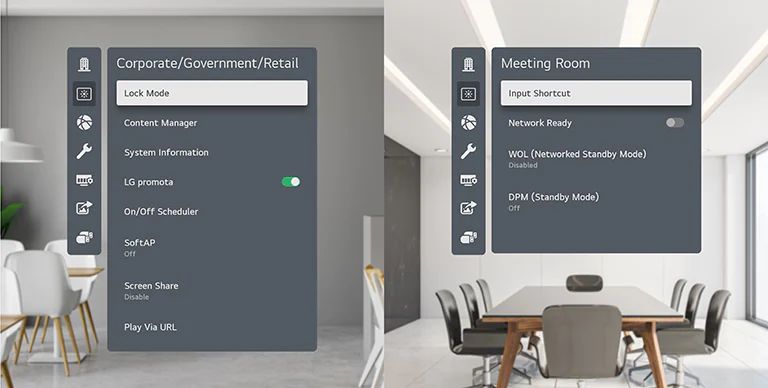

Most frequently used menus are categorized per industry on the left as “Corporate / Government / Retail” and on the right as the “Meeting Room”.
*Pre-set Support Vertical : Corporate / Government / Retail, Meeting room.
*Using an HDMI cable connection (HDMI cable is optional).
*Compared to LG's UL3G series.

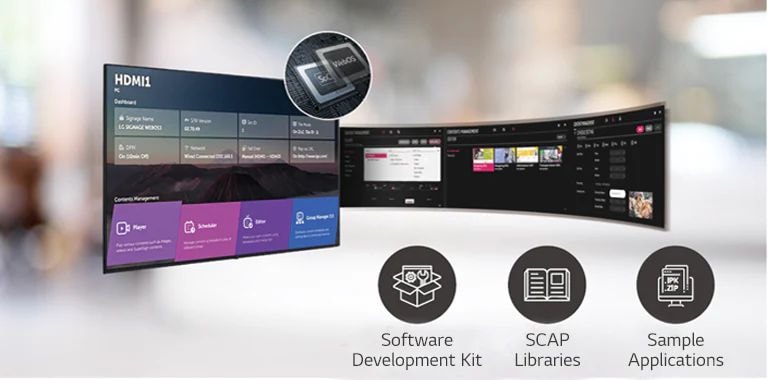

*SoC : System On Chip.
**GUI : Graphical User Interface.
*e.g. showing specific promotional information according to weather change to store visitors.

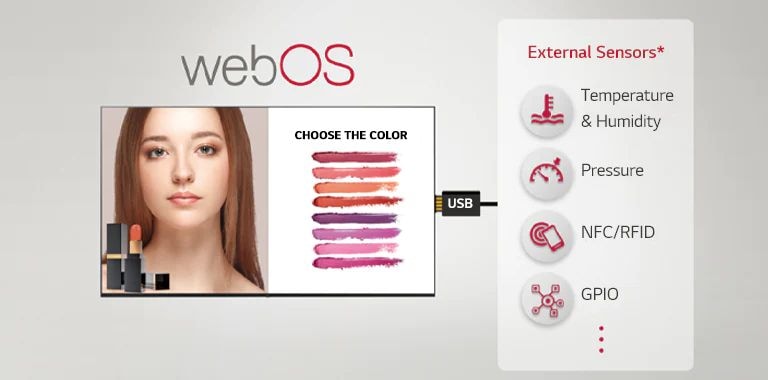

**External sensors need to be purchased separately and tested for compatibility with webOS platform.
promota
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Basic
Remote Controller(include battery 2 ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
Optional
NO
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
OPS Type compatible
NO
OPS Power Built-in
NO
Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-in Power
Speaker (Built-in)
YES (10 W x 2)
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Wi-Fi/BT (Built-in)
YES
Acceleration (Gyro) Sensor
NO
Auto Brightness Sensor
YES
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
16 GB
Local Key Operation
YES
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Smart Calibration
N/A
Conformal Coating (Power Board)
YES
Direct Sunlight
N/A
IP Rating
N/A
Overlay Touch Compatibility
N/A
Power Protection
N/A
Tilt (Face down)
N/A
Tilt (Face up)
N/A
ERP / Energy Star
YES / NO
EMC
FCC Class "A" / CE
ePEAT(US only)
NO
Safety
CB / NRTL
Connected Care
YES
Mobile CMS
NO
SuperSign Cloud
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
RJ45(LAN) In
YES (1 ea)
Audio In
NO
Audio Out
YES
Daisy Chain
NO
DP In
NO
DP Out
NO
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (3 ea)
HDMI In (HDCP Ver.)
2.2/1.4
HDMI Out
NO
IR In
NO
IR Out
NO
RGB In
NO
RJ45(LAN) Out
NO
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB2.0 Type A (2 ea)
VESA™ Standard Mount Interface (mm)
200 x 200 mm
Bezel Color
Ashed Blue

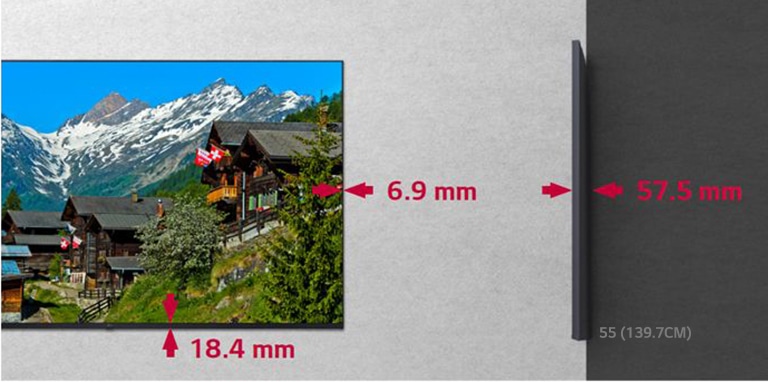

Bezel Width
Off : 6.9/6.9/6.9/18.4 mm On : 12.8/12.8/12.8/19.9 mm
Carton Dimensions (W x H x D, mm)
1055 x 660 x 142 mm
Handle
NO
Monitor Dimension (W x H x D, mm)
967 x 564 x 57.1 mm
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
10.9 Kg
Weight (Head)
8.8 Kg
Weight (Head+Stand)
N/A
Color Depth (Number of Colors)
1.07 G (8 bits + FRC)
Aspect Ratio
16:9
Back Light Type
Direct
Brightness
300 nit (Typ.)
Color Gamut
DCI 80%
Dynamic CR
1,000,000:1
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
16/7
Panel Technology
ADS
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
N/A
Refresh Rate
60 Hz
Response Time
8 ms (G to G)
Screen Size
108 CM (43)
Surface Treatment (Haze)
1 %
Transparency
N/A
Viewing Angle (H x V)
178º x 178º
Scan Inversion
NO
Auto Set ID
YES
Backlight Sync
NO
BEACON
YES
Booting Logo Image
YES
Brightness Compensation
NO

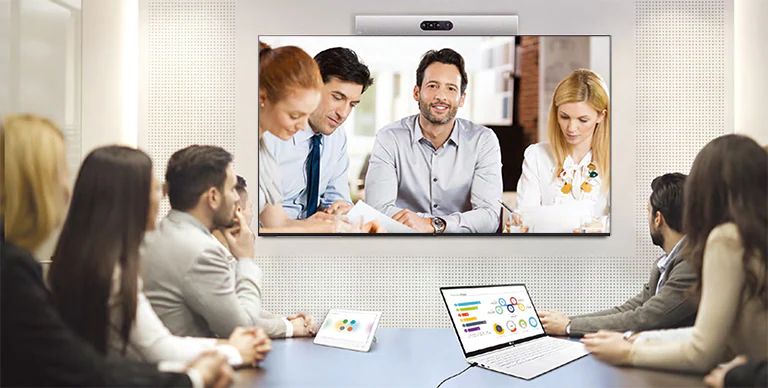

Cisco Certification
YES

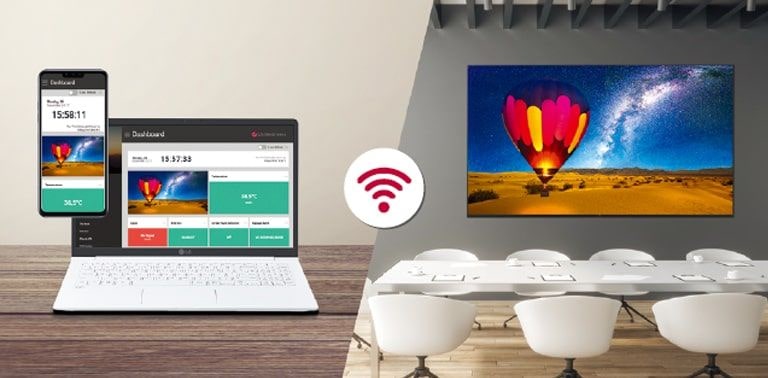

Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail Over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
YES
No Signal Image
YES
OS Ver. (webOS)
webOS 6.0
PBP
NO
PIP
NO
Play Via URL
YES
PM mode
YES
Pro:Idiom
YES
RS232C Sync
YES
Screen Rotation
YES
Screen Share
YES
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO
Others-BTU (British Thermal Unit)
273 BTU/Hr(Typ.), 409 BTU/Hr(Max.)
DPM
0.5 W
Max.
120 W
Power off
0.5 W
Smart Energy Saving (70%)
56 W
Typ.
80 W
