LG webOS UHD Signage for 24/7 Operation*

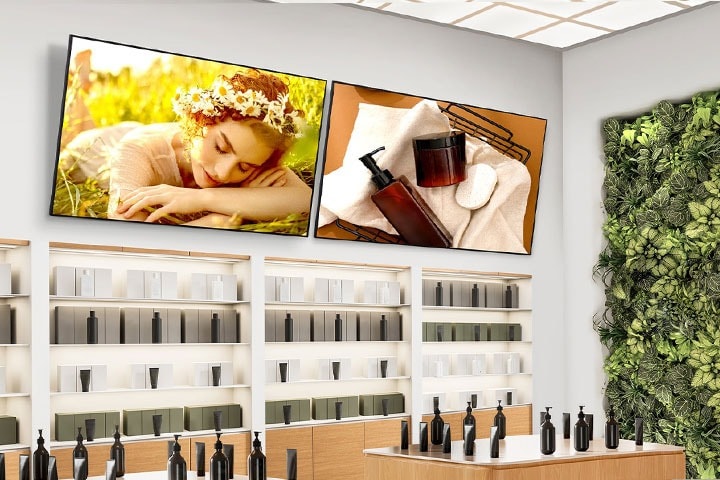

Inside the cosmetics shop, two signage displays are mounted high on the wall with a downward tilt, each vividly showcasing cosmetic advertisements.

*Actual performance may vary depending on usage conditions and operating environment.

**Images are for illustration purpose only. Actual may vary.

Superb Picture Quality with Ultra HD Resolution

The UL5Q-E series, with UHD resolution, enhances the realism of colors and details in the content. Its wide viewing angle offers clear visuals, while its 500 cd/m² (nits) brightness vividly showcases the content.

High-Performance with LG webOS 6.1

LG webOS 6.1 is available on the UL5Q-E series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*.

*GUI : Graphical User Interface.

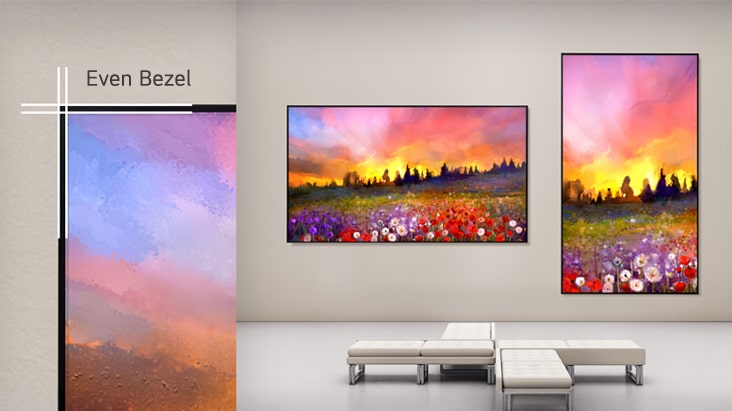

Even Bezel Design

The UL5Q-E series features even bezels, enhancing the aesthetic appeal of various spaces. These uniform bezels not only facilitate easy installation but also transform standard displays into elegant focal points.

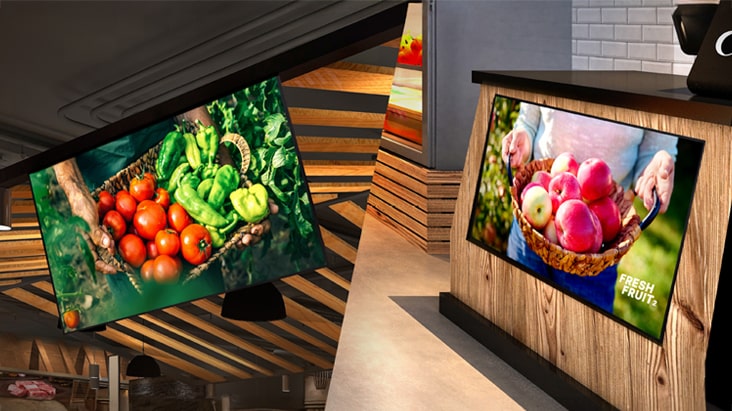

Adaptive Viewing Experience

Experience the flexibility with the UL5Q-E series*' up/down tilt capability**. Whether mounted high or low, the display can be adjusted to eye level, offering viewer engagement regardless of installation height. This versatility not only enhances spatial efficiency but also provides visual comfort, delivering clear information from various viewing angles.

*190.5 cm (75)/218.44 cm (86) are not supported.
**This display tilts up/down up to 15 degrees; do not exceed this range to prevent damage.

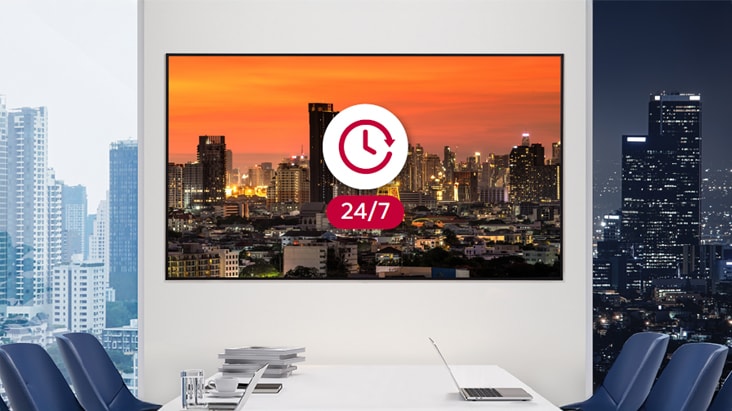

Engineered for 24/7 Operation

Built for environments that never sleep, the UL5Q-E series features panel technology that enables 24/7 operation*.



*Actual performance may vary depending on usage conditions and operating environment.

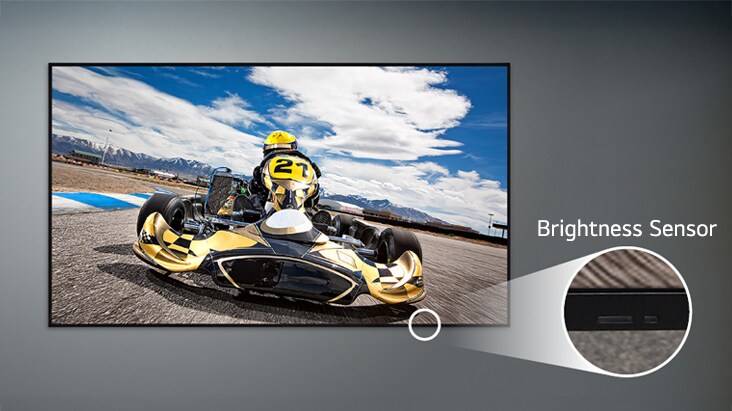

Built-In Brightness Sensor

The UL5Q-E series' front-mounted brightness sensor* automatically adjusts brightness to match various lighting conditions, optimizing viewing quality and energy efficiency without manual intervention. This adaptive feature offers consistent display performance while also supporting power optimization, delivering a visual experience that dynamically responds to environmental changes.



*The effectiveness of brightness adjustment may vary depending on ambient lighting conditions and usage environment.

Advanced Security Architecture

The UL5Q-E series incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/ IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape.

Remote Monitoring and Control

This web-based monitoring solution* is user-friendly and allows the user to be at ease. It enables the user to have full access anytime, anywhere from their mobile phone & PC in a network-accessible environment, with access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.



*Remote Monitoring via QR code may vary by system & network conditions.

LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

*Specifications are subject to change without notice. Please make sure to check the product manual for details about product usage.

Leaflet

To access more technical documentation and resources, please visit the LG B2B Partner Portal.

Key Feature

  • Resolution : 3840 × 2160 (UHD)
  • Brightness : 500 cd/m² (nits)
  • 24Hr Usage Scene (24 Hours / 7 Days)
  • Face Up/Down with Tilt Support
  • Even Bezel
  • High-Performance with webOS 6.1

All Spec

PANEL

  • Screen Size

    109 cm (43)

  • Panel Technology

    ADS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60 Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    DCI 80%

  • Viewing Angle (H x V)

    178° x 178°

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    1%

  • Life time

    30,000 Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    Yes / Yes

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    Yes

  • Tilt (Face down)

    15 degree

  • Tilt (Face up)

    15 degree

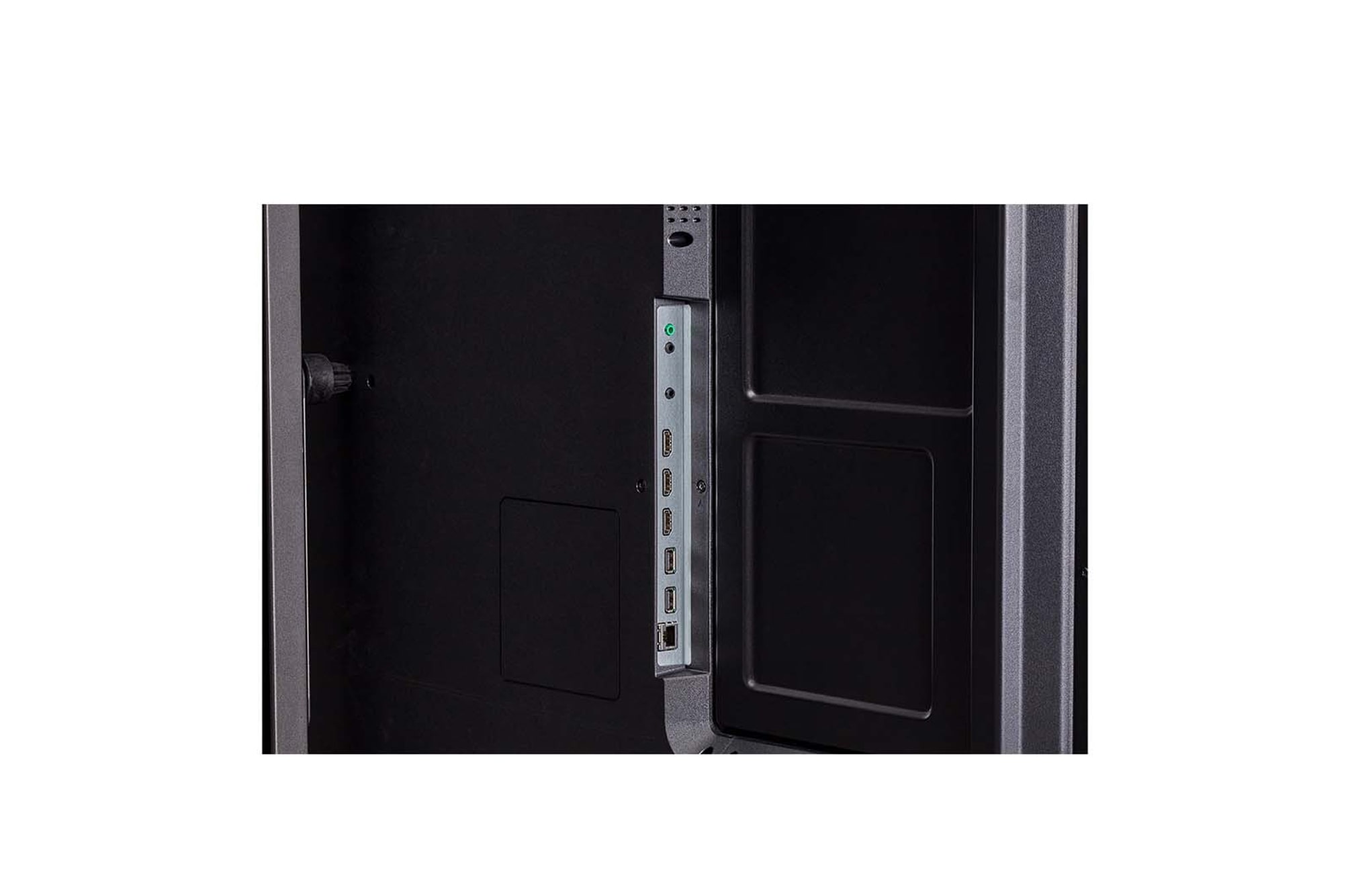

CONNECTIVITY

  • HDMI In

    Yes (3ea)

  • RS232C In

    Yes

  • RJ45 (LAN) In

    Yes (1ea)

  • USB In

    USB 2.0 Type A (2ea)

  • Audio Out

    Yes

  • RS232C Out

    Yes

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    10.7mm Even

  • Weight (Head)

    7.6 kg

  • Packed Weight

    10.3 kg

  • Monitor Dimensions (W x H x D, mm)

    965 x 554.9 x 59.1mm

  • VESA™ Standard Mount Interface (mm)

    200 x 200

  • Carton Dimensions (W x H x D, mm)

    1070 x 645 x 113mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8 GB

  • Wi-Fi/BT (Built-in)

    Yes

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • Acceleration (Gyro) Sensor

    Yes

  • Local Key Operation

    Yes

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 6.1

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail Over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • Screen Share

    Yes

  • Video Tag

    Yes (4 Video Tag)

  • Play Via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Crestron Connected

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Network Ready

    Yes

  • BEACON

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

  • PBP

    Yes (4PBP)

  • PIP

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

  • Operation Humidity

    10 % to 80 %

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "B" / CE / KC

  • ERP / Energy Star

    O / O

  • ePEAT (US only)

    Yes

SOFTWARE COMPATIBILITY

  • Connected Care

    Yes

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Cloud

    Yes

  • Mobile CMS

    Yes

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender

  • Optional

    Slim Wall Mount (WB21LMA/B), Wall Mount (LSW240A/B)

SOUND

  • Speaker (Built-in)

    Yes (10 W x 2)

POWER CONSUMPTION

  • Typ.

    102W

  • Max.

    160W

  • Others - BTU (British Thermal Unit)

    348.038BTU/Hr(Typ.), 545.943BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    71.4W

  • DPM

    0.5W

  • Power off

    0.5W
