LG UHD Large Screen Signage Display

98UM5K-B

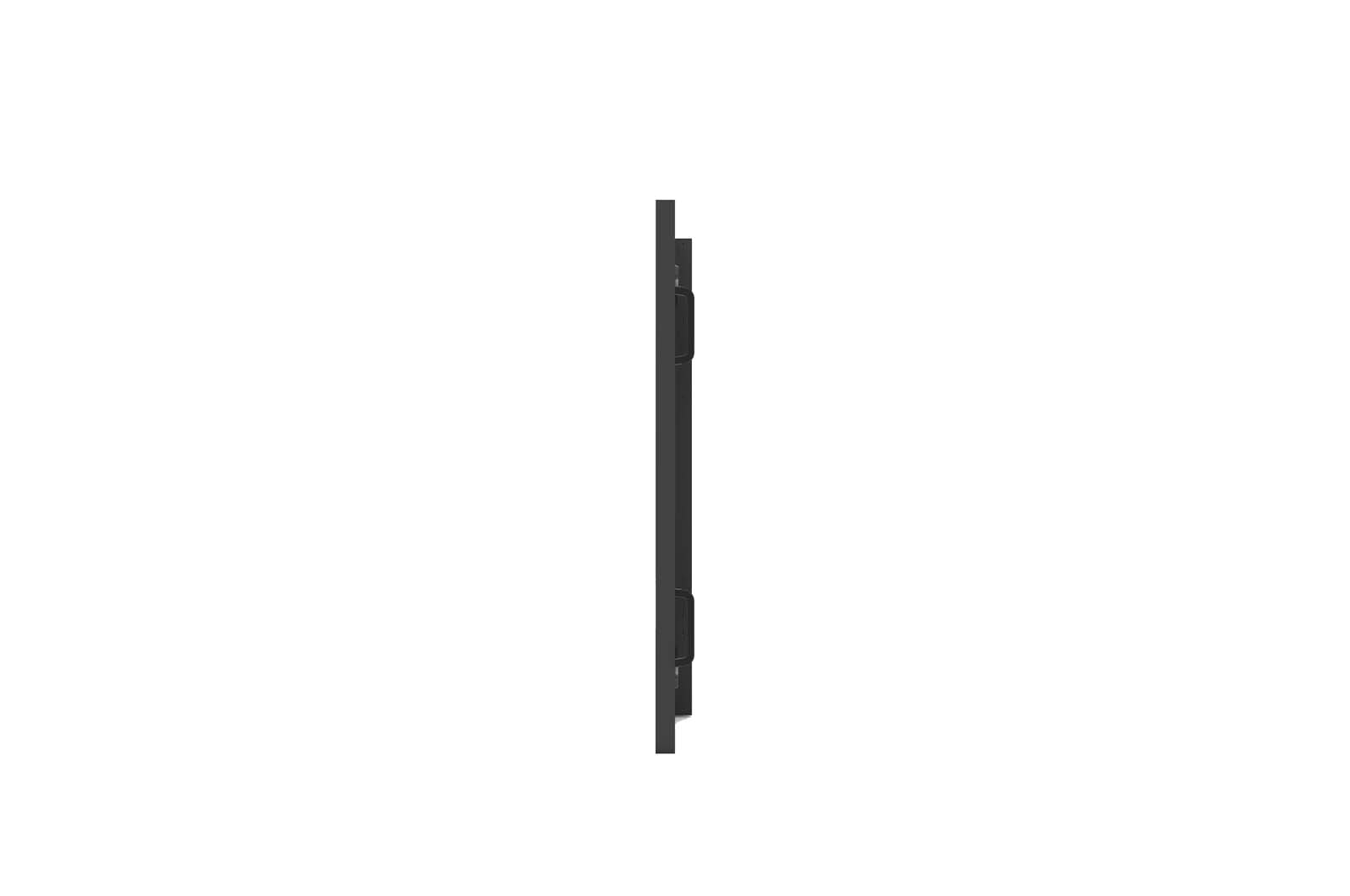

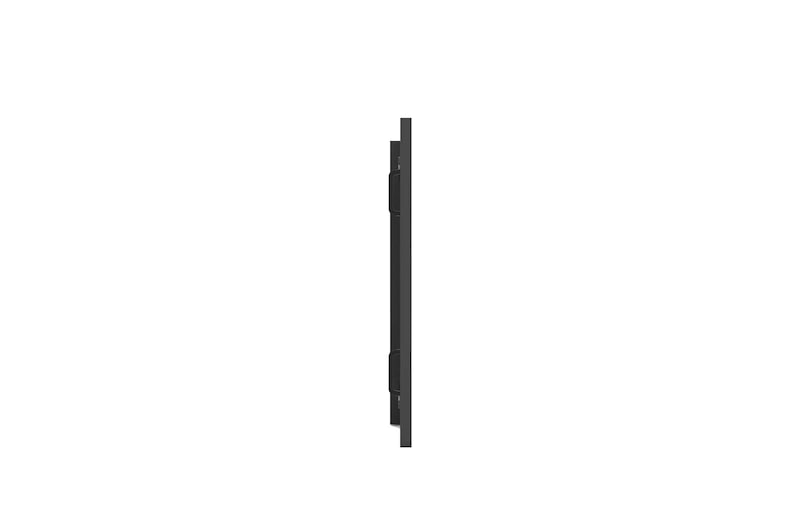

LG UHD Large Screen Signage Display, -90 degree side view, 98UM5K

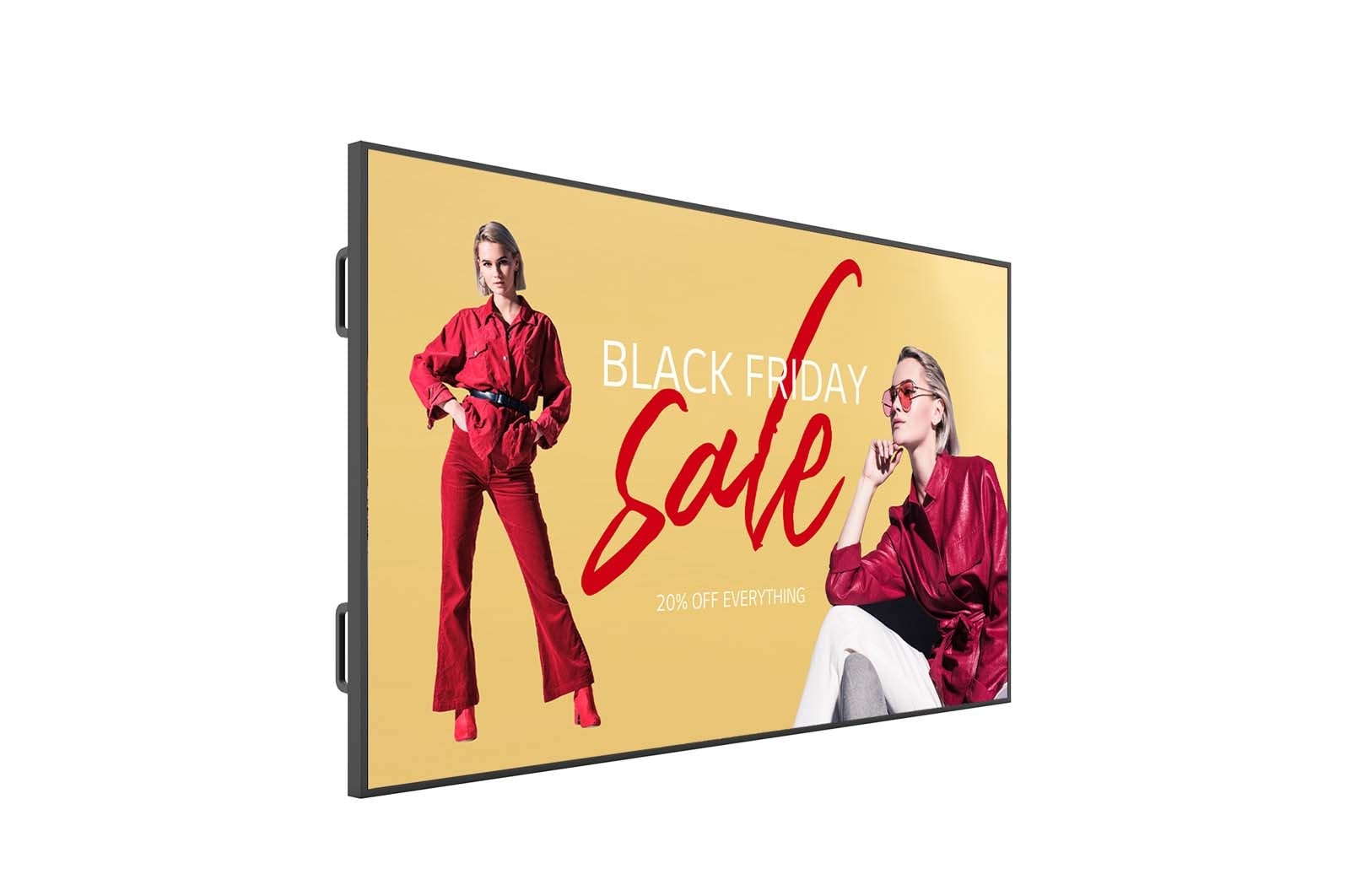

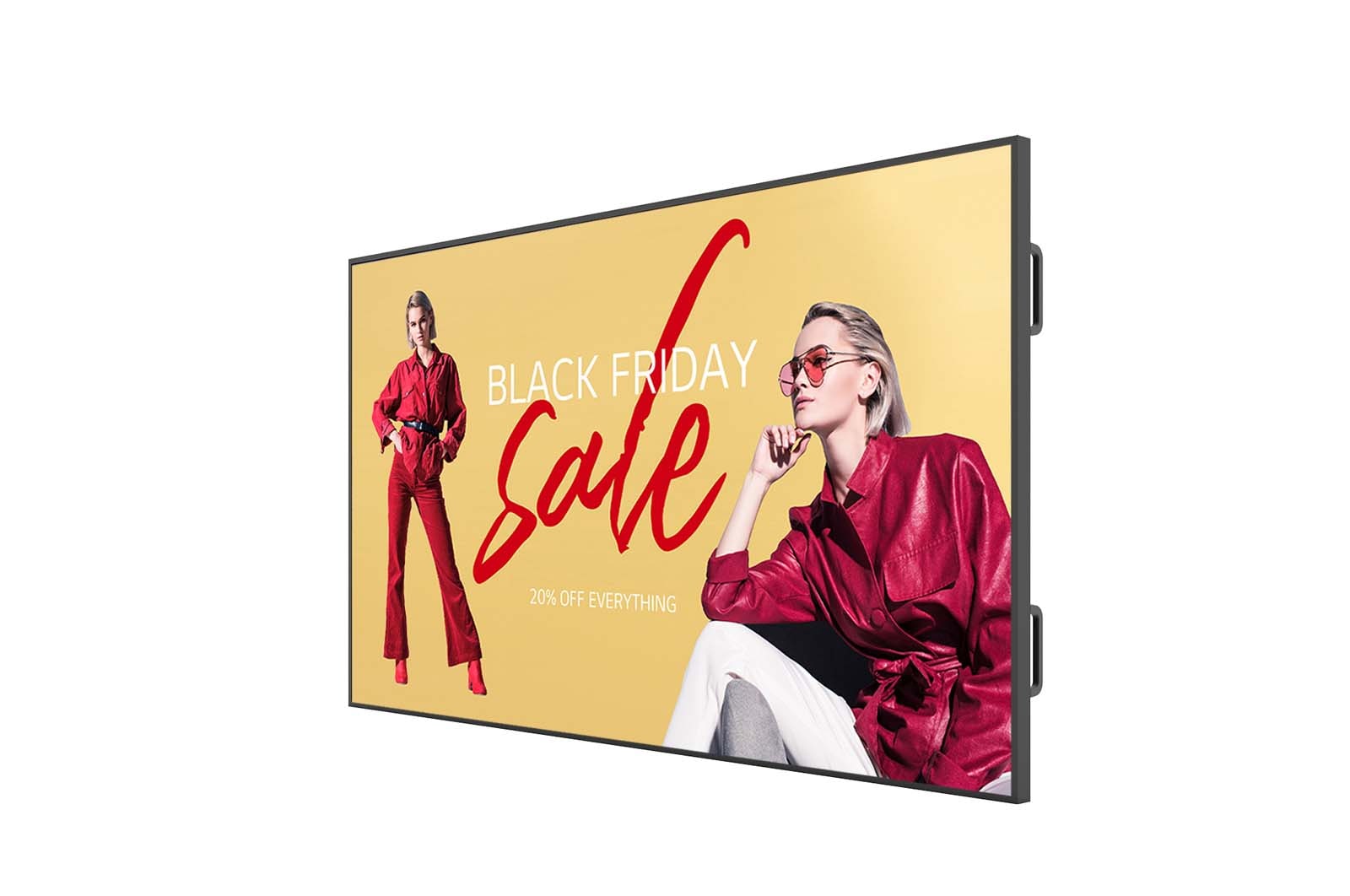

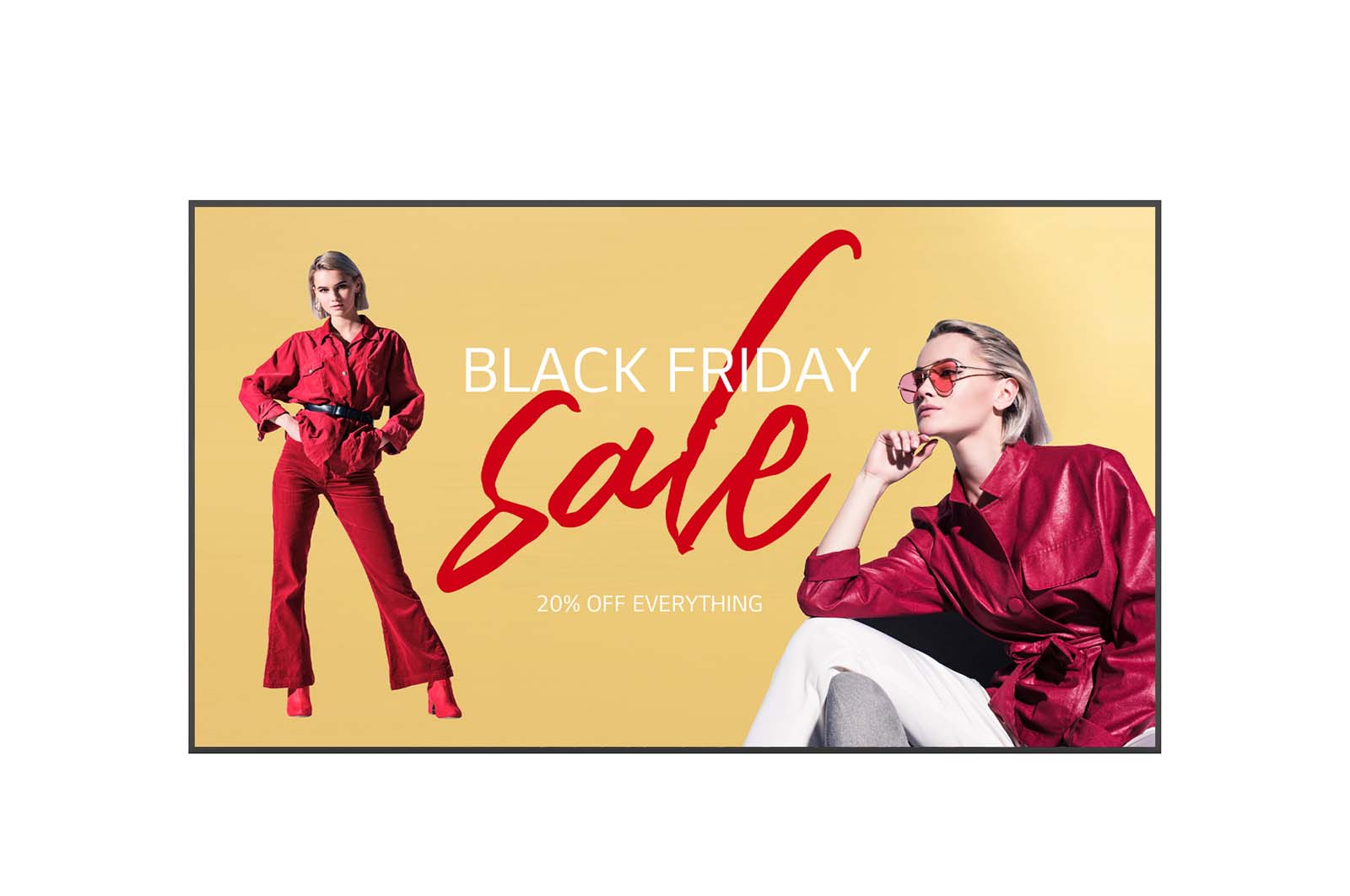

LG UHD Large Screen Signage Display, +45 degree side view with infill image, 98UM5K, thumbnail 4

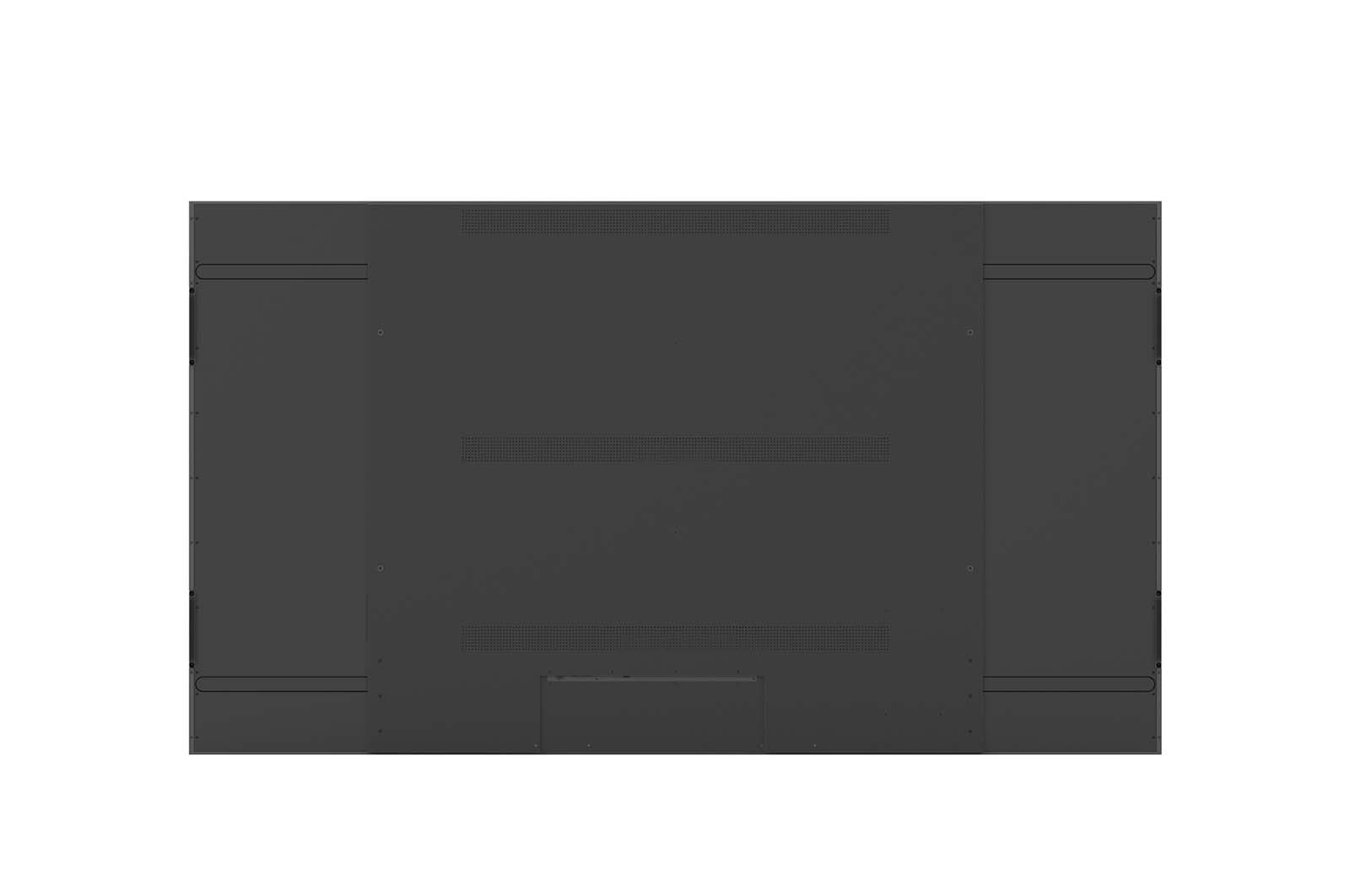

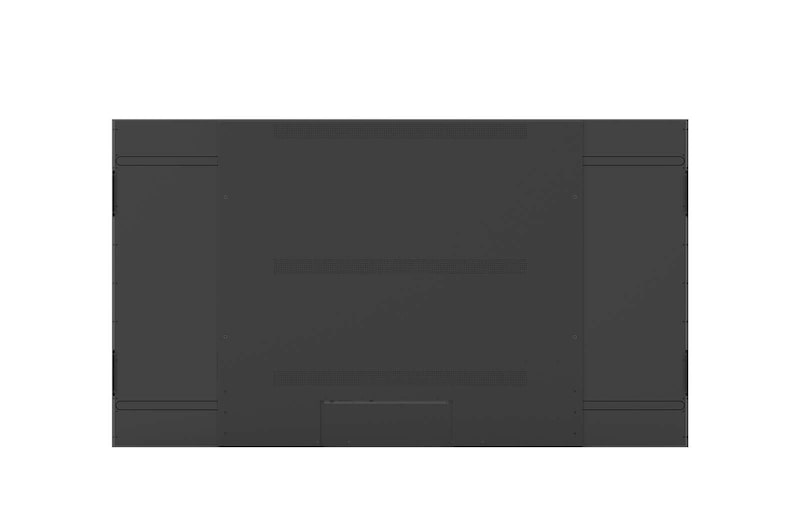

LG UHD Large Screen Signage Display, Rear view, 98UM5K

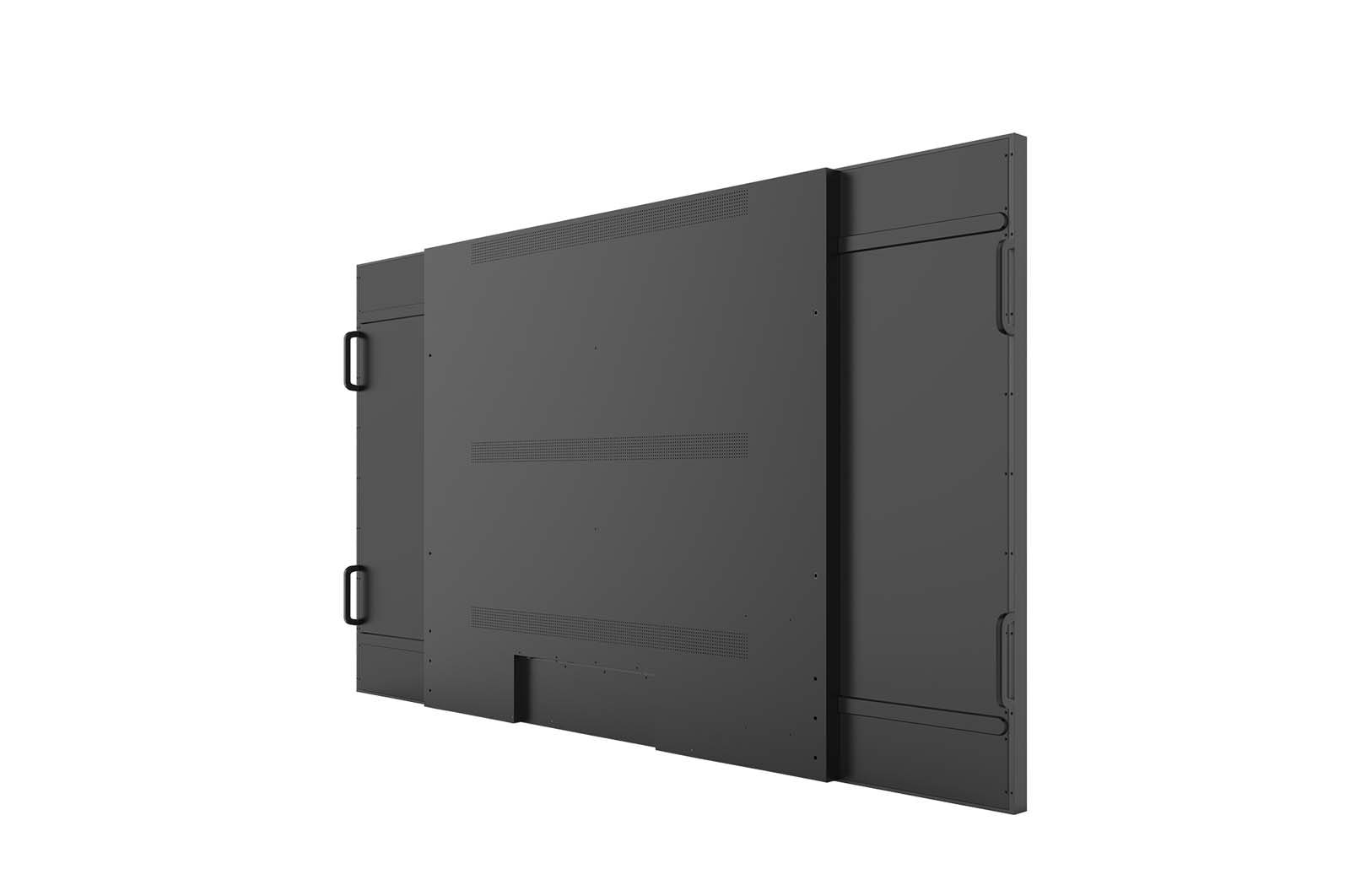

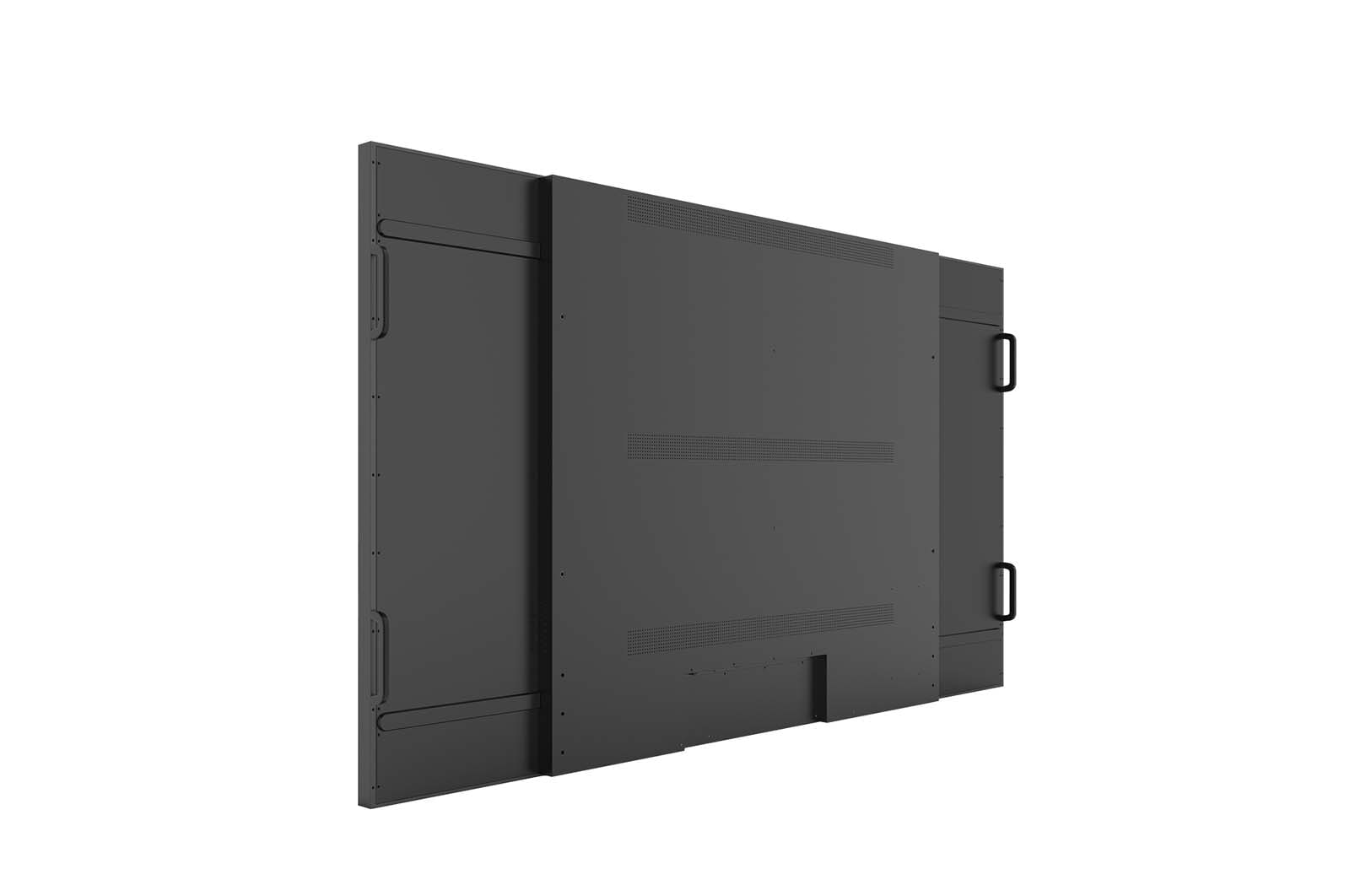

LG UHD Large Screen Signage Display, -45 degree rear view, 98UM5K

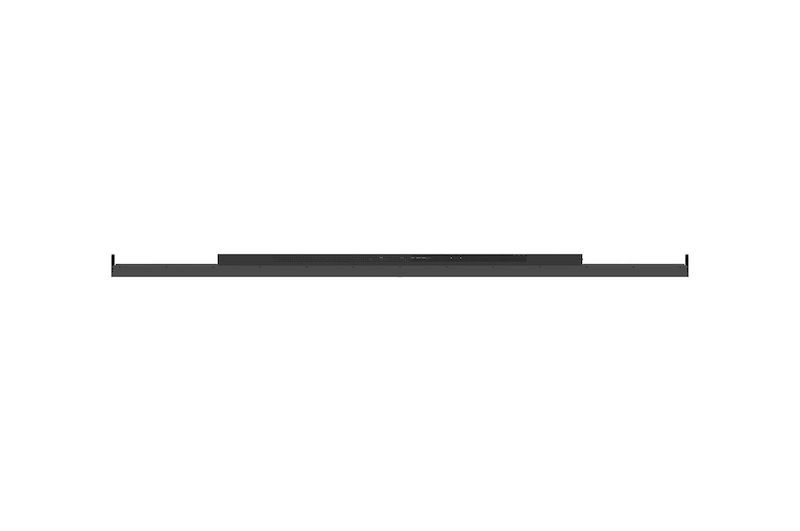

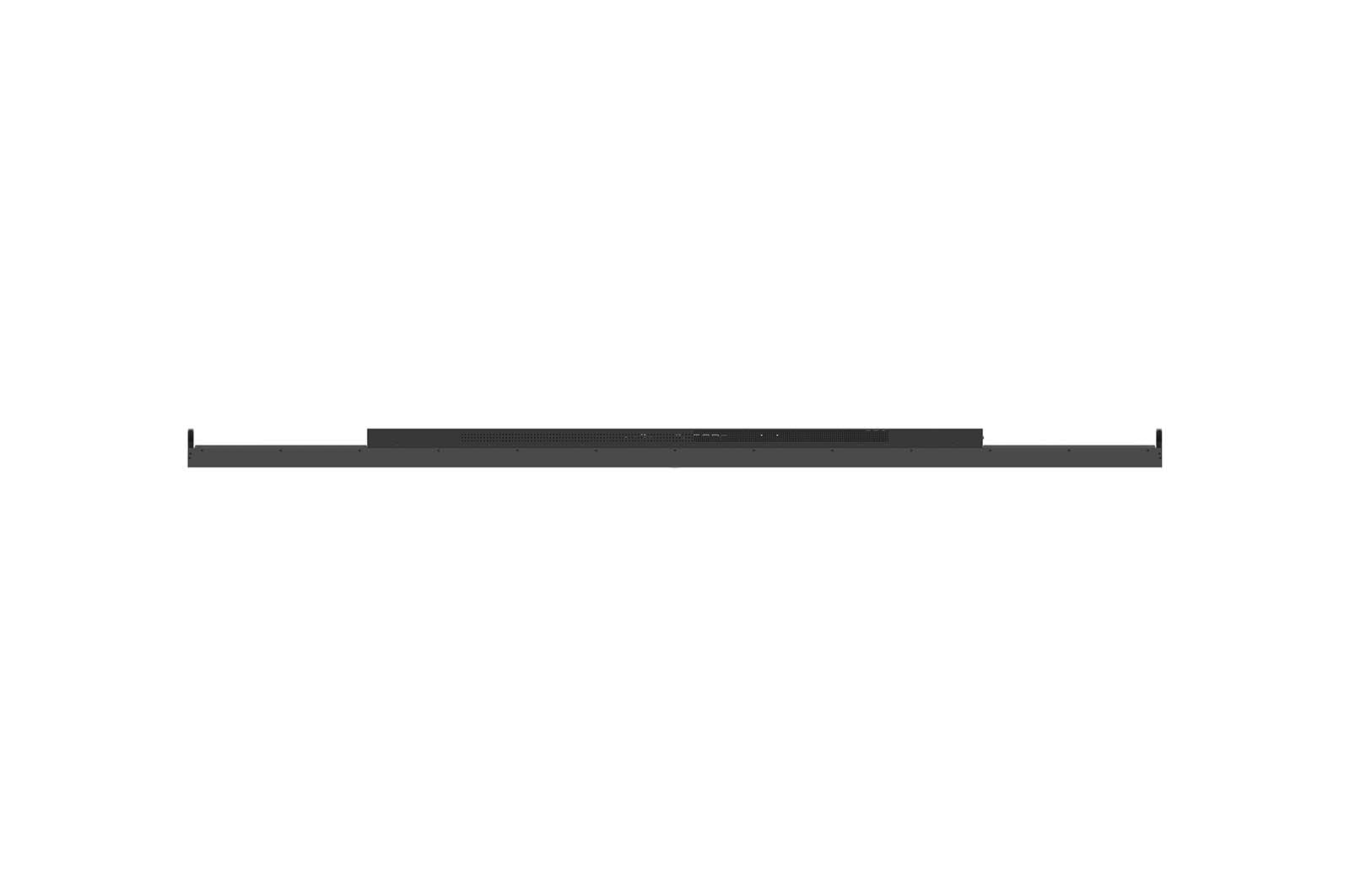

LG UHD Large Screen Signage Display, Top view, 98UM5K

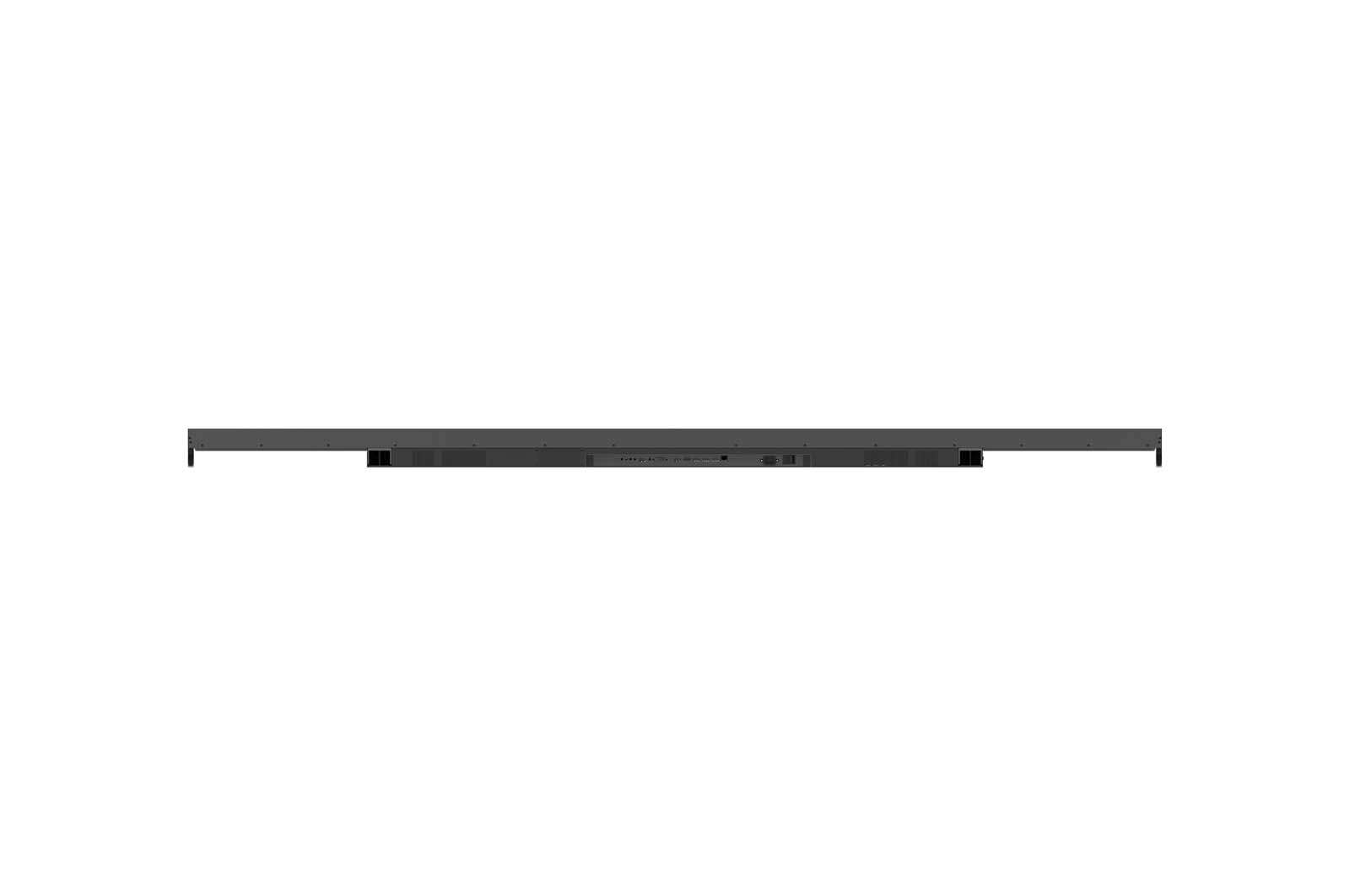

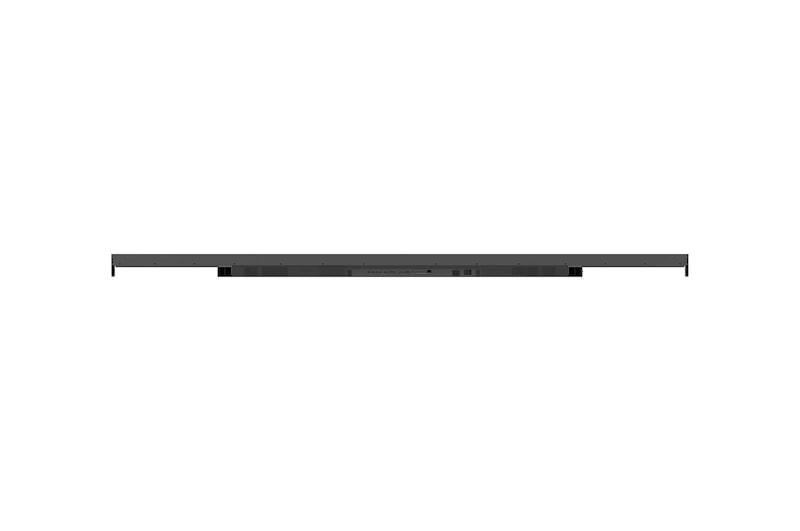

LG UHD Large Screen Signage Display, Bottom view, 98UM5K

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Bezel : 17 mm (Even bezel)
Built-in Speaker (10 W + 10 W)
Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor

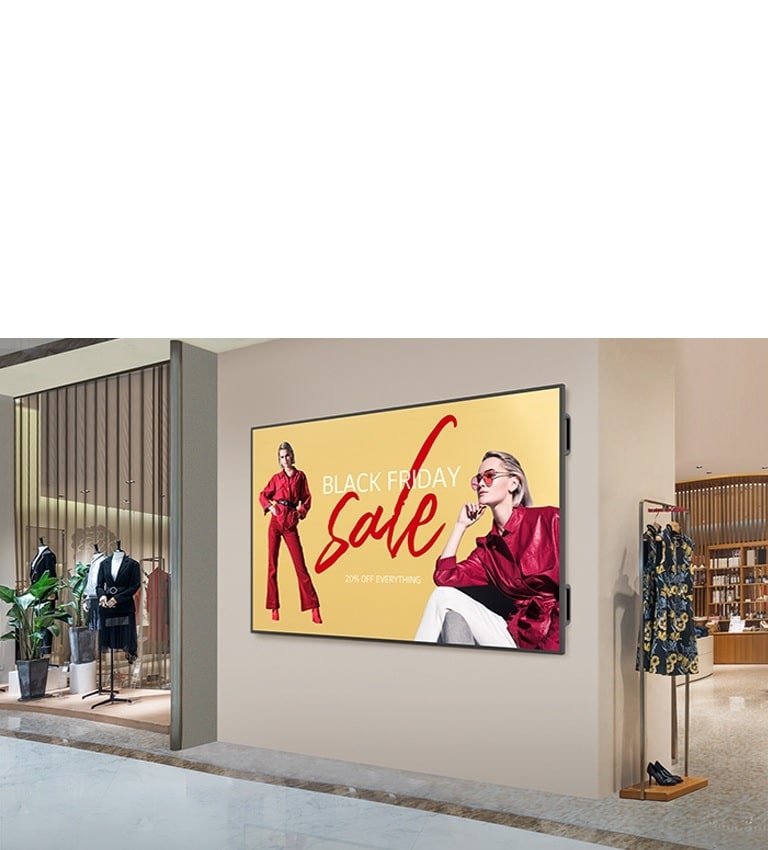

A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

UHD Large Screen Signage Display with LG webOS Platform

*All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

_{*Actual images available may differ from the example images shown.}

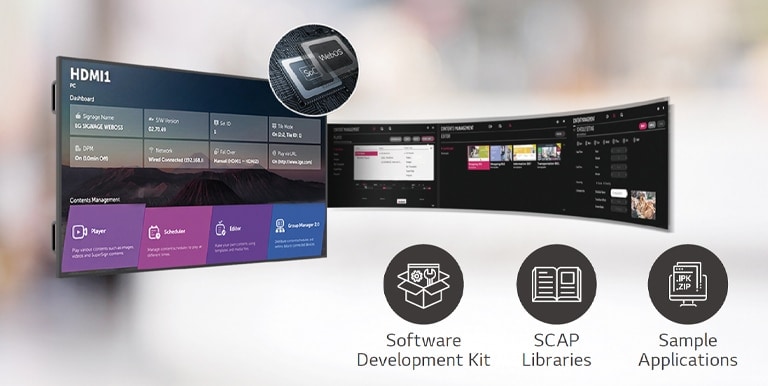

A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

*Internal Built-in Speaker Support (L/R max 10 W).

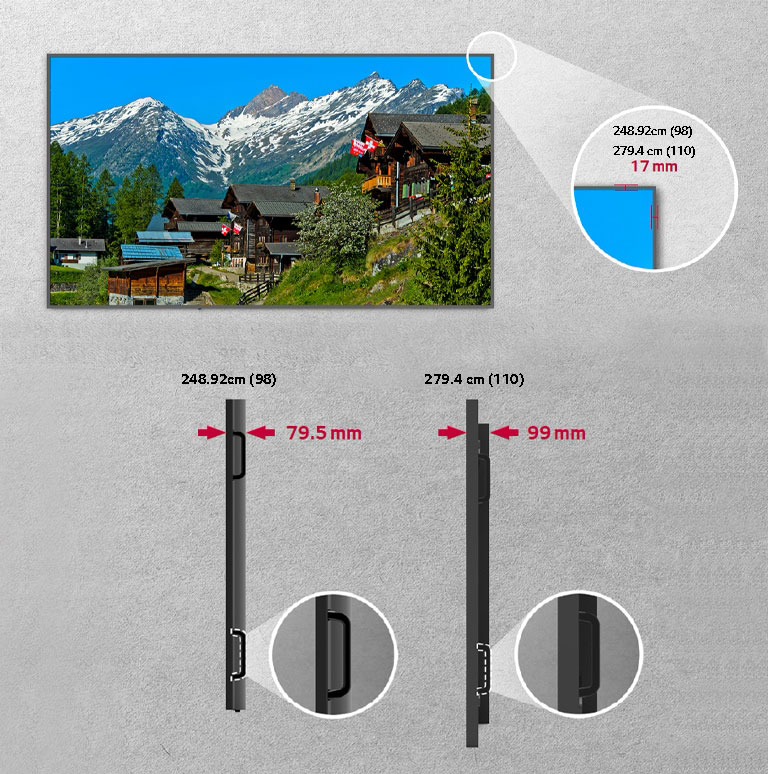

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm.

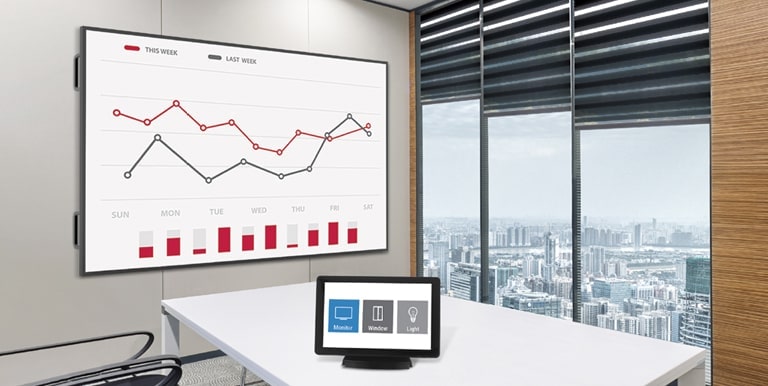

The AV control system helps users control the UM5K

Compatible with AV Control System

The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

All Spec

PANEL

Screen Size
248.92 cm (98)
Panel Technology
ADS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Dynamic CR
200,000:1
Color Gamut
DCI-P3 88%↑
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
8bit + FRC, 1.07Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
25%
Operation Hours (Hours/Day)
16/7
Portait / Landscape
Yes / Yes

CONNECTIVITY

HDMI In
Yes (3), HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4
HDMI In (HDCP Ver.)
HDCP2.2/1.3
DP In
Yes (1), HDCP2.2/1.3
DVI-D In
Yes (1), HDCP1.4
Audio In
Yes (1)
RS232C In
Yes (1), 4pin Phone-jack
RJ45(LAN) In
Yes (1)
IR In
Yes (1)
USB In
USB2.0 Type A(1)
HDMI Out
Yes (1)
DP Out
Yes (1)
Audio Out
Yes (1), 4pin Phone-jack
Daisy Chain
Yes (Input HDMI, DP, DVI / Output HDMI)

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
Even bezel : 17mm
Weight (Head)
78Kg
Packed Weight
105Kg
Monitor Dimensions (W x H x D)
2198 x 1253 x 79.5mm
Handle
Yes
VESA Standard Mount Interface
800 x 400 or 800 x 800
Carton Dimensions (W x H x D)
2455 x 1458 x 288mm

FEATURE - HARDWARE

Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Acceleration(Gyro) Sensor
Yes
Power Indicator
Yes
Local Key Operation
Yes

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail Over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes (4)
Screen Share
Yes
Video Tag
Yes (4)
Play Via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes (Max. 15x15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
BEACON
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit)
1467 BTU/Hr(Typ.), 1911 BTU/Hr(Max)
Smart Energy Saving (70%)
301W
DPM
0.5W
Power off
0.5W
Max.
560
Typ.
430

SOUND

Speaker (Built-in)
Yes (10W X 2)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
Yes / No

SOFTWARE COMPATIBILITY

SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
