LG Non-Glare Ultra HD Series

Features

Gallery

Specs

Support

Resource

Find a Dealer

LG Non-Glare Ultra HD Series

LG Non-Glare Ultra HD Series

43UH7J-H
(4)

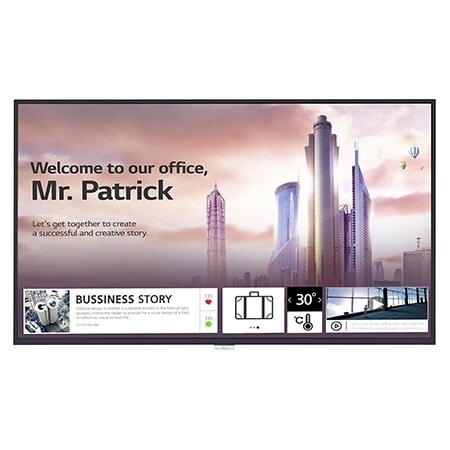

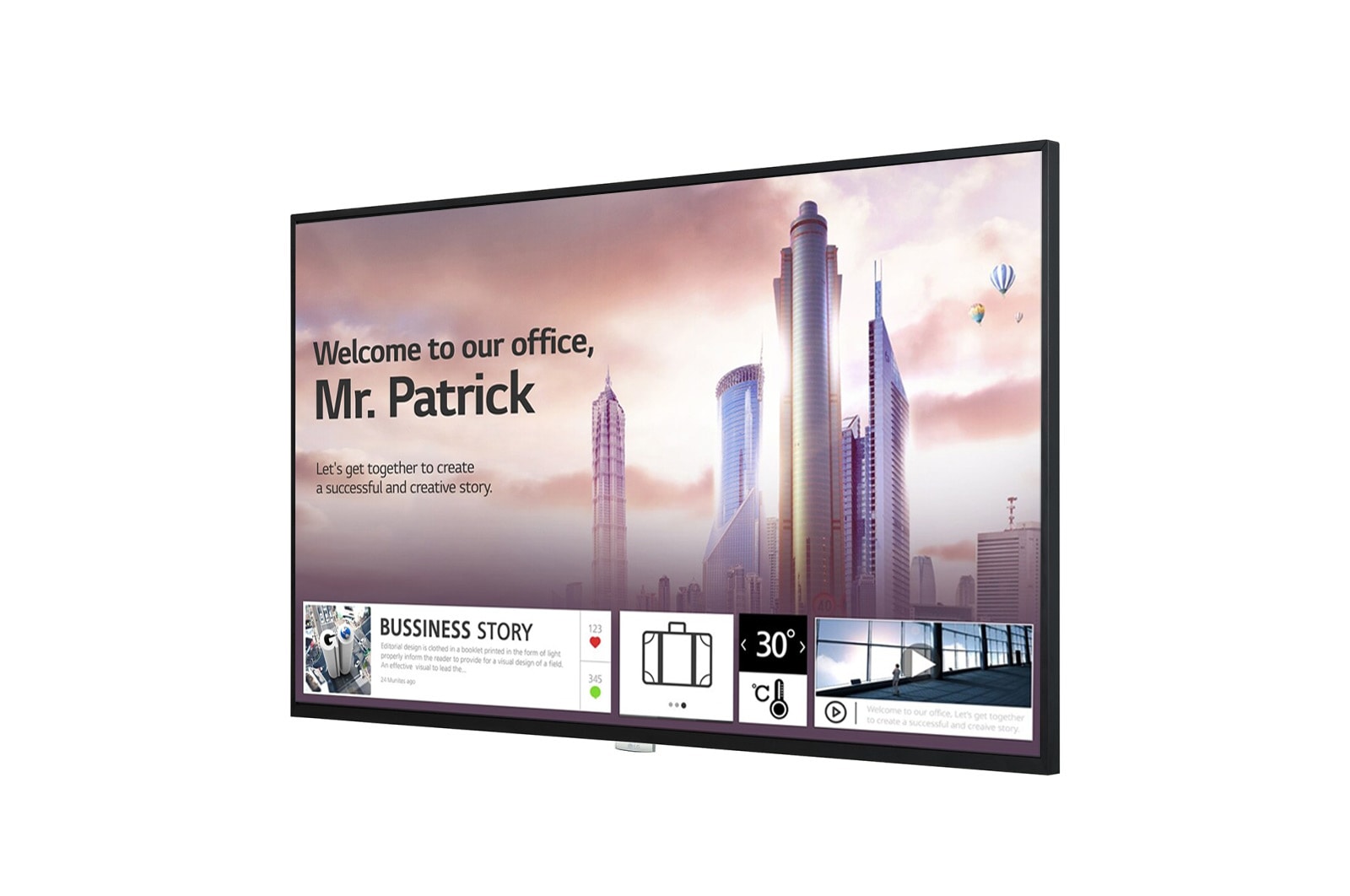

  • Front view with infill image
  • LG Non-Glare Ultra HD Series, 43UH7J-H
  • LG Non-Glare Ultra HD Series, 43UH7J-H
  • LG Non-Glare Ultra HD Series, 43UH7J-H
  • LG Non-Glare Ultra HD Series, 43UH7J-H
  • LG Non-Glare Ultra HD Series, 43UH7J-H
Front view with infill image
LG Non-Glare Ultra HD Series, 43UH7J-H
LG Non-Glare Ultra HD Series, 43UH7J-H
LG Non-Glare Ultra HD Series, 43UH7J-H
LG Non-Glare Ultra HD Series, 43UH7J-H
LG Non-Glare Ultra HD Series, 43UH7J-H

Key Features

  • Brightness(Typ.) : 700 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 8.4 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • 30º Tilting Installation
More

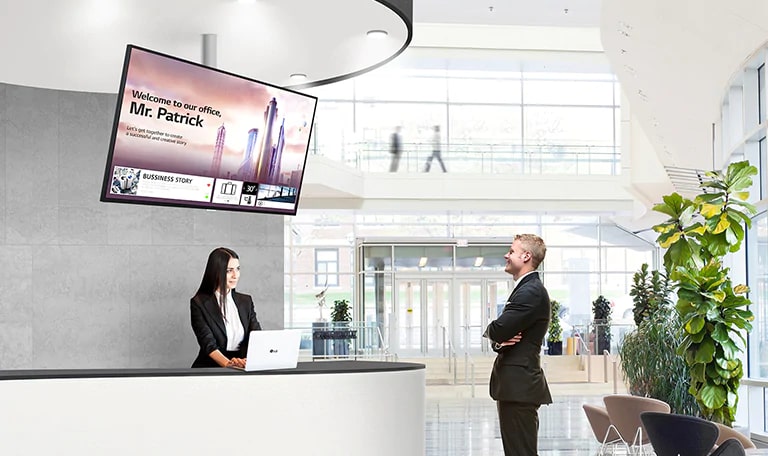

LG 49UH5F UHD Signage Standard
SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

LG 49UH5F Superb Picture Quality

SUPERB PICTURE QUALITY

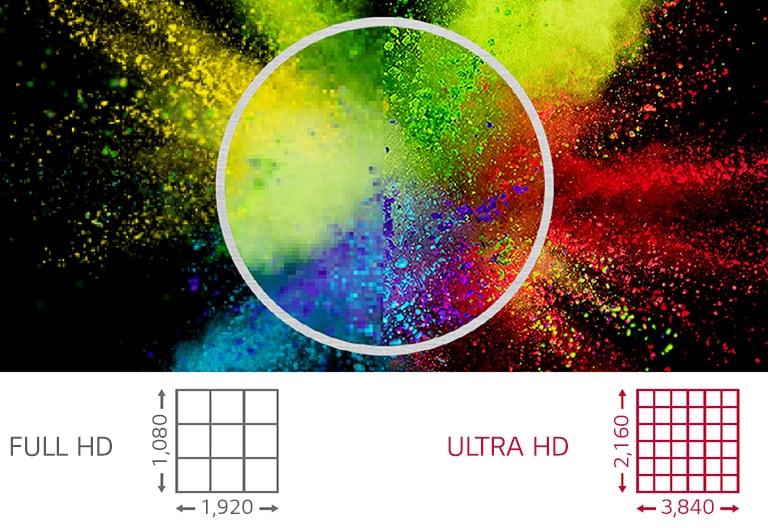

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

LG 49UH5F ULTRA HD Resolution

SLEEK AND PRACTICAL DESIGN

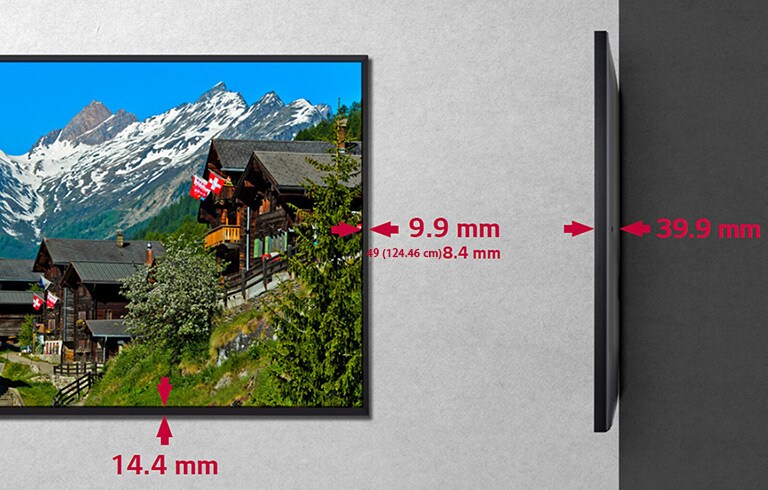

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

LG 49UH5F Narrow Bezel

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

LG 49UH5F Built-in Speaker

PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

LG 49UH5F IP5x Certified Design

PRODUCT RELIABILITY

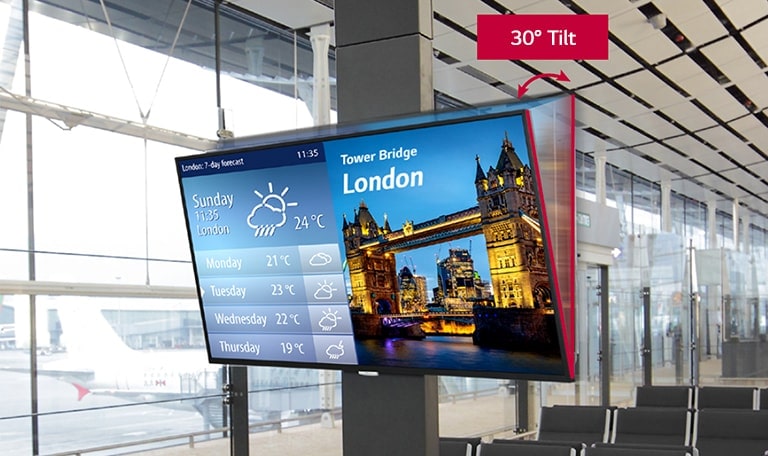

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

LG 49UH5F 30° Tilting Installation

* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

EASY INSTALLATION

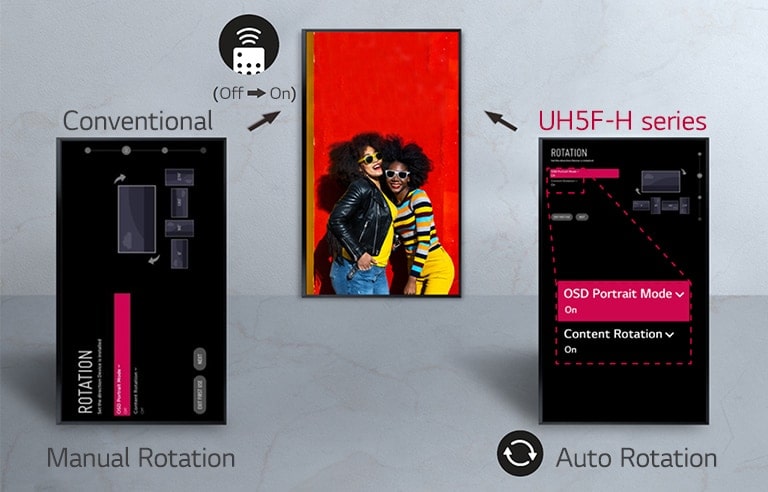

Auto Screen Rotatio

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

LG 49UH5F Auto Screen Rotatio

EASY INSTALLATION

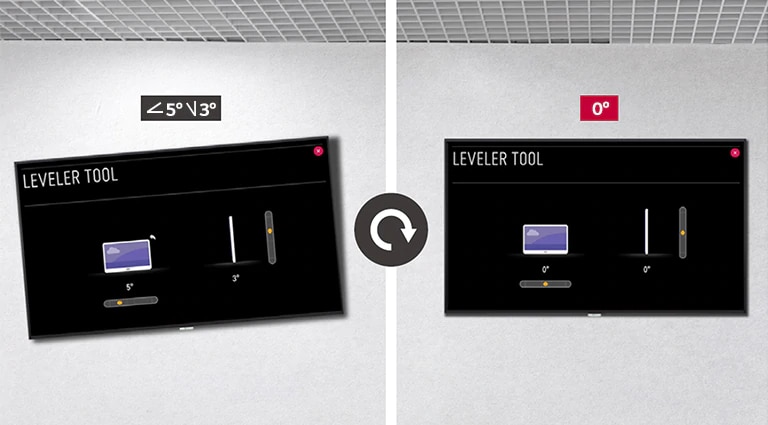

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

LG 49UH5F Fine Adjustment

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

LG 49UH5F High-Performance with webOS

webOS SMART SIGNAGE PLATFORM

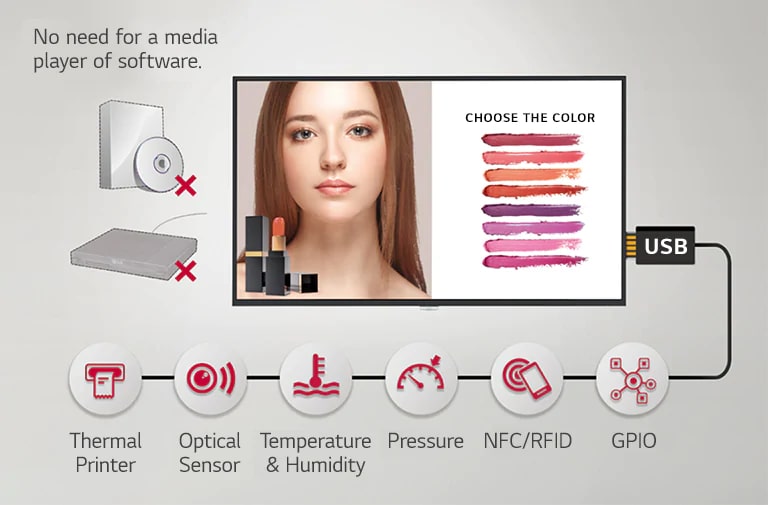

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

LG 49UH5F Various Sensor Applications

MEETING ROOM SOLUTION COMPATIBILITY

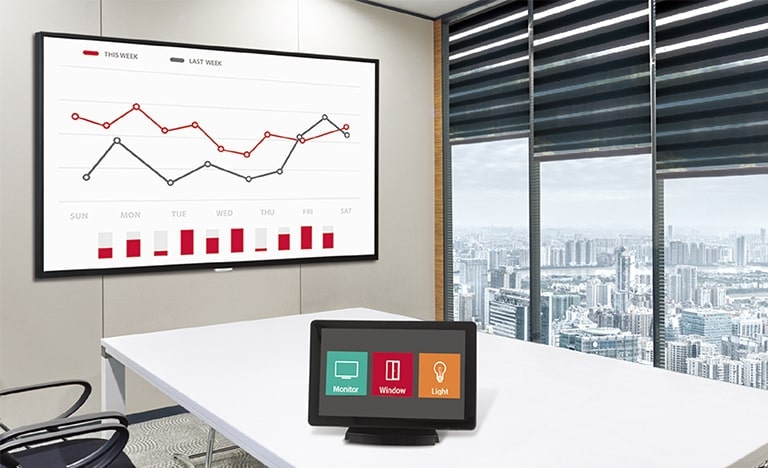

Compatible with AV Control System

The UH7J-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

LG 49UH5F AV Control System

MEETING ROOM SOLUTION COMPATIBILITY

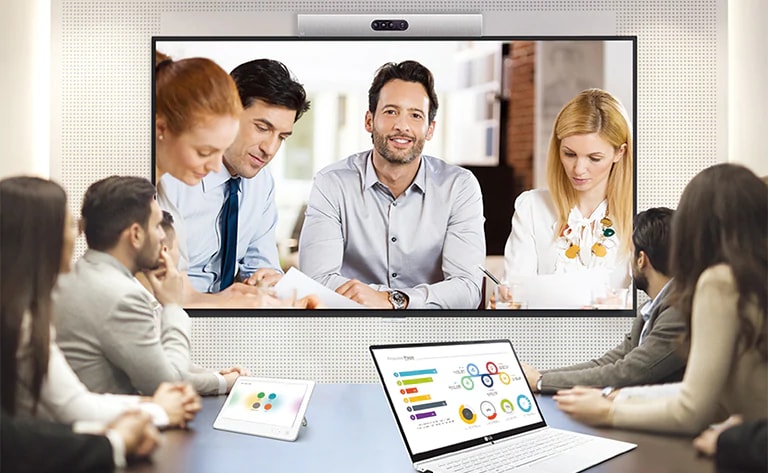

Compatible with Video Conference System

For the optimum visual meeting, the UH7J-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

LG 49UH5F Video Conference System

* Using an HDMI cable connection

 ENERGY STAR® Certified

Print

All Spec

PANEL

  • Screen Size (Inch)

    43

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    700nit (Typ.)

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    BT709 95%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 25%

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    YES (HDCP 2.2/1.3)

  • DVI-D In

    YES (HDCP 1.4)

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea), USB2.0 Type C (1ea, DP ALT Mode)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    YES

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    Input : HDMI, DP / Output : DP

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 8.4mm, B: 14.4mm

  • Weight (Head)

    11.2Kg

  • Packed Weight

    13.7Kg

  • Monitor Dimensions (W x H x D)

    962.5 x 568.0 x 39.9mm

  • Monitor Dimension with Stand (W x H x D)

    962.5 x 613.1 x 290.0mm

  • Handle

    NO

  • VESA Standard Mount Interface

    200 x 200 mm

  • Carton Dimensions (W x H x D)

    1060.0 x 660.0 x 152.0mm

  • Weight (Head+Stand)

    11.8Kg

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    YES

  • Power Indicator

    NO

  • Local Key Operation

    YES

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 6.0

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail Over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    YES

  • PBP

    YES (4PBP)

  • Screen Share

    YES

  • Video Tag

    YES (4 Video Tag)

  • Play Via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    YES

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • BEACON

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    273 BTU/Hr(Typ.), 410 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    56W

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    120W

  • Typ.

    80W

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    YES(NewErP) / YES

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Piggyback)

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    YES

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable

  • Optional

    Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    Max. 15 degree

  • IP Rating

    IP5X

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A
