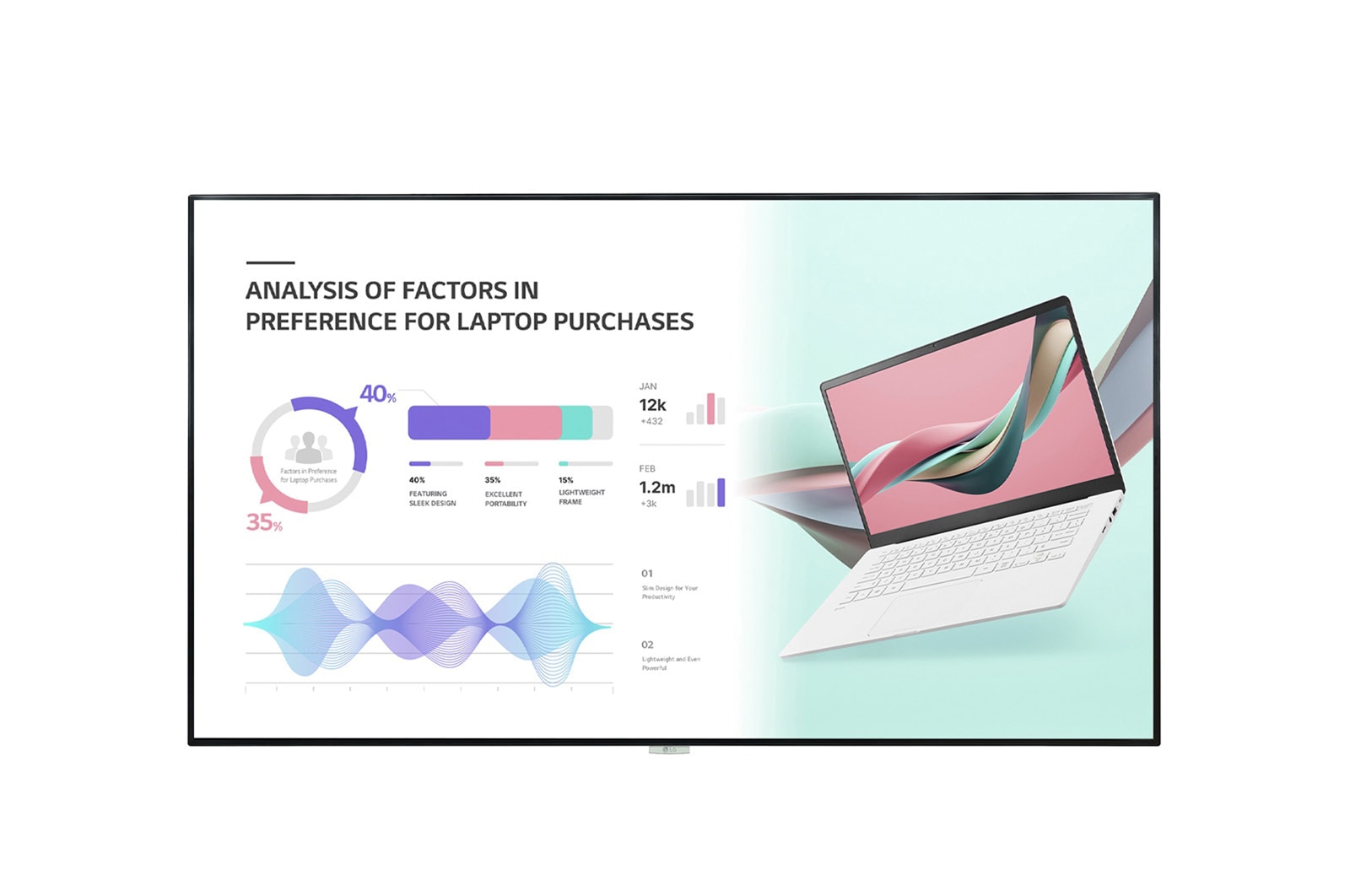

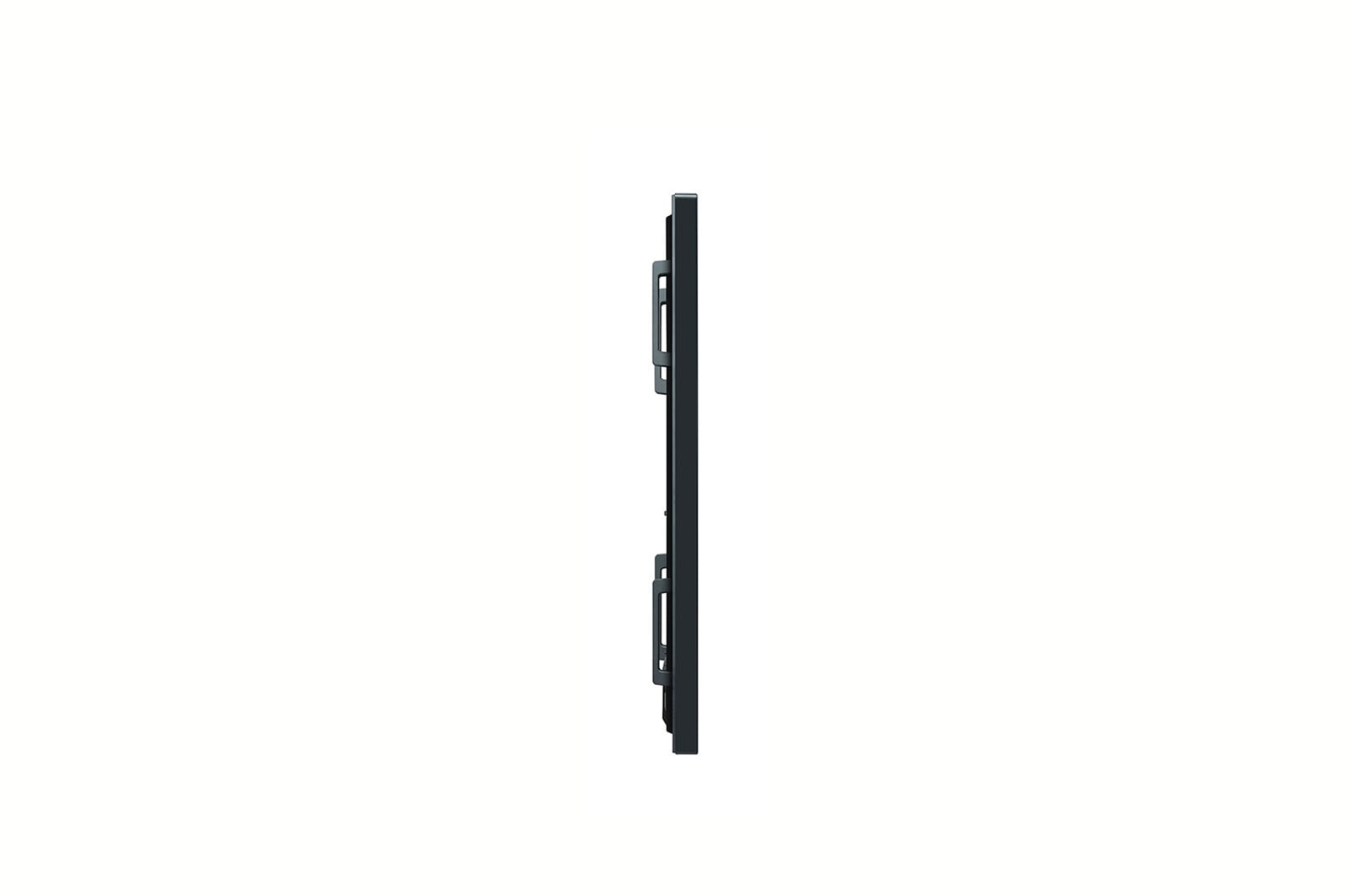

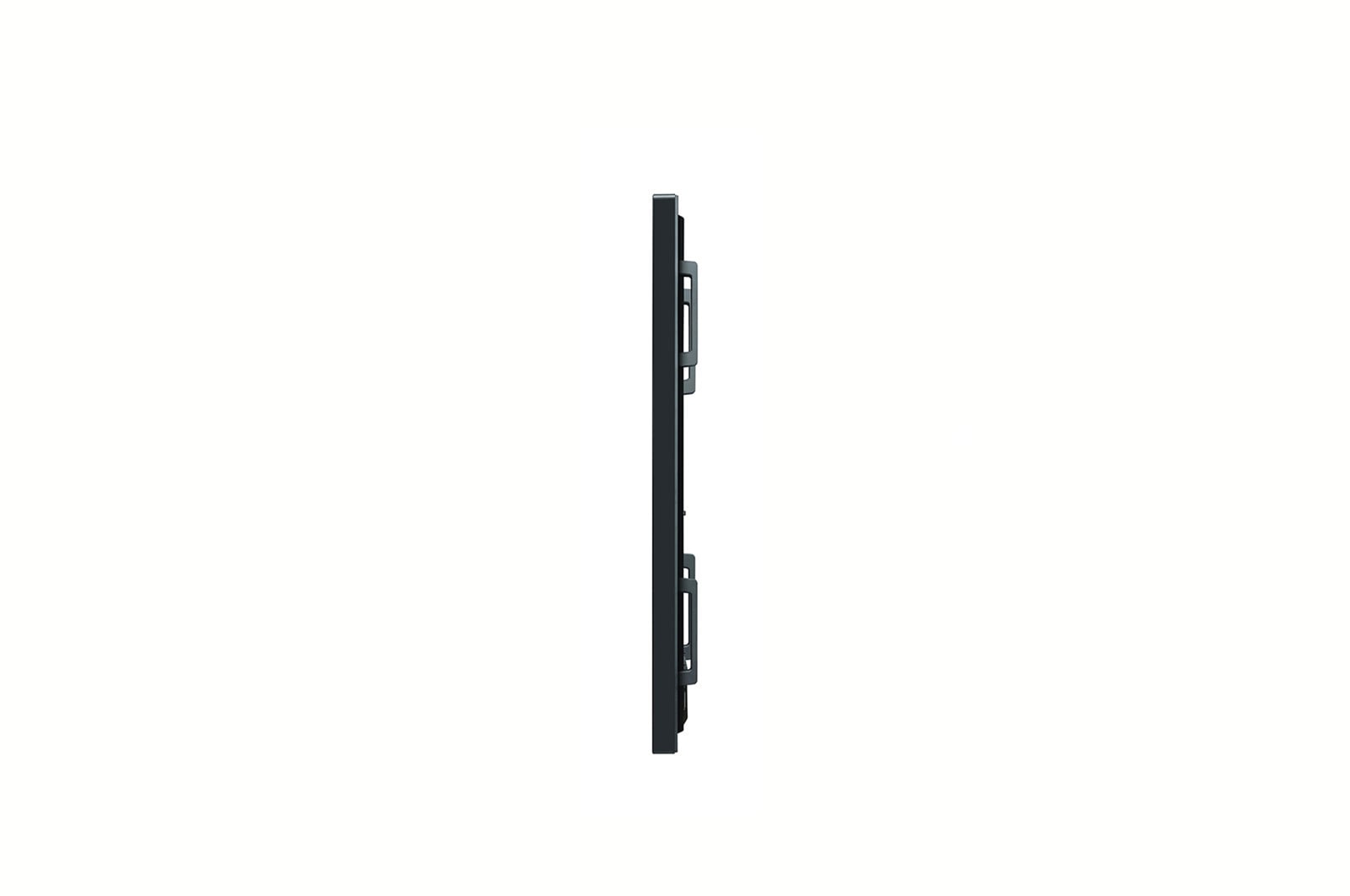

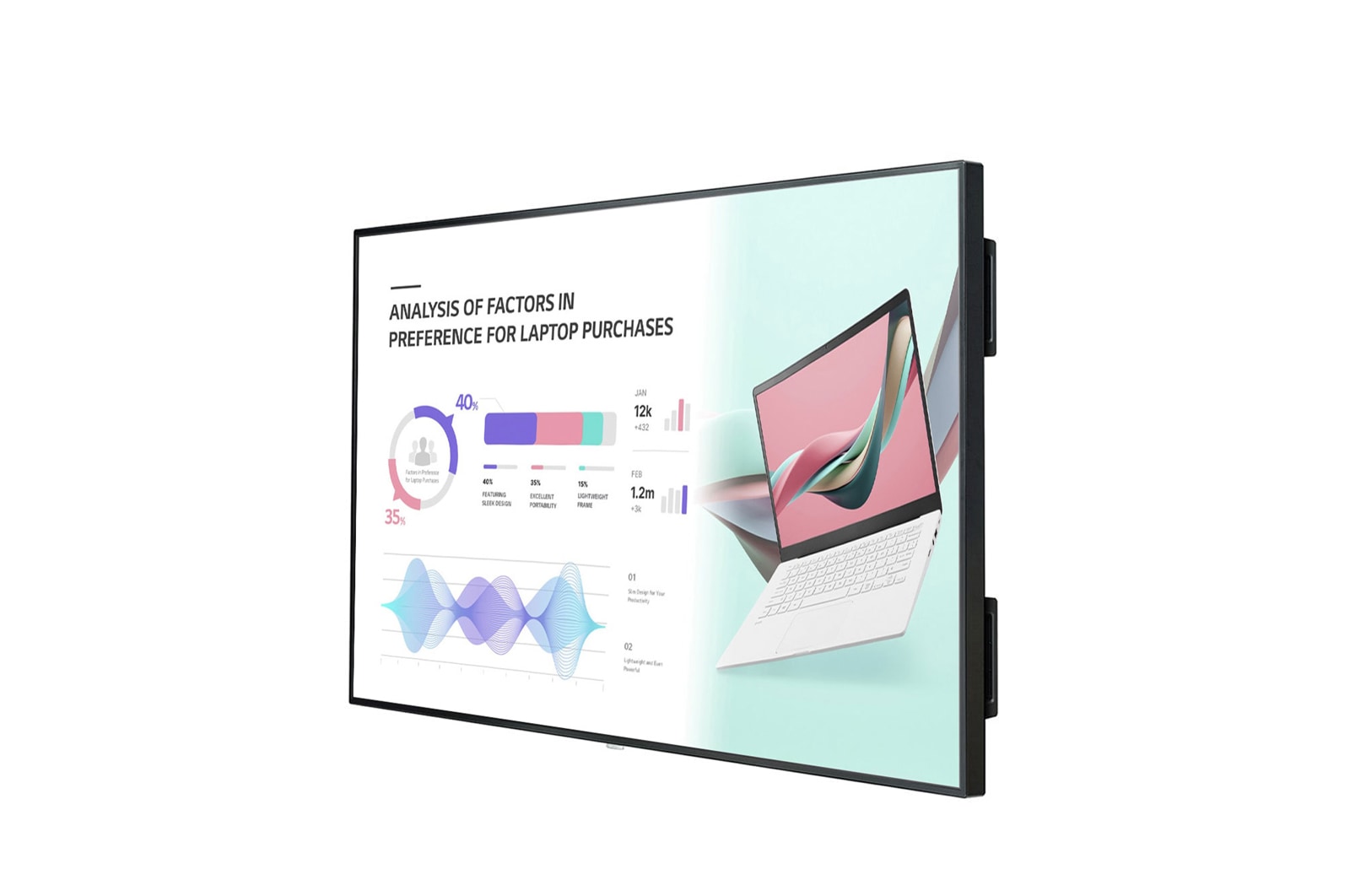

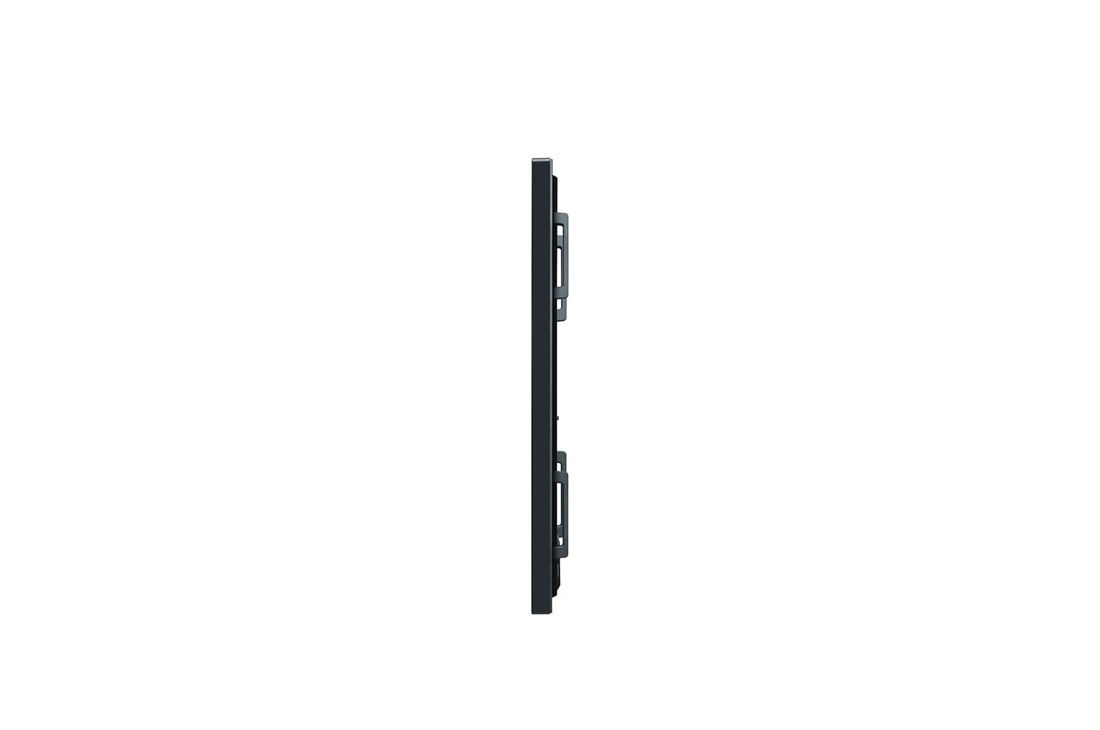

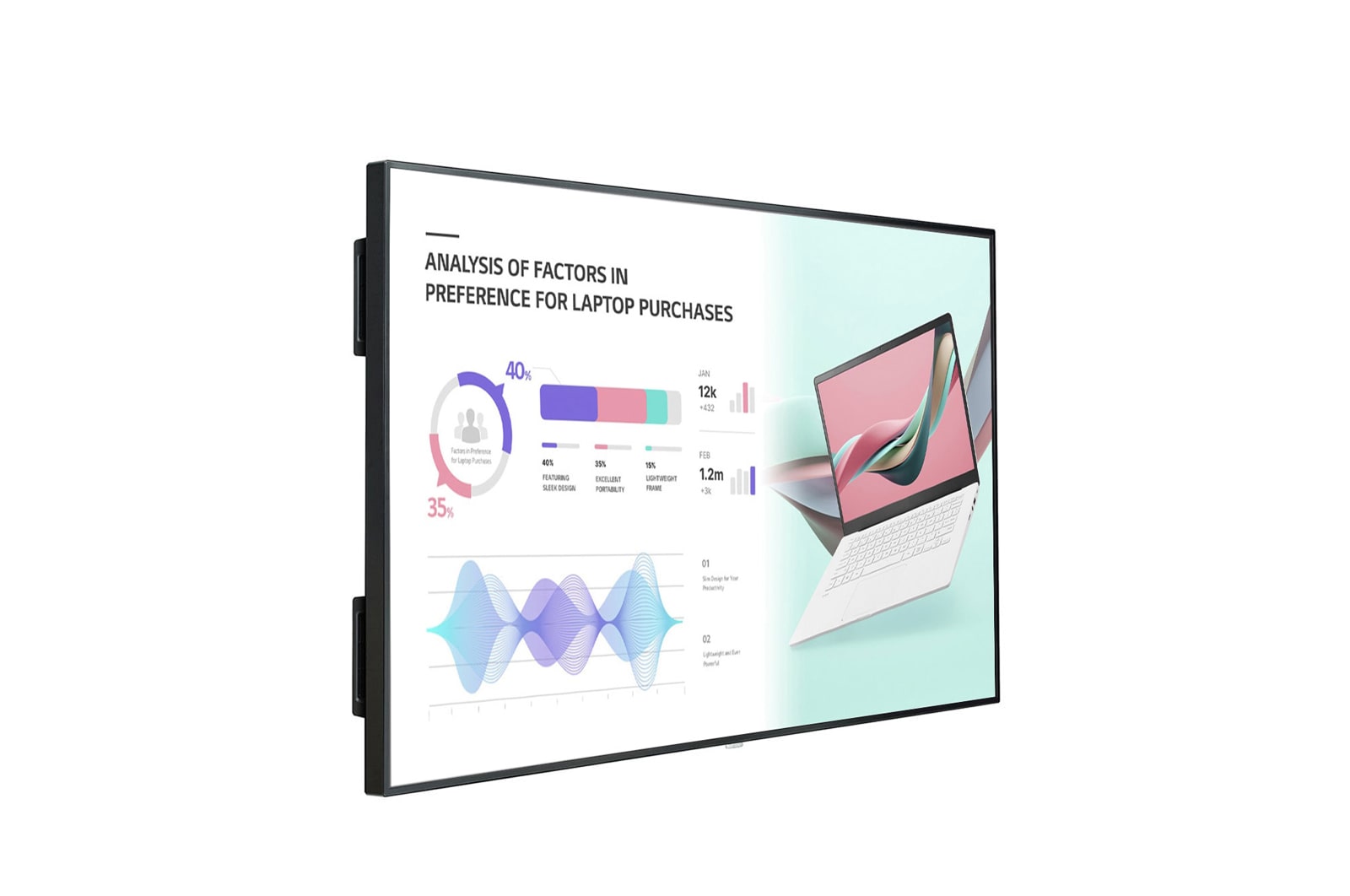

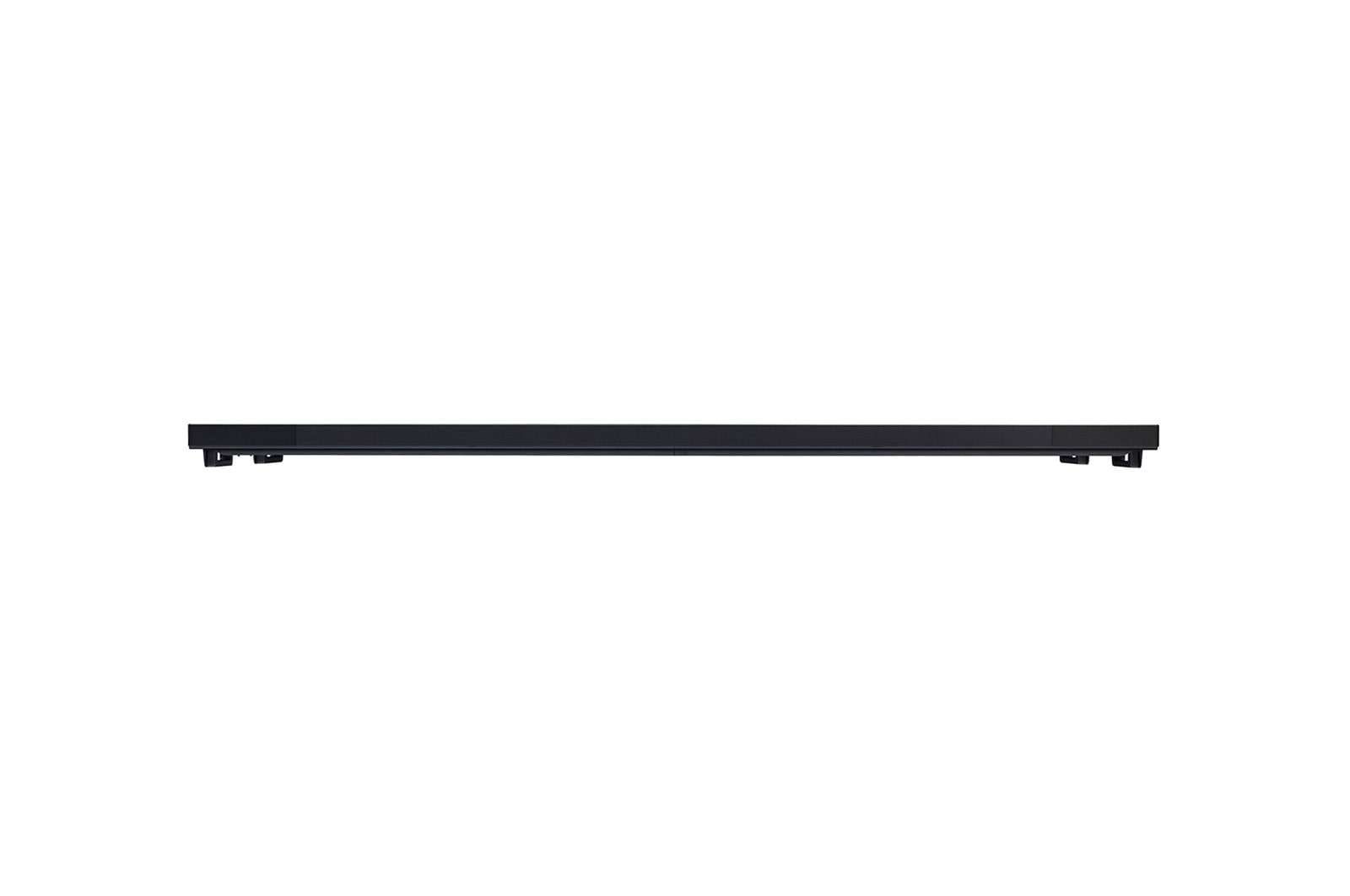

LG 98UH5J-H: New High Haze UHD Standard Signage

LG High Haze UHD Standard Signage

98UH5J-H

Key Features

Brightness (Typ.) : 500 cd/m² (nits)
Surface Treatement (Haze) : 28%
Bezel : 14.9 mm (Even bezel)
Depth : 86.1 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker

All Spec

PANEL

Screen Size: 248.92 cm (98)

Panel Technology: IPS

Back Light Type: Direct

Aspect Ratio: 16:9

Native Resolution: 3840 x 2160 (UHD)

Refresh Rate: 60 Hz

Brightness: 500 cd/m² (nits)

Contrast Ratio: 1,200:1

Dynamic CR: 1,000,000:1

Color Gamut: BT709 95 %

Viewing Angle (H x V): 178 º x 178 º

Color Depth (Number of Colors): 1.07 Billion colors, 10 bit (D)

Response Time: 8 ms (G to G)

Surface Treatment (Haze): Haze 28 %

Life time: 50,000 Hrs (Typ.)

Operation Hours (Hours/Day): 24/7

Portait / Landscape: Yes / Yes

CONNECTIVITY

HDMI In: Yes (3 ea)

HDMI In (HDCP Ver.): 2.2/1.4 (HDMI 3 :HDCP 1.4)

DP In: Yes (HDCP 2.2 / 1.3)

DVI-D In: Yes (HDCP 1.4)

Audio In: Yes

RS232C In: Yes (4 Pin Phone Jack)

RJ45(LAN) In: Yes (1 ea)

IR In: Yes

USB In: USB 2.0 Type A (1 ea)

HDMI Out: Yes

Audio Out: Yes

RS232C Out: Yes (4 Pin Phone Jack)

Daisy Chain: Input : HDMI, DP / Output : HDMI

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: Even bezel : 14.9 mm

Weight (Head): 66 kg

Packed Weight: 104.5 kg

Monitor Dimension (W x H x D, mm): 2191.8 x 1246.8 x 86.1 (without Handle and LG Logo)

Handle: Yes

VESA™ Standard Mount Interface (mm): 800 x 400

Carton Dimensions (W x H x D, mm): 2342 x 1386 x 420

FEATURE - HARDWARE

Internal Memory (eMMC): 16 GB

Wi-Fi/BT (Built-in): Yes

Temperature Sensor: Yes

Auto Brightness Sensor: Yes

Acceleration (Gyro) Sensor: YES

Local Key Operation: YES

FEATURE - SOFTWARE

OS Ver. (webOS): webOS 6.0

Local Contents Scheduling: Yes

Group Manager: Yes

USB Plug & Play: Yes

Fail Over: Yes

Booting Logo Image: Yes

No Signal Image: Yes

RS232C Sync: Yes

Local Network Sync: Yes

PIP: Yes

PBP: Yes (4 PBP)

Screen Share: Yes

Video Tag: Yes (4 Video Tag)

Play Via URL: Yes

Screen Rotation: Yes

External Input Rotation: Yes

Gapless Playback: Yes

Tile Mode Setting: Yes (Max.15x15)

Setting Data Cloning: Yes

SNMP: Yes

ISM Method: Yes

Auto Set ID: Yes

Status Mailing: Yes

Control Manager: Yes

Cisco Certification: Yes

Crestron Connected: Yes

Smart Energy Saving: Yes

PM mode: Yes

Wake on LAN: Yes

Network Ready: Yes

BEACON: Yes

HDMI-CEC: Yes

SI Server Setting: Yes

webRTC: Yes

Pro:Idiom: Yes

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240 V~, 50/60 Hz

Power Type: Built-in Power

POWER CONSUMPTION

Max.: 620 W

Typ.: 420 W

Power off: 0.5 W

DPM: 0.5 W

Others-BTU (British Thermal Unit): 1434 BTU/Hr (Typ.), 2117 BTU/Hr (Max.)

Smart Energy Saving (70%): 294 W

SOUND

Speaker (Built-in): Yes (10 W x 2)

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "A" / CE / KC

ERP / Energy Star: Yes (NewErP)

SOFTWARE COMPATIBILITY

SuperSign CMS: Yes

SuperSign Control+: Yes

SuperSign WB: Yes

SuperSign Cloud: Yes

Mobile CMS: Yes

Connected Care: Yes

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic: Remote Controller (include battery 2 ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, EYE Bolt
