LG Stretch Signage

37BH7N

Key Features

Resolution : 1,920 × 540
Brightness : 700 nit
32:9 Wide Screen

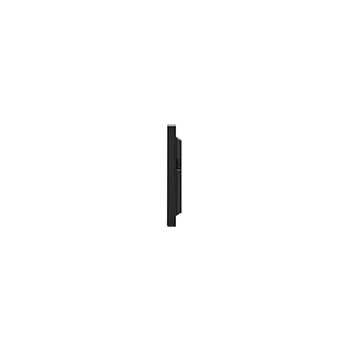

Slim Design
SuperSign CMS, SuperSign Control+, SuperSign WB, Mobile CMS, LG ConnectedCare
webOS Solution

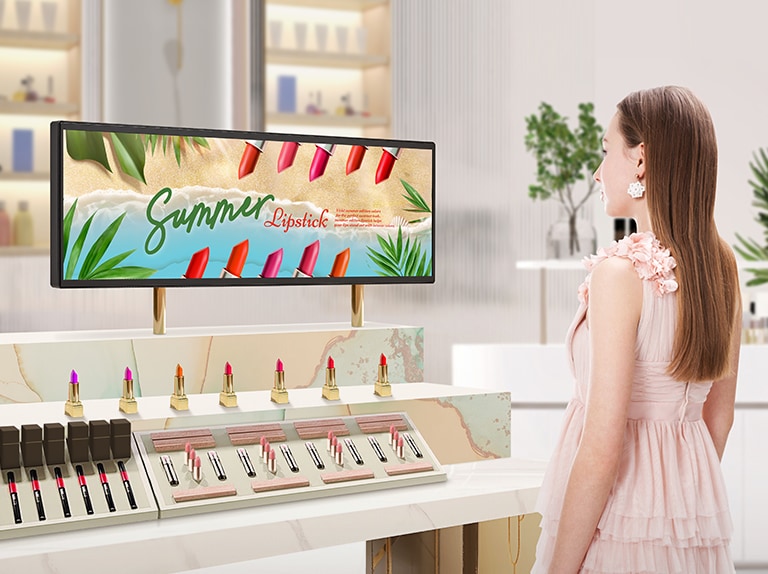

Bring the Remaining Space to Life with Space-fitting 32:9 Widescreen

*All images in this page are for illustrative purposes only.

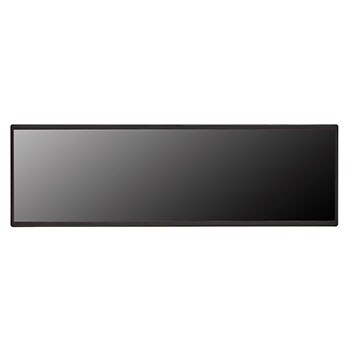

32:9 Extended Wide Format

It is a unique wide screen with 32:9 bar type which provides much more flexibility in content than the conventional display of 16:9 ratio.

Picture-by-Picture (PBP) Mode

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display. It is very useful and convenient to deliver various advertisements or pieces of information at the same time.

Portrait/Landscape Mode

BH7N can be used vertically as well, allowing for flexible utilization in various installation/usage scenes in both horizontal and vertical orientations. It can be utilized for displays according to the characteristics and size of unused and leftover spaces.

Customizable Angle to Suit Customer's Eye Level

With a tilting capability of 30° when installed at a higher height, BH7N enhances customer perception and satisfaction.

Highly Reliable in High Humidity Environments

Optimized for business environments, the BH7N is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation.

Indoor Display Offering a Vivid and Sharp Visual Experience

With a great brightness of 700 cd/m2, the BH7N series clearly deliver content and attract public attention, making it suitable display for marketing in airports, retail, shopping malls etc.

*The provided image is intended for comparison purposes only.

Daisy Chain Management

A daisy chain allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player, ultimately resulting in cost savings during installation.

*You can play media by connecting an external HDMI.

High Performance with LG webOS 6.0

LG webOS 6.0 is available on BH7N series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.*

*GUI : Graphical User Interface.
*The provided image is solely for reference.

Real-Time Monitoring with LG ConnectedCare

Easy and Fast maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

SuperSign

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

All Spec

PANEL

Screen Size
93.98 cm (37)
Panel Technology
IPS (ADS)
Back Light Type
Edge
Aspect Ratio
32:9
Native Resolution
1920 x 540 (FHD)
Refresh Rate
60 Hz
Brightness
700nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
1,000,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
8 bit,16.7 Million colors
Response Time
14ms (G to G)
Surface Treatment (Haze)
25%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes

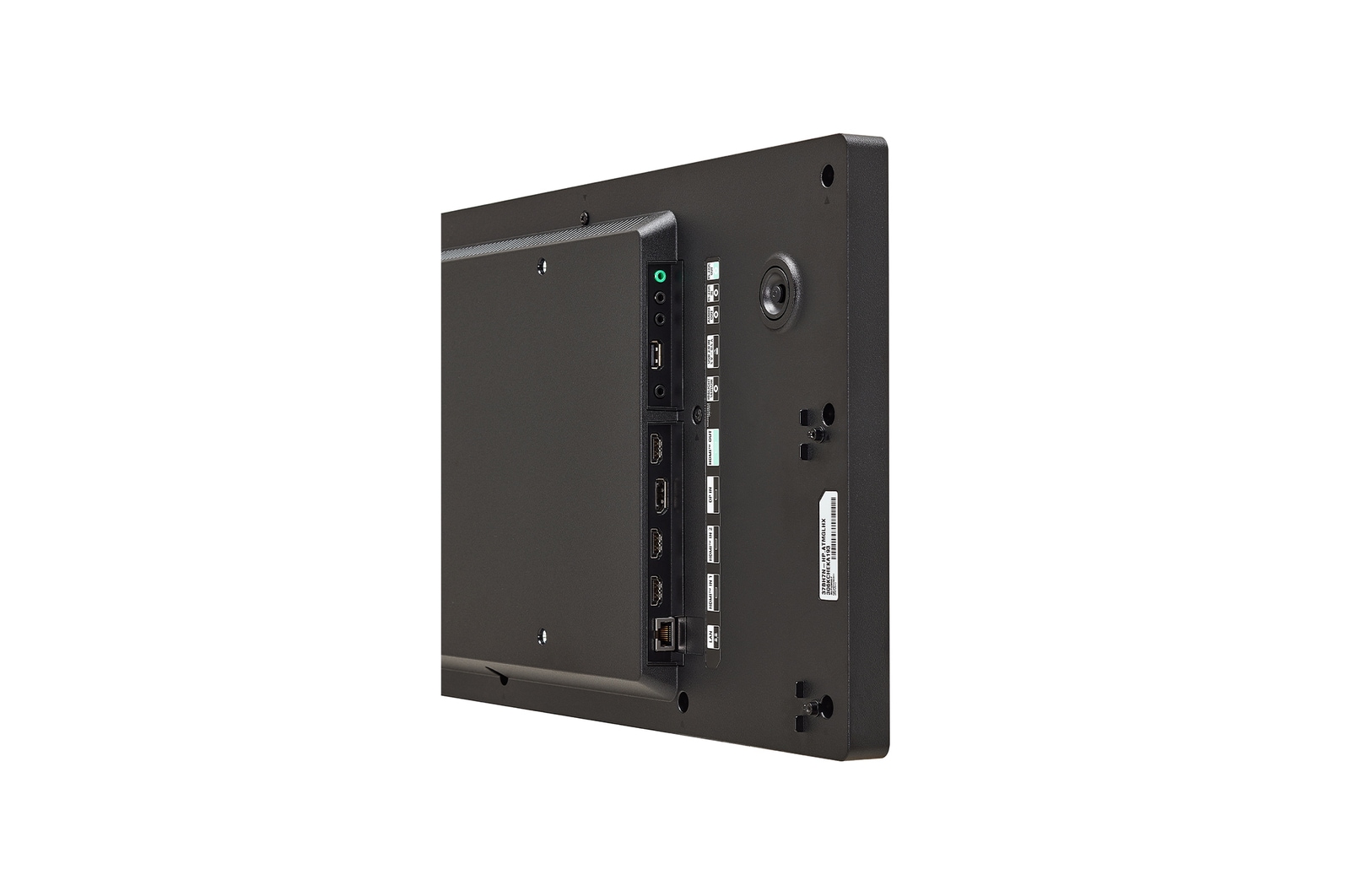

CONNECTIVITY

HDMI In
Yes (2)
HDMI In (HDCP Ver.)
HDCP2.2 / 1.4
DP In
Yes (1), HDCP2.2 / 1.4
RS232C In
Yes (1)
RJ45(LAN) In
Yes (1)
IR In
Yes (1)
USB In
USB2.0 Type A(1)
HDMI Out
Yes (1)
Audio Out
Yes (1)
RS232C Out
Yes (1)
Daisy Chain
Yes (Input HDMI / Output HDMI)

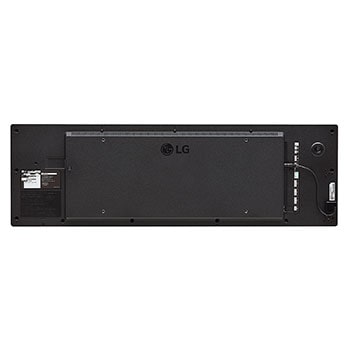

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 15.6/9.3/9.3/15.6 mm
Weight (Head)
7kg
Packed Weight
9Kg
Monitor Dimensions (W x H x D)
922.3 x 288.3 x 43.5 mm
Handle
Yes
VESA Standard Mount Interface
400 x 200
Carton Dimensions (W x H x D)
1017 x 382 x 178 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
16 GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Acceleration(Gyro) Sensor
Yes
Local Key Operation
Yes

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail Over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PBP
Yes (2)
Video Tag
Yes (4)
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes(Max. 15X15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
BEACON
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit)
136.4 BTU/Hr(Typ.), 170.6BTU/Hr(Max.)
Smart Energy Saving (70%)
30W±10%
DPM
0.5 W
Power off
0.5 W
Max.
50 W
Typ.
40 W

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC

SOFTWARE COMPATIBILITY

SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
