Name: LG LED Bloc
Brand: LG

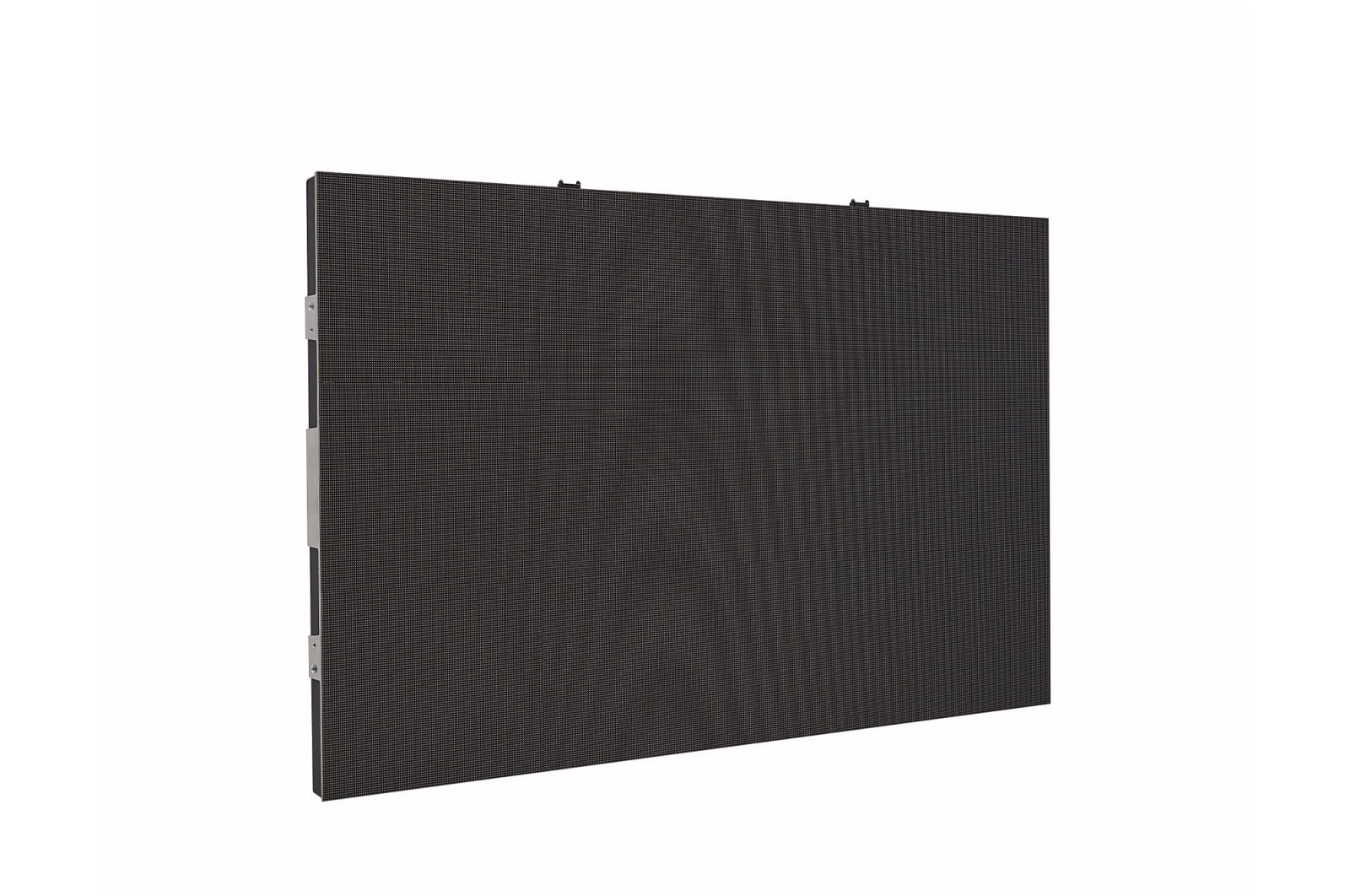

LG LED Bloc

Find a Dealer

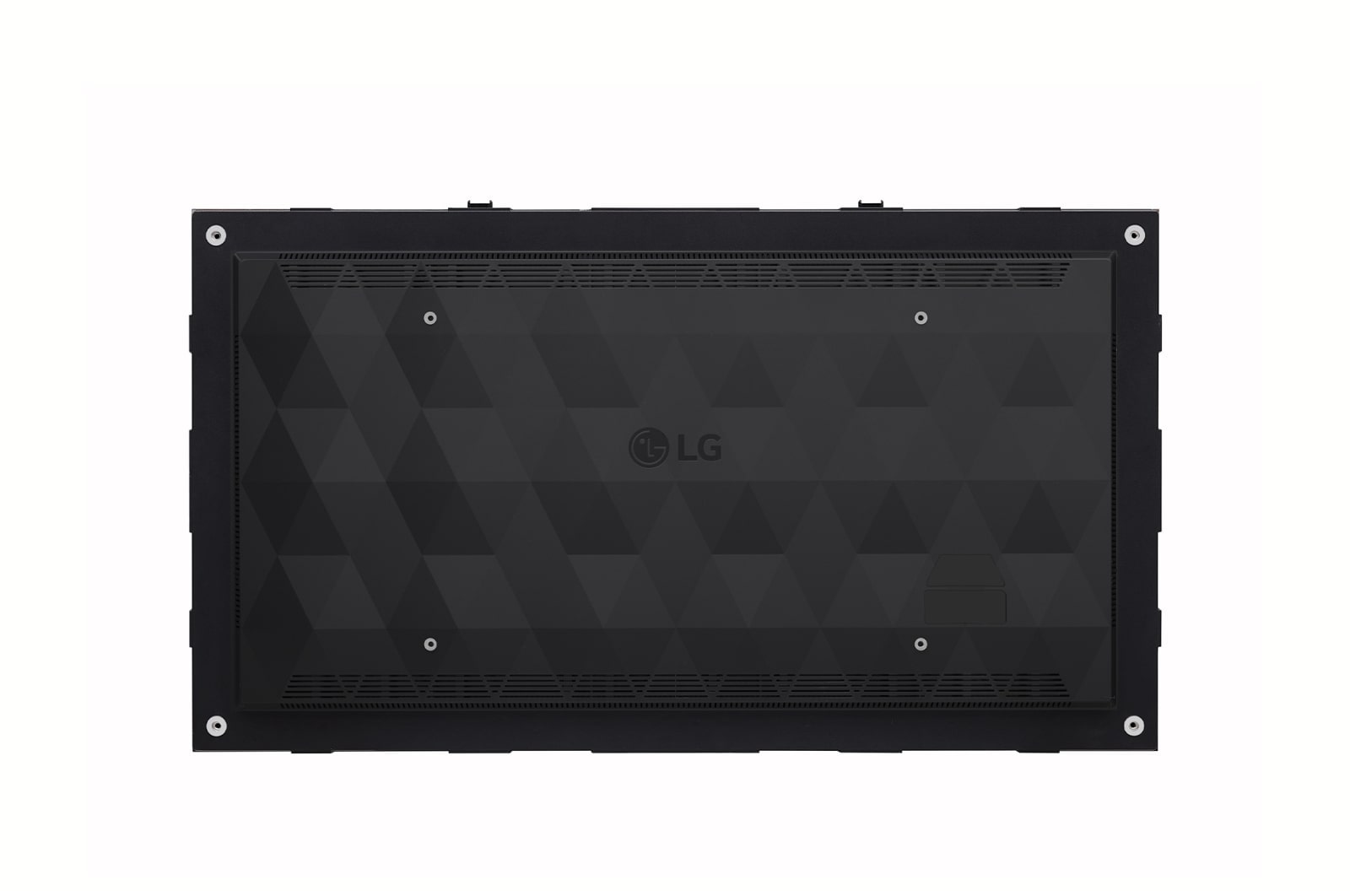

LG LED Bloc

LSAC025

()

Key Features

Pixel Pitch: 2.5 mm
Brightness: 600 nit
Cable-less Signal Transmission & Power Docking
Alpha 7 Intelligent Processor
LG webOS Smart Platform

*All images in this web page are for illustrative purposes only.

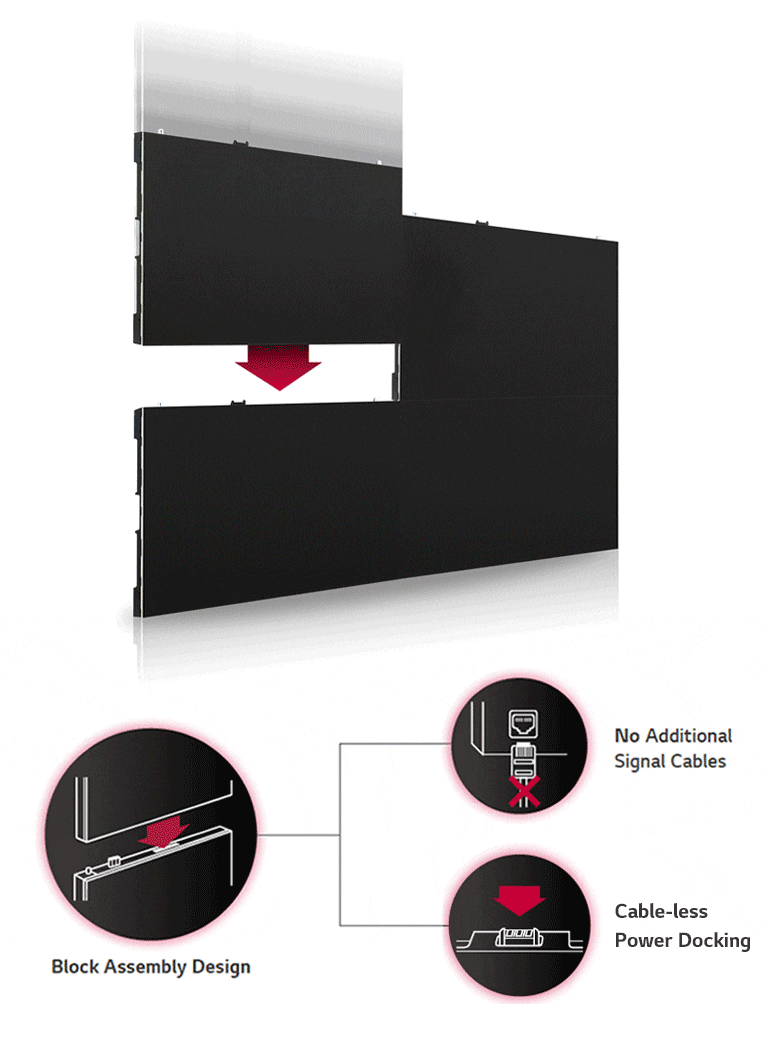

Cable-less Signal Transmission & Power Docking

The LSAC series is the innovative LED signage applying the cableless transmission technology with non connectors*. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAC series easier to be installed than before.

LG LSAC025-MK Cable-less Signal Transmission

*Non Connectors: Connectors that use RF (Radio Frequency) to transmit and receive data between two devices.

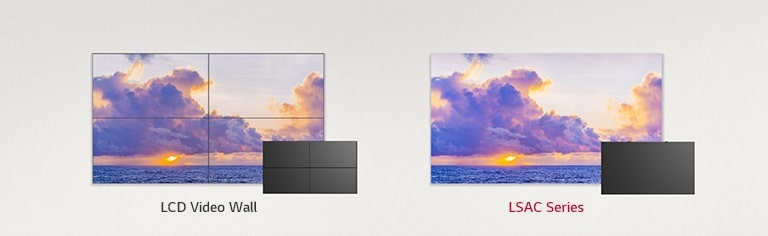

Easy Replacement and Undemanding Maintenance

Upgrade your existing 55 (137.16cm) LCD video wall to the latest technology and LED display without having to secure additional space.

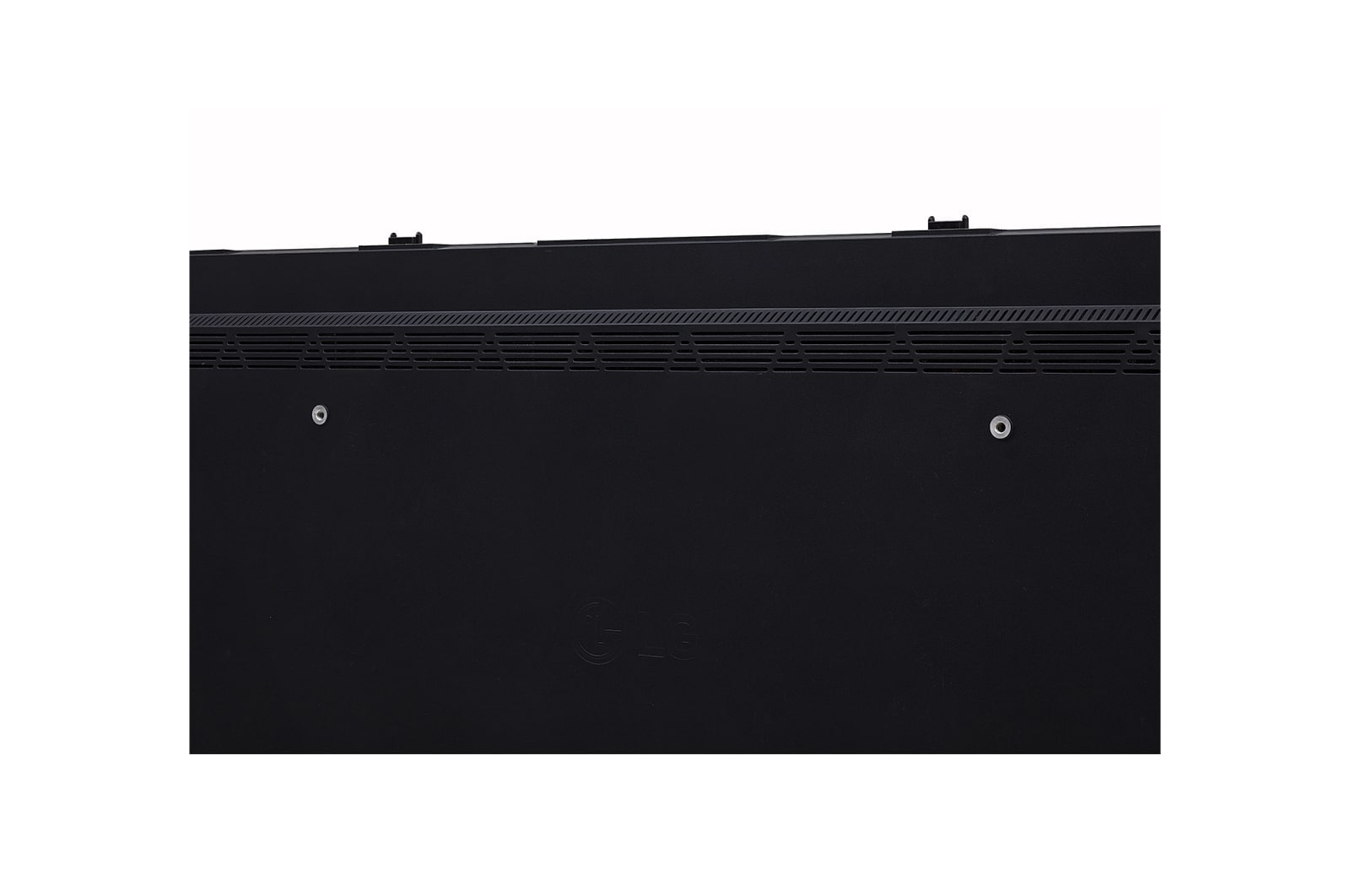

*The product can be installed using VESA wall-mount (600×400) and screws.
*The VESA wall-mount or any other wall-mounts are sold separately.

Bezel-less LED Display

Unlike the LCD video walls, LSAC series is truly bezel-free, so audiences can focus on visual content in its entirety without any bezel interference between displays.

Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

*HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.

EMC Class B Certified

The LSAC series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.

Optimized Image Quality with
α 7 Intelligent Processor

The "Alpha 7 Intelligent Processor" applied to the LSAC series recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.

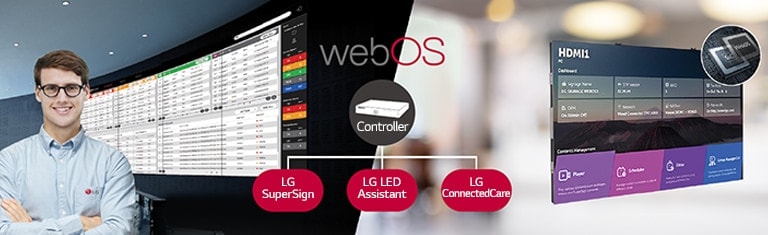

Compatibility with
LG Software Solutions

owered by LG’s high performance system controller, the LSAC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

*LG ConnectedCare' and 'SuperSign CMS' need to be purchased separately.
*The availability of the 'LG ConnectedCare' service differs by region, so please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.

Terms and Conditions.

KNOW MORE

All Spec

PHYSICAL PARAMETER

Pixel Configuration

3 in 1 SMD
Pixel Pitch (mm)

2.5
Module Resolution (W x H)

120 × 90
Module Dimensions (W x H, mm)

300 × 225
Weight per Module (kg)

0.59
No. of Modules per Cabinet (W × H)

4 × 3
Cabinet Resolution (W × H)

480 × 270
Cabinet Dimensions (W × H × D, mm)

1,200 × 675 × 51
Cabinet Surface Area (m²)

0.81
Weight per Cabinet (kg/cabinet)

22.5
Weight per Square Meter (kg/m²)

27.8
Physical Pixel Density (pixels/m²)

160,000
Flatness of Cabinet (mm)

±0.5
Cabinet Material

Die-cast Aluminum
Service Access

Front

OPTICAL PARAMETER

Max Brightness (nit)

600 / peak 1,000
Color Temperature (K)

3,200 - 9,300
Visual Viewing Angle (H×V)

160 × 160
Brightness Uniformity

95%
Color Uniformity

±0.015Cx, Cy
Contrast Ratio

Typ. 5,000 : 1 / Peak. 9,000 : 1
Processing Depth (bit)

20 (HDR10, HDR10 Pro)

ELECTRICAL PARAMETER

Power Consumption (W/cabinet, Max.)

290
Power Consumption (W/cabinet, Avg.)

190
Power Consumption (W/m², Max.)

358
Heat Dissipation (BTU/h/Cabinet, Max.)

990
Heat Dissipation (BTU/h/Cabinet, Avg.)

648
Heat Dissipation (BTU/h/m², Max.)

1,222
Power Supply (V)

100 to 240
Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,840

OPERATION CONDITIONS

Lifetime (Half Brightness)

100,000
Operating Temperature

0°C to +40°C
Operating Humidity

10-80% RH
IP Rating Front

IP20
IP Rating Rear

IP20

CERTIFICATION

Certification

Safety 60950-1, EMC Class B, BS476 Part7 Class1

ENVIRONMENT

Environment

RoHS

CONTROLLER

Controller

CSAC-025K
