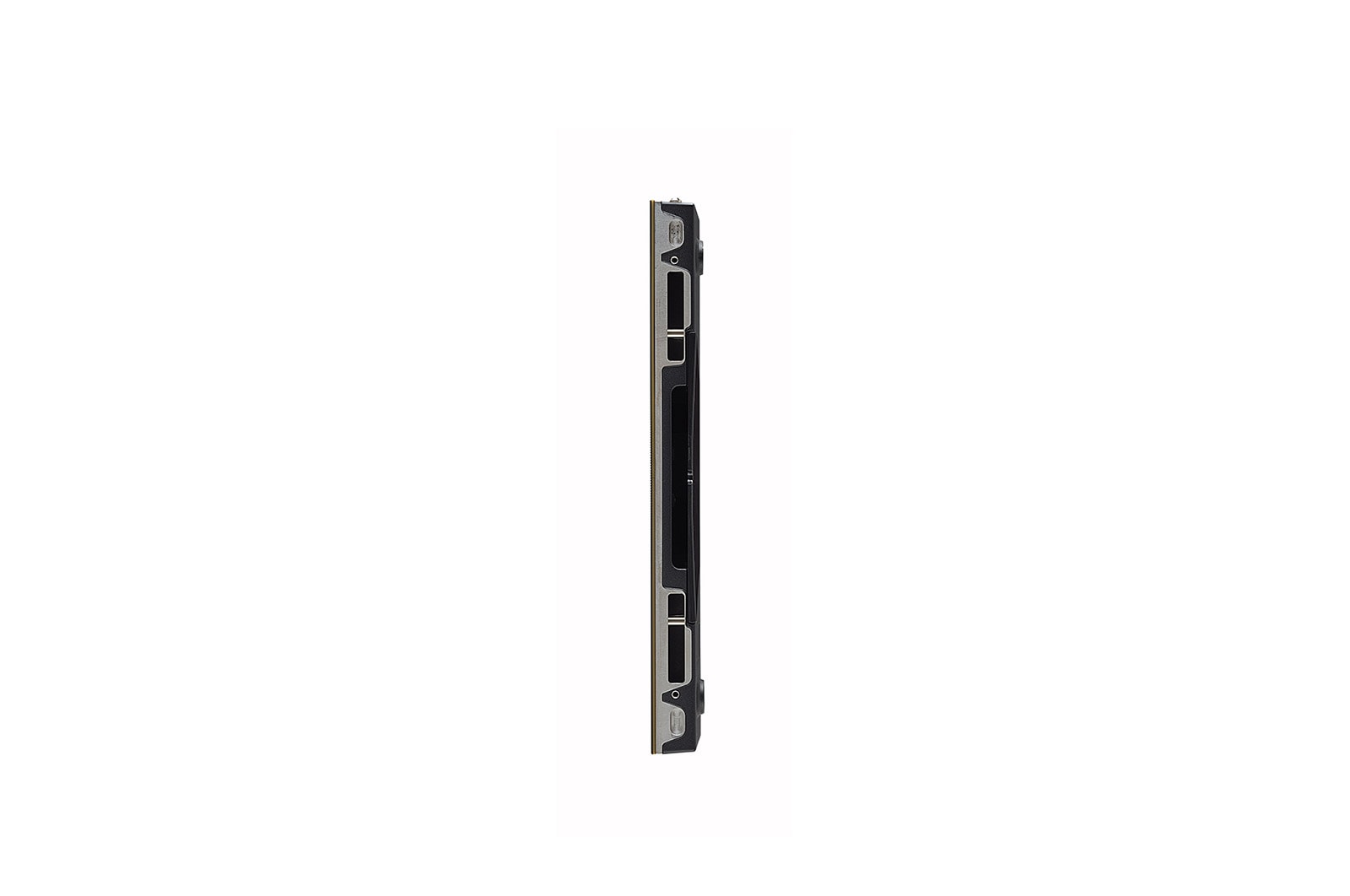

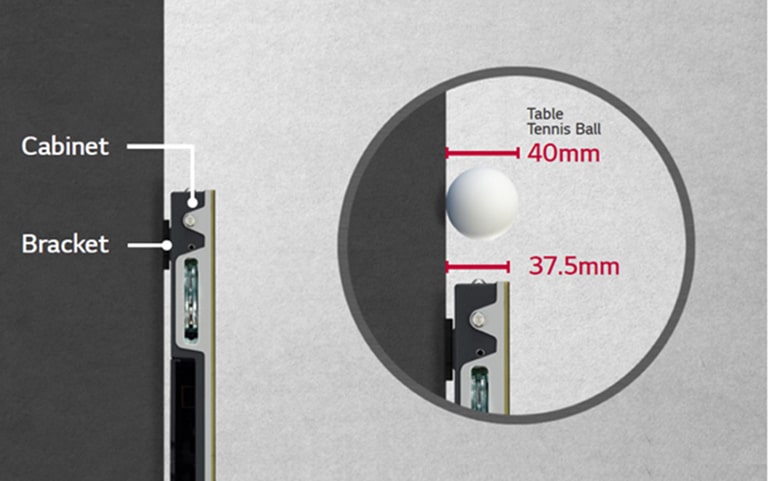

Ultra Slim Depth

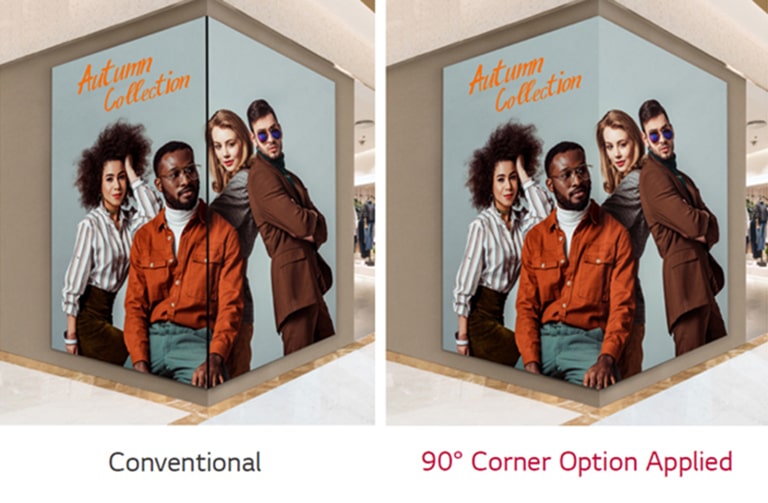

90° Corner Design Available
*Left & right side cutting.
*Depending on the radius, the unit case dimension size changes.

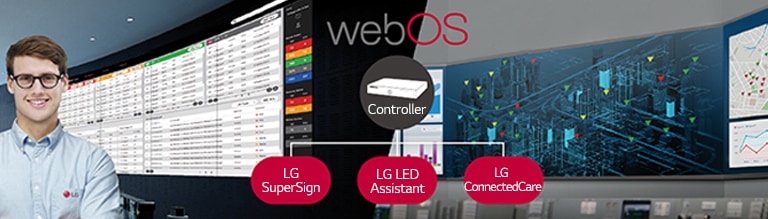

Compatibility with LG Software Solution
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).
Pitch Name
3 in 1 SMD
Pixel Pitch (mm)
2.50
Module Resolution (W x H)
120 × 135
Module Dimensions (W x H, mm)
300 × 337.5
Weight per Module (kg)
0.66
No. of Modules per Cabinet (W × H)
2 × 1
Cabinet Resolution (W × H)
240 × 135
Cabinet Dimensions (W × H × D)
600 × 337.5 × 35 mm
Cabinet Surface Area (m²)
0.203
Weight per Cabinet (kg/cabinet)
5.2
Weight per Square Meter (kg/m²)
25.7
Physical Pixel Density (pixels/m²)
160,000
Flatness of Cabinet
± 0.1 mm
Cabinet Material
Die-casting Aluminum
Service Access
Front
Min. Brightness (After Calibration)
800 nit
Color Temperature
3,500 ~ 9,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
97%
Color Uniformity
± 0.003 Cx,Cy
Contrast Ratio
5,000
Processing Depth (bit)
14
Power Consumption (W/cabinet, Max.)
150
Power Consumption (W/cabinet, Avg.)
50
Power Consumption (W/m², Max.)
740
Power Consumption (BTU/h/cabinet, Max.)
512
Power Consumption (BTU/h/cabinet, Avg.)
171
Power Consumption (BTU/h/m², Max.)
2,525
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-10 °C to +45 °C
Operating Humidity
0 - 80 % RH
IP rating Front / Rear
IP30 / IP30
Certification
CE, FCC, ETL, EMC Class-B Fire Protection
Environment
RoHS, REACH in progress
Controller
CVCA, LCIN006
