Transparent OLED Signage

See the unseen,
LG Transparent OLED

LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.

*All images are for illustrative purposes only.

A New Level of See-through View

LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive "wow" factor.

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38% much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.

*Based on LG’s WFB series.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

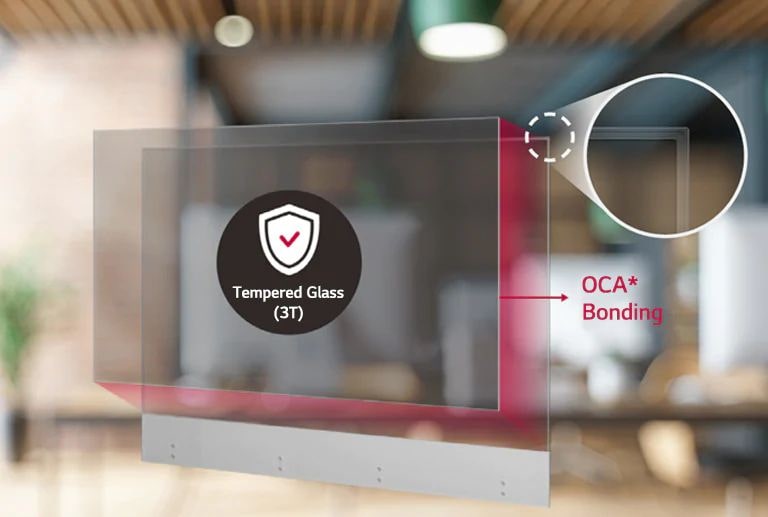

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

*Optically Clear Adhesive.

Expandable Design

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

*Installation accessories are not supplied by LG.

All Spec

PANEL

Screen Size

139.7cm (55)
Panel Technology

OLED
Native Resolution

1,920 x 1,080 (FHD)
Brightness

150/400nit (APL 100%/25%, Without Glass)
Contrast Ratio

150,000 : 1
Color Gamut

BT709 120 %
Viewing Angle (H x V)

178 x 178
Color Depth

10bit(R), 1.07Bilion colors
Response Time

1 ms (G to G)
Surface Treatment (Haze)

Hard coating (2H)
Operation Hours (Hours / Day)

18 / 7 (Moving Content Only)
Portrait / Landscape

Yes / Yes
Transparency

38% (SET)

CONNECTIVITY

Input

HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45(LAN), IR IN (1, External IR Receiver), USB2.0 Type A(2)
Output

DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45(LAN)

MECHANICAL SPECIFICATION

Bezel Color

Transparent
Bezel Width

T/R/L/B : 7.9/7.9/7.9/121.7mm
Weight (Head)

11.6Kg (Head), 3.4Kg (Signage Box)
Monitor Dimension (W x H x D)

1225.5 x 810.1 x 4.9mm (Head)
782.8 x 238.4 x 34.7mm (Signage Box)
Protection Glass

Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof

FEATURE

HW

Internal Memory (16GB), Temperature Sensor
SW

webOS ver. (webOS4.0), Local Contents Scheduling, Group Manager, USB Plug & Play, Fail over, RS-232C Sync, Local Network Sync, Video Tag (4), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Inside, PM mode, Wake on LAN, HDMI-CEC, SI Server Setting, Pro:Idiom

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C
Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

POWER CONSUMPTION

Typ. / Max.

250 W / 280 W
BTU (British Thermal Unit)

853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max)

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
