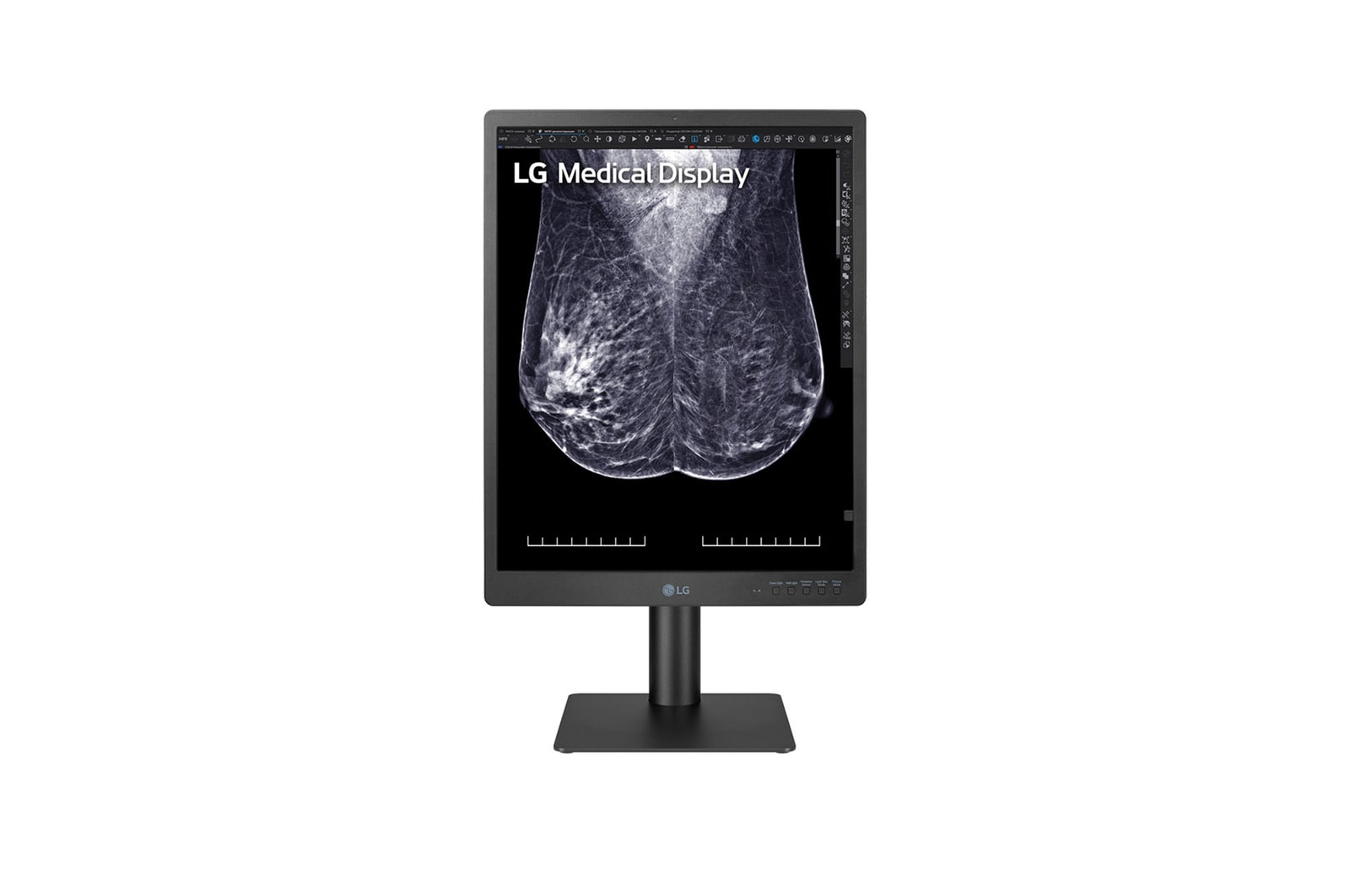

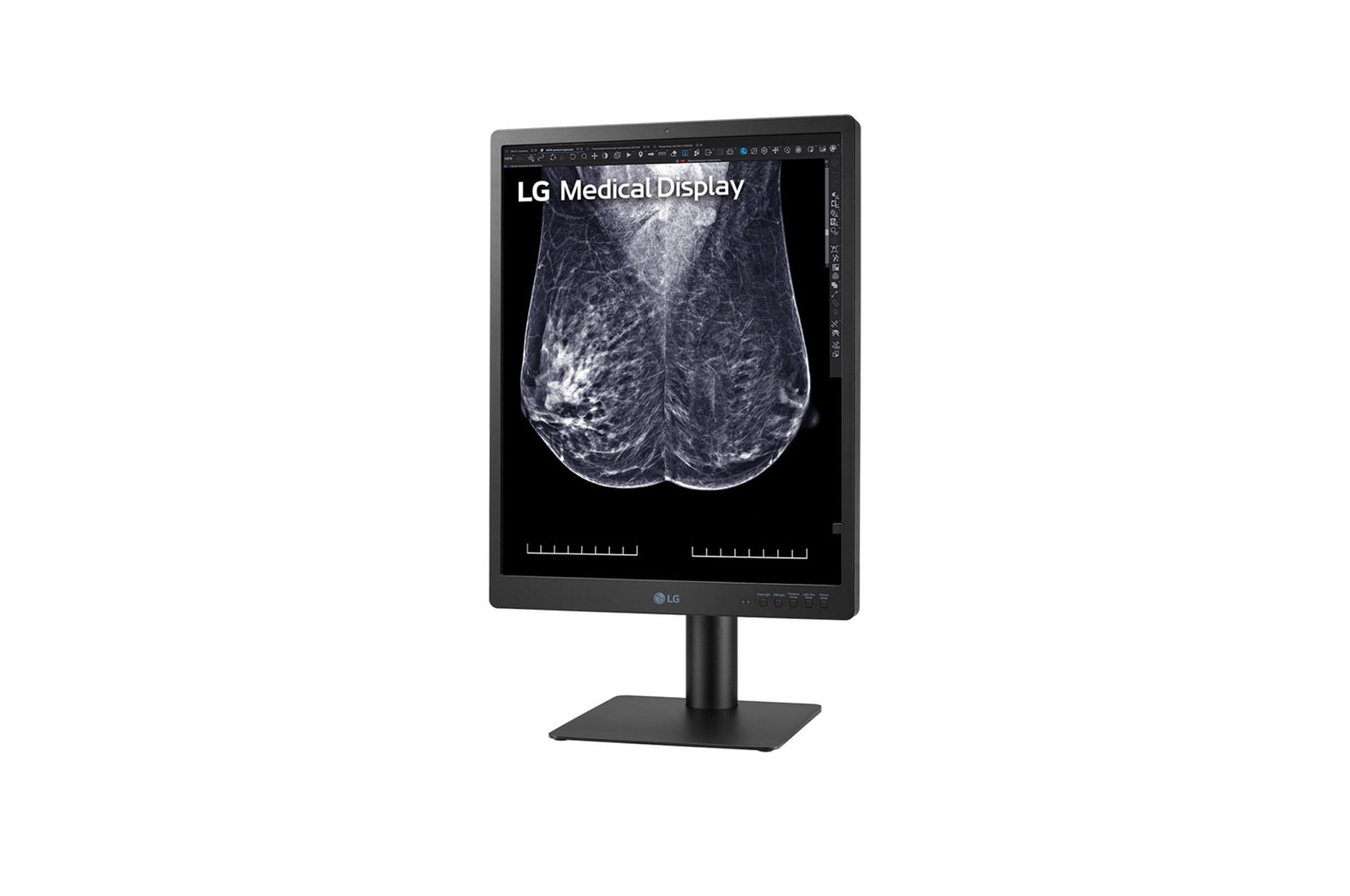

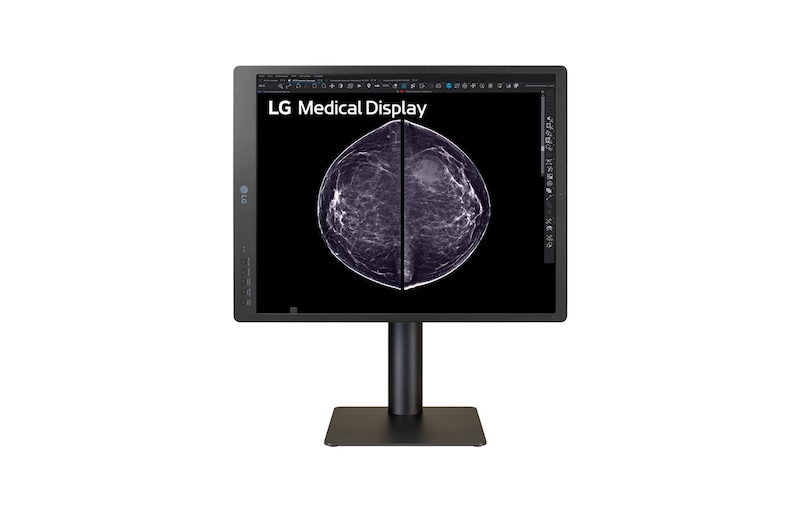

LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography

LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography

LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography

21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B
LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography, 21HQ613D-B

Key Features

  • 21.3-inch 5MP (2,048x2,560) IPS Display
  • 1,100 cd/m² Brightness (Typ.)
  • Multi-Resolution Mode (5/3/2MP)
  • Internal Front Calibration Sensor
  • Focus View Mode / Pathology Mode
  • Daisy Chain
More
LG Medical Display.

LG Medical Display.

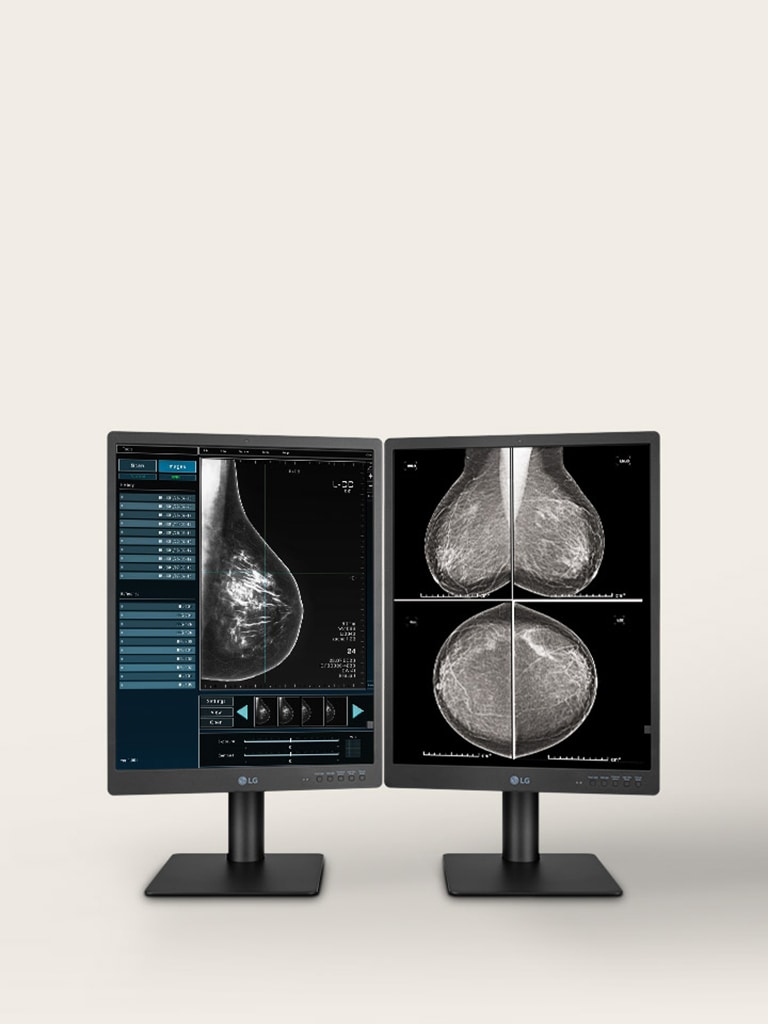

21.3" 5MP IPS Diagnostic Monitor.

21.3" 5MP IPS Diagnostic Monitor

Designed for breast imaging

Display for breast imaging

21.3-inch 5MP (2048x2560) IPS Display
Calibration with Front Sensor

Efficiency

5 Hot Keys
Daisy Chain

Convenience

User-friendly Monitor Stand
Down light & Wall light

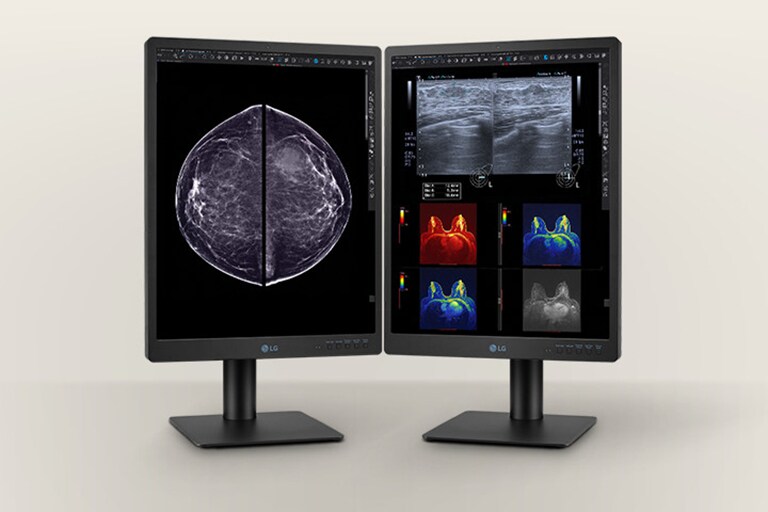

High resolution display for breast imaging

High Definition Imaging

Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid colour, high definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.

Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

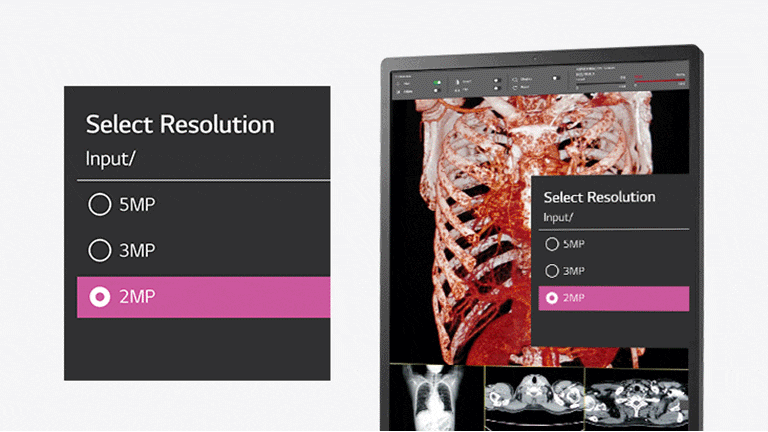

Multi-resolution mode

Set the resolution mode to fit your needs

The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customise their resolution to better fit their respective needs.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

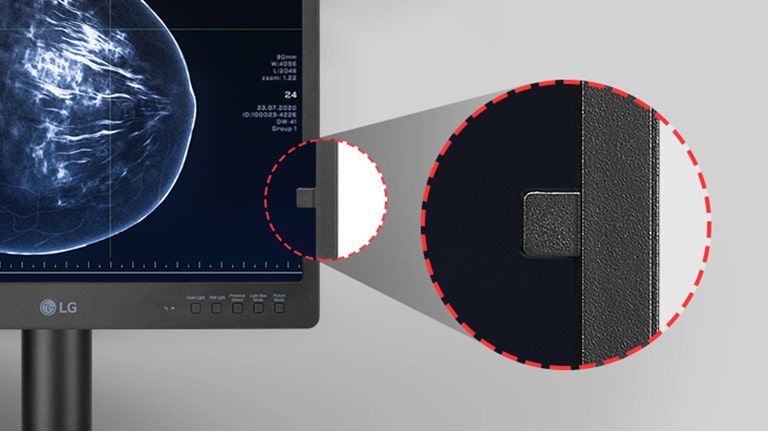

Internal front calibration sensor

Consistency in medical images

The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

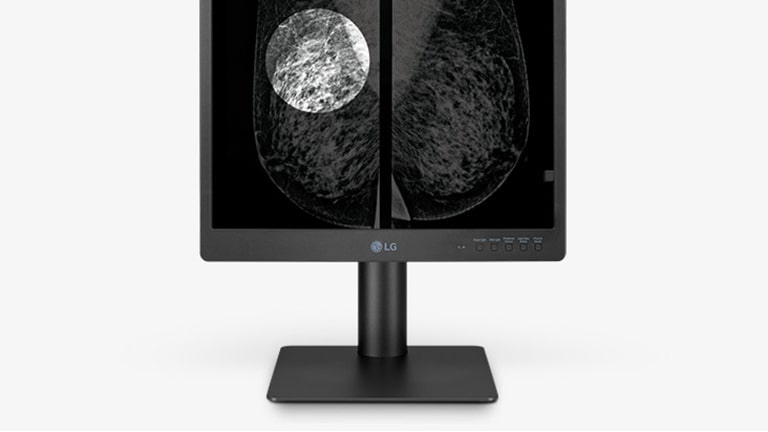

Focus view mode

Focus on the region of interest

Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Pathology mode

As if you were looking into a microscope

With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Streamlined and efficient workflow

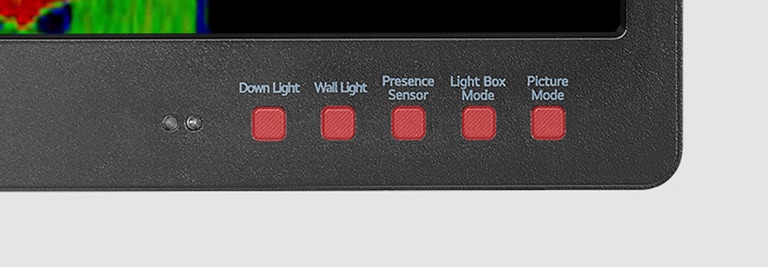

5 Hot Keys

Intuitive Control

The 5 Hot Keys make changing between screen modes easier and more intuitive than operating through an OnScreen menu. They provide a fast and easy way to operate while working, allowing you to change mode and lighting settings without disrupting your workflow.

The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

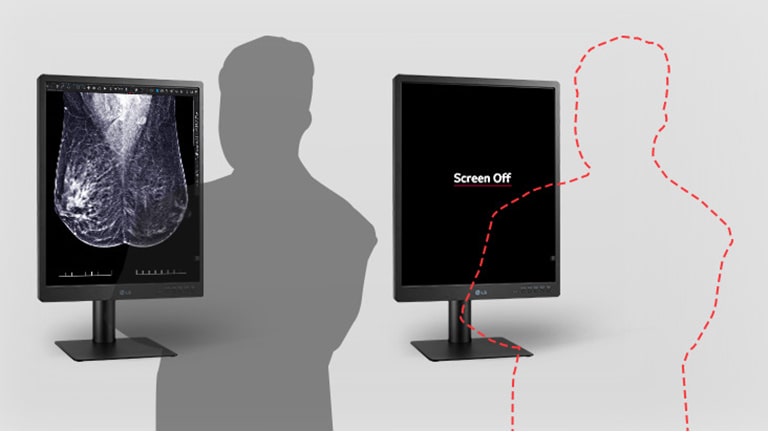

Presence sensor

Convenient power management

The presence sensor automatically turns off the display when no motion is detected for 5 minutes.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

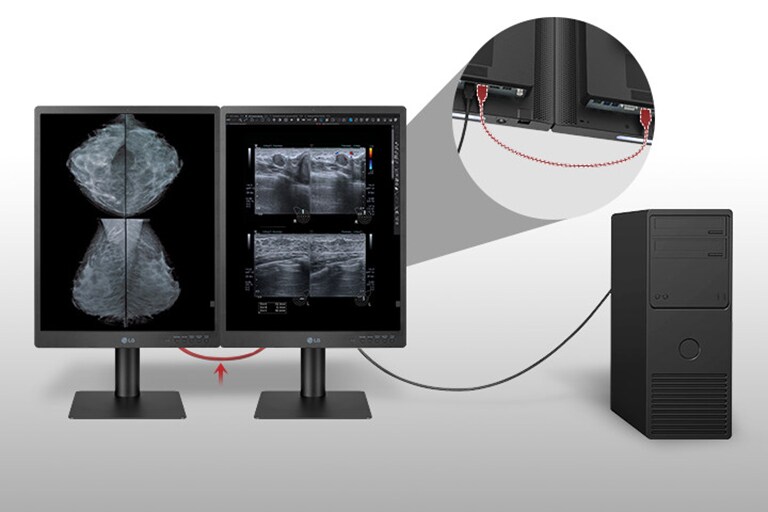

Daisy chain

Simple connection.
Less clutter in your workspace.

Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.

Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

User convenience

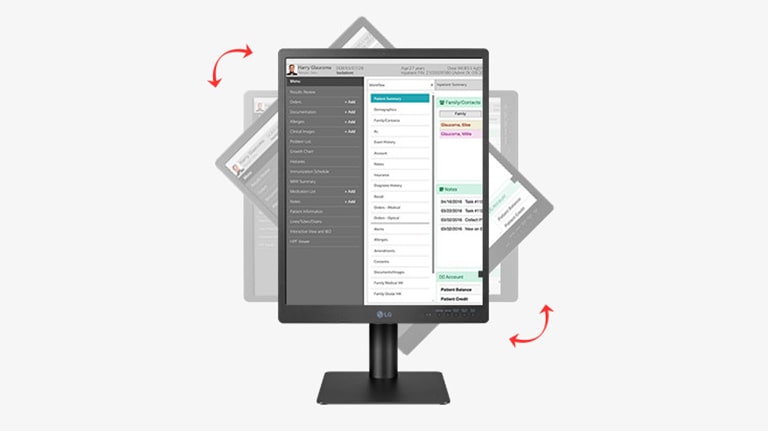

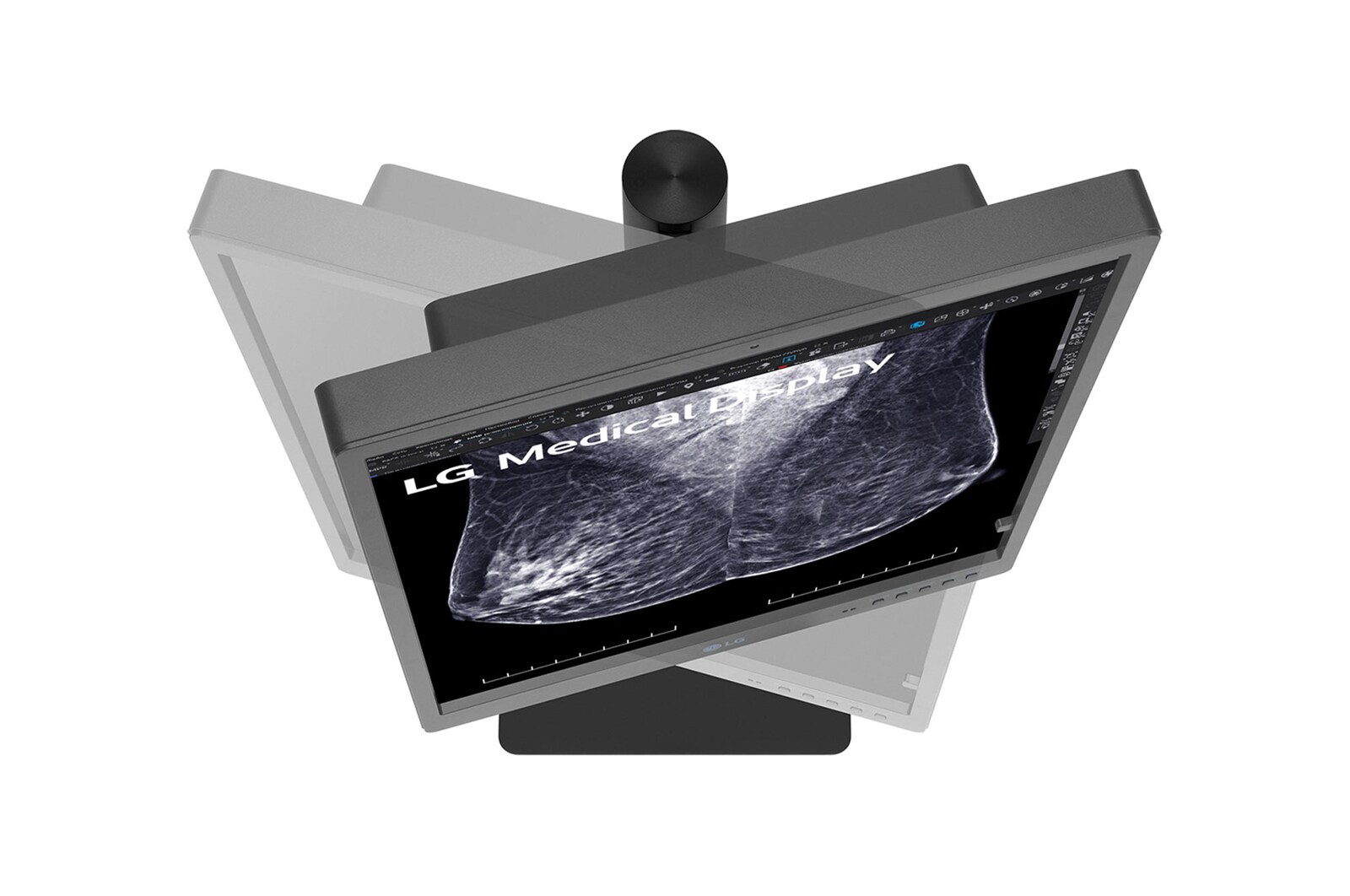

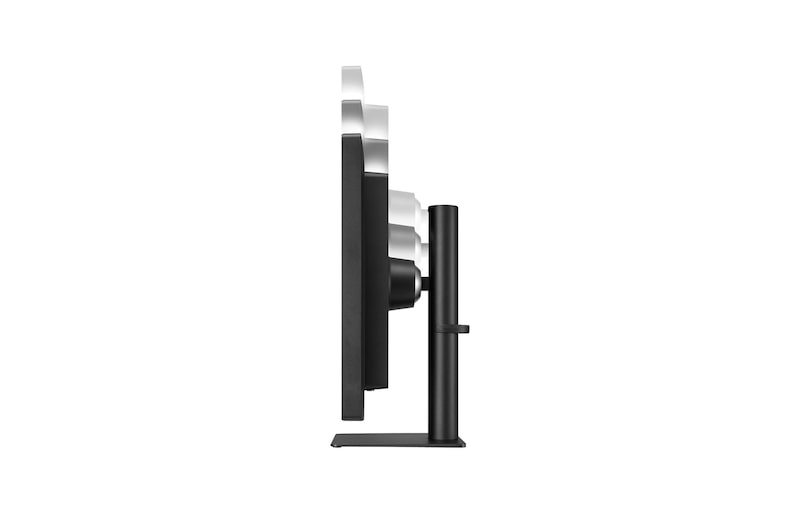

User-friendly monitor stand

21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.

*Auto pivot refers to the automatic screen rotation function based on the pivot direction.

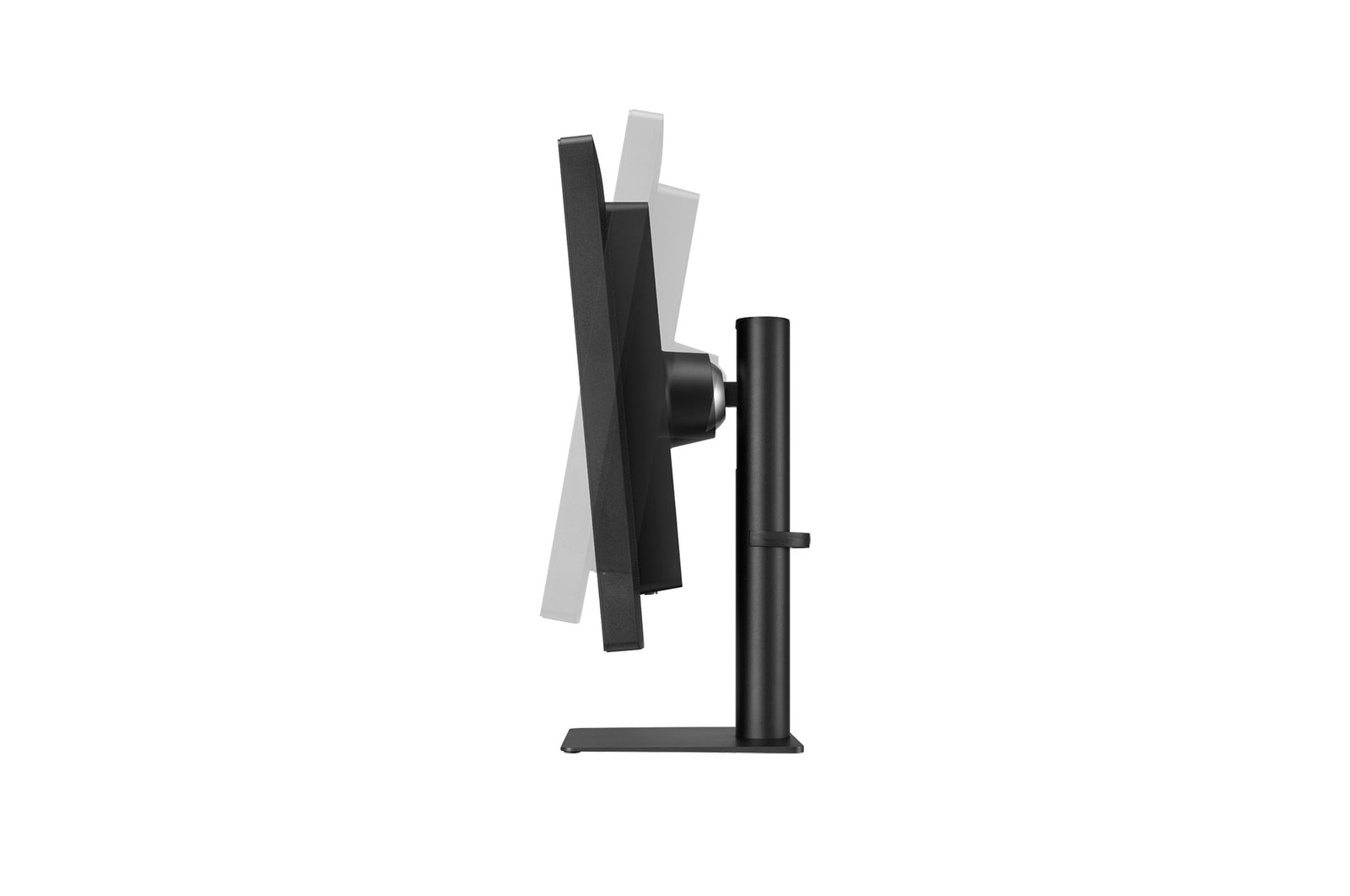

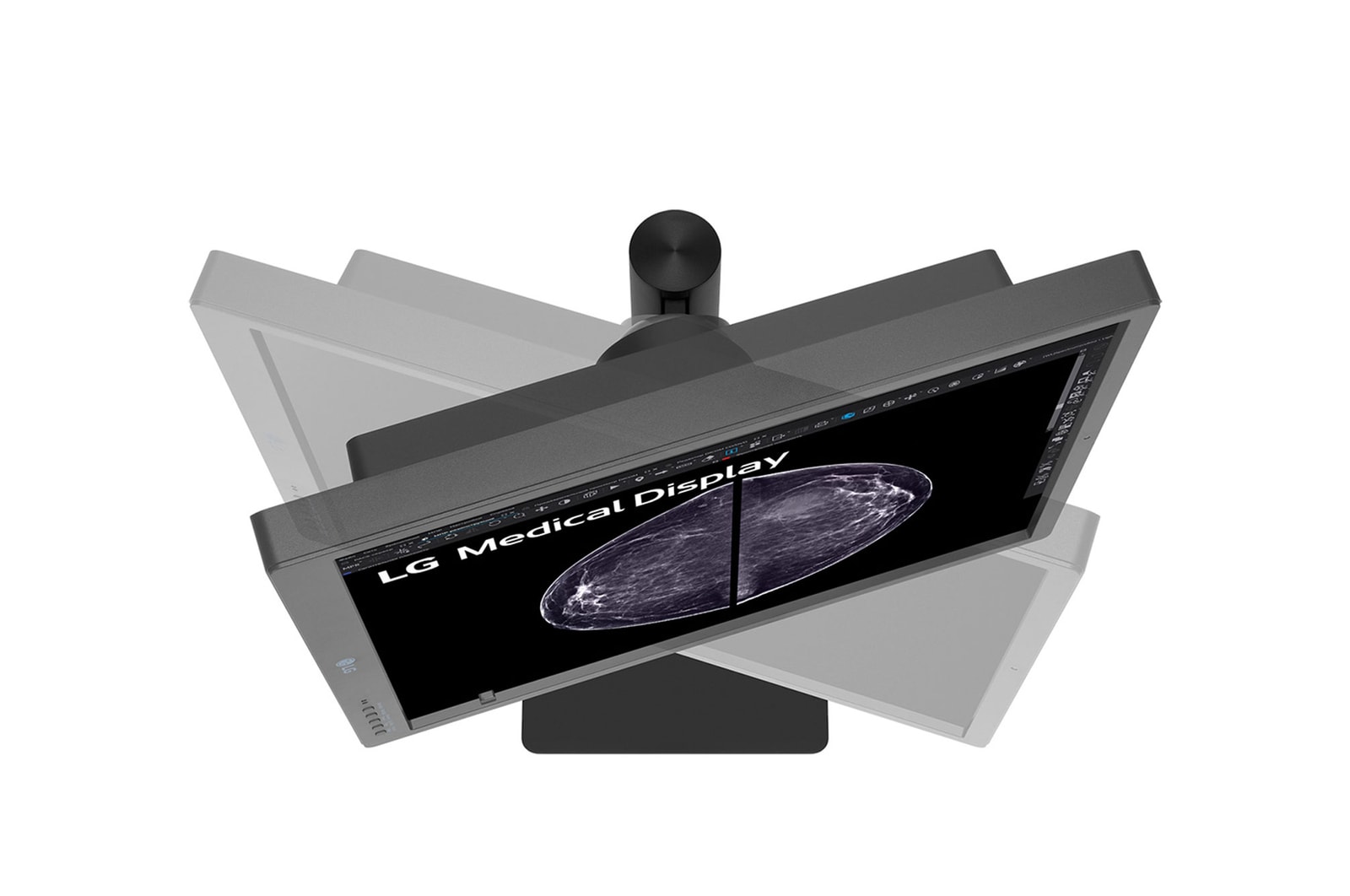

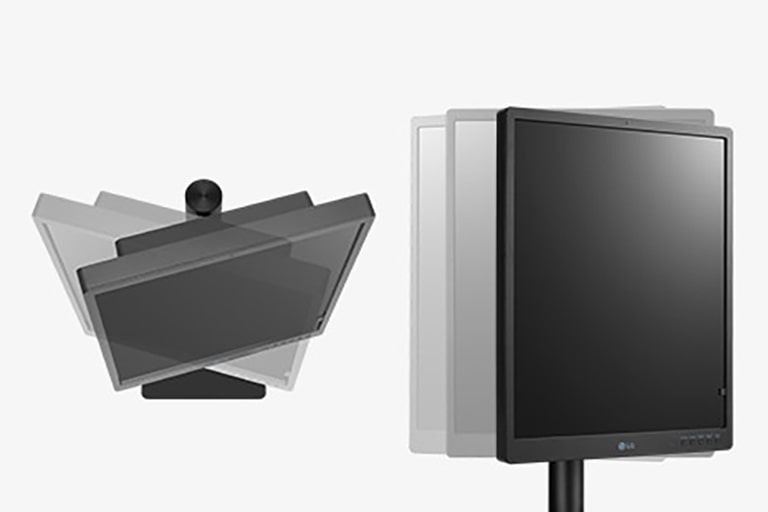

Swivel ±15°

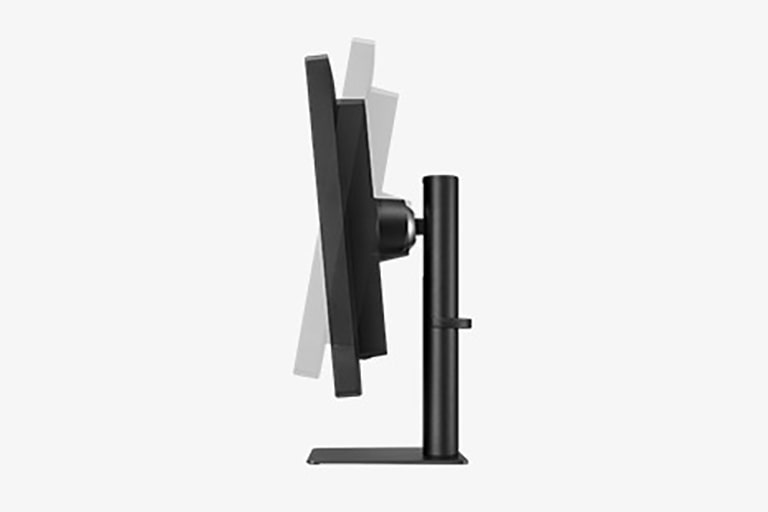

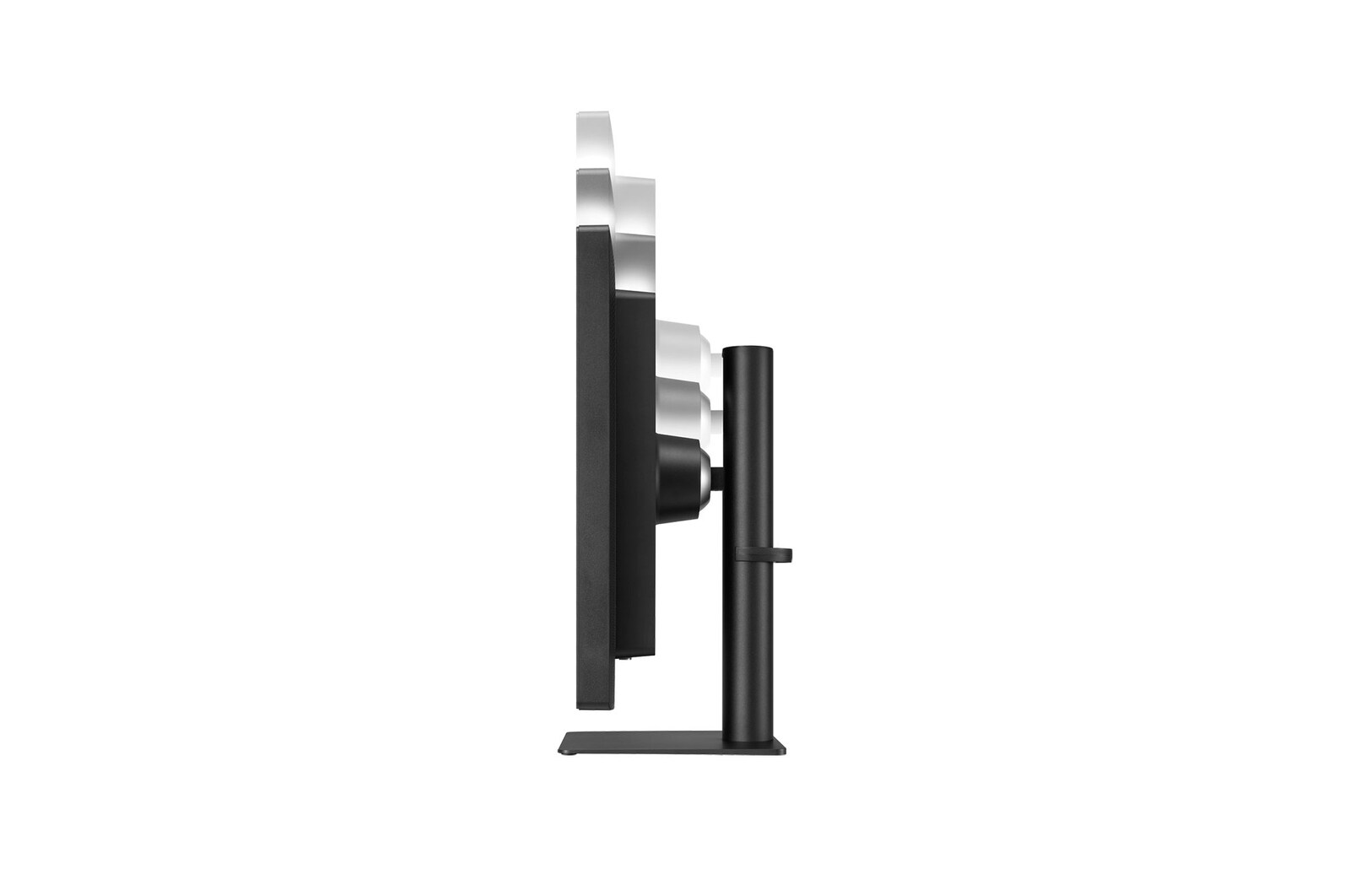

Tilt -5° ~ 20°

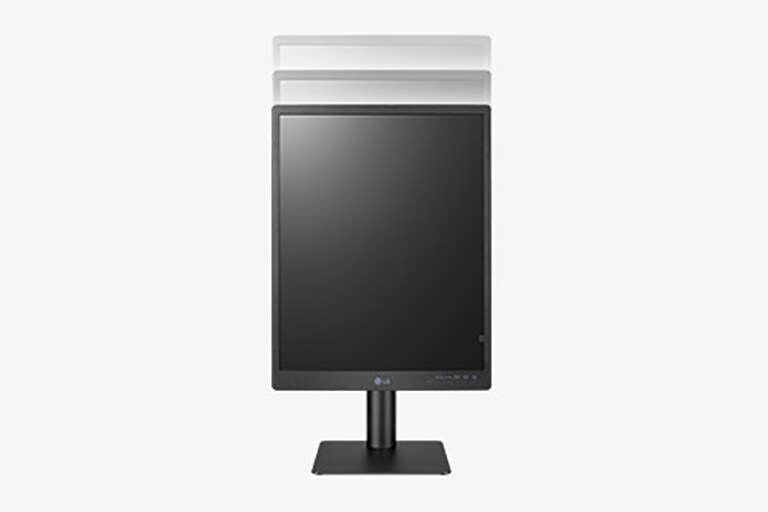

Height 110mm

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

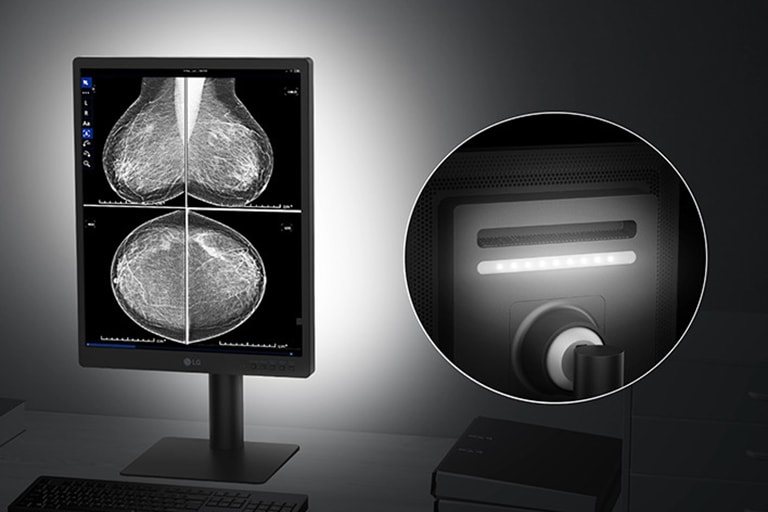

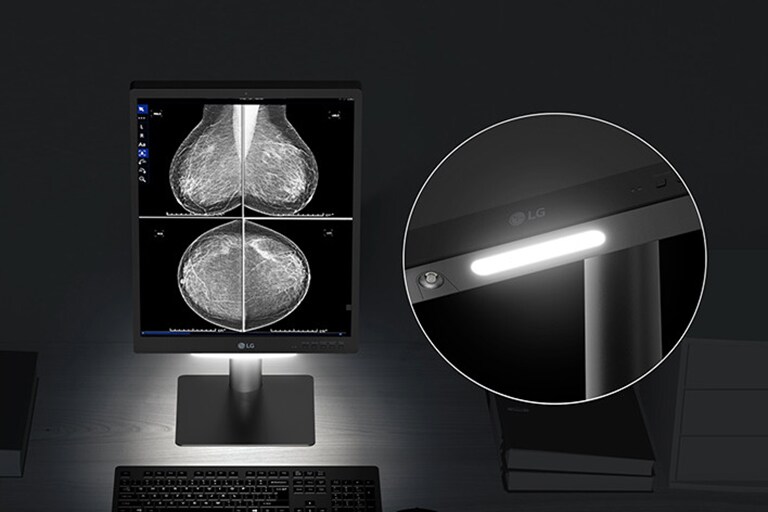

Down light & Wall light

Ideal diagnostic workspace

Down /Wall light mode enhances readability of documents below the monitor even in low-light environments.

Wall light

Down light

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

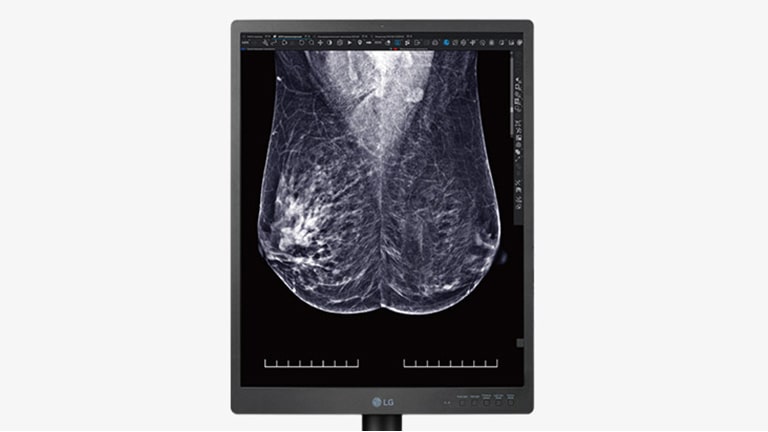

Auto luminance sensor

Automatically adjusts screen brightness

21HQ613D features an Auto luminance sensor which adjusts screen brightness automatically for more readability according to levels of surrounding light.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Print

All Spec

DISPLAY

  • Aspect Ratio

    4:5

  • Brightness (Typ.) [cd/m²]

    1100cd/m²

  • Colour Bit

    10bit

  • Colour Gamut (Typ.)

    NTSC 72% (CIE1931)

  • Contrast Ratio (Typ.)

    1800:1

  • Brightness Stabilisation

    600 cd/m²

  • Pixel Pitch [mm]

    0.165 X 0.165 mm

  • Resolution

    2048 x 2560

  • Response Time

    5ms (GtG at Faster)

  • Size [Inch]

    21.3

  • Surface Treatment

    AG

  • Viewing Angle (CR≥10)

    178°(R/L), 178°(U/D)

FEATURES

  • Hot Key

    Yes (5 keys)

  • Brightness Stabilisation

    Yes

  • Auto Brightness

    Yes

  • Presence Sensor

    Yes

  • Front Sensor

    Yes

  • Black Stabiliser

    Yes

  • HW Calibration

    Yes

  • DICOM Compliant

    Yes

  • Colour Temperature

    6500K/7500K/9300K Manual(5000K~10000K)

  • Flicker safe

    YES

  • Multi-resolution Mode

    Yes (5MP /3MP /2MP)

  • Pathology Mode

    Yes

  • Reader Mode

    Yes (Text Mode)

  • Focus View

    Yes

  • Light Box Mode

    Yes

  • Smart Energy Saving

    YES

  • Lighting

    Yes (Down/ Wall)

  • Super Resolution+

    Yes

ACCESSORY

  • Adapter

    Yes

  • Calibration Report (Paper)

    Yes

  • DVI-D

    Yes(1ea)

  • Display Port

    Yes

  • Power Cord

    Yes

  • USB A to B

    Yes

STANDARD

  • IEC (IEC 60601-1/IEC 60601-1-2)

    Yes

  • EN (EN 60601-1/EN 60601-1-2)

    Yes

  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)

    Yes

  • EN (EN 62368-1 / EN 55032, 55035)

    Yes

  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

    Yes

  • CE

    MDR

  • FDA

    510(K)(Class II)

  • ISO13485

    Yes

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    Yes

  • MFDS

    Yes

POWER

  • AC Input

    100-240Vac, 50-60Hz

  • DC Output

    19V @6.32A

  • Power Consumption (DC Off)

    Less than 0.3W

  • Type

    External Power(Adapter)

DIMENSIONS/WEIGHT

  • Dimension in Shipping (WxHxD) [mm]

    524 x 577 x 296

  • Dimension with Stand (WxHxD) [mm]

    364.5 x 634.4 x 233.6

  • Dimension without Stand (WxHxD) [mm]

    364.5 x 473.4 x 78

  • Pallet Stuffing (20ft/40ft/40ft HC)

    216 / 504 / 672

  • Weight in Shipping [kg]

    11.4

  • Weight with Stand [kg]

    7.85

  • Weight without Stand [kg]

    5.45

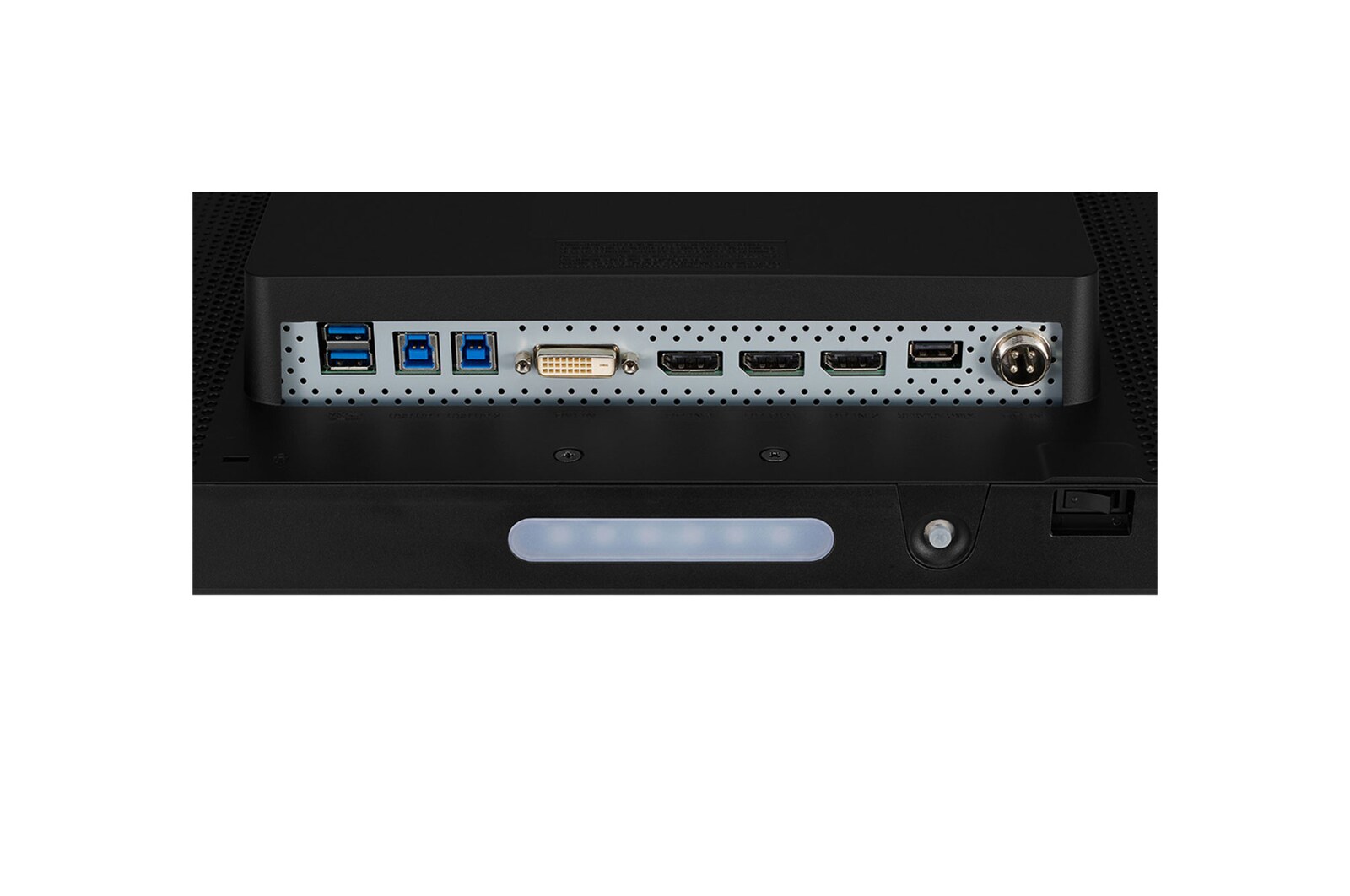

CONNECTIVITY

  • DisplayPort

    Yes (In 2ea / Out 1ea)

  • DVI

    Yes (In 1ea Dual link)

  • Daisy Chain

    Yes (5MP/48Hz)

  • USB Downstream Port

    YES(2ea/ver3.0)

  • USB Upstream Port

    YES(2ea/ver3.0)

MECHANICAL

  • Borderless Design

    Normal

  • Display Position Adjustments

    Tilt / Height / Swivel / Pivot

  • Height Range [mm]

    110 mm

  • Mechanical Power Switch

    Yes

  • One Click Stand

    Yes

  • Pivot

    Yes(±90°)

  • Swivel

    Yes(±15°)

  • Tilt

    Yes(-5°~20˚)

  • Wall Mountable [mm]

    100 x 100 mm

SW APPLICATION

  • Dual Controller

    Yes

  • LG Calibration Studio Medical

    Yes
