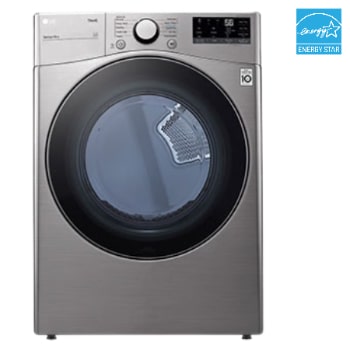

7.4 cu. ft Ultra Capacity Dryer with ThinQ®

Name: 7.4 cu. ft Ultra Capacity Dryer with ThinQ® DLE3600V
Brand: LG

DLE3600V

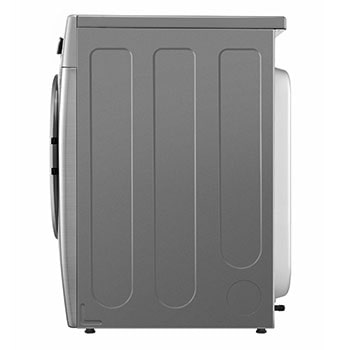

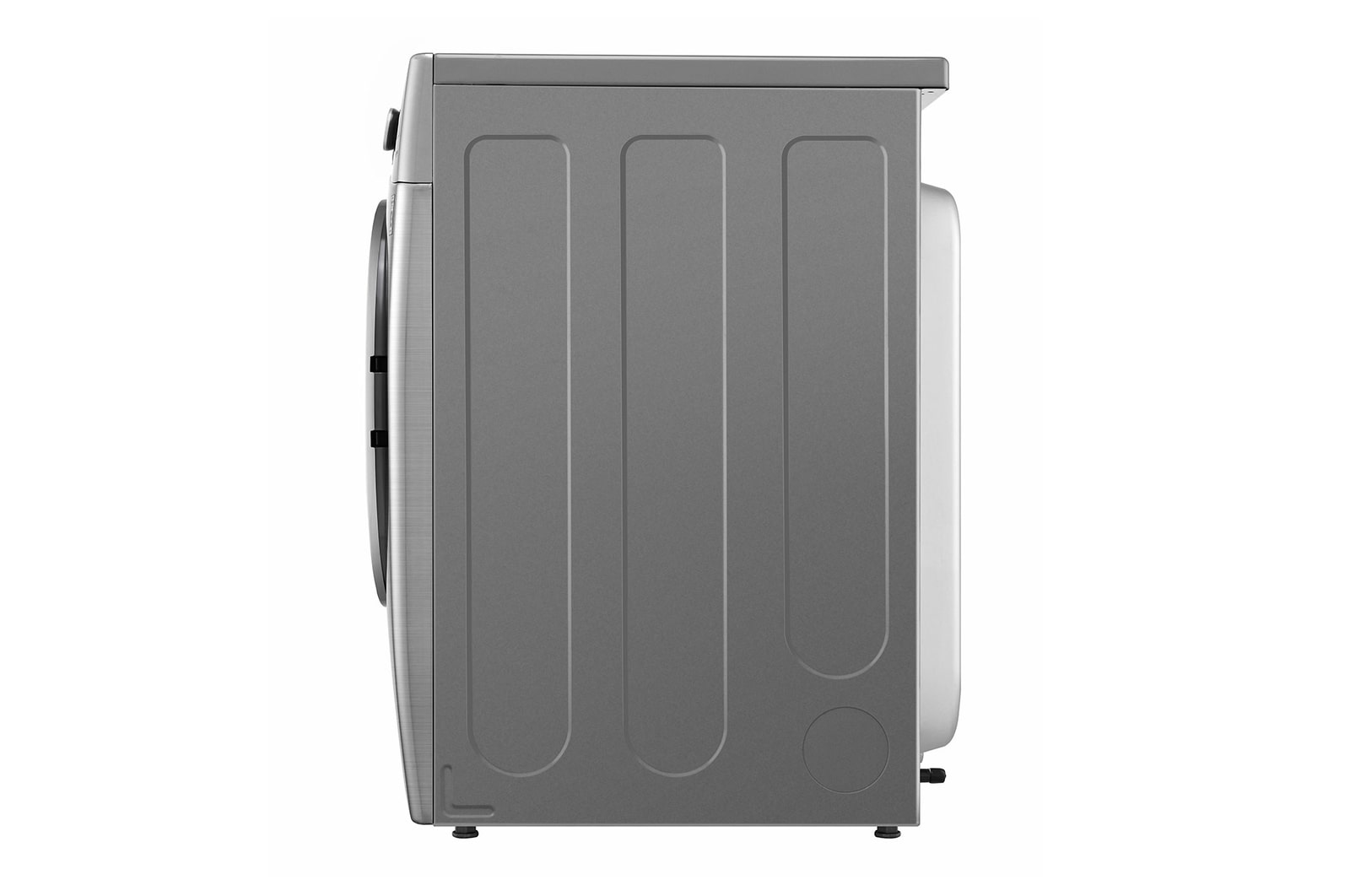

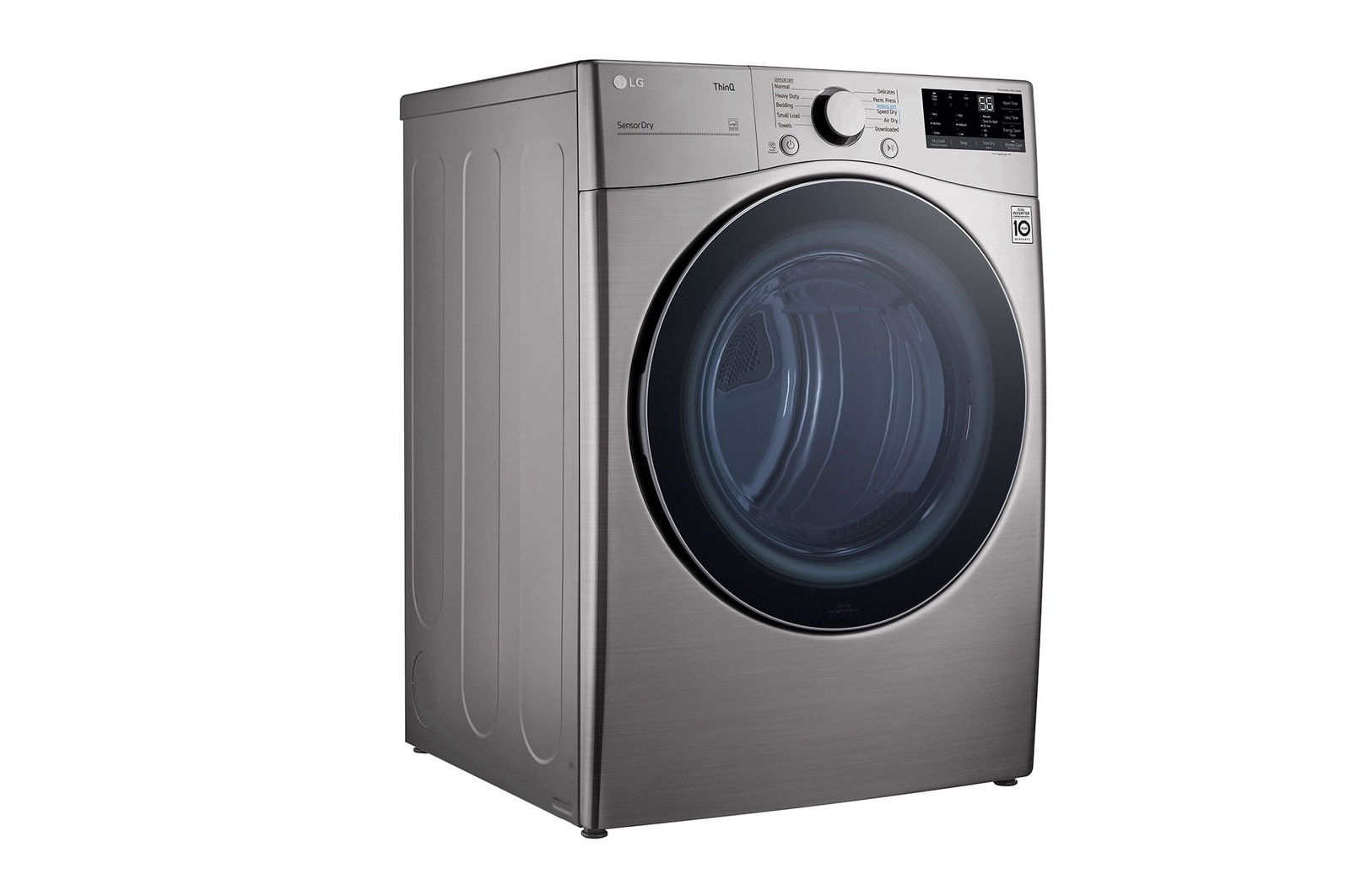

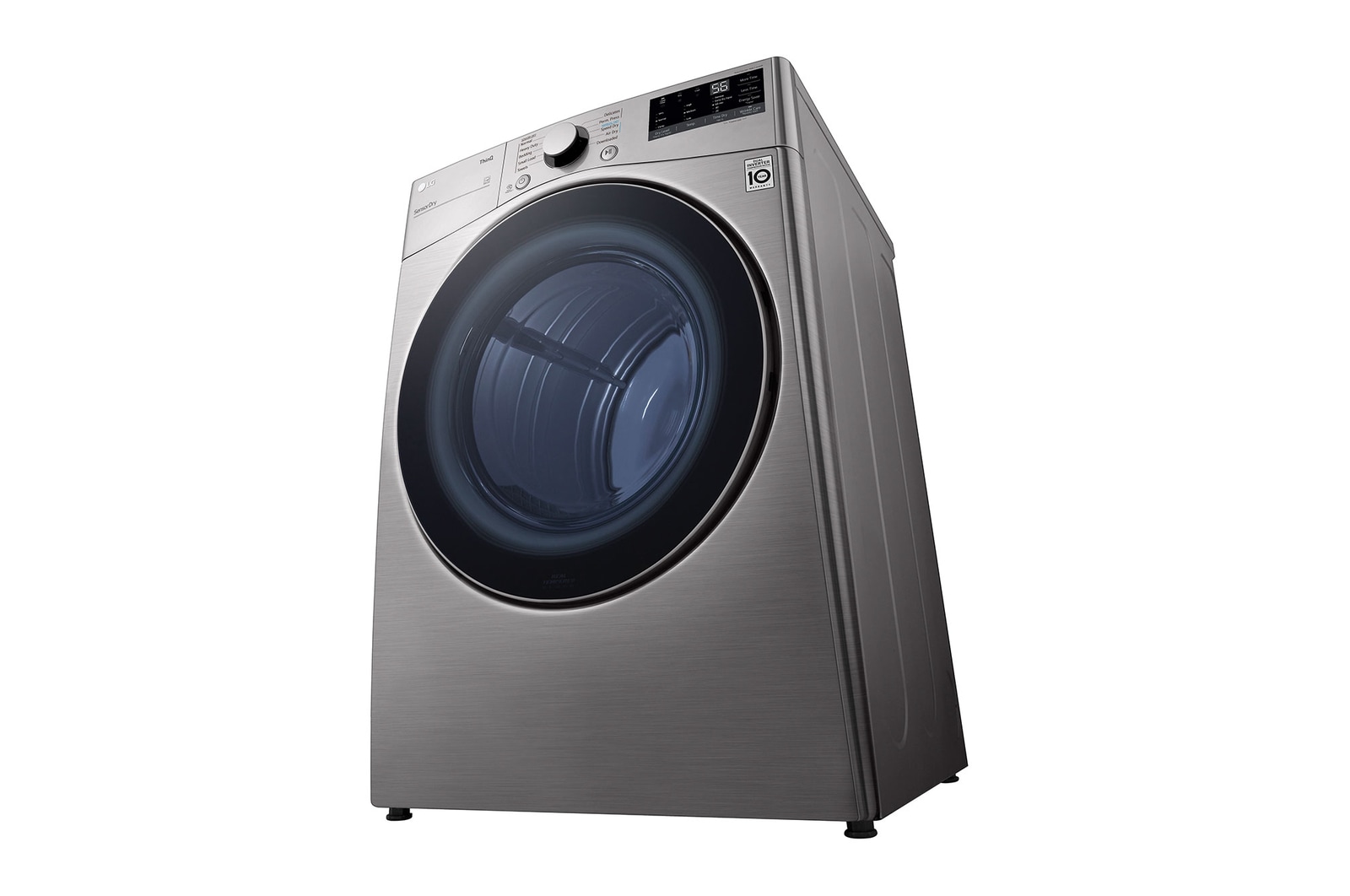

Side view of LG 7.4 cu. ft Ultra Capacity Dryer with ThinQ® - DLE3600V

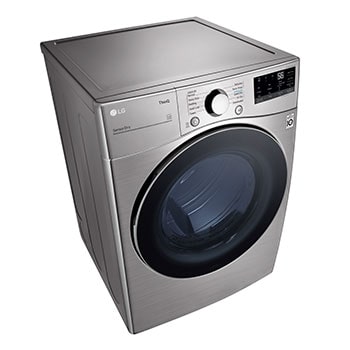

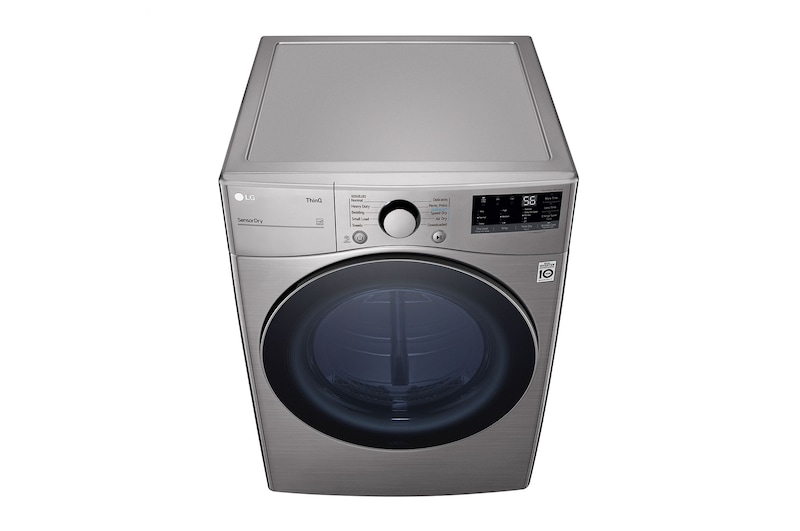

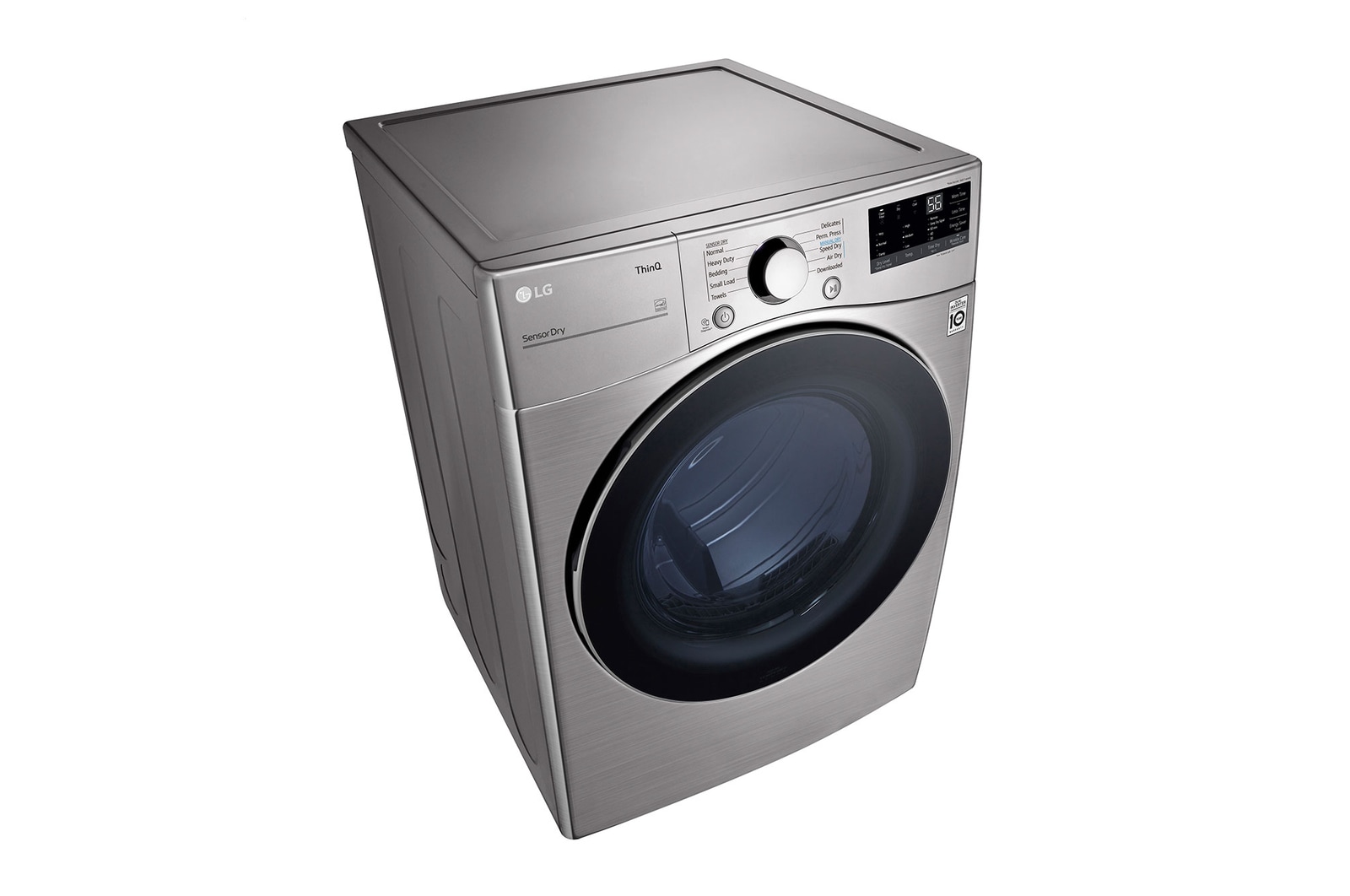

LG 7.4 cu. ft Ultra Capacity Dryer with ThinQ®, DLE3600V

Key Features

7.4 cu. ft. Ultra Large Capacity
FlowSense^® Duct Clogging Indicator
For Québec consumers only – Warranty of Good Working Order: 5 years.
SmartDiagnosis™
Tempered Glass Door
ENERGY STAR^® Certified

7.4 cu. ft. Ultra Large Capacity

Get It All Done In Less Time

7.4 cu. ft. Ultra Large Capacity means you have even more room to do laundry in fewer loads.

FlowSense® Duct Clogging Indicator

Know when it's time to clean the ducts to ensure great drying & lower utility bills.

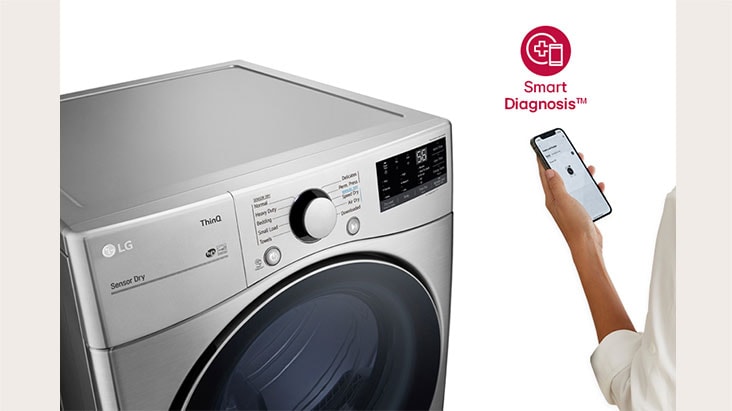

SmartDiagnosis™

Using WiFi connectivity, troubleshoot washer issues 24/7 through the LG Smart Diagnosis™ app on your mobile device. In the event of a problem, your phone will identify error codes that will help LG customer service assist you, and the LG Smart Diagnosis™ System allows you to directly report an issue to the service center so it can be resolved quickly - providing comfort and reliability.

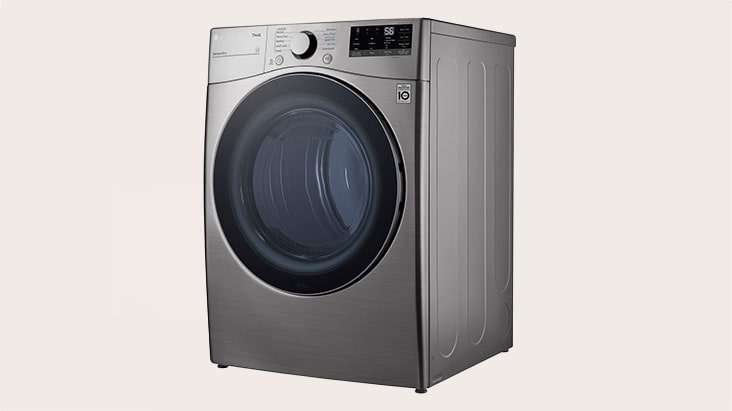

Tempered Glass Door

Premium Looks Designed to Last

LG front load washers and dryers use tempered glass doors for a sleek, stylish look that resists shock and scratches. The door rim and matching digital control knob complement the door and enhance the premium feel.

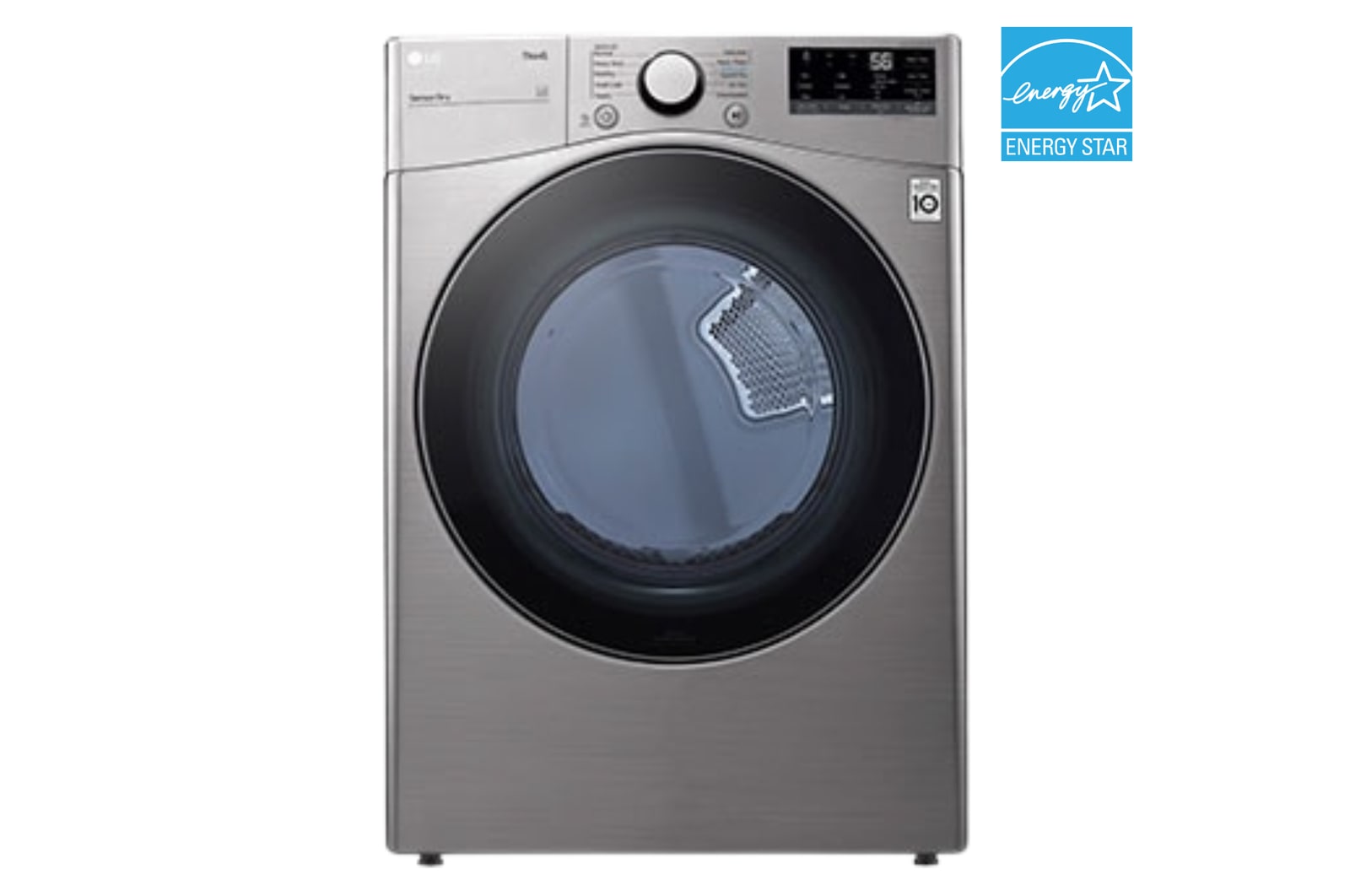

ENERGY STAR® Certified

Who Says Dryers Can't Be Energy Efficient

DIMENSIONS

Capacity(cu.ft)

7.4

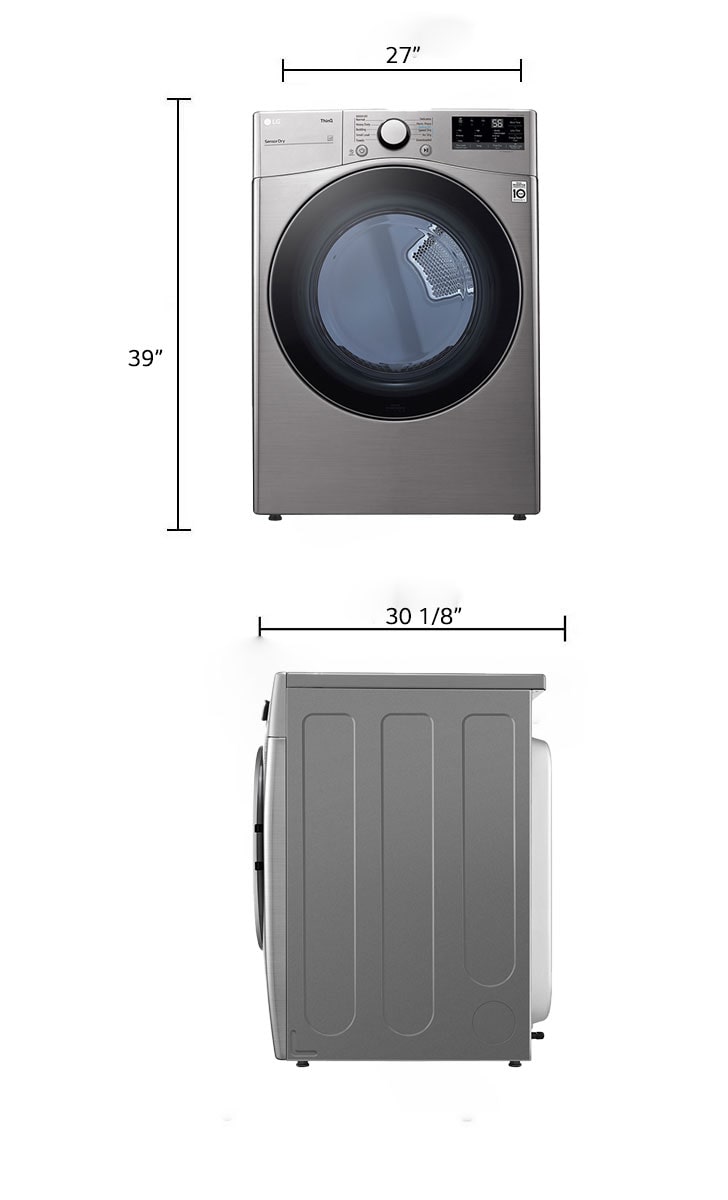

Dimensions (WxHxD inch)

27 x 39 x 30 1/8

Key Spec

MATERIAL & FINISH - Body Color
Stainless Silver
CAPACITY - Capacity(cu.ft)
7.4
DIMENSIONS & WEIGHTS - Dimensions (WxHxD inch)
27 x 39 x 30 1/8
FEATURES - DUAL Inverter HeatPump
No
FEATURES - Auto Cleaning Condenser
No
FEATURES - Heat Source Type
Electric Heater
FEATURES - Reversible Door
Yes
SMART TECHNOLOGY - Smart Pairing
Yes
SMART TECHNOLOGY - ThinQ(Wi-Fi)
Yes

All Spec

SMART TECHNOLOGY

Download Cycle
Yes
Smart Pairing
Yes
Energy Monitoring
Yes
Proactive Customer Care
Yes
Remote Start and Cycle Monitor
Yes
Smart Diagnosis
Yes
ThinQ(Wi-Fi)
Yes
Voice Control (3rd party device)
No

ADDITIONAL OPTIONS

Dry Mode
Yes
Air Dry
Yes
Condenser Care
No
Control Lock
Yes
Custom PGM
No
Damp Dry Signal
Yes
Drum Care
No
Drum Light
No
Dry Level
5 Levels
Dry Time
Yes
Easy Iron
No
Energy Saver
Yes
Less Time
Yes
More Time
Yes
Rack Dry
No
Reduce Static
No
Remote Start
Yes
Signal(Sound)
No
Silent Dry
No
Steam
No
Temp.
5 Levels
Time Dry
Yes
Wi-Fi
Yes
Wrinkle Care
Yes

BAR CODE

Bar Code
195174124307

CAPACITY

Capacity(cu.ft)
7.4

CONTROL & DISPLAY

Display Type
Dial + LED + Hard Buttons
Delay Timer
No
Door Lock Indication
No
Timer Display
18:88

DIMENSIONS & WEIGHTS

Carton Dimensions (WxHxD inch)
29 1/2 x 42 1/4 x 31 1/4
Dimensions (WxHxD inch)
27 x 39 x 30 1/8
Product Depth with door open 90˚ (inch)
50 1/2
Weight include packing (lbs)
138.2
Weight (lbs)
121.9

ENERGY

ENERGY STAR® Qualified
Yes
CEF
3.93
ENERGY STAR® Most Efficient
No

FEATURES

Type
Vented Dryer
3 Minute Installation Check
Yes
6 Motion DD
No
ADA Compliant
No
AI DD
No
AI Sensor Dry
Yes
Auto Cleaning Condenser
No
Auto Restart
No
Drum Light
No
DUAL Inverter HeatPump
No
Dual Lint Filter
No
EasyLoad Door
No
Embossing Inner Drum
No
End of Cycle Signal
Yes
FlowSense Duct Clogging Indicator
Yes
Heat Source Type
Electric Heater
Inverter DirectDrive
No
Inverter Motor
No
Leveling Legs
Yes
LoadSense
No
NeveRust Stainless Steel Drum (drum side)
No
Reversible Door
Yes
Sensor Dry
Yes
SteamFresh
No
TrueSteam
No
TurboSteam
No
Venting Option
4 Way Venting

MATERIAL & FINISH

Body Color
Stainless Silver
Door Type
Black Tinted Tempered Glass Cover
Drum Back
Painted Steel
Drum Side
Alcosta

OPTIONS/ACCESSORIES

Matching Pedestal
WDP4V

POWER SOURCE

Electrical Requirements
115/230V, 60Hz, 24A

PROGRAMS

AI Dry
Yes
Activewear(Sportswear)
No
Air Dry
Yes
Antibacterial
No
Bedding
Yes
Bedding Refresh
No
Condenser Care
No
Delicates
Yes
Downloaded
Yes
Down Jacket Refresh
No
Drum Care
No
Easy Ironing
No
Freshen Up
No
Heated Dry
No
Heavy Duty
Yes
Jumbo Dry
No
Normal
Yes
Outerwear Refresh
No
Perm. Press
Yes
Power Dry
No
Quick 40
No
Quick Dry (Speed Dry)
Yes
Rack Dry
No
Rainy Days
No
Silent Dry
No
Small Load
Yes
Steam Fresh
No
Steam Sanitary
No
Super Dry
No
Towels
Yes
Wrinkle Prevention
No

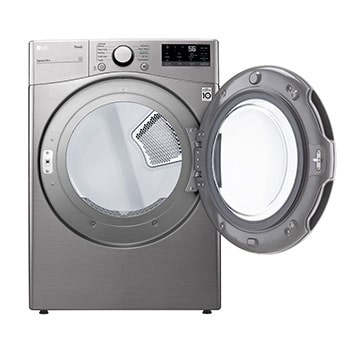

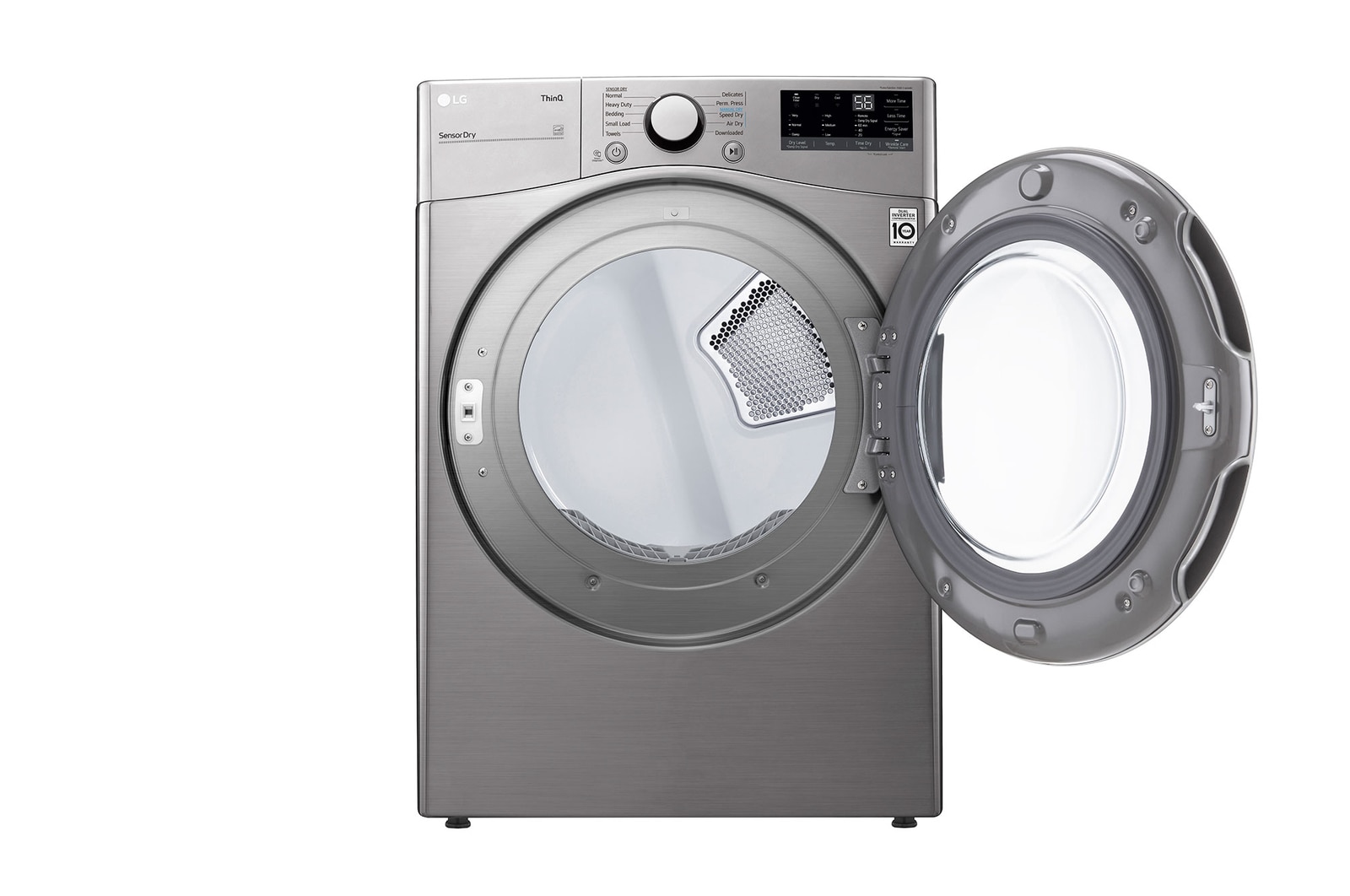

Can you reverse a front load dryers door? Do you need additional parts?

Yes. The door can be changed from right swing to left swing to accomodate needs. Please consult installation instructions for details. All necessary parts to complete door reversal are included with appliance.

Can you purchase a matching pedestal for this dryer?

Yes. Matching pedestals can be purchased for your front load dryer. Please consult the product secifications or a local LG authorized retailer for ordering information.

Can you purchase a matching LG SideKick pedestal washer for this dryer?

No. LG SideKick pedestal washers can only be installed beneath a matching LG front load washer.

Can front load dryers be stacked on a washing machine?

Matching LG front load washer and dryers pairs can be stacked allowing you more space in your laundry area. The appropriate stacking kit is sold separately. Consult the product specifications or an LG Authorized retailer for matching stacking kits necessary to stack washer and dryer.

What is SmartDiagnosis^®?

This feature allows users to troubleshoot issues with their appliance.

Does this dryer need to be vented outside?

Yes. This model requires external venting via a 4" diameter metal duct. The maximum length of the dryer vent ducting should not exceed 65 ft. To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building. Please consult the owners manual for full details.

What is LG ThinQ^® and how does it work with LG dryers?

The LG ThinQ^® application allows you to communicate with the appliance via a smartphone over wifi. The LG ThinQ^® app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your washer/dryer remotely, track and download cycles, connect with Google or Amazon Alexa voice assistants, and access smart diagnosis, customer support, and much more.

Are LG front-load dryers energy efficient?

LG offers a full line of award winning energy efficient front-load dryers. This model has received the ENERGY STAR® certification.

Can a front-load dryer hold as much laundry as a top-load dryer?

Yes. LG front-load dryer capacities offer somewhere between 7.4 cu.ft and 7.8 cu.ft depending on the model. In comparison, LG top load dryers offer between 7.3 cu.ft and 7.8 cu.ft depending on the model.
