- Fresh air provision
- Human Detection Technology
- Real-Time Air Quality Monitoring
- Air Purification Filter that Removes 99.9% of PM1.0
- Auto Elevation Grille
- Compact Size
All Spec
WHERE TO INSTALL
Residence
Yes
Retail Store
Yes
Restaurant
Yes
Office
Yes
Hospital
Yes
Hospitality
Yes
PRODUCT INFORMATION
Product Type

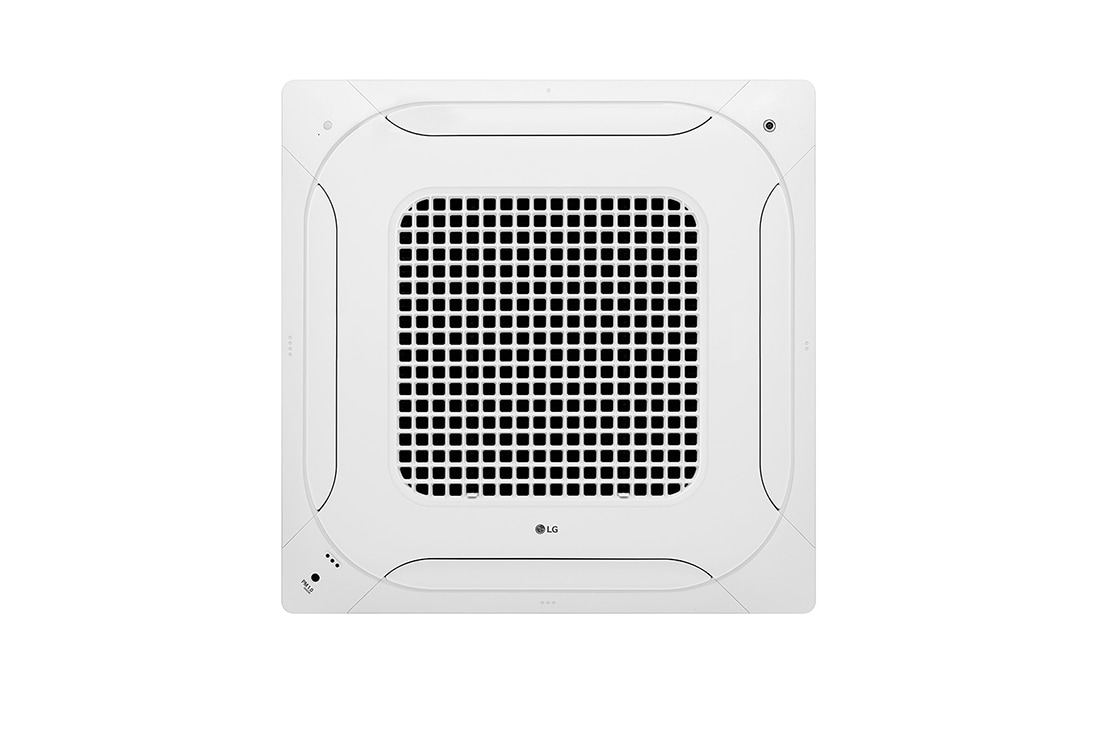

Ceiling Cassette
Inverter Technology
Yes
Fast Cooling
Yes
Super energy Saving
Yes
Indoor Unit Noise Level (H/M/L)
43 / 41 / 39 dB(A)
Refrigerant Type
R410A
Operation Range
Up to 53°C
High Ceiling Mode
Yes
Clean Air Filteration
Yes
Independent Vane Operation
Yes
GENERAL SPECIFICATIONS
Power Supply (Φ / V / Hz)
1/220~240/50
Cooling Capacity in TR
3.0
INDOOR UNIT
Air Flow Rate (H/M/L)
1060/989/918
Body Dimensions (W x H x D)
840 x 288 x 840 mm
Net Weight
24.6 kg
Panel Dimensions (W x H x D)
950 x 25 x 950 mm
OUTDOOR UNIT
Compressor Type
Twin Rotary
Sound Level (H)
48 dB(A)
Dimensions (W x H x D)
1
Net Weight
65 kg
Piping Connections (Liquid)
Ø 9.52 mm
Piping Connections (gas)
Ø 15.88 mm
Drain (Outdoor / Indoor)
Ø 32 mm / 25 mm
Max. Piping Length (Main Piping)
50 m
Max. Elevation Difference (Indoor-Outdoor)
30 m
