LG UHD TV Signage
Contact us

LG UHD TV Signage

Contact us

LG UHD TV Signage

50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S
LG UHD TV Signage, 50UR640S

Key Features

  • Brightness(Typ.) : 400 nits
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Improved Design with Slim Depth
  • webOS-based High Performance
  • Easy Content Management/Group Management
  • SuperSign Control / CMS Compatibility
More
LG 86UR640S Essential Function

LG 86UR640S Essential Function

LG TV Signage with Essential Function

*All images in this web page are for illustrative purposes only.

LG 86UR640S Ultra HD Resolution

Superb Picture Quality with Ultra HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

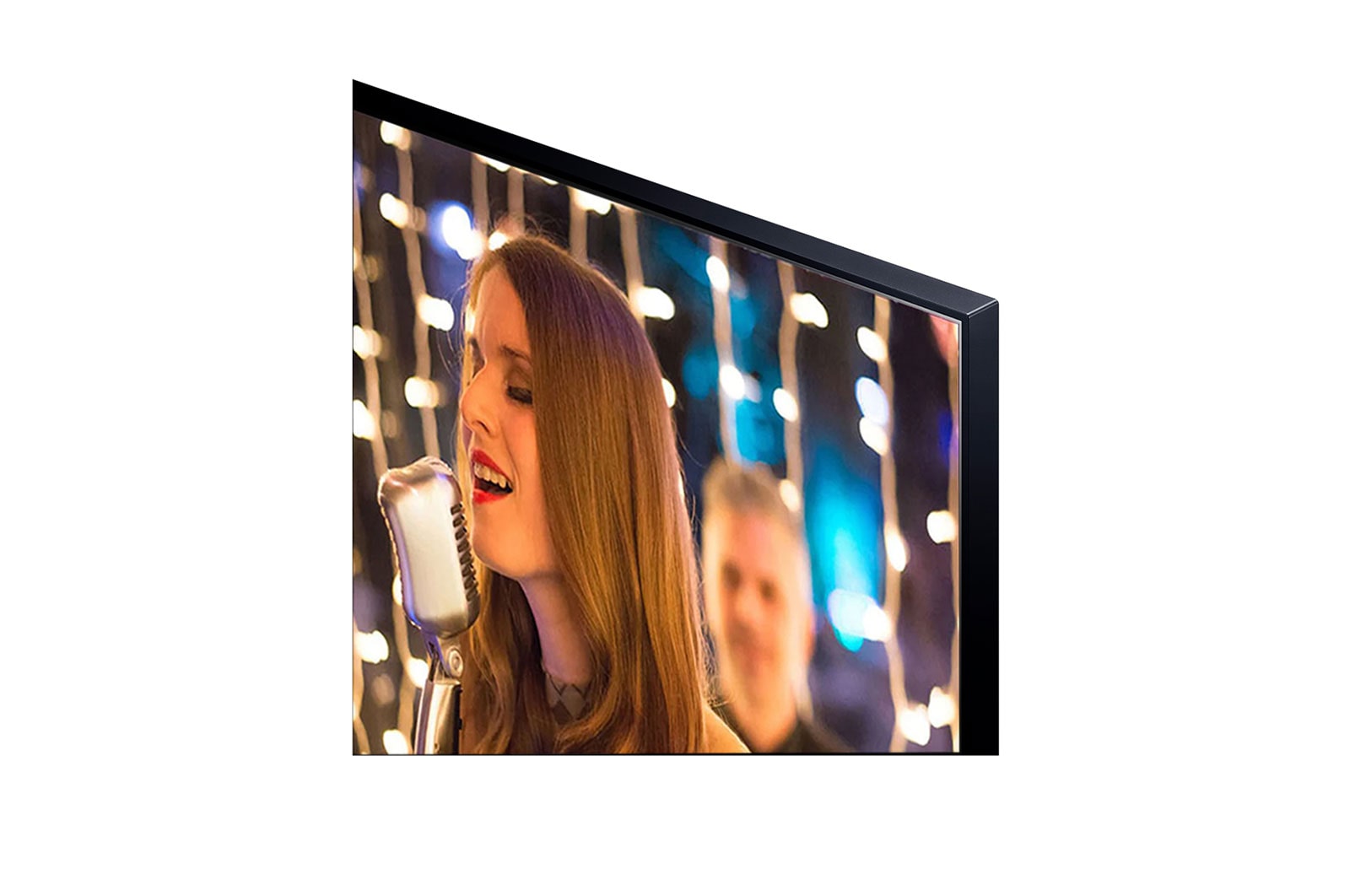

LG 86UR640S Slim Depth

Improved Design with Slim Depth

This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.

*LG Conventional' refers to LG UT640S series.

LG 86UR640S webOS 6.0

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine, is available on UR640S series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

*SoC : System On Chip.
**GUI : Graphical User Interface.

LG 86UR640S Embedded Content

Embedded Content & Group Management

The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.
LG 50UR640S LG's Simple Advertisement Helper, Promota

LG 50UR640S LG's Simple Advertisement Helper, Promota

This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall.

This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the UR640S series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

*Users need to set up Soft AP enabled at Network Menu of the Signage.
**Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
***LG One:Quick Share needs to be purchased separately.

LG 86UR640S SuperSign CMS

LG 86UR640S SuperSign CMS

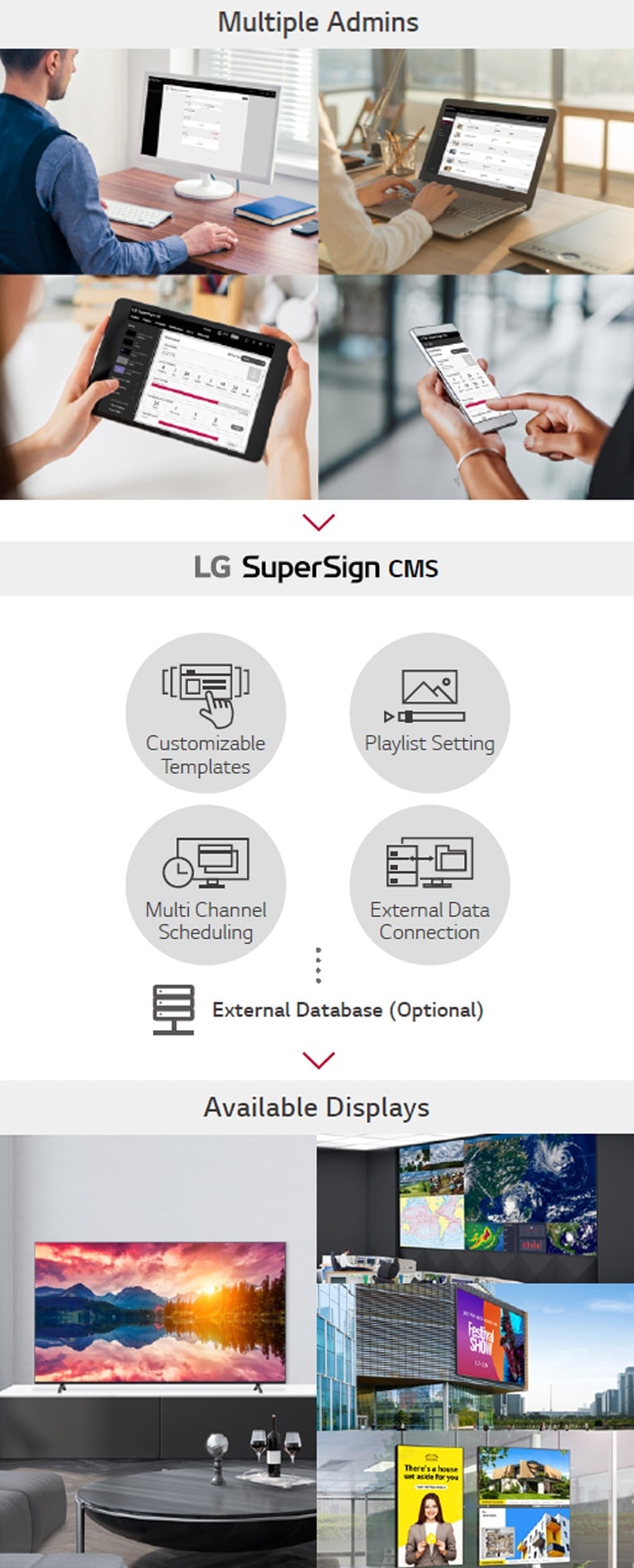

Versatile Content Management with LG SuperSign CMS

LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, and allows server access from mobile devices.

*LG SuperSign CMS is sold separately.

LG 86UR640S Quick

Quick & Easy Signage Control with LG Supersign Control

SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

*LG SuperSign Control needs to be purchased separately.

LG 86UR640S Compatible with AV Control Systems

Compatible with AV Control Systems

The UR640S series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

*Initial setting from display is required for Crestron Connected® compatibility.
**Network based control.

LG 86UR640S Display Power Management Support

Display Power Management Support

Display Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.
LG 86UR640S Content Sharing

LG 86UR640S Content Sharing

Real-Time Promotion & Content Sharing

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time. And content mirroring is supported from android mobiles and Windows laptop over Miracast.

LG 86UR640S Wireless Access Point

Wireless Access Point

UR640S series operates as a virtual router which can be an wireless access point for mobile devices.
LG 86UR640S Easy Menu Setup for Vertical Needs

Easy Menu Setup for Vertical Needs

UR640S series increases users' convenience by organizing frequently used menus* by industry.

*Pre-set Support Vertical : Corporate / Government / Retail, Meeting room

LG 86UR640S ConnectedCare Service

LG 86UR640S ConnectedCare Service

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Print

All Spec

INFO

  • Category

    Smart TV Signage

SUPERSIGN SW COMPATIBILITY

  • CMS(Premium)

    YES

  • Control / Control Plus

    YES

  • LG Connected Care

    YES

  • Simple Editor

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Healthcare Headphone Mode

    -

  • Pillow Speaker

    -

  • Protection Cover (Glass)

    -

ACCESSORIES

  • Power Cable

    YES (1.5 M, Straight Type)

  • Remote type

    S-con

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    PAL

  • Digital

    DVB-T2/C

  • Teletext (Auto Teletext)

    YES

POWER SPEC.

  • Power Consumption(Max)

    144.8 W

  • Power Consumption(Typ)

    118.8 W

  • Power Supply (Voltage, Hz)

    AC 100~240 V 50/60 Hz

  • Standby Power Consumption

    Under 0.5 W

STANDARD

  • Others

    -

  • EMC

    CE

  • Safety

    CB, CU TR

STANDARD (EU_NEW LABEL(`21.3~))

  • HDR Grade

    -

  • HDR On mode

    -

  • SDR Grade

    -

  • SDR On mode

    -

AUDIO (SOUND)

  • AI Acoustic Tuning

    -

  • AI Sound

    -

  • LG Sound Sync

    YES

  • Speaker (Audio Output)

    20 W

DISPLAY

  • Brightness (Typ.)

    400 nit

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Size (Inch)

    126 CM (50)

MECHANICAL

  • Credenza/Security Screw Hole

    -

  • Kensington Lock

    YES

  • Lock Down Plate (for easy installing)

    -

  • VESA Compatible

    200 x 200 mm

STANDARD (EU_OLD LABEL(~`21.3))

  • Average Annual Consumption(kWh)

    -

  • ErP Class

    -

  • Luminance Ratio (%)

    -

  • On Power Consumption

    -

VIDEO

  • Game Optimizer

    -

  • AI Picture Pro

    -

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

SMART FUNCTION

  • AOD

    -

  • Bluetooth

    YES

  • Bluetooth Audio Playback

    YES

  • DIAL

    YES

  • Gallery Mode

    -

  • HDMI-ARC

    YES (HDMI2)

  • Home Office

    -

  • IoT

    -

  • Magic Remote Compatibility

    -

  • Mood Display

    YES

  • Multi-View

    -

  • Screen Share

    YES

  • Soft AP

    YES

  • Voice Recognition (Standalone/Solution)

    -

  • webOS version

    webOS 6.0

  • Web Browser

    YES

  • Wi-Fi

    YES

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    7.3/7.3/7.8/18.4 mm

  • Bezel Width (L/R/U/B, On Bezel)

    12.8/12.8/12.8/19.9 mm

  • Dimension in Shipping (W x H x D)

    1215 x 775 x 152 mm

  • Dimension without Stand (W x H x D)

    1121 x 651 x 57.1 mm

  • Dimension with Stand (W x H x D)

    1121 x 708 x 232 mm

  • Weight in Shipping

    14.6 kg

  • Weight without Stand

    11.7 kg

  • Weight with Stand

    11.9 kg

CONNECTIVITIES

  • External Speaker Out(3.5mm Phone jack)

    YES

  • Audio Line Out(3.5mm Phone jack)

    -

  • AV In

    YES

  • CI Slot

    -

  • Component in (Y,Pb,Pr-Video)

    -

  • DC Adapter In

    -

  • Digital Audio Out (Optical)

    YES

  • ECI (RJ12 jack)

    -

  • Expansion slot (60pin)

    -

  • EXT. IR In

    -

  • HDMI In

    YES (3 ea)

  • Headphone Out

    YES

  • LG SVC only (Phone jack type)

    YES

  • MPI Port (RJ12 jack)

    -

  • PC Audio Input

    -

  • Pillow Speaker interface (6pin)

    -

  • PoC (Power over Coax)

    -

  • RF In

    YES (1 ea)

  • RGB In (D-sub 15pin) - PC

    -

  • RJ45 (Usage Purpose)

    YES (LAN)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

  • TV link Configuration (Phone jack type)

    -

  • USB (Ver.)

    YES (1 ea / 2.0)

HOSPITALITY SOLUTION

  • Other DRM

    -

  • Pro:Centric Cloud

    -

  • Pro:Centric Direct

    -

  • Pro:Centric Server

    -

  • Pro:Centric Smart

    -

  • Pro:Centric V

    -

  • Pro:Idiom (DRM)

    -

  • Pro:Idiom Media (DRM)

    -

  • Quick Menu (Customizable Portal)

    -

  • webRTC (Real Time Communication)

    -

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • BEACON

    YES

  • CISCO Certi. Compatibility

    YES

  • Crestron Certi. Compatibility

    YES

  • DPM (Digital Power Management)

    YES

  • Embedded CM (Contents Manager)

    YES

  • Embedded GM (Group Manager)

    YES

  • Fail Over

    YES

  • NTP Server Setting

    YES

  • NTP sync timer

    YES

  • Play Via URL

    YES

  • Promota / Mobile CMS

    YES

  • RTC (Real Time Clock)

    YES

  • Time scheduler

    YES

  • Vertical Setup

    YES

  • Video Tag

    -

HOSPITALITY FEATURE

  • One Channel Map

    YES

  • b-LAN

    -

  • Conformal Coating

    -

  • Diagnostics

    YES (Self Diagnostics(USB))

  • Energy Saving mode

    YES

  • Enterprise Mode

    -

  • External Power Out

    -

  • External Speaker Out / Line Out

    YES (Ext. Speaker Out)

  • EzManager

    -

  • Full Touch Screen

    -

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES

  • Insert Image

    YES

  • Instant ON

    -

  • IR Out

    YES (RS-232C, HDMI)

  • Lock mode

    YES (Limited)

  • Mobile Remote

    -

  • Multi IR Code

    YES

  • Port Block

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Auto playback / playback+

    -

  • USB Cloning

    YES

  • V-Lan Tag

    -

  • Wake on RF

    -

  • Welcome Screen (Splash Image)

    YES

  • Welcome Video

    -

  • WOL

    YES

DESIGN

  • Front Color

    Ashed Blue

  • Stand Type

    2 Pole

  • Tool Name

    UP8000

Leaflet

extension : pdf
Information Display Range Catalogue_250221.pdf
Download
extension : pdf
UR640S Leaflet India_241119.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
