LG webOS UHD Signage

86UL3J

Key Features

Brightness(Typ.) : 330 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker

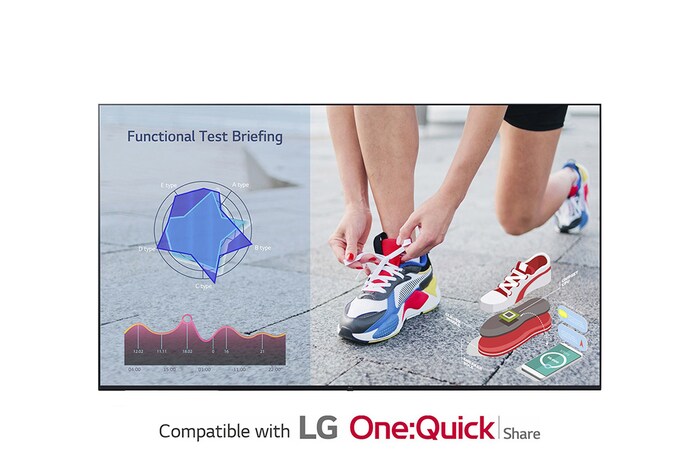

Compatible with LG's One:Quick Share
Compatible with AV Control Systems

All Spec

PANEL

Screen Size: 217 CM (86)

Panel Technology: IPS

Back Light Type: Direct

Aspect Ratio: 16:9

Native Resolution: 3840 x 2160 (UHD)

Refresh Rate: 120Hz

Brightness: 330nit (Typ.)

Dynamic CR: 1,000,000:1

Color Gamut: DCI 80%

Viewing Angle (H x V): 178º x 178º

Color Depth (Number of Colors): 1.07 Billion colors

Response Time: 5ms (G to G)

Surface Treatment (Haze): Haze 3%

Operation Hours (Hours/Day): 16/7

Portait / Landscape: YES / YES

CONNECTIVITY

HDMI In: YES (3ea)

HDMI In (HDCP Ver.): 2.2/1.4

RS232C In: YES

RJ45(LAN) In: YES (1ea)

USB In: USB2.0 Type A (2ea)

Audio Out: YES

RS232C Out: YES

MECHANICAL SPECIFICATION

Bezel Color: Ashed Blue

Bezel Width: Off : 6.9/6.9/6.9/18.4mm On : 15.9/15.9/15.9/19.9mm

Weight (Head): 45.2Kg

Packed Weight: 57.7Kg

Monitor Dimensions (W x H x D): 1927 x 1104 x 59.9mm

VESA Standard Mount Interface: 600 x 400 mm

Carton Dimensions (W x H x D): 2115 x 1215 x 228mm

FEATURE - HARDWARE

Internal Memory (eMMC): 16GB

Wi-Fi/BT (Built-in): YES

Temperature Sensor: YES

Auto Brightness Sensor: YES

Local Key Operation: YES

FEATURE - SOFTWARE

OS Ver. (webOS): webOS 6.0

Local Contents Scheduling: YES

Group Manager: YES

USB Plug & Play: YES

Fail Over: YES

Booting Logo Image: YES

No Signal Image: YES

RS232C Sync: YES

Local Network Sync: YES

Screen Share: YES

Video Tag: YES (4 Video Tag)

Play Via URL: YES

Screen Rotation: YES

External Input Rotation: YES

Gapless Playback: YES

Tile Mode Setting: YES

Setting Data Cloning: YES

SNMP: YES

ISM Method: YES

Auto Set ID: YES

Status Mailing: YES

Control Manager: YES

Cisco Certification: YES

Crestron Connected: YES

Smart Energy Saving: YES / NO

PM mode: YES

Wake on LAN: YES

Network Ready: YES

BEACON: YES

HDMI-CEC: YES

SI Server Setting: YES

webRTC: YES

Pro:Idiom: YES

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 30 °C)

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

POWER CONSUMPTION

BTU (British Thermal Unit): 751 BTU/Hr(Typ.), 1024 BTU/Hr(Max.)

Smart Energy Saving (70%): 154 W

DPM: 0.5W

Power off: 0.5W

Max.: 300W

Typ.: 220W

SOUND

Speaker (Built-in): YES (10W x 2)

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "A" / CE

ERP / Energy Star: YES / NO

SOFTWARE COMPATIBILITY

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: YES

Connected Care: YES

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder

SPECIAL FEATURE

Conformal Coating (Power Board): YES

Power Protection: N/A

Direct Sunlight: N/A
