Cabinet material
Aluminum
Flatness of Cabinet (mm)
±0.15
Module Dimensions(WxH,mm)
300*168.75
Module Resolution (WxH)
192*108
No. of Modules per Screen (WxH)
10x10 (Total 100)
Physical Pixel Density (pixels/㎡)
409,600
Pixel Configuration
3 IN 1 SMD
Pixel Pitch (mm)
1.56
Screen Dimensions (W x H x D, mm, including bezel)
3,005 X 1,692.5 X 29.95 (Thickest 59.5)
Screen Resolution (WxH)
1920 x 1080
Screen Surface Area (㎡)
5.06
Service access
Front
Unit Case material
Aluminum
Weight of the screen
108.5
Brightness Uniformity(%)
98%
Color Temperature (K)
3,200~9,300
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
3,000:1
Max Brightness (After Calibration, nit)
Typ. 500
Processing Depth (bit)
16
Visual Viewing Angle (Horizontal)
150
Visual Viewing Angle (Vertical)
150
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Screen, Avg.)
2,218
Heat Dissipation (BTU/h/Screen, Max.)
4,436
Power Consumption (W/㎡, Max.)
260
Power Consumption (W/Screen, Avg.)
650
Power Consumption (W/Screen, Max.)
1300
Power Supply (V)
100 to 240
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
IP rating Front
IP30
IP rating Rear
IP30
Operating Humidity
10~90%RH
Operating Temperature(℃)
0℃ to +40℃
Speaker
Built-in(9W+9W)
Certification
CE,FCC,ETL,CB,CE-RED EMC Class A
Cinema server compatibility
BS476: Part7 Class 1 EN13501-1 (Class B-s1,d0)
Environment
RoHS, REACH
Controller
Embedded(webOS)
I/O Port
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Digital Audio Out (1, SPDIF Optical)

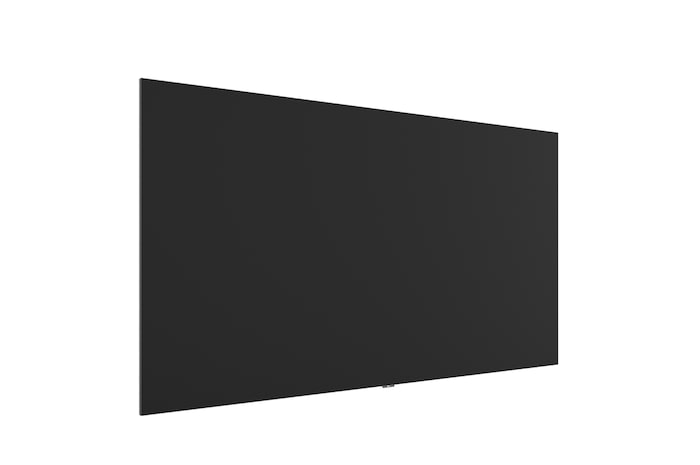

Model name
LAPA 136
