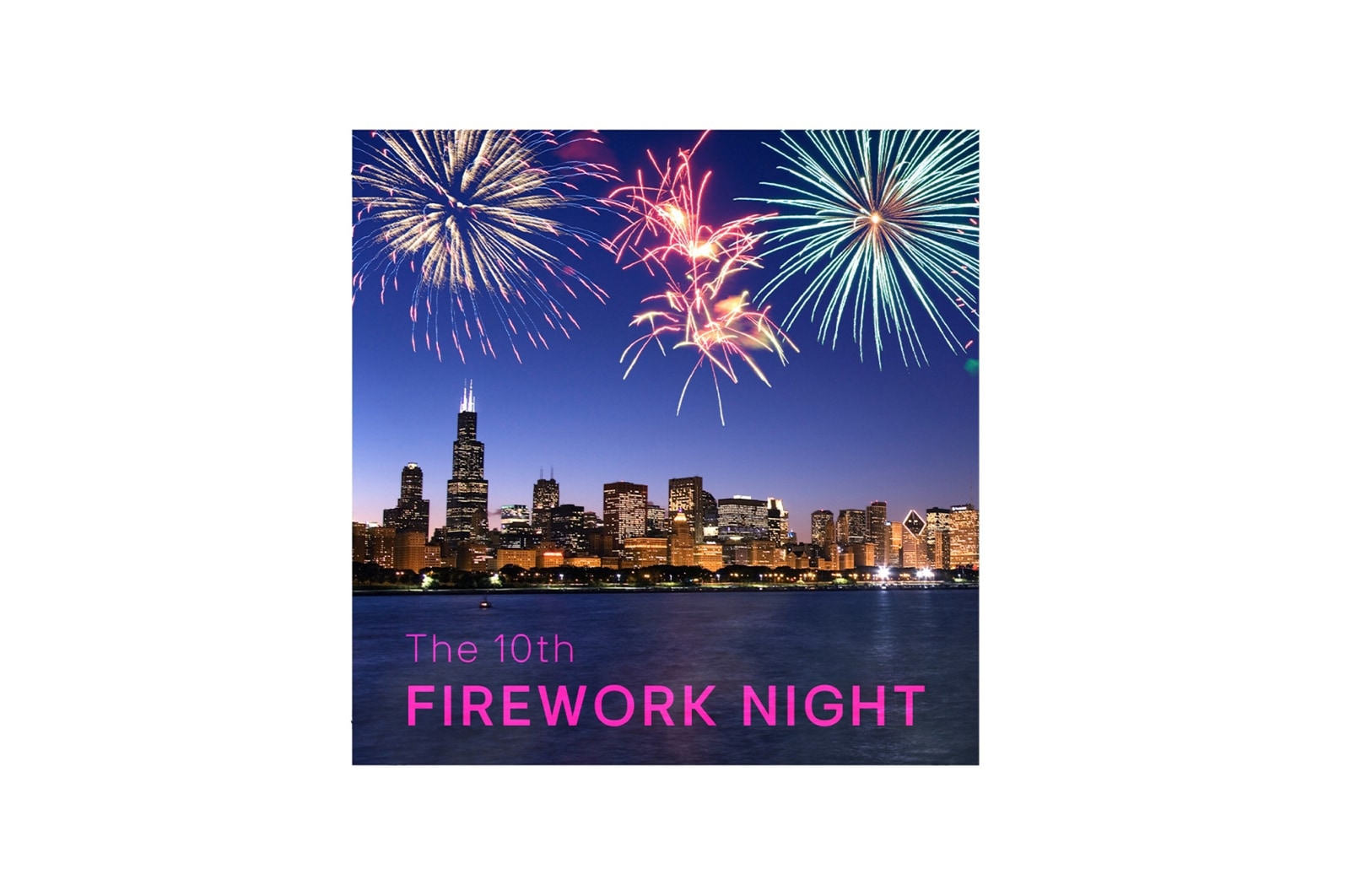

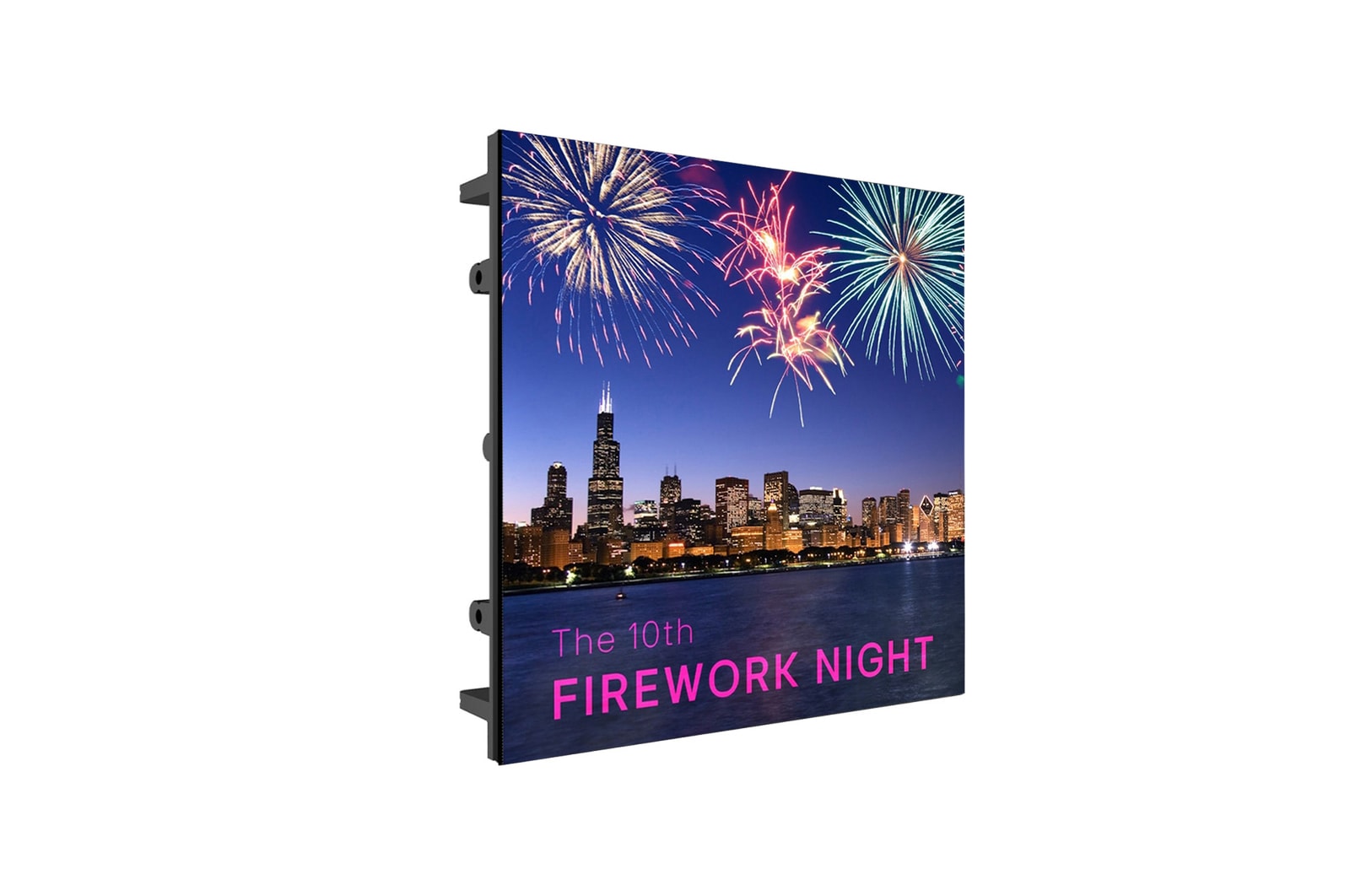

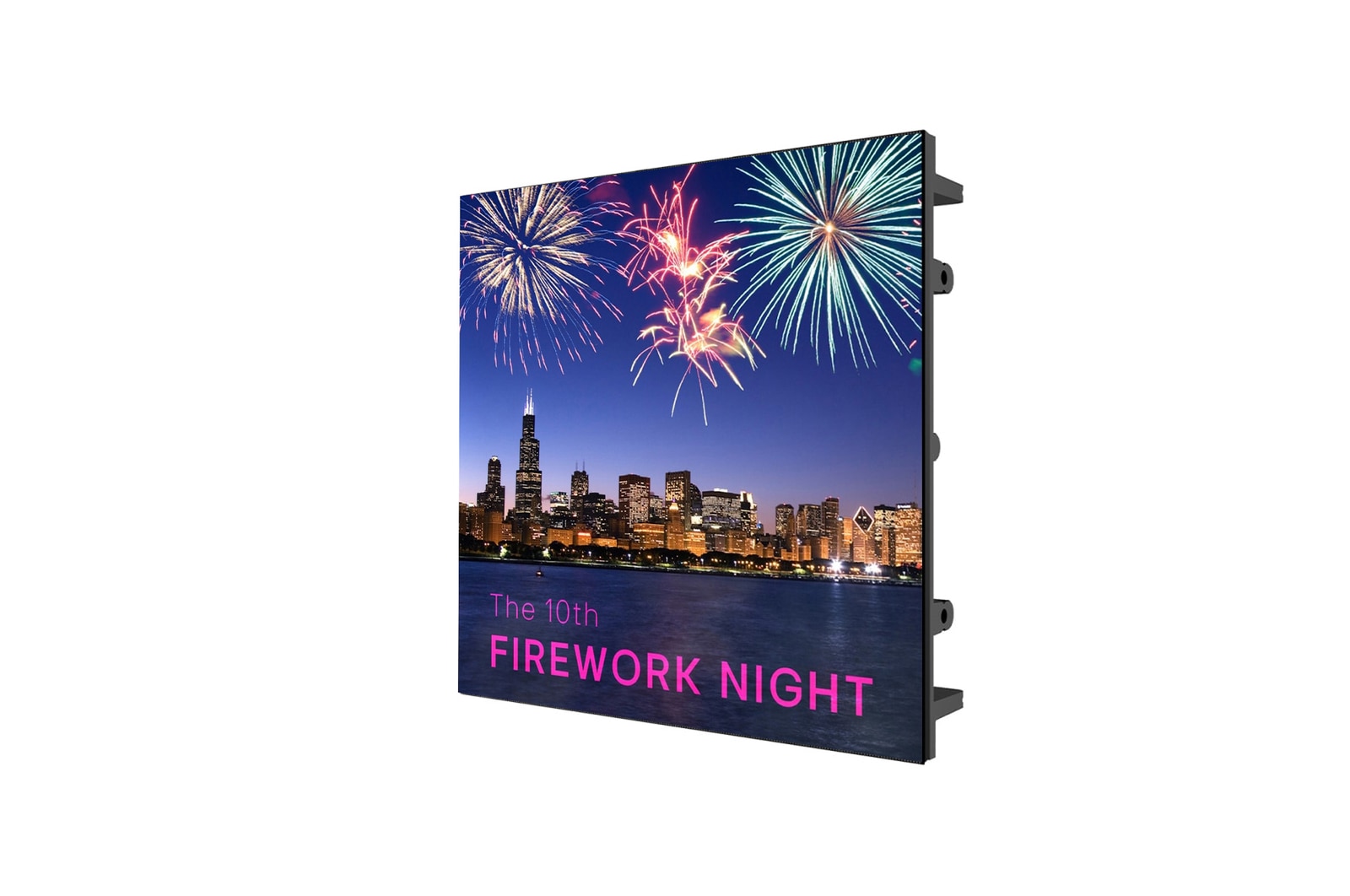

- Pixel Pitch : 1.85 mm
- Brightness : 800 nit
- Fast Installation
- Easy Maintenance
- Front and Rear Serviceability
- IP Rating : IP40 / IP20 (Front / Rear)
All Spec
PHYSICAL PARAMETERS
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.85
Module Resolution (WxH)
135 x 135
Module Dimensions(WxH,mm)
250 x 250
Weight per Module (kg)
0.55
No. of Modules per Cabinet (WxH)
2 x 4
Cabinet Resolution (WxH)
270 x 540
Cabinet Dimensions (W x H x D, mm)
500 x 1,000 x 90
Cabinet Surface Area (㎡)
0.5
Weight per Cabinet (kg/unit)
10
Weight per Square Meter (kg/㎡)
20
Physical Pixel Density (pixels/㎡)
291,600
Flatness of Cabinet (mm)
±0.1
Cabinet material
Magnalium
Service access
Front & Rear
OPTICAL SPECIFICATIONS
Max Brightness (After Calibration, nit)
800
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity(%)
0.98
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
6,500:1
Processing Depth (bit)
14
ELECTRICAL SPECIFICATIONS
Power Consumption (W/Cabinet, Max.)
195
Power Consumption (W/Cabinet, Avg.)
65
Power Consumption (W/㎡, Max.)
390
Heat Dissipation (BTU/h/Cabinet, Max.)
532
Heat Dissipation (BTU/h/Cabinet, Avg.)
177
Heat Dissipation (BTU/h/㎡, Max.)
1065
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
OPERATION SPECIFICATIONS
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-10 ℃ to +40 ℃
Operating Humidity
10~80 % RH
IP rating Front
IP40
IP rating Rear
IP20
STANDARD
Certification
CE_LVD/EMC, FCC, CB
ENVIRONMENT
Environment
RoHS, REACH
CONTROLLER
Controller
CVGA
