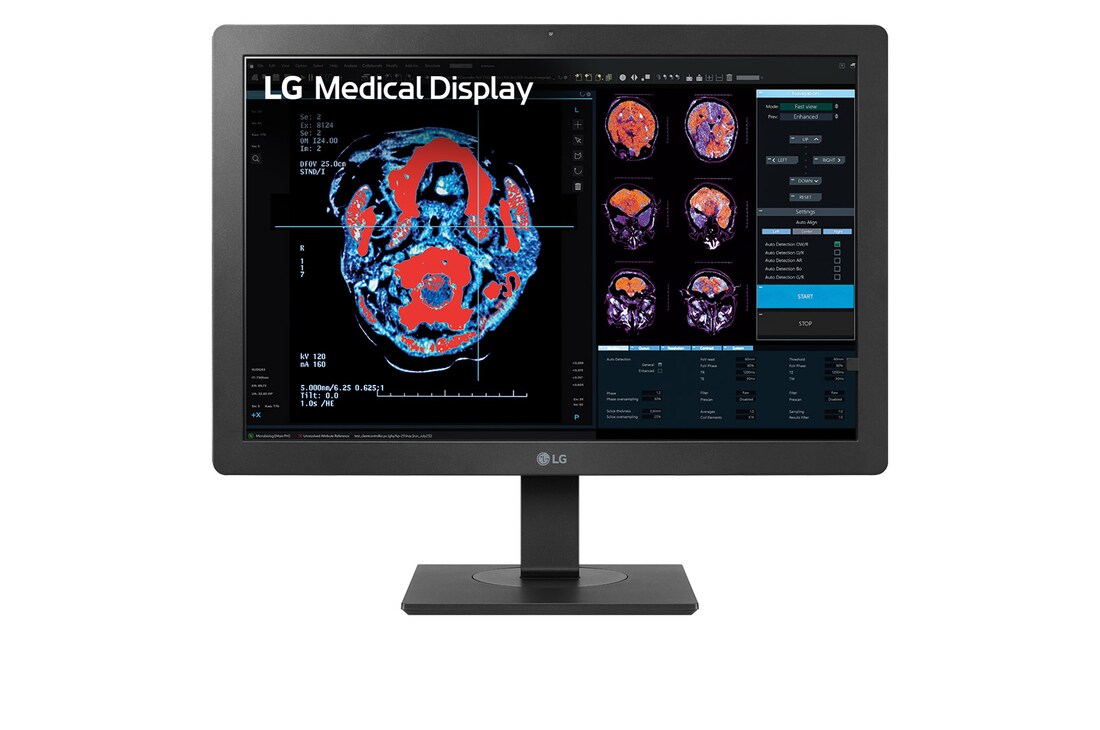

- 24-inch 2MP (1920x1200) IPS Display
- 600cd/m² Brightness (Typ.)
- Internal Front Calibration Sensor
- Focus View Mode / Pathology Mode
- Daisy Chain
- Bi-directional Auto Pivot
All Spec
DISPLAY
Size [Inch]
24
Aspect Ratio
16:10
Surface Treatment
Anti-Glare
Response Time
5ms (GtG at Faster)
Resolution
1920 x 1200
Pixel Pitch [mm]
0.27 x 0.27
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
600
Contrast Ratio (Typ.)
1000:1
Colour Gamut (Typ.)
NTSC 70% (CIE1931)
Colour Bit
8bit
CONNECTIVITY
12G-SDI
NO
3G-SDI
NO
D-Sub
NO
DVI-D
YES(1ea)
Component (Resolution)
NO
Composite (Resolution)
NO
HDMI
YES(1ea)
Daisy Chain
YES
DisplayPort
YES(In 1ea / Out 1ea)
Thunderbolt
NO
Headphone out
NO
RS-232
NO
S-Video
NO
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(2ea/ver3.0)
FEATURES
HDR 10
NO
Auto Luminance Sensor
YES
Smart Energy Saving
YES
PIP
NO
PBP
NO
Flicker Safe
YES
HW Calibration
YES
Black Stabiliser
YES
Lighting
NO
Reader Mode
YES
Super Resolution+
YES
Hot Key
NO
Presence Sensor
NO
Front Sensor
YES
Colour Temperature
6500K/7500K/9300K/Manual(5000K-10000K)
Rotation & Mirror Mode
NO
Failover Input Switch
NO
Focus View
YES
Light Box Mode
NO
Brightness stabilisation
YES
Pathology Mode
YES
DICOM Compliant
YES
HDR Effect
NO
MECHANICAL
Display Position Adjustments
Tilt/Height/Swivel/Pivot
Borderless Design
Normal
Wall Mountable [mm]
100 x 100
OneClick Stand
YES
Machanical Power Switch
NO
DIMENSIONS/WEIGHTS
Dimension in Shipping (W x H x D) [mm]
705 x 480 x 200
Dimension with Stand (W x H x D) [mm]
574.2 x 559.4 x 248.2
Dimension without Stand (W x H x D) [mm]
574.2 x 382.4 x 59.3
Weight in Shipping [kg]
9.7
Weight with Stand [kg]
7.1
Weight without Stand [kg]
4.35
POWER
Power Consumption (Max.)
65W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240V (50/60Hz)
Type
External Power(Adapter)
DC Output
19V, 3.42A
ACCESSORY
Adapter
YES
Calibration Report (Paper)
YES
Display Port
YES
DVI-D
YES
DVI-D (Colour/Length)
YES
D-Sub
NO
HDMI
YES
HDMI (Colour/Length)
YES
Power Cord
YES
USB3.0 Upstream Cable
YES
SW APPLICATION
Dual Controller
YES
LG Calibration Studio (True Colour Pro)
NO
Qubyx
NO
STANDARD
UL (cUL)
YES
CE
YES
RoHS
YES
IP(Front/Except for front)
NO
Vandal-proof
NO
KGMP
YES
KC (for Rep. of Korea)
YES
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
EN (EN 60601-1 / EN 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
FDA
Class II
ISO13485
YES
GMP
YES
WEEE
YES
MFDS
YES
REACH
YES
