*The actual installation location of this item may vary depending on product model.
*For more detailed information, please refer to the product manual for your model.
The replacement instruction for this item may differ slightly from the information below.
For more detailed information, please refer to the product manual for your model.

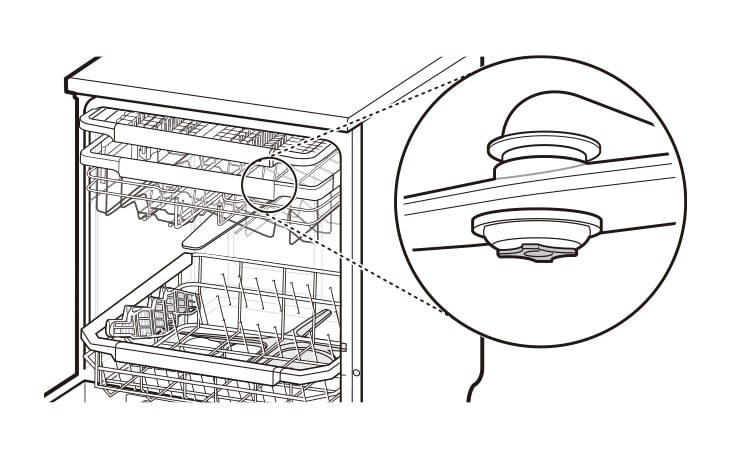

Open the door and check the position of the upper nozzle holder.

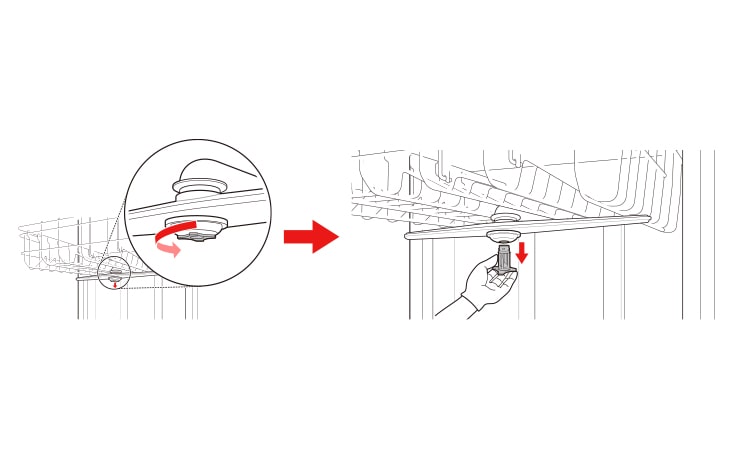

Remove the upper nozzle by turning the holder clockwise.
- Be careful that excessive force on the holder may damage it.

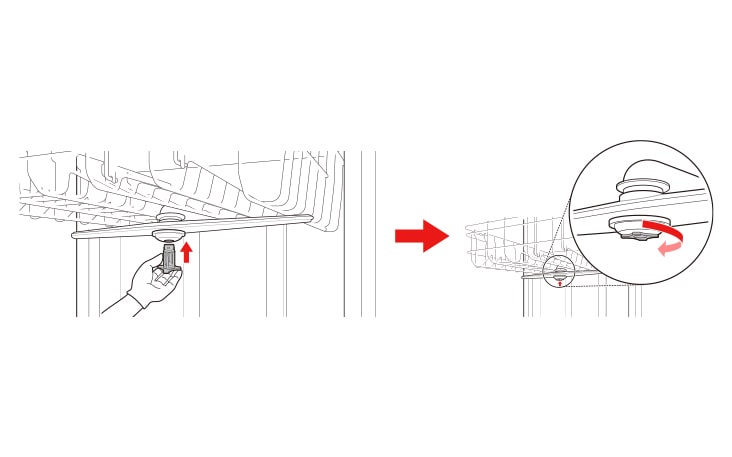

Position the new upper nozzle as shown below and insert the holder.

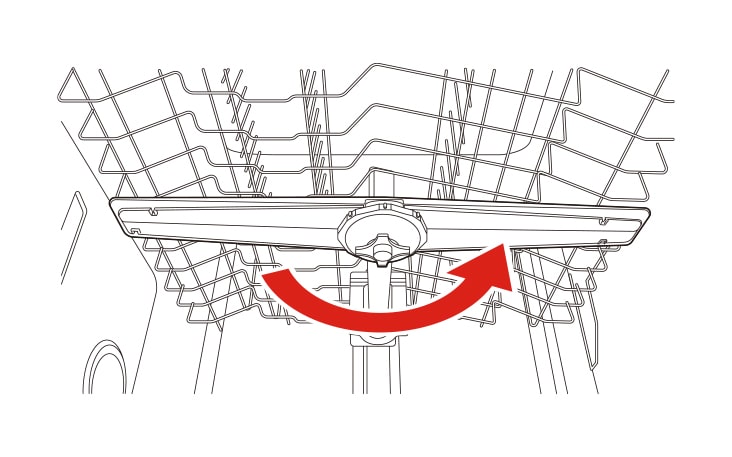

With the holder inserted, turn the holder counterclockwise to secure it.
*Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.
*All product images are photo cuts and may differ from the actual product. Product colour may vary depending on monitor resolution, brightness settings, and computer specifications.
*The performance of the product may vary depending on the usage environment, and availability may vary by store.
Net Weight (g)
140
Product Dimension (W x H x D, mm)
480 x 60 x75
Category
Nozzle
Part Number
AGB74616001
