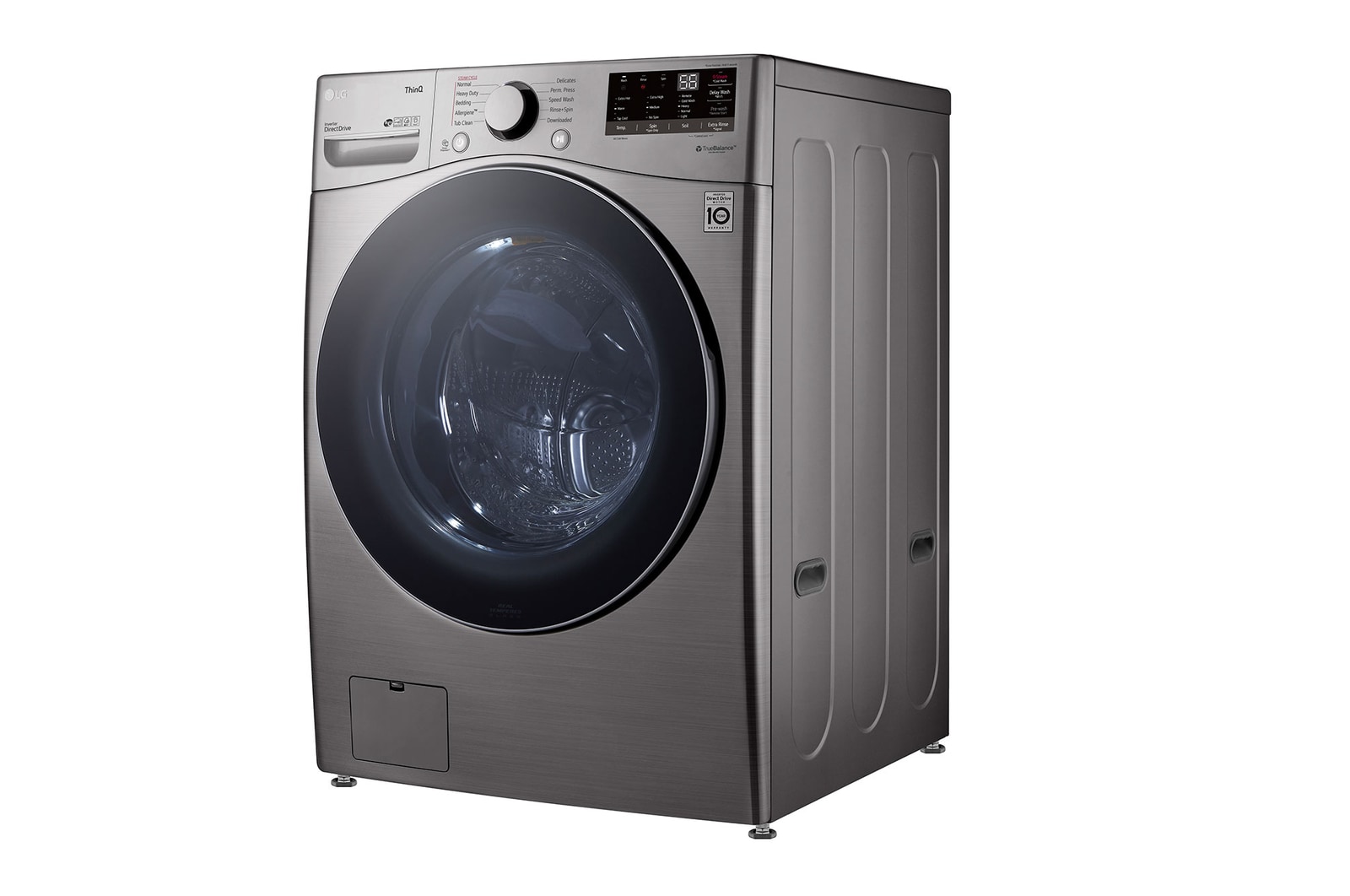

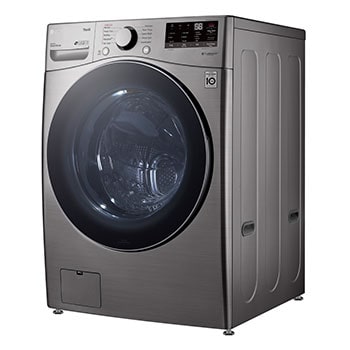

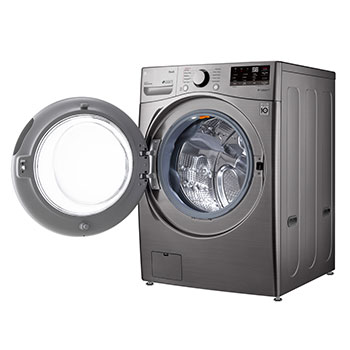

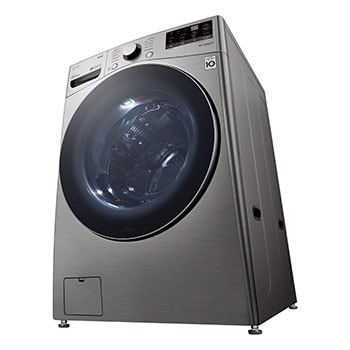

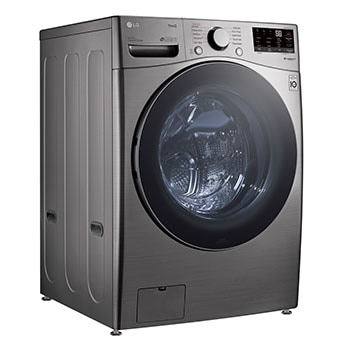

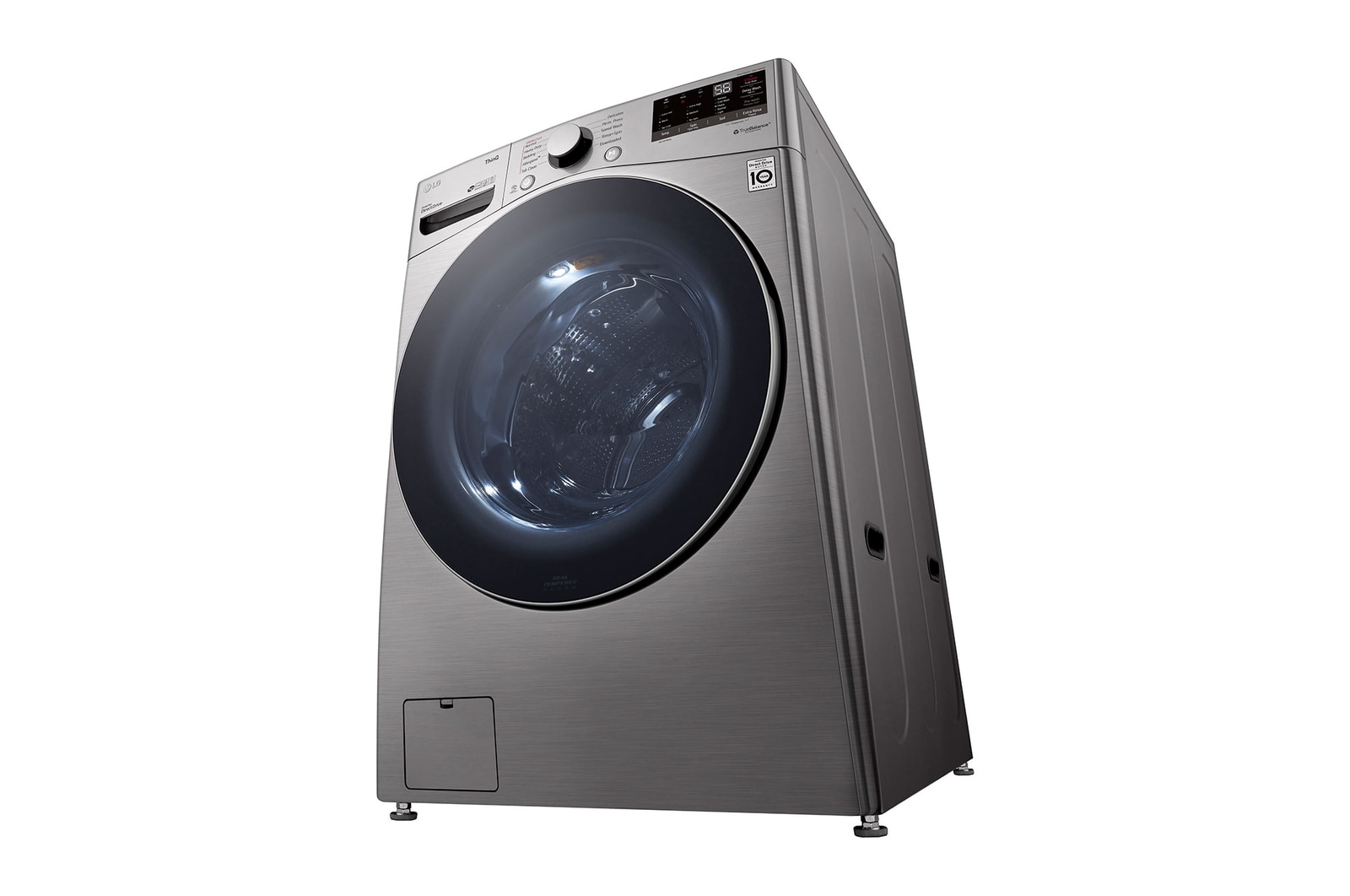

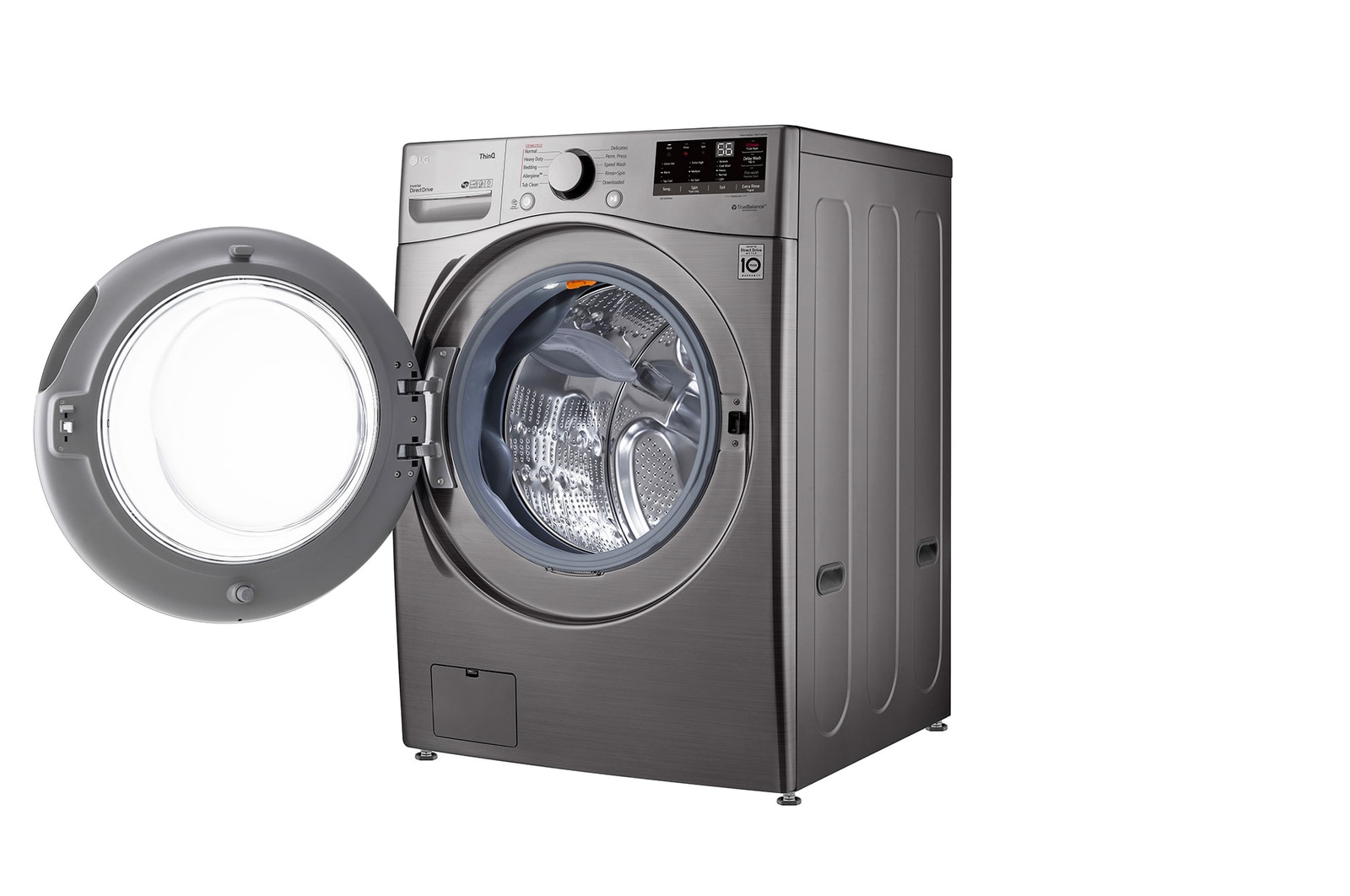

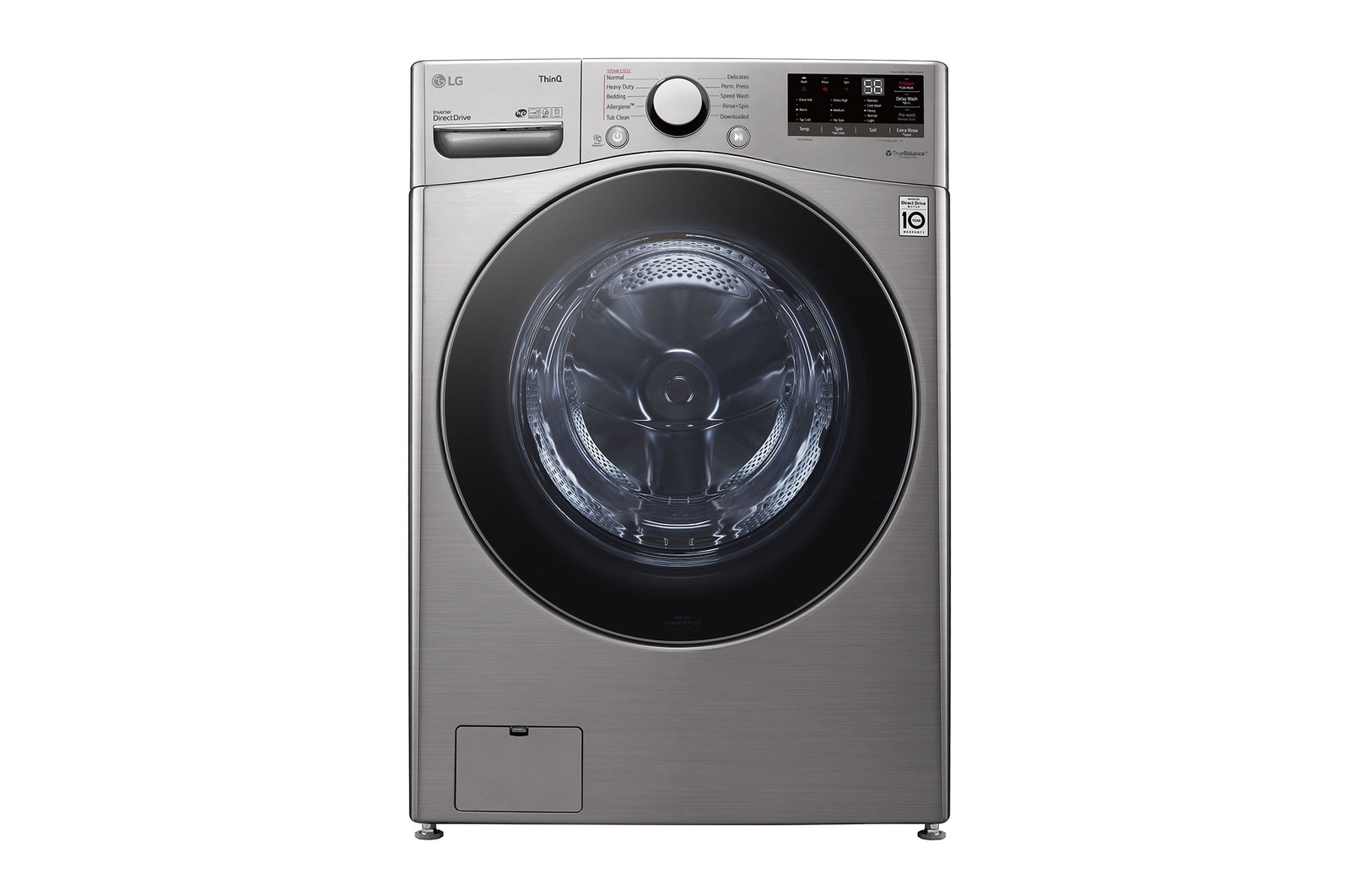

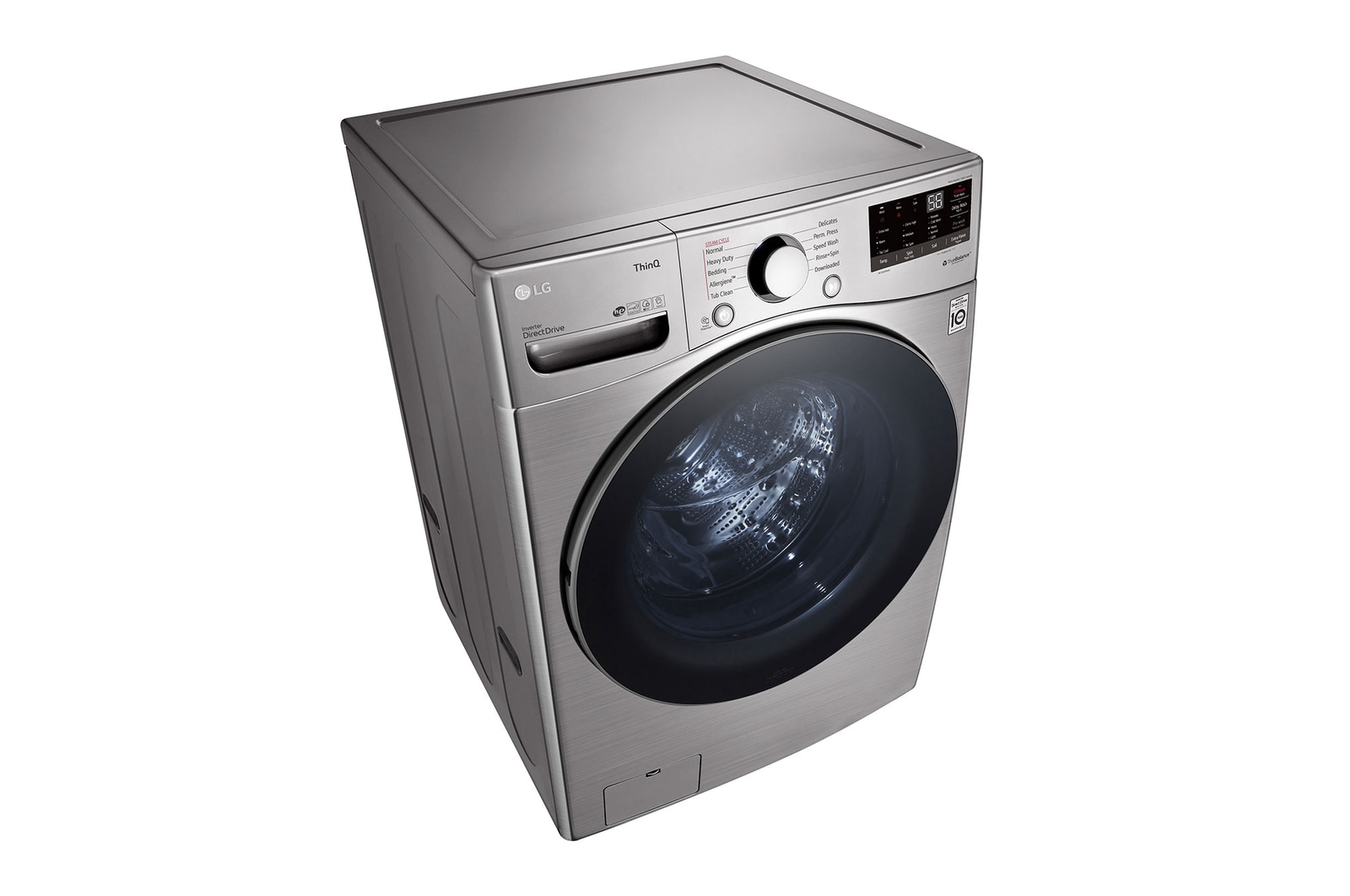

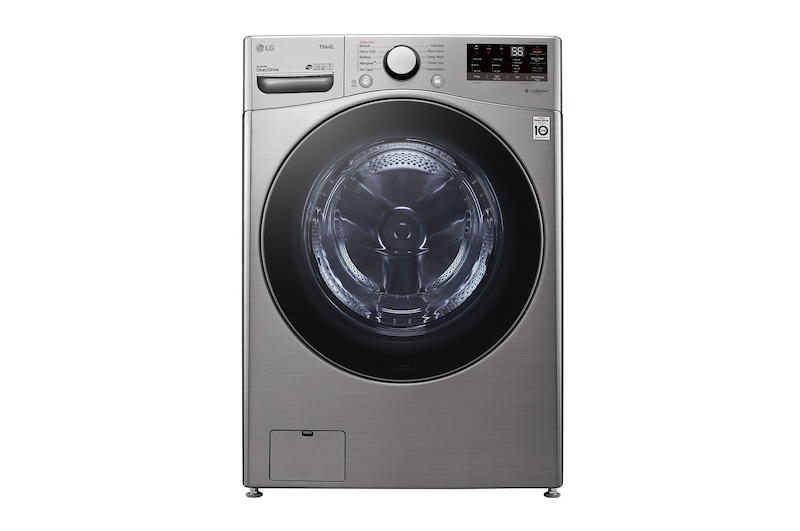

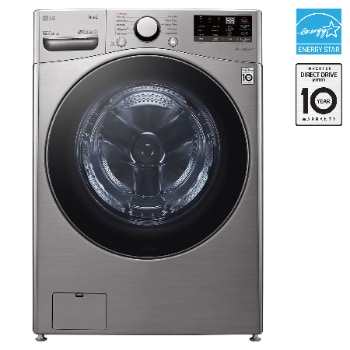

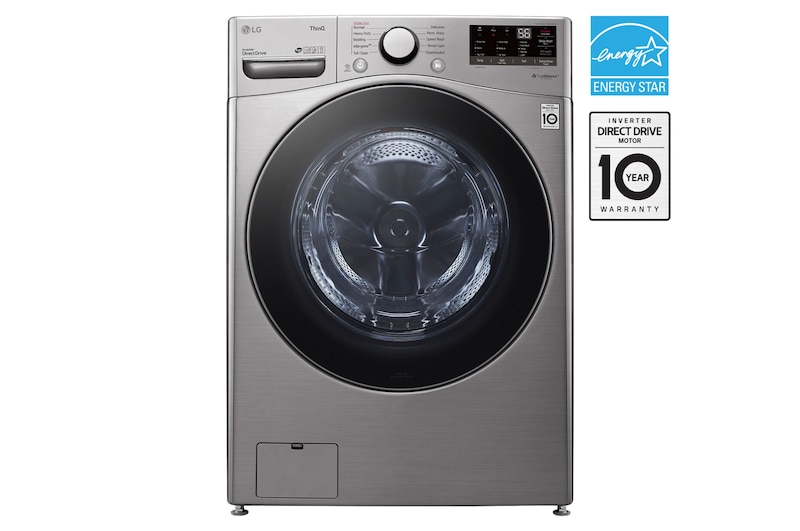

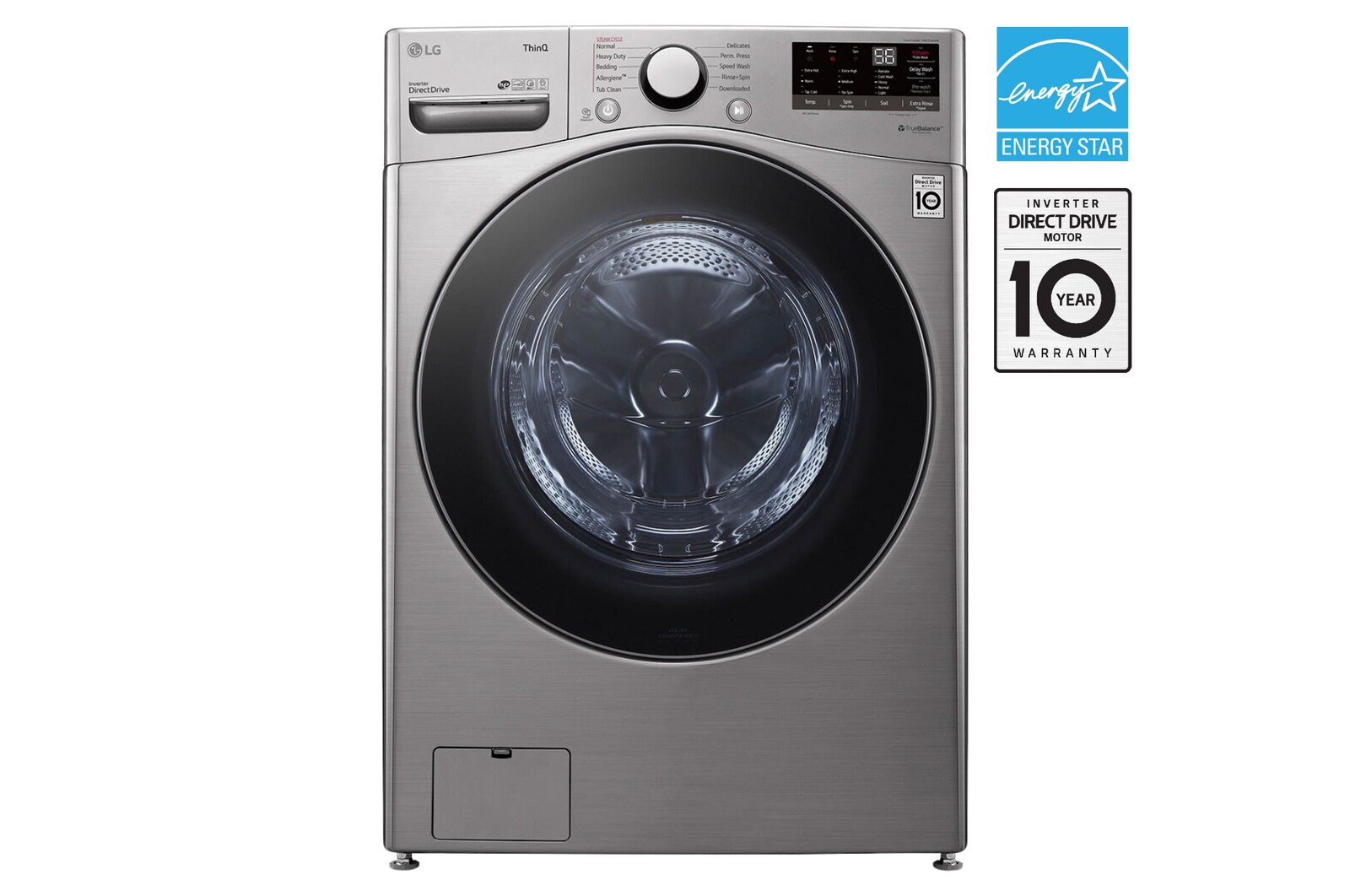

LG 5.2 cu. ft Ultra Capacity Front Load Washer

5.2 cu. ft Ultra Capacity Front Load Washer with AIDD^TM

WM3600HVA

Key Features

5.2 cu. ft. Ultra Large Capacity
Steam
AI DD^™
6Motion Technology
ENERY STAR^®Certified

5.2 cu. ft. Ultra Large Capacity

GO BIG TO SAVE TIME AND GET MORE DONE

Say never again to never-ending piles of laundry—this large capacity washer fits more clothes in every load and helps you power through laundry day in less time. With 5.2 cu. ft. capacity, you can fit a king-size comforter and more in a single load.

Steam

Deep Clean With Steam

Steam technology gently but powerfully penetrates fabrics to eliminate dirt, odours and wrinkles.

AI DD™

Built-in Artifical Intelligence takes out the guesswork

Forget about endless sorting or toggling through cycles, built-in sensors detect fabric texture, soil level, and load size, then automatically select the right wash motions, temperatures and more for advanced fabric care.

*Both washer and dryer need to be registered in LG ThinQ^® app and connected to Wi-Fi to set up Smart Pairing feature.

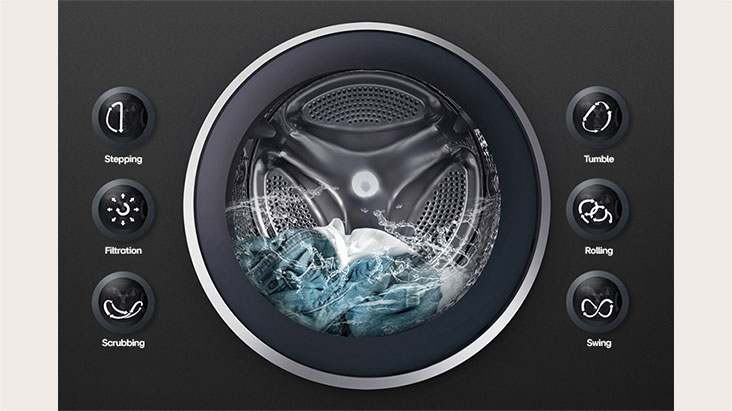

6Motion Technology

A Smarter Way to Wash

6Motion™ Technology combines up to 6 different wash motions to provide a smart cleaning experience that is gentle on fabrics yet maximizes wash performance.

ENERY STAR^®Certified

Save Water, Save Energy, Save Money

This LG high efficiency washer uses far less water and energy than a conventional washer for savings that add up with each load. Get additional savings with load-sensing technology that adjusts water levels and wash times* or by adding the Cold Wash option to almost any cycle.**

*Based on independent testing on WM6700HBA model in AI Wash cycle, 6.6 lb. load (August 2022).

**Based on average American household electricity consumption, as reported by the U.S. Energy Information Administration.

https://www.energy.gov/energysaver/laundry

Key Spec

DIMENSIONS & WEIGHTS - Dimensions (WxHxD inch)
27 x 39 x 30 1/4
FEATURES - ezDispense
No
FEATURES - Steam
Yes
SMART TECHNOLOGY - ThinQ(Wi-Fi)
Yes

All Spec

SMART TECHNOLOGY

Download Cycle
Yes
Energy Monitoring
Yes
Proactive Customer Care
Yes
Remote Start and Cycle Monitor
Yes
Smart Diagnosis
Yes
ThinQ(Wi-Fi)
Yes
Tub Clean Coach
Yes
Voice Control (3rd party device)
No
Smart Pairing
Yes

ADDITIONAL OPTIONS

Add Item
No
ColdWash
Yes
Control Lock
Yes
Delay Wash
Yes
Detergent Level
No
Drum Light
No
Extra Rinse
Yes
Fresh Care
No
Pre-wash
Yes
Remote Start
Yes
Rinse + Spin
No
Signal
Yes
Softener Level
No
Soil
5 Levels (Light to Heavy)
Spin
5 Levels
Spin Only
Yes
Steam
Yes
Temp.
Tap Cold / Cold /Warm / Hot / Extra Hot
Tub Clean
No
TurboWash
No
Wi-Fi
Yes

BAR CODE

Bar Code
195174131381

CAPACITY

Capacity(cu.ft)
4.5

CONTROL & DISPLAY

Display Type
Dial+Touch+Hard Buttons & LED Display
Delay Timer
1-19 hours
Door Lock Indication
Yes
Timer Display
18:88

DIMENSIONS & WEIGHTS

Carton Dimensions (WxHxD inch)
30 1/2 x 42 x 31 1/2

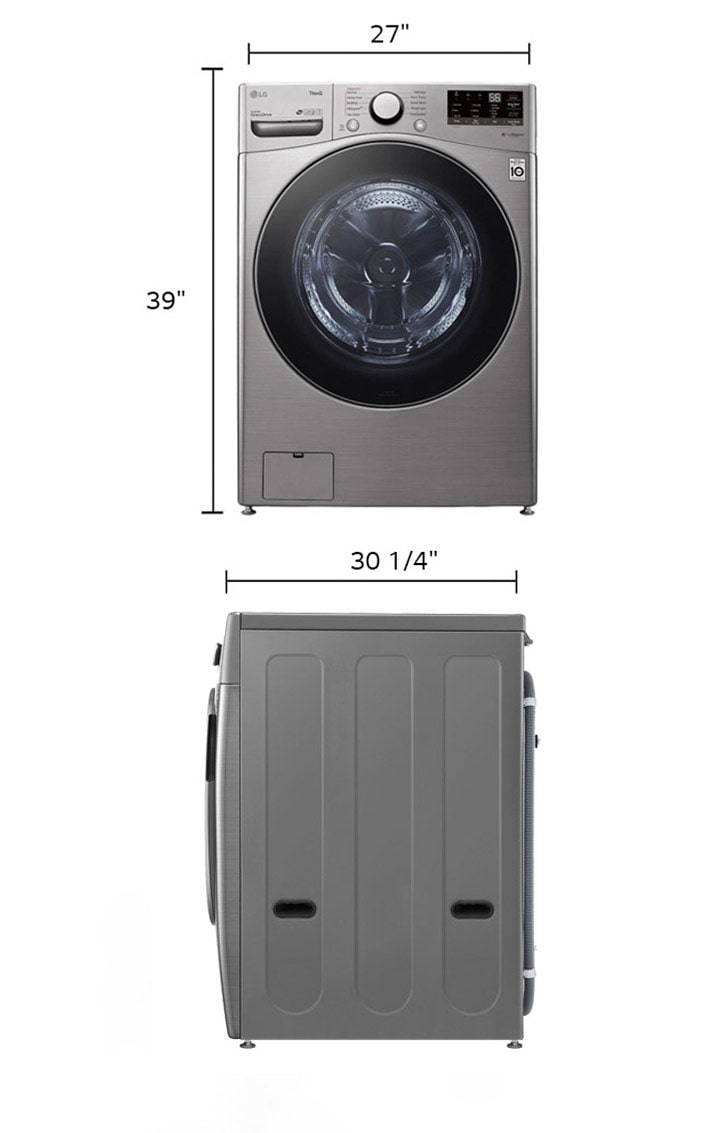

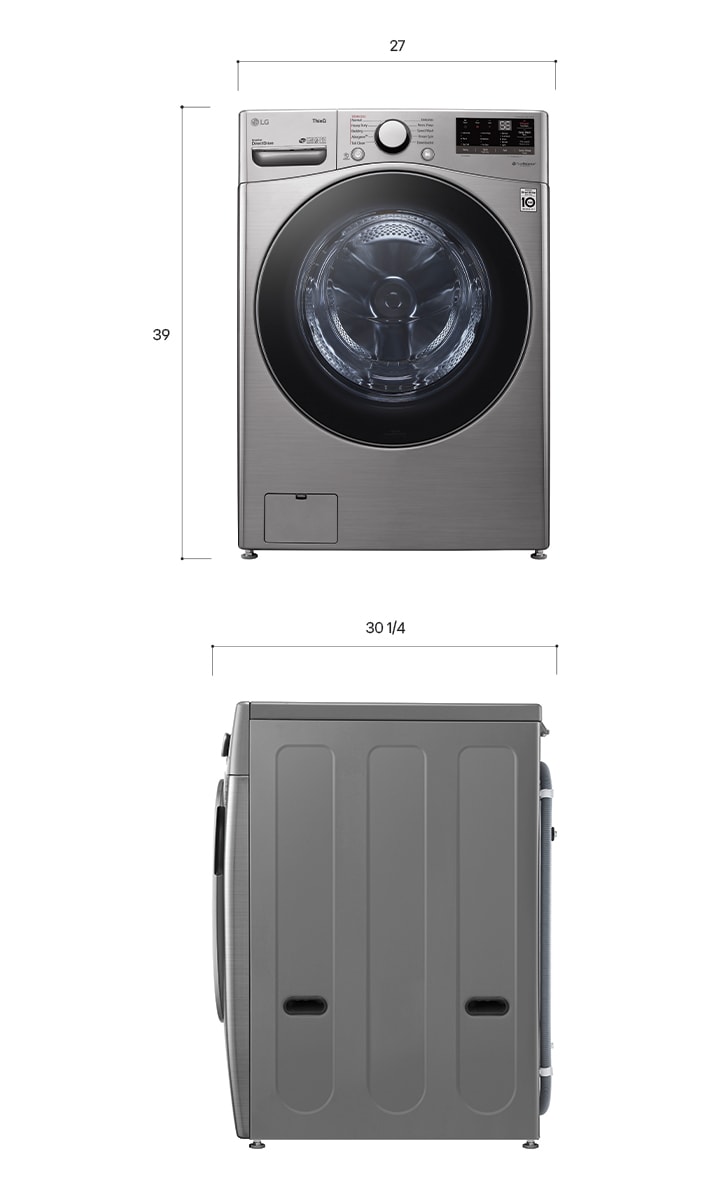

Dimensions (WxHxD inch)
27 x 39 x 30 1/4
Product Depth with door open 90˚ (inch)
55
Weight include packing (lbs)
220.46
Weight (lbs)
198.4

ENERGY

ENERGY STAR® Qualified
Yes
ENERGY STAR® Most Efficient
No
IMEF
2.92
IWF
2.9

FEATURES

Type
Front Load Washer
6 Motion DD
Yes
ADA Compliant
Yes
Add Item
Yes
AI DD
Yes
Auto Restart
No
Centum System
No
ColdWash
Yes
Drum Lifter
Plastic Lifter
Drum Light
No
Embossing Inner Drum
Yes
End of Cycle Signal
Yes
ezDispense
No
Foam detection system
Yes
Inverter DirectDrive
Yes
Leveling Legs
Yes
LoadSense
Yes
NeveRust Stainless Steel Drum
Yes
Steam
Yes
TrueBalance Anti-Vibration System
Yes
TurboWash360˚
Yes
Vibration Sensor
Yes
Water Level
Auto

MATERIAL & FINISH

Body Color
Stainless Silver
Door Type
Black Tinted Tempered Glass Cover

OPTIONS/ACCESSORIES

Matching Electric Dryer
DLE3600V
Matching Sidekick Pedestal Washer
WD300CV

POWER SOURCE

Electrical Requirements
120 V, 60 Hz, 10 A

PROGRAMS

Allergiene
Yes
Baby Wear
No
Bedding
Yes
Bright Whites
No
Bulky/Large
No
Delicates
Yes
Downloaded Cycle
Yes
Hand Wash/Wool
No
Heavy Duty
Yes
Jumbo Wash
No
Normal
Yes
Perm. Press
Yes
Quick Wash
No
Quick Wash+Dry
No
Quick Wash (Speed Wash)
No
Refresh
No
Rinse+Spin
Yes
Sanitary
No
Small Load
No
Spin Only
No
Sportswear(Activewear)
No
Steam Refresh
No
Towels
No
Tub Clean
Yes
Wash+Dry
No
Whites
No

What size washing machine is best for a family?

Washing machines in the 4.0 to 5.5 cu.ft range are ideal for families. A 4.0 cu.ft model suits a family of 3–4, while 5.0–5.5 cu.ft is better for larger households or those doing frequent loads.

How do I clean a washing machine?

To clean your washing machine, remove and soak the detergent drawer in hot water, then wipe its compartment. Clean the drain filter by removing debris and soaking in hot water. Wipe the drum with a cloth. For the rubber seal, run an empty cycle with baking soda, then clean with warm water. For detailed instructions, see the YouTube link.

https://youtu.be/LA6dPVAEbfE

What is AI DD™ in a smart LG washing machine?

LG’s AI DD™ washing machines utilise intelligent technology to individually analyse the weight and fabric type of your laundry. The result? Your machine automatically optimises the washing motion, leading to enhanced fabric protection and ensuring your cherished clothes look their best for longer. The DirectDrive™ Motors provide 6-motion technology for an effective wash with fewer moving parts, resulting in a more durable performance.

How do I install a washing machine?

To install your washing machine, begin by ensuring you have a suitable location with access to water, drainage, and a power outlet. Carefully remove all packaging and transport bolts from the machine. Position the washing machine on a level surface to prevent vibration during operation. Connect the water inlet hose to the tap, ensuring it is securely fastened, and attach the drain hose to your plumbing system. Plug the machine into a grounded power socket. Once everything is connected, run a test cycle to check for leaks or issues. For more detailed instructions, please refer to the YouTube link we have prepared for you.

https://youtu.be/FiwpMT5LDys
