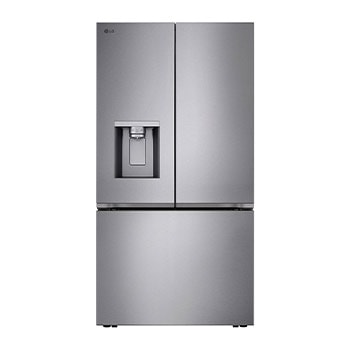

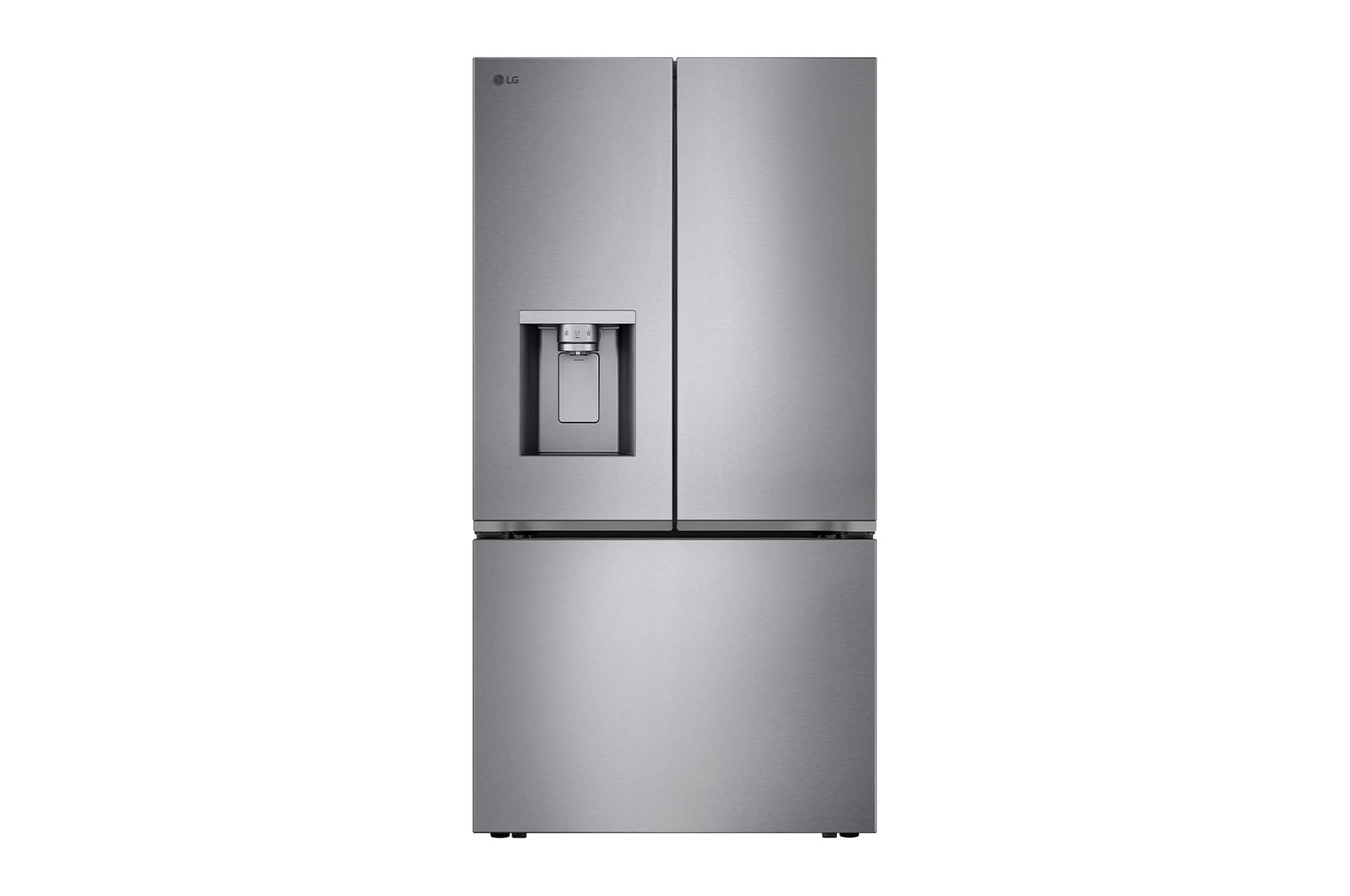

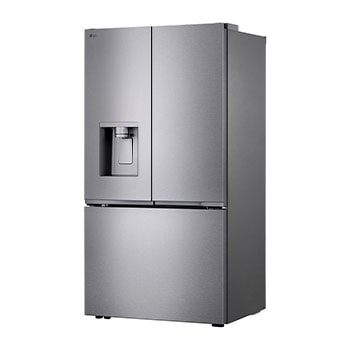

Counter-Depth MAX™ Refrigerator with Zero Clearance™

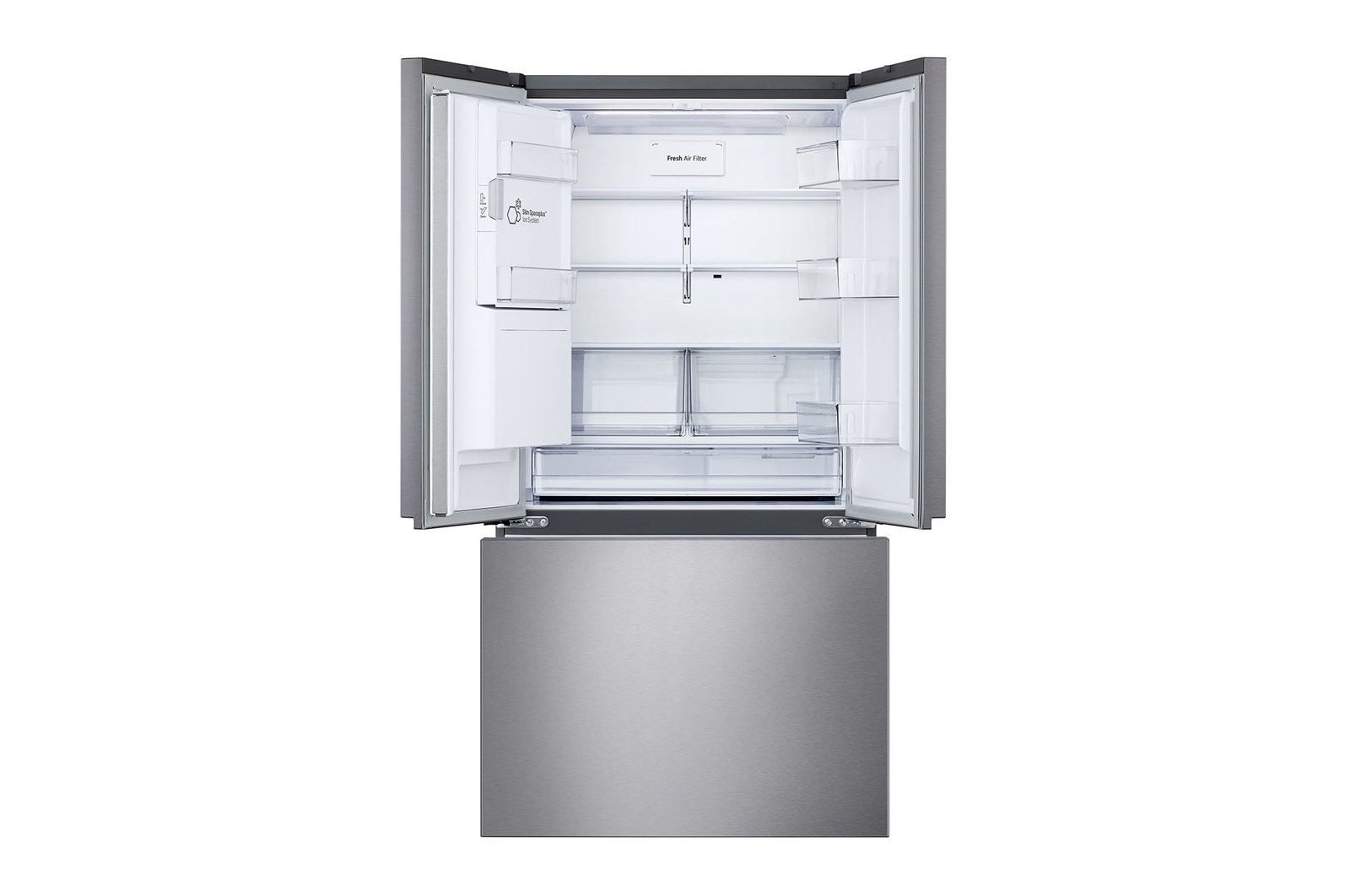

Maximize every inch of space without compromising on the features you love with the newest addition to the Counter-Depth MAX™ family. LG’s cutting-edge Zero Clearance™ hinges allow you to install your fridge nearly flush to the wall and open those sleek French doors wide*.
*For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the sides of the refrigerator and the wall.

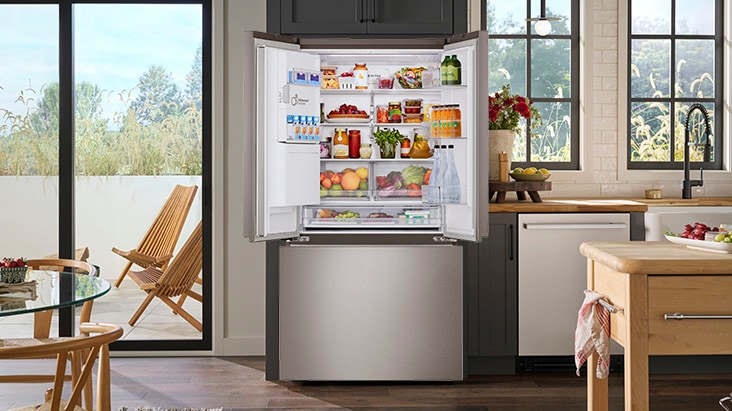

Our state-of-the-art Zero Clearance™ hinges allow you to install your fridge to be nearly flush with your kitchen cabinetry while still being able to fully open both doors—no extra clearance required*
Open wide
*For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the sides of the refrigerator and the wall.

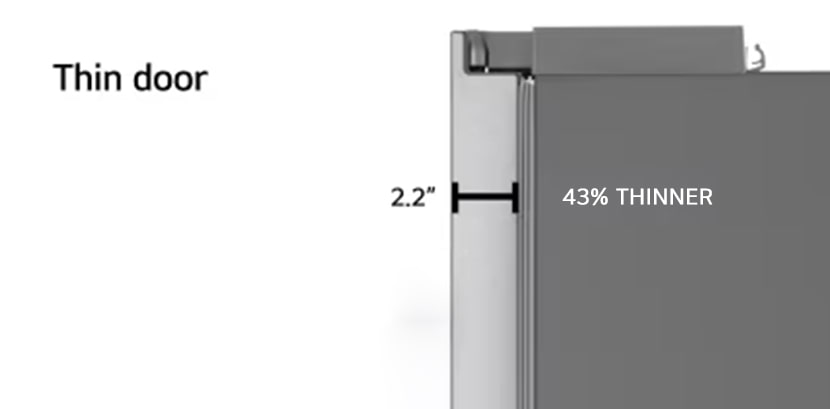

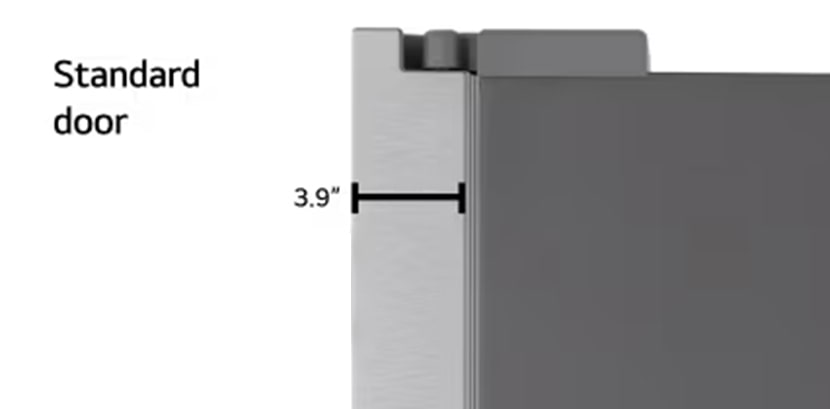

Enjoy a more compact profile while retaining the same convenient ice and water access and energy efficiency you expect. Our doors come 43% thinner* than our previous models and flawlessly combine with our Zero Clearance™ hinge system for a nearly seamless look that makes it unique among LG’s freestanding fridges.
*Compared to previous LG Counter-Depth MAX model LRYKC2606
Go beyond the basics. Every inch of LG’s Zero Clearance™ refrigerators comes packed with thoughtful touches that will help redefine your kitchen.
Our dual ice makers work behind the scenes to automatically replenish your supply, ensuring you always have a fresh ice when you need it. And with IcePlus®, you can kick production into high gear with the click of a button via the ThinQ® app.

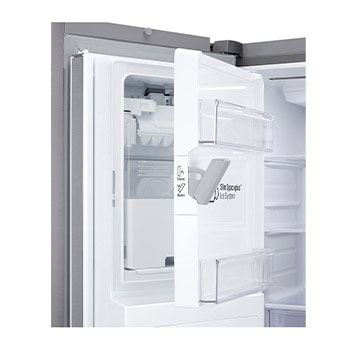

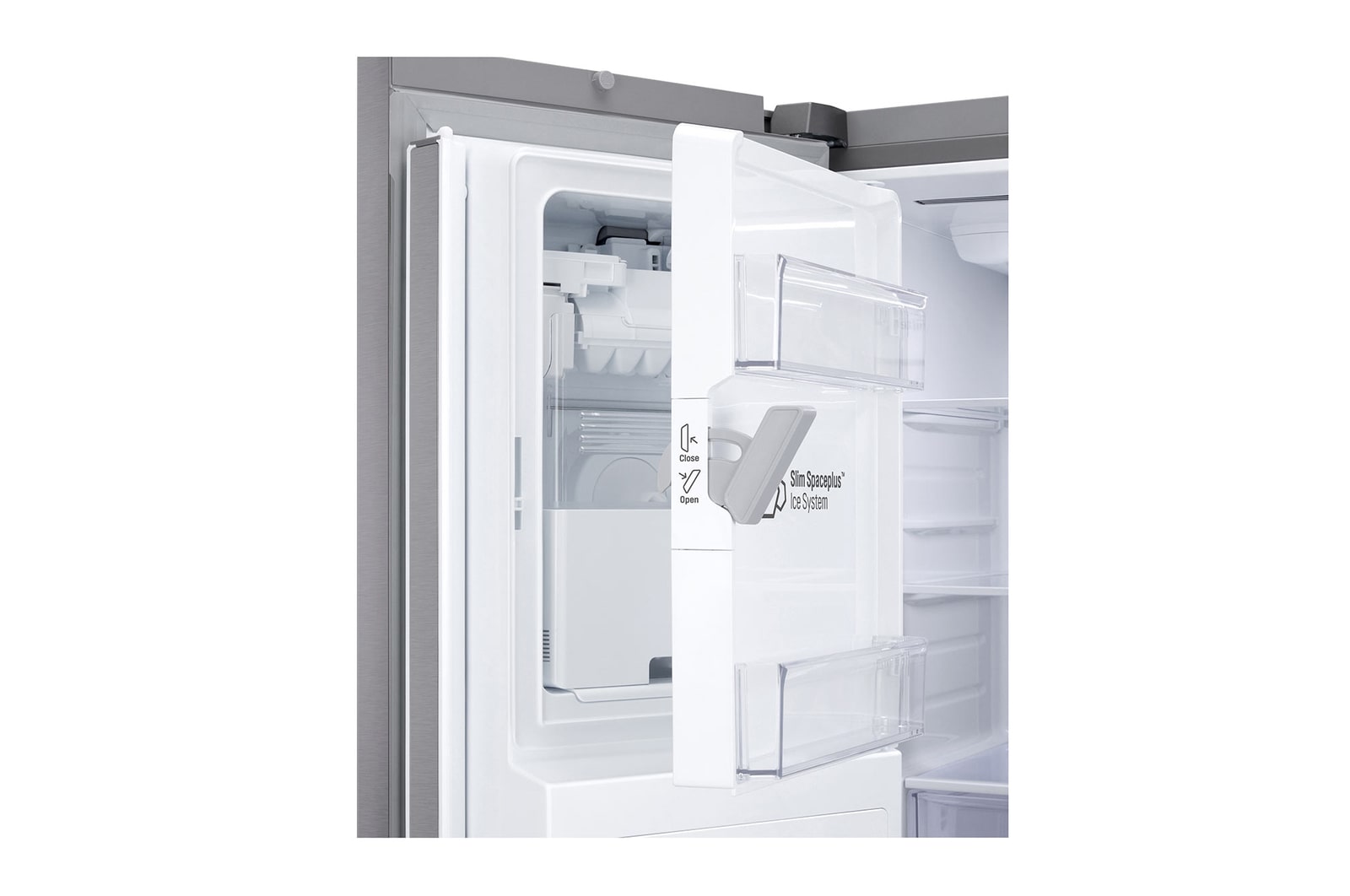

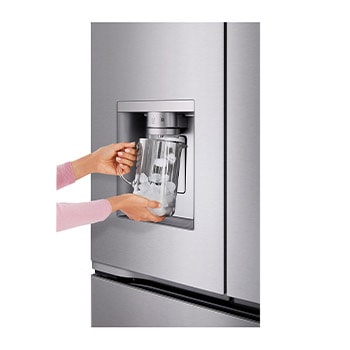

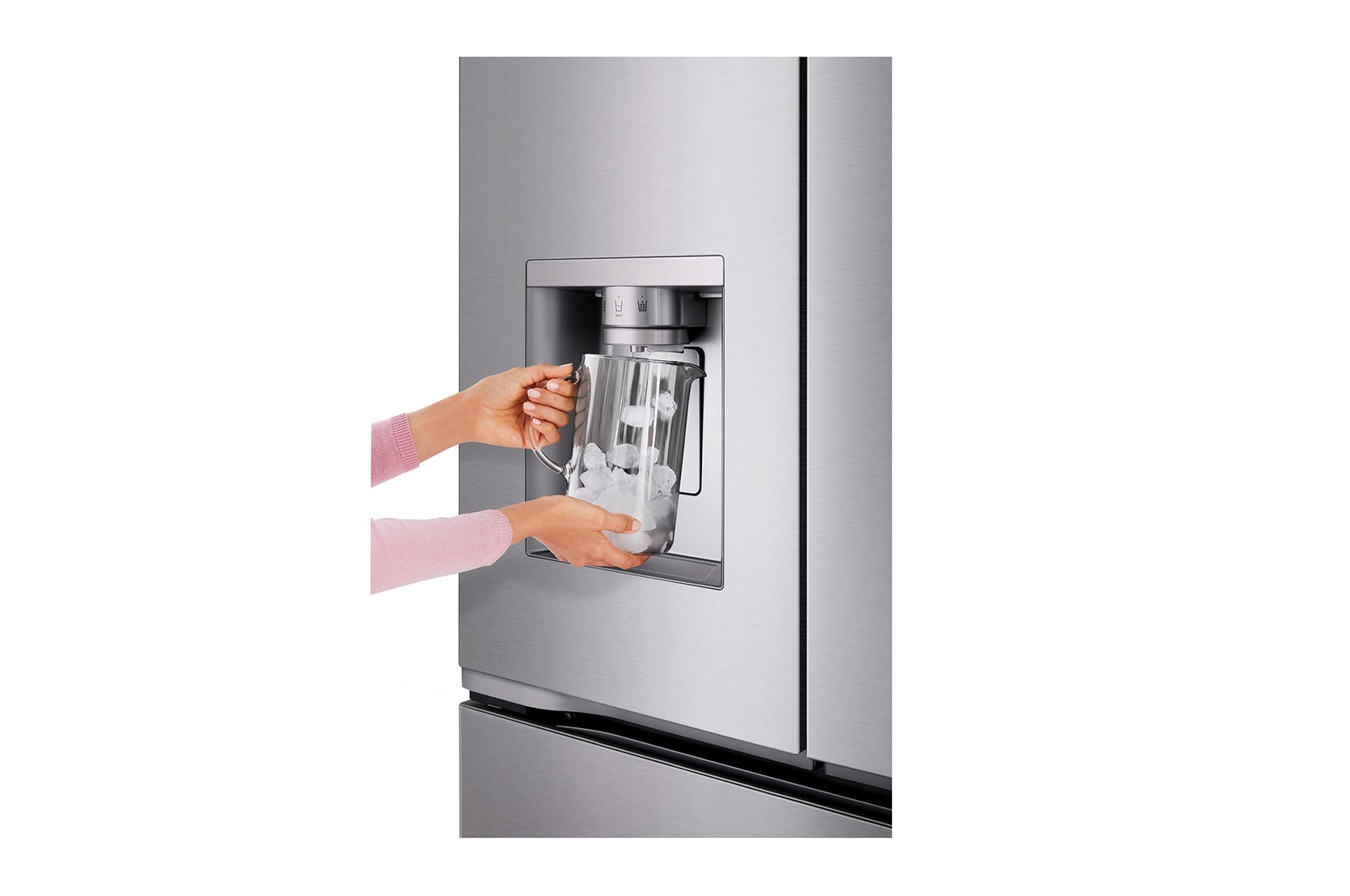

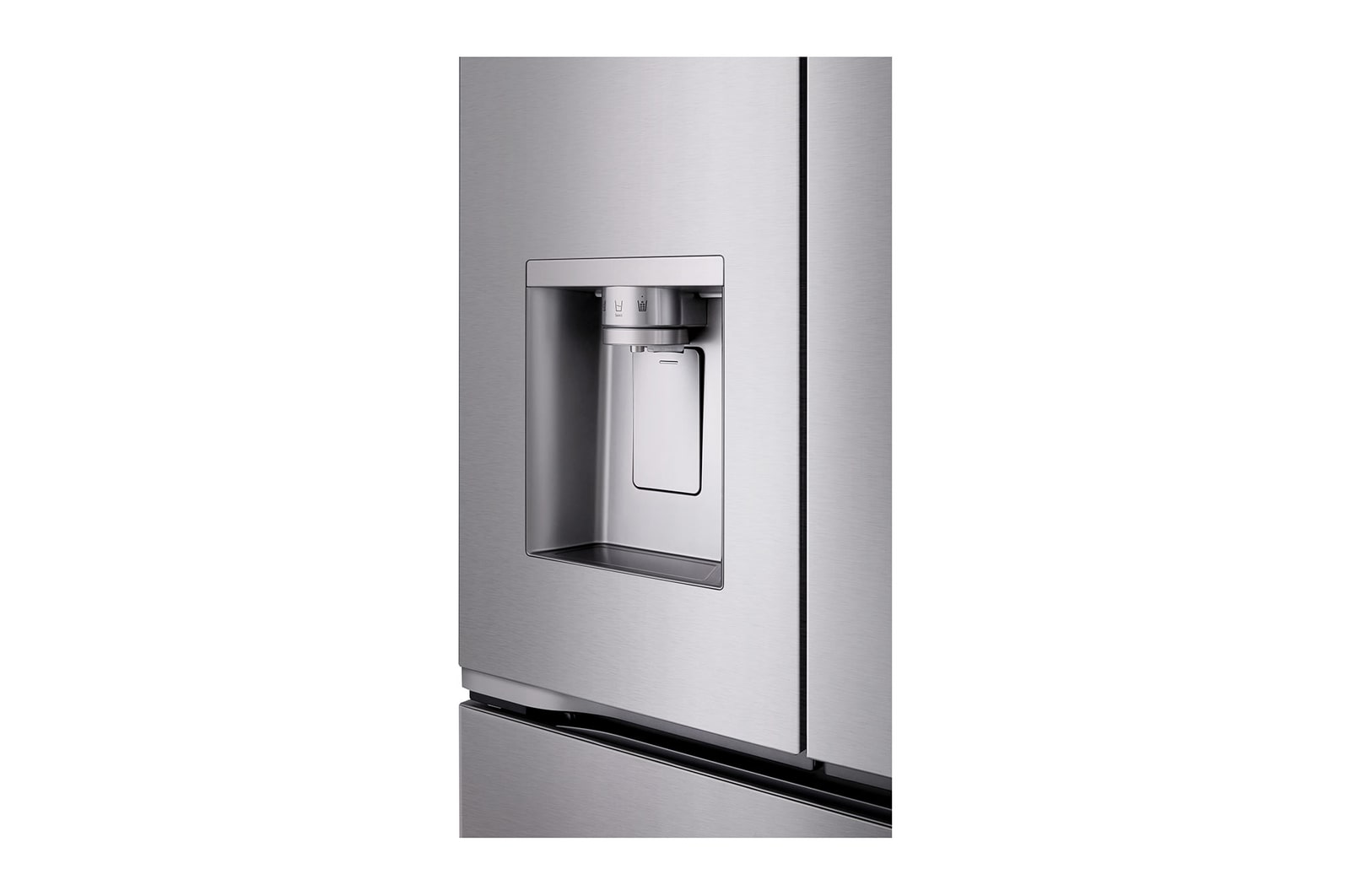

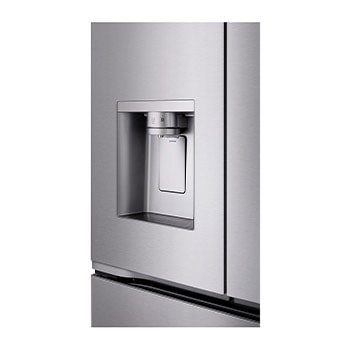

Tall Ice and Water Dispenser and Slim SpacePlus® Our ice and water dispensers accommodate just about any container without taking up any extra shelf space thanks to an ultra-compact design. And we didn’t stop there: the Slim SpacePlus® Ice System provides more shelf space and allows more room for door bins.
CAPACITY - Volume Total (cu.ft)
23.7
DIMENSIONS & WEIGHT - Packing Dimension (WxHxD, inch)
38" x 73" x 30"
PERFORMANCE - Energy Consumption (kWh/Year)
699
BASIC SPEC - ENERGY CONSUMPTION GRADE
ENERGY STAR® Certified
PERFORMANCE - Compressor Type
Smart Inverter Compressor (BLDC)
FEATURES - InstaView
No
FEATURES - Door-in-Door
No
SMART TECHNOLOGY - ThinQ (Wi-Fi)
Yes
MATERIAL & FINISH - Finish (Door)
Prime Silver
Shelf_Folding
No
Door Basket_Moving Basket
No
Door Basket_Transparent
5

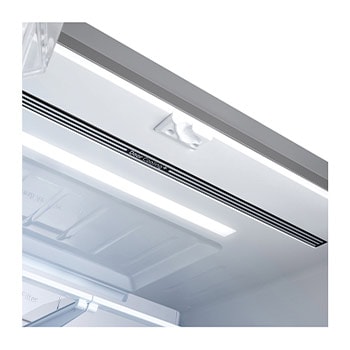

Refrigerator Light
Top LED

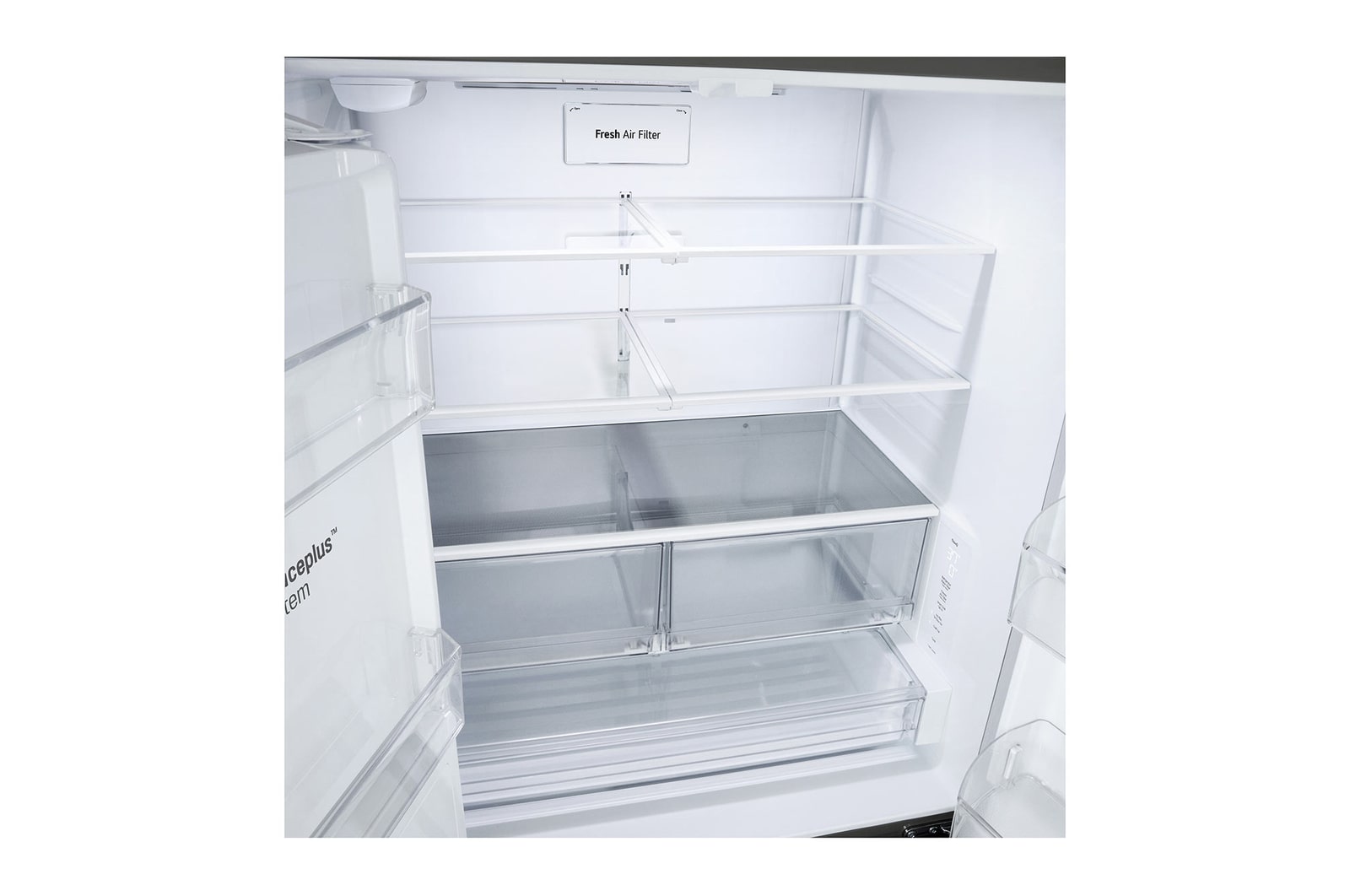

Shelf_Cantilevered
Yes (Hybrid)

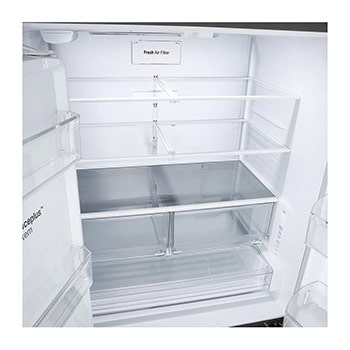

Shelf_Tempered Glass
4 Split
Vegetable Box
Yes (2)
Wide Pantry
Yes
Bar Code
195174132685
Brand
LG
ENERGY CONSUMPTION GRADE
ENERGY STAR® Certified
Product Type
French Door (3Door)
Standard/Counter Depth
Counter Depth
Volume Total (cu.ft)
23.7
Volume Freezer (cu.ft)
7.9
Volume Refrigerator (cu.ft)
15.8
Internal LED Display
LED Display
Door alarm
Yes
Express Freeze
Yes
Product Weight (lb.)
254
Depth without door (inch)
24 3/4"
Depth without handle (inch)
27 1/2"
Depth with handle (inch)
27 1/2"
Gross Weight (lb.)
273
Height to Top of Case (inch)
68 7/8"
Height to Top of Hinge or Door Cap Deco (inch)
70 1/4"
Installation Clearance
Back 2"
Packing Dimension (WxHxD, inch)
38" x 73" x 30"
Product Dimension (WxHxD, inch)
35 3/4" x 70 1/4" x 27 1/2"
Total Depth with Door 90 Open (inch)
43 7/8"
Width door open 90 without Handle (inch)
35 1/8"
Width door open 90 with Handle (inch)
35 1/8"

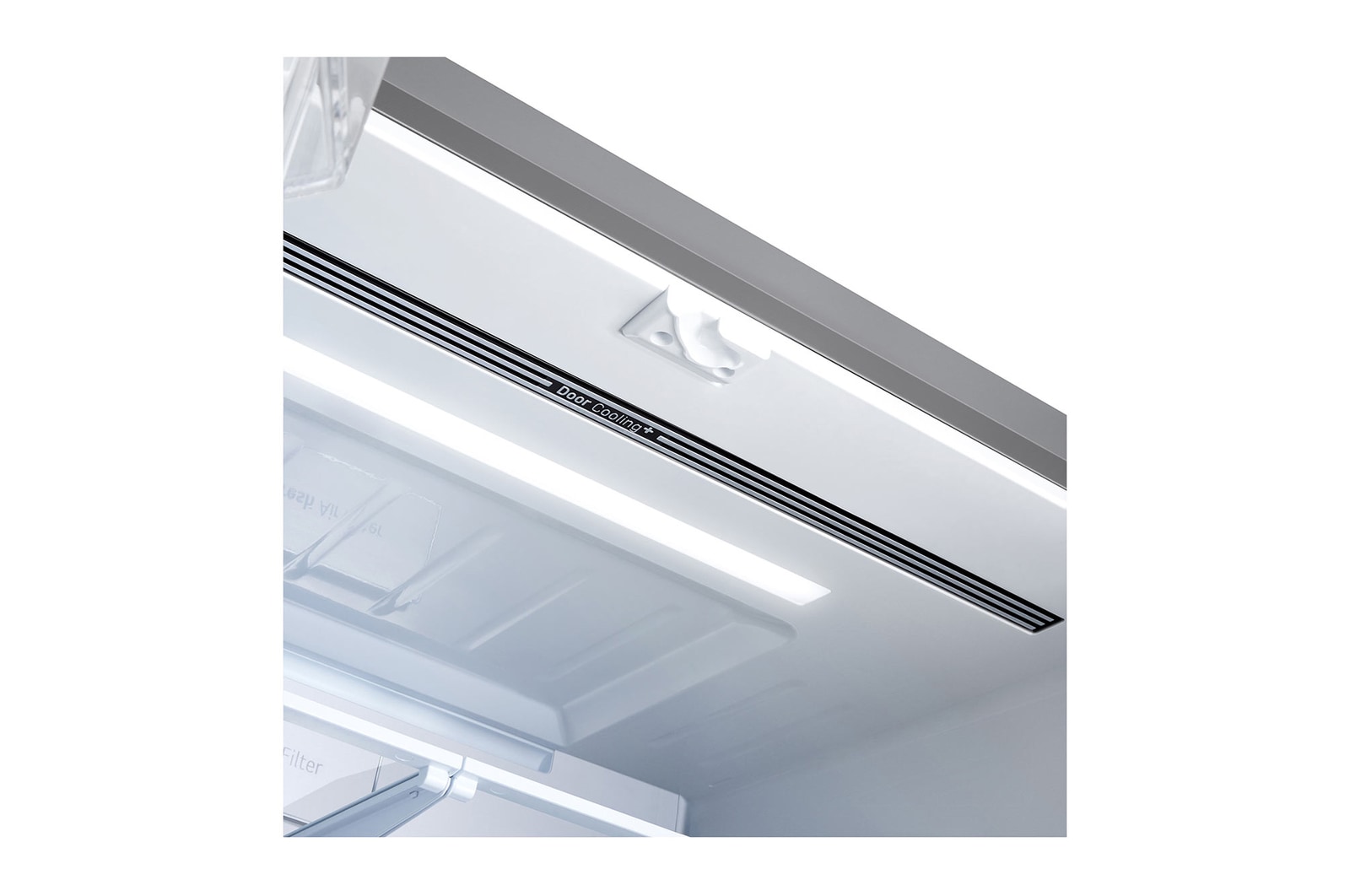

Door Cooling+
Yes
Auto Closing Door Hinge
No
Door-in-Door
No
InstaView
No
Sabbath Mode
Yes
Zero Clearance
Yes
Door Type
Pull Drawer
Drawer Divider
Yes

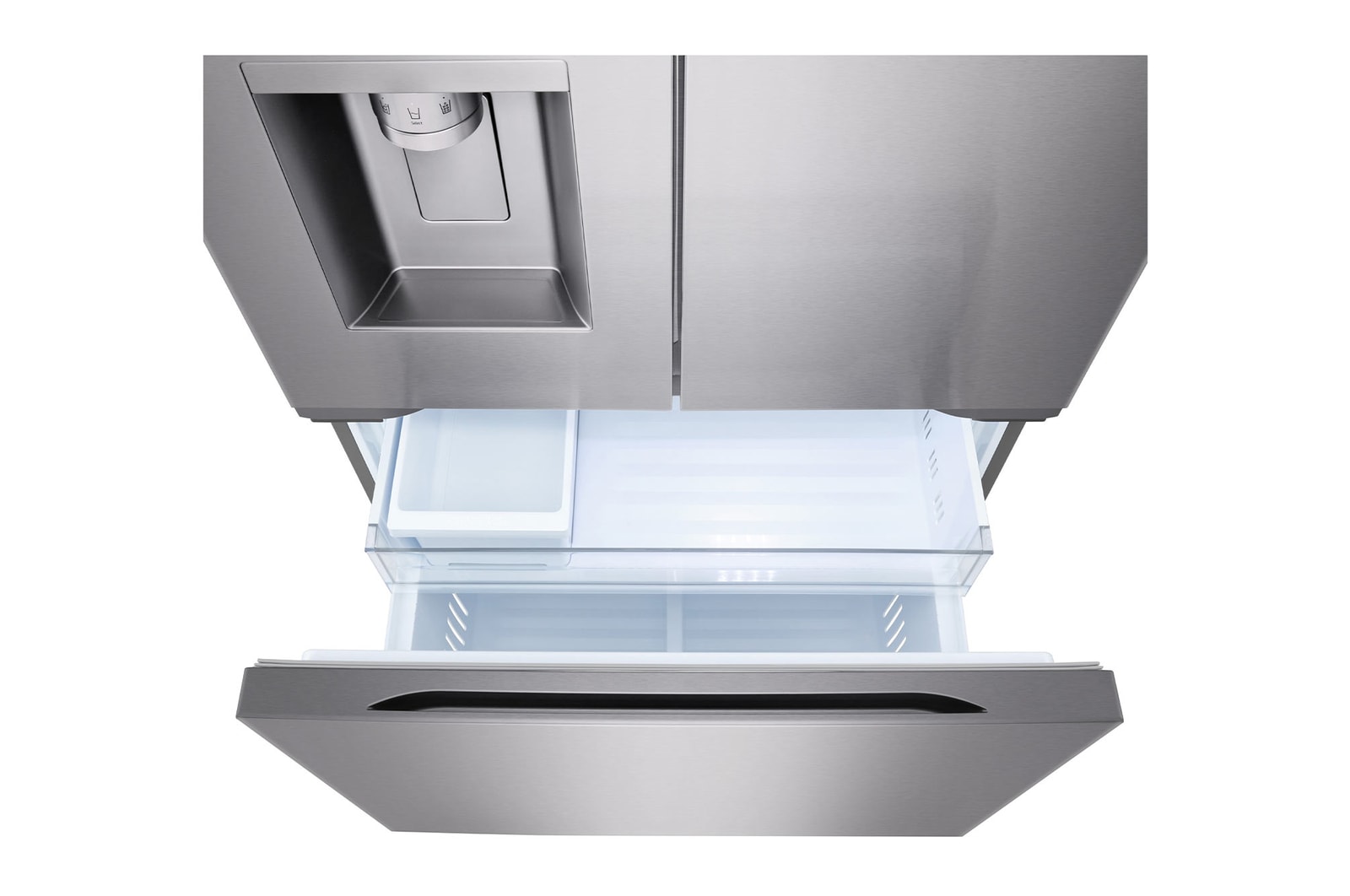

Drawer_Freezer
2 - tier organization
Durabase Solid Drawer Base
No
Freezer Light
Top LED
Water Only Dispenser
No
Automatic Ice Maker
Yes (In Cabinet, Factory Installed)
Daily Ice Production (lb.)
2.5 / 3.0 (IcePlus)
Dispenser Light
No
Dual lce Maker
No
Ice Maker_Manual
No
Ice Storage Capacity (lb.)
4.0
Ice & Water Dispenser
Cube & Crushed Ice
Water Filter Model Name
LT1000P
Water Filtration System
Internal (1 stage)
Handle Type
Contour Door
Flat
Fingerprint & Smudge Resistant Exterior
Yes
Finish (Door)
Prime Silver
Flat Metal Duct (Metal Fresh)
White (In Cabinet)
Convertible Drawer
No
Full-Convert Drawer
No
Energy Consumption (kWh/Year)
699
Compressor Type
Smart Inverter Compressor (BLDC)
ThinQ (Wi-Fi)
Yes
Proactive Customer Care
No
Smart Diagnosis
Yes
Smart Learner Ver.
No
