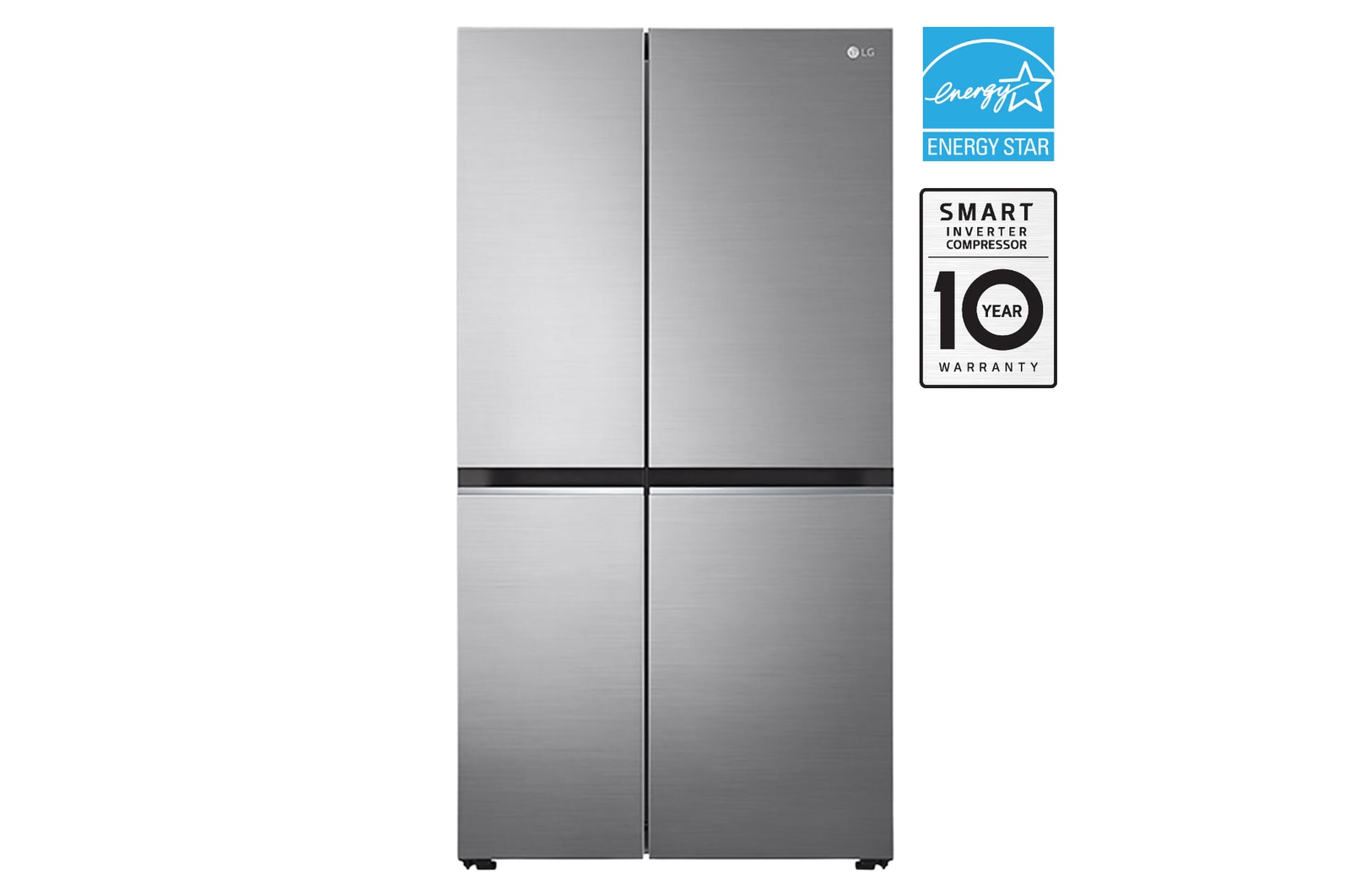

36" 23 cu.ft. Counter-Depth Side by Side Refrigerator
SUMMARY
DIMENSIONS

Key Spec
CAPACITY - Volume Total (cu.ft)
23.1
DIMENSIONS & WEIGHT - Packing Dimension (WxHxD, inch)
38 1/4" x 74 1/2" x 30 1/4"
PERFORMANCE - Energy Consumption (kWh/Year)
518
PERFORMANCE - Compressor Type
Smart Inverter Compressor (BLDC)
FEATURES - InstaView
No
SMART TECHNOLOGY - ThinQ (Wi-Fi)
Yes
All Spec
REFRIGERATOR COMPARTMENT
Door Basket_Moving Basket
No
Door Basket_Transparent
4
Refrigerator Light
Top LED
Shelf_Tempered Glass
4
Vegetable Box
Yes (2)
BAR CODE
Bar Code
195174068854
BASIC SPEC
Brand
LG
Product Type
Side by Side
Standard/Counter Depth
Counter Depth
CAPACITY
Volume Total (cu.ft)
23.1
Volume Freezer (cu.ft)
8.4
Volume Refrigerator (cu.ft)
14.7
CONTROL & DISPLAY
Internal LED Display
LED Display
Door alarm
Yes
Express Freeze
Yes
DIMENSIONS & WEIGHT
Product Weight (lb.)
233.7
Depth without door (inch)
24 3/8"
Depth without handle (inch)
28 7/8"
Gross Weight (lb.)
255.7
Height to Top of Case (inch)
68 7/8"
Height to Top of Hinge or Door Cap Deco (inch)
70 1/2"
Installation Clearance
Sides 2", Top 2", Back 2"
Packing Dimension (WxHxD, inch)
38 1/4" x 74 1/2" x 30 1/4"

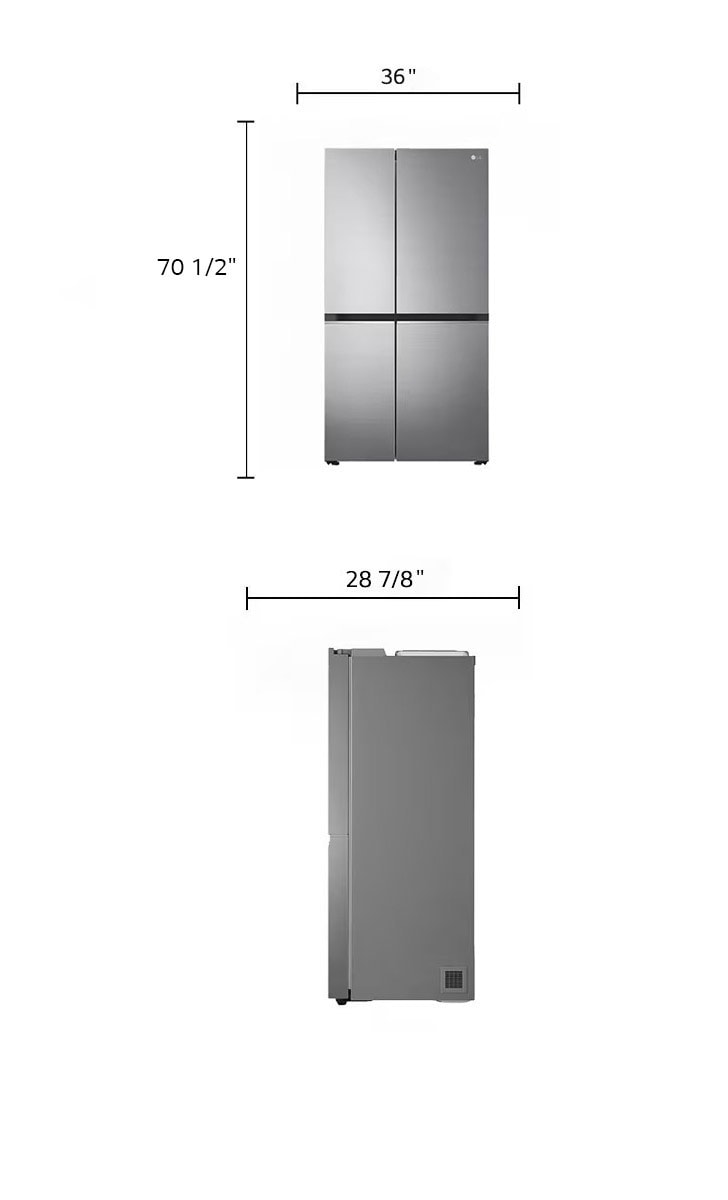

Product Dimension (WxHxD, inch)
36 x 70 1/2 x 28 7/8
Total Depth with Door 90 Open (inch)
46 1/8"
Width door open 90 without Handle (inch)
39"
Width door open 90 with Handle (inch)
39"
FEATURES
Door Cooling+
Yes
Auto Closing Door Hinge
No
Door-in-Door
No
InstaView
No
Sabbath Mode
Yes
FREEZER COMPARTMENT
Door Type
Side Swing
Drawer_Freezer
2 Transparent
Freezer Light
Top LED
Shelf_Tempered Glass
3
ICE & WATER SYSTEM
Water Only Dispenser
No
Automatic Ice Maker
No
Daily Ice Production (lb.)
N/A
Dispenser Light
No
Dual lce Maker
No
Ice Maker_Manual
1 Lever 1 Tray
Ice Storage Capacity (lb.)
N/A
Ice & Water Dispenser
No
Water Filter Model Name
No
Water Filtration System
No
MATERIAL & FINISH
Handle Type
Horizontal Pocket
Contour Door
Flat
Fingerprint & Smudge Resistant Exterior
No
Finish (Door)
Prime Silver
Flat Metal Duct (Metal Fresh)
F/R Metal
PERFORMANCE
Energy Consumption (kWh/Year)
518
Compressor Type
Smart Inverter Compressor (BLDC)
SMART TECHNOLOGY
ThinQ (Wi-Fi)
Yes
Proactive Customer Care
No
Smart Diagnosis
Yes
Smart Learner Ver.
No
What people are saying
FAQ
How long does it take for my LG refrigerator to get cold after installation?
After installation, allow up to 24 hours for the refrigerator to reach its set temperature. Cooling times may vary depending on room temperature, usage, and how much food is placed inside. For best results, wait until the unit has fully stabilized before loading large quantities of food.
Can I plug in my refrigerator to electrical power immidiately after transporting it on its side?
If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.
Is it normal for my refrigerator to make noise?
Yes, some sound during operation is normal. You may hear fans, compressors, or ice-making cycles as the refrigerator maintains temperature and produces ice (on models with ice makers). These sounds are part of normal operation and may vary throughout the day.
How can I adjust the temerature setting on my refrigerator?
Temperature settings can be adjusted using the control panel, which may be located inside the refrigerator or on the door, depending on the model. You can also change the temperature remotely unsing your phone on select models that are also equipped with ThinQ® wifi (you must first download the ThinQ® app to your phone and connect the fridge in order to enable this functionality). LG generally recommends maintaining a refrigerator temperature around 3°C (37°F) and a freezer temperature around -18°C (0°F) for optimal performance. Refer to your owner’s manual for model-specific guidance.
How much space should I leave around the refrigerator for installation?
Proper clearance is important for airflow and performance. Installation spacing requirements can vary by model. Refer to your owner’s manual for exact clearance specifications. Some LG refrigerators feature Zero Clearance™ hinges on select models, which are designed to allow doors to open fully even in tighter installation spaces. *For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the sides of the refrigerator and the wall.
How do I clean and maintain my refrigerator?
For routine cleaning, use a soft cloth with mild detergent and warm water. Do not use abrasive cleaners or harsh chemicals. Interior shelves and bins can typically be removed for easier cleaning. Always refer to your owner’s manual for recommended cleaning methods and maintenance guidelines.
Does my LG refrigerator require manual defrosting?
Most LG refrigerators are equipped with an automatic defrost system, which helps prevent frost buildup and maintains efficient operation. Manual defrosting is typically not required. Refer to your owner’s manual for details specific to your model.
What is LG ThinQ® and how does it work with my refrigerator?
On select Wi-Fi enabled models, LG ThinQ® allows you to connect your refrigerator to your smartphone. Through the app, you may be able to monitor performance, receive alerts, and adjust certain settings remotely. Features and functionality may vary by model and require a Wi-Fi connection.
