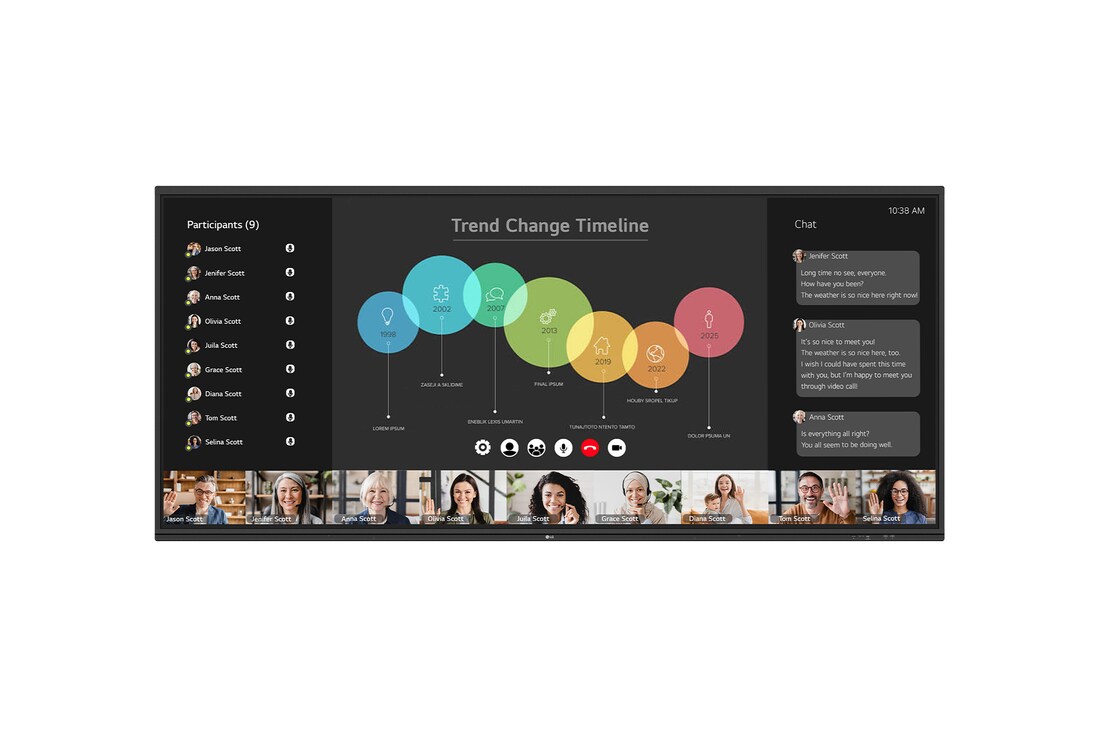

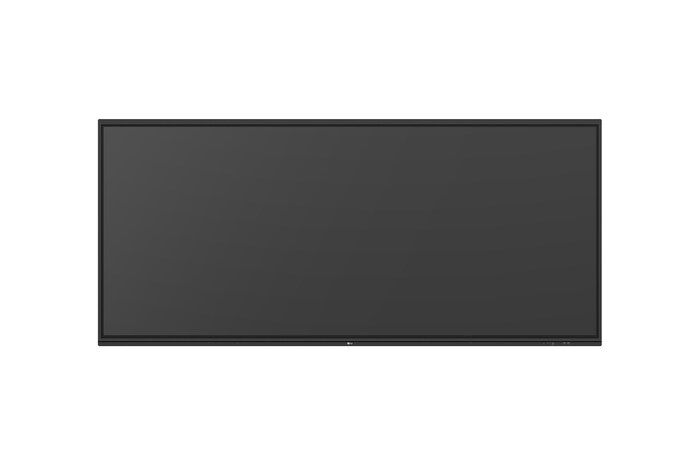

LG CreateBoard | 21:9 Widescreen

105TR5WP-I

Key Features

Screen Size : 266.7 cm (105)
Resolution : 5,120 × 2,160 (5K)
Brightness : 400 nit (Typ.) with Glass
Multi-Touch Point : Max. 50 Points

All Spec

PANEL

Screen Size: 266.7 cm (105)

Panel Technology: VA

Back Light Type: Direct

Aspect Ratio: 21:9

Native Resolution: 5120x2160 (5K)

Refresh Rate: 60Hz

Brightness: 400nit (typ.) with glass

Contrast Ratio: 4,000:1

Dynamic CR: 5,000:1

Color Gamut: 72% (NTSC)

Viewing Angle (H x V): 178 X 178

Color Depth (Number of Colors): 10bit(1.07B)

Response Time: 6.5ms(Typ)

Surface Treatment (Haze): 25%

Life time: 50,000 Hrs (Min.)

Operation Hours (Hours/Day): 16/7

Portait / Landscape: No / Yes

Transparency: 5.5%

CONNECTIVITY

HDMI In: Yes (4), HDCP2.3

DP In: Yes (1), HDCP1.4&2.3

Audio In: Yes (1)

RS232C In: Yes (1)

RJ45(LAN) In: Yes (1)

USB In: USB3.0 Type A(6), USB2.0 Type A(1), USB Type C(2)

HDMI Out: Yes (1)

Audio Out: Yes (1), Optical Yes (1, SPDIF)

Touch USB: Yes (3)

RJ45(LAN) Out: Yes (1)

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B : 29.8/19.5/19.5/41.2 mm

Weight (Head): 84.6Kg

Packed Weight: 123.95Kg

Monitor Dimensions (W x H x D): 2510.7×1129.9×91.7mm

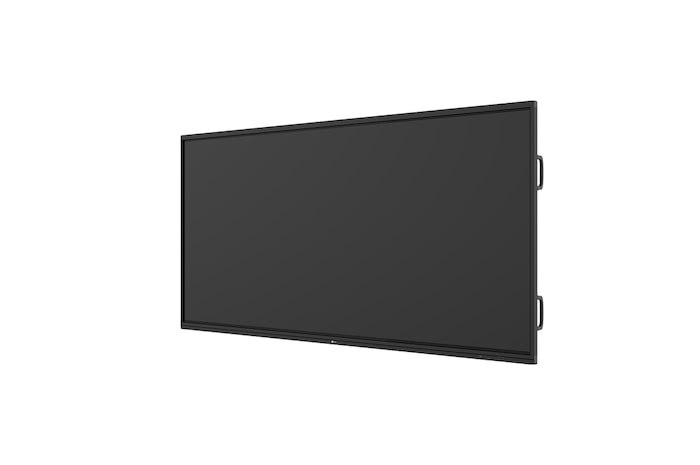

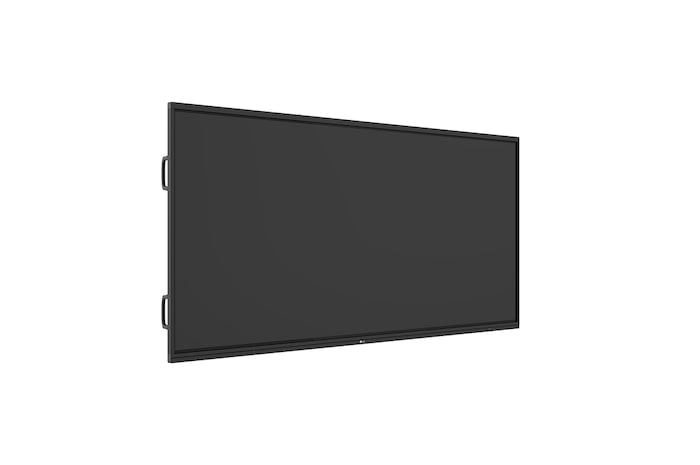

Handle: 4 Handle

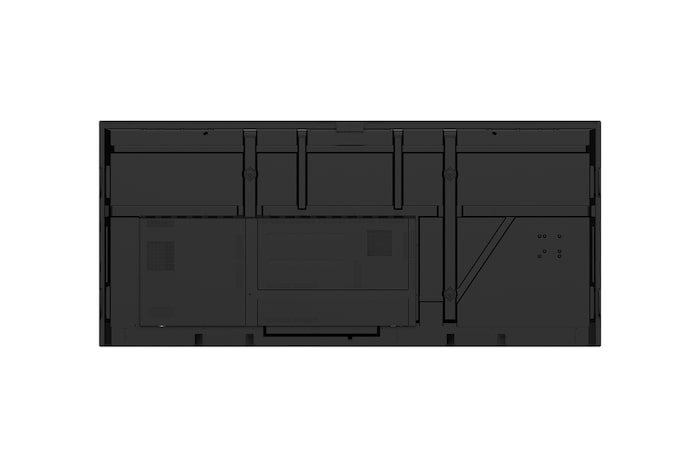

VESA Standard Mount Interface: 1000 x 600mm

Carton Dimensions (W x H x D): 2668×1305×280mm

FEATURE - HARDWARE

Internal Memory (eMMC): 64GB

Wi-Fi/BT (Built-in): Yes (Slot type)

Auto Brightness Sensor: Yes

Power Indicator: Yes

Local Key Operation: Yes

FEATURE - SOFTWARE

OS Ver. (webOS): Android13

Booting Logo Image: Yes

RS232C Sync: Yes

PIP: Yes (1) external source

PBP: Yes (4)

Screen Share: Yes (CreateBoard Share)

Crestron Connected: Yes

Smart Energy Saving: Yes (Energy Saving)

Wake on LAN: Yes

Network Ready: Yes (Fast Power On)

HDMI-CEC: Yes

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C

Operation Humidity: 10 % to 90 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit): (TBD)

Smart Energy Saving (70%): Yes

Power off: 0.5W

Max.: measured: 560W

Typ.: measured: 315W

SOUND

Speaker (Built-in): Yes (18 W(4Ω)+ 18Wx2(6Ω) )

CERTIFICATION

Safety: IEC 62368-1:2018; UL 62368-1:2019

EMC: FCC Class "A" / CE / KC

ERP / Energy Star: Yes / Yes

OPS COMPATIBILITY

OPS Type compatible: Yes

OPS Power Built-in: Yes

SOFTWARE COMPATIBILITY

Connected Care: Yes

LANGUAGE

OSD: English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese,Estonian, Lithunian

ACCESSORY

Basic: Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
