All Spec
PHYSICAL PARAMETERS
-
Cabinet material
-
Steel
-
Flatness of Cabinet (mm)
-
±0.2
-
Module Dimensions(WxH,mm)
-
300 × 112.5
-
Module Resolution (WxH)
-
320 × 120
-
No. of Modules per Cabinet (WxH)
-
12 × 18 (Total 216)
-
Physical Pixel Density (pixels/㎡)
-
1,137,778
-
Pixel Configuration
-
Micro
-
Pixel Pitch (mm)
-
0.94
-
Screen Dimensions (W x H x D, mm, including bezel)
-
3,604 x 2,078.8 x 54.9 (Thickest 57.4)
-
Screen Resolution (WxH)
-
3,840 × 2,160
-
Screen Surface Area (㎡)
-
7.29
-
Service access
-
Front
-
Weight of the screen
-
258.4
OPTICAL SPECIFICATIONS
-
Brightness Uniformity(%)
-
95
-
Color Temperature
-
3,200~9,300
-
Color Uniformity
-
±0.015 Cx, Cy
-
Contrast Ratio
-
40,000:1 @10lux
-
Max. Brightness (After Calibration)
-
500 / Peak 1,500
-
Processing Depth (bit)
-
20 (HDR10, HDR10 Pro)
-
Visual Viewing Angle (Horizontal)
-
160
-
Visual Viewing Angle (Vertical)
-
160
ELECTRICAL SPECIFICATIONS
-
Frame Rate (Hz)
-
50 / 60
-
Heat Dissipation (BTU/h/㎡, Max.)
-
901
-
Heat Dissipation (BTU/h/Screen, Avg.)
-
3378
-
Heat Dissipation (BTU/h/Screen, Max.)
-
6568
-
Power Consumption (W/㎡, Max.)
-
264
-
Power Consumption (W/Screen, Avg.)
-
990
-
Power Consumption (W/Screen, Max.)
-
1,925
-
Power Supply (V)
-
100 to 240
-
Refresh Rate (Hz)
-
3,840
OPERATION SPECIFICATIONS
-
LED Lifetime (Half brightness)
-
100,000
-
IP rating Front
-
IP50
-
IP rating Rear
-
IP20
-
Operating Humidity
-
10-80% RH
-
Operating Temperature(℃)
-
0℃ to +40℃
STANDARD
-
Certification
-
Safety 62368-1 & 60950-1, EMC Class A, BS476 Part7 Class1
SPEAKER
-
Speaker
-
Built-in (10 W + 10 W)
ENVIRONMENT
-
Environment
-
RoHS
CONTROLLER
-
Controller
-
Embedded(webOS)

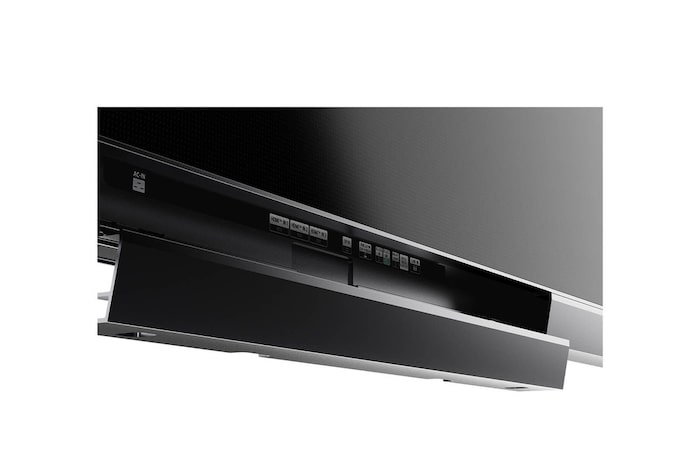

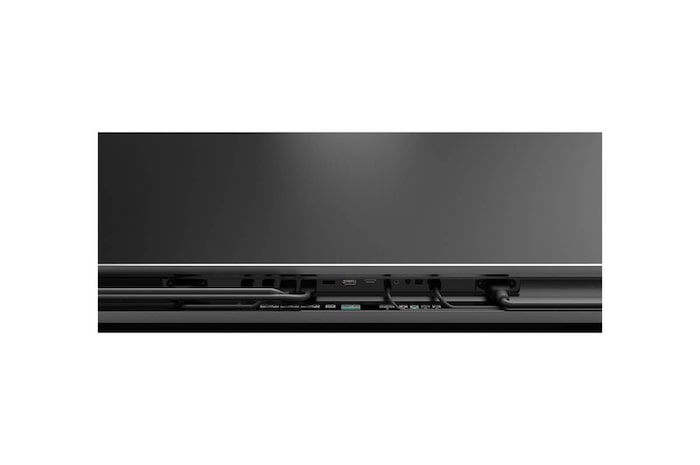

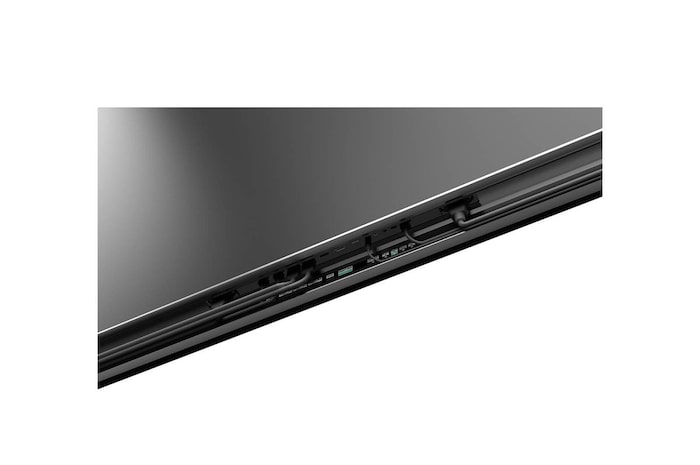

I/O PORT
-
I/O Port
-
HDMI(3), DP(1), USB, LAN,
RS232C In/Out, IR,
Optical Digital Audio Out
INFORMATION
-
Model name
-
LAAA009-G5
