Model name
LDAA012
Pixel Configuration
SMD
Pixel Pitch (mm)
1.25mm
No. of Modules per Cabinet (WxH)
6 (2 x 3)
Cabinet Resolution (WxH)
512 x 360
Cabinet Dimensions (W x H x D, mm)
Main : 640 x 450 x 59 (163 w/back cover)

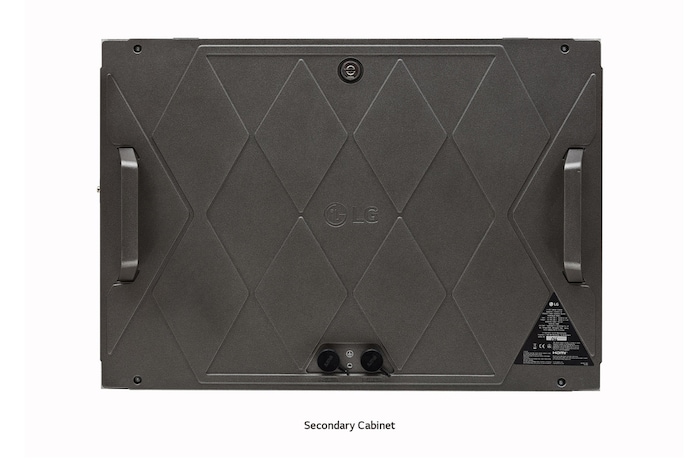

Secondary : 640 x 450 x 59 (101, w/handle)
Weight per Cabinet (kg/unit)

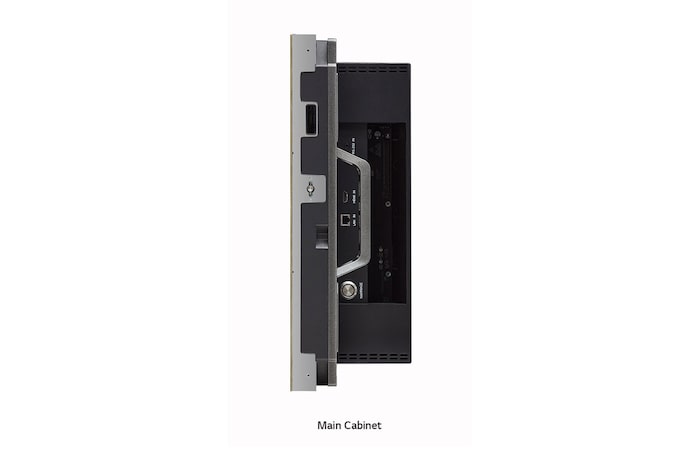

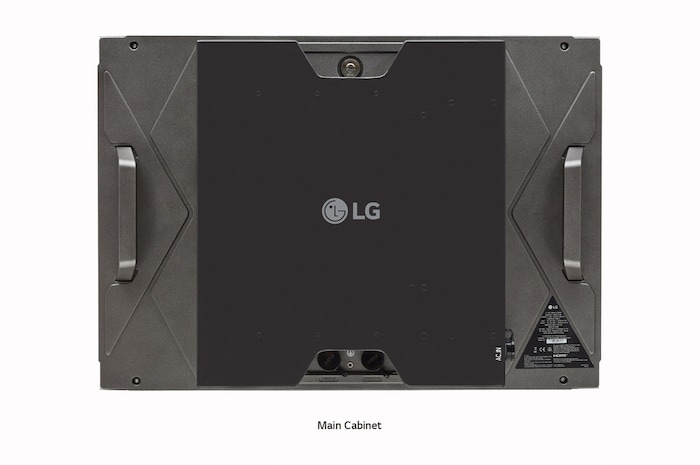

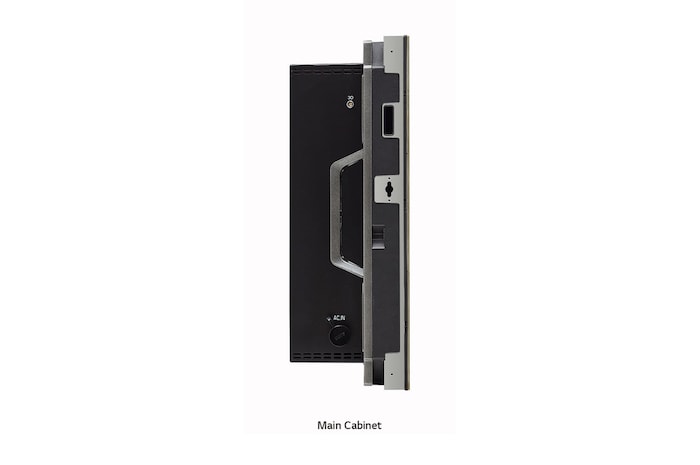

'Main Cabinet : 13.8

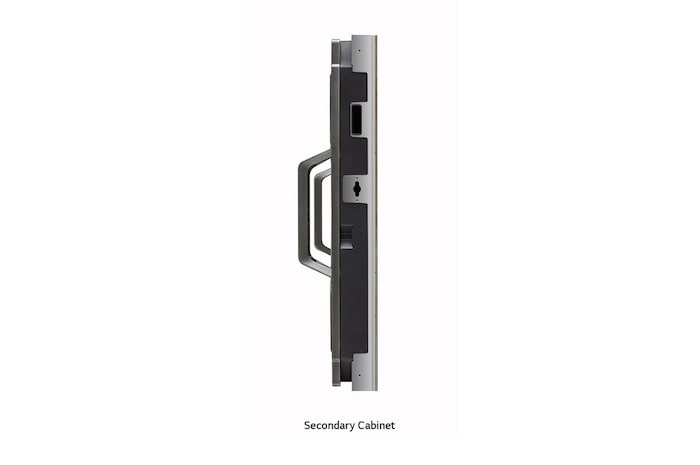

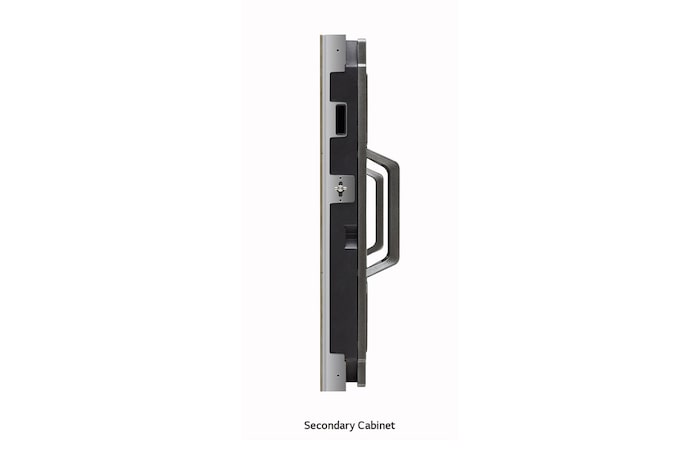

Secondary : 7.5
Physical Pixel Density (pixels/㎡)
640,000
Cabinet material
Aluminum
Service access
Rear only
Screen Resolution (WxH)
4,096 x 2,160
Weight of the screen (kg)
366.3
Power Consumption (W/Cabinet, 48nit)
180 (Main) / 80 (Secondary)
Power Consumption (W/Cabinet, 300nit)
300 (Main) / 200 (Secondary)
Contrast Ratio
≥4,000:1
Bit rate (Color Processing / color)
24 (72 / total)
Video Frame Rate (Hz)
24, 25, 30, 48, 50, 60, 144@3D
Refresh Rate (@24Hz)
3,072@24Hz, 3,840@60Hz
Brightness (After Calibration, nit)
48(DCI) / 55 / 65 / 75 / 100 / 130 / 260 / 300
Color Space (Gamut)
DCI P3 Theater
Processing Depth (bit)
15bit@24/48/50Hz
Viewing Angle (H x V)
160, 160
Life Time (Brightness 50%)
100,000 Hours
Power Supply (V)
AC100-240 V
Refresh Rate (Hz)
50/60 Hz
Operating Temperature(℃)
0℃ to 40℃
Operating Humidity
10% to 80%
Certification
DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH
Cinema server compatibility
Dolby IMS3-L
Interface
RJ45, HDMI x 2, RS232C

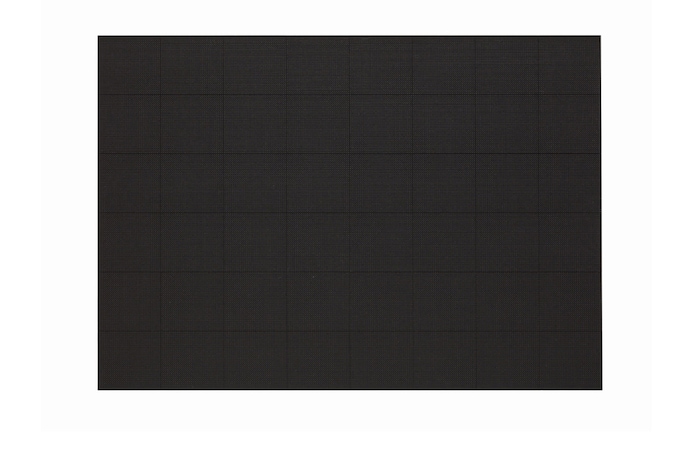

No. of Cabinets per Screen (Resolution, WxH)
48 (8 x 6)
Screen Dimensions (W x H, mm)
5,120 x 2,700 (14sqm)
Power Type
Built-in Power
Power Consumption (W/Screen, 48nit)
3,940
Power Consumption (W/Screen, 300nit)
9700
