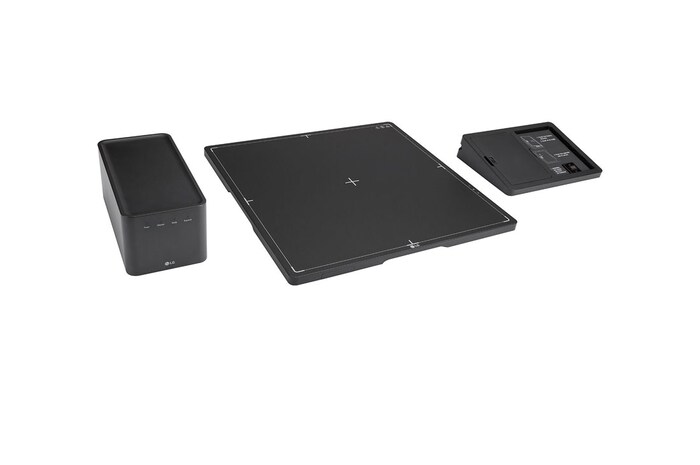

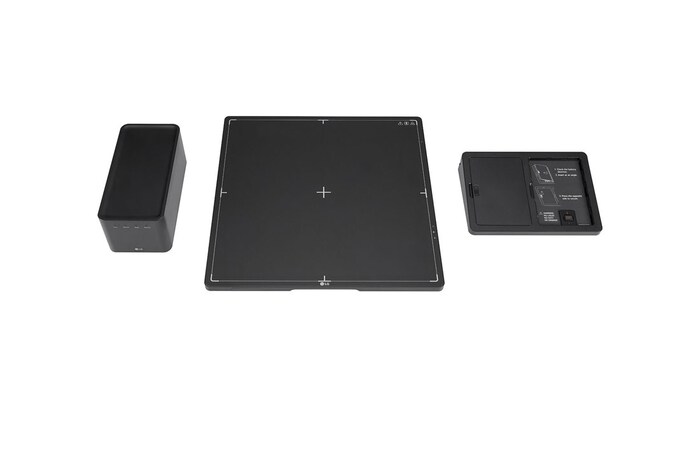

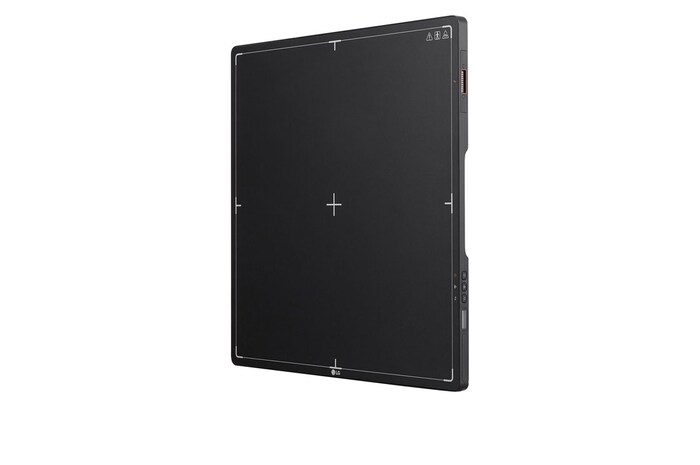

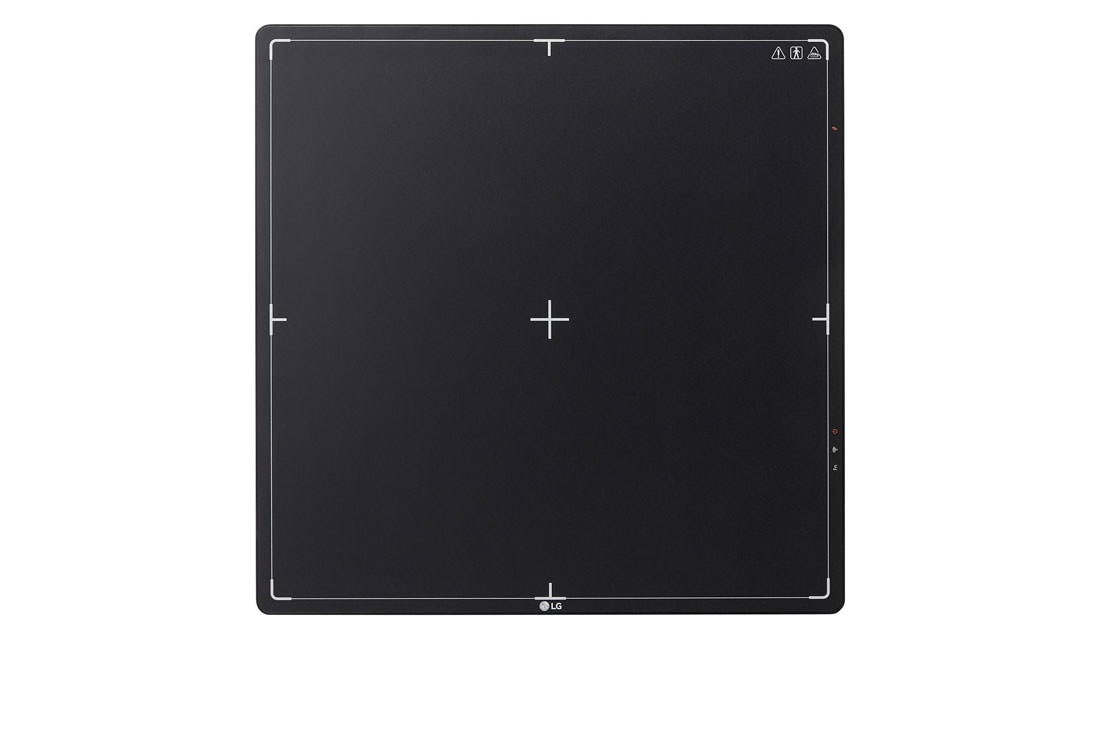

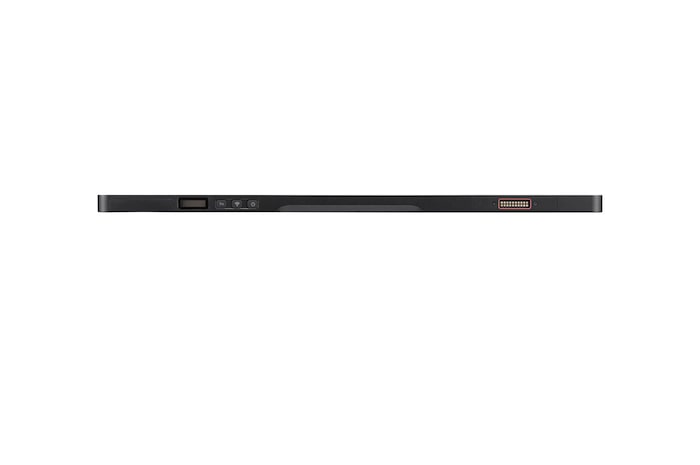

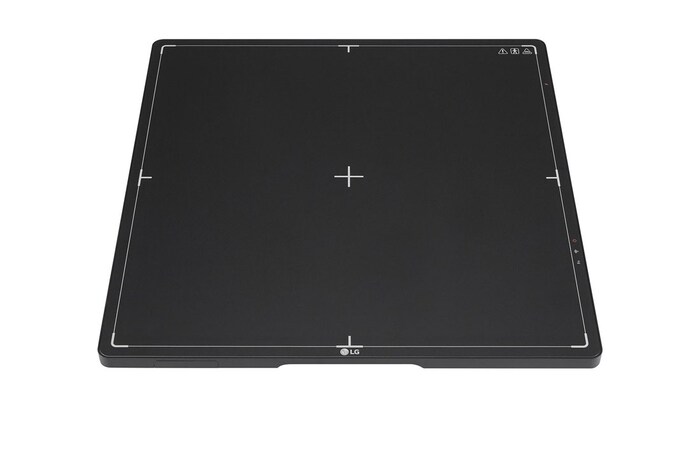

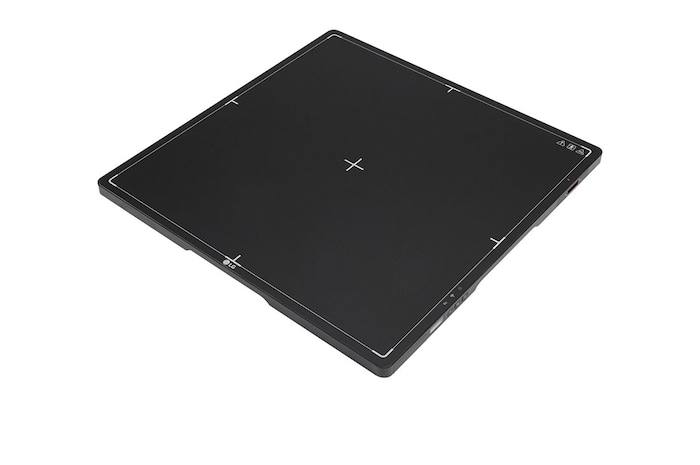

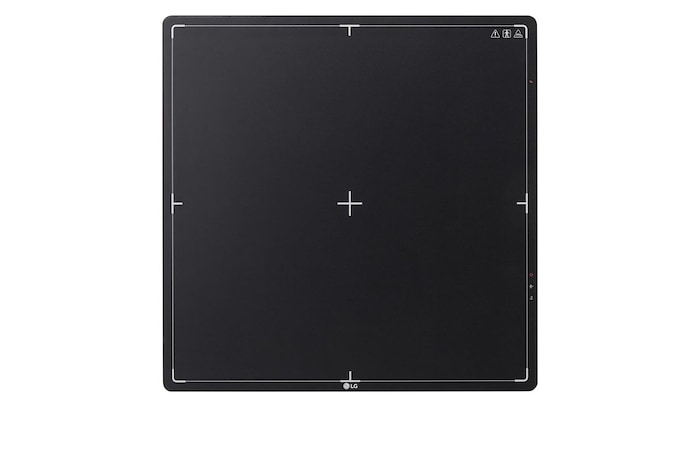

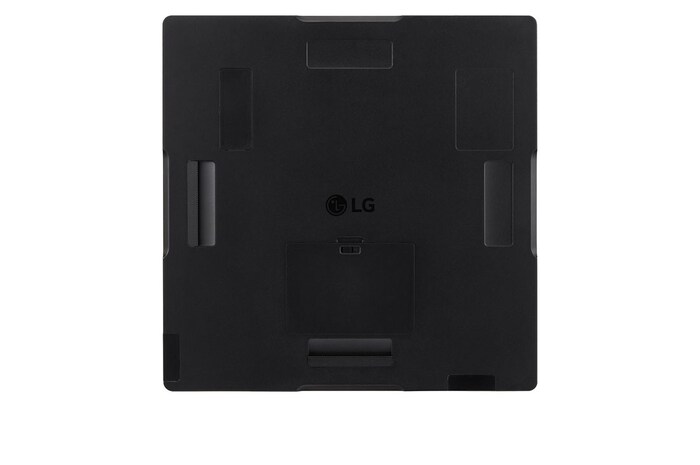

LG Digital X-ray Detector with a-Si TFT

17HQ701-G

Key Features

140㎛ pixel size
16bit A/D conversion
IP68, Magnesium & Carbon-fiber Body
Raw Image in 1.5 sec.(Wired) / 2.5 sec.(Wireless)
Max. Uniform Load : 400kg / Max. Point Load : 200kg

All Spec

ACCESSORIES

CD: Manual, Calibration SW

Cable: Power cord, Main Cable 7m (LAN Cable, Sync cable Option)

Other: Book Manual , Outgonig Inspection sheet

WARRANTY

Warranty: 36 Month

BATTERY

Type: Detachable

Nominal Capacity: 36Wh (7.7V, 4725mAh)

Nominal Voltage: 7.7V

Dimensions (WxDxH, mm): 112.2 x 158 x 8.4

Weight (g): 240

Operation Time: Typ. 300 shots/ 7.5 hrs (Condition : Cycle time 90sec)

Hot Swap: Yes (1min)

SENSOR(PANEL)UNIT

Application: General Radiography

TFT Type: A-Si

Scintillator: Csi

Number of Pixels: 3072 x 3072

Pixel Pitch: 140㎛

TFT Dimensions (WxDxH, mm): 445 x 445 mm

TFT Active Area (mm): 430.08×430.08 mm

X-ray sensitive Pixel: 3072 x 3072

X-ray sensitive Area (mm): 430.08 x 430.08 mm

Sensor protection plate: Carbon Fiber Plate

Input: DC24V/2.1A

Power consumption: Typ. 38W

Dimensions(WxDxH, mm): 460 x 460 x 15.6 mm

Weight (kg) / Icld. Battery (Typ.): 3.7 kg

Maximum Load Weight: Full (Uniform Load) : 400kg Local (Point Load) : 200kg

Falling (IEC60601-1 Test Condition): 1.5m

Cycle Time (Wired / Wireless): 4.5sec / 5sec

Full Image (Raw Image) (Typ.)*without window time: Wired 1.5 sec / Wireless 2.5sec

CONTROL BOX

Power Input: AC100 to 240V, 47-63Hz

Power Output: DC24V / 2.1A

AC Power Cord: 1.5m (Black)

Dimensions (WxDxH, mm): 125 x 255 x 109.8 mm

Weight (kg): 1.3kg

BATTERY CHARGER

Input voltage: 19V

Output voltage: 8.7V

Charging Time: 3 Hours

Slot Q'ty: 2

Bundle battery Q'ty: 2

Dimensions (WxDxH, mm): 268.4 x 186.9 x 54.9mm

Weight (kg): 0.5 kg

AC ADAPTER FOR BATTERY CHARGER

Dimensions (WxDxH, mm): 134 x 59.8 x 31 mm

DC Cable length: 1,500 mm

AC Power Cord: Yes

Input: 100 ~ 240VAC

Output: 19V/3.42A

Weight (kg): 0.335kg

WATERTIGHTNESS

Watertightness: IP68

Cleaning and desinfecting products: Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution

Anti-Bacteria: JIS Z 2801 0.99%

MTF(TYP.)

MTF @ 0.5lp/mm: 84%

MTF @ 1lp/mm: 62%

MTF @ 2lp/mm: 31%

MTF @ 3lp/mm: 15%

DQE(TYP)

DQE @ 0.1lp/mm: 66%

DQE @ 0.5lp/mm: 55%

DQE @ 1lp/mm: 43%

DQE @ 2lp/mm: 28%

DQE @ 3lp/mm: 19%

Sensitivity( lsb/uGy ) / Programmable: 3.57 lp/mm

DEGRADATION

A/D Conversion: 16 bit

Data Output: 16 bit

Auto Exposure Detection: Yes

X-ray period (ms) (=Window Time): 350 ~ 4000ms

Unit Interface: Connect to Control Box

Power unit interface: Connect to Control Box

Wired Communication: Yes

WLAN: IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz

AP mode: Yes(Integrated)

Detachable Wire(Easy to plug / unplug): Yes (Magnetic)

Shock monitoring: Yes

Image storage on DXD: Up to 200 images

Semi-dynamic Acquisition: 5 fps

MAIN CABLE(DXD-CONTROL BOX)

Length: 7m

LAN CABLE(CONTROL BOX-PC): OPTIONAL(WHEN BUYER REQUIRES THIS CABLE, IS SHIPPED ACCORDING TO BOM)

Length: 10m

SYNC CABLE(CONTROL BOX - X-RAY GENERATOR): OPTIONAL(WHEN BUYER REQUIRES THIS CABLE, IS SHIPPED ACCORDING TO BOM)

Length: 15m

ENVIRONMENTAL

Storage-Temperature: -20 to 60 ℃

Storage-Humidity: Less than 90% RH, No condensation

Storage-Pressure: 50 ~ 106 kPa

Storage-Attitude: Less than 12,192 m

Operating-Temperature: 10 to 35 ℃

Operating-Humidity: Less than 80% RH, No condensation

Operating-Pressure: 70 ~ 106 kPa

Operating-Attitude: Less than 5000 m

PACKAGE

Dimension in Shipping (W x H x D): 621 x 352 x 562

Pallet Stuffing (20ft/40ft/40ft HC): 160/360/432

Weight in Shipping: 12.0kg
