LG 7.3 cu.ft Ultra Capacity Dryer with EasyLoad™

7.3 cu.ft. Electric Dryer with TurboSteam^®, EasyLoad^®, Sensor Dry

DLEX8600BE

Technical dimension and installation diagram for the LG Dryer: 27 in (68.6 cm) wide, 42 3/4 in (108.7 cm) high, 29 1/4 in (74.3 cm) deep, and 50 1/2 in (1284 mm) with door open, detailing required installation and venting clearances.

The LG Top Load Washer and Dryer set (DLEX8600BE) in Black Steel, showcasing the flat-top design and premium finish integrated perfectly beneath the upper cabinetry.

The LG Top Load Washer and Dryer set (DLEX8600BE) in Black Steel, showcasing its premium, side-by-side design seamlessly integrated into a luxurious laundry room with marble and wood finishes.

Key Features

7.3 cu. ft. Ultra Large Capacity - SPEND LESS TIME ON LAUNDRY WITH MORE ROOM FOR CLOTHES
EasyLoad™ Door - Open Up to Convenience
Digital Dial Control with LCD Display
Turbo Steam^® - Refresh Clothes With Steam
ThinQ^®

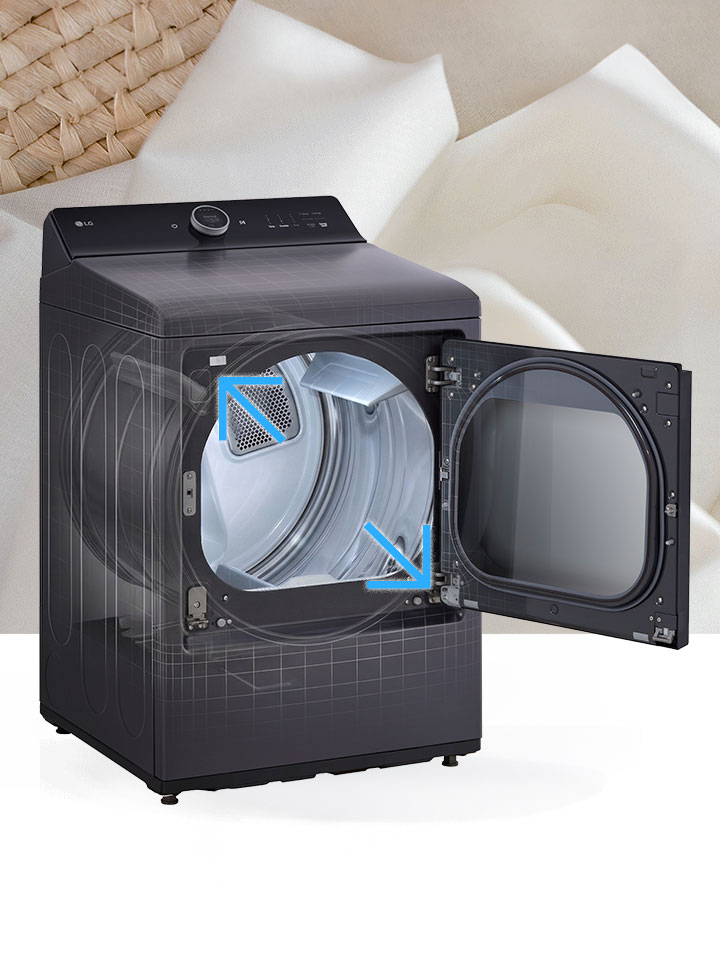

Ultra Large Capacity

Spend Less Time On Laundry with More Room for Clothes

Free up your day—fit more clothes in every load with XX cu. ft. of space. Running fewer loads saves energy and money on your utility bill.

Load and unload the way you want to with the dual-opening options of the LG EasyLoad™ dryer door.

Tempered Glass Door with Chrome Rim

Premium Looks Designed to Last

Real tempered glass door provides a sleek, stylish look that also resists shock and scratches.

Reversible Door

NeveRust Stainless Steel Drum

Built To Last

The NeveRust Stainless Steel Drum is built to last.

AI Fabric Sensor & AI Sensor Dry® with Smart Pairing

Built-in Intelligence Takes Out The Guesswork

AI technology selects optimal dry motions and settings. Washer can auto-select a compatible drying cycle.*

AI Fabric Sensor & AI Sensor Dry® with Smart Pairing

Wrinkle Care Option

Win the War on Wrinkles

When you hate wrinkles but can’t be there to remove clothes as soon as they’re dry, just select the Wrinkle Care option before hitting start.

The dryer will periodically tumble the load for up to 3 hours after the cycle is done or until the door is opened to help keep wrinkles at bay.

FlowSense® Duct Clogging & Lint Filter Indicators

Keep Your Dryer Clean, Efficient And Safe

FlowSense® Duct Clogging and Lint Filter Indicators let you know when your ducts and filter need cleaning to avoid lint buildup, improve the dryer’s performance for greater efficiency and lower utility bills, and help give you safer, worry-free operation with fewer service calls.

Reversible Door

Greater Installation Flexibility

When space is tight or your laundry room doesn’t fit the “typical” setup, this dryer’s door can easily be reversed to fit your needs. Go from a right swing to a left swing in minutes—just unscrew the hinges and reattach using the pre-drilled holes on the opposite side.

DIMENSIONS

Dimensions (WxHxD inch)

27 x 42 3/4 x 29 1/4

Capacity(cu.ft)

7.3

Key Spec

MATERIAL & FINISH - Body Color
Graphite
DIMENSIONS & WEIGHTS - Dimensions (WxHxD inch)
27 x 42 3/4 x 29 1/4
FEATURES - DUAL Inverter HeatPump
No
FEATURES - Auto Cleaning Condenser
No
FEATURES - Heat Source Type
Electric Heater
FEATURES - Reversible Door
Yes
SMART TECHNOLOGY - Smart Pairing
Yes
SMART TECHNOLOGY - ThinQ(Wi-Fi)
Yes

All Spec

SMART TECHNOLOGY

Download Cycle
Yes
Smart Pairing
Yes
Energy Monitoring
Yes
Proactive Customer Care
Yes
Remote Start and Cycle Monitor
Yes
Smart Diagnosis
Yes
ThinQ(Wi-Fi)
Yes
Voice Control (3rd party device)
Yes

ADDITIONAL OPTIONS

Dry Mode
Yes
Condenser Care
No
Control Lock
No
Custom PGM
Yes
Damp Dry Signal
Yes
Drum Care
No
Drum Light
Yes
Dry Level
5 Levels
Easy Iron
Yes
Energy Saver
Yes
Less Time
No
More Time
No
Rack Dry
Yes
Reduce Static
Yes
Remote Start
Yes
Signal(Sound)
Yes
Steam
No
Temp.
5 Levels
Time Dry
Yes
TurboSteam
Yes
Wi-Fi
Yes
Wrinkle Care
Yes

BAR CODE

Bar Code
8806096033975

CAPACITY

Capacity(cu.ft)
7.3

CONTROL & DISPLAY

Display Type
Dial + Full Touch Buttons & LCD+LED Display
Door Lock Indication
No
Timer Display
LCD

DIMENSIONS & WEIGHTS

Carton Dimensions (WxHxD inch)
29 x 45 3/4 x 31 3/8
Dimensions (WxHxD inch)
27 x 42 3/4 x 29 1/4
Product Depth with door open 90˚ (inch)
50 1/2
Weight include packing (lbs)
125.6
Weight (lbs)
121.3

ENERGY

ENERGY STAR® Qualified
Yes
CEF
3.94
ENERGY STAR® Most Efficient
Yes

FEATURES

Type
Vented Dryer
3 Minute Installation Check
Yes
6 Motion DD
No
ADA Compliant
No
AI DD
No
AI Sensor Dry
Yes
Auto Cleaning Condenser
No
Auto Restart
No
Drum Light
Yes
DUAL Inverter HeatPump
No
Dual Lint Filter
No
EasyLoad Door
Yes
Embossing Inner Drum
No
Empty Water Indicator
No
End of Cycle Signal
Yes
FlowSense Duct Clogging Indicator
Yes
Heat Source Type
Electric Heater
Inverter DirectDrive
No
Inverter Motor
Yes
Leveling Legs
Yes
LoadSense
No
NeveRust Stainless Steel Drum (drum side)
Yes
Reversible Door
Yes
Sensor Dry
Yes
SteamFresh
Yes
TrueSteam
No
TurboSteam
Yes
Venting Option
4 Way Venting

MATERIAL & FINISH

Body Color
Graphite
Door Type
Black Tinted Tempered Glass Cover
Drum Back
Painted Steel
Drum Side
Stainless Steel

OPTIONS/ACCESSORIES

Matching Pedestal
N/A

POWER SOURCE

Electrical Requirements
115/230V, 60Hz, 24A

PROGRAMS

AI Dry
Yes
Activewear(Sportswear)
No
Air Dry
Yes
Antibacterial
Yes
Bedding
Yes
Bedding Refresh
No
Condenser Care
No
Delicates
Yes
Downloaded
No
Down Jacket Refresh
No
Drum Care
No
Easy Ironing
Yes
Freshen Up
No
Heated Dry
No
Heavy Duty
Yes
Jumbo Dry
No
Normal
Yes
Outerwear Refresh
No
Perm. Press
Yes
Power Dry
No
Quick Dry (Speed Dry)
Yes
Rack Dry
Yes
Rainy Days
No
Silent Dry
No
Small Load
Yes
Steam Fresh
Yes
Steam Sanitary
Yes
Super Dry
Yes
Towels
Yes
Wrinkle Prevention
Yes

Do LG tumble dryers require additional vent installation?

LG's condenser dryers are ventless and can be installed anywhere without space constraints.

What should I consider when buying a tumble dryer?

When selecting a tumble dryer, consider capacity, energy efficiency, and drying technology. LG dryers feature Sensor Dry technology to optimise drying times based on moisture levels, ensuring perfect results while conserving energy. LG's heat pump technology provides greater energy efficiency than conventional vented dyers, using less energy with every load.

With LG ThinQ™ technology, you can remotely control your LG dryer, making laundry management more convenient. LG's sleek designs integrate seamlessly into any laundry space, enhancing both functionality and style.

What is heat pump dryer?

A heat pump tumble dryer operates by recycling warm air within the drum, meaning it uses less energy and is gentler on your clothes. Here’s how it works:

1. Heating the air: The heat pump heats the air and sends it into the drum to absorb moisture from your clothes.

2. Condensation: The moist air is then cooled in an evaporator, where the water is condensed and collected in a tank or drained away.

3. Recycling air: The cool, dry air is reheated and sent back into the drum to continue drying your clothes.

What tumble dryers are energy efficient?

Heat pump tumble dryers are widely regarded as energy-efficient dryers. Specially, LG heat pump tumble dryers are designed with energy efficiency in mind. LG’s Dual Inverter Heat Pump™ technology further reduces energy consumption, offering substantial savings compared to conventional models. This makes LG dryers a good choice, lowering your electricity bills while delivering outstanding drying performance.
