5.2 cu. ft. Ultra Large Front Load Washer

5.2 cu. ft. Ultra Large Front Load Washer

5.2 cu. ft. Ultra Large Front Load Washer

WM3400CV

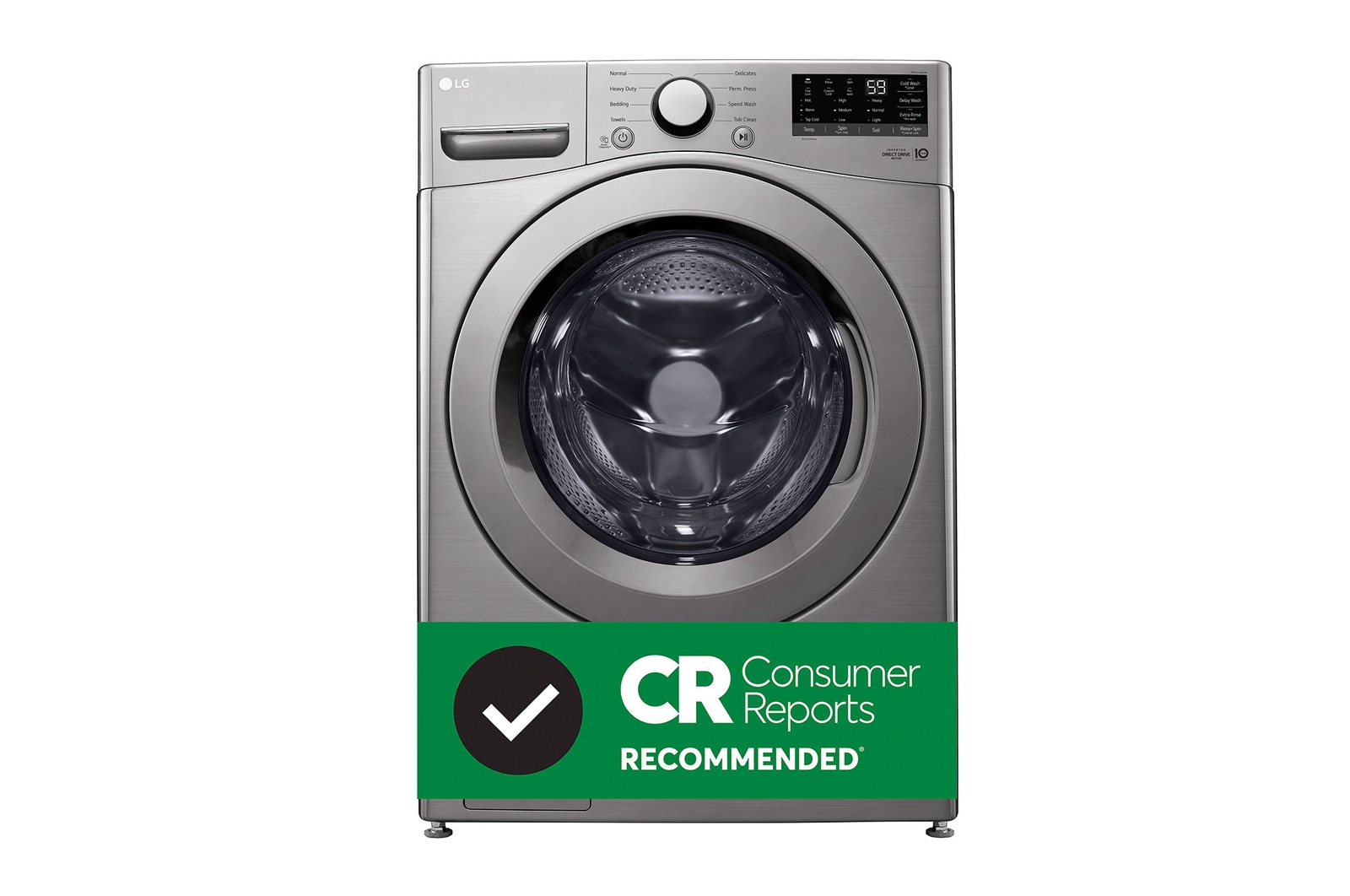

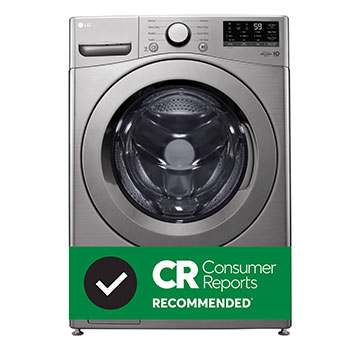

Front view of 5.2 cu. ft. Ultra Large Front Load Washer (WM3400CV)
front door open view
left know panel view
Low Perspective Knob Panel Detail
Top Drawer Open Detail
Top Right Drawer Open
Drum Detail
Top Perspective
right side view
left side view
Top Left Perspective
Right Low Perspective
Right door Open view
side view
back view
Front view of 5.2 cu. ft. Ultra Large Front Load Washer (WM3400CV)
front door open view
left know panel view
Low Perspective Knob Panel Detail
Top Drawer Open Detail
Top Right Drawer Open
Drum Detail
Top Perspective
right side view
left side view
Top Left Perspective
Right Low Perspective
Right door Open view
side view
back view

Key Features

  • 2019 Energy Star Most Efficient 6Motion™ Technology
  • Cold Wash™ Technology
  • Smart Diagnosis™
  • Side Kick Compatible
More

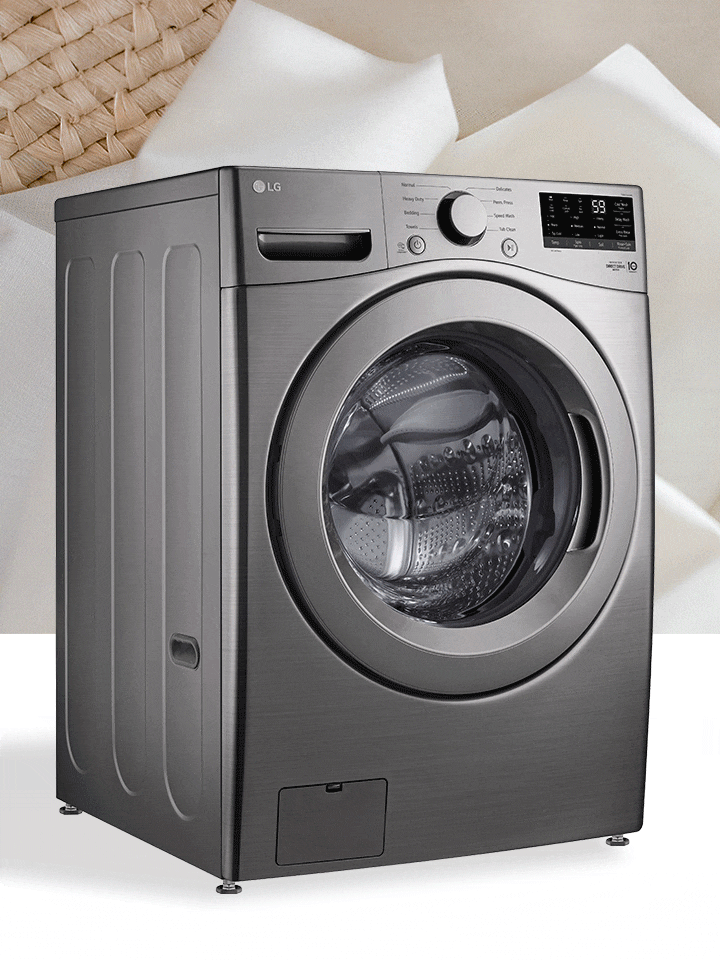

The WM3400CV is a Consumer Reports Recommended washing machine

The WM3400CV is a Consumer Reports Recommended washing machine

The WM3400CV is a Consumer Reports Recommended washing machine

The WM3400CV is a Consumer Reports Recommended washing machine Learn more

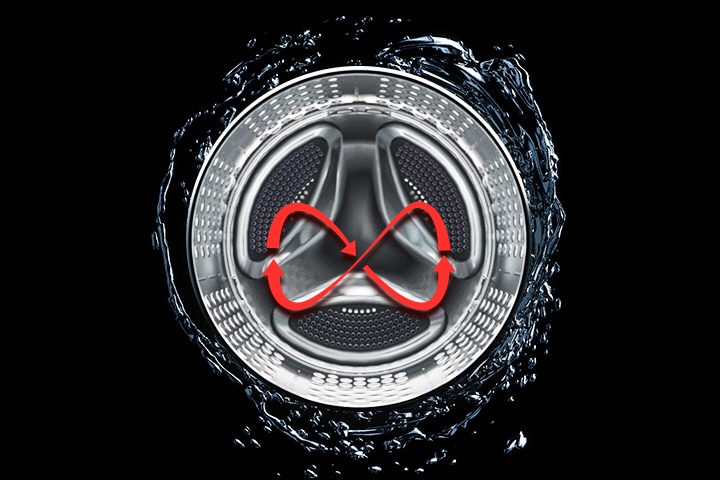

A Smarter Way to Wash

A Smarter Way to Wash

6Motion™ Technology uses up to 6 different wash motions to provide a smart cleaning experience that is gentle on clothes and maximizes washing performance.
Cold Wash Without Compromise

Cold Wash Without Compromise

ColdWash™ technology penetrates deep into fabrics, for cold water savings with warm water performance.
Wash Two Loads At The Same Time

Wash Two Loads At The Same Time

Wash small loads that can't wait or two loads at once with the LG Pedestal Washer.

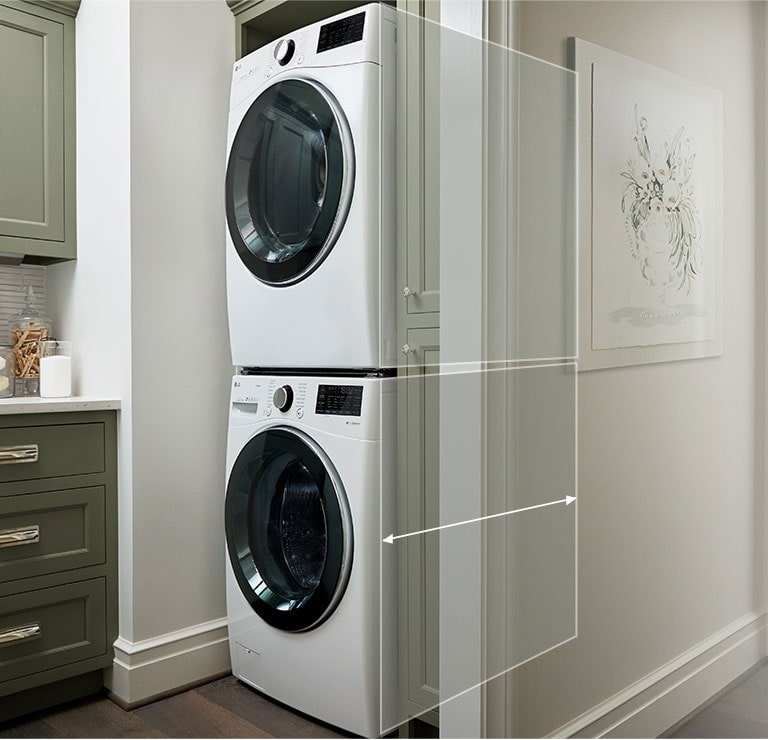

More Style, Less Space

More Style, Less Space

LG closet-depth washers have a shallower depth to fit in more places & add sleek style to any room.
Save Time and Wash Fewer Loads Every Week

Save Time and Wash Fewer Loads Every Week

Bring on big loads of towels or jeans- this 5.2 cu.ft. washer fits more in every load up to 20 lbs.

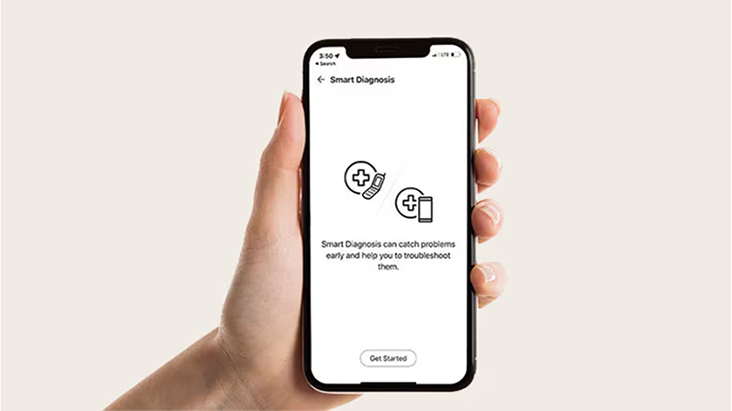

Call, Connect, Resolve

Call, Connect, Resolve

Smart Diagnosis™ uses self-diagnosing technology that can communicate 24/7 with LG customer service over the telephone providing you with comfort and reliability.

Warranty / Certifications

COMPLETE YOUR SYSTEM

See compatible products below:

SUMMARY

Print

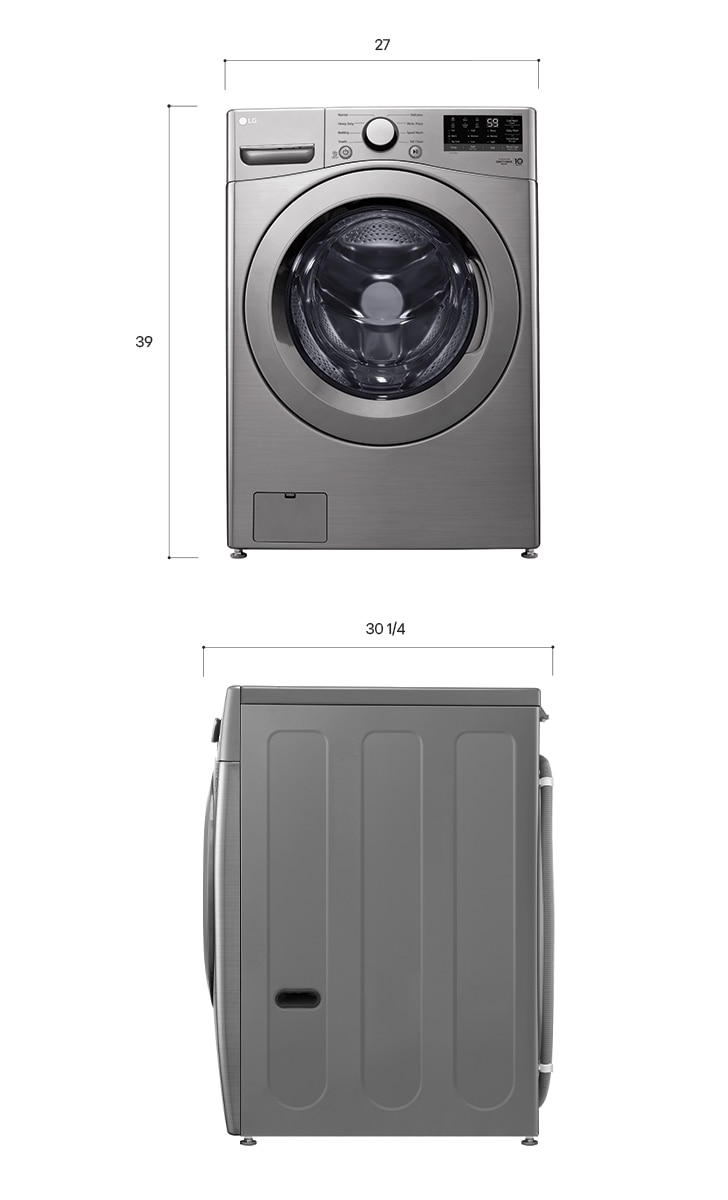

DIMENSIONS

WM3400CV
CAPACITY
5.2 cu.ft.
Dimensions (WxHxD)
27" x 39" x 30 1/4" (55" D with door open)
Steam Technology
No
ThinQ®
No

All Spec

ENERGY

  • ENERGY STAR® Most Efficient 2019

    Yes

  • ENERGY STAR® Qualified

    Yes

  • CEE Tier

    2

  • IMEF

    2.92

  • IWF

    2.9

WASH PROGRAMS

  • No. of Programs

    8 (Normal, Perm. Press, Heavy Duty, Delicates, Towels, Speed Wash, Bedding, Tub Clean)

APPEARANCE

  • Hard Buttons

    Yes

  • Touch Buttons

    Yes

  • Dial-A-Cycle™

    Yes

FABRIC CARE FEATURES

  • ColdWash™ Option

    Yes

  • SenseClean™ System

    Yes

CONVENIENCE FEATURES

  • TrueBalance™ Anti-Vibration System

    Yes

  • 4 Tray Dispenser

    Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener

  • LoDecibel™ Quiet Operation

    Yes

  • End of Cycle Signal

    Yes

  • LoadSense

    Yes

  • Child Lock*

    Yes

  • Auto Suds Removal

    Yes

  • Leveling Legs

    4 Adjustable Legs

  • Easy Loading TilTub™

    Yes

  • Smart Diagnosis™ (v3.0)

    Yes

MATERIALS AND FINISHES

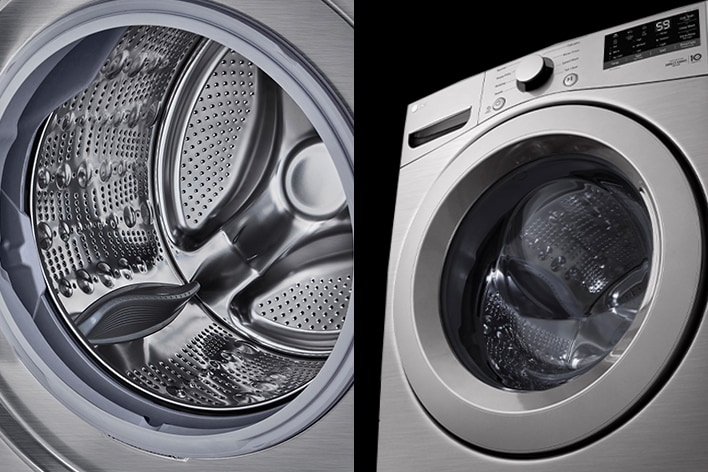

  • NeveRust™ Stainless Steel Drum

    Yes

  • Cabinet

    PCM

  • Control Panel

    Plastic

  • Top Plate

    Painted

  • Door / Rim

    Glass/Graphite

  • Door Cover

    Clear Round Cover

  • All Available Colours

    Graphite Steel

DIMENSIONS

  • Product (WxHxD)

    27" x 39" x 30 1/4"

  • Depth with Door Open

    (55" D with door open)

  • Carton (WxHxD)

    29 23/32" x 41 27/32" x 31 17/32"

  • Weight (Product)

    187.4 lbs

  • Weight (Carton)

    209.8 lbs

POWER SOURCE

  • Ratings

    UL Listed

  • Electrical Requirements

    120V, 10Amps

  • Type

    Electric

SUMMARY

  • Series

    LG

  • Type

    Front Load Washer

  • Capacity (cu.ft.)

    5.2 cu.ft.

  • Matching Electric Dryer

    DLE3400V

  • Colour

    Graphite Steel

UPC CODES

  • WM3400CV

    772454074202

LIMITED WARRANTY

  • Parts and Labour

    1 Year

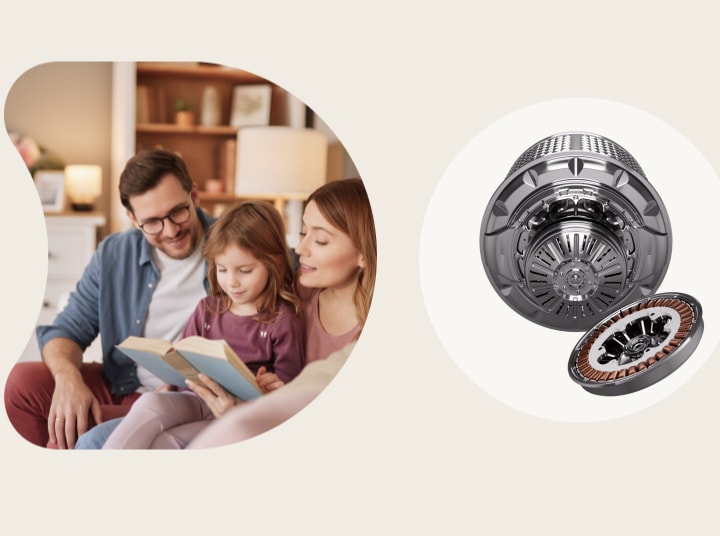

  • Direct Drive Motor

    10 Years

  • Drum

    3 Years

MOTOR

  • Motor Type

    Inverter Direct Drive Motor

  • Axis

    Horizontal

OPTIONS/ACCESSORIES

  • Pedestal

    WDP4W

  • Pedestal (WxHxD)

    27 x 14 1/8 x 30 3/4 (50 9/16 D with door open)

  • LG Sidekick™ Pedestal Washer

    WD100CW

  • LG Sidekick™ Pedestal Washer (WxHxD)

    27 x 14 1/8 x 30 3/4 (50 9/16 D with door open)

  • Stacking Kit

    KSTK1

WASH OPTIONS

  • No. of Options

    8 (Prewash, Delay Wash, ColdWash, Extra Rinse, Rinse+Spin, Control, Lock, Spin Only, Signal)

WASH DETAILS

  • No. of Wash/Rinse Temps

    5

  • Wash/Rinse Temps

    Hot, Warm, Semi Warm, Cold, Tap Cold

  • No. of Spin Speeds

    3

  • Spin Speeds

    High, Medium, Low

  • Max RPM

    1300

  • Water Levels

    Load Sensing

  • No. of Soil Levels

    3

What people are saying

FAQ

What size washing machine is best for a family?

Washing machines in the 9kg to 12kg range are ideal for families. A 9kg model suits a family of 3~4, while 11~12kg is better for larger households or those doing frequent loads.

What size washing machine do I need for a specific space?

All LG Washing Machines come in a standard height and width. The depth of LG washing machines can vary depending on the drum size and capacity. Standard dimensions are: width 600 mm x height 850 mm x depth 565-675 mm. If you're looking for a slim washing machine due to space constraints, LG's Counter-Depth MAX™ could be ideal. This product reduces depth while maintaining capacity, offering a more space-efficient option.

How do I clean a washing machine?

To clean your washing machine, remove and soak the detergent drawer in hot water, then wipe its compartment. Clean the drain filter by removing debris and soaking in hot water. Wipe the drum with a cloth. For the rubber seal, run an empty cycle with baking soda, then clean with warm water. For detailed instructions, see the YouTube link.



https://youtu.be/LA6dPVAEbfE

What is AI DD in a smart LG washing machine?

LG’s AI DD™ washing machines utilise intelligent technology to individually analyse the weight and fabric type of your laundry. The result? Your machine automatically optimises the washing motion, leading to enhanced fabric protection and ensuring your cherished clothes look their best for longer. The DirectDrive™ Motors provide 6-motion technology for an effective wash with fewer moving parts, resulting in a more durable and energy-efficient appliance. You can find more details about LG AI Core Tech on YouTube below.



https://youtu.be/b9ZTNG3dh1g

How do I install a washing machine?

To install your washing machine, begin by ensuring you have a suitable location with access to water, drainage, and a power outlet. Carefully remove all packaging and transport bolts from the machine. Position the washing machine on a level surface to prevent vibration during operation. Connect the water inlet hose to the tap, ensuring it is securely fastened, and attach the drain hose to your plumbing system. Plug the machine into a grounded power socket. Once everything is connected, run a test cycle to check for leaks or issues. For more detailed instructions, please refer to the YouTube link we have prepared for you.



https://youtu.be/FiwpMT5LDys
