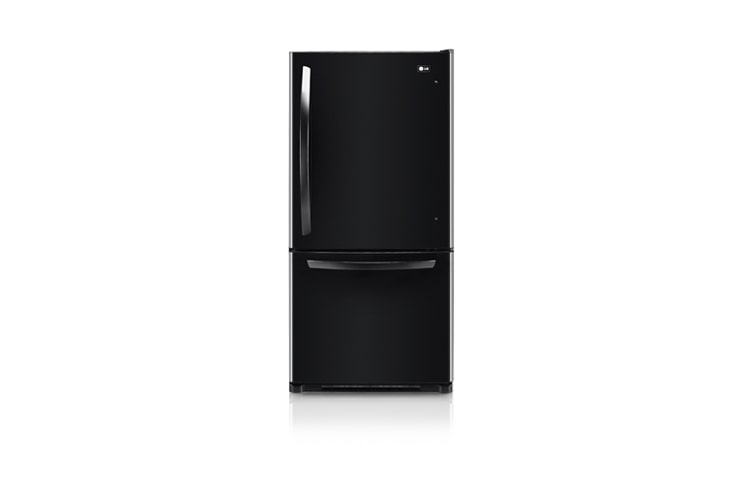

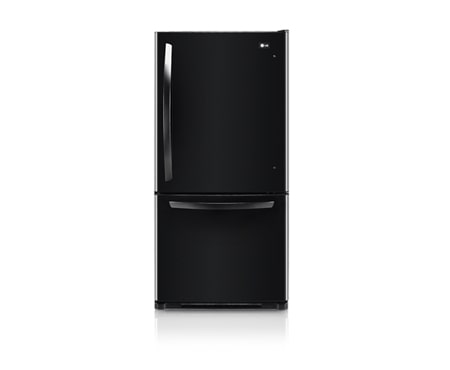

Bottom Freezer Refrigerator with Tilt-A-Drawer™ Freezer (22.4 cu.ft.)

Bottom Freezer Refrigerator with Tilt-A-Drawer™ Freezer (22.4 cu.ft.)

LDC22738SB

Bottom Freezer Refrigerator with Tilt-A-Drawer™ Freezer (22.4 cu.ft.)

All Spec

GENERAL

Capacity

22.4 cu.ft.

Refrigerator Capacity

15.6 cu.ft.

Freezer Capacity

6.9 cu.ft.

FEATURE

Freezer Door Type

Tilt-A-Drawer TM

MultiAir Flow System

Yes

Digital Temperature Controls

Internal LED Membrane

Door Alarm

Yes

LoDecibel Operation

Yes

REFRIGERATOR

No. of Shelves

4 Split

Shelf Style

2 Slide-Out / 1 Folding

Cantilevered Shelves

Yes

Shelf Construction

Spill Protector™ Tempered Glass

Bins

2 Humidity Crisper

Refrigerator Light

Reveal (2x40W)

REFRIGERATOR DOOR

No. of Door Bin

5

Door Bin Material

2 Piece Clear

Dairy Bin

Yes

FREEZER

Upper Drawer

Wire

Lower Drawer

Durabase Solid

Ice Maker

CustomCube™

Divider

Yes

Express Freeze / Ice Plus

Ice Plus

Ice Bin

Yes

Freezer Light

40W

MATERIAL AND FINISHES

Foam Door Insulation

Cyclo Pentane (No CFC, No HCFC)

Door Style

Contour

Bio Shield AntI Bacterial Door Shield

Yes

Toe Grille

Yes

Back

Flush & Metal cover over mechanical parts

Handles

Matching Commercial Handles

Color

Smooth Black

Cabinet Color

Black

Reversible Door

Yes

DIMENSIONS AND WEIGHT

Depth w/ Handles

34 1/2"

Depth w/o Handles

32"

Depth w/o Door

28 1/4"

Depth (Total with Door Open)

62"

Height to Top of Case

67 11/16"

Height to Top of Door Hinge

68 3/8"

Width

32 3/4"

Width (door open 90 deg. w/o handle)

34 1/8"

Installation Clearance

Sides 1/8" x Top 1" x Back 2"

Carton Dimensions (WxHxD)

35 1/8" x 72 1/2" x 36"

Weight (lbs): Unit/Carton

237/263

UPC CODE

UPC Code

772454026577

WARRANTY

Warranty

1 Year parts and Labour, 7 Years on the Sealed System
