1000 Watts | SimpLink | iPOD® Connectivity | USB Media Host | 1080p Up-scaling via HDMI Output

1000 Watts | SimpLink | iPOD® Connectivity | USB Media Host | 1080p Up-scaling via HDMI Output

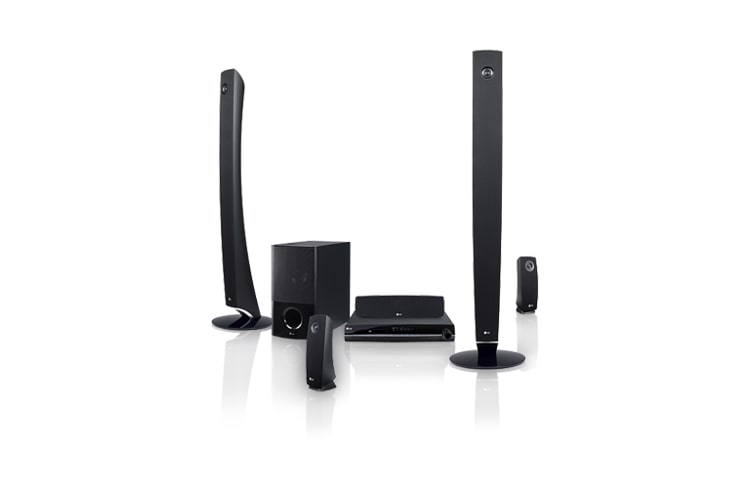

HT904PA

1000 Watts | SimpLink | iPOD® Connectivity | USB Media Host | 1080p Up-scaling via HDMI Output

All Spec

KEY FEATURES

LG SimpLink™

Yes

Video Signal OUT HDMI Out 1080P upscaling

Yes

HDMI 1080p Upscaling

Yes

Front speaker sound output (Initial Max Power)

155W x 2(4Ω)

Centre speaker sound output (Initial Max Power)

155W(4Ω)

Rear speaker sound output (Initial Max Power)

155W x 2(4Ω)

Subwoofer sound output (Initial Max Power)

225W(3Ω)

AM/FM Radio Tuner

Yes

Radio

Yes

PLAY BACK

DVD

Yes

CD

Yes

Playable DISC Formats

DVD(PAL), DVD(NTSC), Audio-CD, CD-R/CD-RW, MP3, MP3 ID3 Tag, DVD-R, DVD-RW(Video Mode), DVD+R, DVD+R Double Layer, DVD+RW, WMA, JPEG, Progressive JPEG, CDG, DivX)

Portable Input Jack(3.5)

Yes

CONNECTIVITY

Progressive Scan (PAL./NTSC)

PAL:Yes, NTSC:Yes

AUX input

Yes

Portable 3.5mm jack inout

Yes

HDMI In

Yes

COMPOSITE CONNECTION

Video Signal OUT Component

1

USB

Yes

AUX input

Yes

HDMI Input

Yes

iPod® Ready

Yes

External FM/MW Antenna

Yes/Yes

Tuning Range MW / 9 kHz

522~1620 kHz

TECHINICAL SPECIFICATION

Main (W x H x D) mm

430 x 73 x 327

Front Speaker (W x H x D) mm

96 x 240 x 108

Center Speaker (W x H x D) mm

350 x 105 x 93

Rear Speaker (W x H x D) mm

96 x 240 x 108

Subwoofer (W x H x D) mm

216 x 405 x 310

Main Weight (Kg)

3.7

Front Speaker Weight (Kg)

0.8

Center Speaker Weight (Kg)

1.5

Rear Speaker Weight (Kg)

0.8

Subwoofer Weight (Kg)

5.6

Gross Weight (Kg)

18

Tuning Range FM1 / 50 kHz, 100 kHz

87.50~108.00 MHz(50kHz)

DVD Regional Code

#1

Display type

PLL

Sound Output (W)

1000W

ADVANCED FEATURES

HD AV Sync.

Yes

On screen display

FL

Dimmer

Yes

Sleep

Yes

Screen Saver

Yes

DTS

Yes

Dolby Digital

Yes

Dolby PrologicⅡ

Yes

VSM

Yes

DD EX

Natural EQ

Yes

Auto EQ

Yes

DSP Sound Mode

Yes

2Ch Stereo(By-Pass)

Yes

Test Tone

Yes

Sound Level adjustment

Yes

Mute

Yes

Station Preset

50 (Random)

ACCESSORIES

Instruction Manual

Yes

Quick Setup Guide

Yes

Remote Control Unit

Yes

AM Loop Antenna

Yes

FM Antenna

(75Ω)

Batteries

Yes

Speaker Cable

Yes(6 EA)

Warranty Card

Yes
