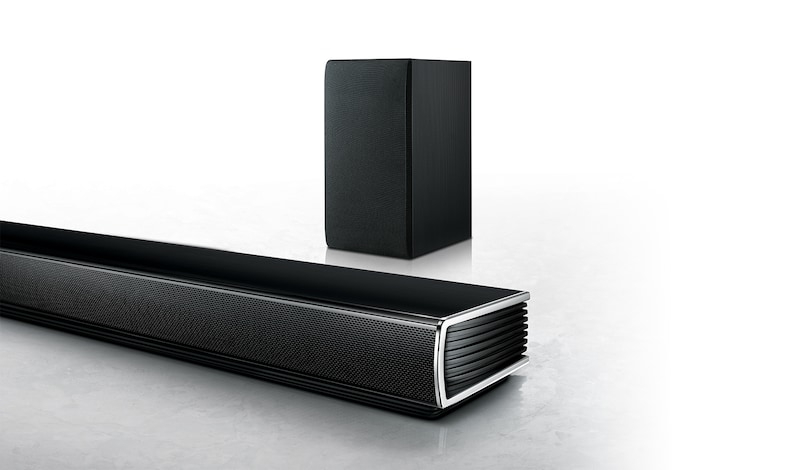

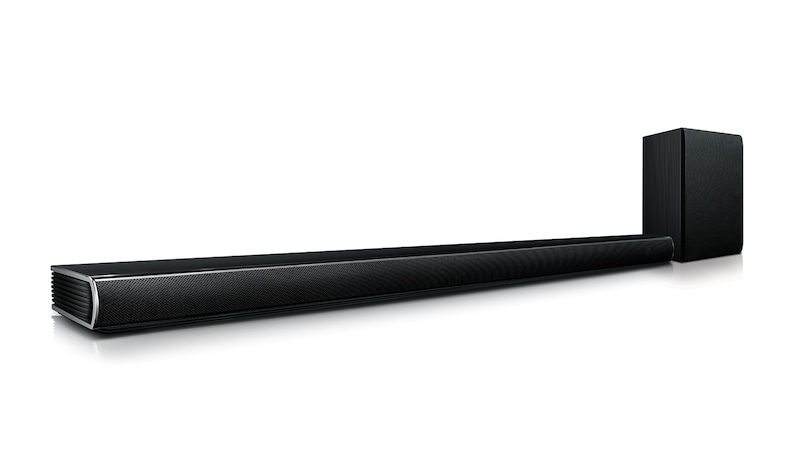

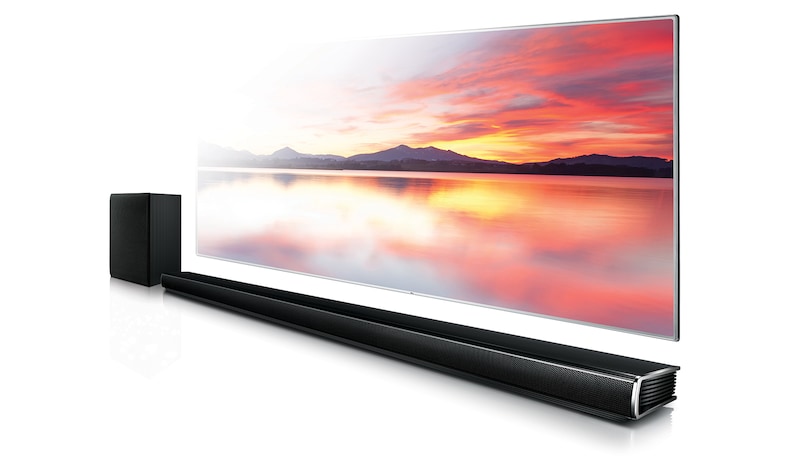

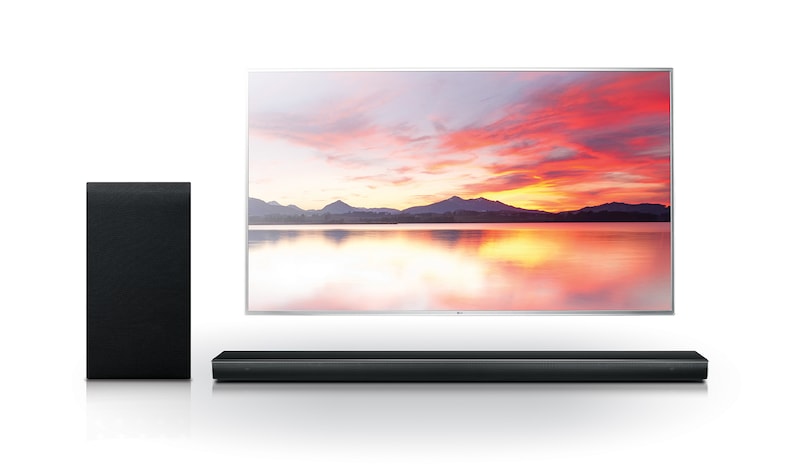

320W 2.1Ch. Sound Bar SH5B

320W 2.1Ch. Sound Bar SH5B

SH5B

320W 2.1Ch. Sound Bar SH5B

SH5B

All Spec

GENERAL

Channels

2.1

Front Power Output

60W x 2 (Tweeter x 2)

Centre Power Output

No

Surround Power Output

No

Rear Power Output

No

Subwoofer Power Output

200W (Wireless)

Total Power

320W

CONNECTIVITY

Portable Audio In (3.5mm)

Yes

Optical

1

HDMI® In

1

HDMI® Out

1

USB

Yes

Bluetooth (ver. 4.0)

Yes

Ethernet port

No

Wi-Fi

No

DISPLAY

Display Type

LCD (5 Char.)

LED Indicator Colour

No

Auto Display Off

Yes

SOUND MODE

24bit/192KHz Sampling

No

Sound Effect

ASC, Standard, Cinema

User EQ

Yes

Night Mode

Yes

Auto Sound Engine

Yes

SFX

No

Dynamic Range Control

No

Auto Volume Leveler

Yes

CONVENIENCE

OS Support (Window / Mac / iOS / Android)

No

Smart Phone Media Server

No

Smart Phone / Tablet App

Yes

Home Chat

No

Network Software Update

No

Control with you TV Remote

Yes

Multi-point (Bluetooth Multi pairing)

No

Sound Sync

Yes

Automatic Power On/Off

Yes

A/V Sync (0~300ms)

Yes

SIMPLINK

Yes

3D Video Signal Pass Through

Yes

4K Pass Through

No

Standby Pass Through Audio, Video

No

Audio Return Channel (ARC)

Yes

Woofer Level (-15~+6dB)

Yes

Mute

Yes

Dimmer

Yes

Sleep

No

Alarm

No

AUDIO FORMAT

Audio Format

LPCM , Dolby Digital, DTS Digital Surround, FLAC (Up to 192kHz), OGG (Up to 48kHz), WAV, MP3, WMA

Audio Streaming Service

No

POWER

Sound Bar Power Type

Adaptor (100~240V, 50/60Hz)

Power Consumption

22W

Power Off Consumption

0.5W Under

Subwoofer Power Type

100~240V, 50/60Hz

Power Consumption

33W

SPEAKER

Sound Bar SPL

82dB

System

2Way/Bi-Amping

Tweeter Unit

20mm PPS Dome

Woofer Unit

40x100mm/4ohm

Magnetic Shielding

No

Subwoofer Model Name

SPH5B-W

SPL

85dB

System

Bass Reflex

Woofer Unit

6 inch

Impedance

3ohm

INCLUDED ACCESSORIES

Remote Control

MA5

Wireless Speaker Reset Guide

Yes

Batteries

AAA x 2

Warranty Card

Yes

HDMI Cable

No

Optical Cable

Yes

LAN Cable

No

Wall Mount Bracket

Yes

Table Stand (Detachable Foot)

No

IR Transmitter

No

DIMENSIONS/WEIGHTS

Sound Bar (W x H x D)

945 x 53 x 85mm 37.2” x 2.1” x 3.3”

Subwoofer (W x H x D)

171 x 320 x 252mm 6.73” x 12.6” x 9.92”

Shipping Size (W x H x D)

1045 x 416 x 217mm 41.1” x 16.4” x 8.5”

Sound Bar Weight

2.6 kg / 5.7 lbs

Subwoofer Weight

4.2 kg / 9.3 lbs

Shipping Weight

9.1 kg /20.1 lbs

WARRANTY/UPC

Limited Warranty

1 Year Parts & Labour

UPC

772454067013
