36” Induction Cooktop | UltraHeat 4.3kW Element & Smart - CBIH3613BE.BB2ELNA

36” Induction Cooktop | UltraHeat 4.3kW Element & Smart

CBIH3613BE

Side view of LG 36” Induction Cooktop | UltraHeat 4.3kW Element & Smart - CBIH3613BE

LG 36” Induction Cooktop | UltraHeat 4.3kW Element & Smart, CBIH3613BE

Key Features

Induction Cooktop (Non-LED Indicator Bars)
UltraHeat^TM 4.3kW Element
Cookware Compatibility Indicator
SmoothTouch^® Glass Controls
Hood & OTR Microwave Sync
ThinQ^®

Induction Cooktop (Non-LED Indicator Bars)

Get Powerful, Precision Cooking with Induction

Our uniquely designed induction cooktops offer exceptional power, precision, and responsiveness for fast, efficient, and even cooking. Induction uses electromagnetic energy to directly heat your cookware—and only your cookware, making it 5-10% more energy-efficient than radiant electric and about 3 times more efficient than gas. The cooktop remains cooler, making it safer and easier to clean.

Flexible Elements for Quick Boils and True Simmers

With 4,300 watts of power, our UltraHeat^™ element is powerful enough to rapidly boil water and flexible enough to turn down to a true simmer.

Optimize Performance & Maximize Energy Efficiency

How well your cookware heats on an induction element depends on several factors, such as the cookware's size, material, and shape of its base. Our cooktop is equipped with a built-in Cookware Compatibility Indicator, which rates cookware and element compatibility on a scale from 0 to 10, to help you optimize the power output and performance of each element and maximize energy efficiency.

SmoothTouch^® Glass Controls

Sleek, Intuitive Controls

The intuitive SmoothTouch^® glass controls deliver sleek style and easy operation, with just a touch of your finger. Plus, the smooth surface easily wipes clean for a design that is as practical as it is stylish.

Hood & OTR Microwave Sync

Sync with Smart LG Hoods and Over-the-Range Microwaves

For a seamless cooking experience, sync with your smart LG Hood or Over-the-Range Microwave via the LG ThinQ^® app. This feature automatically activates the Hood or Microwave's fan and light when the cooktop burners are in use and deactivates them when the burners are turned off.

LG ThinQ^® Smart Technology

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your cooktop remotely, sync it with your smart LG hood or over-the-range microwave to auto-activate the light and vent, and more.

*Available on select LG smart appliances. Features may vary by model.

ENERGY STAR^® Certified

Save Money. Save Energy.

Products that earn the ENERGY STAR^® label meet strict energy-efficiency specifications set by the U.S. EPA,

helping you save energy and money while protecting our climate by making choices that count for a clean energy future.

* Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice.

DIMENSIONS

Heater - Total (W)

9200

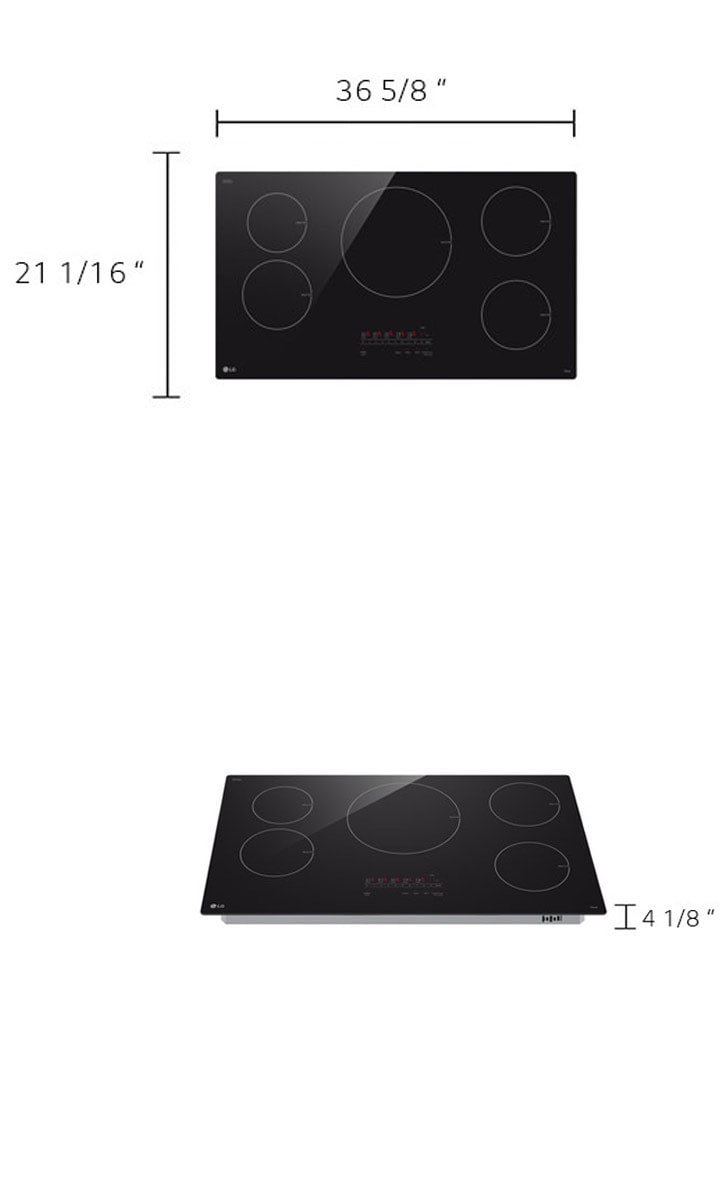

Product Dimensions (W x H x D) (inch)

36 5/8 x 4 1/8 x 21 1/16

All Spec

BAR CODE

Bar Code
048231347594

BASIC SPEC

Brand
LG
Cooktop Type
Induction
Fuel Type
Electric
Outcase Color
Black

DESIGN / FINISH

Control Display
LED
Cooktop Glass
Ceramic glass
Cooktop Control Type
Glass Touch

POWER / RATINGS

Required Power Supply (Volt/Hz)
208V / 60Hz, 240V / 60Hz
Watt Rating at 240V(W)
9200
Watt Rating at 208V(W)
7524
Amp Rating at 240V(Amp)
38.4
Amp Rating at 208V(Amp)
36.2

COOKTOP FEATURES

Cooktop Type
Induction
Safety function(Cooktop)
Yes
Number of Cooktop Elements/Burners
5
Inverter
Half-Bridge
Induction Heater - Right Rear (W) (Turbo, inch)
1800(2800,7)
Induction Heater - Right Front (W) (Turbo, inch)
1800(2800,7)
Induction Heater - Left Rear (W) (Turbo, inch)
1400(1800,6)
Induction Heater - Left Front (W) (Turbo, inch)
1800(2800,7)
Induction Heater - Center Middle (W) (Turbo, inch)
2400(4300,11)
Hot Surface Indicator
Yes
Heater - Total (W)
9200
EasyClean Cooktop
No
Fuel Type
Electric

ACCESSORIES

Cooktop Cream / Cleaner (Ea)
1
Scouring Pad (Ea)
1

COMPLIANCE

Energy Star Certified
Yes

CONVENIENCE FEATURES

ADA Compliant
Yes
Control Lock
Yes (Cooktop)
Cookware Heating Index
Yes
Kitchen Timer
Yes
Pause
Yes
Simmer
Yes
Timed Cook
No

DIMENSIONS / WEIGHT

Product Dimensions (W x H x D) (inch)
36 5/8 x 4 1/8 x 21 1/16
Size in Width (inch)
36
Shipping Weight (lb.)
55.2
Product Weight (lb.)
48.2
Packing Dimensions (W x H x D) (inch)
39 9/16 x 5 7/16 x 24 5/16
Cut-out Dimensions_Min (W x H x D)(inch)_Standard
33 7/8 x 5 7/8 x 19 1/8

SMART TECHNOLOGY

NFC Tag On
No
Smart Recipe (3rd Party Recipe App)
No
ThinQ(Wi-Fi)
Yes
Voice Control (3rd Party Device)
No
Works with
LG ThinQ

What types of cookware are compatible with induction?

Only cookware with a magnetic base is compatible. Look for pans labeled “induction-ready” or “IH” marked. Suitable materials include stainless steel (if magnetic), cast iron, and some enameled steel. Cookware must also have a flat bottom and be the right size for the cooking zone.

Is the cooktop surface hot during use?

Yes, the ceramic surface can become hot due to residual heat transferred from the pan. A hot surface indicator stays on until the surface cools down.

Can I monitor the cooktop from my phone?

Yes. The cooktop has built-in Wi-Fi and can be monitored using the LG ThinQ^® app, which provides status updates and notifications.

What happens if I forget to turn it off?

The cooktop includes safety shutoff features. If a zone is turned on without cookware or if no power level is selected, it will shut off automatically after a short period. A residual heat indicator also stays lit.

How loud is the cooling fan?

The cooling fan may be noticeable, especially with heavy use, but this is normal. It may continue to run even after the cooking zones are off, to cool down the unit.

Is installation included?

No. Installation must be done by a qualified technician and is not included with the product.

How does induction heat food?

Induction uses magnetic fields to heat the cookware directly, not the cooktop surface. Heat is generated instantly at the base of the pot for fast, efficient cooking.

Why does my cooktop make a buzzing or clicking sound?

Buzzing and clicking are normal during induction operation, especially with lightweight or empty cookware or when using Boost mode

What happens if I use the wrong pan?

If incompatible or improperly sized cookware is used, the cooktop may not detect it and the element will not activate. A compatible magnetic bottom is required.

Can I use this cooktop if I have a pacemaker?

Persons with a pacemaker or similar medical device should exercise caution using or standing near an

induction unit while it is in operation, as the electromagnetic field may affect the working of the

pacemaker or similar medical device. It would be advisable to consult your doctor or the pacemaker or

medical device manufacturer about your particular situation.

Does the timer turn off the element?

No. The Timer acts as a simple timer and does not turn off the cooking zone.

What safety features are built in?

Features include residual heat indicators, automatic shutoff if cookware is not detected, Control Lock, a Pause function, and a fan to manage internal temperature.

What should I do if an error code appears?

Turn the power off and on again to turn off the error code. If the problem continues, turn the circuit breaker off for 60 seconds and turn it back on. If the problem is not fixed, contact a local LG service center or Customer Information Center

Does this need specific electrical wiring?

Yes. This cooktop requires a dedicated 240/208 VAC, 60 Hz circuit. The model also requires a 40 Amp circuit breaker with #8 AWG to be used. It must be properly grounded and installed by a qualified electrician.
