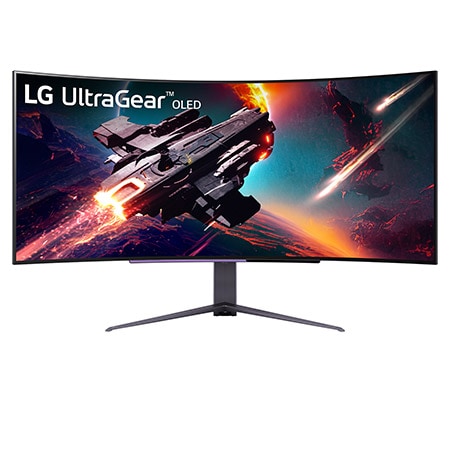

45” UltraGear™ OLED curved gaming monitor | 800R, DisplayHDR True Black 400, 240Hz, 0.03ms (GtG), USB Type-C™, DepthSound
Complete the game with a brighter OLED 800R gaming monitor equipped with USB Type-C™, and built-in speakers.

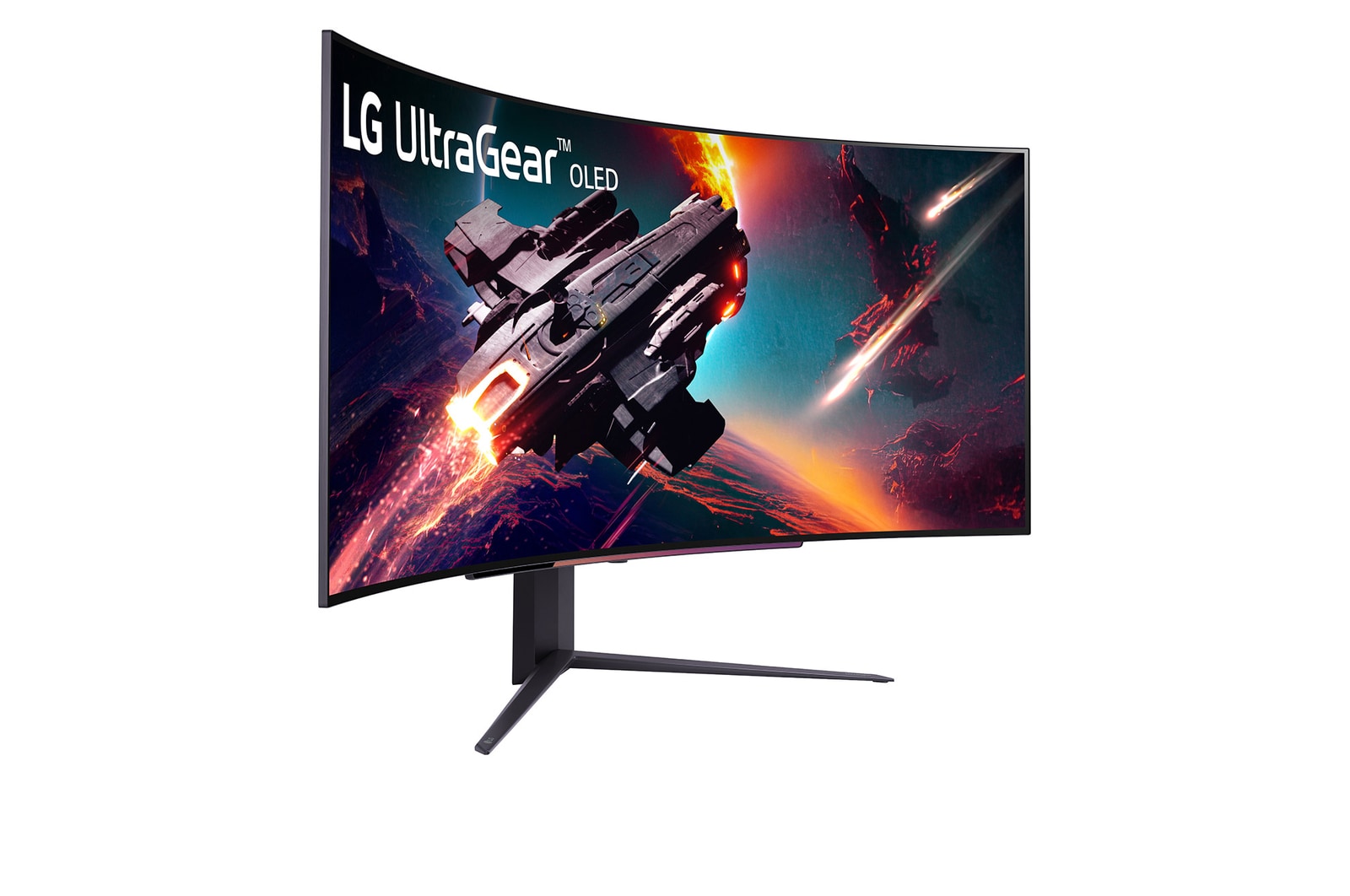

It is a 45GR96QB with the UltraGear™ OLED logo.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The brightness of the monitor is compared to the previous model, LG UltraGear™ 45GR95QE.
45" Ultra-WQHD Curved OLED
DisplayHDR True Black 400 / DCI-P3 98.5%
Anti-glare & Low reflection
240Hz refresh rate
0.03ms (GtG) response time
240Hz from HDMI, DP & USB Type-C™
VESA ClearMR/ DepthSound
NVIDIA® G-SYNC® Compatible
AMD FreeSync™ Premium Pro

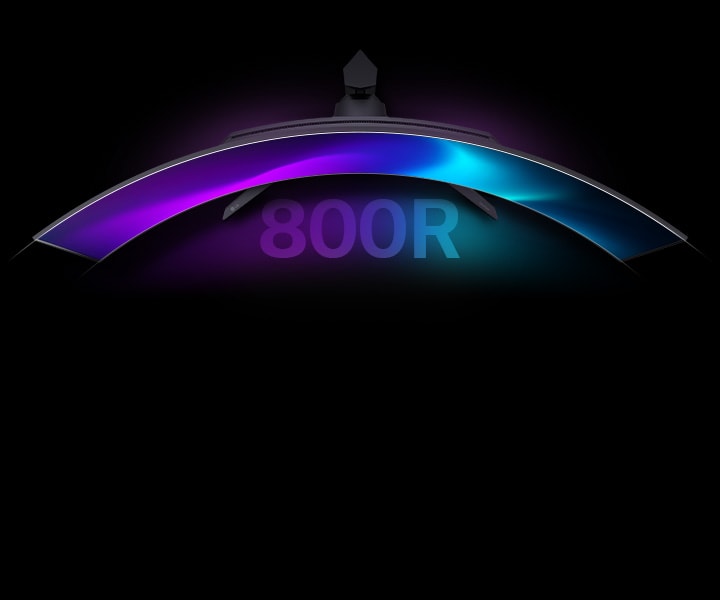

Top view of 800r curvature body.
800R curved screen is designed for optimal view considering the distance from the monitor and the natural angle of the human eye to see the whole scene at a glance.

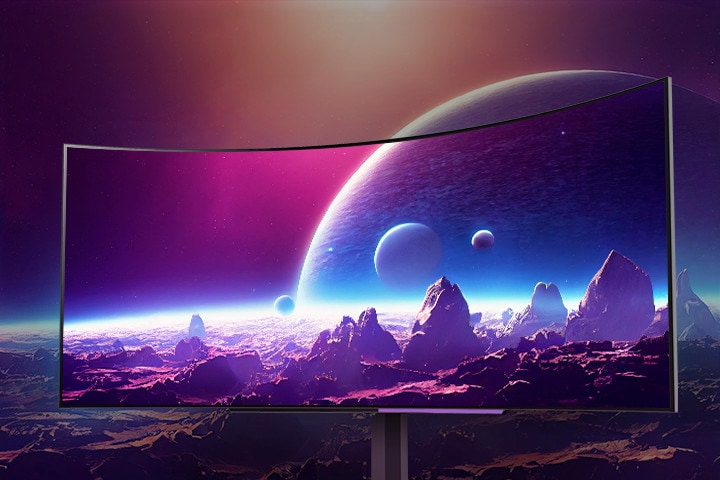

It is a 45" 800R curved monitor.
*Based on the assumption of viewing an 800R curved display from a distance of 800mm, and may vary depending on the distance from the screen and the user's posture.
The 45-inch display offers an incredibly magnificent and pleasant viewing experience. The actual screen size of 45" 21:9 is 12% larger than the 49" 32:9 and has a well-proportioned ratio vertically and horizontally.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The brightness of the monitor is compared to the previous model, LG UltraGear 45GR95QE.
*Brightness is 275-1,300nits (Typ.).
275nits up to 1300nits
This monitor has a luminosity of 275nits in standard use and can reach up to 1300nits at its brightest. You can be sure that you won't be playing in the dark, as the new OLED keeps the visuals bright and vibrant.
*The images simulated to enhance feature understanding. It may differ from actual use.

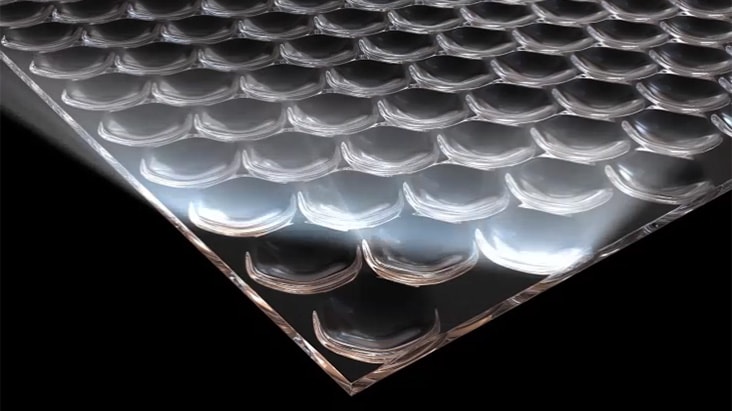

Micro Lens Array+
Our UltraGear™ OLED featured Micro Lens Array+ technology, presents 37.5% higher brightness (SDR) compared to MLA.
*The images simulated to enhance feature understanding. It may differ from actual use.
DisplayHDR True Black 400 / DCI-P3 98.5%
VESA DisplayHDR True Black 400 makes every scene, whether it is bright or dark, come to life with its realistic details with a 1.5M contrast ratio.
Immerse yourself in gaming with the vibrant world created by DCI-P3 98.5%.
*The images simulated to enhance feature understanding. It may differ from actual use.
*1.5m:1 is the contrast ratio at 25% APL.
*APL (Average picture level) value is given as a percentage and refers to the value between the black level and the reference level for white.

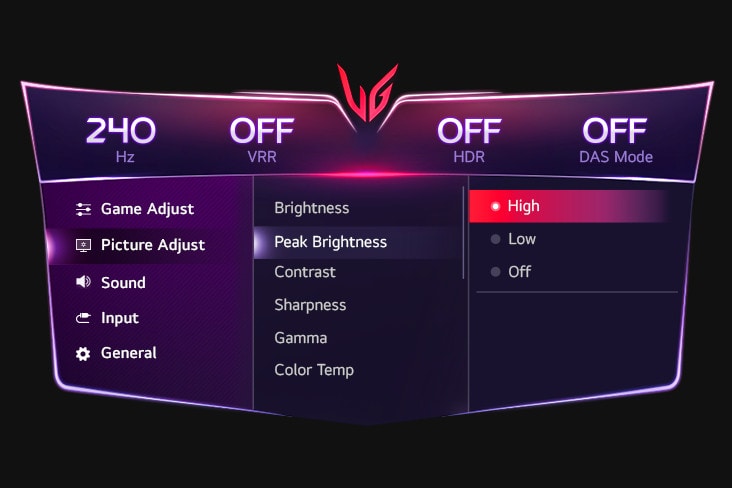

[Option 1] Turn off the Smart Energy Saving mode.
[Option 2] Set Game Mode as Gamer 1.
[Option 3] Set Brightness to 100.
[Option 4] Set Peak Brightness as High.
[Option 1] Turn off the Smart Energy Saving mode.
[Option 2] Set Game Mode as Gamer 1.
[Option 3] Set Brightness to 100.
[Option 4] Set Peak Brightness as High.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Power consumption may increase when the above options are chosen.
*The display burn-in may occur in brighter mode.
*The images simulated to enhance feature understanding. It may differ from actual use.
Keep your gaming experience brilliant, keeping your eyes comfortable with LG's Live Colour Low Blue Light technology.
*LG OLED panels have been certified as Flicker-Free, Discomfort Glare Free, and Low Blue Light by UL.
*Certificate Number: Flicker-Free Display (OLED) - A196009, Discomfort Glare Free - V563481 (conditions of UGR less than 22), Low Blue Light Hardware Solution Platinum - V745051.
*The above feature may vary depending on the user’s computing environment or conditions.
*The images simulated to enhance feature understanding. It may differ from actual use.
OLED 240Hz refresh rate
A fast speed of 240Hz allows gamers to see the next frame quickly and makes the image appear smoothly. The gamers can respond rapidly to opponents and aim at targets easily.
*The images simulated to enhance feature understanding. It may differ from actual use.
With 0.03ms (GtG) response time, reducing reverse ghosting, and helping objects render clearly, enjoy the game with smoother movement and surreal visual fluidity.
*The images simulated to enhance feature understanding. It may differ from actual use.
*It supports up to 240Hz rapid refresh rate. A graphic card that supports DP 1.4, HDMI 2.1, or USB Type-C™ cable is required to work properly.
*The graphics card is NOT included in the package. You should purchase it separately.
*The DisplayPort, HDMI, and USB Type-C™ cables are included in the package.
Comparison of fluid gaming image - The left image is tearing, and the Right image is tear-free.
Featuring VESA AdaptiveSync Display certification, geared towards gaming with notably higher refresh rates and low latency. Enjoy smoother, tear-free gaming visuals and jitter-free video playback.
This monitor is an NVIDIA-tested and officially validated G-SYNC® Compatible monitor, that can give you a good gaming experience with significantly reduced tearing or stuttering.
With FreeSync™ Premium Pro technology, gamers can experience seamless, fluid movement in high-resolution and fast-paced games. It significantly reduces screen tearing and stuttering.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The performance of the feature is compared to the models not applying the sync technology.
*Errors or delays may occur depending on the network connection.
This monitor has received VESA ClearMR 13000 certification, allowing you to see movement as clearly as still images with incredibly reduced motion blur for gaming.
*The images simulated to enhance feature understanding. It may differ from actual use.

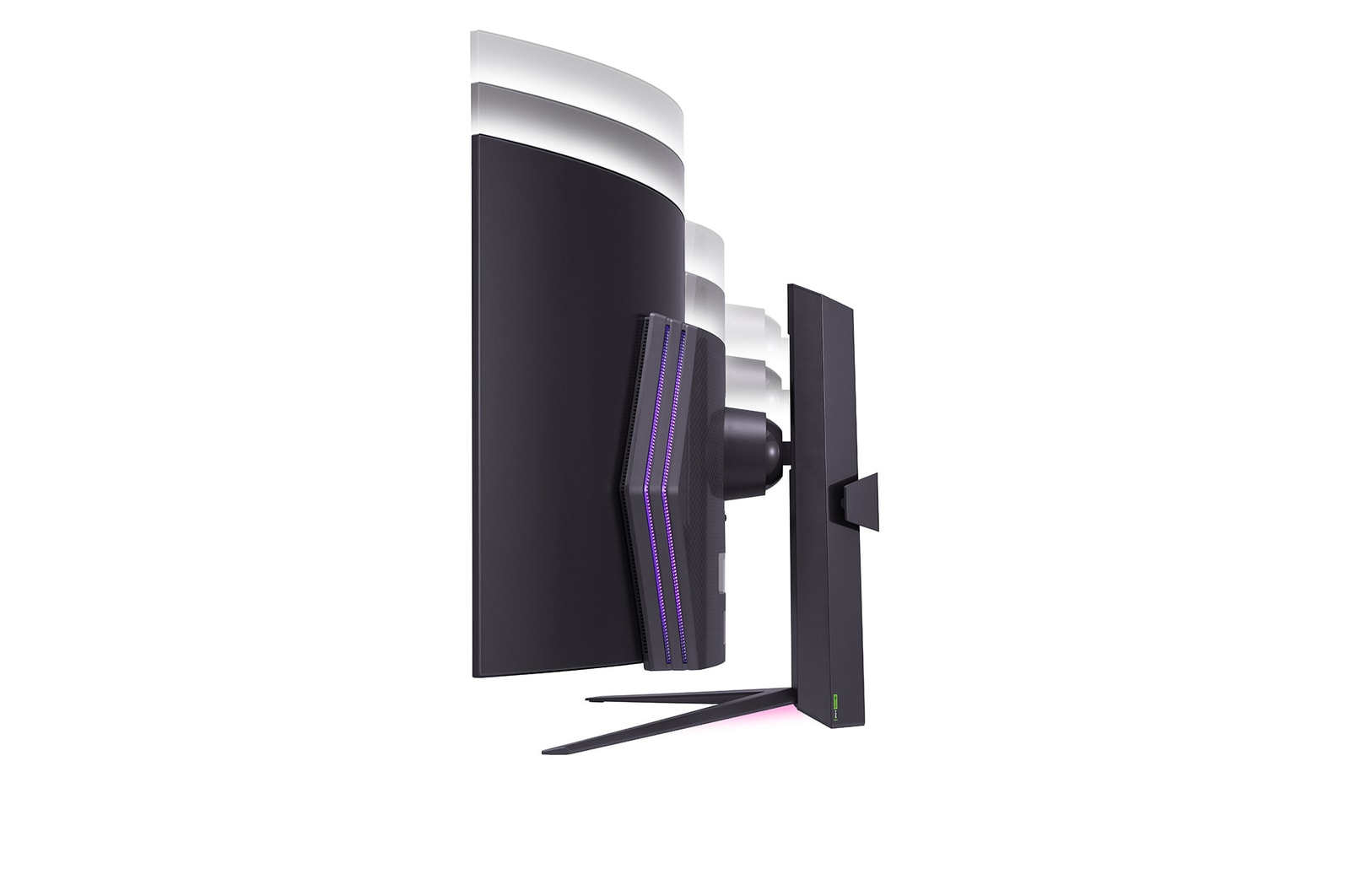

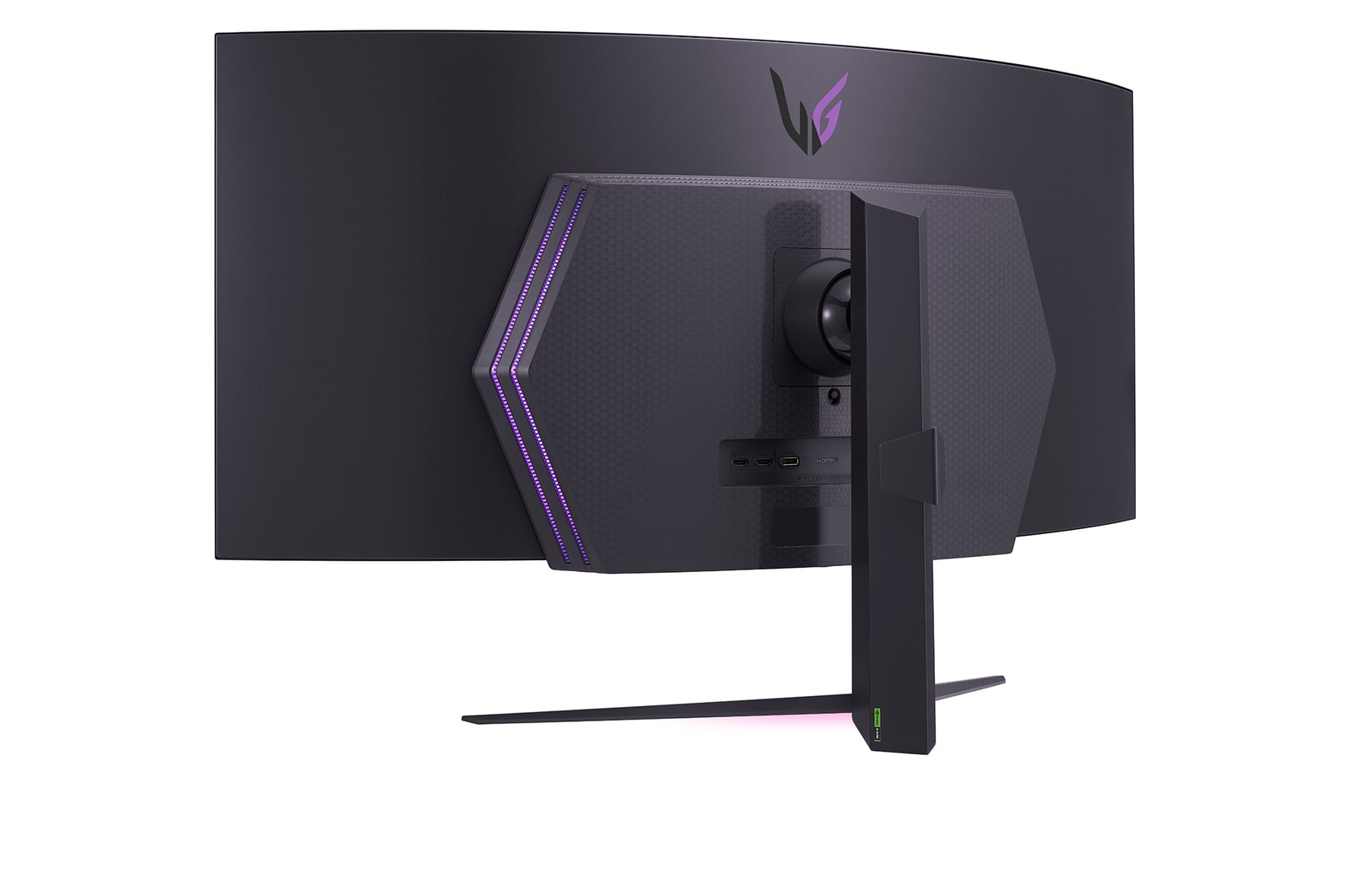

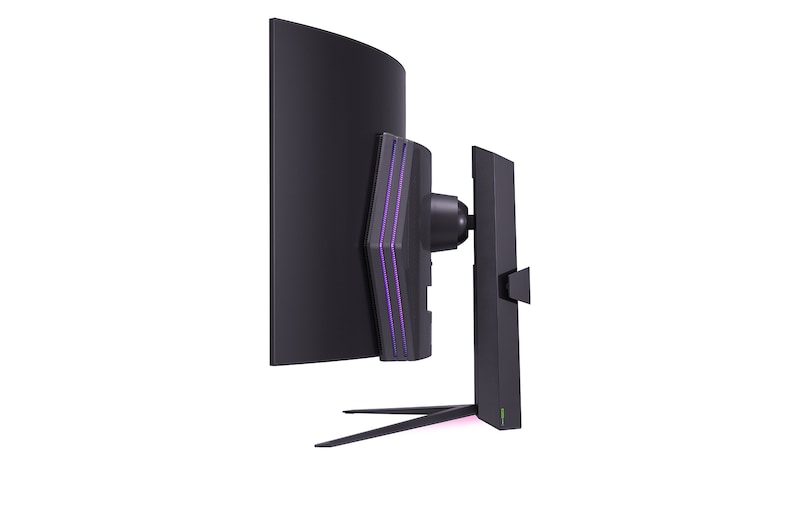

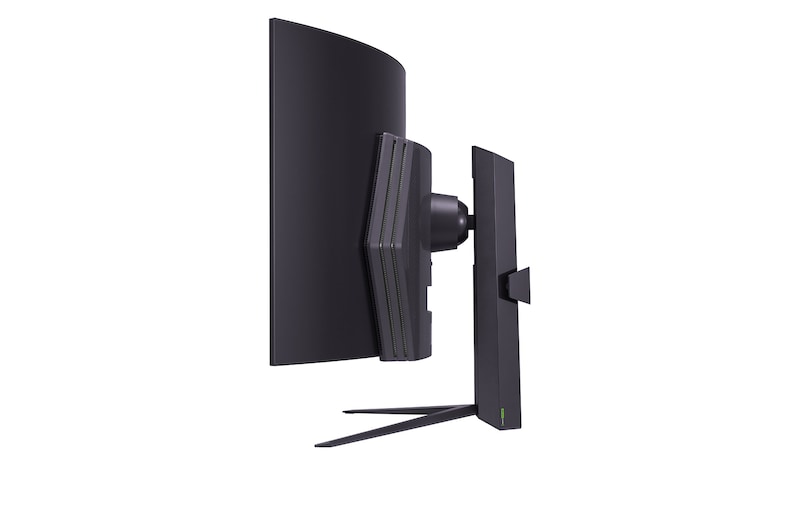

Swivel
Tilt
Height
Borderless design
*The images simulated to enhance feature understanding. It may differ from actual use.
*Headsets are NOT included in the package. You should purchase it separately.

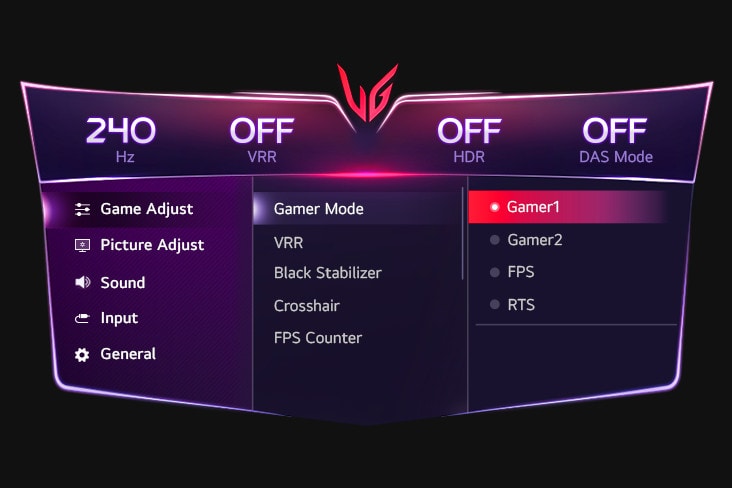

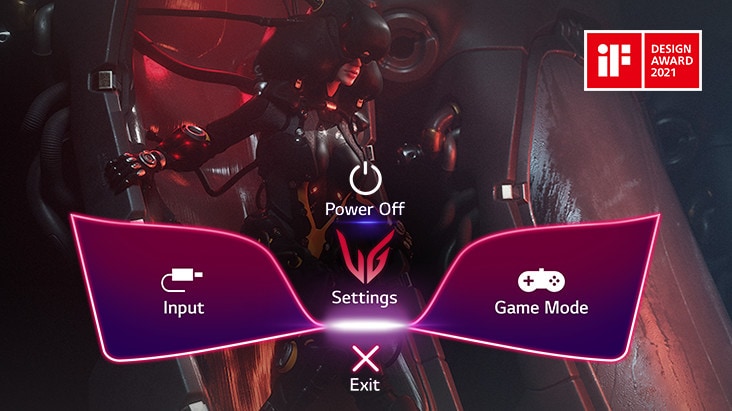

Gaming GUI
Gamers can use On-Screen Display and OnScreen Control to easily customize the setting from adjusting basic monitor options to registering ‘User Defined Key’ that user can set the shortcut.
*To download the latest OnScreen Control software, visit LG.COM.
*The images simulated to enhance feature understanding. It may differ from actual use.

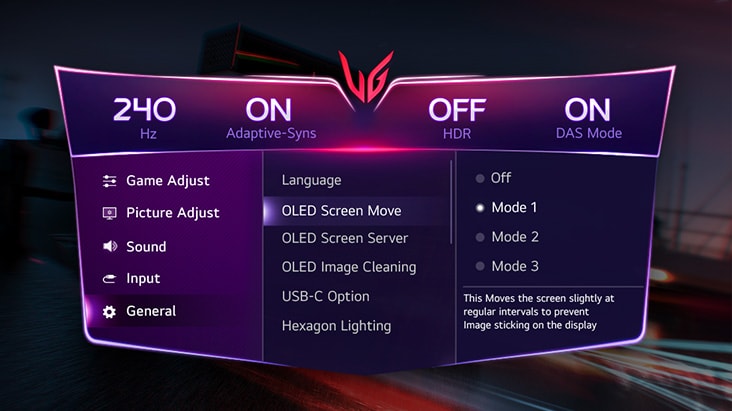

You can prevent occurring afterimages or display burn-in by turning on the 'OLED Screen Move', which moves the screen slightly at regular intervals, 'Screen Saver' and 'Image Cleaning'.
*This feature is only available as a 4-way joystick is included in the package.
Reducing input lag with Dynamic Action Sync, gamers can catch critical moments in real-time and respond quickly.
Black Stabilizer helps gamers detect snipers lurking in the darkest corners and swiftly navigate flash explosions.
The target point is fixed in the center to enhance shooting accuracy.
The FPS Counter will let you see how well everything is loading. Whether you're editing, playing games, or watching a movie, every frame matters, and with the FPS Counter, you'll have real-time data.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The Crosshair feature is unavailable while the FPS Counter is activated.
*FPS Counter may display the value that exceeds the monitor’s maximum refresh rate.
*FPS (Frame Per Second) Counter: Measurement of frames per second.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The software and a Calibration Sensor are NOT included in the package. To download the latest LG Calibration Studio software, visit LG.COM.
Product name
UltraGear
Year
Y24
Aspect Ratio
21:9
Brightness (Typ.) [cd/m²]
275cd/m²
Color Bit
10bit
Color Depth (Number of Colors)
1.07B
Color Gamut (Typ.)
DCI-P3 98.5% (CIE1976)
Contrast Ratio (Typ.)
1500000:1
Curvature
800R
Panel Type
OLED
Pixel Pitch [mm]
0.303 x 0.303mm
Resolution
3440 x 1440
Response Time
0.03ms (GTG)
Size [cm]
113
Size [Inch]
44.5
Surface Treatment
Anti-Glare, Low-Reflection of the front polarizer
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Reader Mode
YES
AMD FreeSync™
FreeSync Premium Pro
Auto Input Switch
YES
Black Stabilizer
YES
Color Calibrated in Factory
YES
Color Weakness
YES
Crosshair
YES
Dynamic Action Sync
YES
FPS Counter
YES
HDR 10
YES
HDR Effect
YES
HW Calibration
HW Calibration Ready
NVIDIA G-Sync™
G-SYNC Compatible
Others (Features)
VESA DSC Tech, 4way Joystick
PBP
2PBP
PIP
YES
RGB LED Lighting
Hexagon Lighting
Smart Energy Saving
YES
User Defined Key
YES
VRR
YES
OnScreen Control (LG Screen Manager)
YES
Dual Controller
YES
LG Calibration Studio (True Color Pro)
YES
DisplayPort
YES(1ea)
DP Version
1.4 (DSC)
HDMI
YES(2ea)
Headphone out
4-Pole(Sound+Mic)
USB-C
YES(1ea)
USB-C (Data Transsmission)
YES
USB-C (Max. Resolution at Hz)
3440x1440@240Hz
USB-C (Power Delivery)
65W
USB Downstream Port
YES(2ea/ver3.0)
Speaker
7W x 2
AC Input
100~240V (50/60Hz)
DC Output
20V 13.5A
Power Consumption (DC Off)
Less than 0.5W
Power Consumption (Sleep Mode)
Less than 0.3W
Type
External Power(Adapter)
Display Position Adjustments
Tilt/Height/Swivel
Borderless Design
4-Side Virtually Borderless Design
OneClick Stand
YES
Wall Mountable [mm]
100 x 100mm
Dimension in Shiping (W x H x D) [mm]
1100 x 317 x 550

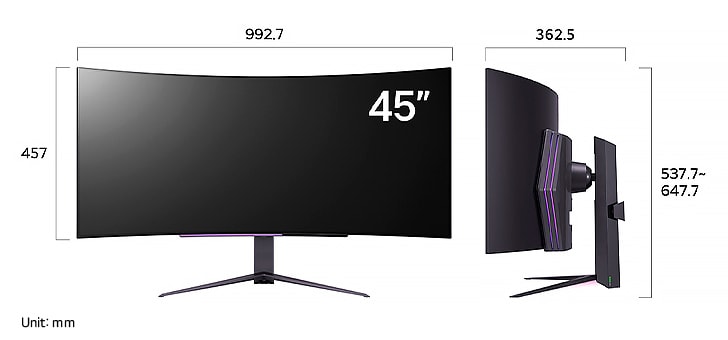

Dimension without Stand (W x H x D) [mm]
992.7 x 457 x 218
Dimension with Stand (W x H x D) [mm]
992.7 x 647.7 x 362.5(UP) / 992.7 x 537.7 x 362.5(Down)
Weight in Shipping [kg]
17.0
Weight without Stand [kg]
9.0
Weight with Stand [kg]
11.3
HDMI
YES (ver 2.1)
Adapter
YES
Calibration Report (Paper)
YES
Display Port
YES
HDMI (Color/Length)
Black / 1.8m
Others (Accessory)
Stand Cable holder
Power Cord
YES
USB-C
YES
CE
YES
UL (cUL)
YES
How to choose a gaming monitor?
Start with your priorities. Want crisp visuals? Go for 4K resolution. Need ultra-smooth motion? Prioritize a high refresh rate (144Hz or more) and low response time. If you're after deep contrast and color accuracy, consider OLED or Nano IPS, Nano IPS black panels. Don’t forget adaptive sync tech like NVIDIA G-SYNC or AMD FreeSync™ Premium to eliminate screen tearing. LG’s UltraGear™ series offers a range of gaming monitors tailored to your play style—from casual console gaming to high-intensity PC competition.
What is the refresh rate of a gaming monitor?
Refresh rate, calculated in Hertz (Hz), refers to how many displays are updated within one second. For example, a 120Hz indicates that the display refreshes 120 times per second. Gaming monitors with high refresh rates offer smoother visuals with less screen tearing.
How many hertz is good for gaming?
For most gamers, 144Hz is the sweet spot for fluid, responsive gameplay. Competitive players may want even faster refresh rates like 240Hz for that extra edge in fast-paced shooters or esports titles. LG’s lineup of UltraGear™ Gaming Monitors includes models that go from 144Hz to 240Hz and beyond (when used in dual mode, LG's models support 165Hz and 330Hz OR 240Hz and 480Hz)*, all designed to keep up with the action while minimizing lag and screen tearing.
It depends on what—and how—you play. Many gamers go with 144Hz for fluid, responsive gameplay. Competitive players may want faster refresh rates like 240Hz for that extra edge in fast-paced shooters or esports titles. LG’s lineup of UltraGear™ Gaming Monitors includes models that go from 144Hz to 240Hz and 480Hz, all designed to keep up with the action while minimizing lag and screen tearing.
*Actual refresh rates may vary depending on computer graphics specifications and configurations.
What are the differences between OLED, IPS, and VA panels?
OLED panels emit their own light at the pixel level, delivering near-perfect blacks, exceptional contrast, and vivid colors. They also offer ultra-fast response times, making them ideal for high-end gaming monitors, premium TVs, and professional video editing.
IPS panels are known for their accurate color reproduction and wide viewing angles, maintaining clear images from various positions. This makes them well-suited for office work, design, and gaming. Their excellent color accuracy is especially appealing to gamers who want to experience visuals exactly as the developers intended.
VA panels boast the highest contrast ratio among LCD types, providing an immersive experience for watching movies and videos. While not as fast as TN panels, they offer nearly comparable performance.
Should I get a curved monitor?
If you want a more immersive gaming experience, curved gaming monitors are a great choice. The curvature helps keep your eyes focused on the center of the screen naturally, which is great for long gaming sessions.
LG's UltraGear GX9 supports 800R curvature and a 21:9 ultrawide aspect ratio, delivering immersive visuals and an ideal viewing distance. At an 800mm viewing distance, its 800R curvature creates a viewing angle of 90 degrees across both the center and the edge—pulling you deeper into the game.
Is 1440p or 4K better for gaming?
Both have their strengths. For many gamers, 1440p (QHD) hits a sweet spot between resolution and performance, especially for competitive gaming where frame rate matters most. It’s easier to push higher FPS without overloading your GPU. 4K, on the other hand, is all about detail and immersion—perfect for single-player adventures or next-gen console play. LG’s UltraGear™ gaming monitors offer both QHD and 4K options, so whether you prioritize speed or stunning visuals, there’s a perfect fit for your setup.
Can I connect my monitor to my PC with a USB-C?
Connecting your gaming monitor via USB-C is simple—just plug one end of the cable into your device’s USB-C port, and you’re good to go. You can charge your laptop too if your PC is connected to your monitor with a USB-C port.
*Supported models may vary.
What is DisplayPort 2.1?
DisplayPort 2.1, the latest version of the DisplayPort standard, delivers ultra-fast data speeds for flawless high refresh rate gameplay. It is developed by VESA (Video Electronics Standards Association) to provide high-performance display connectivity for computers and monitors.
Many of LG’s latest models support DisplayPort 2.1*, which doubles the bandwidth of DP 1.4. That means you get higher resolutions, smoother frame rates, and lower latency—perfect for fast-paced gaming.
*Note: We have received numerous reports from users of NVIDIA 50-series graphics cards experiencing screens turning off when using DisplayPort 2.1 with 10-bit or 12-bit settings. If you are experiencing the same, as a temporary workaround, you can switch the DisplayPort input to 1.4 in your monitor's OSD menu or adjust the color setting to 8-bit in the NVIDIA Control Panel. This issue has been reported to NVIDIA for a more permanent solution.
What is HDMI 2.1?
With HDMI 2.1 supported, you’ll enjoy features like Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and support for 4K at up to 120Hz. Whether you’re gaming on a console or PC, these upgrades give you the flexibility and performance to match any setup.
