9 cu. ft. Bottom Freezer Refrigerator - LSBNC1021P

22" 9 cu. ft. LG STUDIO Counter-Depth Panel Ready Bottom Freezer Refrigerator

LSBNC1021P

Side view of LG 22" 9 cu.ft. LG STUDIO Counter-Depth Panel Ready Bottom Freezer Refrigerator - LSBNC1021P

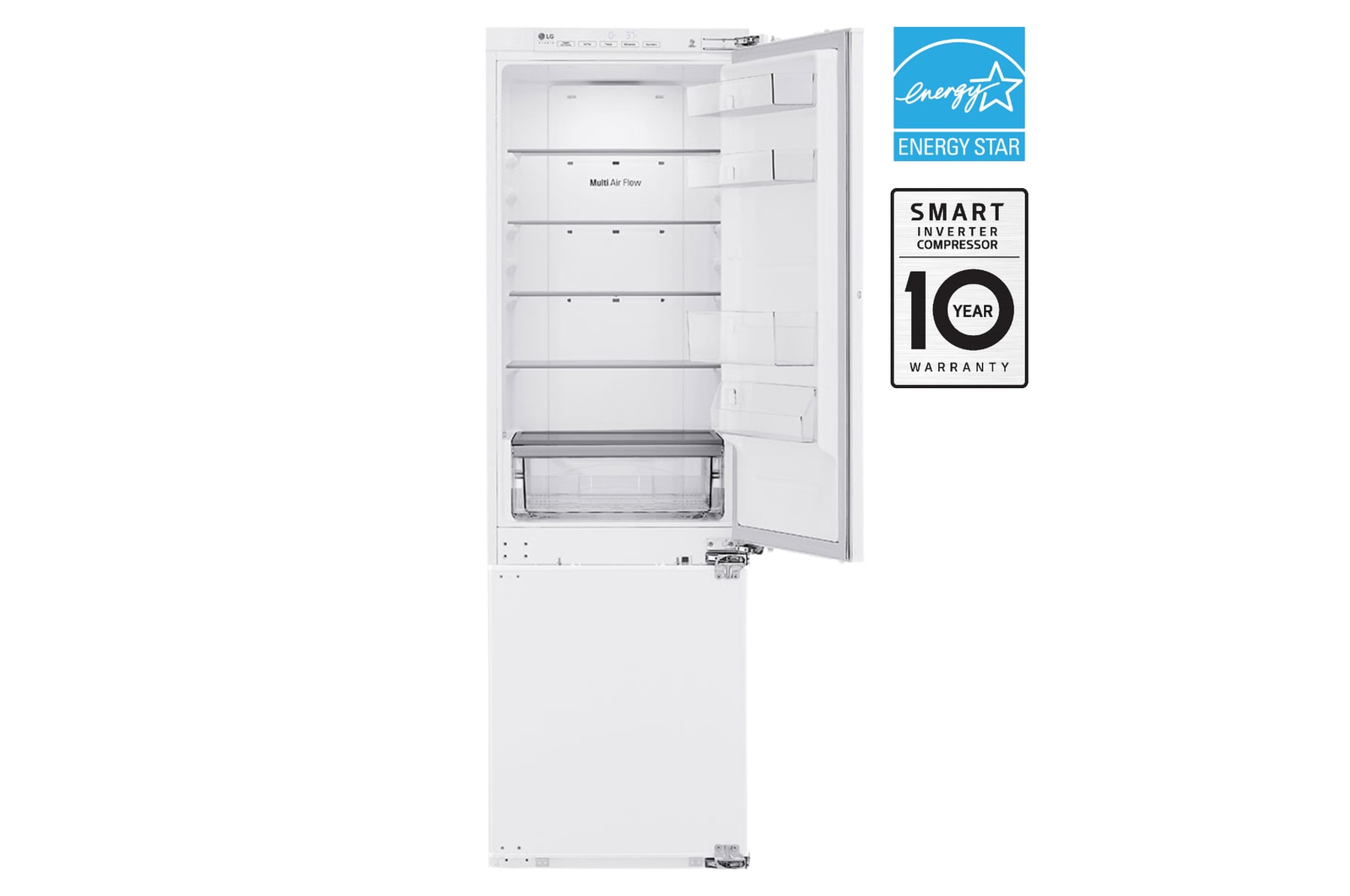

LG 22" 9 cu. ft. LG STUDIO Counter-Depth Panel Ready Bottom Freezer Refrigerator, LSBNC1021P

Key Features

24" width slimmed down
LED panels
Digital Temperature Controls
Smart Inverter
Counter Depth

Fits tight spaces.

Our 24" width slimmed down refrigerator makes the most of every inch of available space. Offering a wide array of features and flexible drawers this small-space solution makes it easy to fit lots of function into studio apartments, lofts, tiny houses and other small spaces.

*LG LBN10551PV refrigerator shown.

Great Light.

LED panels in the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

*LED Lights vary from model to model.

Fresher is better.

Digital Temperature Controls designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator to keep things cool.

*controls will vary from model to model.

PEACE OF MIND

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

What Is Counter-Depth?

LG counter-depth refrigerators align with countertops and cabinetry for a uniform profile, creating a sophisticated built-in look without the high-end price tag.

Environmentally Friendly

Energy Star^® rated, which means it uses less energy than required by current federal standards.

DIMENSIONS

Height to Top of Case

Sides 3/10" x Top 1"

Smart Diagnosis

Yes

Height to Top of Hinge of Door Cap Dec

69 1/5”

Installation Clearance

21 4/5” x 69 1/5” x 22 ½”

Smart Diagnosis

Yes

Key Spec

PERFORMANCE - Energy Consumption (kWh/Year)
369
PERFORMANCE - Compressor Type
Smart Inverter
FEATURES - InstaView
No
FEATURES - Door-in-Door
No

All Spec

BASIC SPEC

Brand
LG STUDIO
Product Type
Bottom Freezer
Standard/Counter Depth
Yes

MATERIAL & FINISH

Handle Type
Pocket Handles

CONTROL & DISPLAY

Door alarm
Yes

FEATURES

Door-in-Door
No
InstaView
No
Reversible Door
Yes

REFRIGERATOR COMPARTMENT

Refrigerator Light
LED Lighting
Shelf_Tempered Glass
Molding
Vegetable Box
1 Crisper

FREEZER COMPARTMENT

Door Type
Swing Door
Drawer_Freezer
3 Drawers

PERFORMANCE

Energy Consumption (kWh/Year)
369
Compressor Type
Smart Inverter

SMART TECHNOLOGY

Smart Diagnosis
Yes

DIMENSIONS & WEIGHT

Installation Clearance
Sides 3/10" x Top 1"
Height to Top of Case
70”
Height to Top of Hinge of Door Cap Dec
69 1/5”
Product dimensions (WxHxD, inch)
21 4/5” x 69 1/5” x 22 ½”

BAR CODE

Bar Code
772454070570

How long does it take for my LG refrigerator to get cold after installation?

After installation, allow up to 24 hours for the refrigerator to reach its set temperature. Cooling times may vary depending on room temperature, usage, and how much food is placed inside. For best results, wait until the unit has fully stabilized before loading large quantities of food.

Can I plug in my refrigerator to electrical power immidiately after transporting it on its side?

If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.

Is it normal for my refrigerator to make noise?

Yes, some sound during operation is normal. You may hear fans, compressors, or ice-making cycles as the refrigerator maintains temperature and produces ice (on models with ice makers). These sounds are part of normal operation and may vary throughout the day.

How can I adjust the temperature setting on my refrigerator?

Temperature settings can be adjusted using the control panel, which may be located inside the refrigerator or on the door, depending on the model. You can also change the temperature remotely unsing your phone on select models that are also equipped with ThinQ® wifi (you must first download the ThinQ® app to your phone and connect the fridge in order to enable this functionality). LG generally recommends maintaining a refrigerator temperature around 3°C (37°F) and a freezer temperature around -18°C (0°F) for optimal performance. Refer to your owner’s manual for model-specific guidance.

How much space should I leave around the refrigerator for installation?

Proper clearance is important for airflow and performance. Installation spacing requirements can vary by model. Refer to your owner’s manual for exact clearance specifications. Some LG refrigerators feature Zero Clearance™ hinges on select models, which are designed to allow doors to open fully even in tighter installation spaces. *For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the sides of the refrigerator and the wall.

How do I clean and maintain my refrigerator?

For routine cleaning, use a soft cloth with mild detergent and warm water. Do not use abrasive cleaners or harsh chemicals. Interior shelves and bins can typically be removed for easier cleaning. Always refer to your owner’s manual for recommended cleaning methods and maintenance guidelines.

Does my LG refrigerator require manual defrosting?

Most LG refrigerators are equipped with an automatic defrost system, which helps prevent frost buildup and maintains efficient operation. Manual defrosting is typically not required. Refer to your owner’s manual for details specific to your model.
