5.2 cu. ft. Capacity Smart Front Load ENERGY STAR® Washer with TurboWash® 360° and AI DD® Built-In Intelligence

SUMMARY

DIMENSIONS

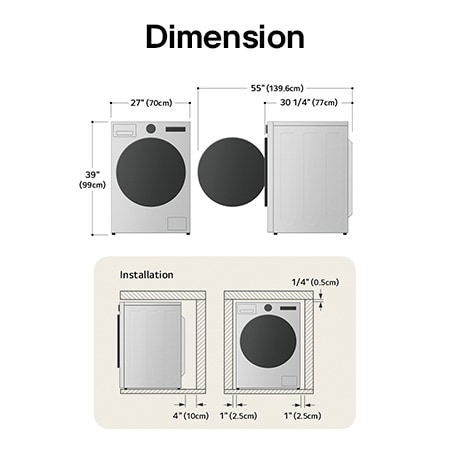

Technical dimension and installation diagram for the LG Front Load Washer: 27 in (70 cm) wide, 39 in (99 cm) high, 30 1/4 in (77 cm) deep, and 55 in (139.6 cm) with door open, detailing installation clearances.
CAPACITY
5.2 cu ft
Dimensions (WxHxD)
27" x 39" x 30 1/4" (55" D with door open)
Steam Technology
Yes
ThinQ®
Yes

All Spec

CAPACITY

  • Capacity

    5.2 cu.ft.

ENERGY

  • ENERGY STAR® Most Efficient

    Yes

  • ENERGY STAR® Certified

    Yes

  • CEE Tier

    Tier2

  • IMEF

    2.92

  • IWF

    3.0

WASH PROGRAMS

  • No. of Programs

    25

  • Wash Programs

    Normal, AI Wash, Bedding, Delicates, Towels, Quick Wash, Heavy Duty, Allergiene™, Perm.Press, Tub Clean, Bright Whites™, Sanitary, Rinse+Spin, Spin Only, Hand/Wool, Active Wear, Swimwear, Kids Wear, Jeans, Dresses, Color Care, Sweat Stains, Small Load, Large Load, X Large Load

  • No. of Options

    15

  • Options

    TurboWash®, Steam, Fresh Care, Pre-wash, Remote Start, Delay Wash, Wi-Fi, Add Item, Extra Rinse, Control Lock, Drum Light, Cold Wash, Signal, Cycle List Edit, Cycle Optimization

  • No. of Wash/Rinse Temps

    5

  • Wash/Rinse Temps

    Ex. Hot / Hot / Warm / Cold / Tap Cold

  • No. of Spin Speeds

    5

  • Spin Speeds

    Ex. High / High / Medium / Low / No Spin

  • No. of Water Levels

    Load Sensing

  • No. of Soil Levels

    5

FABRIC CARE FEATURES

  • AI DD™

    Yes

  • TurboWash® 360 Technology:

    Yes

  • Steam Technology

    Yes

  • Allergiene™ Cycle

    Yes

  • Sanitary Cycle

    Yes

  • ColdWash™ Option

    Yes

CONVENIENCE FEATURES

  • Vibration sensing(Cabinet Vibration sensor)

    Yes

  • TrueBalance® Anti-Vibration System

    Yes

  • 4 Tray Dispenser

    Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener

  • End of Cycle Signal

    Yes

  • LoadSense

    Yes

  • Control Lock

    Yes

  • Auto Suds Removal

    Yes

  • Leveling Legs

    4 Adjustable Legs

  • Drum Light

    Yes

MATERIALS AND FINISHES

  • NeveRust® Stainless Steel Drum

    Yes

  • Cabinet

    Painted Steel (One unit)

  • Top Plate

    Painted Steel

  • Door / Rim

    Glass/STS Silver

  • Door Cover

    Tempered Glass Door

  • All Available Colors

    White (W), Graphite Steel (V)

DIMENSIONS

  • Product (WxHxD)

    27" x 39" x 30 1/4"

  • Depth with Door Open

    55"

  • Carton (WxHxD)

    29 1/2" x 42 1/8" x 31 1/2"

  • Weight (Product/Carton)

    200.8 / 214.4 lbs.

  • Pedestal (WxHxD)

    27" x 13 5/8" x 28" (43 7/8" D with door open)

  • LG Sidekick<sup>™</sup> Pedestal Washer (WxHxD)

    27" x 14 1/8" x 30 3/4" (50 1/2 with drawer open)

POWER SOURCE

  • Ratings

    UL Listed

  • Electrical Requirements

    120V, 10 Amps

  • Type

    Electric

SUMMARY

  • Series

    LG

  • Type

    Front Load Washer, Electric

  • Matching Electric Dryer

    DLEX5500V

  • Matching Gas Dryer

    DLGX5501V

  • Color

    Graphite Steel (V)

  • LCD Display

    Yes

  • Touch Buttons

    Yes

  • Dial-A-Cycle<sup>®<sup>

    Yes

OPTIONS/ACCESSORIES

  • Pedestal

    WDP6V

  • LG Sidekick™ Pedestal Washer

    WD300CV

  • Stacking Kit

    KSTK4

THINQ® TECHNOLOGY

  • SmartDiagnosis™

    Yes

  • WiFi

    Yes

  • Energy Monitoring

    Yes

  • Tub Clean Coach

    Yes

CERTIFICATION

  • Asthma Canada

    Yes

MOTOR & AGITATOR

  • Motor Type

    Inverter Direct Drive Motor

  • Axis

    Horizontal

  • Max RPM

    1300

WARRANTY & UPC

  • Parts & Labour

    1 Year

  • Direct Drive Motor

    10 Years

  • Drum

    3 Years

  • UPC

    195174052976

What people are saying

FAQ

What size washing machine is best for a family?

Washing machines in the 4.0 to 5.5 cu.ft range are ideal for families. A 4.0 cu.ft model suits a family of 3–4, while 5.0–5.5 cu.ft is better for larger households or those doing frequent loads.

How do I clean a washing machine?

To clean your washing machine, remove and soak the detergent drawer in hot water, then wipe its compartment. Clean the drain filter by removing debris and soaking in hot water. Wipe the drum with a cloth. For the rubber seal, run an empty cycle with baking soda, then clean with warm water. For detailed instructions, see the YouTube link.



https://youtu.be/LA6dPVAEbfE

What is AI DD™ in a smart LG washing machine?

LG’s AI DD™ washing machines utilise intelligent technology to individually analyse the weight and fabric type of your laundry. The result? Your machine automatically optimises the washing motion, leading to enhanced fabric protection and ensuring your cherished clothes look their best for longer. The DirectDrive™ Motors provide 6-motion technology for an effective wash with fewer moving parts, resulting in a more durable performance.

How do I install a washing machine?

To install your washing machine, begin by ensuring you have a suitable location with access to water, drainage, and a power outlet. Carefully remove all packaging and transport bolts from the machine. Position the washing machine on a level surface to prevent vibration during operation. Connect the water inlet hose to the tap, ensuring it is securely fastened, and attach the drain hose to your plumbing system. Plug the machine into a grounded power socket. Once everything is connected, run a test cycle to check for leaks or issues. For more detailed instructions, please refer to the YouTube link we have prepared for you.



https://youtu.be/FiwpMT5LDys
