CineBeam LED Projector with Built-In Battery, Bluetooth Sound Out and Screen Share

PH510P

CineBeam LED Projector with Built-In Battery, Bluetooth Sound Out and Screen Share

Print

All Spec

PROJECTION SYSTEM

  • Projection System

    DLP

NATIVE RESOLUTION

  • Native Resolution

    HD (1280x720)

BRIGHTNESS (ANSI LUMEN)

  • Brightness (ANSI Lumen)

    550

CONTRAST RATIO

  • Contrast Ratio

    100,000:1

NOISE

  • Energy Saving Max. (Eco)

    23dB(A)↓

  • Energy Saving Med.

    24dB(A)↓

  • Energy Saving Min. (Bright)

    30dB(A)↓

UNIFORMITY

  • Uniformity (JBMMA 9 Point)

    90%↑

PROJECTION LENS

  • Focus (Auto / Manual)

    Manual

  • Zoom

    Fixed

PROJECTION IMAGE

  • Screen Size

    25" ~ 100"

  • Standard (lens to wall)

    40"@1.24m, 100"@3.1m

  • Throw Ratio

    1.4

PROJECTION OFFSET

  • Projection Offset

    100%

LIGHT SOURCE

  • Life Hours

    30,000 Hrs

  • Type

    RGB LED

ASPECT RATIO

  • Aspect Ratio Control

    4:3/Just scan/Set by Pro./ 16:9/Zoom/Cinema Zoom

SOUND

  • Clear Voice

    YES (Clear Voice ll)

  • Output

    1W + 1W Stereo

BATTERY

  • Running time

    Up to 2.5 hours

  • Capacity

    22.2Wh (3,000mAh x2)

SIZE

  • Net Size (mm) (W x D x H)

    174 x 116 x 44

WEIGHT

  • Net Weight (kg or g)

    0.69

TEMPERATURE

  • Operation Temperature

    0 ~ 40℃

INPUT SIGNAL COMPATIBILITY

  • Digital(HDMI)

    1080p/1080i/720p/480p/576p

  • Component Video

    1080p/1080i/720p/480p/480i/576p/576i

  • Composite Video

    480i/576i

  • RGB

    up to WSXGA+(1680x1050@60Hz)

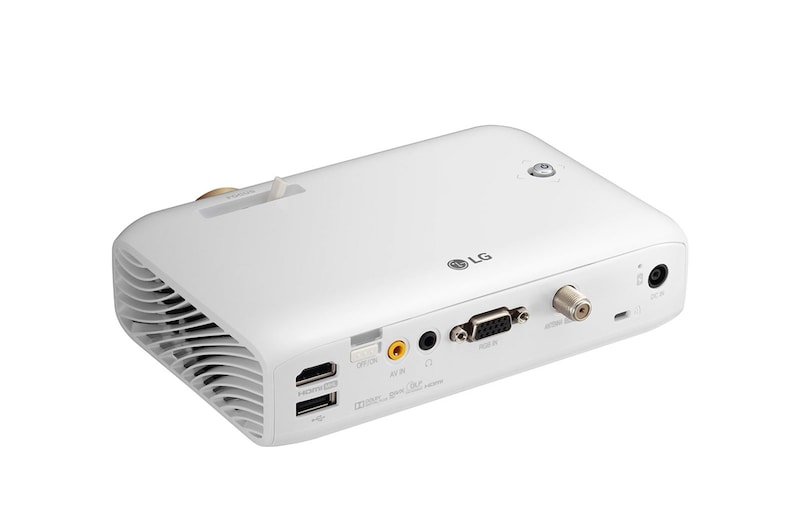

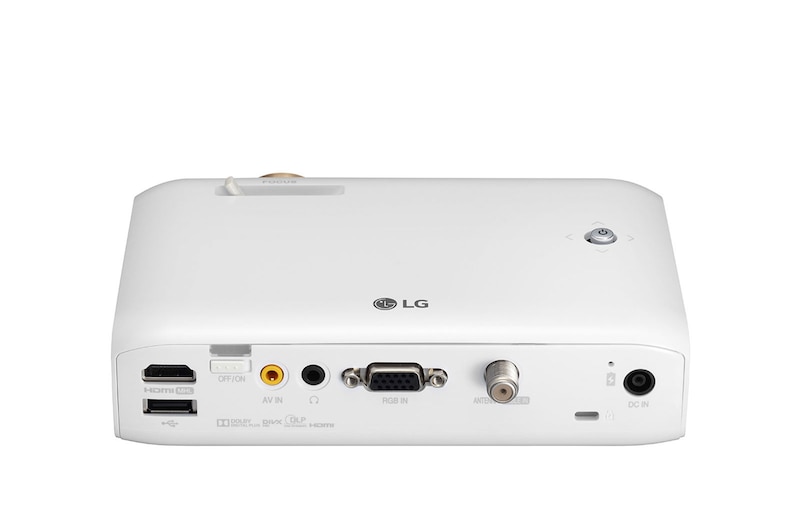

INPUT/OUTPUT TERMINALS

  • Audio out

    1 (Φ3.5)

  • Component (YPbPr)

    RGB to Component in

  • Component (YPbPr) Audio in

    RGB to Component in

  • Composite(AV) Audio in

    Phone to AV in

  • Composite(AV) in

    Phone to AV in

  • HDMI

    1 (MHL)

  • RGB in

    YES

  • RGB(PC) Audio in

    YES

  • USB Type-A

    1 (USB2.0)

FEATURES

  • Auto Keystone

    YES (Vertical)

  • Black Level Control

    YES

  • Blank

    YES (Blue, Green)

  • Bluetooth AV Sync Control

    YES

  • Bluetooth Sound out

    YES

  • Color gamut setting (Expert control)

    YES

  • Color Management System (Expert control)

    YES

  • Color Temperature Adjustment

    YES

  • Digital Keystone Correction

    YES (Vertical)

  • Dynamic Color (Expert control)

    YES

  • Dynamic Contrast (Expert control)

    YES

  • Eco Function - Automatic Standby / Auto Power Off

    YES

  • Eco Function - Auto Off / Auto Sleep

    YES

  • Eco Function - Energy Saving Mode

    YES (Min/Med/Max)

  • Eco Function - Sleep Timer

    YES

  • File(Office) Viewer

    YES

  • Gamma Correction (Expert control)

    YES

  • Image Flip

    YES (Horizontal/Vertical)

  • Noise Reduction

    YES

  • Picture Still

    YES

  • Platform (OS, UI)

    Non Smart

  • Plug & Play(RGB/DVI/HDMI Auto Source Detection)

    YES

  • Processor

    YES

  • Quick(Instant) Power on/off

    YES (on 10 Sec off 2 Sec)

  • Screen Share (Wireless Mirroring with MiraCast supporting device)

    YES

  • Self Diagnosis

    YES

  • Store Mode

    YES

  • USB Host (Movie, Music, Photo)

    YES

DESIGN

  • Cabinet Color

    White

  • Kensington Lock

    YES

  • Leg-Stand

    YES

  • Local Key

    Joystick

  • Tripod hole (for Tripod, Ceiling mount)

    YES

ACCESSORY

  • Conformances(Regulation)

    CE, IEC, MIC, USA/Chinese

  • Manual (Full or Simple Book)

    Simple Book

  • Quick User Guide (Quick Set-up Guide)

    YES

  • Remote Control - Normal

    YES (Card)

  • Warranty Card

    YES

POWER

  • Power Consumption (Max.)

    55W

  • Power Supply

    Adapter (100V – 240V @ 50~60 Hz)

  • Stand-by Power

    0.5W↓
