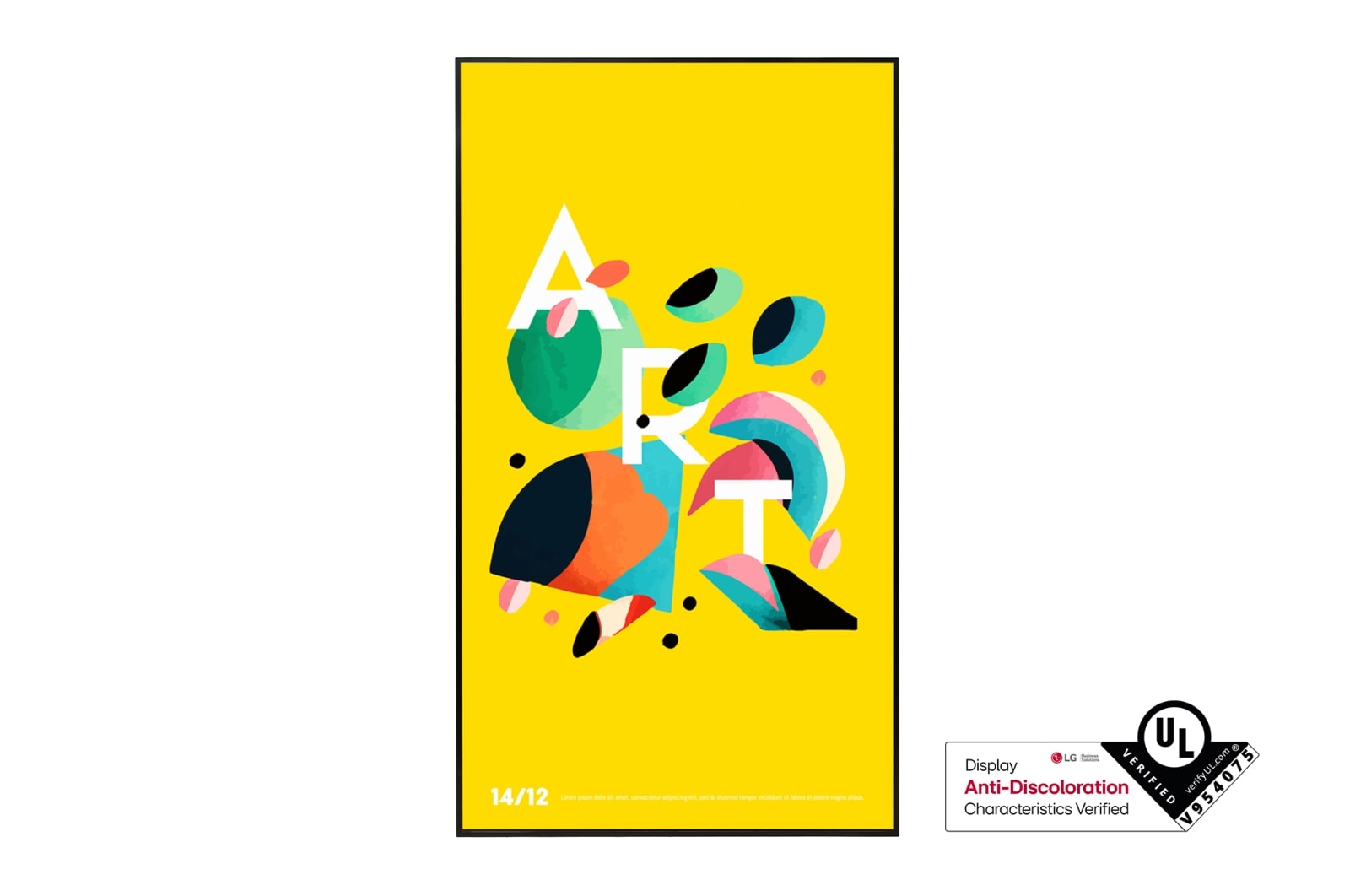

Display Anti-Discoloration Characterstics verified
There are two 75XF3Ps installed in the drive-thru zone at the burger place, and they vividly display the burger menu and ads even in bright sunlight.
* All images in this page are for illustrative purposes only.
LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the freedom to tailor the display to your exact preferences.

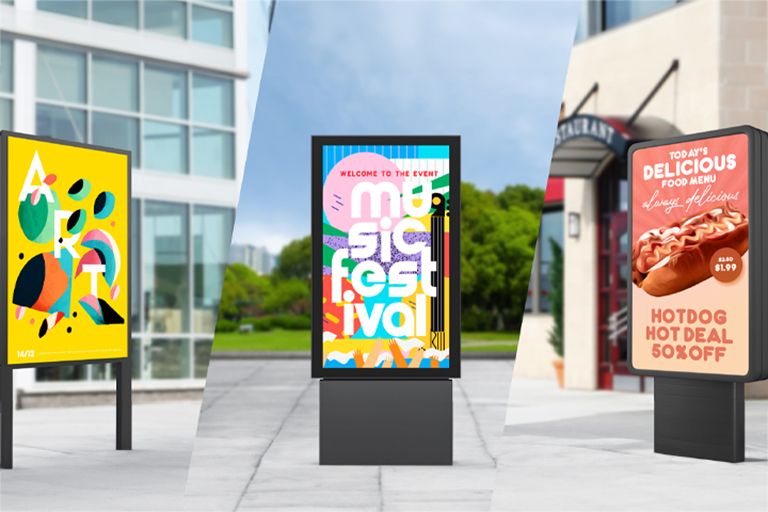

Various frame-shaped displays are installed outdoors.
* Please reach out to your local sales representatives for detailed casing guide
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

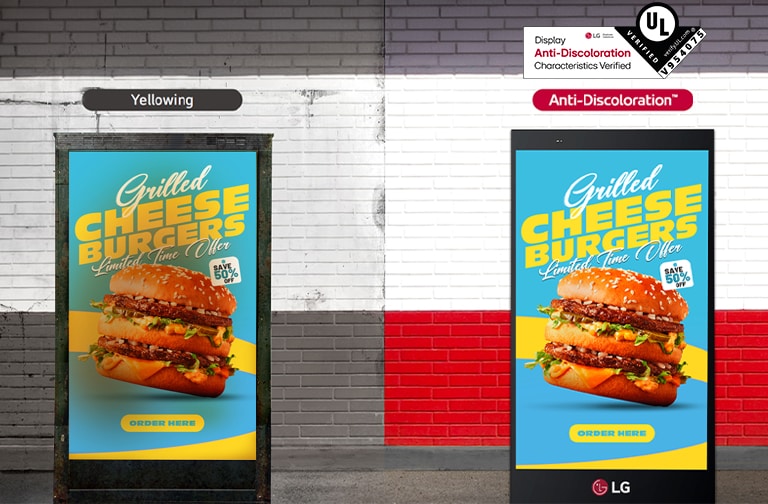

The left side of the screen has yellowing, degrading its quality, but with XF3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality.
* For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
* World's first UL Verification in the manufacturing industry.
With outstanding high brightness of 3,000 nits (Typ.), the XF3P outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.

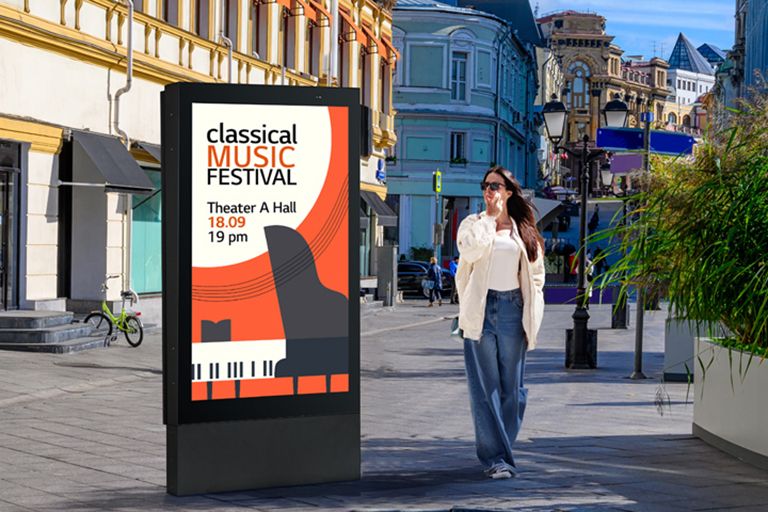

A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.
The XF3P, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient double-sided display.

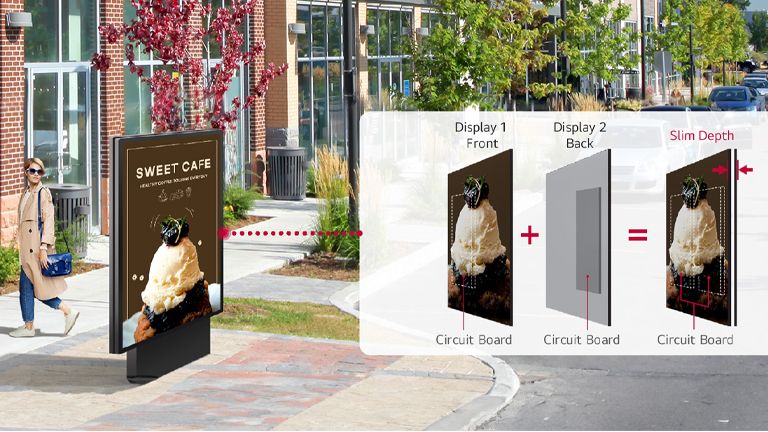

A double-sided display is set up on the street. The effective placement of the circuit board allows for a slim design of the double-sided display.
* The conventional model refers to the XF3C.
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
The 75XF3P screen can adjust its brightness automatically according to the ambient light.
* M+ IPS reduced approximately 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nits).
** Specific features can differ from circumstances.
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

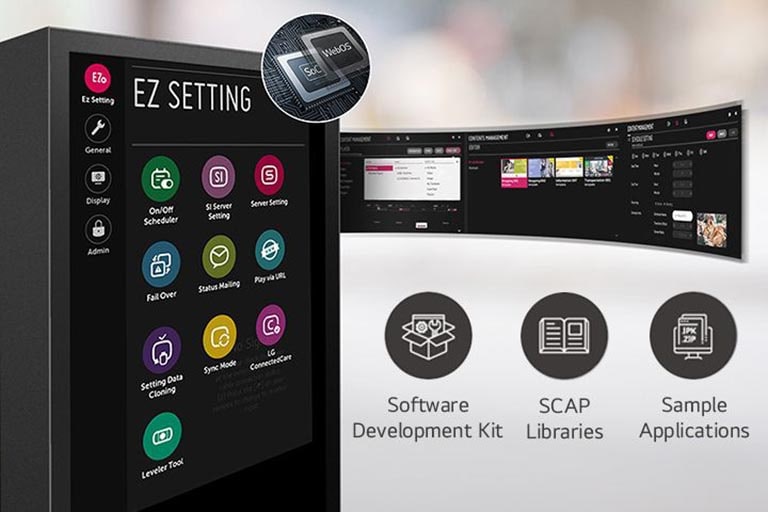

It has improved user convenience by utilizing the SoC and webOS.
LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.

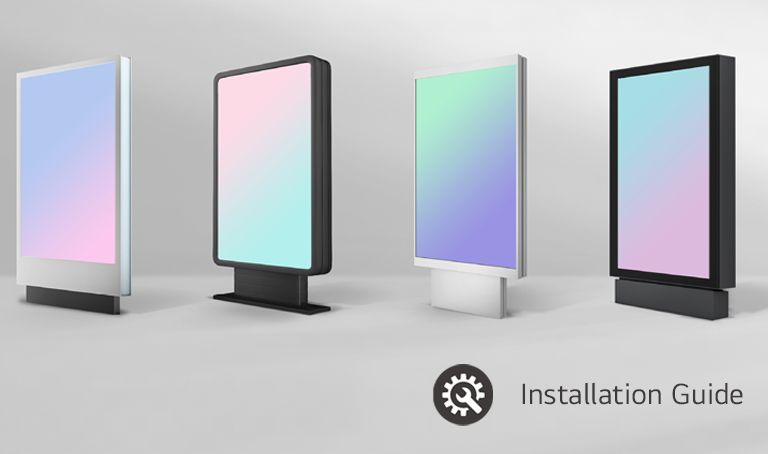

Each of the four 75XF3Ps has a customized casing.
Screen Size (Inch)
75"
Panel Technology
IPS, M+
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840x2160 (UHD)
Refresh Rate
60Hz
Brightness
Min: 2800cd/m2, Typ: 3000cd/m2
Contrast Ratio
1200:1 (Typ)
Dynamic CR
500,000:1
Color gamut
NTSC 72%
Viewing Angle (H x V)
178 x 178
Color Depth (Number of Colors)
10bit ( Dethering), 1.07 billion colors
Response Time
8ms (G to G BW) typ.
Surface Treatment (Haze)
AGLR(Haze 3%), QWP
Life time
50,000 Hrs
Operation Hours (Hours/Day)
24Hrs
Portait / Landscape
Yes / Yes
QWP (Quarter Wave Plate)
Yes
Operation Temperature
0 °C to 40 °C (with Solar) 0 °C to 50 °C (without Solar)
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
745W
Max.
775W
BTU (British Thermal Unit)
2644
Smart Enegy Saving (70%)
280W
DPM
0.5W(DP, HDMI)
Power off
0.5W
SuperSign CMS
Yes
SuperSign Control+
Yes
Connected Care
Yes
Basic
Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG) RS-232C Gender
Optional
Double sided Bracket (Landscape&Portrait : WM-B640S)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ErP / Energy Star
Yes / No
Conformal Coating (Power Board)
Yes
Direct Sunlight
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, Polski
HDMI IN
Yes(2), HDMI1/2 : HDCP 2.2
DP IN
Yes(1), HDCP1.3
DVI-D IN
Yes(1)
Audio IN
Yes(1)
RS232C IN
Yes(1) (4pin phone jack)
RJ45(LAN) IN
Yes(1)
IR IN
Yes(1)
USB IN
USB2.0 Type A (1)
DP Out
Yes(1)
External Speaker Out
Yes(1) (4pin phone jack)
RS232C Out
Yes(1)
Product
Outdoor
Year
Y24
Month
M02
Bezel Color
Black
Bezel Width
11.8 mm Even
Weight (Head)
32.7kg
Packed Weight
43kg
Monitor Dimensions (W x H x D)
1675.2 x 953.6 x 114.6
Carton Dimensions (W x H x D)
1816 x 1106 x 285
Handle
Yes(2)
Internal Memory (eMMC)
8GB
Temperature Sensor
Yes(2)
Auto Brightness sensor
Yes
Pixel sensor
TBD
Humidity Sensor
Yes
OS Ver. (webOS)
webOS6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
Backlight Sync
Yes
PIP
Yes
PBP
Yes
Video Tag
Yes(4)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
