Floor LED Display for Virtual Production
Contact us

Floor LED Display for Virtual Production

Contact us

Floor LED Display for Virtual Production

LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039
LG Floor LED Display for Virtual Production, LFCL039

Key Features

  • Pixel Pitch: 3.91 mm
  • Brightness: 3,000 nit
  • High Durability
  • Excellent Usability
  • Easy Installation and Maintenance
More

Floor LED Display
for Virtual Production

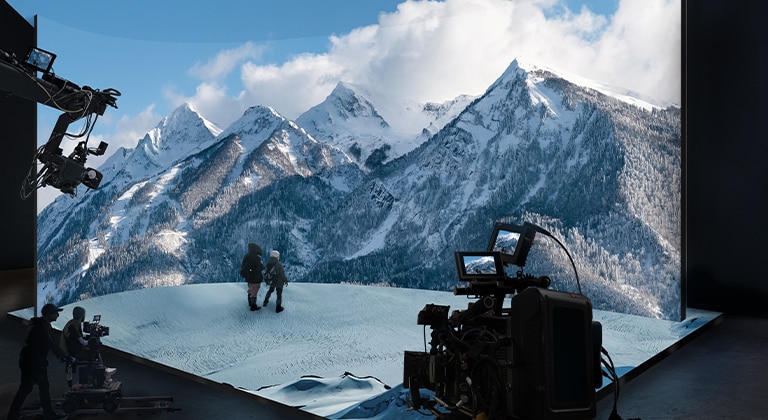

A virtual production studio with curved LED walls and ceiling and floor LEDs is filming a video of snowy mountain scenery.

* All images in this page are for illustrative purposes only.

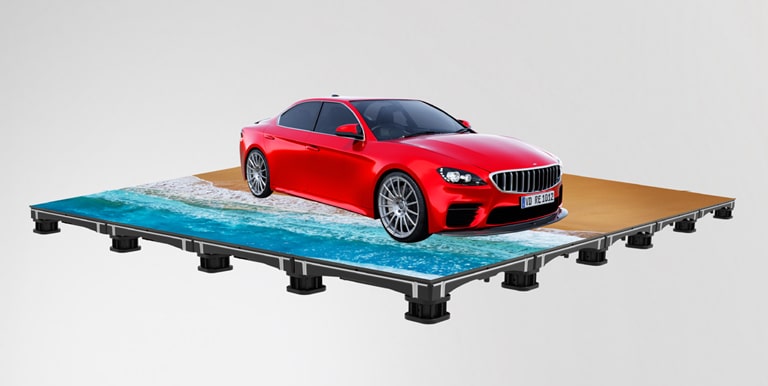

This demonstrates that the LEDs can withstand the weight of a vehicle on them and still work well.

High Durability

LFCL series is a unique display installed on the floor with high durability designed to load up to 1,500 kg/sqm.

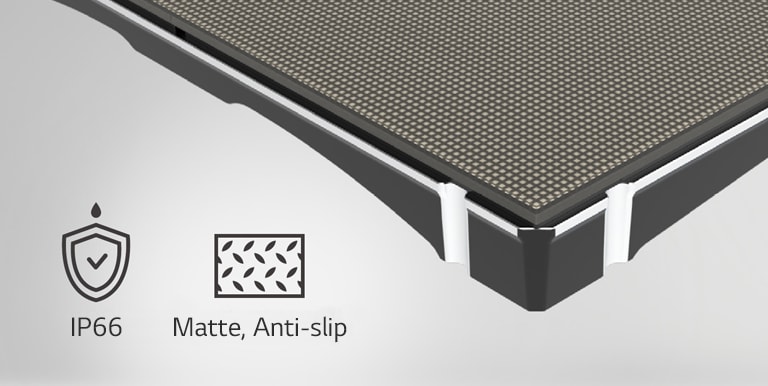

Excellent Usability

Excellent Usability

Surface safety when installing the screen on the floor (IP66 protective non-slip mat) and high visual performance (with high contrast LED for uniform visual performance in black) are considered.



* As the surface is made of polycarbonate, it may be susceptible to scratches (especially against metal).

Easy Installation and Maintenance

Its simple product structure allows for easy installation and quick maintenance. You can quickly deploy and connect the cabinets with the foot support system without any tools. A simple flush control mechanism design is applied to keep the height level regardless of floor type. In addition, magnets attached to the LED module allow for easy maintenance, and hot-swapping* is able during the display operation.

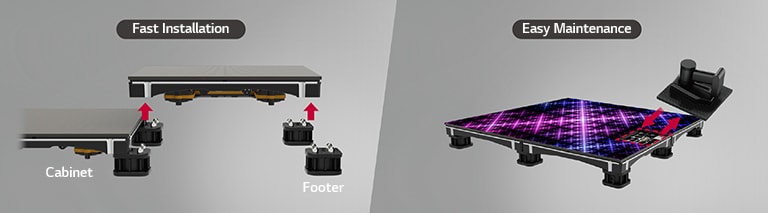

It is easy to install LFCL by simply fixing the cabinet with the footer, and the magnets attached to the LED module allow for easy maintenance with the screen on.

* Hot Swapping : Swap module on-site during screen’s on the operation.

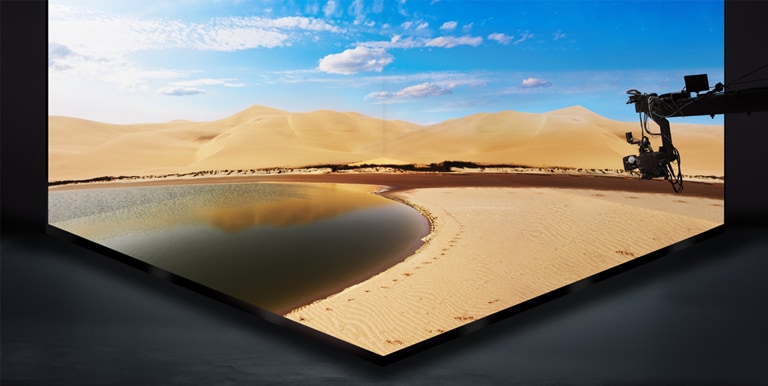

High Brightness

High Brightness

The LFCL series gives a versatile filming experience in XR Stage and mid-sized VP Studio. Moreover, the rendered content is highly visible with 3,000 nits. Available to shoot dust and water scenes with IP66 rating. The realistic filming of desert, beach, and fire scenes keep DP and camera operators contented.

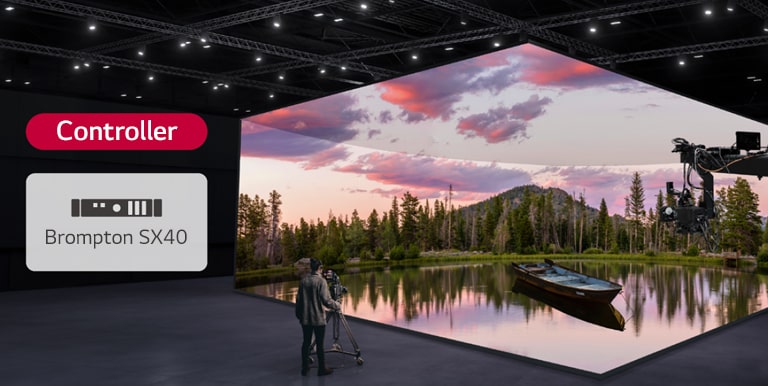

A virtual production studio which has curved LED walls and ceiling and floor LEDs is being filmed, and a compatible controller is being displayed next to it.

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LFCL series offers support for them.

Print

All Spec

INFORMATION

  • Model name

    LFCL039-GN

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    3.906

  • Module Resolution (WxH)

    64x64

  • Module Dimensions(WxH,mm)

    250x250

  • Weight per Module (kg)

    0.90

  • No. of Modules per Cabinet (WxH)

    2 x 2

  • Cabinet Resolution (WxH)

    128 x 128

  • Cabinet Dimensions (W x H x D, mm)

    500x500x84.5

  • Cabinet Surface Area (㎡)

    0.250

  • Weight per Cabinet (kg/unit)

    10.5

  • Weight per Square Meter (kg/㎡)

    42.0

  • Physical Pixel Density (pixels/㎡)

    65,536

  • Flatness of Cabinet (mm)

    ±0.5

  • Cabinet material

    Die-casting Aluminum

  • Service access

    Front

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    3,000

  • Color Temperature (K)

    2,000-11,000

  • Visual Viewing Angle (Horizontal)

    120

  • Visual Viewing Angle (Vertical)

    120

  • Brightness Uniformity

    ≥97%

  • Color Uniformity

    ±0.003Cx,Cy

  • Contrast Ratio

    5,000:1

  • Processing Depth (bit)

    14 (PQ, HLG)

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    240

  • Power Consumption (W/Cabinet, Avg.)

    80

  • Power Consumption (W/㎡, Max.)

    960

  • Heat Dissipation (BTU/h/Cabinet, Max.)

    819

  • Heat Dissipation (BTU/h/Cabinet, Avg.)

    273

  • Heat Dissipation (BTU/h/㎡, Max.)

    3,276

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • LED Lifetime (Half brightness)

    100,000

  • Operating Temperature(℃)

    -10℃ to +45℃

  • Operating Humidity

    0-80%RH Non-condensing

  • IP rating Front

    IP65

  • IP rating Rear

    IP65

STANDARD

  • Certification

    CE,FCC,ETL

CONTROLLER

  • Controller

    Brompton SX40

DimensionDatasheet

extension : dwg
LFCL039-GN-v1.0.dwg
Download
extension : pdf
LFCL039-GN-v1.0.pdf
Download
extension : pdf
LFCL-Series_Datasheet(low)_LG-Indoor-LED_220711.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
