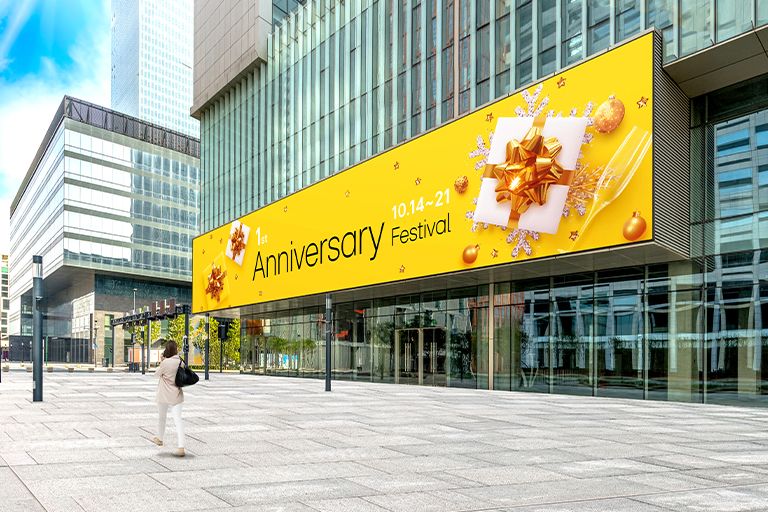

A large LED screen is installed on the exterior wall of the building entrance, and a woman is watching the advertisements on its screen. The screen remains clear and visible despite the bright sunlight.
* All images in this page are for illustrative purposes only.
This product, which has received an IP65 rating to effectively prevent dust and water ingress in outdoor environments, has also obtained BS 476 Part 7 Class 1 fire certification. It will assist in boosting the product’s reliability.
The GSCF series is resistant to fire, water, and dust.
* On March 6, 2024, the models GSCF026-GP and GSCF026-KK received IP65 (waterproof/dustproof) certification from the certification agency LCS. Waterproof and dustproof tests were conducted by spraying powder or water. This certification does not have an expiration date, and the certification evidence number is LCSA11303170S.
* On January 19, 2024, the models GSCF026-GP and GSCF026-KK received BS476 Part7 Class1 certification from the certification agency SGS. Tests have been conducted on the fire spread distance and speed in the event of a fire involving this product. This certification does not have an expiration date, and the certification evidence number is AJFS2401000840FF
When connected with LG’s CVCA system controller, the GSCF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.

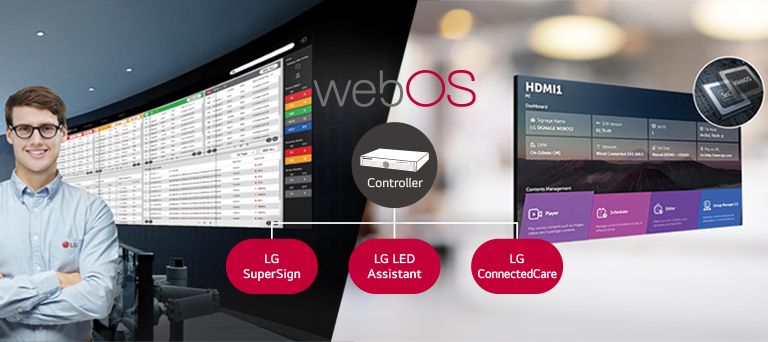

The LG employee is remotely monitoring the GSCF series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables the GSCF series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG ConnectedCare and LG SuperSign CMS need to be purchased separately.
* CVCA controller is sold separately.
Power Consumption (W/Cabinet, Max.)
180
Power Consumption (W/Cabinet, Avg.)
60
Power Consumption (W/m², Max.)
720
Heat Dissipation (BTU/h/Cabinet, Max.)
614
Heat Dissipation (BTU/h/Cabinet, Avg.)
205
Heat Dissipation (BTU/h/m², Max.)
2,456
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000(-GP) / 50,000(-KK)
Operating Temperature (°C)
-30 to +50
Operating Humidity
10-99% RH
IP Rating Front / Rear
IP65 / IP65

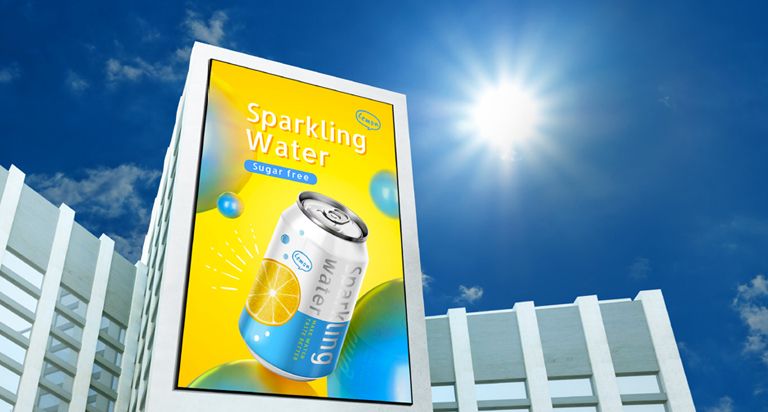

Max. Brightness (After Calibration, nit)
5,500
Color Temperature (K)
3,200-9,300
Visual Viewing Angle (H × V)
160 × 160
Brightness Uniformity
0.97
Color Uniformity
±0.003 Cx, Cy
Contrast Ratio
10,000 : 1
Processing Depth (bit)
15 (HDR10, HDR10 Pro)
Pixel Configuration
3 in 1
Pixel Pitch (mm)
2.6
Module Resolution (W × H)
96 × 96
Module Dimensions (W × H, mm)
250 × 250
Weight per Module (kg)
0.81
No. of Modules per Cabinet (W × H)
2 × 2
Cabinet Resolution (W × H)
192 × 192
Cabinet Dimensions (W × H × D, mm)
500 × 500 × 82
Cabinet Surface Area (m²)
0.25
Weight per Cabinet (kg/unit)
7.6
Weight per Square Meter (kg/m²)
30.4
Physical Pixel Density (pixels/m²)
147,456
Flatness of Cabinet (mm)
±0.3
Cabinet Material
Die-casting Magnesium

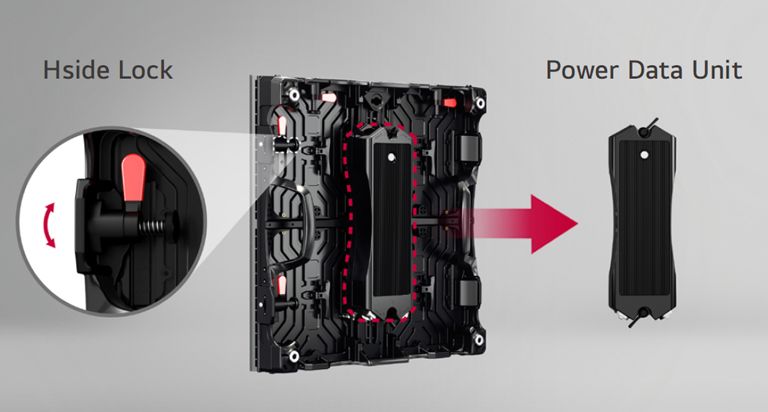

Service Access
Front and Rear
Controller
CVCA
Environment
RoHS, REACH
Certification
CE, FCC, ETL
Certification (Fire Protection)
BS476 Class 1
