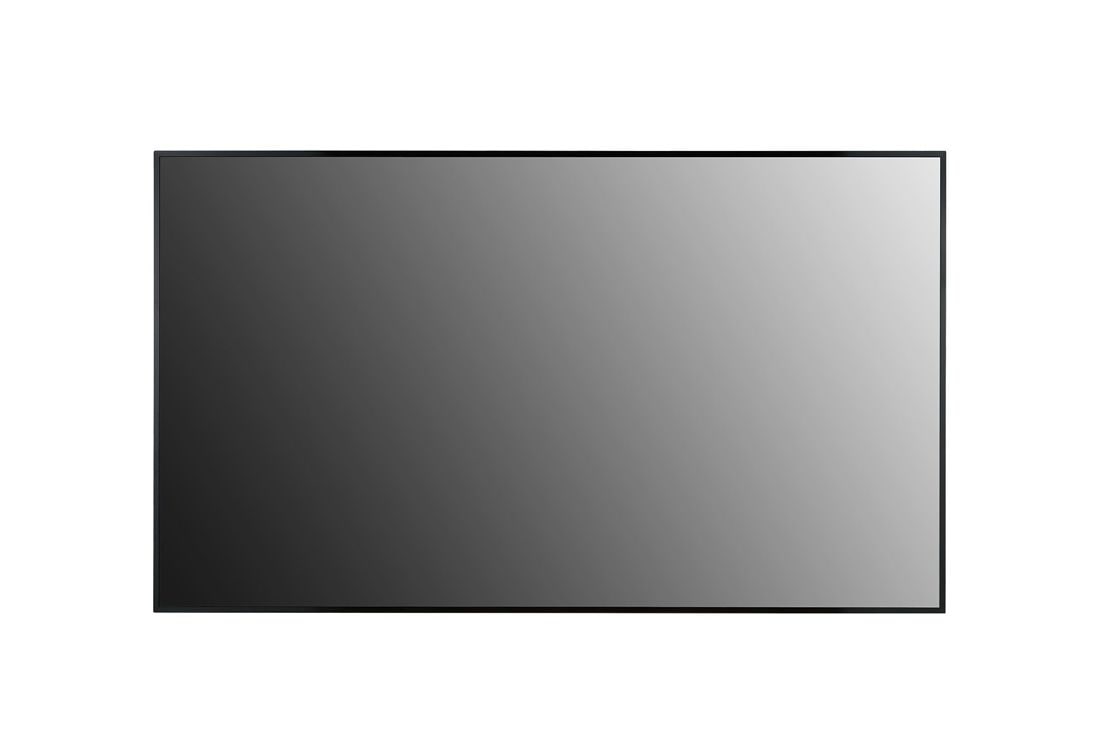

Open-frame Display

Customizable Open-frame Display with Enhanced webOS

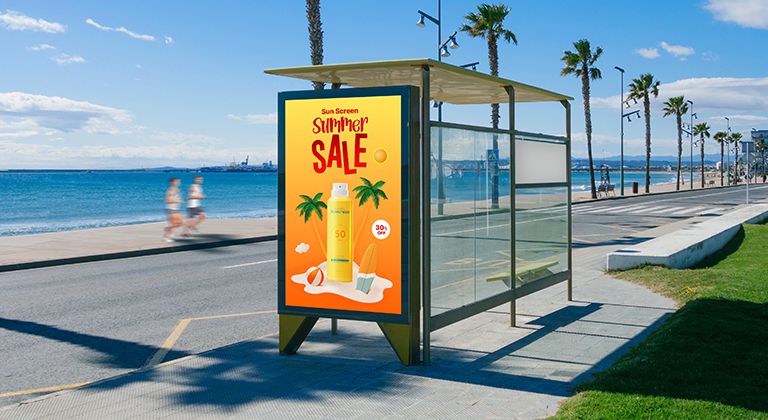

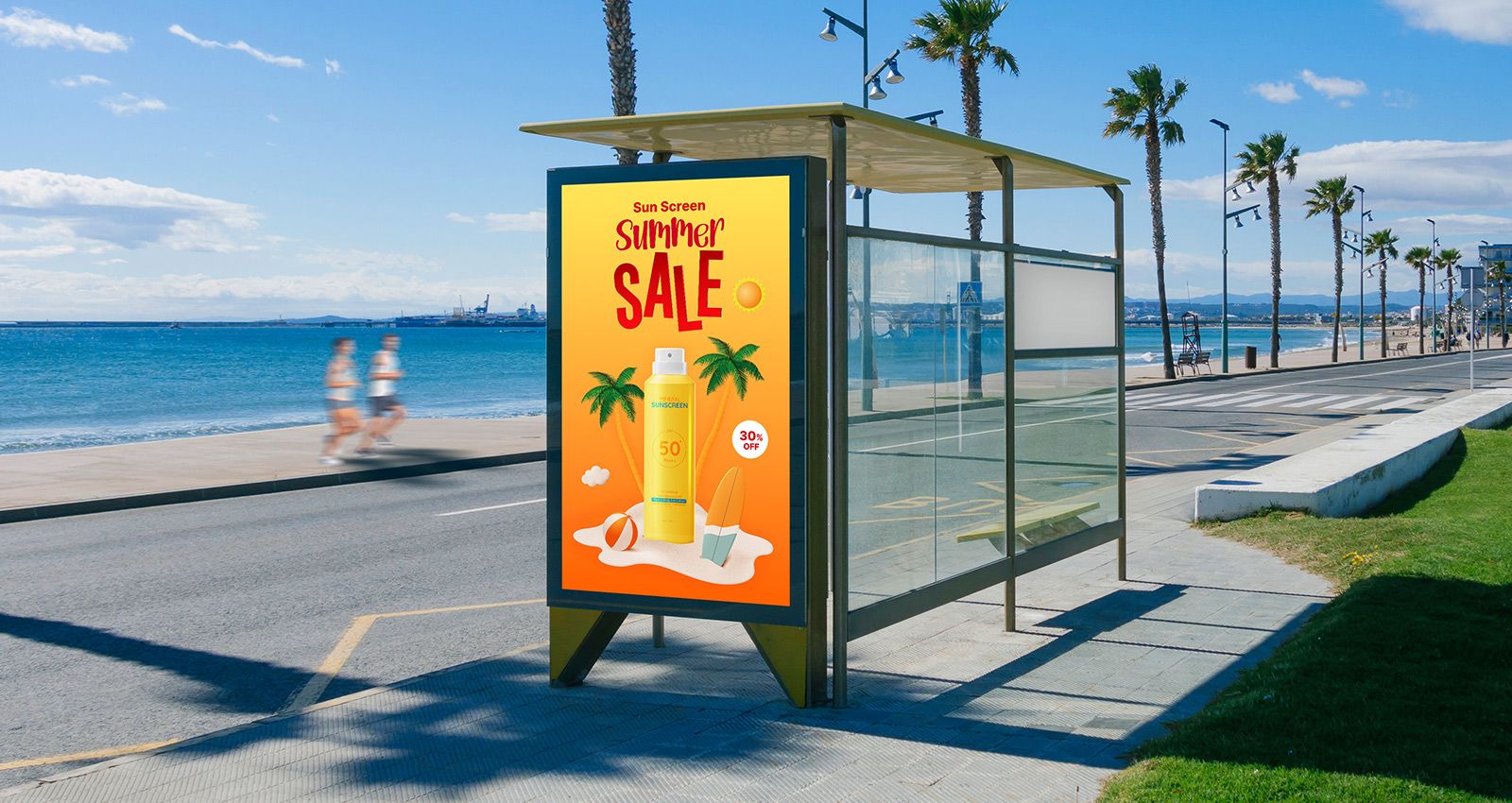

There is an 75XF3PS installed on the side of the bus stop, vividly displaying ads even in bright sunlight.

* All images are for illustrative purposes only.

Open-frame Outdoor Display

LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the flexibility to tailor the display to your exact preferences.

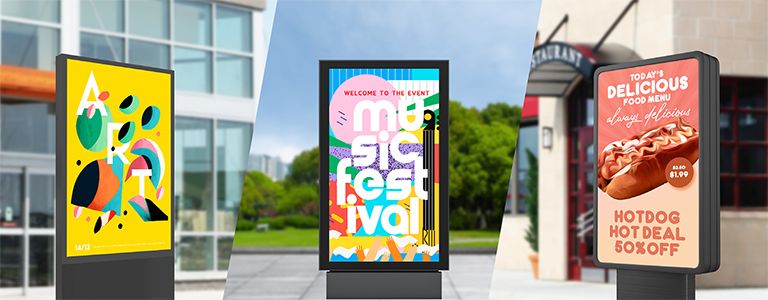

Various frame-shaped displays are installed outdoors.

* Please reach out to your local sales representatives for detailed casing guide.

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while maintaining display quality and performance stability.

The display on the left shows yellowing, degrading its quality, but with XF3PS, which acquired the UL Verification for Display Anti-Discoloration Characteristics, the screen, as shown on the right, remains clear, safeguarding display quality.

* World's first UL Verification in the manufacturing industry
** For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
*** The comparison images are simulated for illustrative purposes only and do not represent the actual performance of the products.

High Visibility Under Strong Sunlight

With outstanding high brightness of 3,000 nits (Typ.), the XF3PS outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.

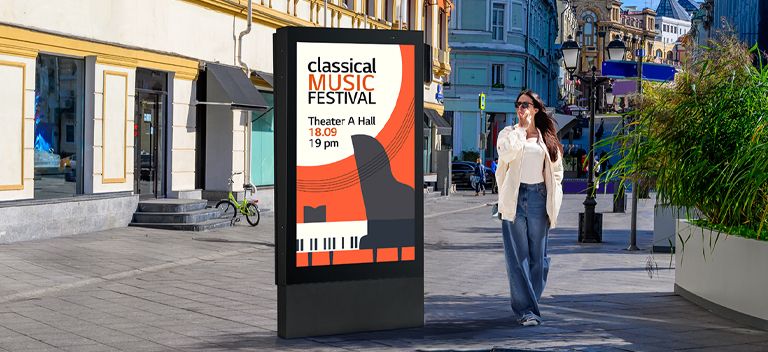

A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

Optimized Design for
Double-sided Display

The XF3PS, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient doublesided display.

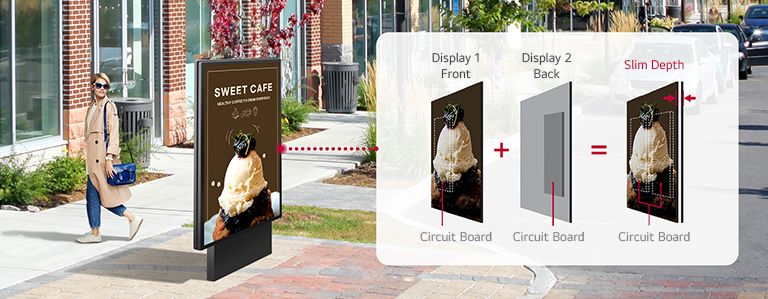

A double-sided display is set up on the street. The effective placement of the circuit board allows for a slim design of the double-sided display.

* The conventional model refers to the XF3C.

Efficient Energy Management

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3PS uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.

The XF3PS screen can adjust its brightness automatically according to the ambient light.


* M+ IPS reduced approximately 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nits). The test was conducted internally.
** Specific features can differ from circumstances.
*** Actual results may vary depending on the use environment.
**** LG ConnectedCare is sold separately.

Smart Brightness Compensation

The built-in BLU* sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.

The XF3PS minimizes the change in the panel’s brightness over time.

* Back Light Unit

Vandalism Alert

If the sensor detects the XF3PS experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.

If the device detects external impact surpassing a certain threshold, an alert is automatically sent to the administrator.

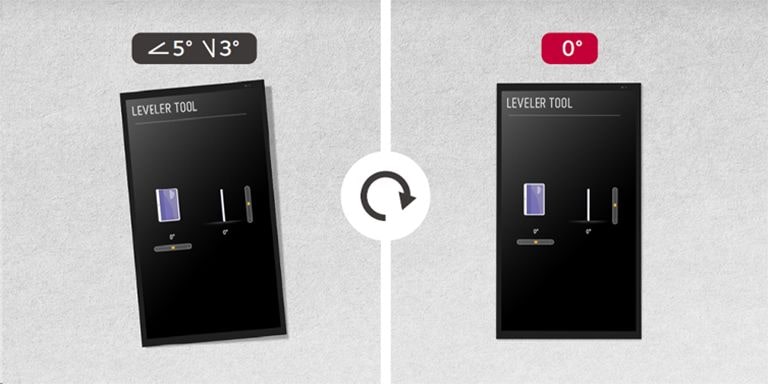

A display is installed without tilting using the self-leveler tool.

Easy Installation

For easy installation, the XF3PS is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.

* The availability of leveler tool feature may differ by model.

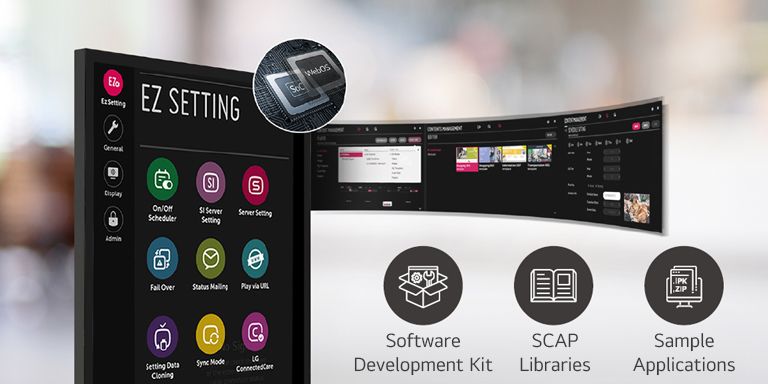

It has improved user convenience by utilizing the SoC and webOS.

High-performance with webOS 6.1

LG webOS 6.1, upgraded with SoC* and web engine, is available on the XF3PS for smooth execution of several tasks. The XF3PS enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.

* SoC : System on Chip
** GUI : Graphical User Interface

A display is working well in an environment of 0~50°C.

Wide Range of Operating Temperature

The XF3PS can be used under a wide range of operating temperature from 0℃ to 50℃.

* Conducted by LG internal test, Operating temperature: 0℃~50℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~40℃ (with direct sunlight)
** Actual performance may vary depending on the use environment.

The XF3PS has a conformal coating making it resistant to dust and salinity in moisture.

Conformal Coating

Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.

* Thin protective films/breathing membranes that filter water vapor and solid debris

Installation Guide for a Customized Casing

LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.

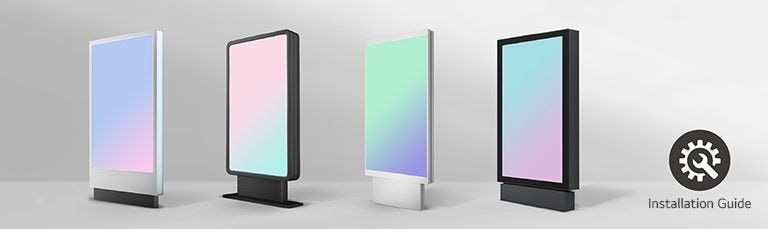

Each of the four XF3PSs has a customized casing.

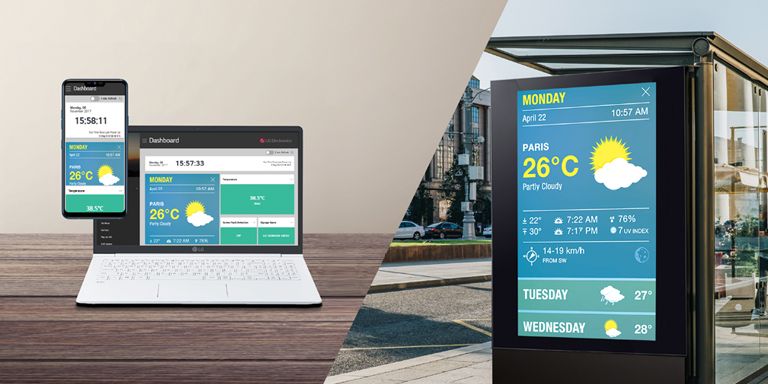

Users can monitor and control their displays through a mobile phone and laptop.

Web Monitoring

The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* Enabled by wired LAN connection

All Spec

PANEL

  • Screen Size (Inch)

    75"

  • Panel Technology

    IPS, M+

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840x2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    3,000nit (Typ), 2,800nit(Min)

  • Contrast Ratio

    1200:1 (Typ)

  • Dynamic CR

    500,000:1

  • Color gamut

    NTSC 68%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth (Number of Colors)

    10bit, 1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    3%

  • Life time

    50,000 Hrs (Typ)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    Yes / Yes

  • QWP (Quarter Wave Plate)

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 50°C (w/o Direct Sunlight)0 °C to 40°C (Direct Sunlight)

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    TBD

  • Max.

    TBD

  • BTU (British Thermal Unit)

    TBD

  • Smart Enegy Saving (70%)

    TBD

  • DPM

    TBD

  • Power off

    0.5W ↓

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign Cloud

    Yes

  • Connected Care

    Yes

ACCESSORY

  • Basic

    Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea) Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket (4ea)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

  • ErP / Energy Star

    Yes / No

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    Yes

  • Power protection

    Yes

  • Direct Sunlight

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)

CONNECTIVITY(JACK INTERFACE)

  • HDMI IN

    Yes((2), HDCP2.2

  • DP IN

    Yes(1), HDCP1.3

  • RS232C IN

    Yes(1) (4pin phone jack)

  • RJ45(LAN) IN

    Yes(1)

  • USB IN

    USB2.0 Type A (1)

  • DP Out

    Yes(1), Input DP/HDMI

  • External Speaker Out

    Yes(1, L/R, 10W+10W) , (4pin phone jack)

  • RS232C Out

    Yes(1) (4pin phone jack)

  • IR Out

    Sharing RS232C Out

INFO

  • Product

    Outdoor

  • Year

    Y24

  • Month

    M11

MECHANICAL

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 11.8mm

  • Weight (Head)

    35.7 kg

  • Packed Weight

    47.0 Kg

  • Monitor Dimensions (W x H x D)

    1675.2 x 953.6 x 128.9mm

  • Carton Dimensions (W x H x D)

    1816 x 1106 x 285mm

  • Handle

    Yes(2)

HW FEATURE

  • Internal Memory (eMMC)

    8GB

  • Temperature Sensor

    Yes

  • Auto Brightness sensor

    Yes

  • Current Sensor

    Yes

  • BLU Sensor

    Yes

  • Humidity Sensor

    Yes

  • Local Key Operation

    Yes

  • FAN (Built-in)

    Yes

SW FEATURE

  • OS Ver. (webOS)

    webOS6.0

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • Backlight Sync

    Yes

  • Video Tag

    Yes(2 Video Tag)

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Network Ready

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

  • Brightness Compensation

    Yes

PRODUCT DEDICATED FEATURE

  • Noise level

    TBD

Datasheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
