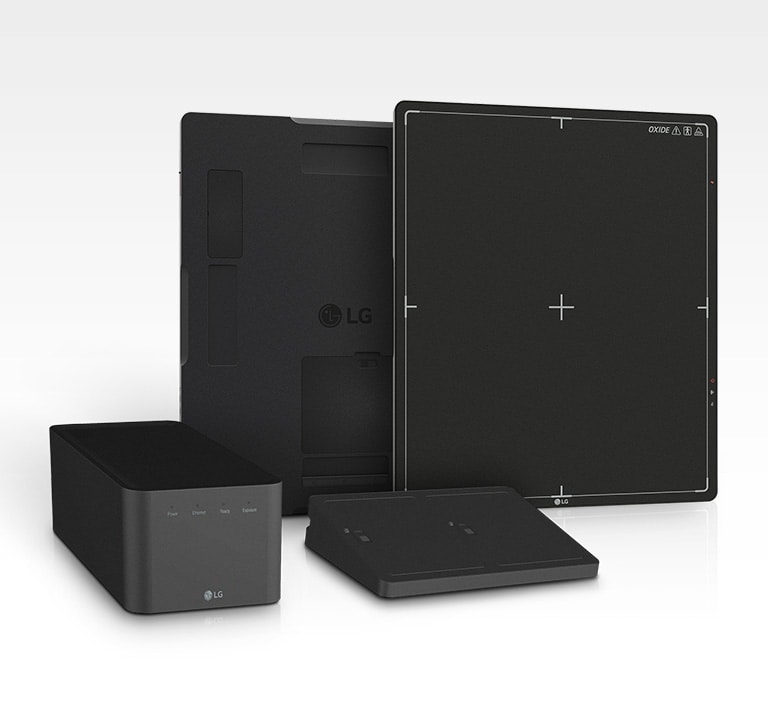

High DQE with Oxide TFT1)
140㎛-pixel size & 16bit A/D conversion
IP68 Water Resistant & Dust Tight2)
Uniform Load 400kg & Point Load 200kg
LG Acquisition Workstation Software
Hot swap, AP Mode, Auto Storage
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Compared to products with a-Si TFT.
2)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

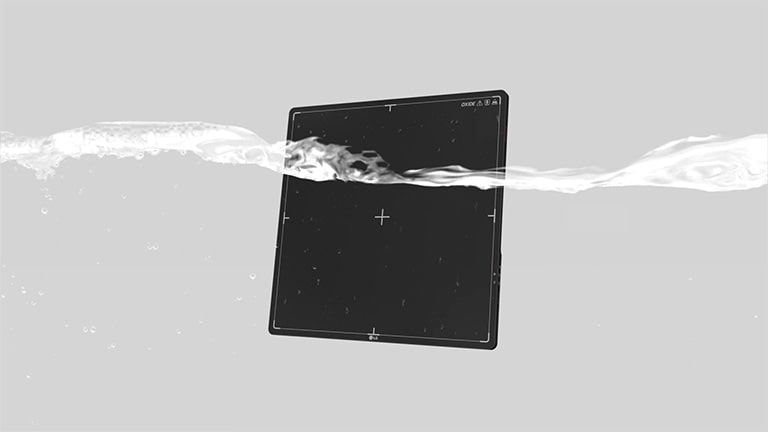

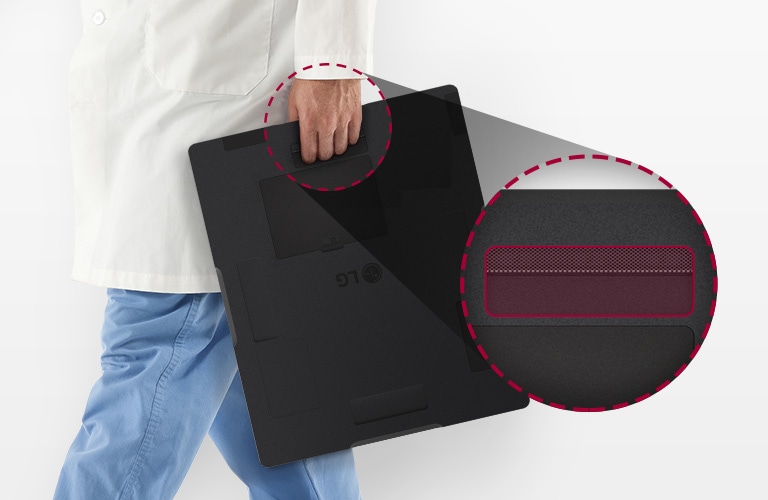

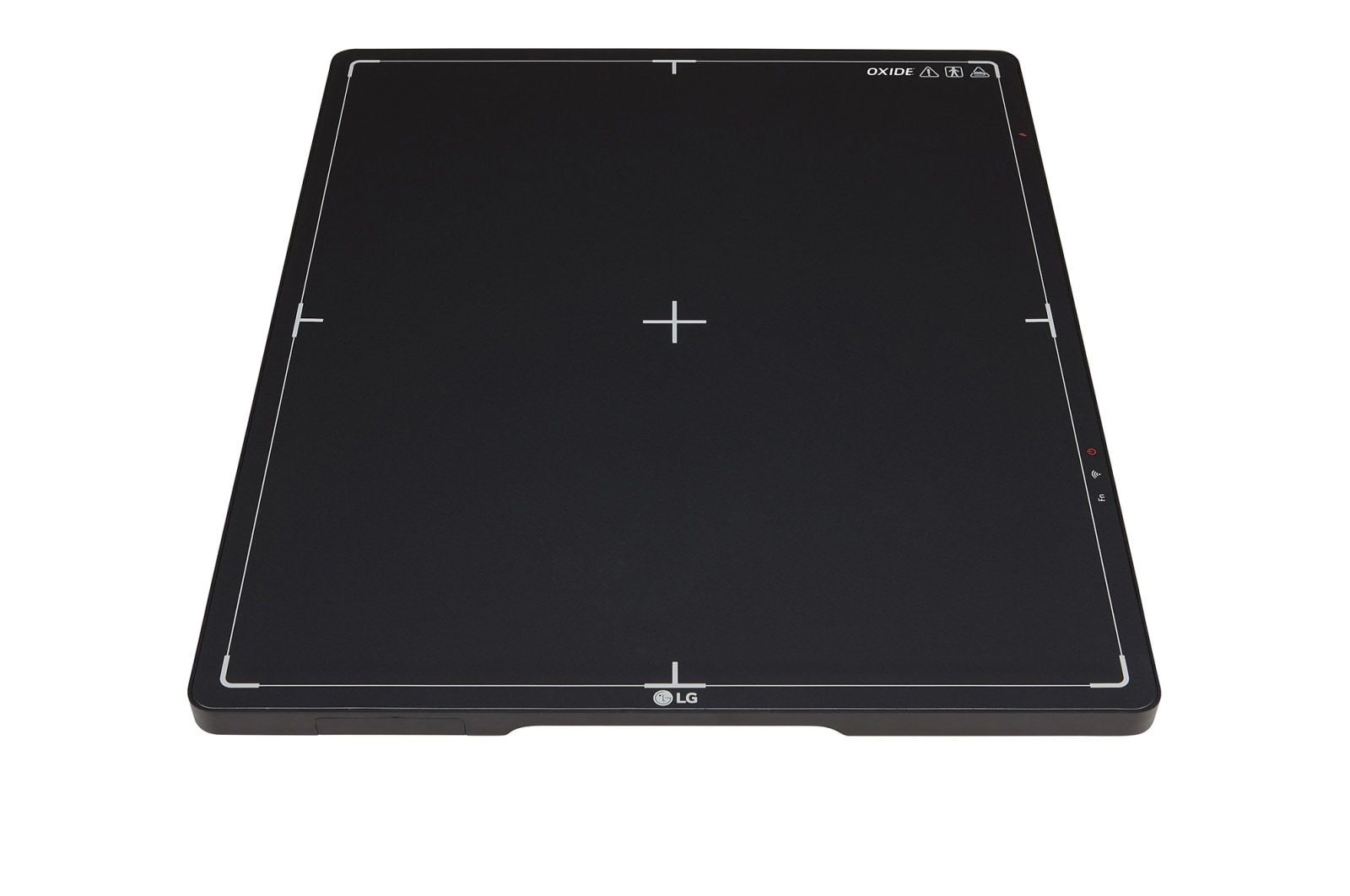

Lightweight and durability of LG DXDs are key in responding to various medical situations. With an IP681) rating, this LG DXD is resistant to water and dust tight.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*The images that appear in the video used the 17HQ901G model.
1)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.
2)Maximum uniform load and maximum point load when tested under laboratory conditions for 60 seconds. Results may differ during actual usage.
3)Drop test in a controlled laboratory environment. Can differ from actual usage.

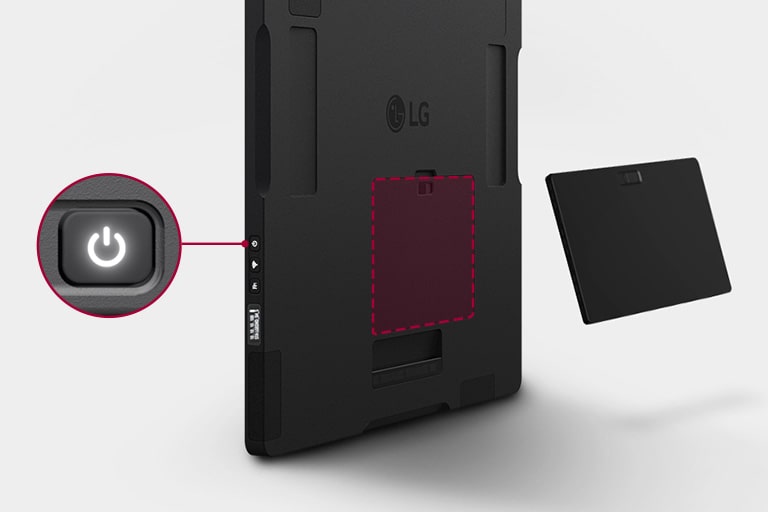

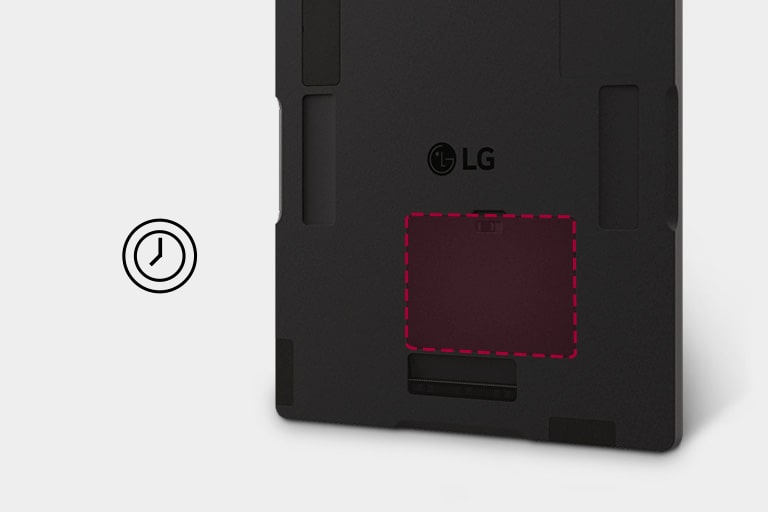

When fully charged, the removable battery will have up to 8 hours of operation time. Hot swap, which can hold power for up to a minute, can provide virtually uninterrupted use even while replacing the removable battery.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Typical 8.0 hours, Typical 320 shots under conditions of cycle time 90 sec. Measured by irradiating image at a 90-second cycle (consisting of stand by mode, X-ray exposure, and image acquisition), obtaining approximately 320 shots. Actual battery usage time and performance may vary depending on network connectivity and application use.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

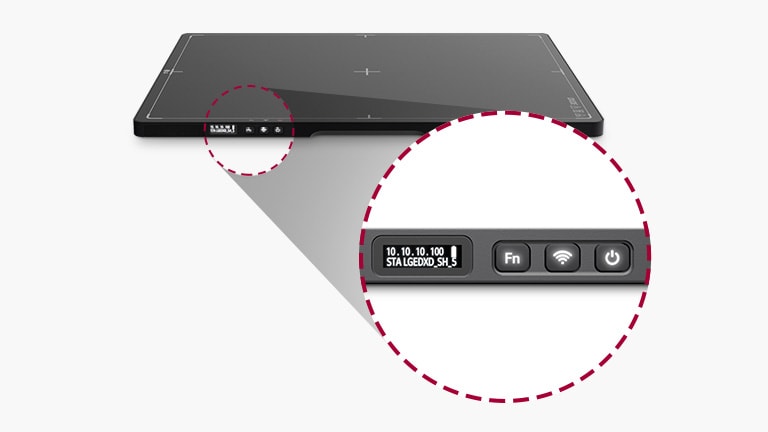

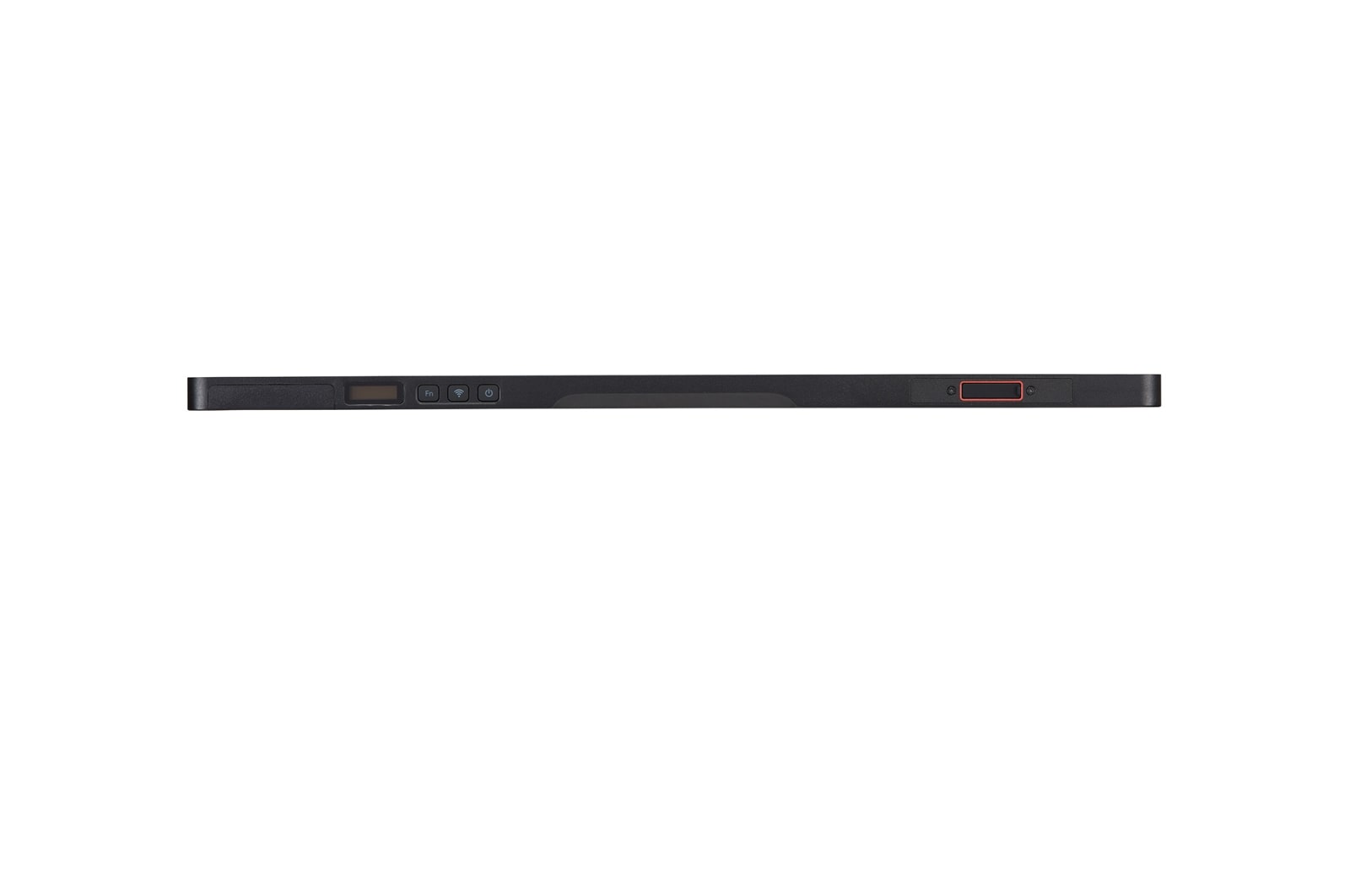

Information Display
Thanks to the embedded OLED information display, you can directly check and monitor the current state of DXD such as connection state, remaining battery, AP (Access Point) mode, auto storage mode, and dynamic mode.

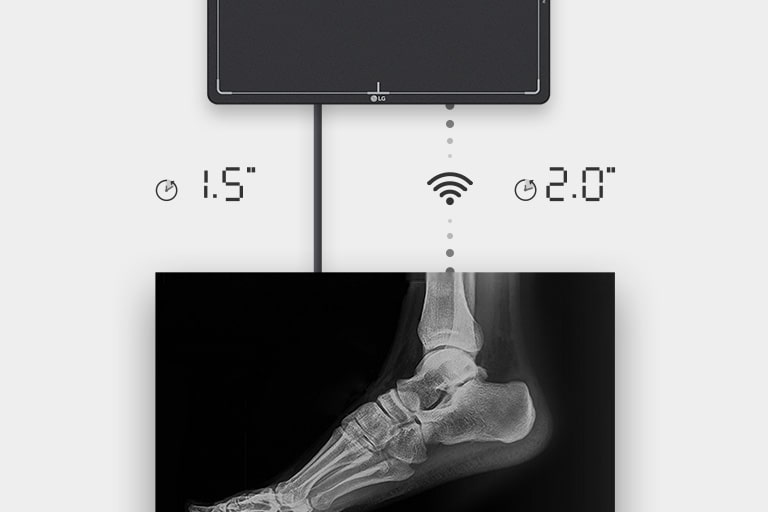

14HQ901G helps increase work productivity with fast processing speeds. It takes only 1.5 seconds with connection or 2 seconds for wireless to get a raw image.

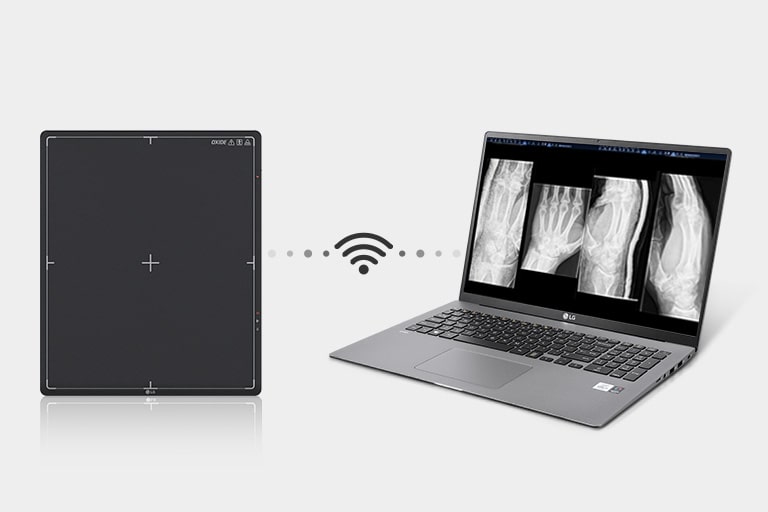

Access Point Mode enables point-of-care imaging via direct data transfer to your screen wirelessly. So, X-ray images can be referred in virtually anywhere, anytime by carrying your laptop, or other mobile devices.

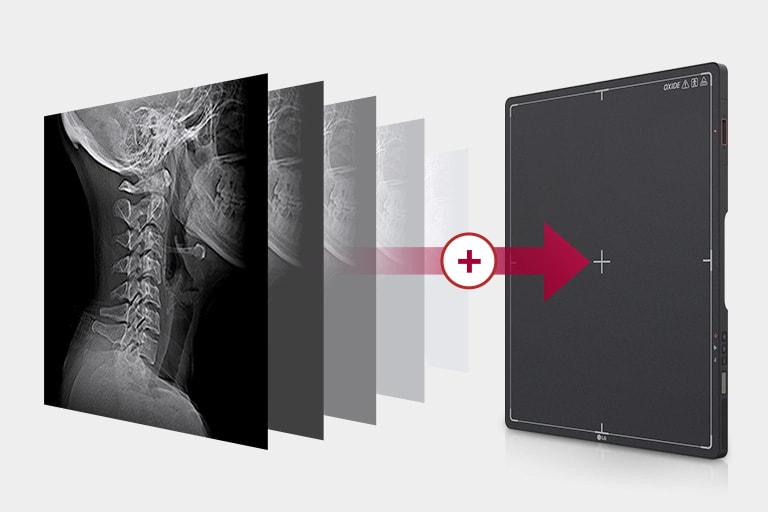

A built-in memory storage allows you to take multiple images without a computer connection, providing a seamless workflow even offline.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)The oldest image (first in) is removed first (first out) from the internal memory storage once the storage space fills up with 200 images.
Hot swap
Yes (1min)
Battery duration in standby status
Typ.8.2hrs
Dimensions (W x D x H, mm)
112.2 * 158 * 8.4
Nominal Capacity
36Wh (7.7V, 4725mAh)
Nominal Voltage
7.7V
Operation Time
Typ. 320 shots/ 8.0 hrs (Condition : Cycle time 90sec)
Weight(g)
240
Slot Q'ty
2
Bundle battery Q'ty
2
AC Power Cord
Yes
Charging Time
3 Hours
DC Cable length
1,500 mm
Dimensions (W x D x H, mm)
268.4 x 186.9 x 54.9mm
Input
100 ~ 240VAC
Input Voltage
19V
Output
19V/3.42A
Output Voltage
8.7V
Weight(kg)
0.5 kg
AC Power Cord
1.5m (Black)
Dimensions (W x D x H, mm)
125 x 255 x 109.8mm
Power Input
AC100 to 240V, 47-63Hz
Power Output
DC24V / 2.1A
weight(kg)
1.3 kg
Dimension in Shiping (W x H x D) [mm]
621*352*562
Weight in Shipping [kg]
11.5kg
Pallet Stuffing (20ft/40ft/40ft HC)
160/360/432
Others (Accessory)
Book Manual , Outgonig Inspection sheet
Cable
Power cord, Main Cable 7m (LAN Cable, Sync cable Option)
CD
Manual, Calibration SW
Type
Detachable
TFT Type
Oxide
Scintillator
Csi
Pixel Pitch
140㎛
Sensor protection plate
Carbon Fiber Plate
Falling (IEC60601-1 Test Condition)
1.5m
A/D Conversion
16 bit
Data Output
16 bit
Unit Interface
Connect to Control Box
Auto Exposure Detection
Yes
Power unit interface
Connect to Control Box
Wired Communication
Yes
AP mode
Yes(Integrated)
Detachable Wire(Easy to plug / unplug)
Yes (Magnetic)
Shock monitoring
Yes
Image storage on DXD
Up to 200 images
Semi-dynamic Acquisition
5 fps
Application
General Radiography
Cleaning and desinfecting products
Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
Cycle Time (Wired / Wireless)
4.5sec / 5sec
Dimensions (W x D x H, mm)
384 x 460 x 15.6 mm
DQE @ 0.1lp/mm
0.78
DQE @ 0.5lp/mm
0.7
DQE @ 1lp/mm
0.57
DQE @ 2lp/mm
0.38
DQE @ 3lp/mm
0.26
Full Image (Raw Image) (Typ) * without window time
Wired 1.5 sec / Wireless 2 sec
Input
DC24V/2.1A
IP Rating
IP68
Maximum Load Weight
Full (Uniform Load) : 400kg Local (Point Load) : 200kg
MTF @ 0.5lp/mm
0.84
MTF @ 1lp/mm
0.61
MTF @ 2lp/mm
0.3
MTF @ 3lp/mm
0.15
Number of Pixels
3072x2560
Power consumption
Typ. 38W
Sensitivity( lsb/uGy ) / Programmable
3.57 lp/mm
TFT Active Area(mm)
358.40 x 430.08
TFT Dimensions (W x D x H, mm)
369 x 442 mm
Weight(kg) / Icld. Battery (Typ)
3.0kg
WLAN
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
X-ray period (ms) (=Window Time)
350 ~ 4000ms
X-ray sensitive Area(mm)
430.08 × 358.40
X-ray sensitive Pixel
2560x3072
Dimensions (W x D x H, mm)
134x59.8x31mm
Weight(kg)
0.335 kg
LAN Cable (Control Box–PC)
10m
Main Cable (DXD-Control Box)
7m
Sync Cable (Control Box - X-ray Generator)
15m
Operating Altitude
Less than 5000 m
Operating Humidity
Less than 80% RH, No condensation
Operating Pressure
70 ~ 106 kPa
Operating Temperature
10 to 35 ℃
Storage Altitude
Less than 12,192 m
Storage Humidity
Less than 90% RH, No condensation
Storage Pressure
50 ~ 106 kPa
Storage Temperature
-20 to 60 ℃
Warranty
36 Month
