LG 17 x 17-inch Wired Digital X-ray Detector
Contact us

LG 17 x 17-inch Wired Digital X-ray Detector

Contact us

LG 17 x 17-inch Wired Digital X-ray Detector

17HK700G-W

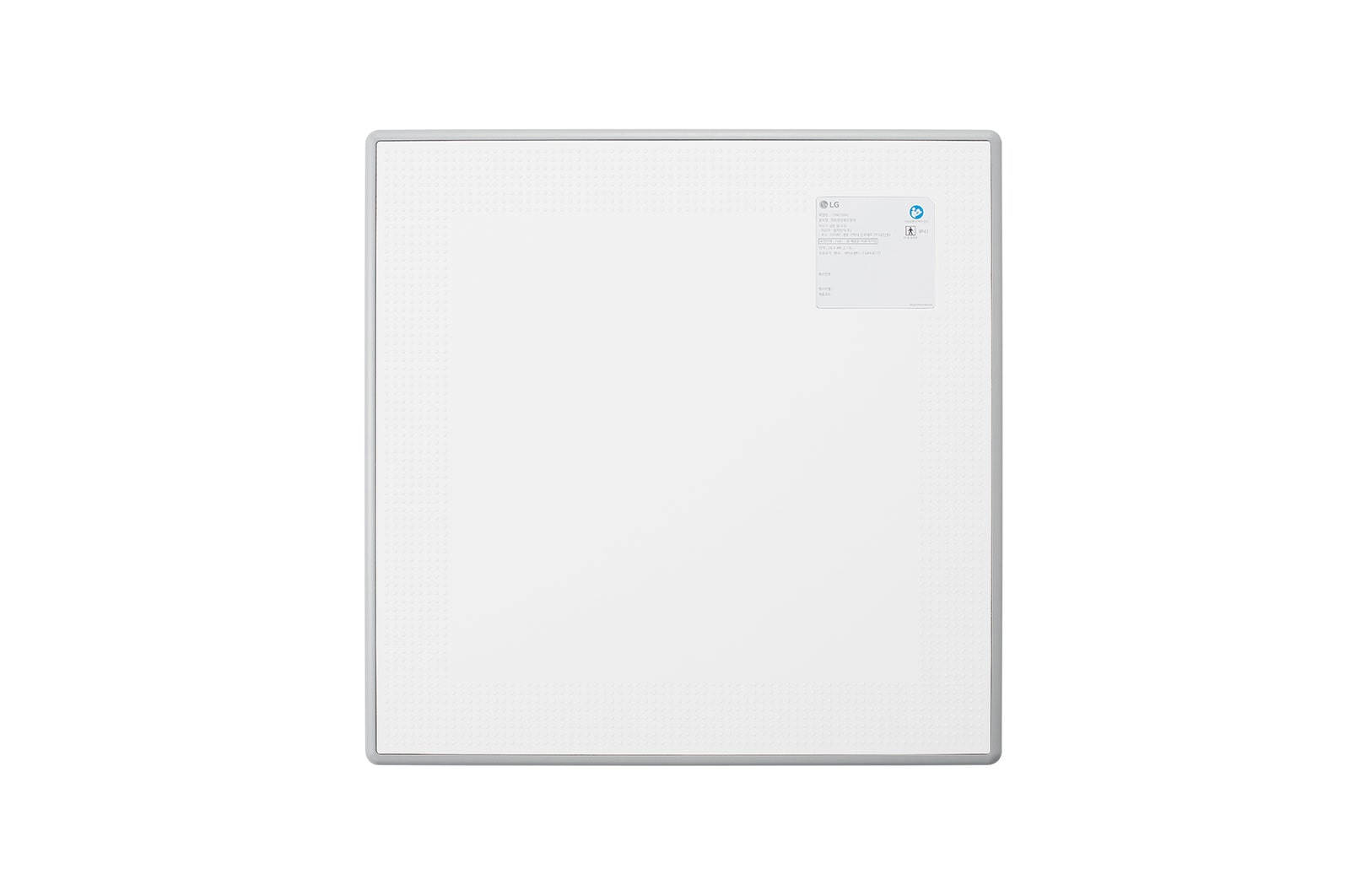

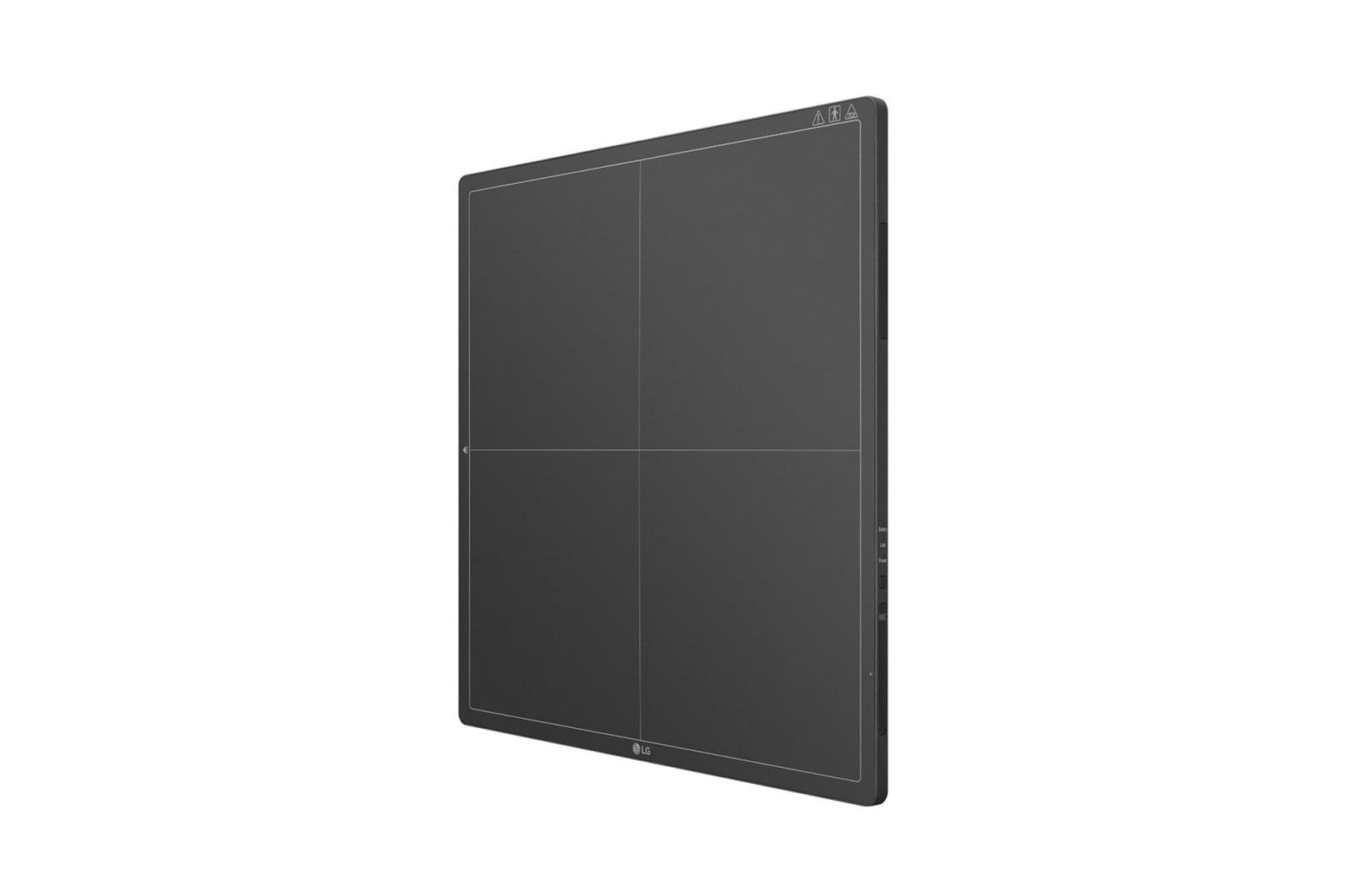

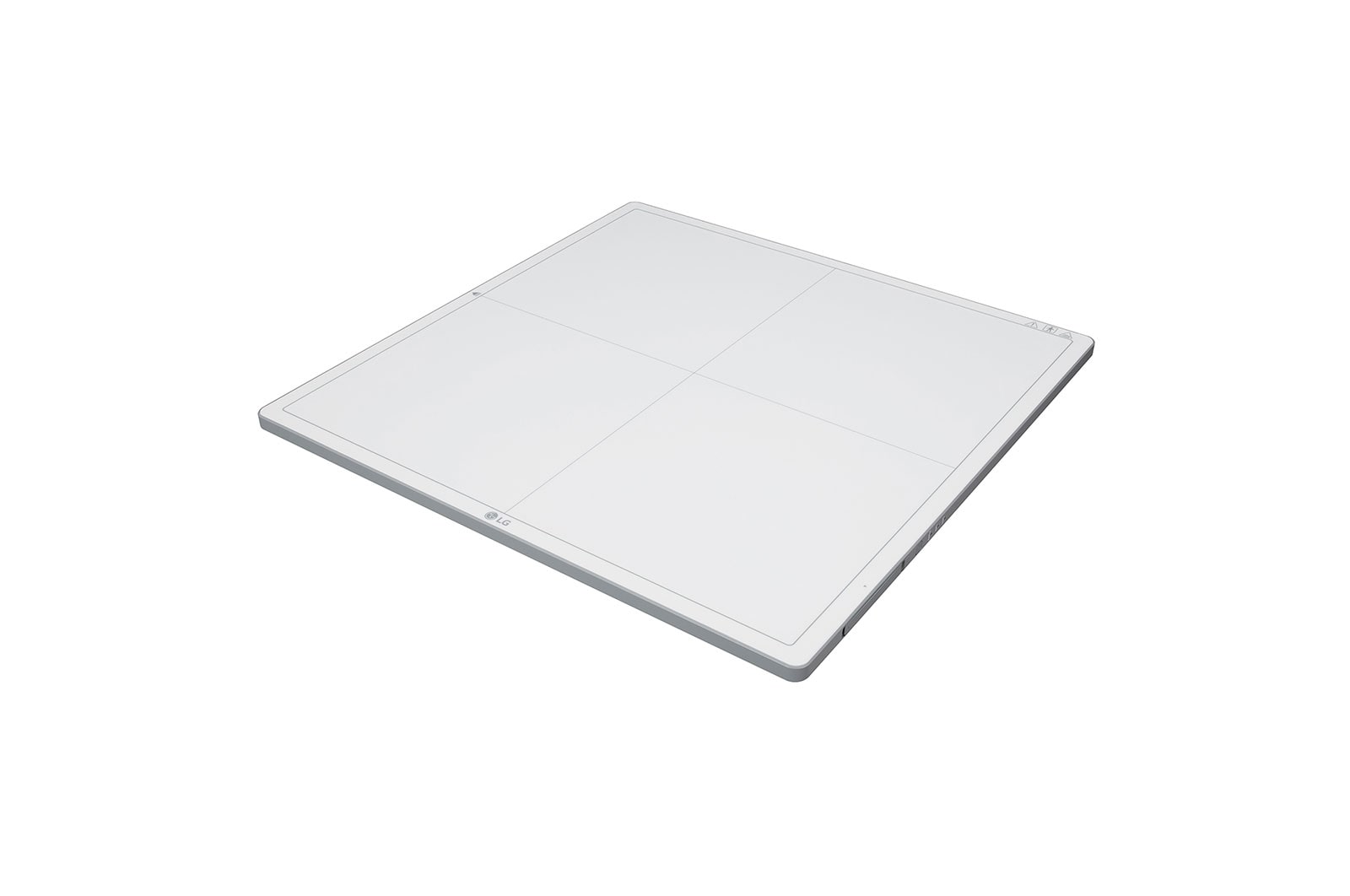

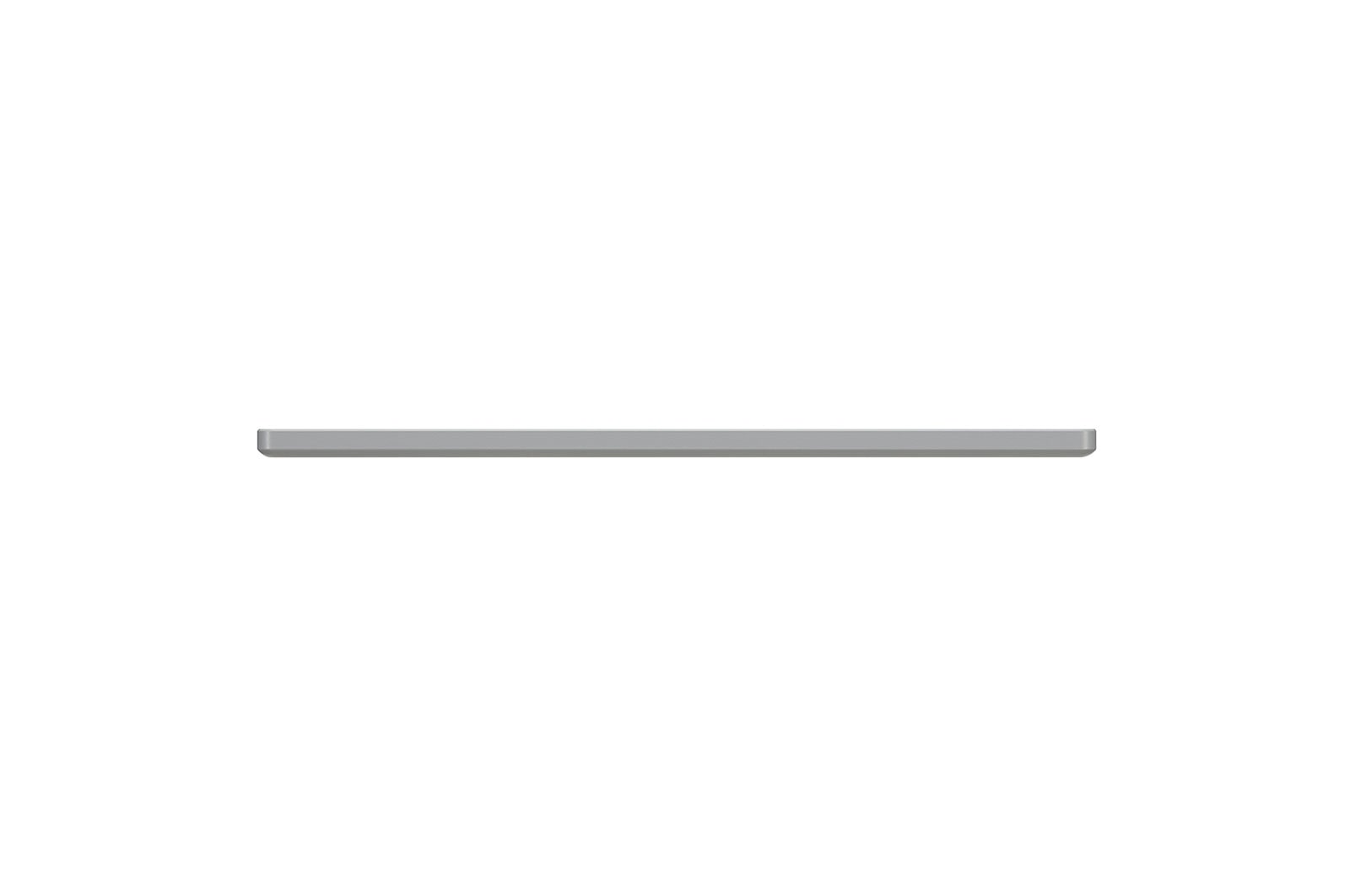

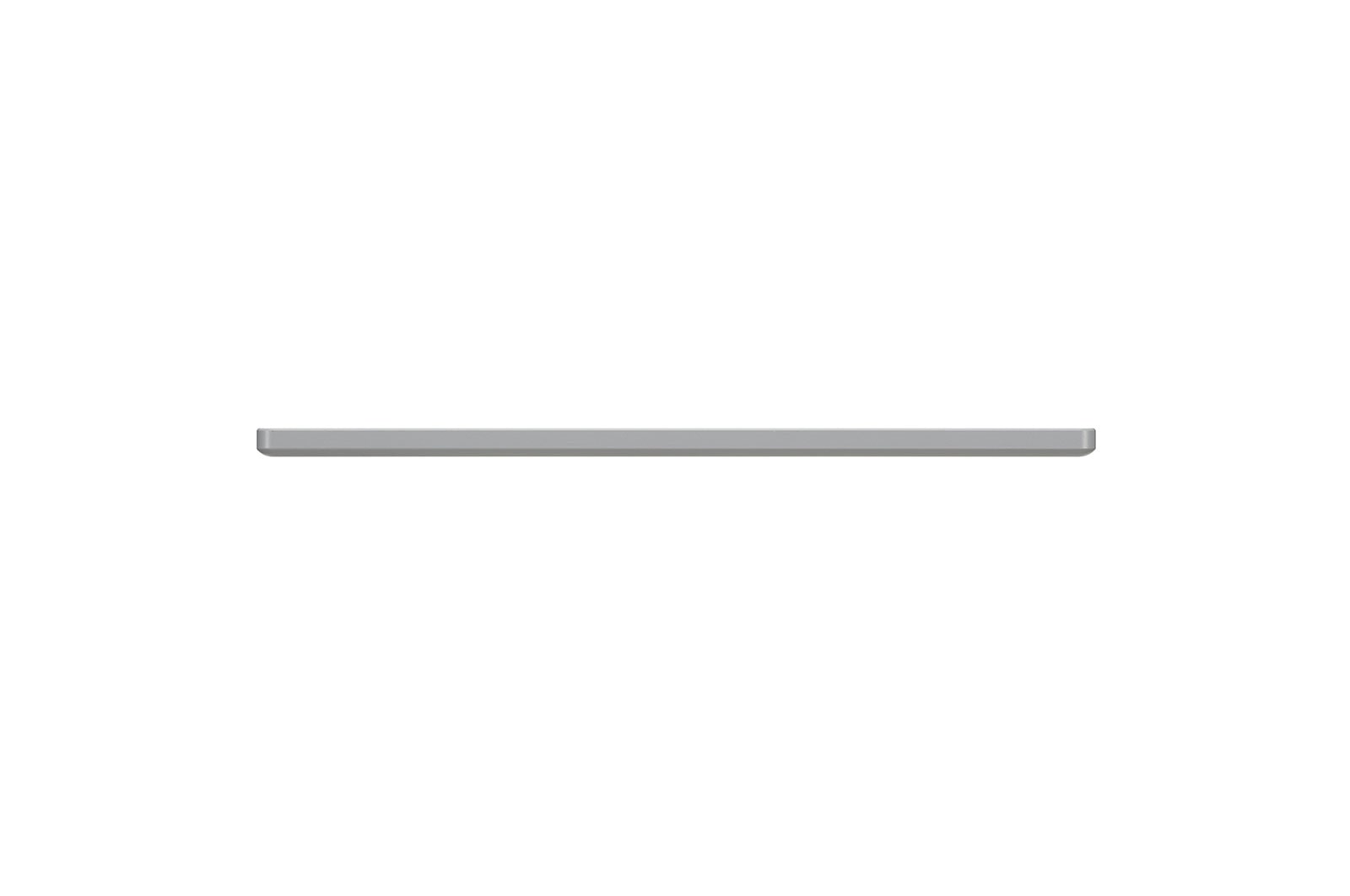

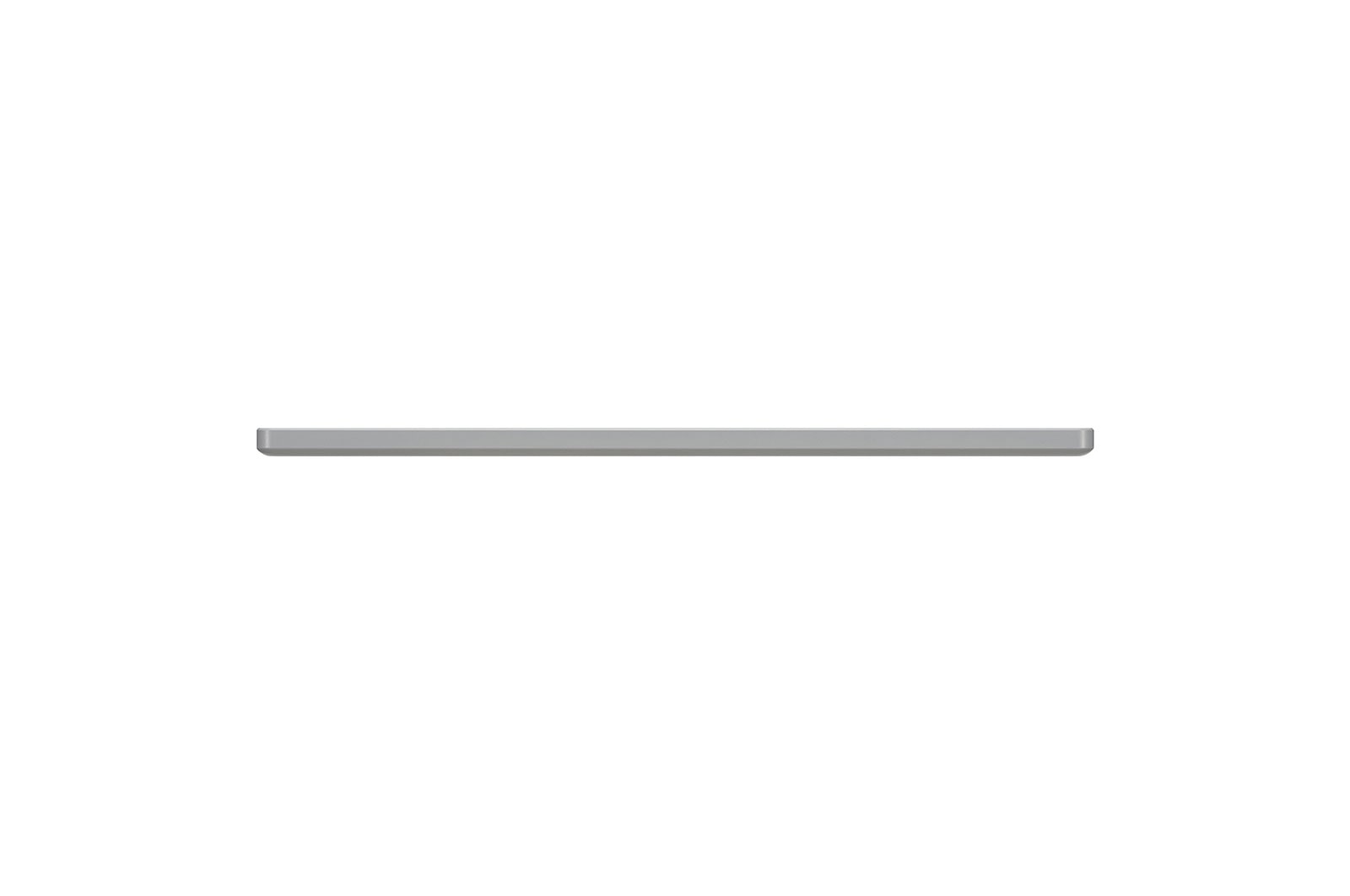

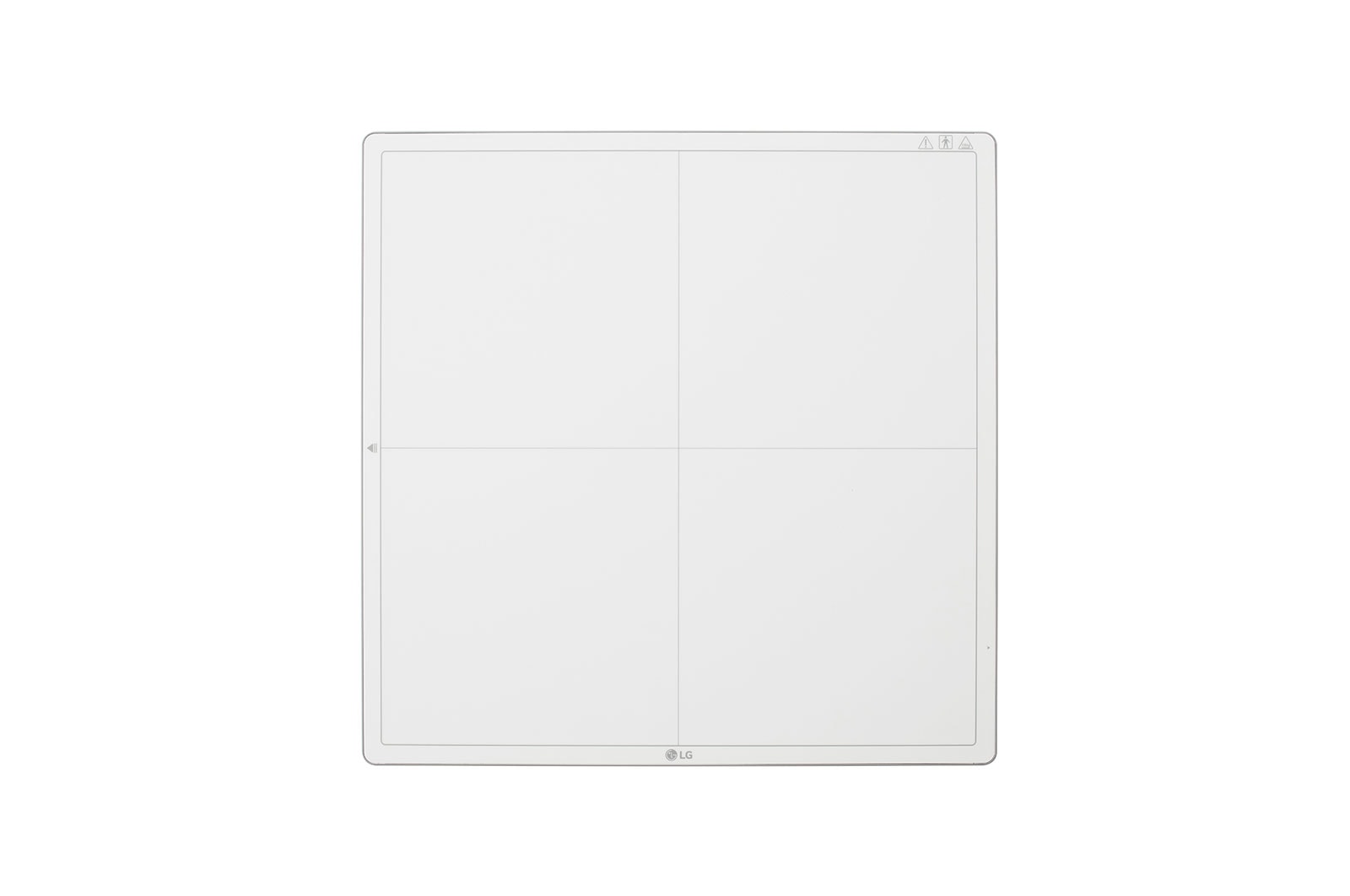

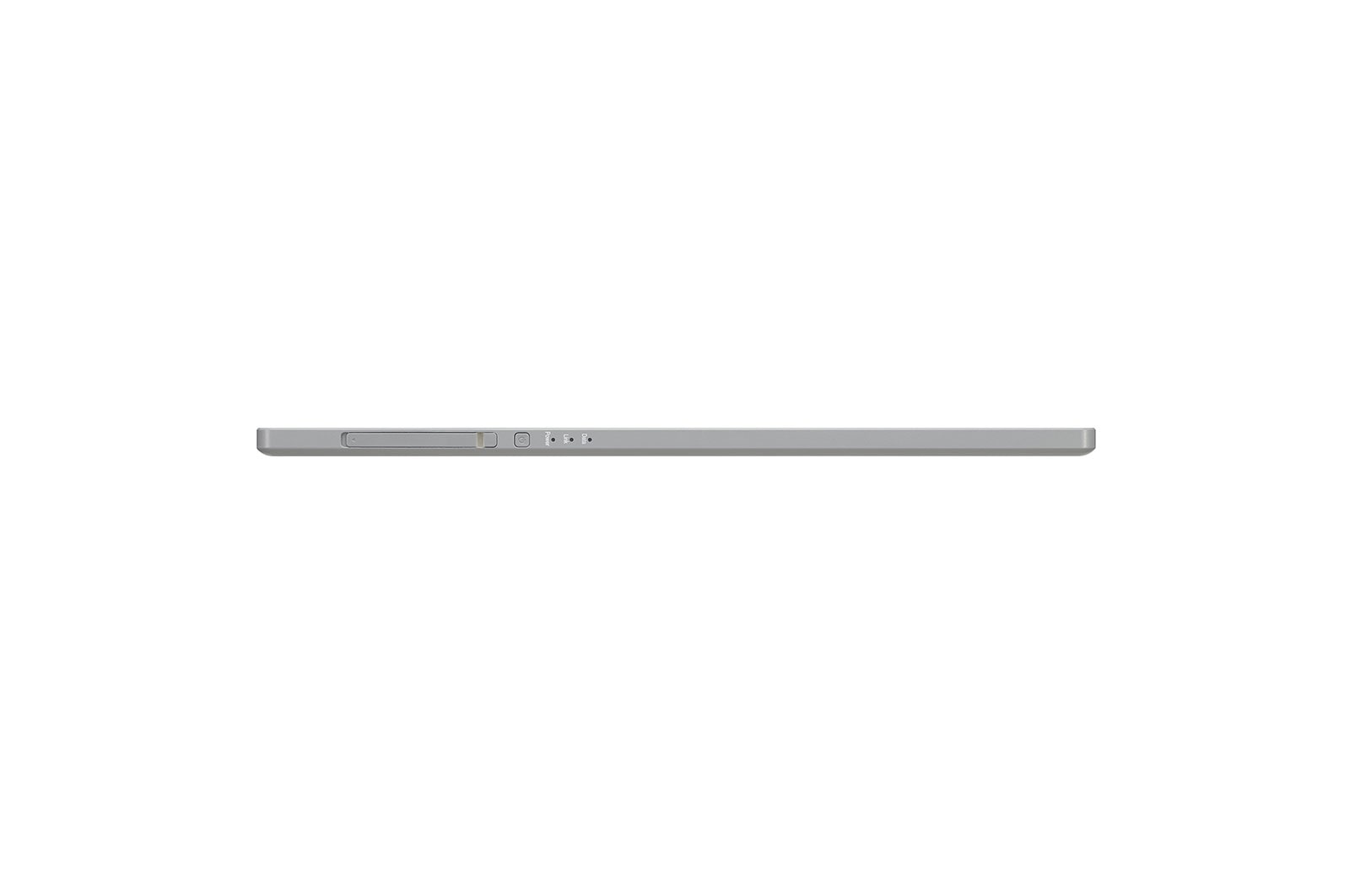

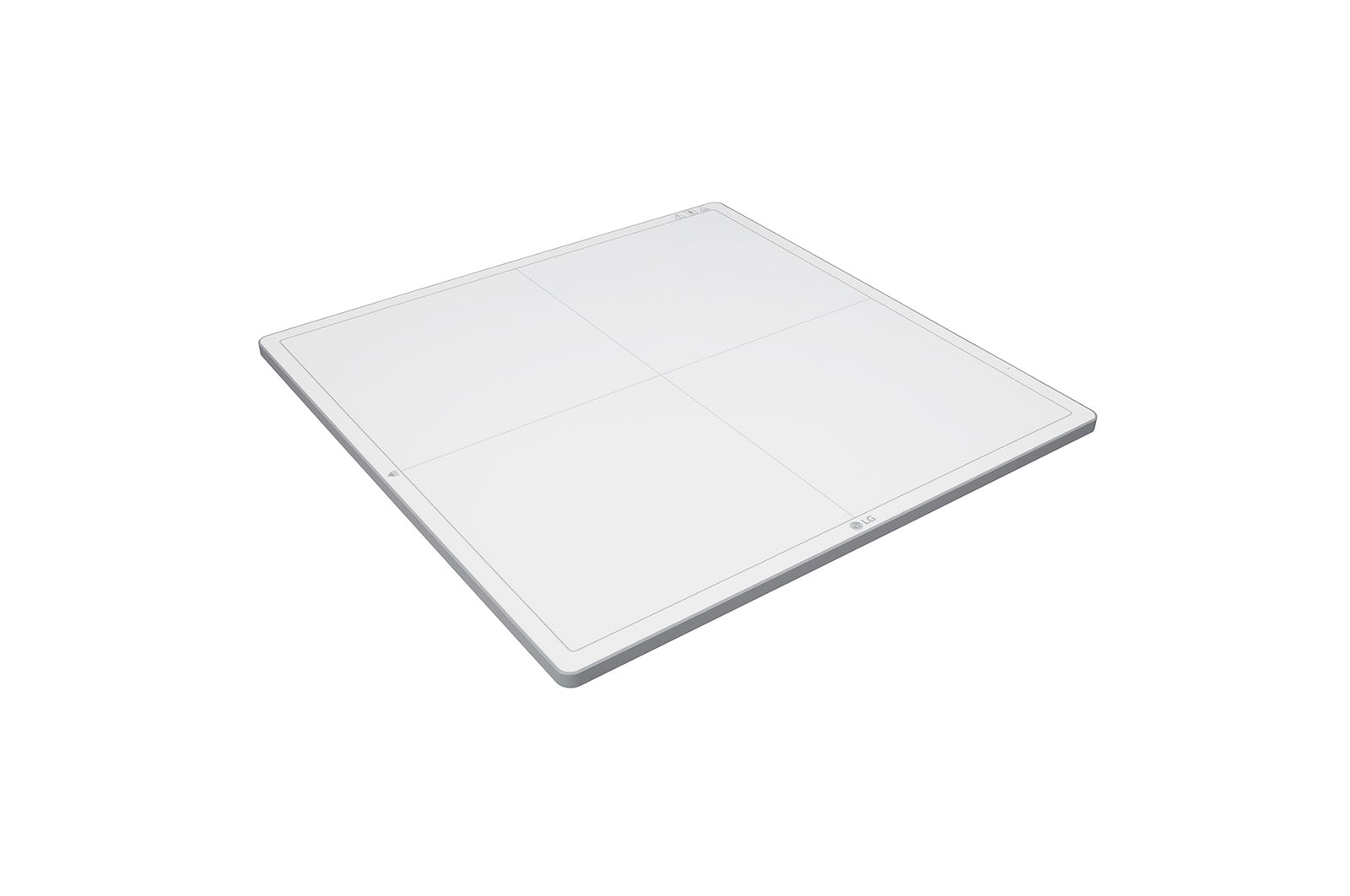

LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W
LG 17 x 17-inch Wired Digital X-ray Detector, 17HK700G-W

Key Features

  • 140㎛ pixel size
  • 16bit A/D conversion
  • Raw Image in 2sec. (wired)
  • IP53: Waterproof and Dustproof
  • Magnesium & Carbon-fiber Body
  • LG Acquisition Workstation Software
More
(No Image)

(No Image)

Ensure Diagnostic Accuracy

Superior Image Quality

LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140㎛ for high resolution images.

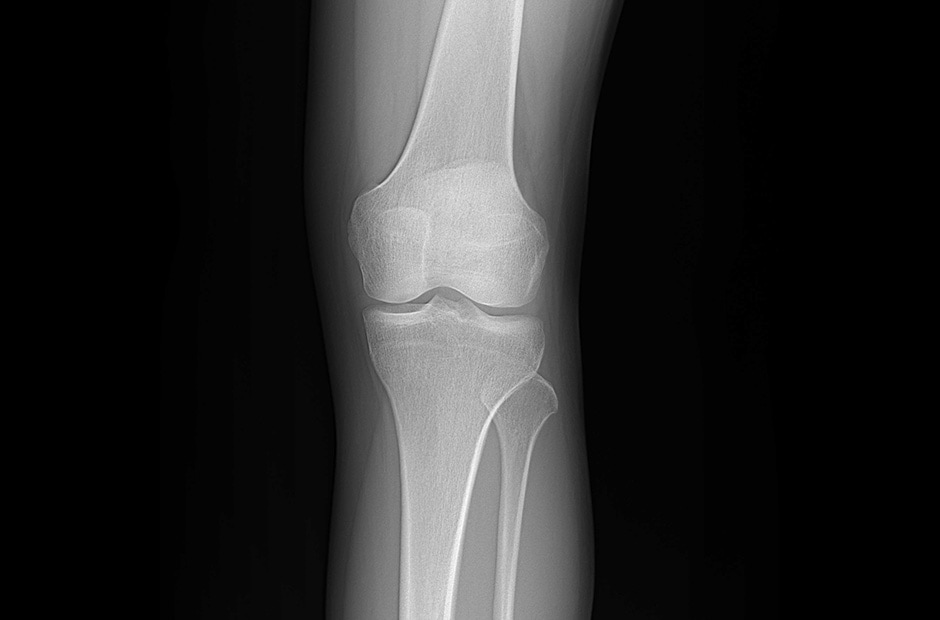

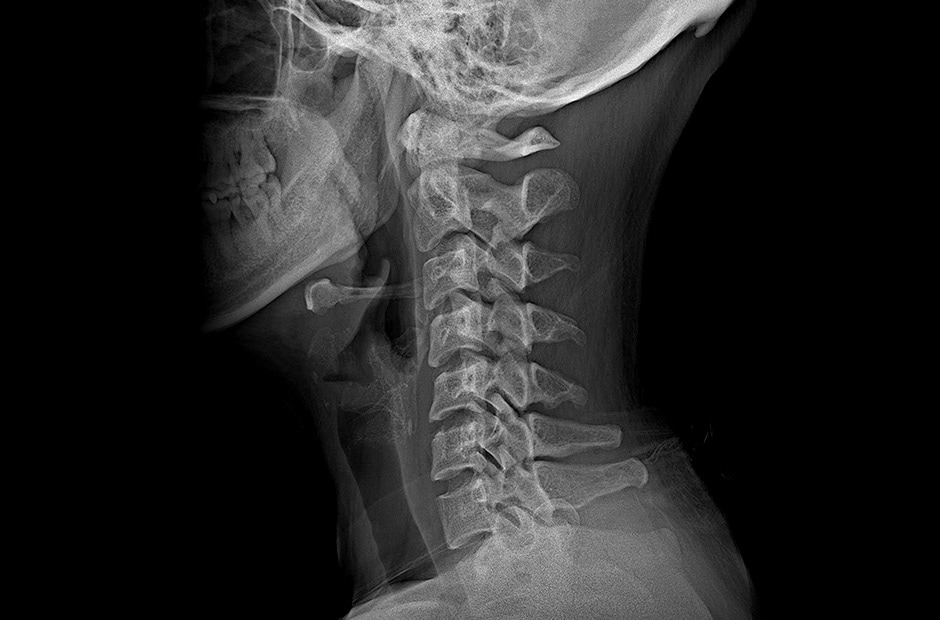

high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD
high resolution and clear diagnostic imaging results from using LG DXD

Light yet Durable

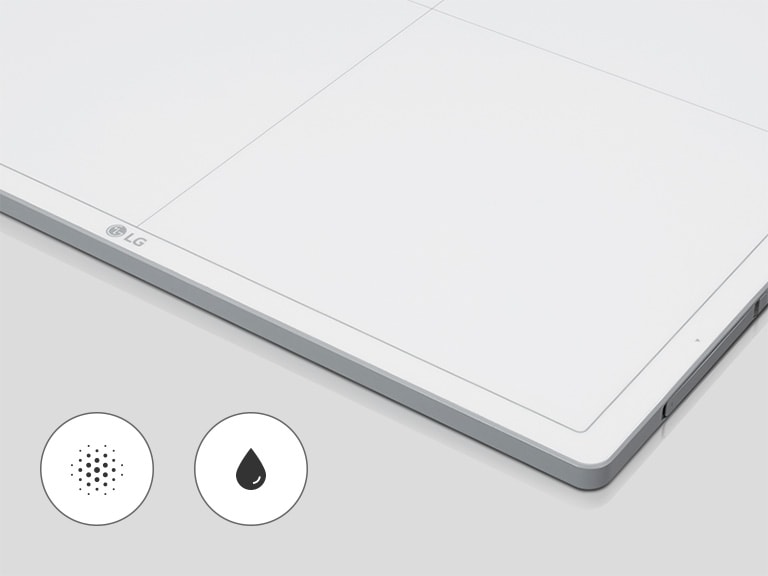

LG DXD protecting waterproof and dustproof

IP53 : Waterproof and Dustproof

IP*53 resistance rating ensures that LG DXD will be protected against objects of dust and spraying water at any angle up to 60° from the vertical shell.

*IP: Ingress protection (IP53 indicates Solids Level 5, and Liquids Level 3).

Magnesium, and Carbon-fiber Body

Magnesium & Carbon-fiber Body

With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight but also exceptionally strong.

3.2kg(7lb)

Product Weight

300kg(661lb)

Maximum Uniform Load

100kg(220lb)

Maximum Local Load

Improve Work Efficiency

Rapid Image Availability

LG DXD increases productivity with a fast-processing. It takes only 2 seconds to get a raw image.

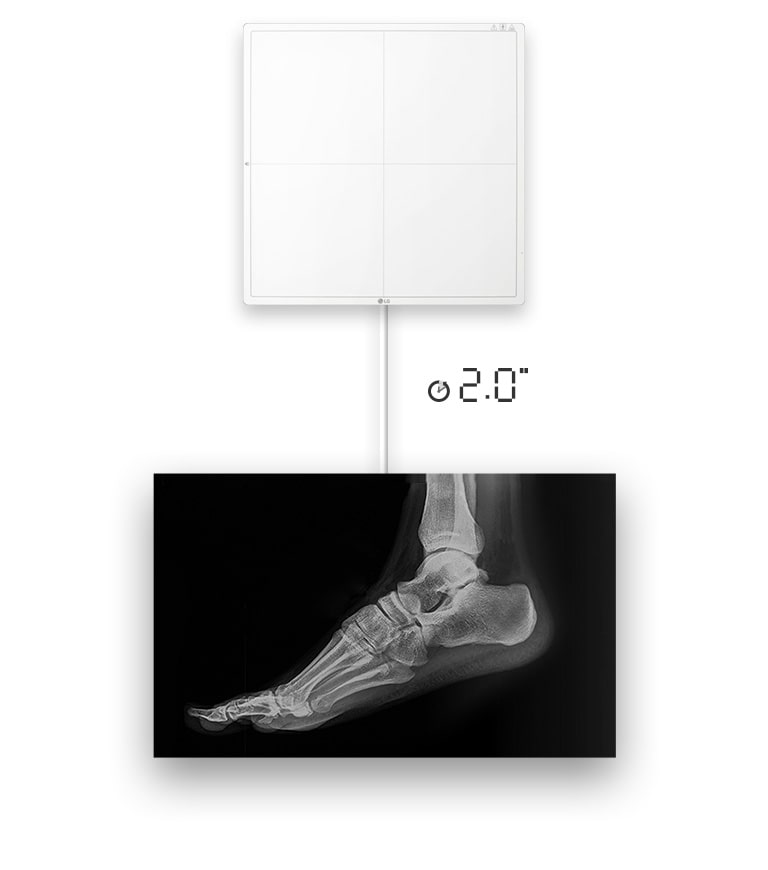

Image availability in 2 seconds with a wired connection.

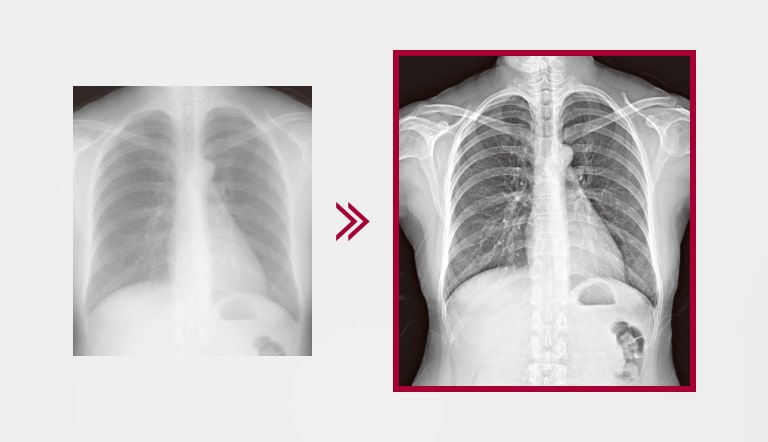

The more finely detailed image result using Multi-layer Image Processing embedded in the AWS, comparing to the image result without Multi-layer Image Processing

LG AWS for LG DXD

Enhanced Details by MLP

Multi-layer Image Processing(MLP) embedded in the AWS(Acquisition Workstation Software) provides well-balanced visualization at each frequency level with contrast enhancement processing that improves tissue visibility within an image.

Print

All Spec

CONTROL BOX

  • AC Power Cord

    1.5m, White

  • Dimensions (W x D x H, mm)

    125 x 255 x 109.8mm

  • Power Input

    AC100 to 240V, 47-63Hz

  • Power Output

    DC24V/2.1A

  • weight(kg)

    1.3 kg

DIMENSIONS/WEIGHTS

  • Dimension in Shiping (W x H x D) [mm]

    641 x 352 x 621

  • Pallet Stuffing (20ft/40ft/40ft HC)

    120/270/324

  • Weight in Shipping

    12.5kg

ACCESSORY

  • CD

    Manual, Calibration SW

  • Cable

    Power cord, Manin Cable 7m (LAN Cable, Sync cable Option)

  • Other

    Book Manual , Outgonig Inspection sheet

SENSOR(PANEL) UNIT

  • TFT Type

    A-Si

  • Scintillator

    Csi

  • Pixel Pitch

    140㎛

  • Sensor protection plate

    Carbon Fiber Plate

  • A/D Conversion

    16 bit

  • Data Output

    16 bit

  • Unit Interface

    Connect to Control Box

  • Auto Exposure Detection

    Yes

  • Power unit interface

    Connect to Control Box

  • Wired Communication

    Yes

  • Detachable Wire(Easy to plug / unplug)

    Yes (screw Fix)

  • Shock monitoring

    Yes

  • Cleaning and desinfecting products

    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution

  • Cycle Time (Ethernet / WLAN)

    8 sec

  • DQE @ 0.1lp/mm

    0.72

  • DQE @ 0.5lp/mm

    0.67

  • DQE @ 1lp/mm

    0.61

  • DQE @ 2lp/mm

    0.49

  • DQE @ 3lp/mm

    0.28

  • Expected lifetime (Gy)

    100 Gy

  • Falling

    80cm (1m Limit at IEC600601-1 test)

  • Full Image (Raw Image) (Typ)

    2 sec (Typ.)

  • IP Rating

    IP53

  • Image-lag (Typ)

    0.023%

  • Input

    DC24V/2.1A

  • MTF @ 0.5lp/mm

    0.89

  • MTF @ 1lp/mm

    0.74

  • MTF @ 2lp/mm

    0.47

  • MTF @ 3lp/mm

    0.29

  • Maximum Load Weight

    Full (Uniform Load) : 300kg Local (Point Load) : 100kg

  • Number of Pixels

    3072 x 3072

  • Power consumption

    Typ. 17W

  • Sensitivity degradation at the 'end of Life'

    0.2

  • Sensitivity( lsb/uGy ) / Programmable

    Typ. 900 / Yes

  • Sensor

    DXD Rotation & degree (0, 90, 180') to rotate image Drop count for SVC

  • Spatial Resolution(lp/mm)

    3.57 lp/mm

  • TFT Active Area(mm)

    430.08 × 430.08 mm

  • TFT Dimensions (W x D x H, mm)

    445 x 445 mm

  • Weight(kg) / Icld. Battery (Typ)

    3.2kg

  • X-ray generator voltage range

    40 to 150kVp

  • X-ray period (ms) (=Window Time)

    Standard: 500 ( ~4000)

  • X-ray sensitive Area(mm)

    430.08 x 430.08mm

  • X-ray sensitive Pixel

    3072 x 3072

CABLE

  • LAN Cable (Control Box–PC)

    10m

  • Main Cable (DXD-Control Box)

    7m

  • Sync Cable (Control Box - X-ray Generator)

    15m

ENVIRONMENTAL

  • Operating Altitude

    Less than 5000 m

  • Operating Humidity

    Less than 80% RH, No condensation

  • Operating Pressure

    70 ~ 106 kPa

  • Operating Temperature

    10 to 35 ℃

  • Storage Altitude

    Less than 12,192 m

  • Storage Humidity

    Less than 90% RH, No condensation

  • Storage Pressure

    50 ~ 106 kPa

  • Storage Temperature

    -20 to 60 ℃

WARRANTY

  • Warranty

    36 Month

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
