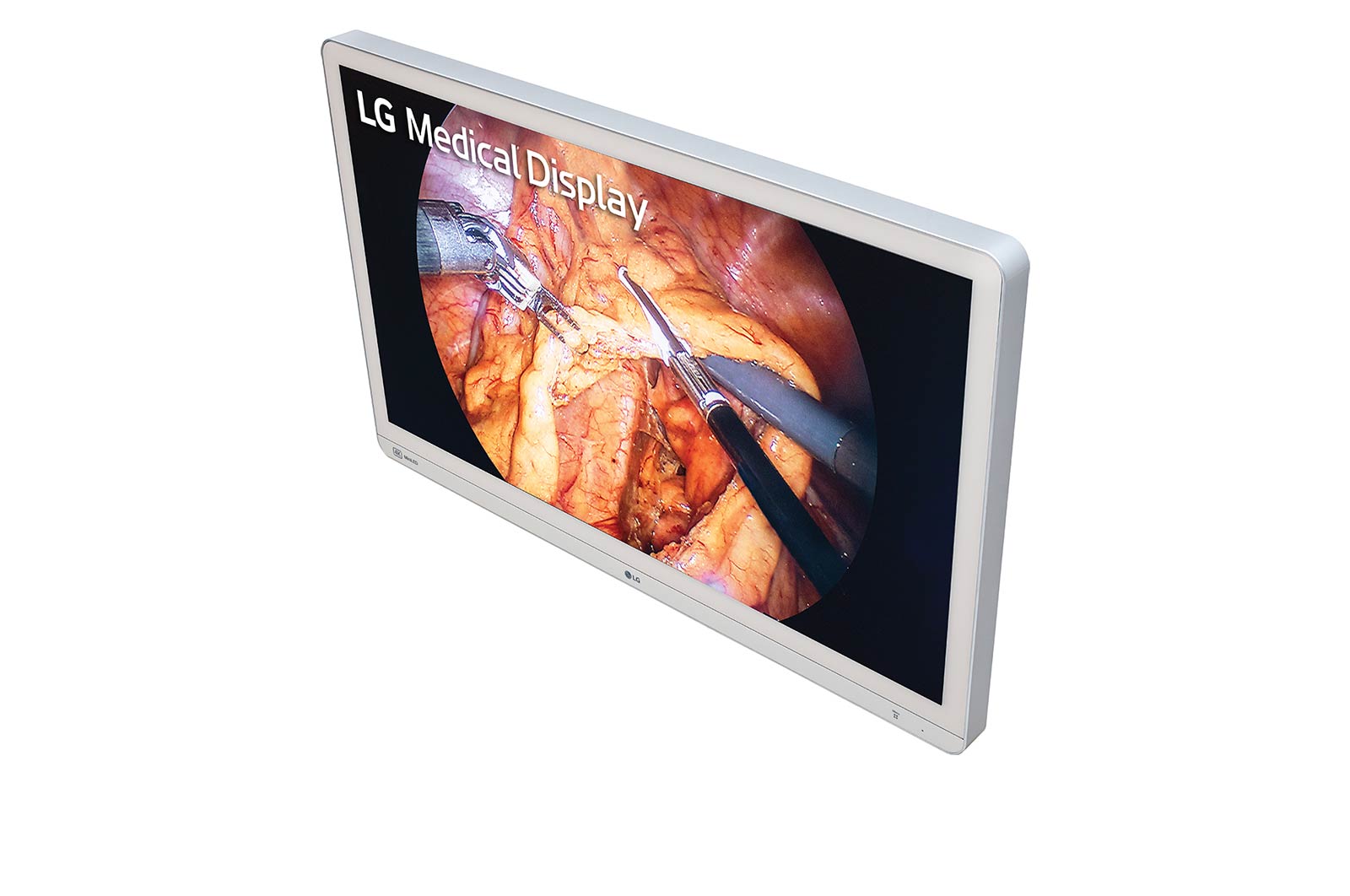

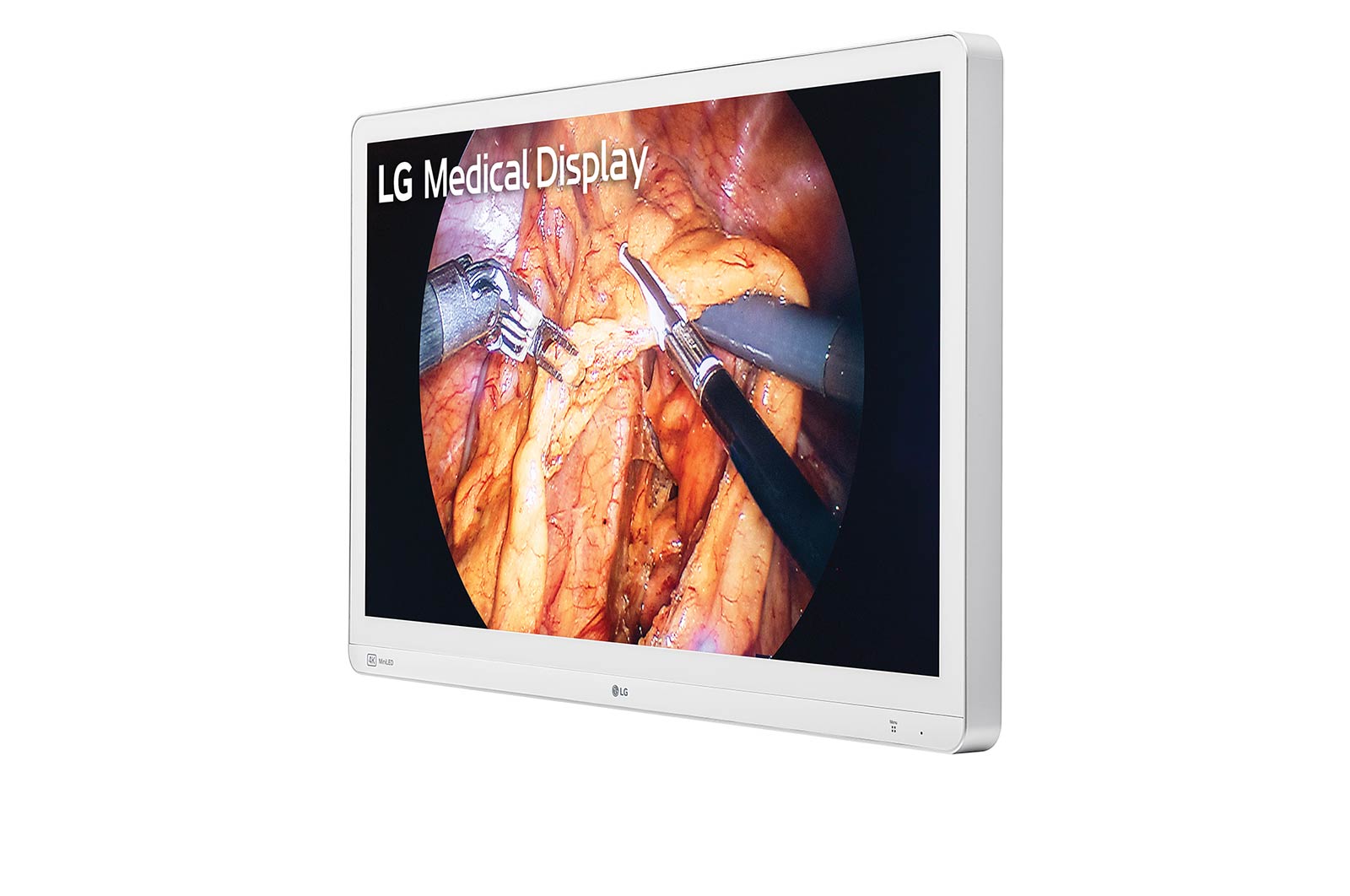

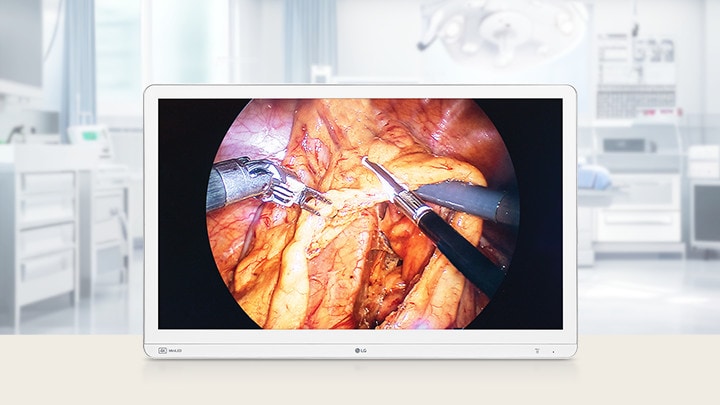

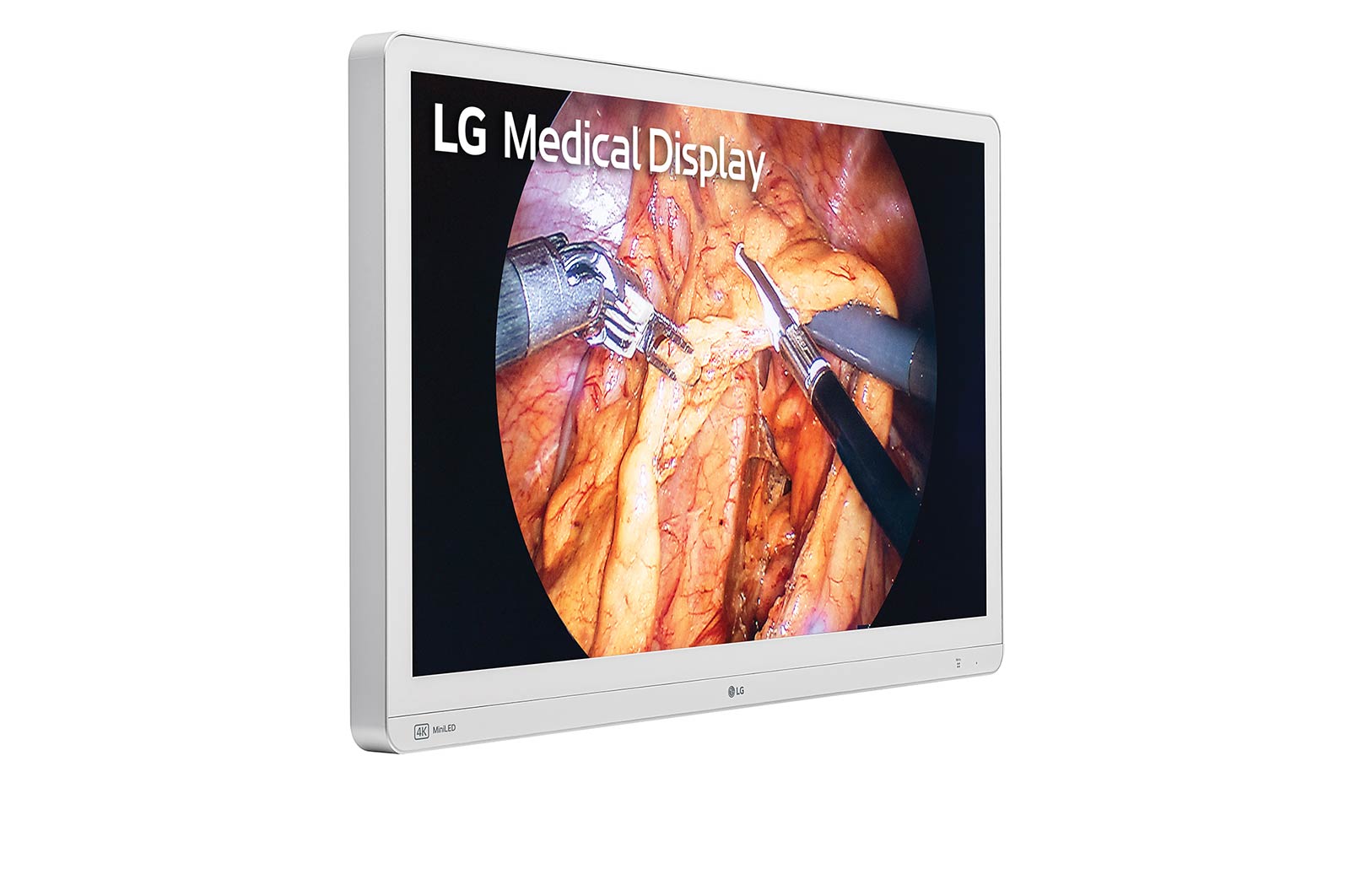

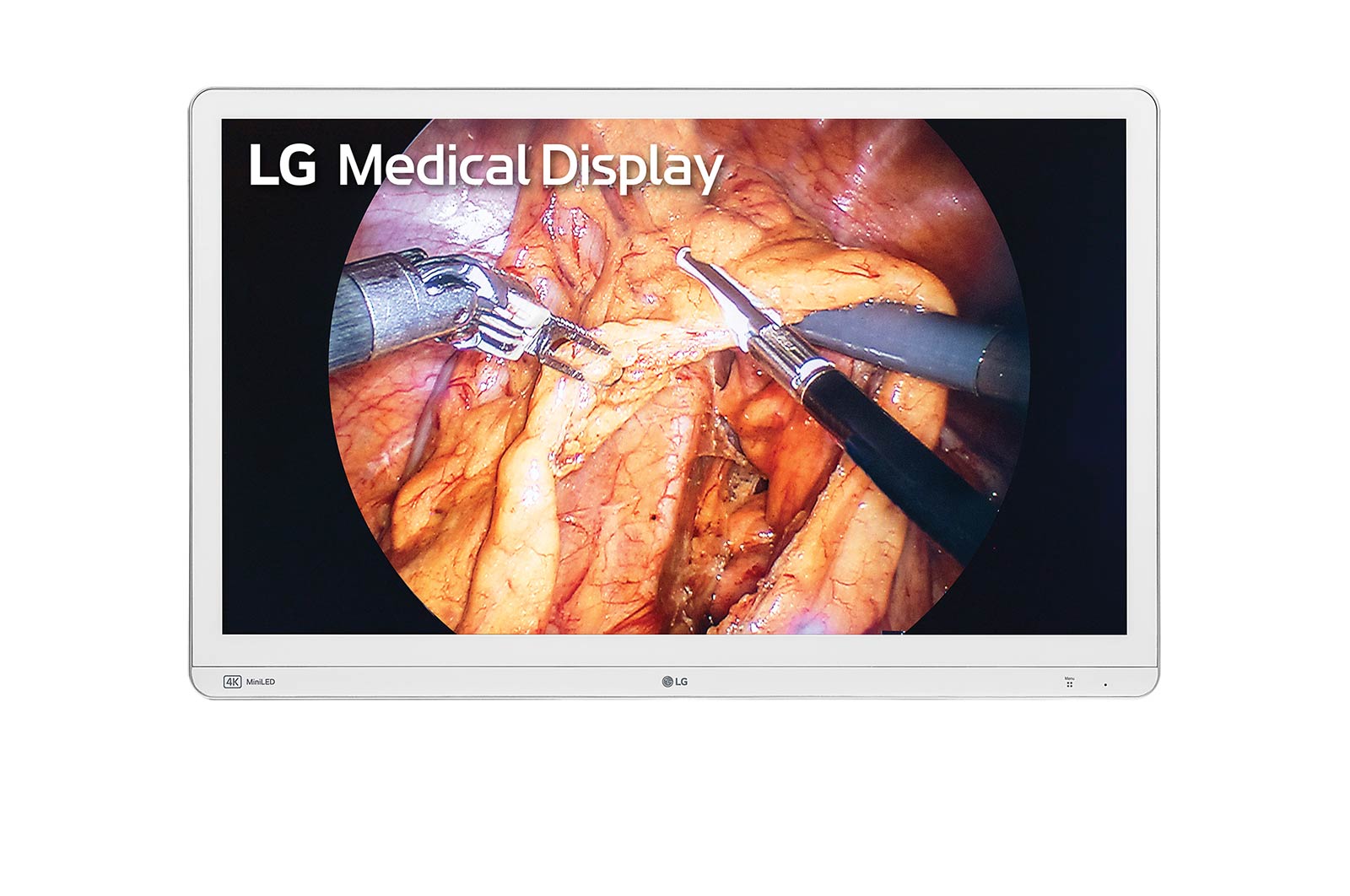

31.5” 4K (3840x2160) with Mini-LED
1.5K local dimming zones
DCI-P3 98% (CIE1976)
Optical bonding
IP45 (Front) & IK06
12G-SDI support
Clone screen
Up to 4 PBP & PIP
Failover input switch

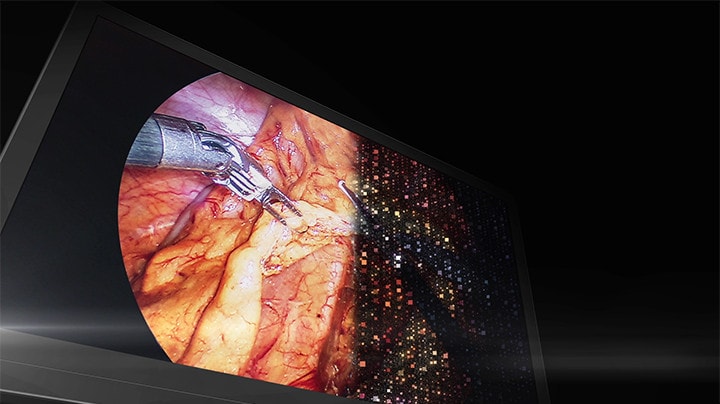

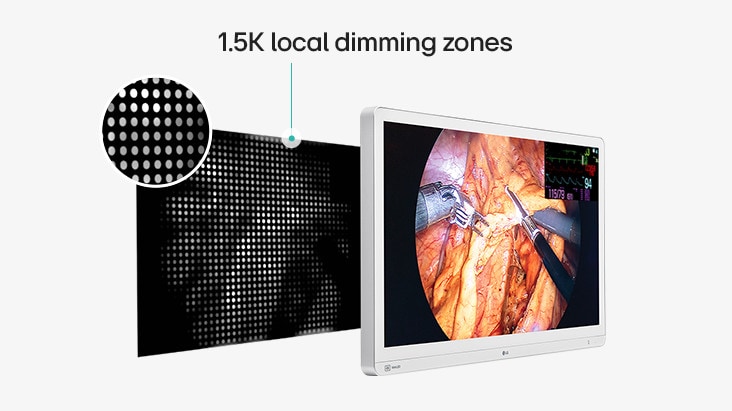

Local dimming, inherent to Mini-LED technology, enables precise brightness control across specific sections of the LED backlight, enhancing visual contrast by darkening the dark areas and brightening the light areas. This monitor, equipped with 1.5K local dimming zones, significantly enhances the dynamic contrast ratio to up to 1,000,000:1 and reaches a peak brightness of 2,000 cd/m².
Additionally, this local dimming technique may improve energy efficiency compared to traditional edge-lit backlight technologies, thereby
prolonging the display's durability.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

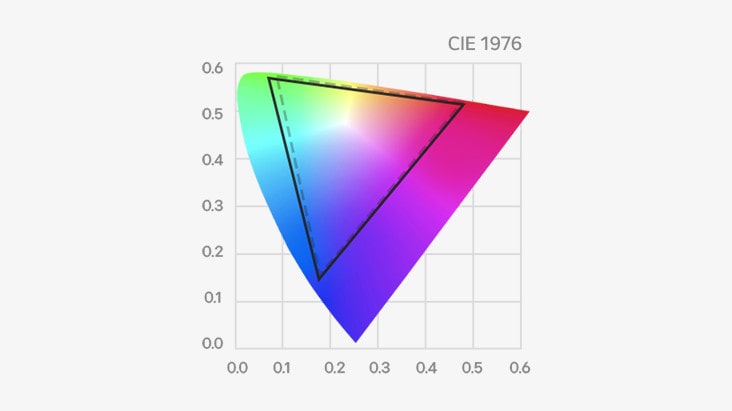

With a wide color range of DCI-P3 98% (CIE1976), the 32HR734S provides a great level of detail with optimized image clarity and color accuracy.
*Comparison of DCI-P3 (triangles outlined with gray dotted lines). The 32HR734S (triangles outlined in black) supports the color gamut of DCI-P3 98% (CIE1976).
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
The 32HR734S is engineered with optical bonding technology, seamlessly integrating the backlight, module, and glass without any air gaps, and further enhanced with Anti-glare, Anti-reflection, and Anti-fingerprint coatings on the front glass. This combination significantly improves display readability by minimizing reflections and glare, ensuring that image clarity and color accuracy are optimized even in brightly lit environments. The elimination of air gaps reduces light dispersion and loss, resulting in sharper and more vibrant images.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
*The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without optical bonding.
Without Anti-glare
With Anti-glare
The anti-glare coating of optically bonded glass reduces screen glare and reflection, providing a clear display even in brightly lit operating rooms.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
*The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without AG.
Without Anti-reflection
With Anti-reflection
The anti-reflection coating of optically bonded glass minimizes the reflectance of visible light wavelengths, providing clear images.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
*The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without AR.
Without Anti-fingerprint
With Anti-fingerprint
The anti-fingerprint coating of optically bonded glass reduces contamination from fingerprints and smudges, contributing to a clear display of the surgical area.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
*The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without AF.

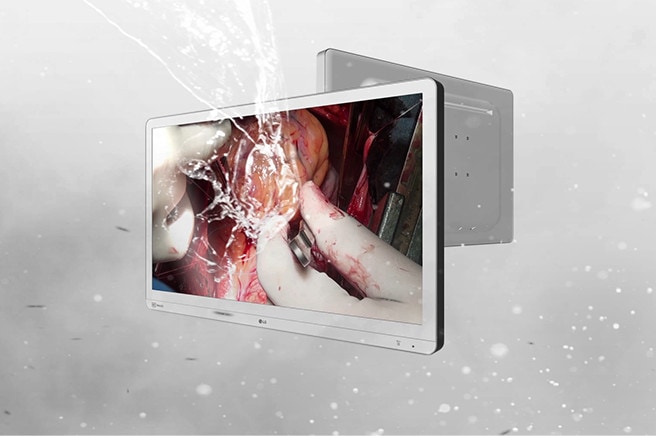

With IP45 (Front) and IP32 (Except for front) ratings, the 32HR734S is suitable for surgical environments where blood and other bodily fluids are likely to splash. Additionally, this monitor offers high resistance to physical impact, as denoted by its IK06 rating.
IP45 (Front) & IP32 (Except for front)
IP45 (Front) & IP32 (Except for front)
IK06
IK06
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

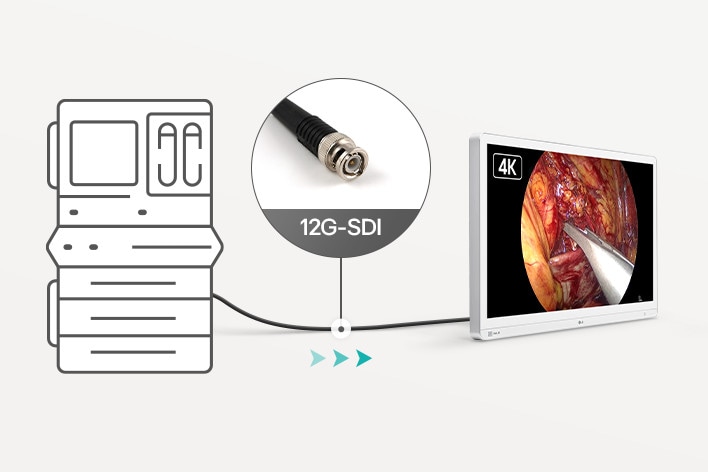

The 32HR734S supports 12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable.

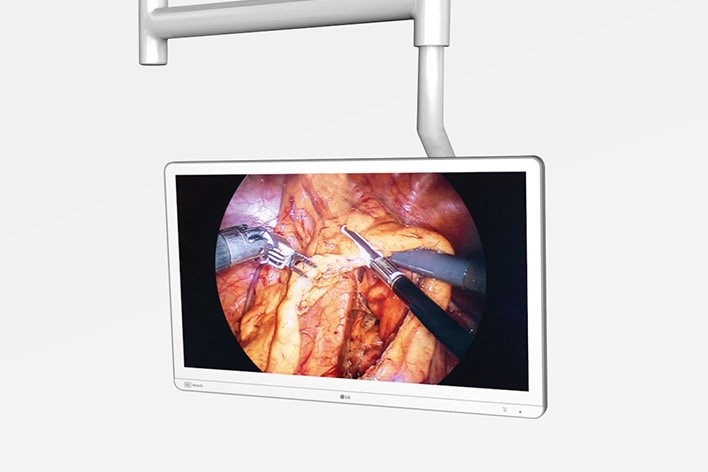

With a lightweight design of 9.7kg, this surgical monitor is suited for mounting on surgical arms and pendants.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

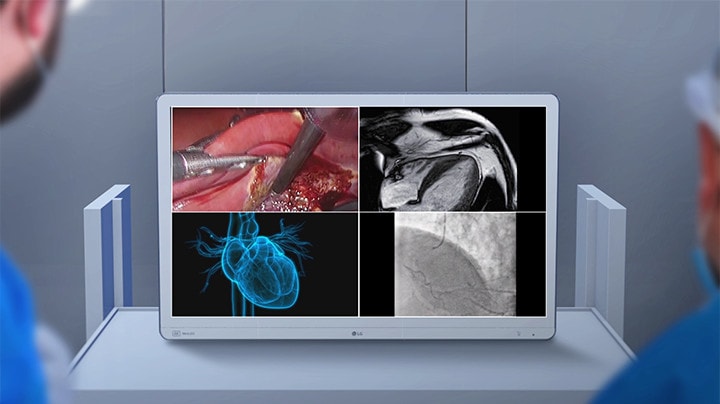

As the 32HR734S supports up to 4 PBP & PIP, medical professionals can monitor various critical information streams concurrently on a single screen, enhancing operational efficiency and decision-making. For example, medical staff can view a combination of laparoscopic and fluoroscopic images while monitoring vital signs.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

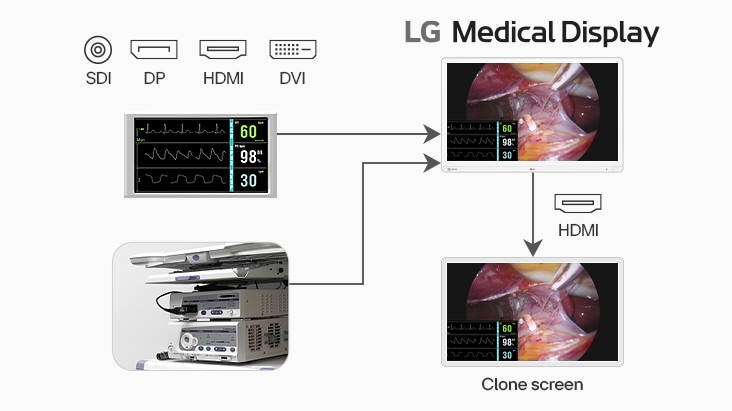

Using a Clone screen feature that replicates the entire display content onto a secondary monitor through HDMI output, members of the surgical team can visually monitor the progress of surgery which can help facilitate efficient collaboration and communication.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

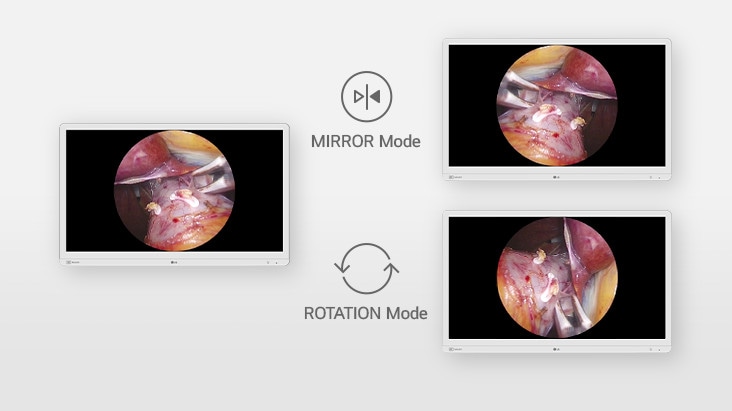

Mirror mode and Rotation mode allow users to adjust the display for optimal viewing, whether flipping the image horizontally or rotating it 180 degrees to match the orientation of the surgical camera.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

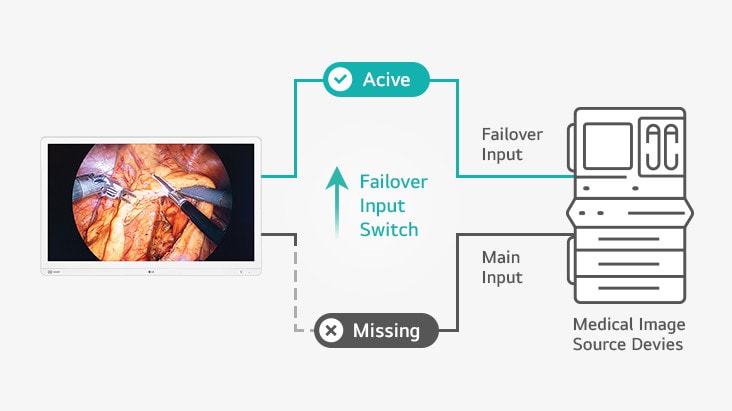

This feature provides an uninterrupted display by automatically switching to an alternative video source if the primary input fails, while compatible across various interfaces including HDMI, SDI, DVI, and DP. Particularly for 12G-SDI, the system can automatically switch from the primary input to the next available one if a signal loss is detected.
*All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
Weight
9.7 kg

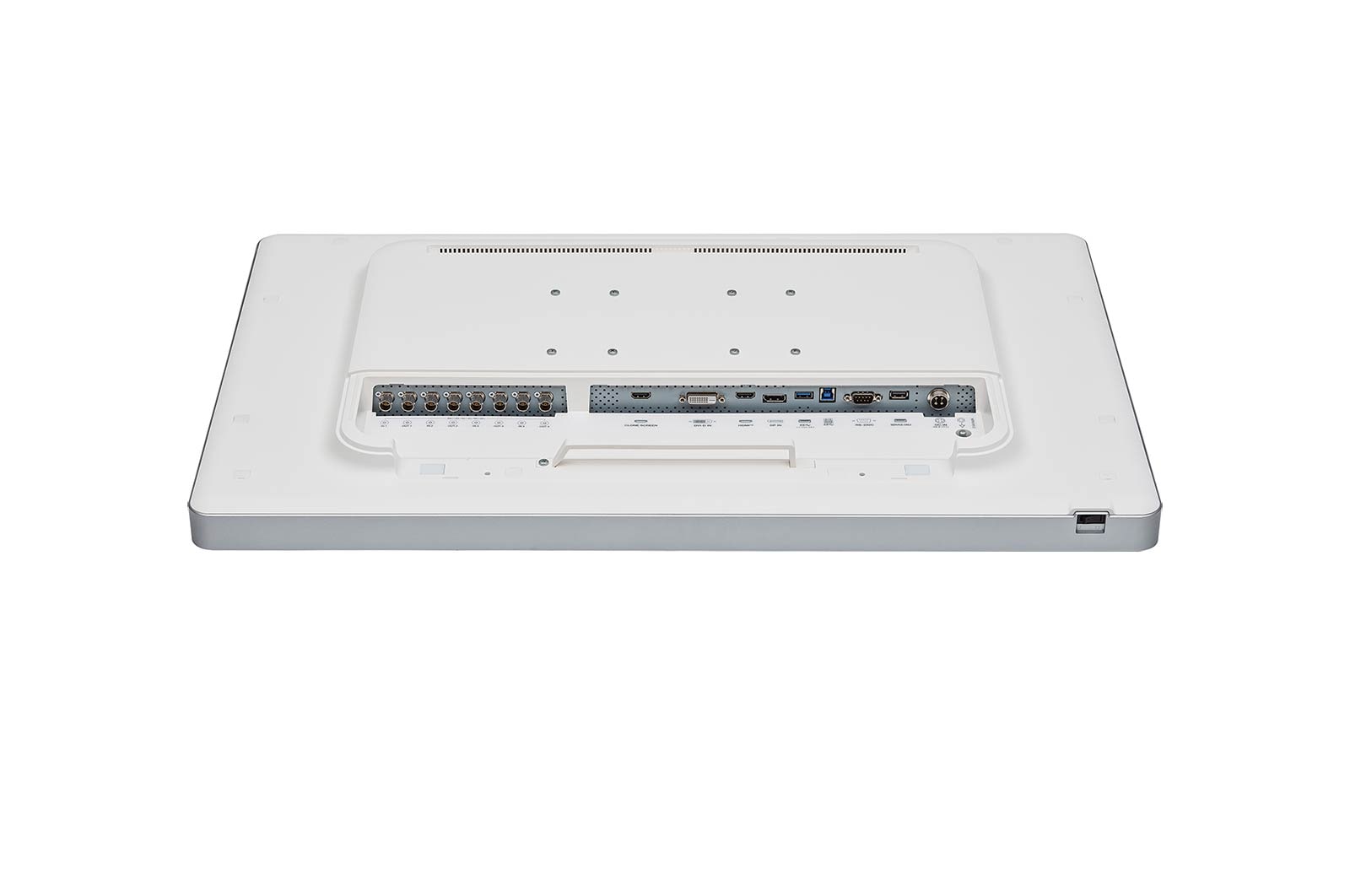

Input Terminals
HDMI x 1, DisplayPort x1,SDI(12G / 3G) x 4, DVI-D x 1
Output Terminals
HDMI (Clone Screen) x 1, SDI(12G /3G)x4
USB
USB 3.01 Upstream, 1 Downstream
Resolution
4K (3,840x2,160)
Panel Type
IPS
Aspect Ratio
31.5-inch(16 : 9)
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
Contrast Ratio (Typ.)
1000:1
Response Time
5 ms (GtG at faster)
Viewing Angle (CR≥10)
178° (Right / Left), 178* (Up/ Down)
Brightness (Typ.) [cd/m²]
800 cd/m2
Color Bit
10 bit
Surface Treatment
Protection Glass (Optical Bonding, Anti-Reflection, Anti-Fingerprint, Anti-Glare)
Backlight Technology
Mini-LED
Peak Brightness (Typ)
2,000 cd/m2
IP(front/except for front)
IP45/IP32
DICOM Compliant
Yes
Brightness stabilization
500 cd/m²
Failover Input Switch
Yes
HDR
HDR 10, HDR Effect
PBP/PIP
Yes(2/3/4PBP)/Yes
Screen Flip
Mirror Mode & Rotation Mode
AC Input
100-240 Vac, 50/60 Hz
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
130W

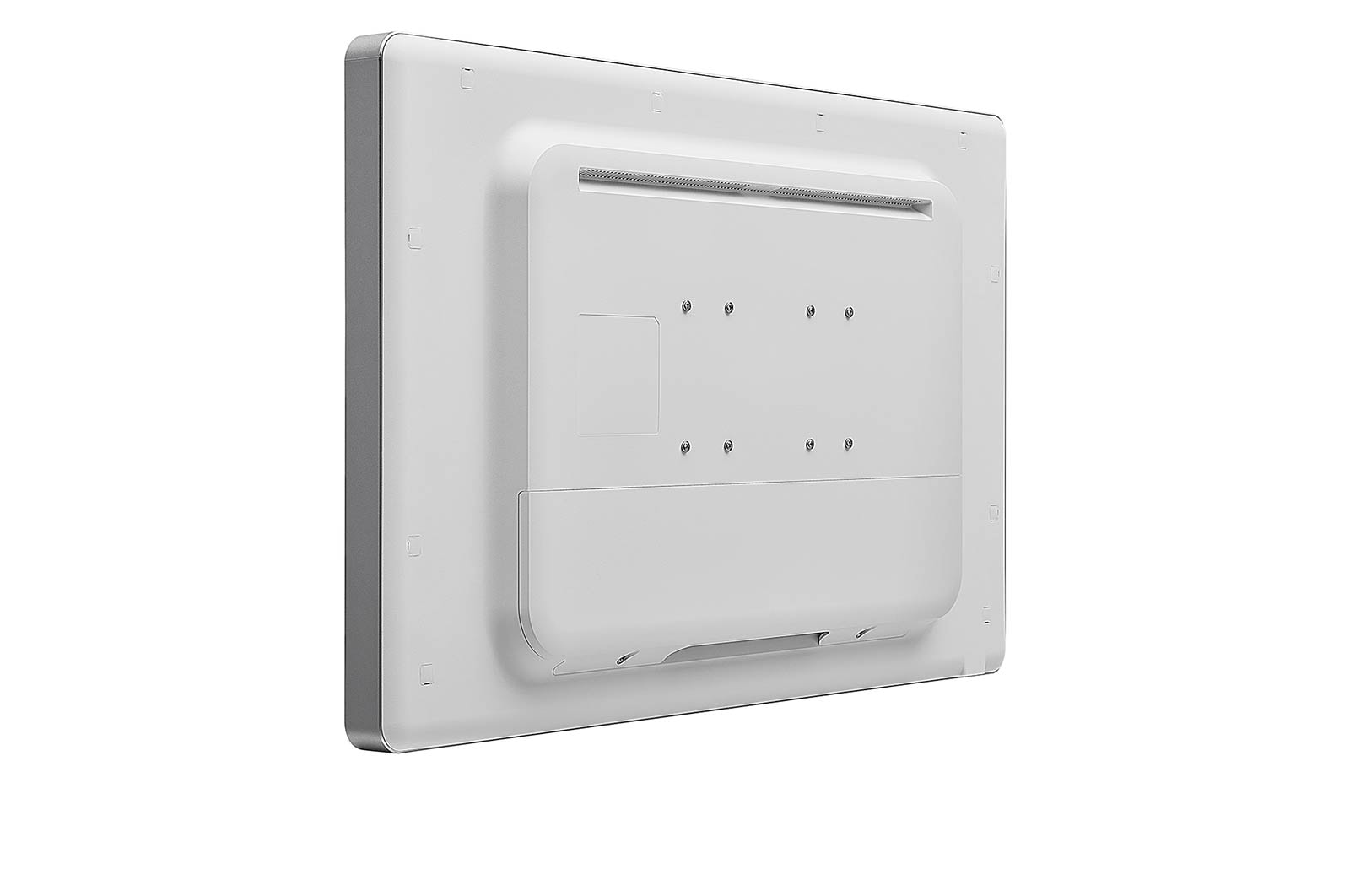

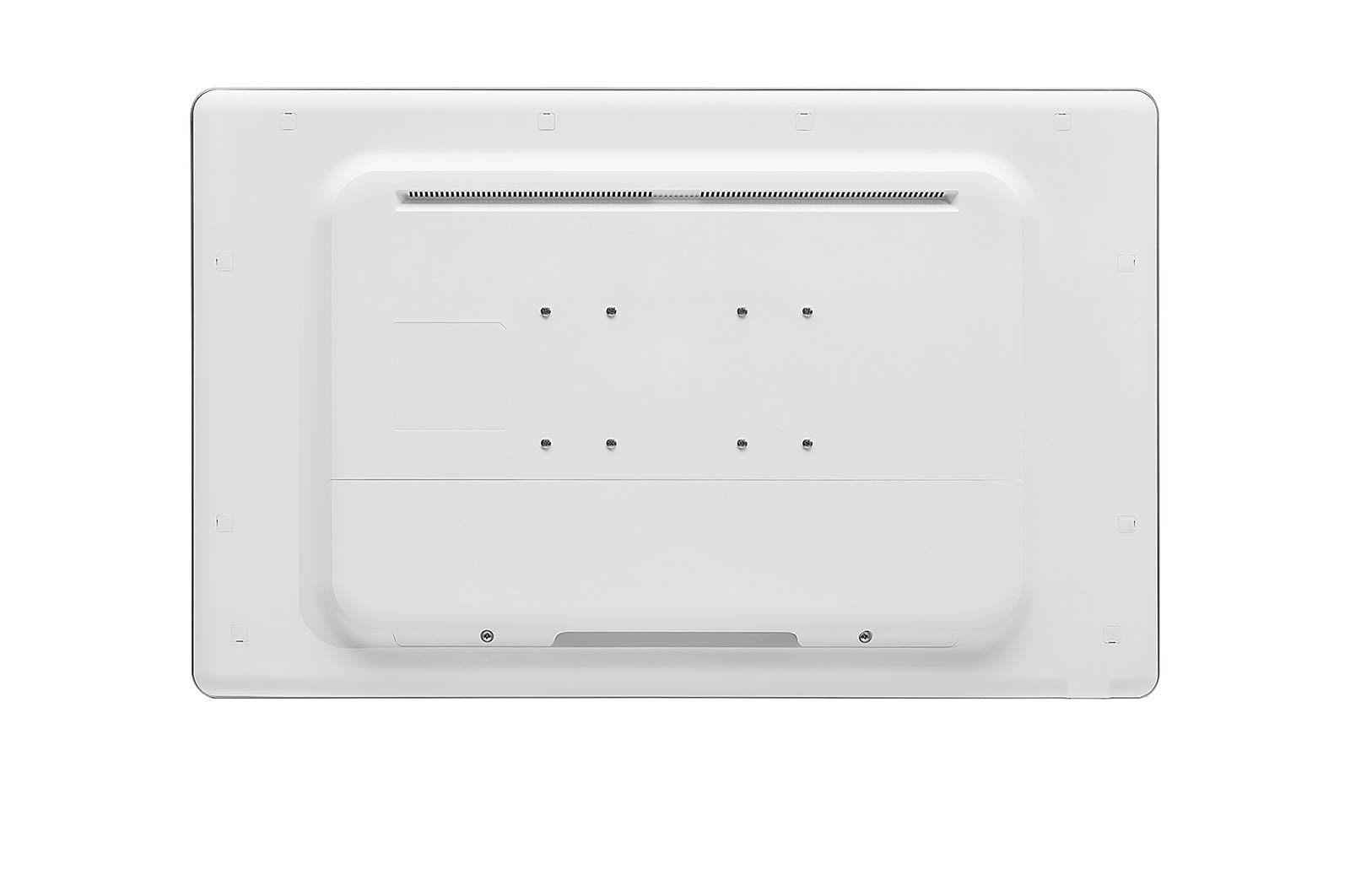

Wall Mountable [mm]
200 x100mm /100x 100 mm
