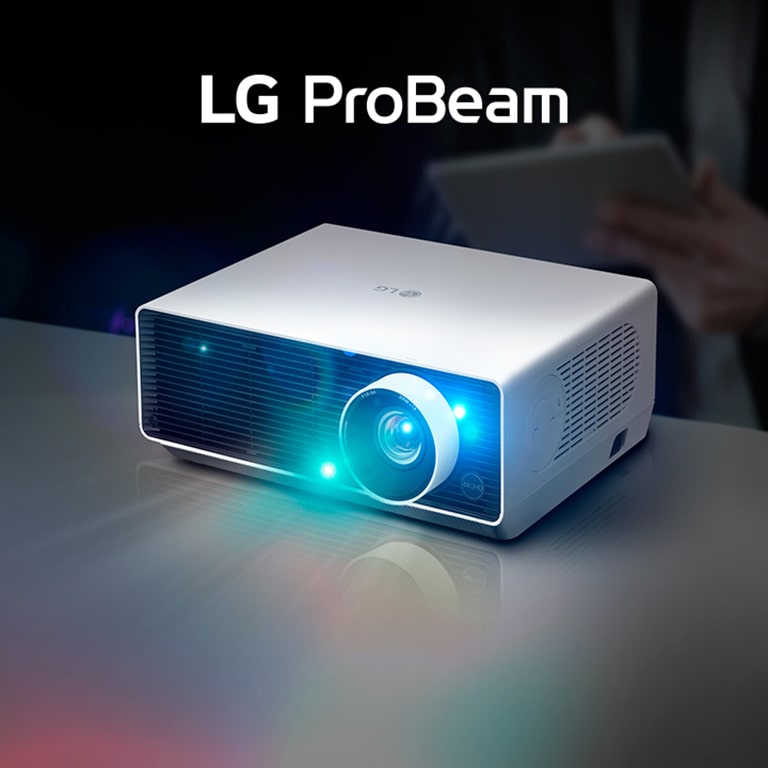

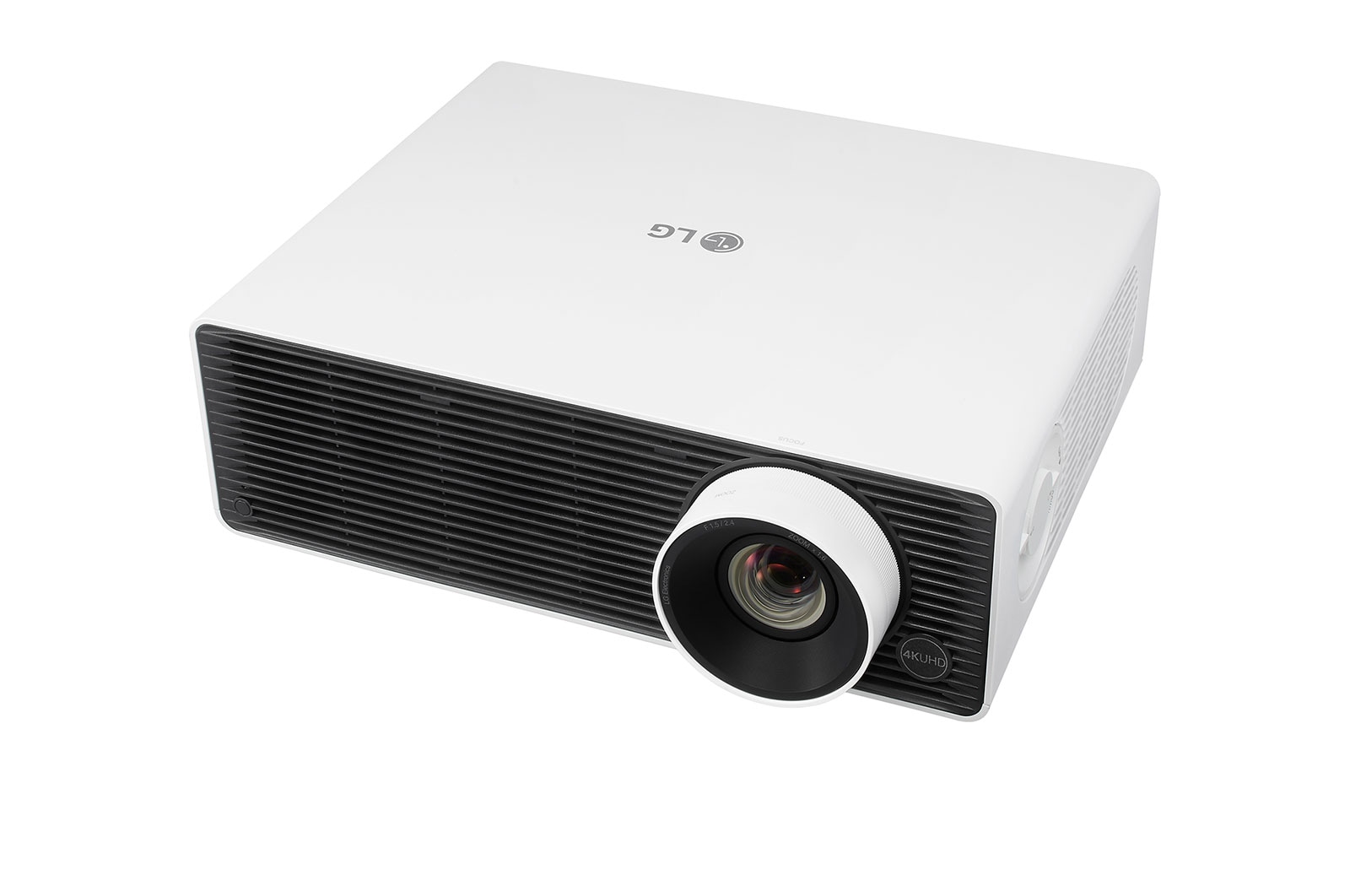

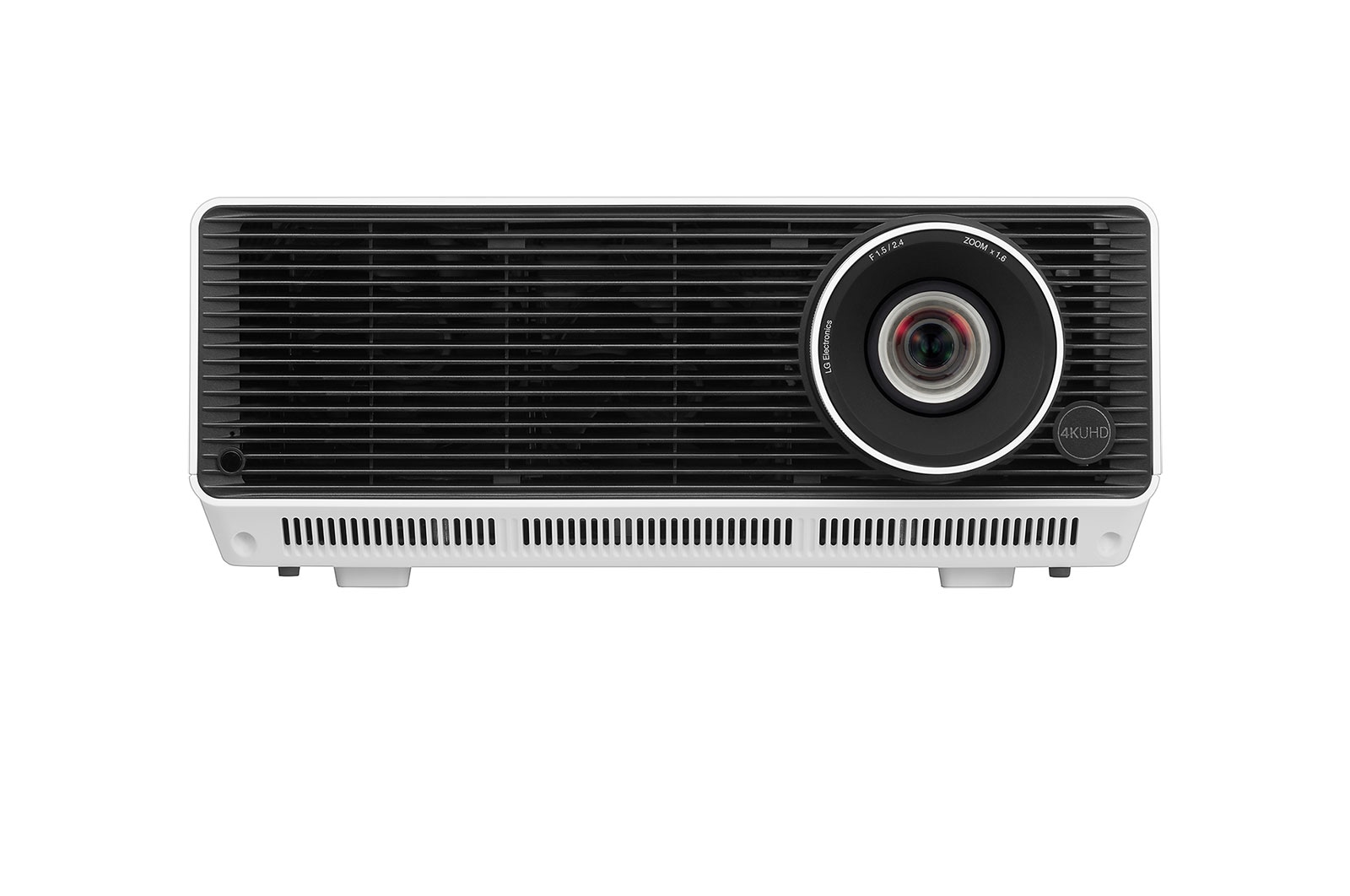

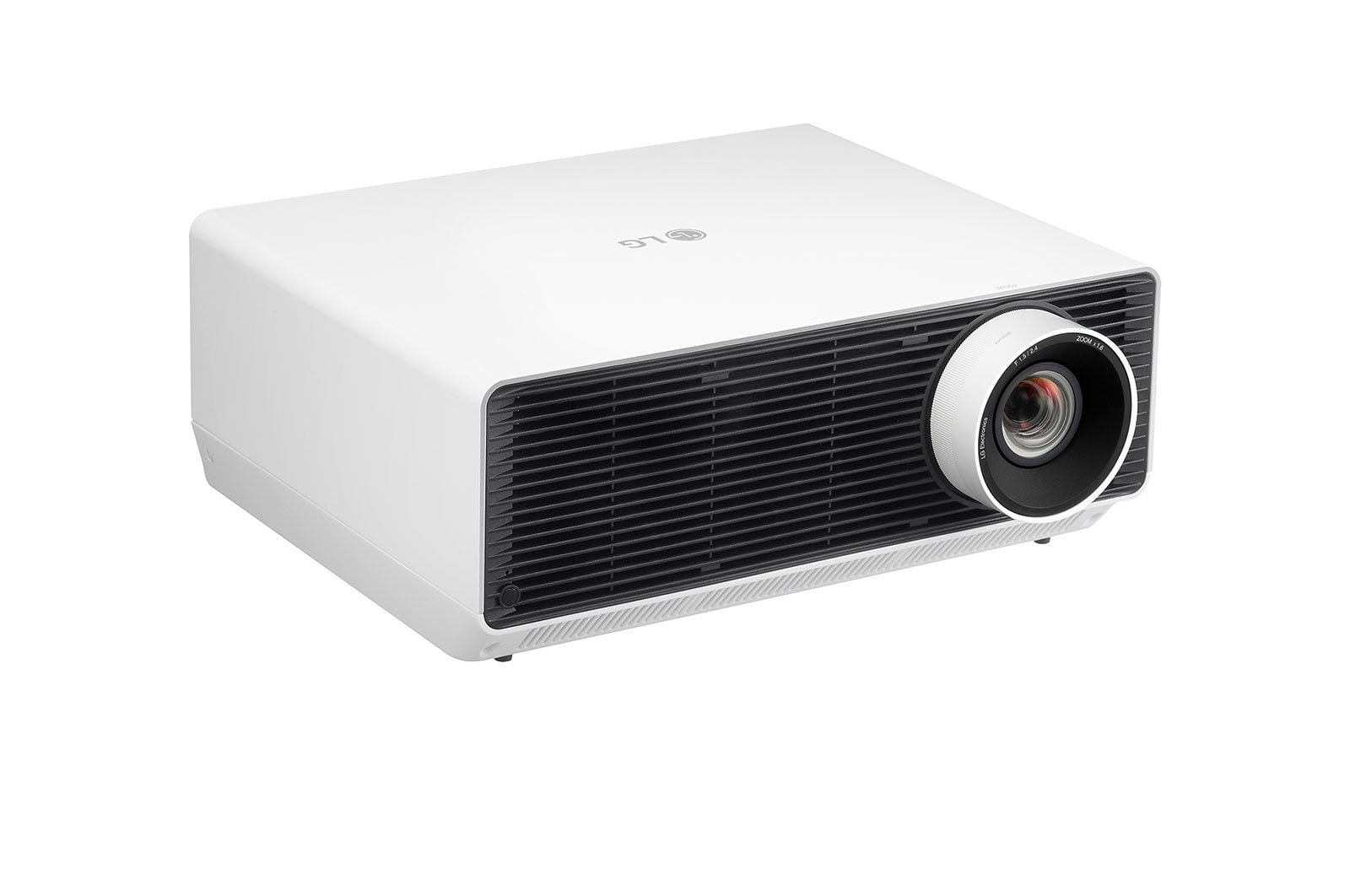

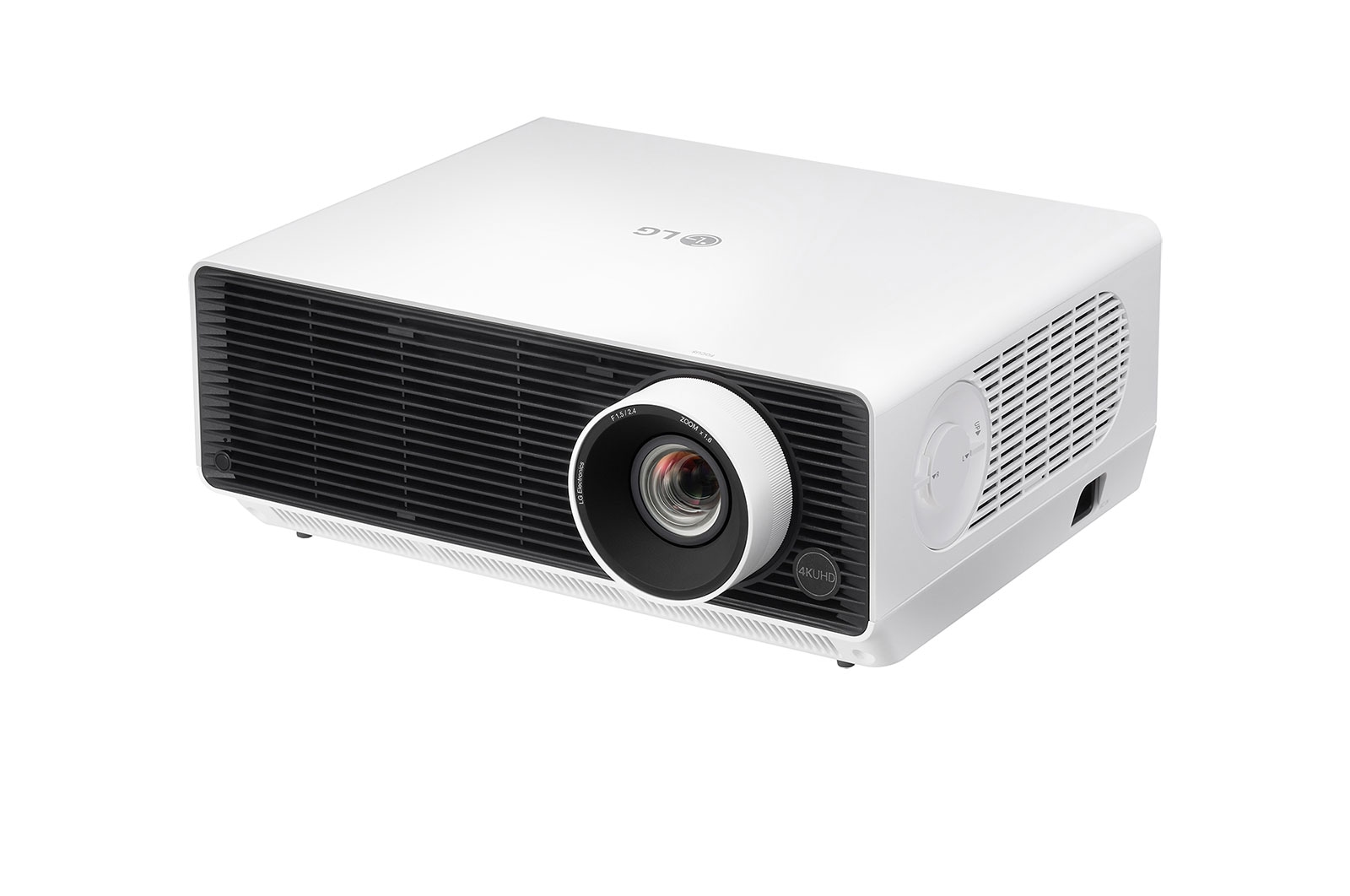

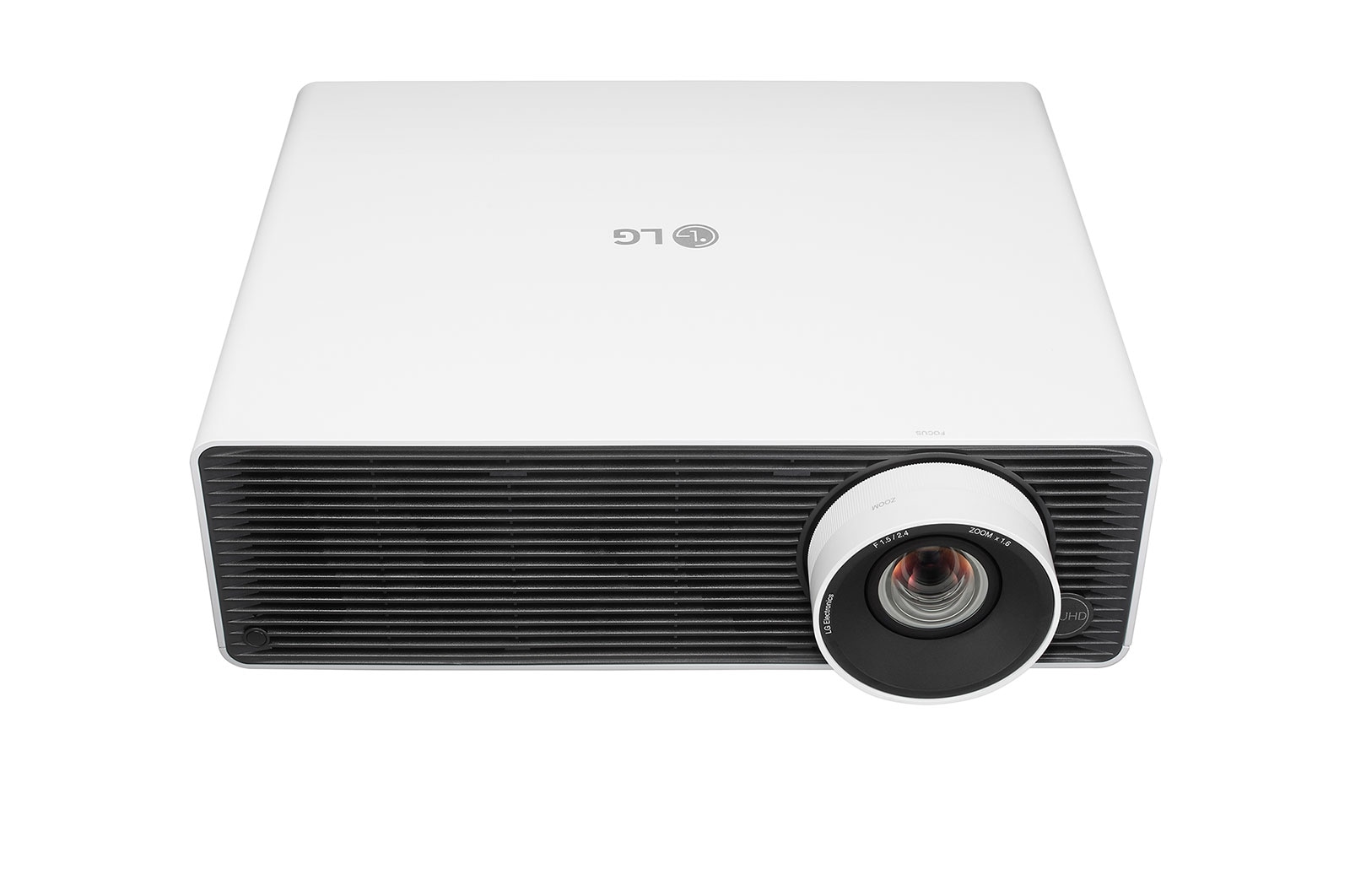

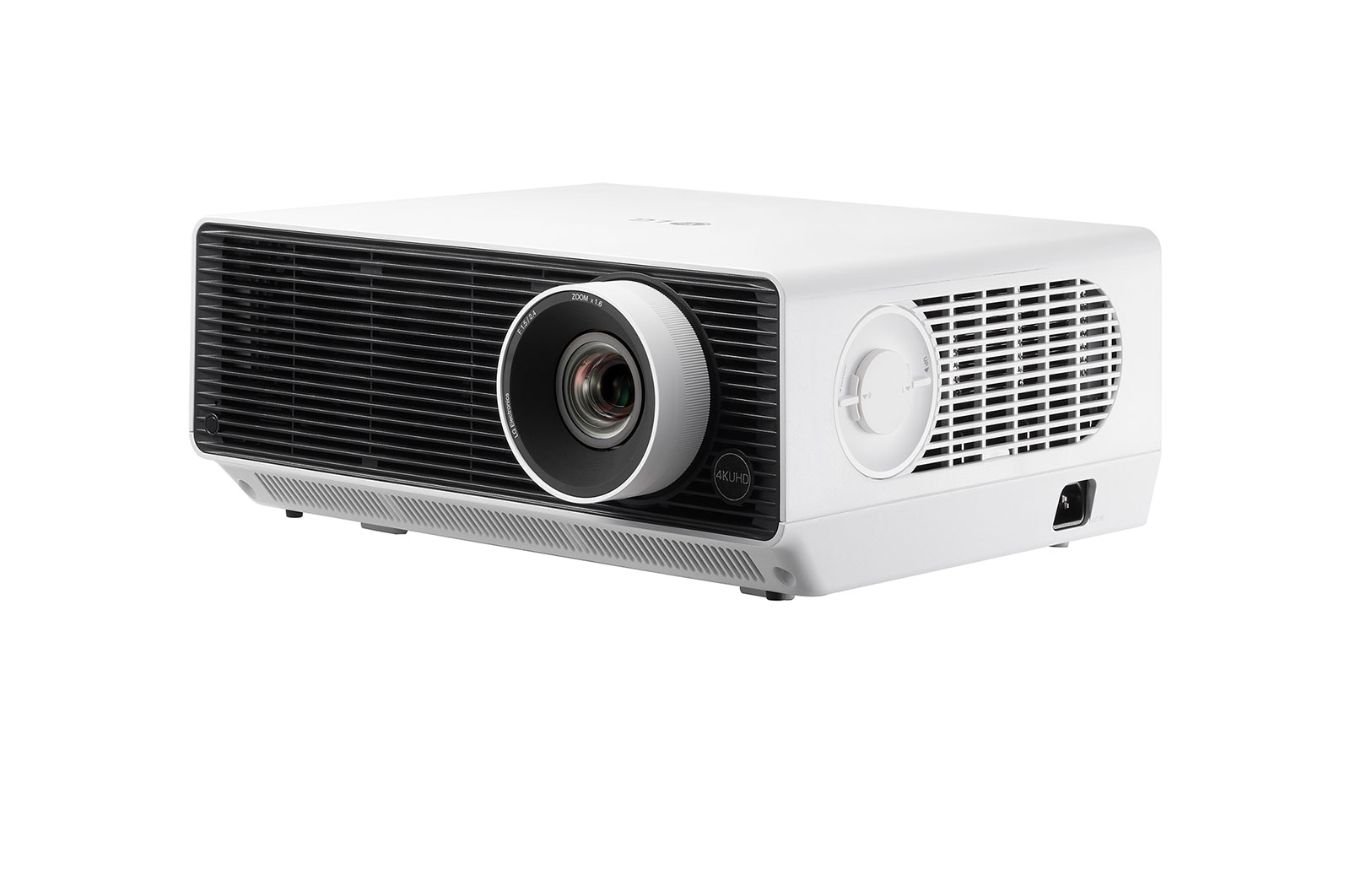

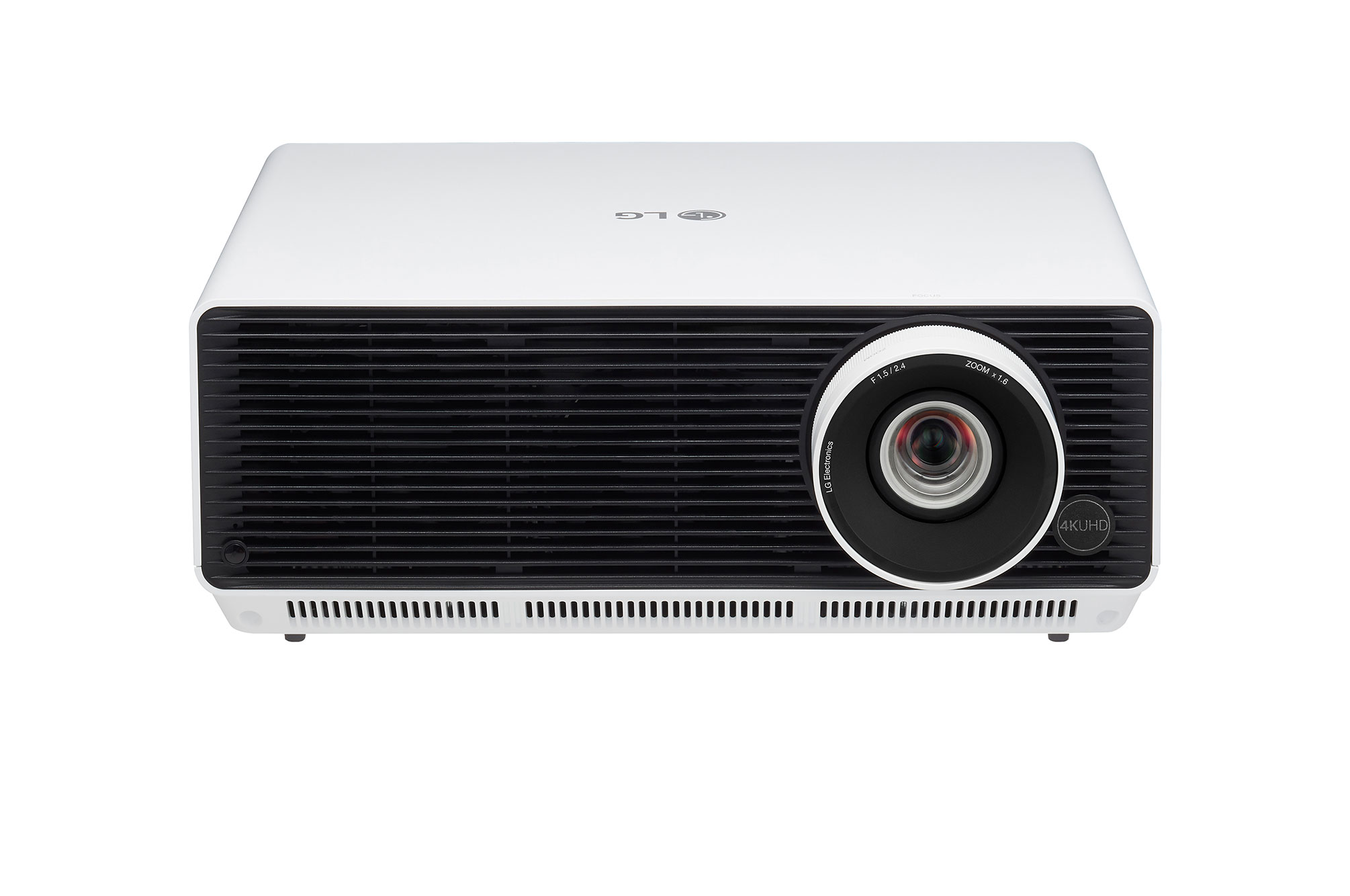

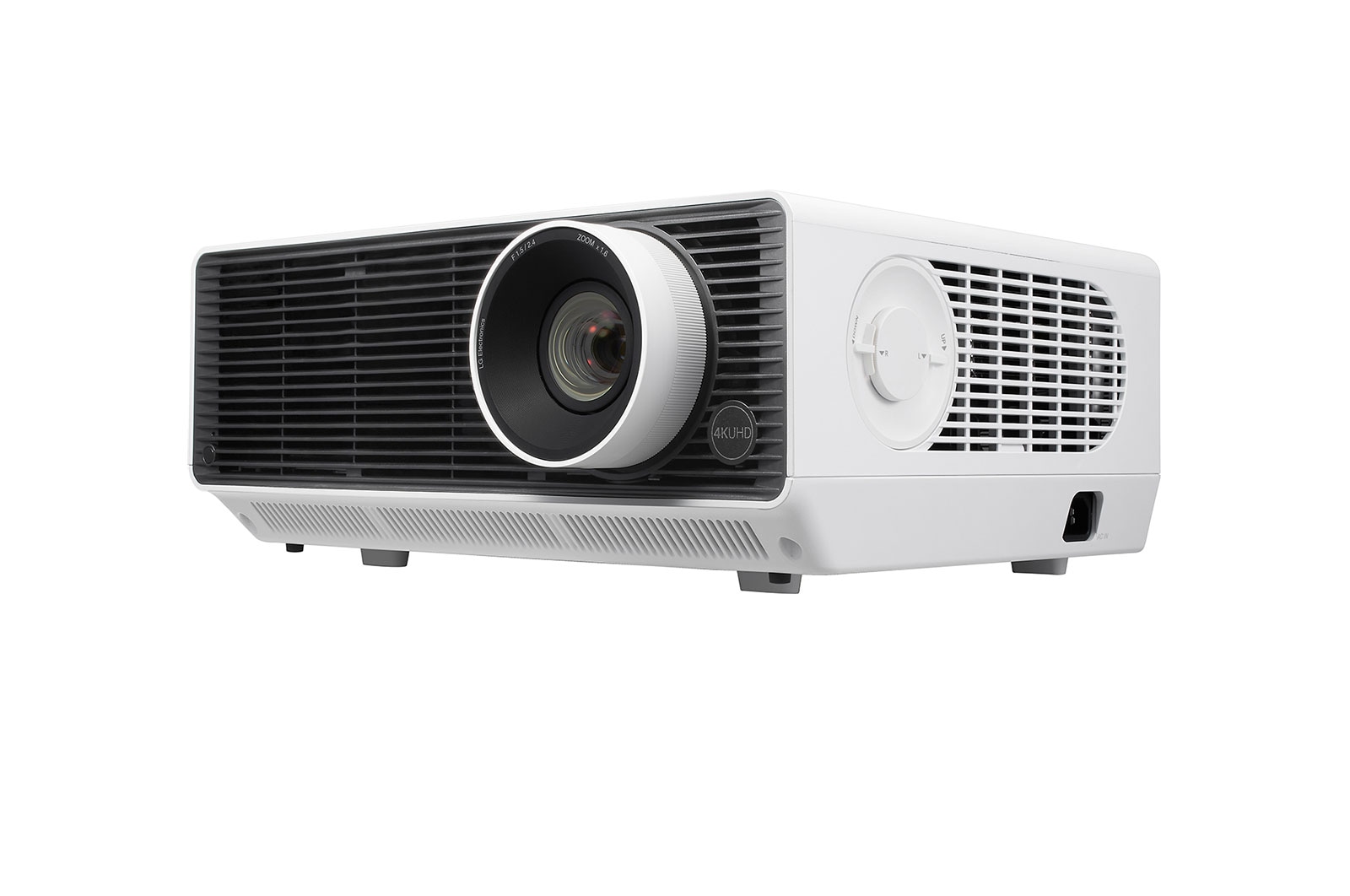

4K UHD (3840x2160) Laser
5,000 ANSI Lumens
Zoom 1.6x
Lens shift H ±20%, V ±50%
SuperSign
LG Connected Care
*The images simulated to enhance feature understanding. It may differ from actual use.
Real 4K laser
LG ProBeam brings a stunning visual quality even on up to 300-inch big screen with 8.3 million pixels utilizing 4K UHD laser technology.
*The images simulated to enhance feature understanding. It may differ from actual use.

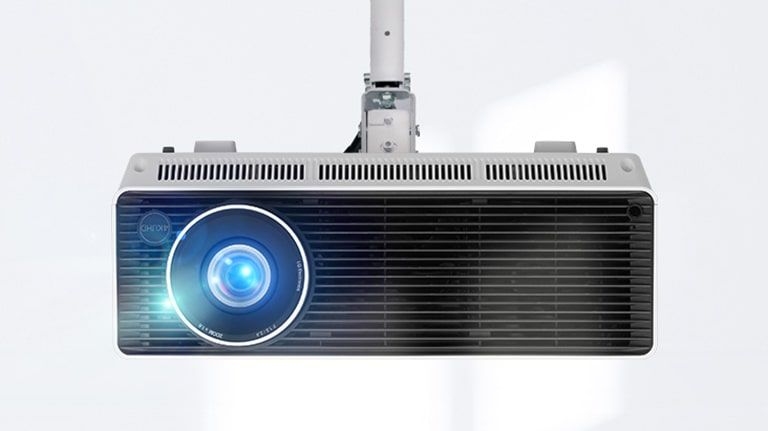

5,000 ANSI Lumens
5,000 ANSI Lumens of brightness delivers clarity, even in brightly lit conference rooms, minimizing image quality deterioration and magnifying the productivity of business meetings.
Scalable & adaptive projector
LG ProBeam is a general-purpose business projector with ambient lighting for meeting rooms of various sizes. LG ProBeam helps you to communicate small texts or figures with high resolution and brightness.
LG ProBeam projects proper imagery for learning with high brightness to reduce the impact of ambient lighting in various learning spaces so that students can view the shared materials.

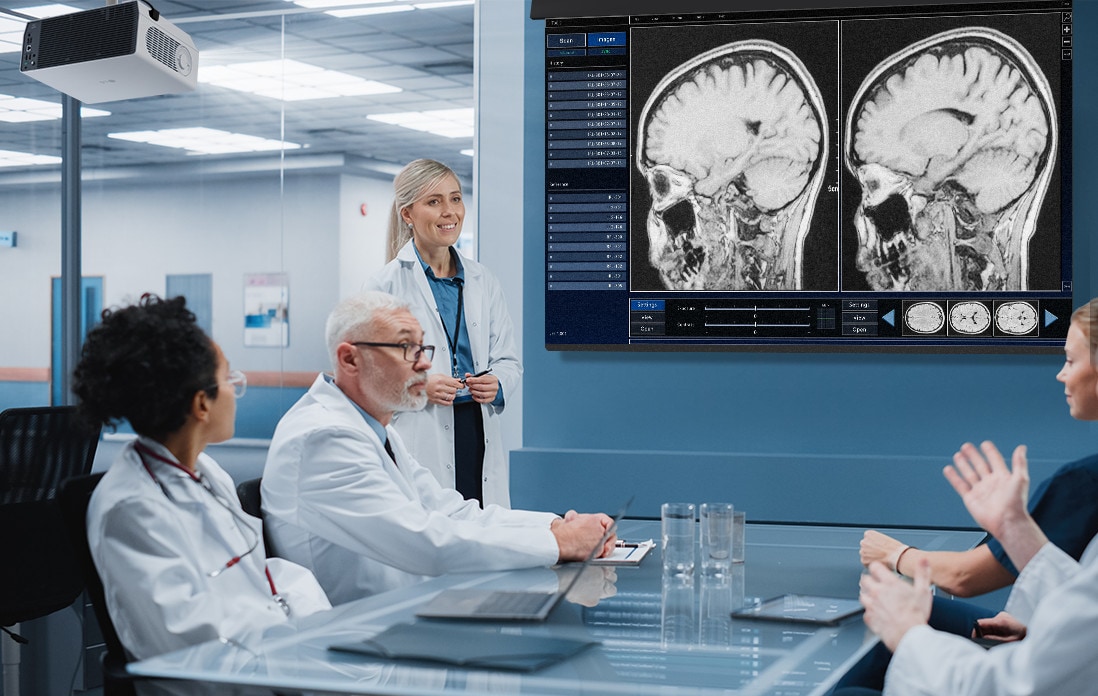

LG ProBeam can project the monochrome medical image with DICOM 14 compliance, which is suitable for medical conferences.
*The images simulated to enhance feature understanding. It may differ from actual use.
With zoom x1.6 & lens shift (H ±20%, V ±50%) functionality, the user can easily set the screen through fine-tuning by adjusting the lens and zoom.
Zoom x1.6
Lens shift (H ±20%, V ±50%)
Up to 25 point warping
You can adjust screen distortion and set up a precise screen by using the 4/9/15/25 point warping function on the screen.
*The images simulated to enhance feature understanding. It may differ from actual use.
Up to 20,000 hours of life
The powerful laser light source displays bright images and lasts up to 20,000* hours.
2 hours of daily use
4 hours of daily use
8 hours of daily use
*It may vary depending on product usage environment and care method.
*The images simulated to enhance feature understanding. It may differ from actual use.
SuperSign
By supporting signage-optimized functions, various solutions such as content distribution and remote management of installed projectors are provided.
It is a content management software solution optimized for LG webOS signage. It supports multiple displays and accounts, so multiple users can easily access the server from pc or mobile, then manages content creation and editing, scheduling, and distribution.
SuperSign Control+ is a remote control and monitoring software solution. It focuses on large scale deployment. Multiple administrators can access the SuperSign Control+ server via the network to monitor the status of connected displays in real-time, control them, and adjust their setting values.
It is a cloud service solution that can remotely manage the operating status of installed projectors, helping your stable business operations by providing remote monitoring and fault diagnosis.
1. Real-time monitoring
2. B2B call center : request assistance
3. SE preparation : mobile diagnosis
4. Site visit by service engineer
5. Troubleshooting
6. Issue resolved
*Users may be subject to additional fees when using SuperSign Control+, SuperSign CMS, and LG ConnectedCare™ based on their respective regions.
You can simulate LG projector in your space with LG Projection Calculator.
Projection System
DLP
Native Resolution
4K UHD (3840 x 2160)3)
Brightness (ANSI Lumen)
5000
Contrast Ratio
3,000,000:1 ↑
Energy Saving Min. (Bright)
29
Energy Saving Med.
27
Energy Saving Off (Max)
26
Uniformity (JBMMA 9 Point)
0.85
Changeable F#
○
Focus (Auto / Manual)
Manual
Zoom
1.6x
Screen Size
40" ~ 300"
Standard (lens to wall)
Wide 2880 /Tele 4630 (100'')
Throw Ratio
1.30 - 2.08
Lens Shift
O ( Horiz ± 20% / Vert ± 50% )
Projection Offset
1
Type
Laser (LD + P/W)
Life High Brightness
20,000 Hrs
Aspect Ratio Control
Full / Original
Panel Aspect Ratio Control
16:6 / 16:9 / 16:10 / 21:9 / 4:3
Output
10W (5W+5W)
Dolby Surround Audio
X
DTS-HD
X
Clear Voice
○ (Clear Voice lll)
Net Size (mm) (W x D x H)
370 x 290 x 155.7 370 x 290 x 143.7 (Without Leg)
Gross size (mm) (W x D x H)
580 x 441 x 273
Net Weight (kg or g)
9,7Kg
Gross Weight (kg or g)
11.5KG
Power Consumption (Max.)
400W
Stand-by Power
0.5W↓
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
Operation Temperature
0 ~ 40℃

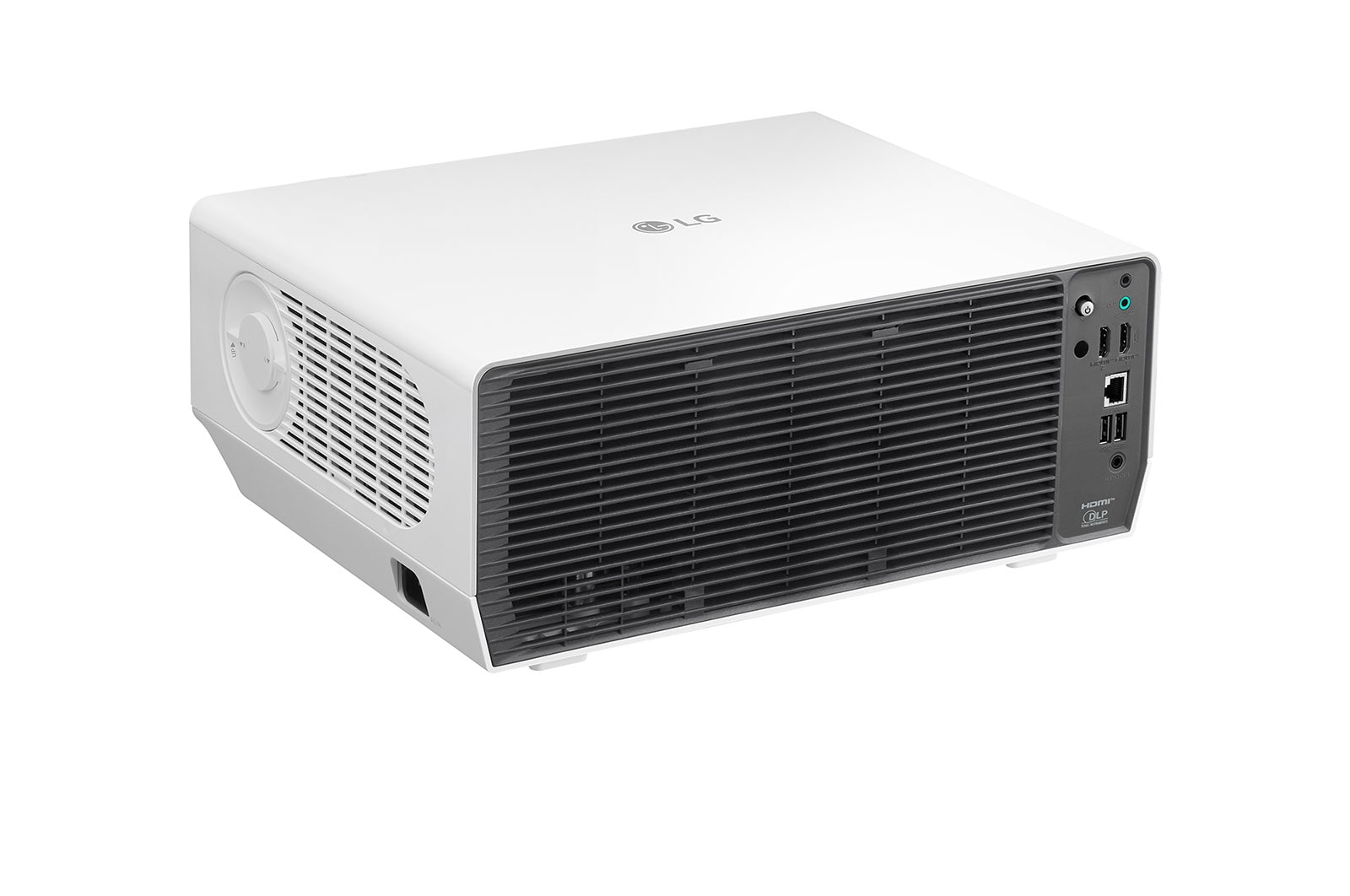

Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)
Audio out
○(Phone jack)
RS-232C(in)
1
RS-232C(out)
1
IP control
○
RJ45
1
HDMI (in)
2
USB Type-A
2 (USB2.0)
Platform (OS, UI)
Signage webOS 6.0
Screen Freezing
O
Contents Suggestion
X
Internet Browser
X
Home Dashboard (Input, IoT with OFC device)
X
Screen Share (Wireless Mirroring with MiraCast supporting device)
○
Contents Sharing (with DLNA supporting device)
○
Bluetooth Sound out
○
LG Sound Sync(with Sound Bar)
○
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
○
USB Host (Movie, Music, Photo)
○ (Exclude Music)
Setting Guide
○ (Bean Bird)
HID (Keyboard/Mouse/GamePad Connection Thru USB)
○
Eco Function - Energy Saving Mode
○ (Min/Mid/Max)
Eco Function - Auto Off / Auto Sleep
○
Eco Function - Time Power On/Off
○ (On / Off)
Eco Function - Automatic Standby / Auto Power Off
○
HDR
O
HDR Effect
X
DICOM
○
TruMotion
○
Digital Keystone Correction
Warping (4/9/15/25/HV)
Auto Keystone
X
HDCP
HDCP2.2
Quick(Instant) Power on/off
○ (on 12 Sec off 2 Sec)
Store Mode
X
Built-in Memory (for Storage)
O(about 9G)
Background Image
○
Blank
○
Image Flip
○ (Horizontal/Vertical)
PIP
○
PBP
○
Crestron RoomView™
○
24/7 Operation
○
One Quick Share
○
Black Level Control
○
Color Temperature Adjustment
○
Expert controlvADJ
○
Brilliant Color™ (Overlap Duty)
○
Gamma Correction (Expert control)
○
Noise Reduction
○
HDMI ARC(Audio Return Channel)
○
HDMI simplink(CEC)
○
Self Diagnosis
X
Eco Function - HDD Eco Mode
X
Eco Function - Sleep Timer
X
File(Office) Viewer
X
Edit mode / Recent
X
Cabinet Color
Top/Bottom - White Front/Rear - Black
Local Key
Joystick
Kensington Lock
○
Leg-Stand
○ (4 Leg)
Ceiling mount hole (for bracket)
○
Manual (Full or Simple Book)
Simple Book
Quick User Guide (Quick Set-up Guide)
○
Warranty Card
○
RS232C cable(D-sub to phone)
1
Power cord
1
Remote Control - Normal
O
Conformances(Regulation)
FCC/ETL/CE/CB/CCC/PSE/BIS
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
