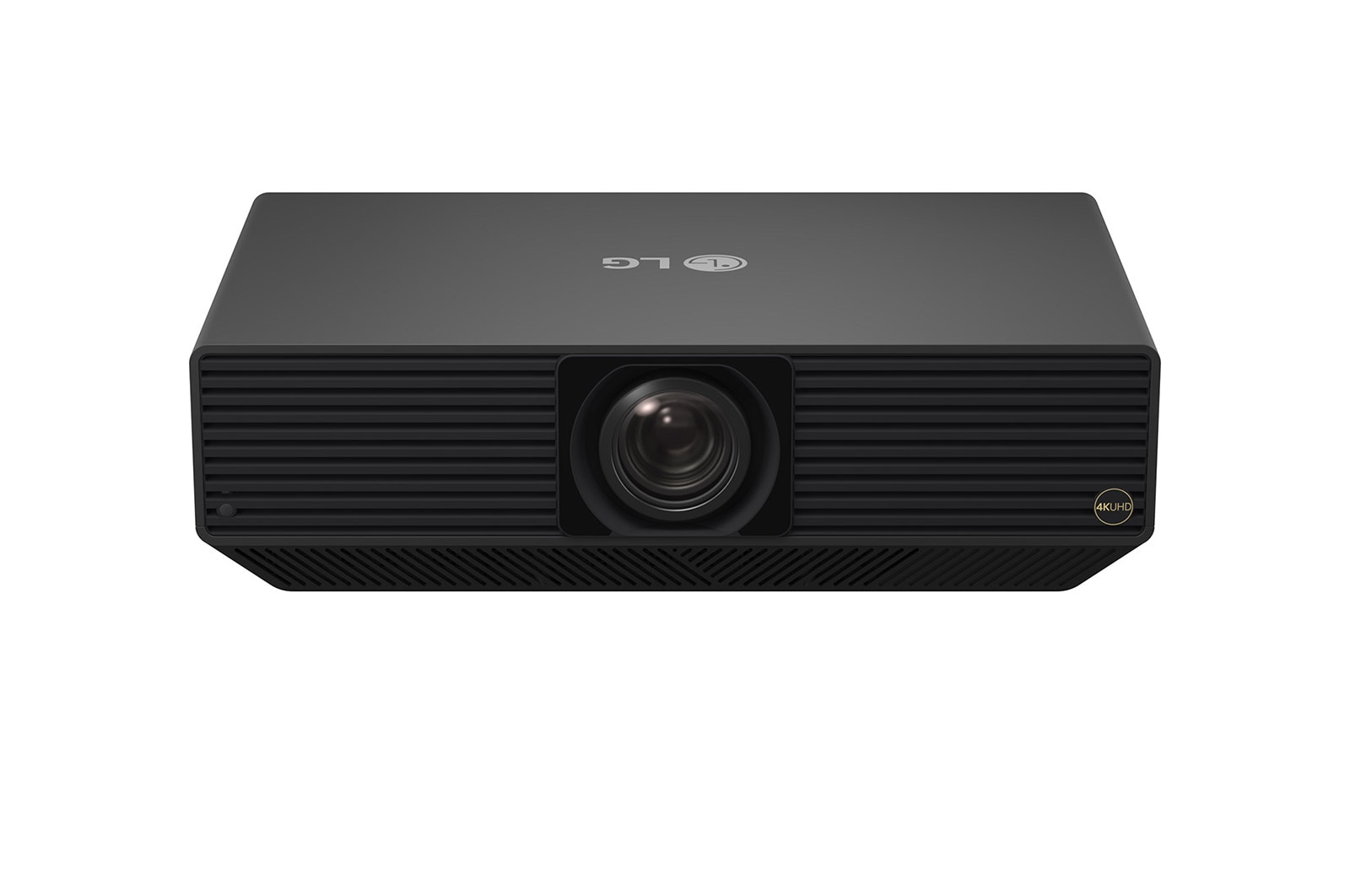

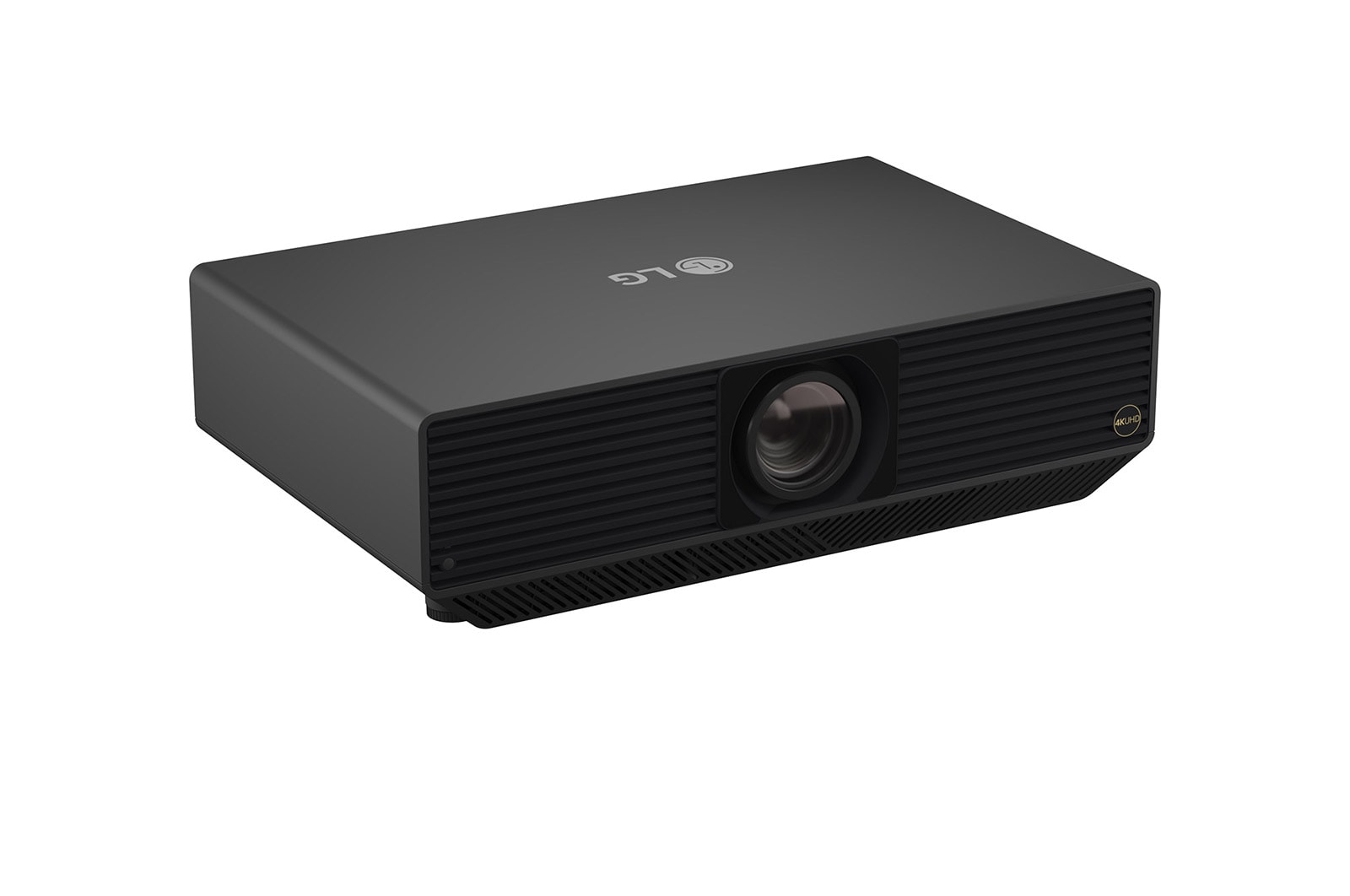

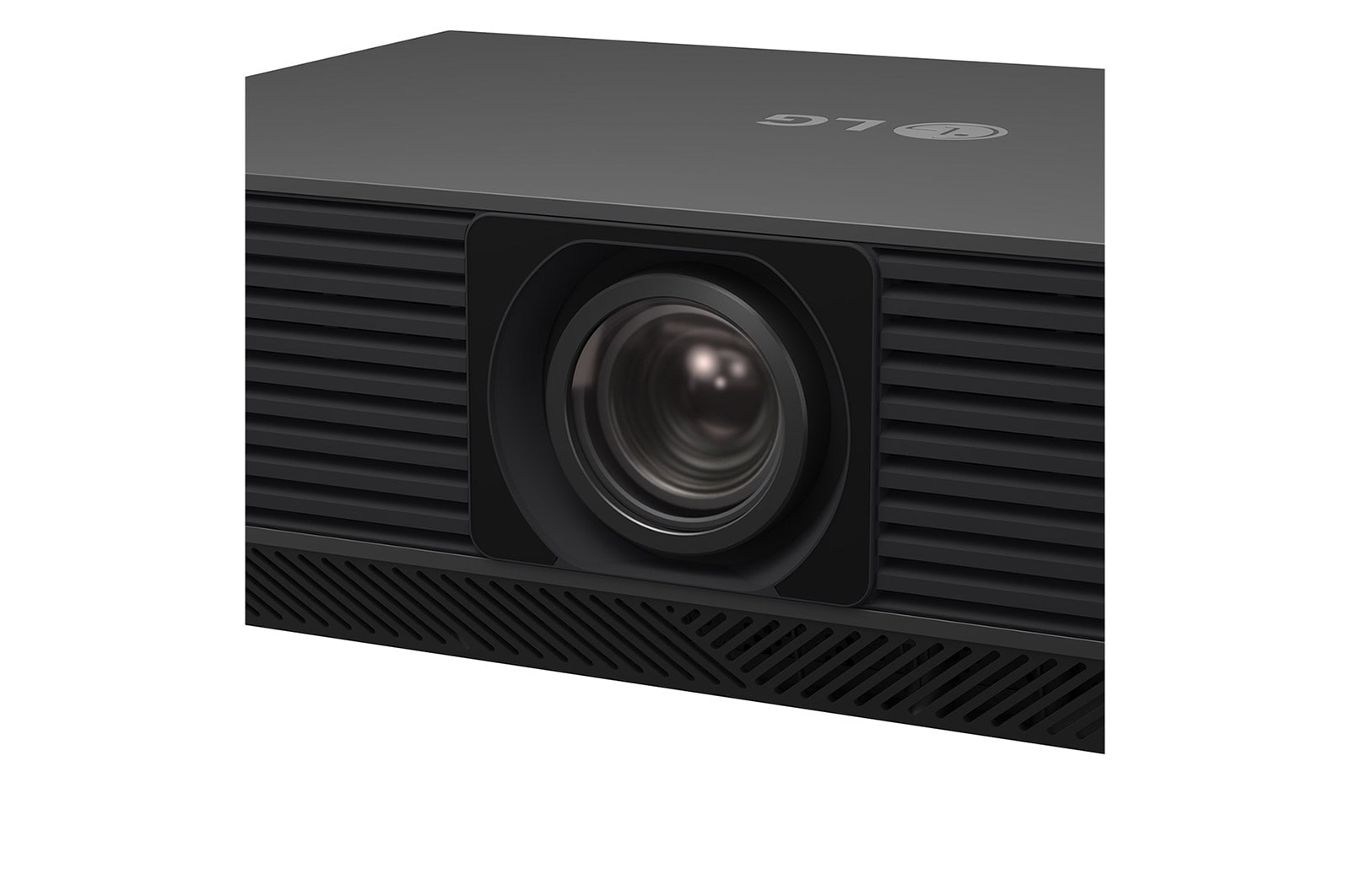

7,000 ANSI Lumens
4K UHD (3840 x 2160)
Edge blending

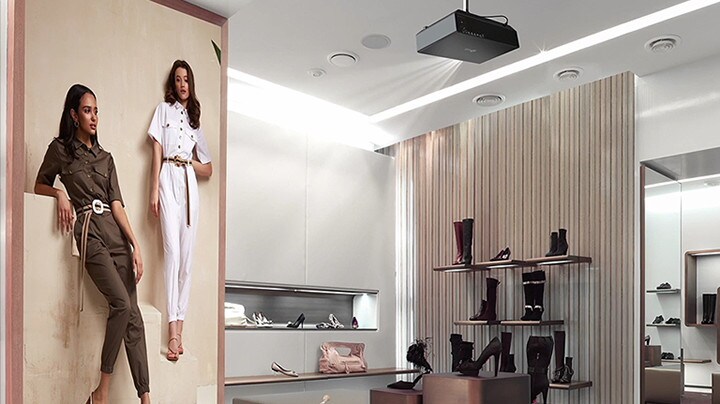

Screen rotation & Point warping
SuperSign
LG Connected Care

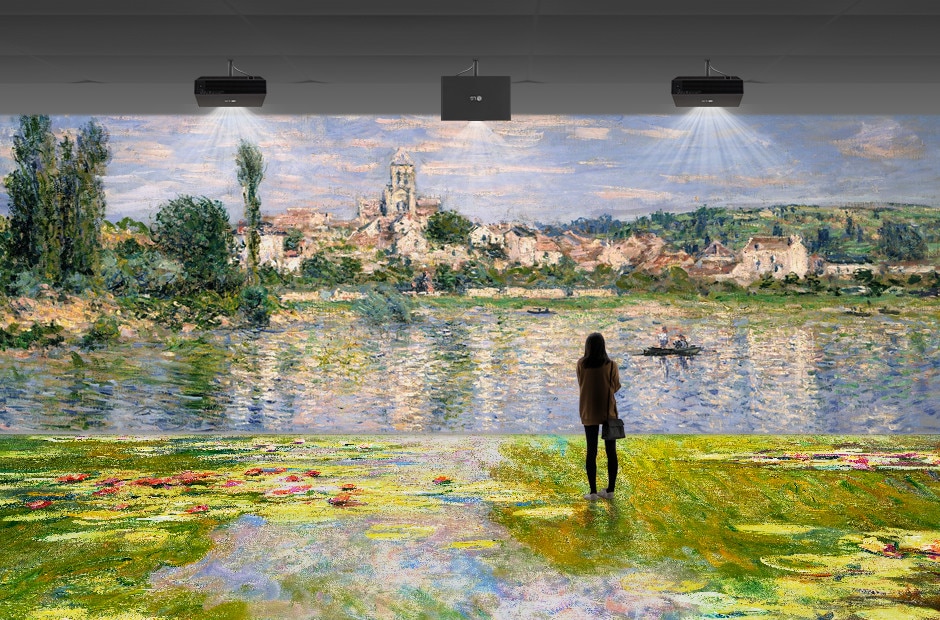

Museum & Gallery

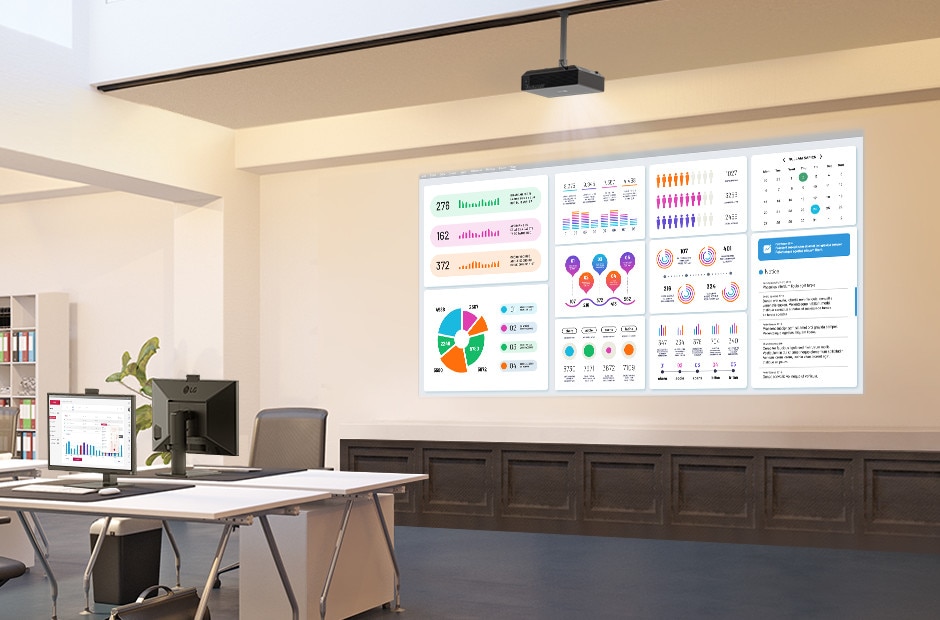

Corporate

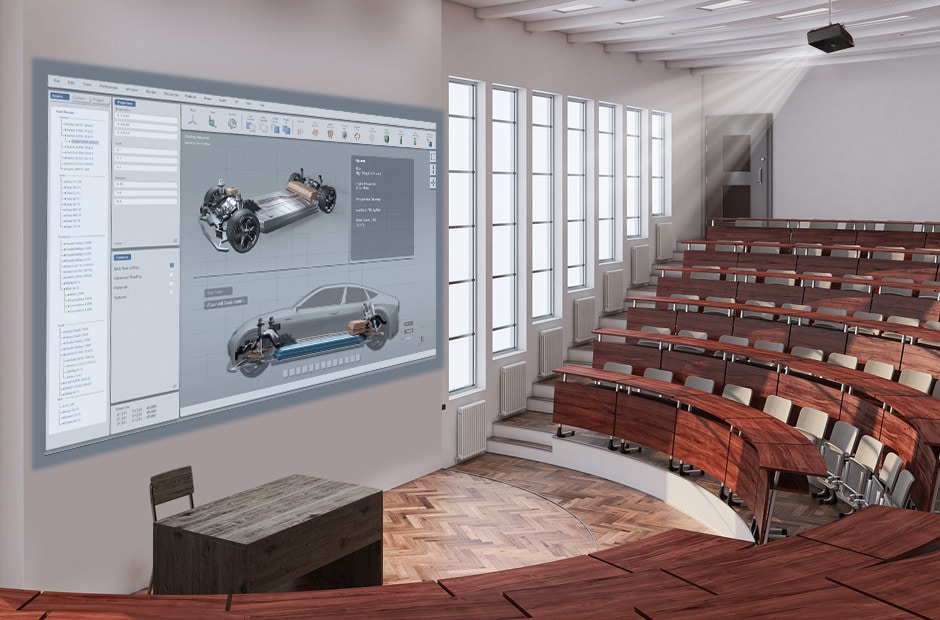

Education

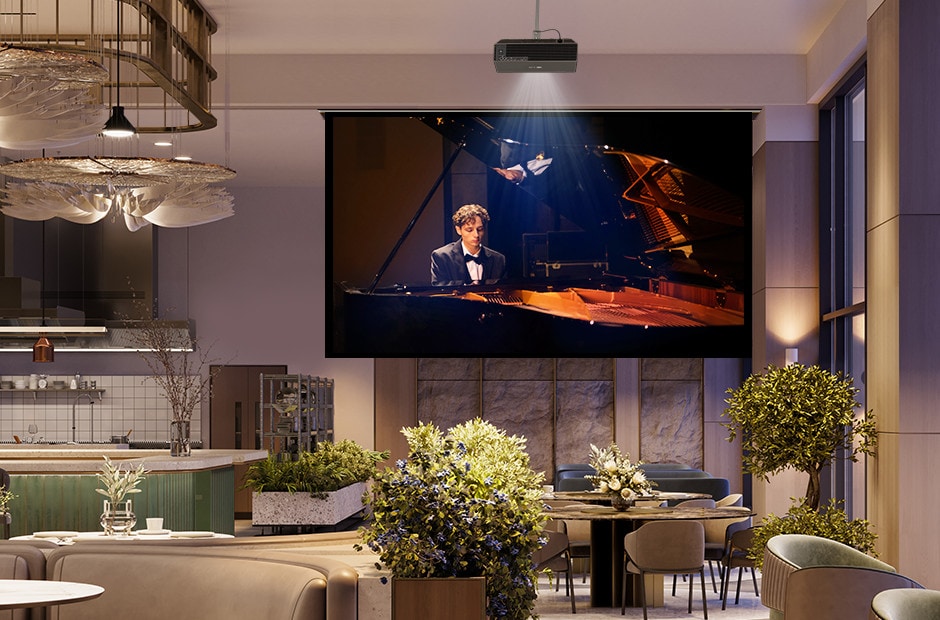

Restaurant

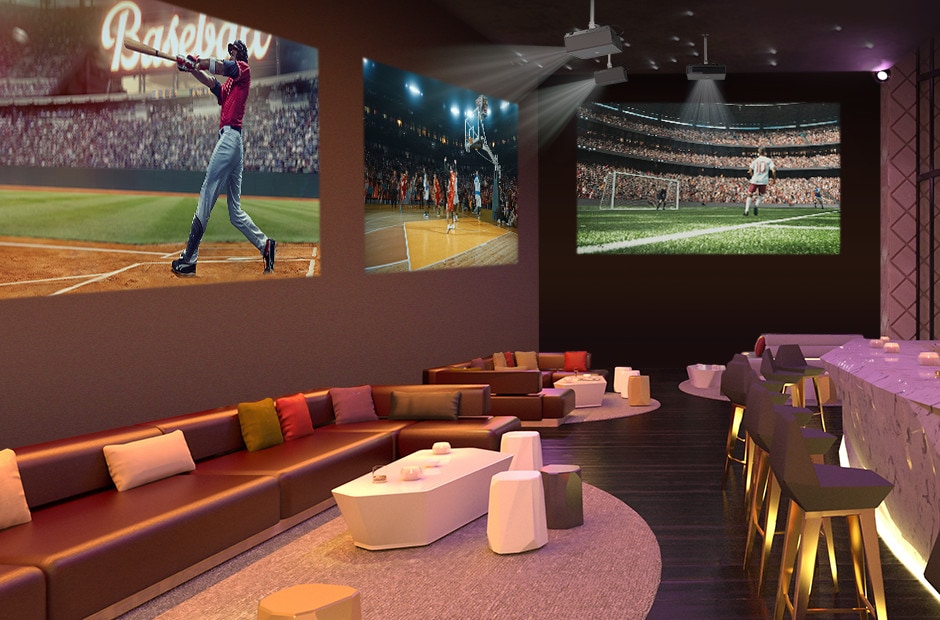

Sports Bar
*Images have been simulated to enhance feature understanding, and may differ from actual use experience.

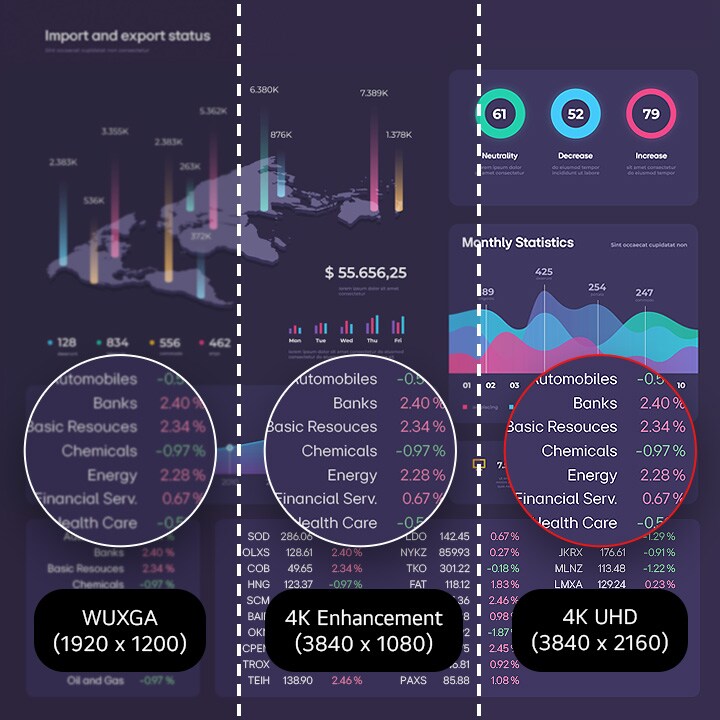

Laser 4K UHD & 3M:1 CR
With 8.3 mega pixels utilizing 4K UHD (3840 x 2160) resolution, LG ProBeam delivers precisive details from 40-inch up to the 300-inch screen. With 3M:1 contrast ratio, it can express deep darkness and brightness.
*Images have been simulated to enhance feature understanding, and may differ from actual use experience.
*The brightness (ANSI Lumen) is based on the perceived brightness of projected image.

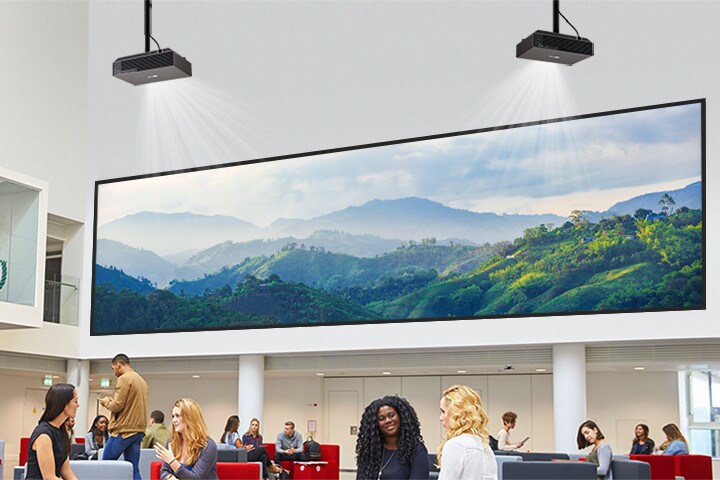

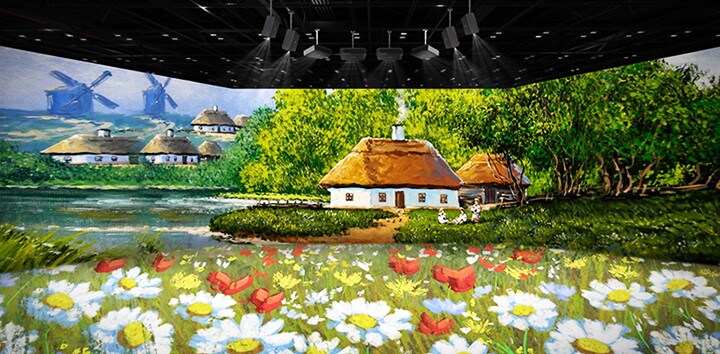

Edge blending
By supporting Edge blending technology which controls the luminance of the area where the projected light overlaps, it can provide the seamless connection without resulting in a higher luminance when two or more projectors must be used simultaneously.
*Images have been simulated to enhance feature understanding, and may differ from actual use experience.

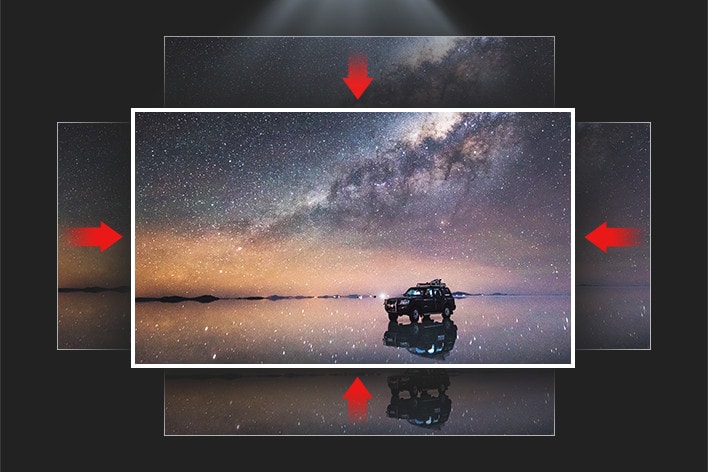

Flexible and easy installation
With zoom x1.6 & lens shift (V 60/-33%, H ±28%) functionality, the user can easily set the screen through fine-tuning by adjusting the lens and zoom.
*The above functions are motorized and can be adjusted via remote control.

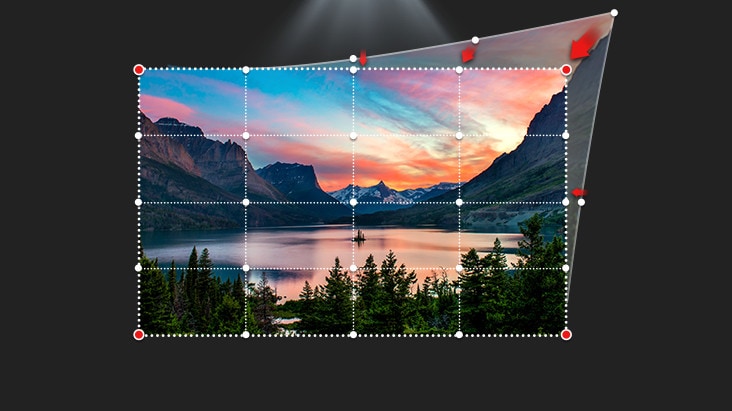

Up to 25 point warping
You can adjust screen distortion and set up a precise screen by using the 4/9/15/25 point warping function on the screen.
*Images have been simulated to enhance feature understanding, and may differ from actual use experience.
*The above function is motorized and can be adjusted via remote control.
*Images have been simulated to enhance feature understanding, and may differ from actual use experience.
SuperSign
By supporting signage-optimized functions, various solutions such as content distribution and remote management of installed projectors are provided.

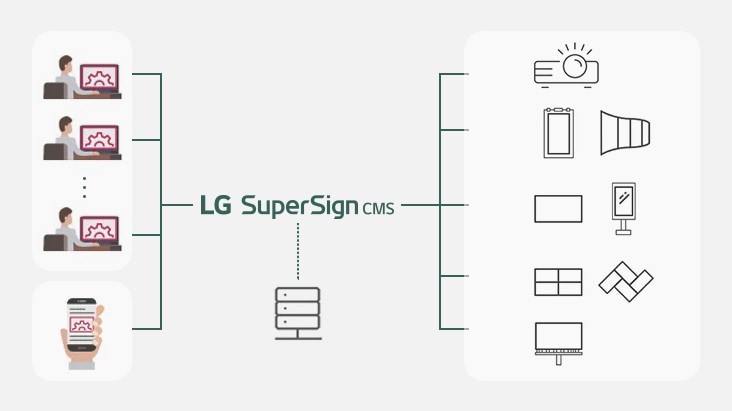

It is a content management software solution optimized for LG webOS signage. It supports multiple displays and accounts, so multiple users can easily access the server from pc or mobile, then manages content creation and editing, scheduling, and distribution.

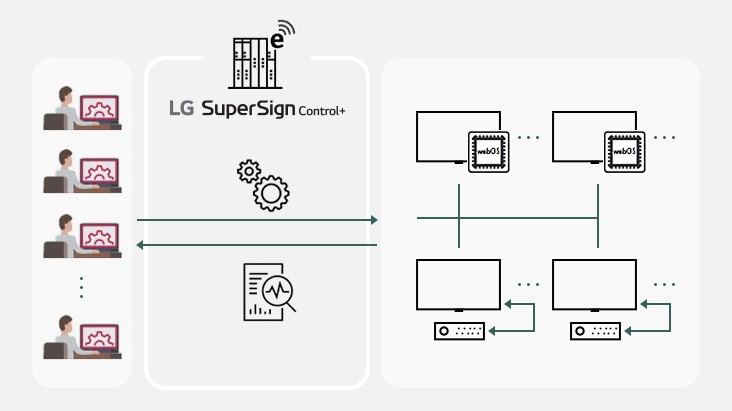

SuperSign Control+ is a remote control and monitoring software solution. It focuses on large scale deployment. Multiple administrators can access the SuperSign Control+ server via the network to monitor the status of connected displays in real-time, control them, and adjust their setting values.
It is a cloud service solution that can remotely manage the operating status of installed projectors, helping your stable business operations by providing remote monitoring and fault diagnosis.
1. Real-time monitoring
2. B2B call center : request assistance
3. SE preparation : mobile diagnosis
4. Site visit by service engineer
5. Troubleshooting
6. Issue resolved
*Users may be subject to additional fees when using SuperSign Control+, SuperSign CMS, and LG ConnectedCare™ based on their respective regions.

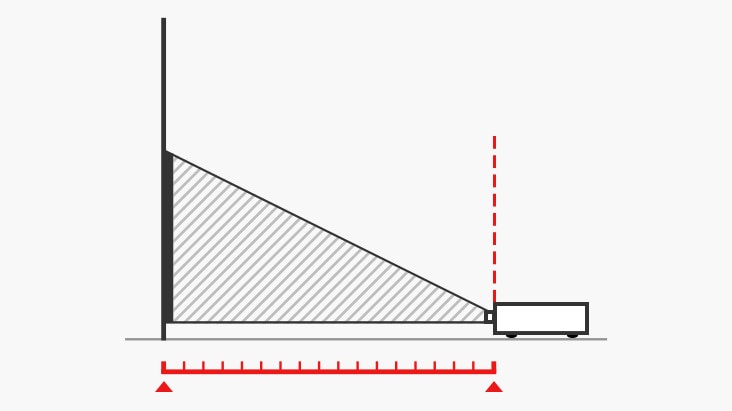

You can simulate LG projector in your space with LG Projection Calculator.
Projection System
DLP
Native Resolution
4K UHD (3840 x 2160)3)
Brightness (ANSI Lumen)
7000
Contrast Ratio
3,000,000:1 ↑
Changeable F#
X
Focus (Auto / Manual)
Motorized
Zoom
1.6x Motorized
Screen Size
40" ~ 300"
Standard (lens to wall)
Wide 3395 /Tele 5470 (100'')
Throw Ratio
1.53 ~ 2.45
Projection Offset
1.1
Type
Laser (LD + P/W)
Life High Brightness
20,000 Hrs
Aspect Ratio Control
Full / Original
Panel Aspect Ratio Control
16:9 / 21:9
Output
10W (5W+5W)
Clear Voice
○ (Clear Voice lll)
Dolby Surround Audio
X
DTS-HD
X
Power Consumption (Max.)
500W
Stand-by Power
0.5W↓
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
Operation Temperature
0 ~ 40℃

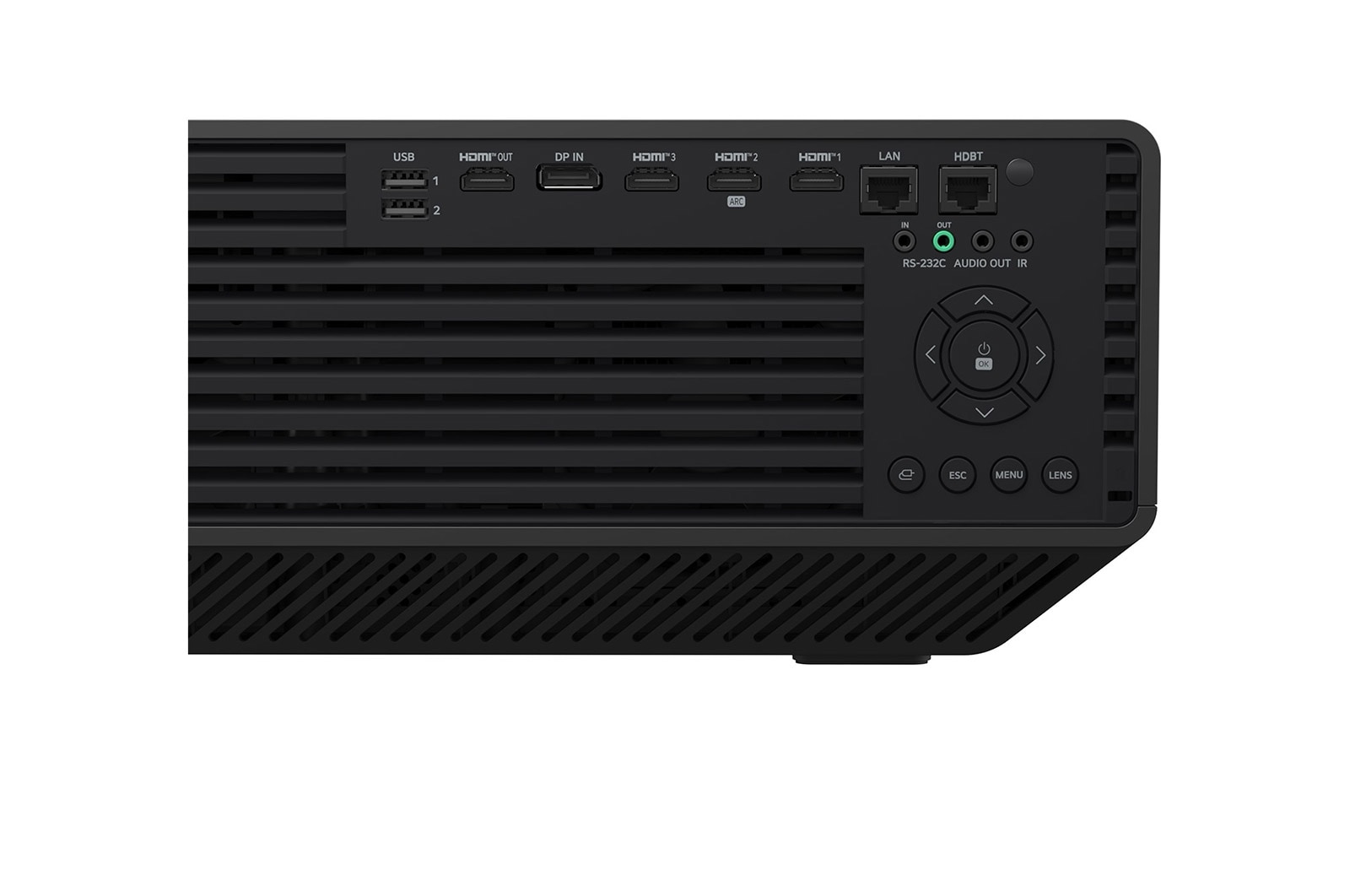

Audio out
○(Phone jack)
USB Type-A
2 (USB2.0)
RJ45
1
HDBaseT
1
IP control
○
HDMI (in)
3
HDMI (out)
1
Mic In
○(Phone jack)
RS-232C(in)
1
RS-232C(out)
1
Cabinet Color
Clay charcoal
Local Key
Tact (9key)
Kensington Lock
○
Leg-Stand
○ (4 Leg)
Ceiling mount hole (for bracket)
○
Manual (Full or Simple Book)
Simple Book
Warranty Card
○

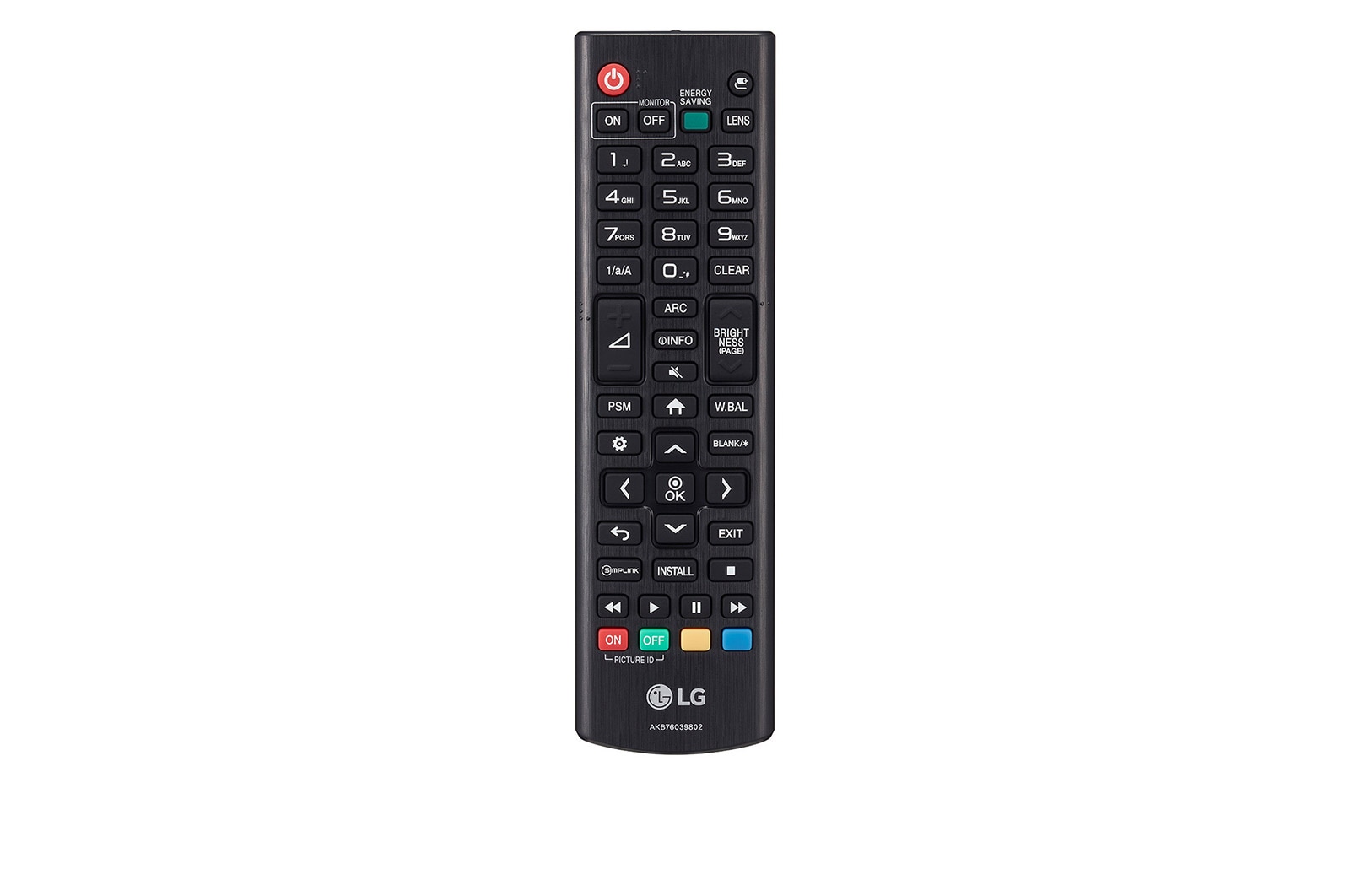

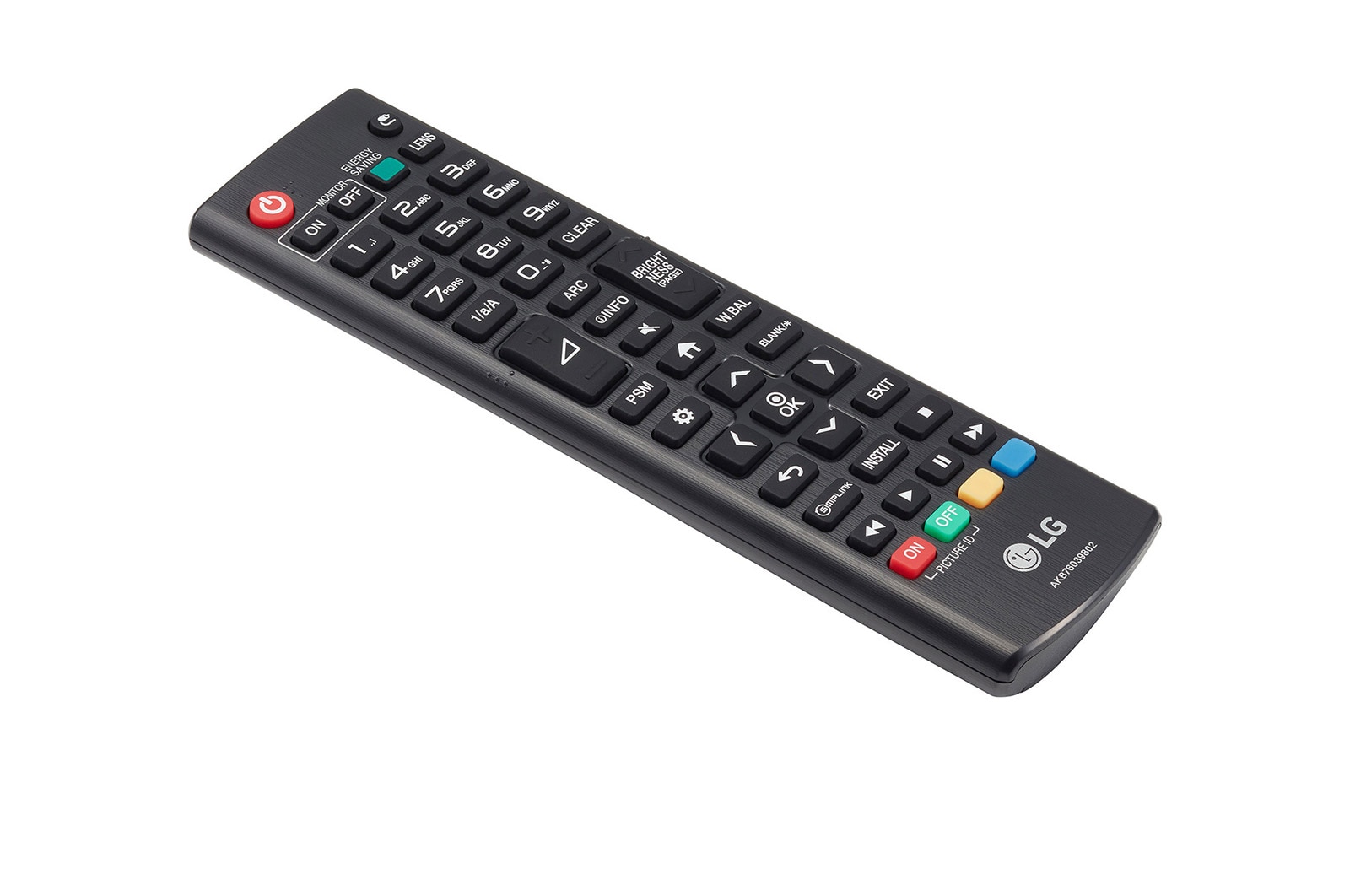

Remote Control - Normal
O
Conformances(Regulation)
FCC/ETL/CE/CB/CCC/PSE/BIS
Quick User Guide (Quick Set-up Guide)
○
Power cord
1
RS232C cable(D-sub to phone)
1
Net Size (mm) (W x D x H)
570x360x159
Gross size (mm) (W x D x H)
770 x 479x 265
Net Weight (kg or g)
17.8KG
Gross Weight (kg or g)
20.5KG
Digital Keystone Correction
Warping (4/9/15/25/HV)
Auto Keystone
X
HDR
O
HDCP
HDCP2.2
TruMotion
○
Screen Share (Wireless Mirroring with MiraCast supporting device)
○
File(Office) Viewer
X
USB Host (Movie, Music, Photo)
○ (Exclude Music)
Internet Browser
X
Platform (OS, UI)
Signage webOS 6.0
Home Dashboard (Input, IoT with OFC device)
X
Background Image
○
Contents Suggestion
X
Contents Sharing (with DLNA supporting device)
○
Bluetooth Sound out
○
LG Sound Sync(with Sound Bar)
○
HDMI ARC(Audio Return Channel)
○
HDMI simplink(CEC)
○
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
○
Setting Guide
○ (Bean Bird)
HID (Keyboard/Mouse/GamePad Connection Thru USB)
X
Eco Function - Energy Saving Mode
○ (Min/Mid/Max)
Eco Function - Sleep Timer
X
Eco Function - Auto Off / Auto Sleep
○
Eco Function - Time Power On/Off
○ (On / Off)
Eco Function - Automatic Standby / Auto Power Off
○
Eco Function - HDD Eco Mode
X
HDR Effect
X
DICOM
○
Image Flip
○ (Horizontal/Vertical)
Black Level Control
○
Noise Reduction
○
Color Temperature Adjustment
○
Gamma Correction (Expert control)
○
Brilliant Color™ (Overlap Duty)
○
Quick(Instant) Power on/off
○ (on 12 Sec off 2 Sec)
Store Mode
X
Built-in Memory (for Storage)
O(about 9G)
Blank
○
Self Diagnosis
X
Edge Blending
○
Expert controlvADJ
○
24/7 Operation
○
360 degree Installation
○
Auto Screen Adjustment
X
Crestron RoomView™
○
Daisy Chain
○
Dust Protection
IP5X
One Quick Share
○
PBP
○
PIP
○
Tile Mode
O (9)
Lens Shift
( Horiz ± 28% / Vert +60%,-33% ) (Motorized)
Energy Saving Min. (Bright)
35
Energy Saving Med.
33
Energy Saving Off (Max)
31
Uniformity (JBMMA 9 Point)
0.85
Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)
HDBaseT
○
Edit mode / Recent
X
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
