Why Cloud Device
Cloud devices offer cost advantages over traditional PCs or laptops, and simplified management can reduce expenses for IT resources, making them appealing for cost-conscious decision-makers. Also, its advanced security features protect sensitive data, improving the overall security of cloud-based operations. LG's cloud devices are specifically designed to take a lead in the rapidly accelerating transition to the cloud.
cloud device.
*To work properly, a stable internet connection is required.
*The images simulated to enhance feature understanding. It may differ from actual use.
Powerful Security
Access anytime, anywhere
Effortless management
Convenient collaboration
Business continuity
Cost savings

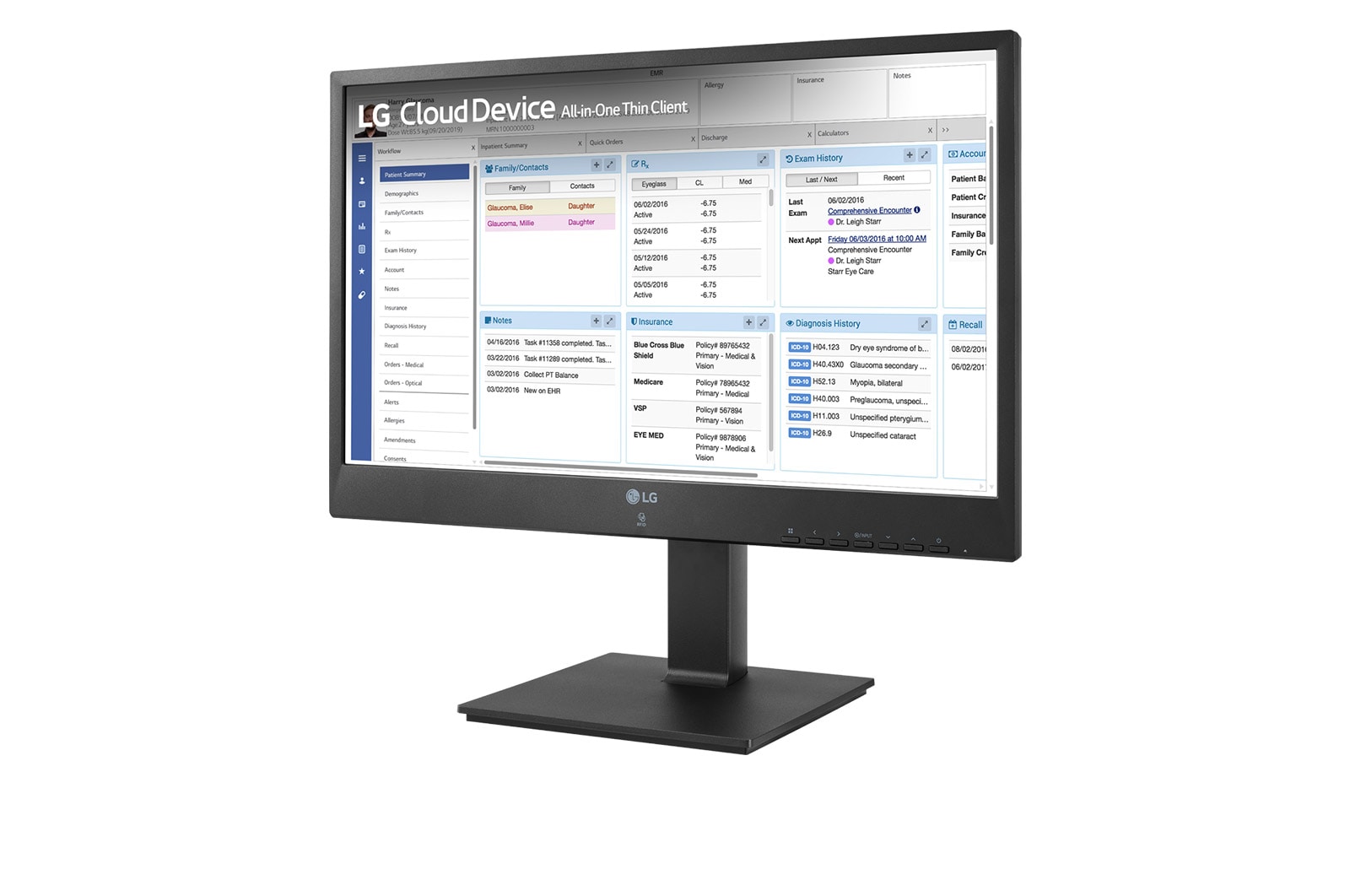

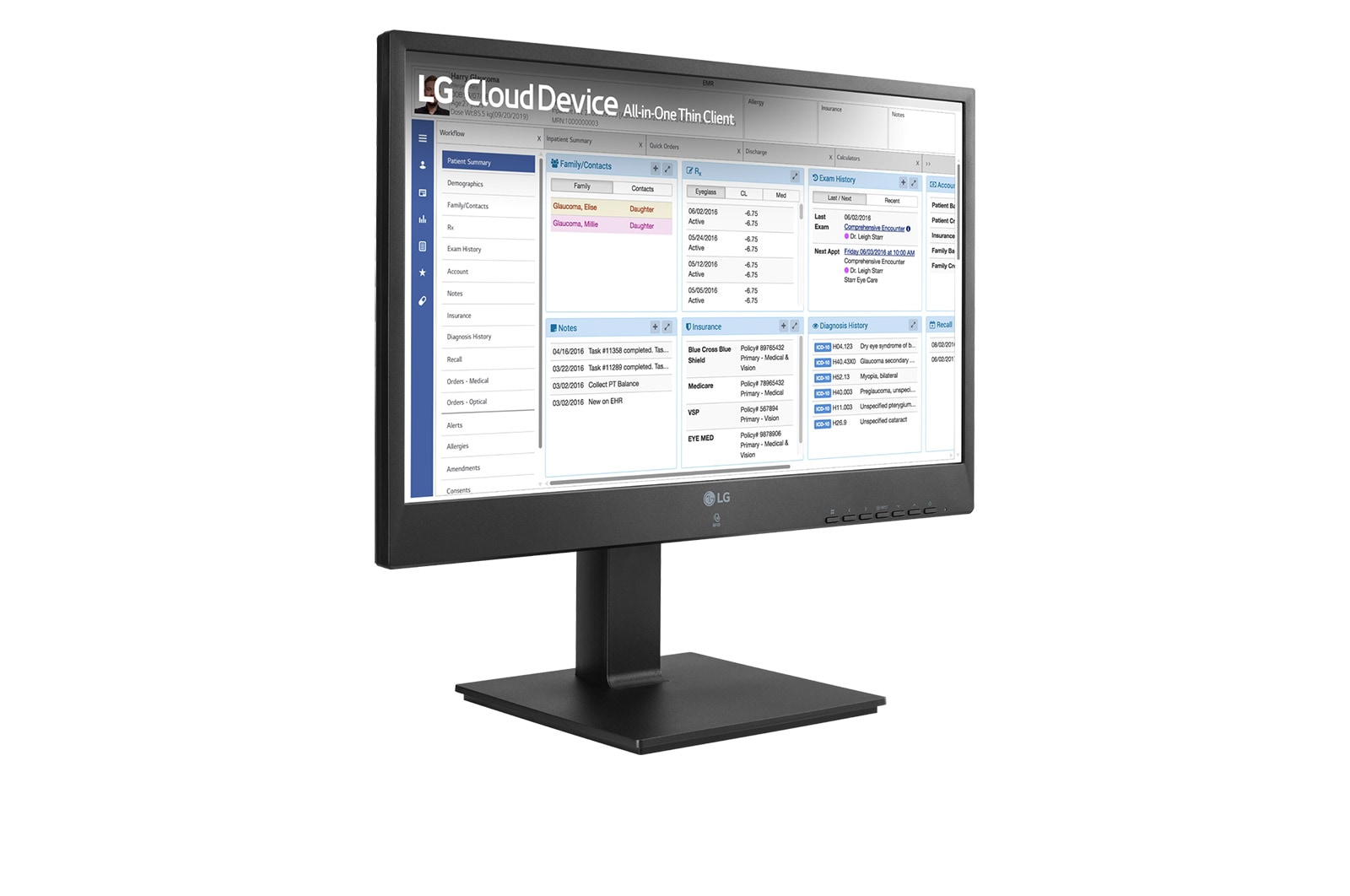

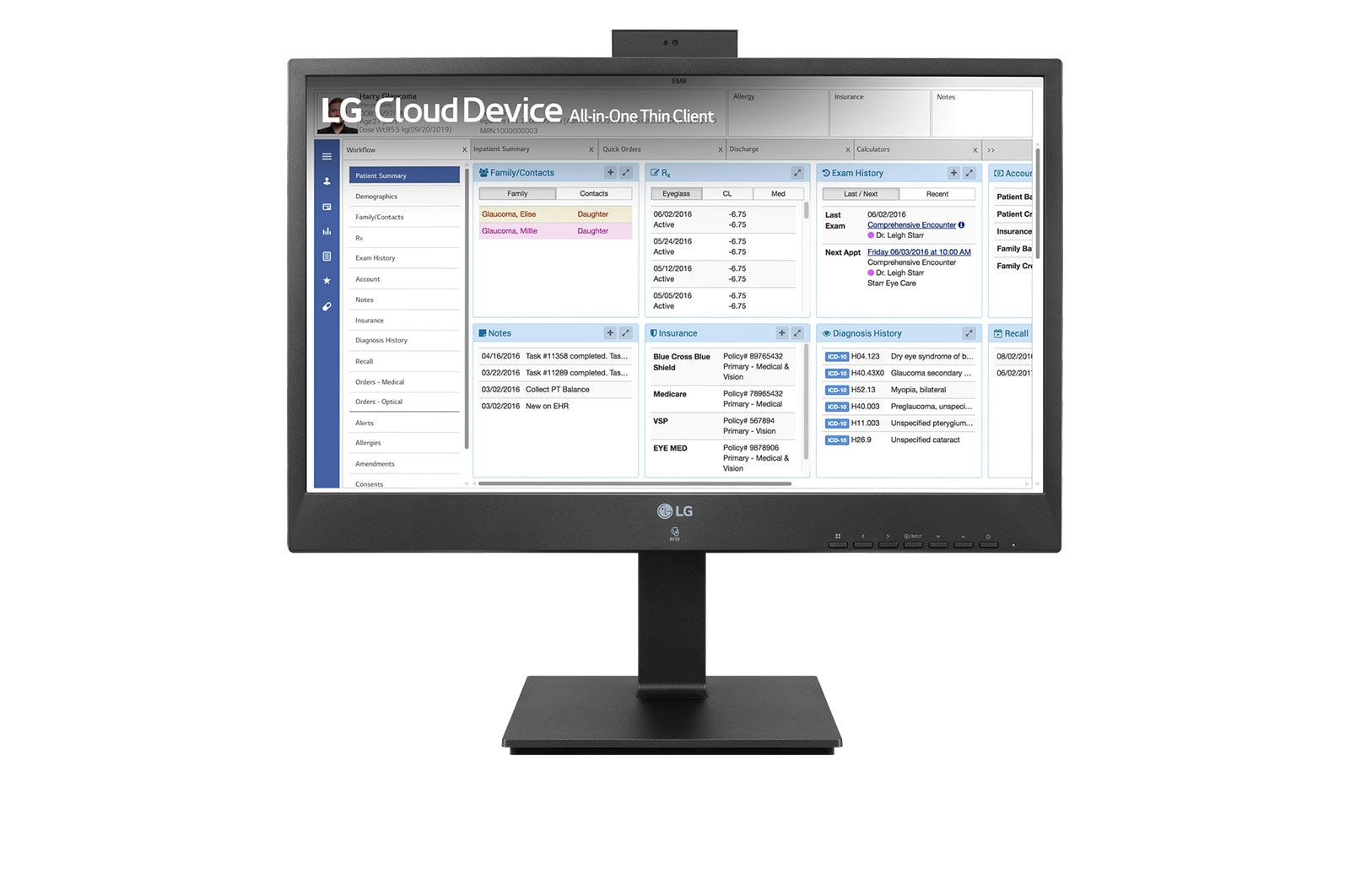

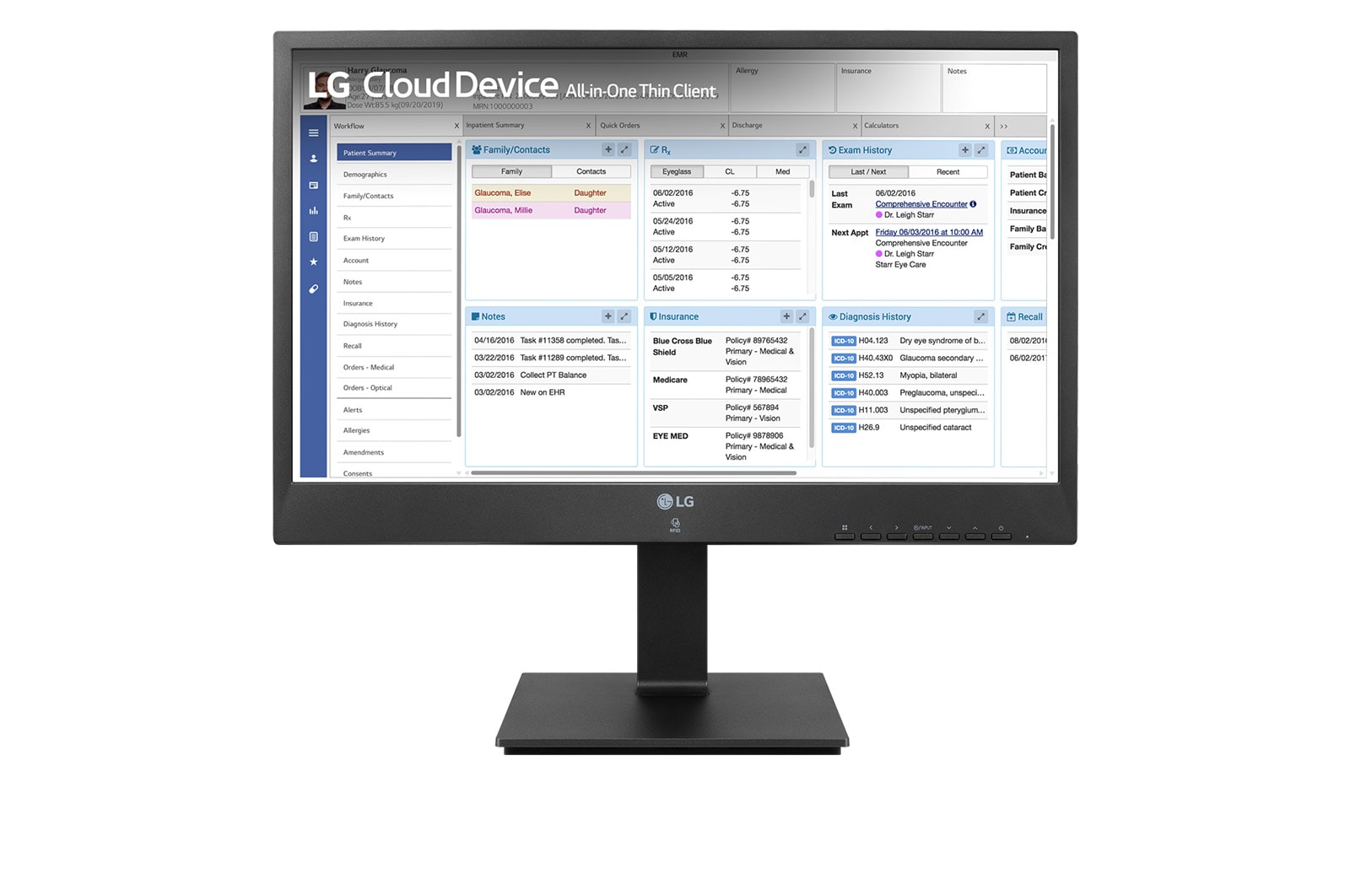

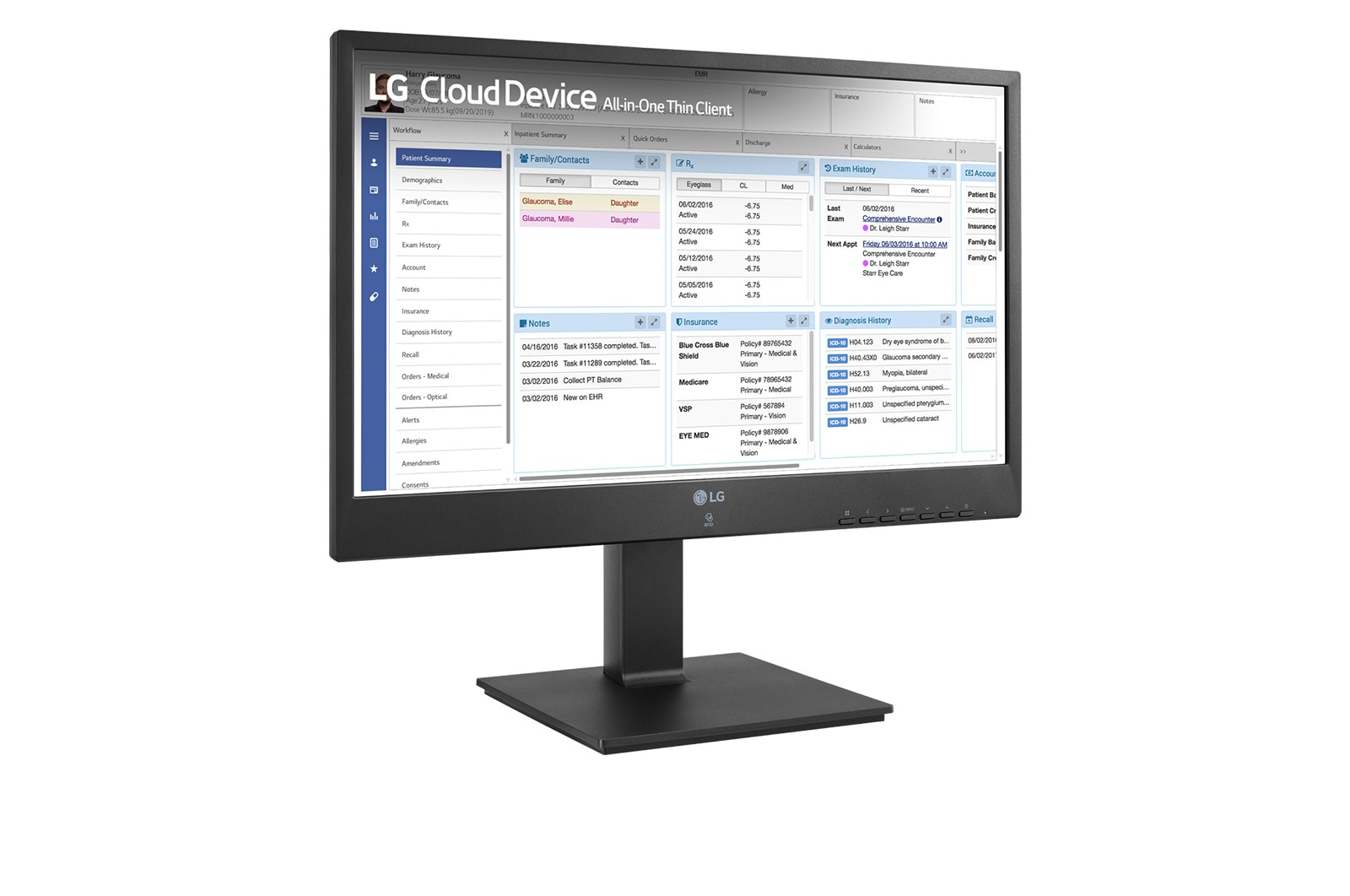

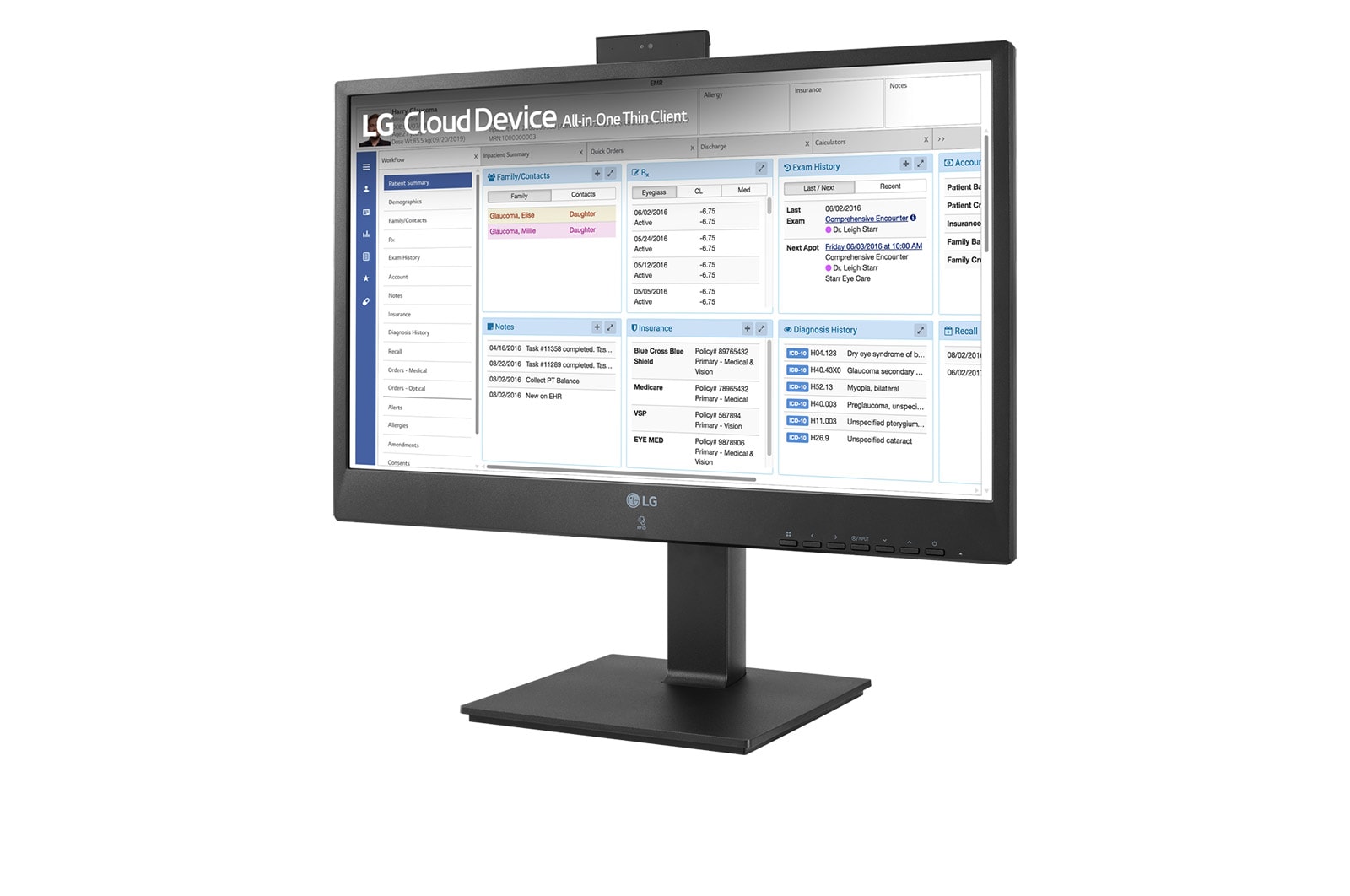

All-in-One Thin Client
The 24CR660W with dual-band RFID is a versatile solution for various workplaces where security matters, like hospitals, offices, and factories. By simply tapping their card on the RFID bezel, authorized staff can log into the personal virtual desktop on a single device. This improves security and prevents the leakage of sensitive data, which is useful for shift work.
The 24CR661W with dual-band RFID is a versatile solution for various workplaces where security matters, like hospitals, offices, and factories.
The 24CR661W with dual-band RFID is a versatile solution for various workplaces where security matters, like hospitals, offices, and factories.
The 24CR661W with dual-band RFID is a versatile solution for various workplaces where security matters, like hospitals, offices, and factories.
*The images simulated to enhance feature understanding. It may differ from actual use.
Quad-core Processor
With Quad-core Processor and a powerful system memory option, 24CR660W helps you complete your work faster and easier.
Quad-core Processor.
Intel® Celeron N5105
8GB DDR4 / 256GB NVMe SSD
Windows 10 IoT Enterprise
*RAM and storage specifications as detailed above may differ by model.
*The Performance of the Quad-core Processor is compared to the Dual-core Processor.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Webcam app and video conference service/software are not provided.
VDI
LG cloud devices are compatible with most commercially available virtual desktop solutions like VMware and Citrix for your seamless user experience.
LG Cloud device manager
It’s the optimized management software for LG thin clients. LG thin clients using Windows 10 IoT Enterprise LTSC can be managed and controlled centrally for high security, work efficiency and TCO reduction effect.
*TCO: Total Cost of Ownership
*The images simulated to enhance feature understanding. It may differ from actual use.
*Applicable to Windows OS models only.
Full HD IPS Display
LG All-in-One Thin Client with IPS technology delivers visual comfort especially for sharing charts and information with others.
LG All-in-One Thin Client with IPS technology delivers visual comfort especially for sharing charts and medical information with others.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.
Up to 2 display support
LG 24CR660W supports up to 4K UHD resolution dual displays. With flexibility for multi-monitor set-up options, you can get more done easily.
LG 24CR660W supports up to 4K UHD resolution dual displays.
*Supporting connected displays via USB Type-C™ and DisplayPort out. USB Type-C™ and DisplayPort cables are not included in the package (sold separately).
*The above features may not function properly depending on the connecting display specifications. The two displays connecting with a cloud device are not included in the package (sold separately).
*The images simulated to enhance feature understanding. It may differ from actual use.
Fanless design
The fanless design eliminates the noise typically associated with traditional cooling systems. Its low noise provides a pleasant work environment for individuals who prefer a noise-free workspace.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.

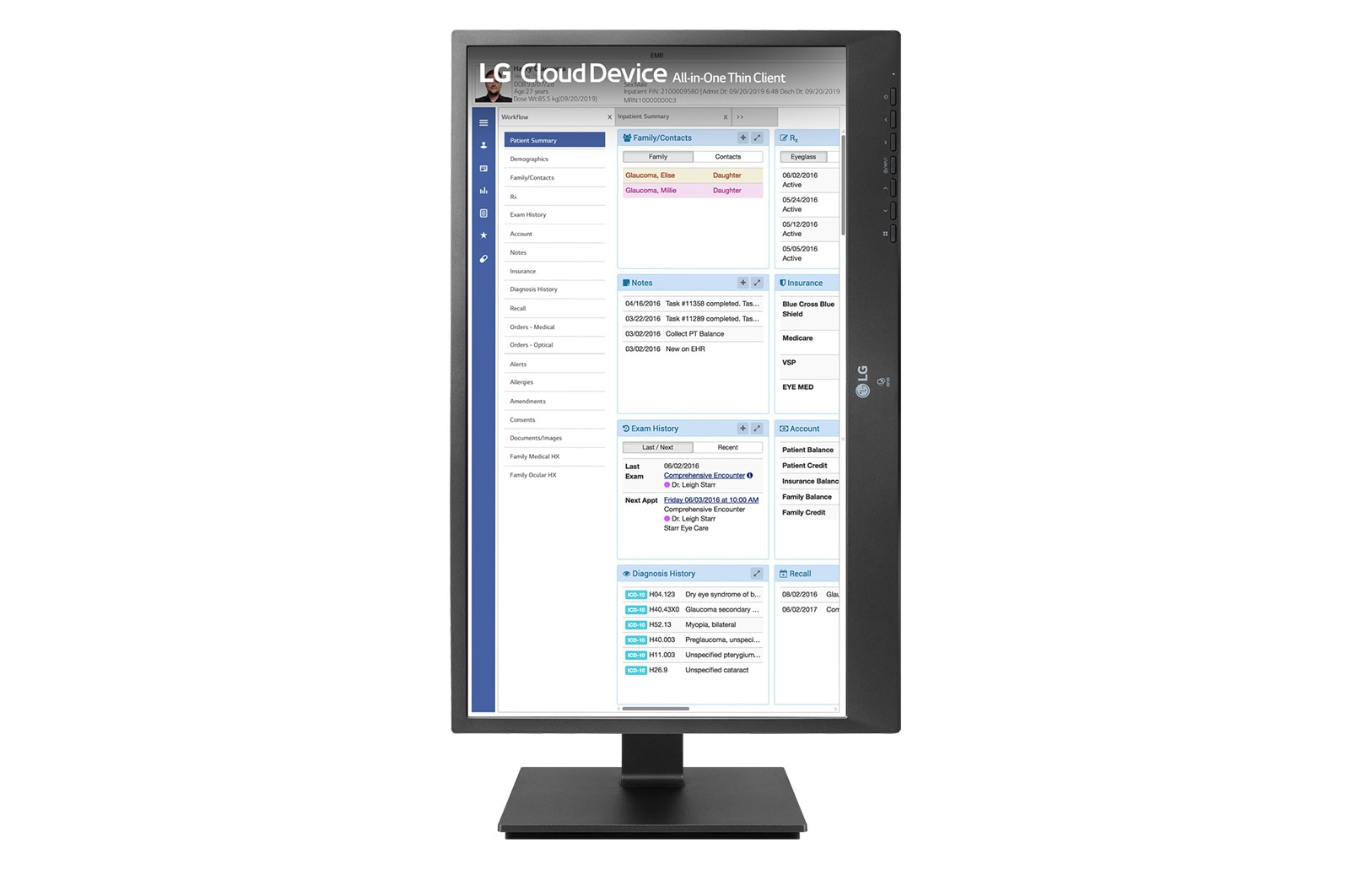

Ergonomic design

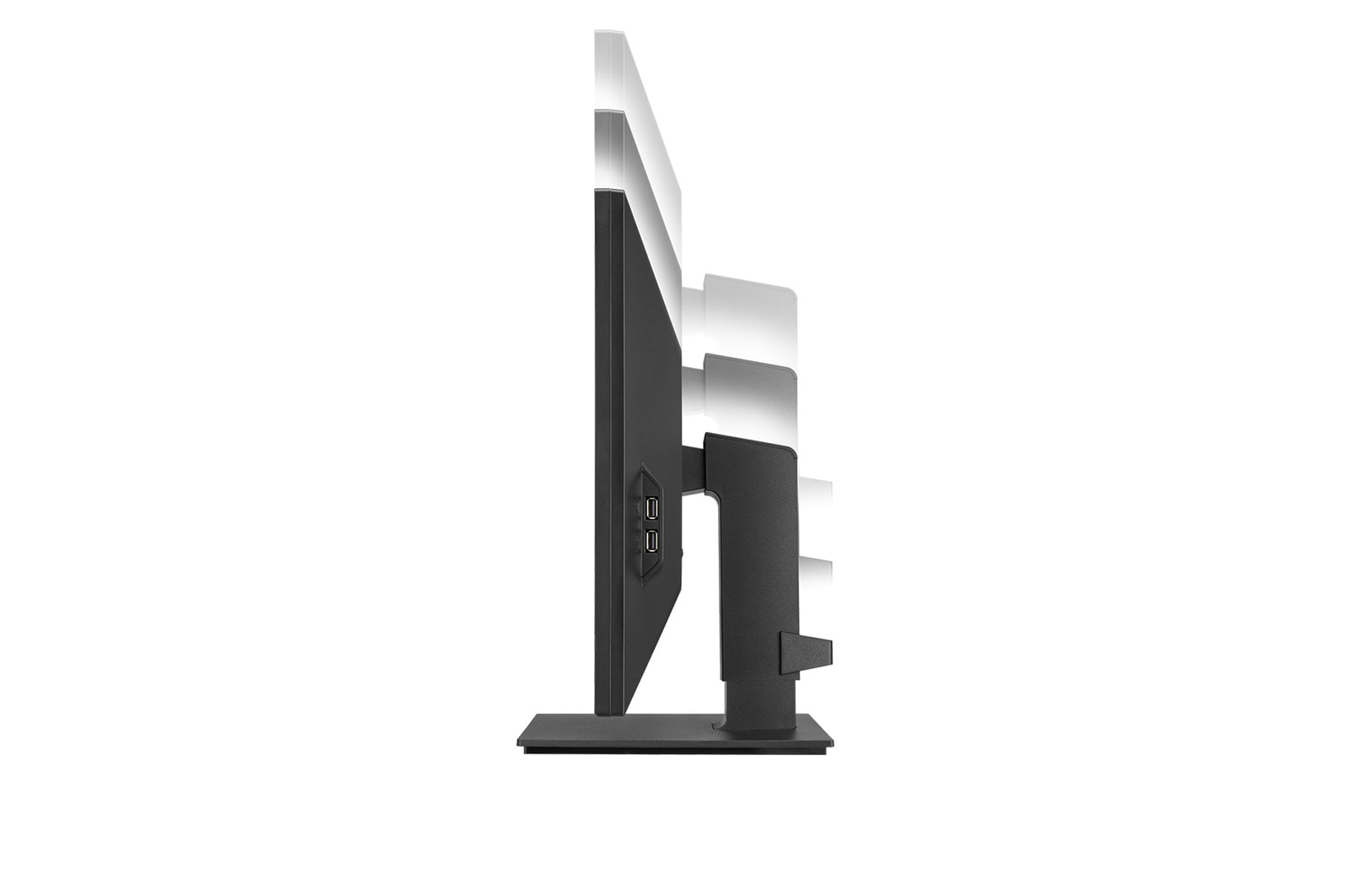

The 24CR660W supports tilt, swivel, pivot and height adjustment options for comfort at work. These ergonomics also make it easy to share content with others and set up the equipment for shift work, leading to user convenience.
-5° ~ 35°
0° ~ 355°
±90° (Bi-directional)
0 ~ 130mm
The 24CR660W supports tilt, swivel, pivot, and height adjustment.
*The images simulated to enhance feature understanding. It may differ from actual use.
Through our green finger hearts, we're expressing our love for the people and the planet while constantly striving to ensure our products contribute to a better life for all.As part of this journey, 24CR660W complies with various environmental standards and continuously strives for energy efficiency and environmental protection.
ENERGY STAR certified
*ENERGY STAR is a joint program of the Environmental Protection Agency (EPA) and the Department of Energy (DOE).
EPEAT certified by using recycled plastic.
*The Electronic Product Environmental Assessment Tool (EPEAT) is a global ecolabel for the IT sector.
Operation System
Non OS
Processor
Intel® Celeron N5105 (Quad Core 2.0GHz, up to 2.9GHz burst), Fanless
Graphics
Integrated Graphics
System Memory
8GB (2x4GB) DDR4, 2933MHz, 2 SODIMM slots
Storage
16GB eMMC
Display Support
Up to 2 displays : 3840x2160@60Hz (via DisplayPort 1.4 out), 3840x2160@60Hz (via USB Type-C)
Expansion Slot
M.2 Slots x 2 (Slot 1 : N/A, Slot 2 : WiFi + Bluetooth card) SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : 4GB DDR4)
TPM (Trust Platform Module)
Hardware TPM 2.0
VDI Support
N/A
Size [Inch]
23.8
Size [cm]
60.47 cm
Aspect Ratio
16:9
Resolution
1920 x 1080
Panel Type
IPS
Panel Multi
LGD Module
Backlight Technology
LED
Backlight Type
Edge
Backlight Array
H1B
Backlight Dimming Technology
Global Dimming
Local Dimming Zone
N/A
Pixel Pitch
0.2745 x 0.2745 mm
Brightness (Min.)
200 cd/m²
Brightness (Typ.)
250 cd/m²
Peak Brightness (Min.) [cd/m²]
N/A
Peak Brightness (Typ.) [cd/m²]
N/A
Color Gamut (Min.)
N/A
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Color Depth (Number of Colors)
16.7M
Color Bit
8bit (6bit+FRC)
Contrast Ratio (Min.)
600:1
Contrast Ratio (Typ.)
1000:1
Contrast Ratio with DFC
Mega
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Surface Treatment
Anti Glare, 3H
Curved
NO
Curvature
N/A
Webcam
Yes (FHD, Integrated with MIcrophone, Push-pull type, no webcam app provided)
RFID
Dual-band RFID (Imprivata validated)
SD Card Slot
NO
1ms MBR(Supported Frequency)
NO
1ms Motion Blur Reduction
NO
Active HDR with Dolby Vision™
NO
Auto Brightness
NO
Black Stabilizer
YES
Color Calibrated
NO
Color Weakness
YES
Crosshair
NO
Dynamic Action Sync
YES
Eye Comfort Mode
NO
Flicker Safe
YES
FreeSync (Low Frame Conpensation)
NO
Gaming Mode
NO
HDR 10
NO
HW Calibration
NO
NVIDIA G-Sync™
NO
Nano IPS™ Technology
NO
PIP
NO
Picture Mode
NO
AMD FreeSync™
Custom, Reader,Photo, Color Weakness
Reader Mode
NO
Smart Energy Saving
YES
Super Resolution+
YES
VESA DisplayHDR™
YES
Wide Color Gamut
NO
Others (Feature)
NO
Management Console
NO
Dual Controller
NO
OnScreen Control (LG Screen Manager)
NO
True Color Pro
NO
HDMI
YES(1ea)
HDMI Version
2
HDMI (H-Frequency)
30~85KHz
HDMI (V Frequency)
56~75Hz
HDMI (HDCP Version)
1.4
HDMI (Max. Resolution at Hz)
1920X1080 75Hz
DisplayPort
YES(out 1ea)
HDMI (FreeSync Supported Frequency)
N/A
DP Version
1.4
DP (Max. Resolution at Hz)
3840x2160 @ 60Hz
DP (FreeSync Supported Frequency)
NO
Mini DisplayPort
NO
mDP Version
NO
mDP (HDCP Version)
N/A
mDP (V Frequency)
N/A
Headphone out
NO
Mic In
NO
MIC & Headphone out combo
YES (1 x 3.5mm audio-mic combo jack (CTIA Type))
Audio In
NO
Fiber Ready
NO
RS-232
NO
Thunderbolt
NO
Thunderbolt (Data Transsmission)
NO
Thunderbolt (HDCP Version)
N/A
Thunderbolt (Power Delivery)
N/A
Thunderbolt Version
N/A
Thunderbolt(USB-C Compatiblity)
N/A

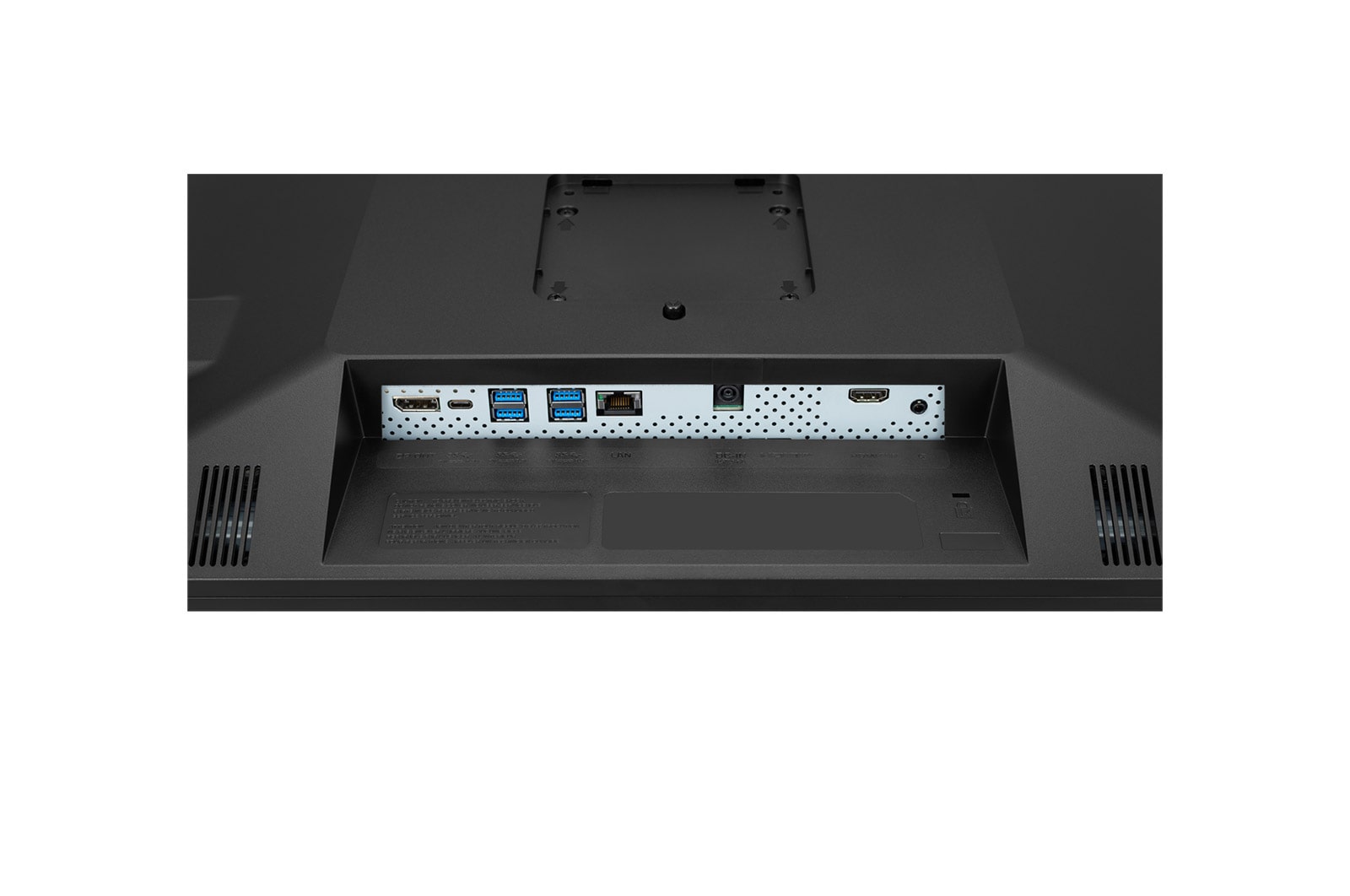

USB
2 x USB 2.0 Type-A, 4 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen2 Type-C with DP out
USB-C
YES(out 1ea)
USB-C (Power Delivery)
N/A
USB-C (DP Version)
1.4
USB-C (DP Alternate Mode)
YES
USB-C (Data Transsmission)
YES
USB-C (Max. Resolution at Hz)
3840×2160@60Hz
USB-C (HDCP Version)
N/A
D-Sub
NO
DP (HDCP Version)
N/A
DVI-D
NO
DVI-I
NO
Location
Vertical
Speaker
YES
Speaker_Channel
2ch
Speaker_Output (unit)
3W
Speaker_Direction
Down Firing
Maxx Audio
YES
AC Input
100-240Vac, 50/60Hz
DC Output
19V, 6.32A
Power Consumption (DC Off)
0.7W
Power Consumption (Sleep Mode)
1.2W
Long Idle (Display Off)
5.0W
Short Idle (Display On)
19.8W
Type
External Power(Adapter)
Borderless Design
Normal
Assembly Step
Three-Step
Base Detachable
YES
Color (Front Cabinet)
Matt Black
Color (Middle Cabinet)
Matt Black
Color (Back Cover)
Matt Black
Color (Stand Body)
Matt Black
Color (Stand Base)
Matt Black
Display Position Adjustments
Tilt/Height/Swivel/Pivot
tilt
-5º ~ 35º
Swivel
0°~355° (±5°)
Pivot
Bi-Direction
Height Range
130mm (Max. 512.9 ~ Min. 382.9 )
Down Height
72.2mm
Machanical Power Switch
NO
OneClick Stand
YES
Wall Mountable
100 x 100 mm
Dimension in Shiping (W x H x D)
631 x 515 x 200 mm
Dimension with Stand (W x H x D)
553.8 x 512.9 x 240 mm
Dimension without Stand (W x H x D)
553.8 x 353.3 x 63 mm
Pallet Stuffing (20ft/40ft/40ft HC)
360/800/960
Weight in Shipping
9.55 kg
Weight with Stand
6.35 kg
Weight without Stand
4.2 kg
CB
YES
CE
YES
EPA
NO
EPEAT (Germany)
NO
EPEAT (USA)
NO
Energy Star
NO
ErP
Website enrollment only
FCC-B
YES
HDMI
YES
KC (for Rep. of Korea)
YES
Medical Certificatioin
NO
PVC-Free
BT,Wifi : FCC RF, RFID : FCC RF, FDA (registration Class1), CE MDR, ISO13485
ROHS, REACH
NO
SEMKO
YES
TUV-Ergo
YES
TUV-GS
YES
TUV-TYPE
YES
Thunderbolt
NO
USB-C (USB-IF)
YES
USB-C (VESA)
NO
UL (cUL)
NO
VESA wall mount standard
NO
Others (Standard)
YES
BIS (for India)
NO
BSMI (for Taiwan)
NO
CCC (for china)
NO
IEC60601
YES (EN/IEC60601-1-2)
VCCI (for Japan)
NO
Adapter
YES
Adapter (Color)
Black
Power Cord
YES
Power Cord (Color/Length)
Black / 1.55m
External Antenna
NO (Internal Antenna)
Others (Accessory)
Keyboard & Mouse
Calibration Report (Paper)
NO
DVI-D
NO
DVI-D (Color/Length)
NO
Display Port
NO
Display Port (Color/Length)
NO
HDMI
NO
HDMI (Color/Length)
NO
PC Audio
NO
PC Audio (Color/Length)
NO
Thunderbolt
NO
Thunderbolt (Color/Length)
NO
USB Type C
NO
USB-C (Color/Length)
NO
VESA Bracket
NO
LAN (RJ-45)
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Wi-Fi
Intel Wireless-AX201 (Dual Band Wi-Fi 6 2x2, BT 5.1 Combo, Internal Antenna)
Bluetooth
BT5.1
HDMI (PC)
1920x1080@75Hz
HDMI (Video)
1920x1080@60Hz
Key Location
Front
Key Number (Power Key Included)
7
Key Type
Tact
LED Color(On mode)
White(AIO PC )
LED Color(Power save mode)
Blinking (AIO PC )
LED Color(Standby)
OFF(AIO PC)
Country
English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi, Tranditional Chinese
Number of Language
18
Box Printing Type
Flexo
Handle
Hand Hole
Packing Material
EPS
Stacking Type
Face Down
Stand Packing Type
Detached
Humidity Range
Operating : 0%~80%, Storage : 0%~85%
Temperature Range
Operating : 0°C ~ 40°C, Storage : -20°C ~ 60°C
