A large interactive digital board is mounted on the meeting room wall, mirroring the meeting content displayed on a laptop screen placed on the table.
* All images in this page are for illustrative purposes only.

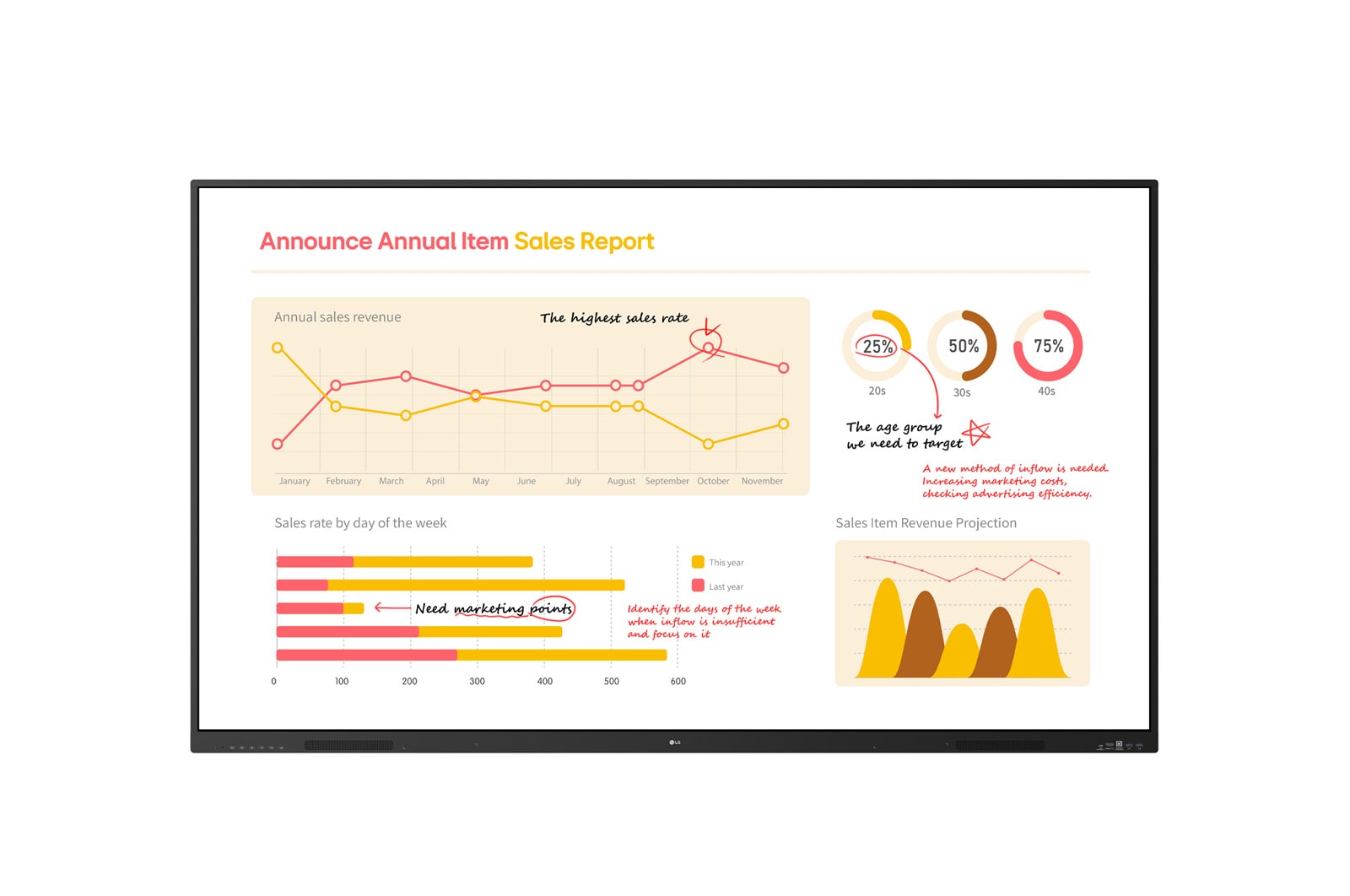

LG CreateBoard delivers a lifelike touch experience with support for 4K resolution, enabling users to write seamlessly, ensuring every detail is crisp and clear.

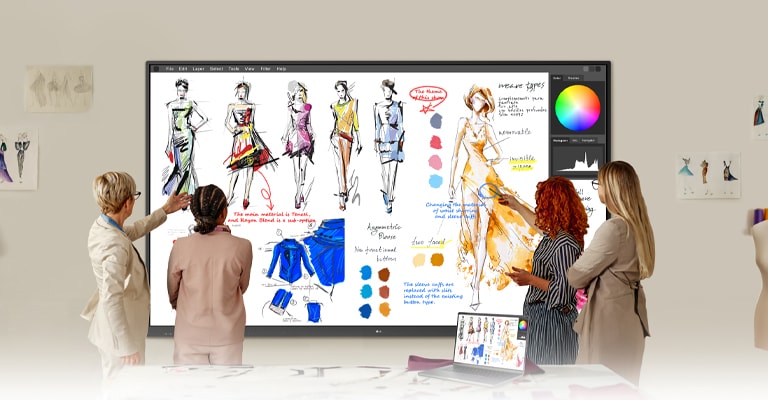

In a studio workspace, a group collaborates by writing directly onto a large wall-mounted smart whiteboard during a discussion.
LG CreateBoard boasts a multi-touch functionality that can concurrently detect up to 40 touch points. This feature facilitates simultaneous touch and gesture inputs from multiple users, fostering easy collaboration and idea sharing among team members. This enables efficient interaction in group activities or meetings.

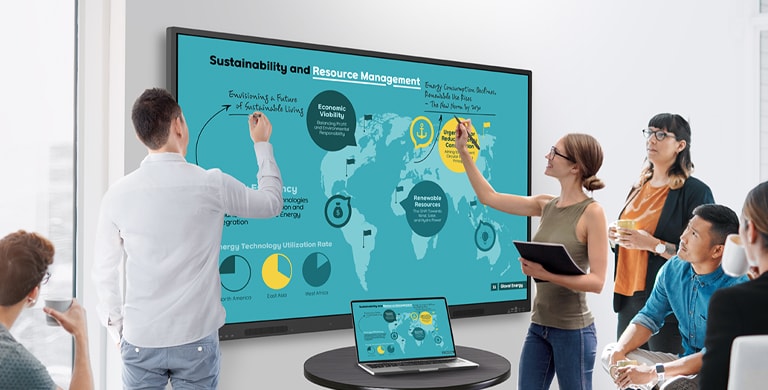

Students are actively exchanging ideas by writing on LG’s interactive digital board screen at the same time.
LG CreateBoard integrates smoothly with devices across various operating systems, including Windows, Android, and ChromeOS, allowing users to work within their preferred environments. This creates a flexible and highly adaptable workspace tailored to individual needs.

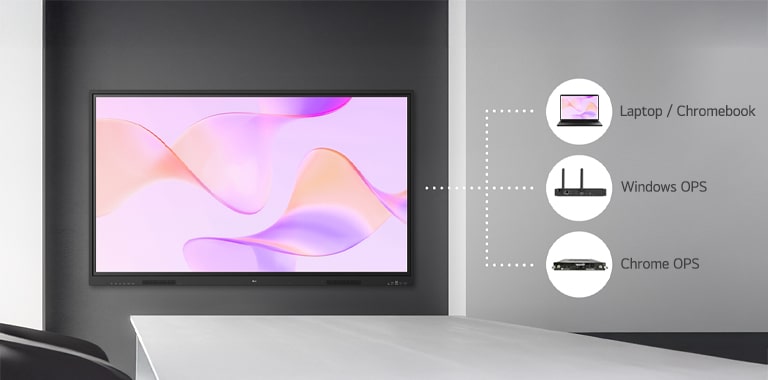

The TR3BQ can be connected to various devices such as laptops, Chromebooks, and Windows or Chrome OPS, allowing users to operate their preferred OS directly on the digital board.

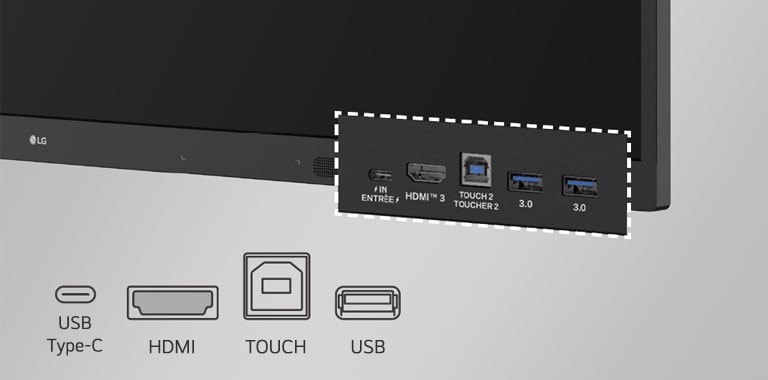

USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

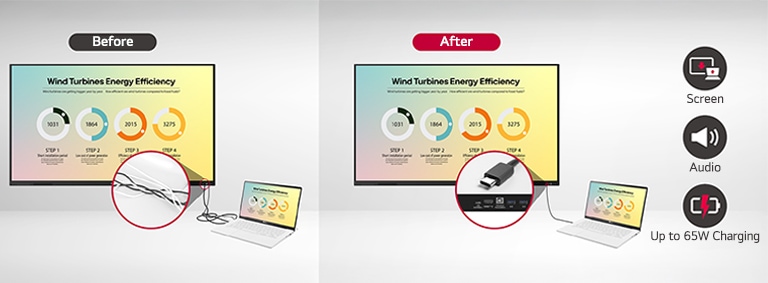

USB-C connectivity simplifies connections, easily enables screen sharing and audio output, and can charge devices with up to 65W.
* USB Type-C cables are sold separately.
OTA (Over-The-Air) functionality built into the LG CreateBoard enables software updates to be performed wirelessly and automatically, allowing users to maintain the latest features and security patches.

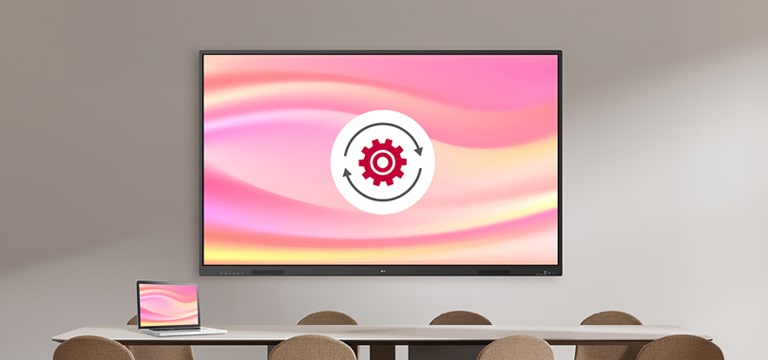

An digital smart board is performing a wireless automatic software update.
Product
Touch
Year
Y25
Month
M05
Screen Size (Inch)
86"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840x2160 (UHD)
Refresh Rate
60Hz
Brightness
350nit (Typ.)
Contrast Ratio
1200:1
Dynamic CR
5000:1
Color gamut
NTSC 72%
Viewing Angle (H x V)
178 x 178
Color Depth (Number of Colors)
10bit(8bit + FRC)
Response Time
8ms
Surface Treatment (Haze)
25%
Life time
50,000 Hrs (Min.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
No / Yes
HDMI IN
Yes(3)
Audio IN
Yes(1)
RS232C IN
Yes(1)
RJ45(LAN) IN
Yes(1)
USB IN
USB3.0 Type A(4). USB2.0 Type A(1), USB Type-C(1)
Audio Out
Yes(1), Optical Yes(1, SPDIF)
Touch USB
Yes(2)
RJ45(LAN) Out
Yes(1)
Bezel Color
Black
Bezel Width
T/R/L/B：15/15/15/43.5mm
Weight (Head)
51Kg
Packed Weight
(TBD)
Monitor Dimensions (W x H x D)
1957 × 1160 × 97mm
Carton Dimensions (W x H x D)
2110 × 1283 × 225mm
Handle
Yes(2)

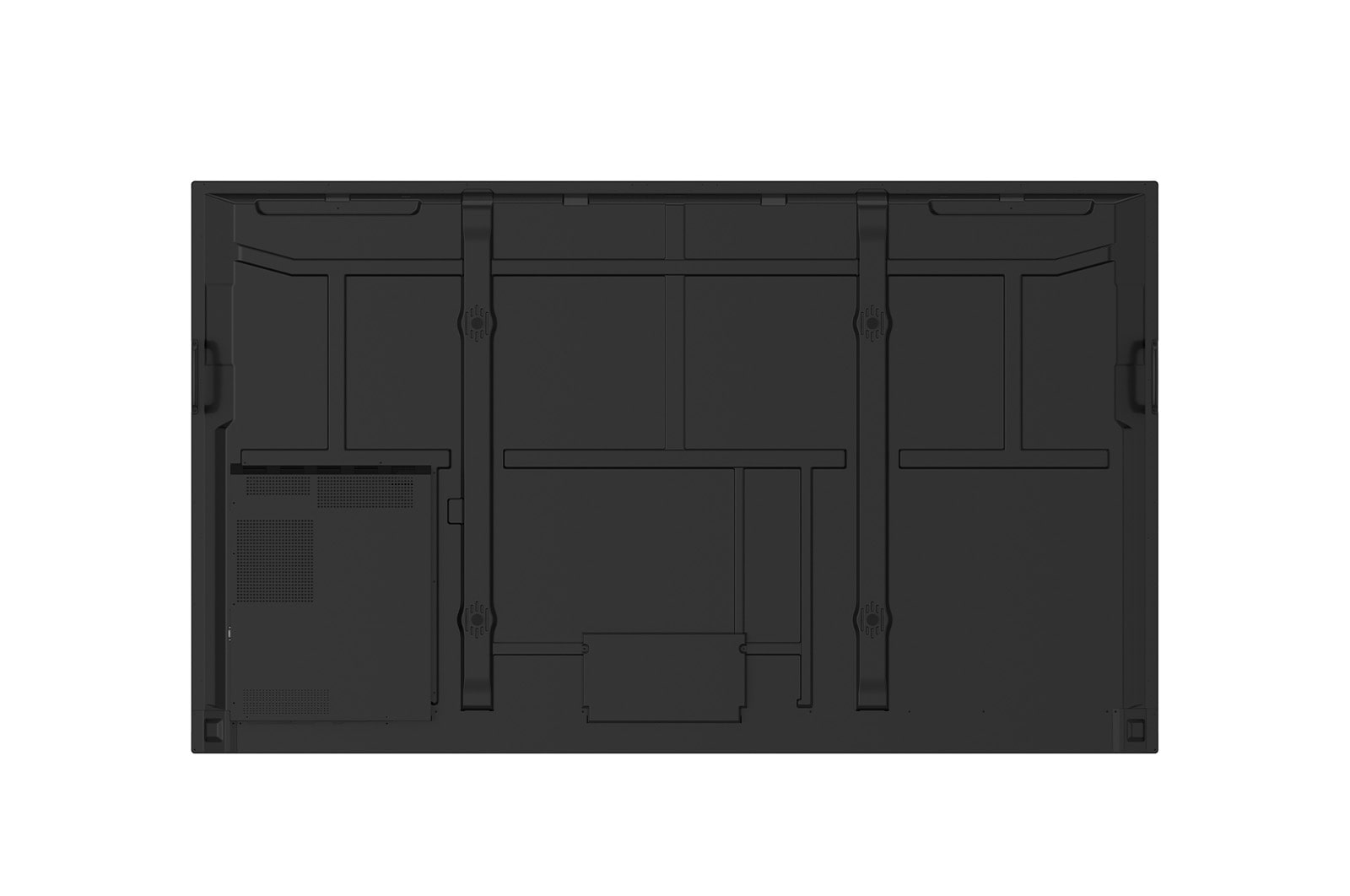

VESA<sup>TM</sup> Standard Mount Interface
800x600mm
Thickness
3.2mm
Degree of Protection
Safety Glass
Tempered / Chemical strengthening
Tempered strengthening
Anti-Reflective
Yes
Shatter-Proof
Yes
Auto Brightness sensor
Yes
Power Indicator
Yes
Local Key Operation
Yes
RS232C Sync
Yes (LG RS232C Command)
Screen Share
Yes (CreateBoard Share)
Smart Energy Saving
Yes (Energy Saving)
Wake on LAN
Yes
HDMI-CEC
Yes
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 90%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
203W
Max.
437W
BTU (British Thermal Unit)
693 BTU/Hr(Typ.), 1491 BTU/Hr(Max)
Smart Enegy Saving (70%)
Yes
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
Yes (16Wx2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / No

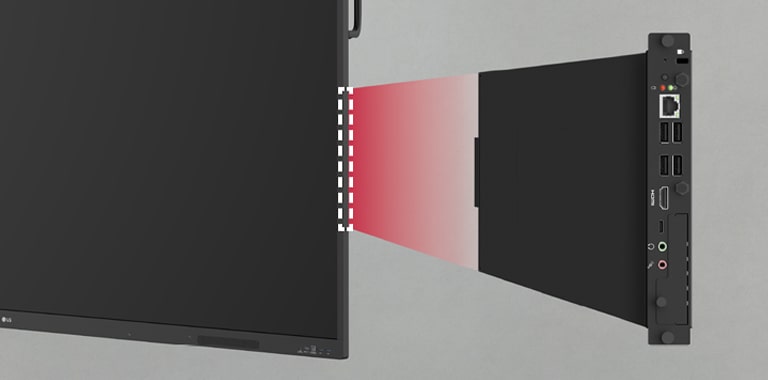

OPS Type Compatible
Yes (Slot)
OPS Power Built-in
Yes
OSD
English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese,Estonian, Lithunian
Basic
(TBD)
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F, ST860F)
Conformal Coating (Power Board)
Yes
Power protection
Yes
Available object size for touch
Ø3 mm ↑
Response Time
≤10ms
Writing Height
≤2mm
Accuracy (Typ.)
±1.5mm
Interface
USB2.0
Protection Glass Thickness
3.2mm (Anti-Glare)
Protection Glass Transmission
88%
Operating System Support
Windows10/Windows8/Windows7/Android/Linux/macOS/Chrome
Multi touch point
Max 40 points
LAN
Gigabit LAN
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
