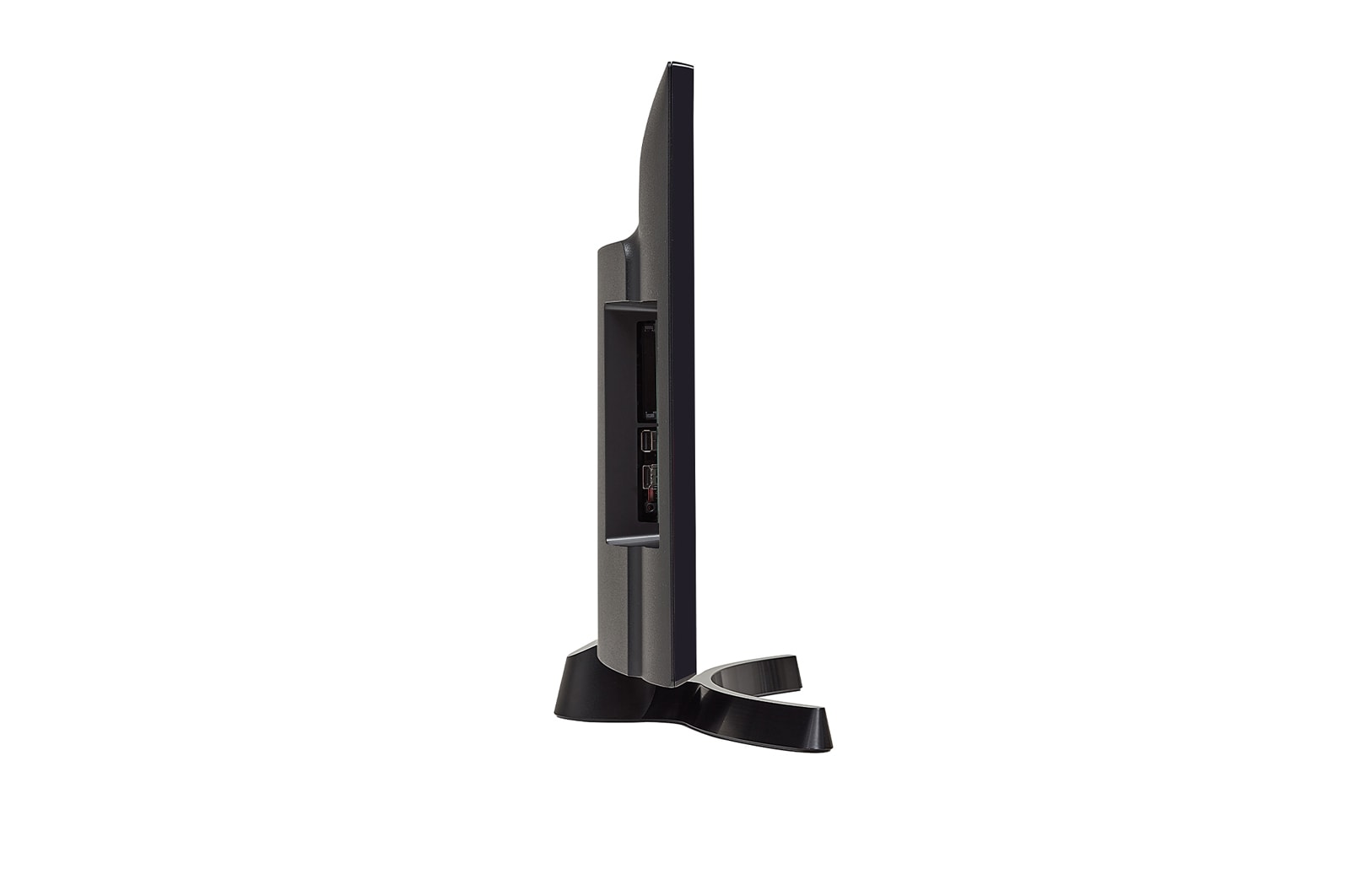

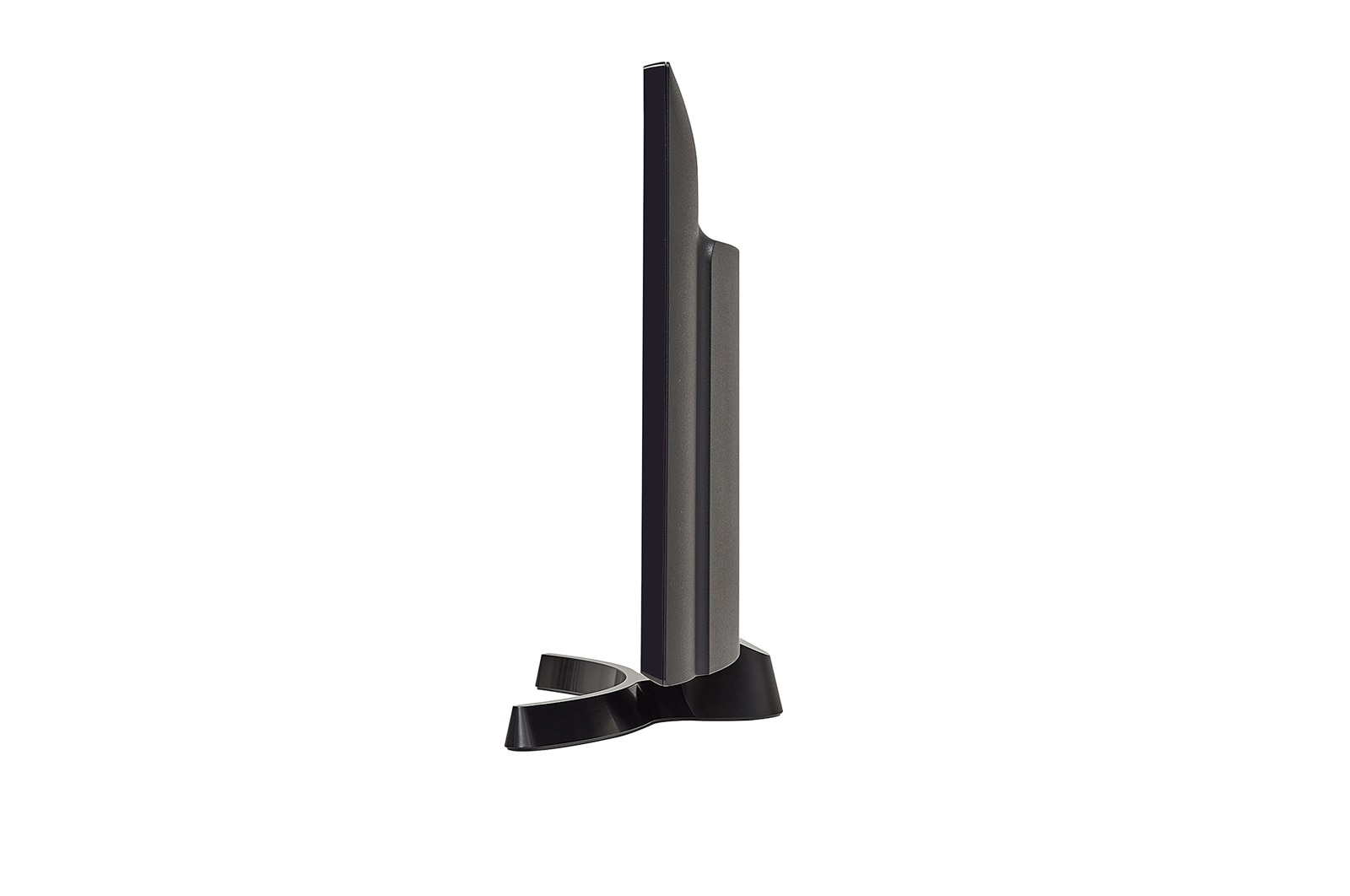

LG webOS TV Signage

27LN341C (EU)

Key Features

Resolution : 1,920 × 1,080 (Full HD)
Brightness : 250 nit
Speaker : 10 W

LG webOS TV Signage with Multiple Use

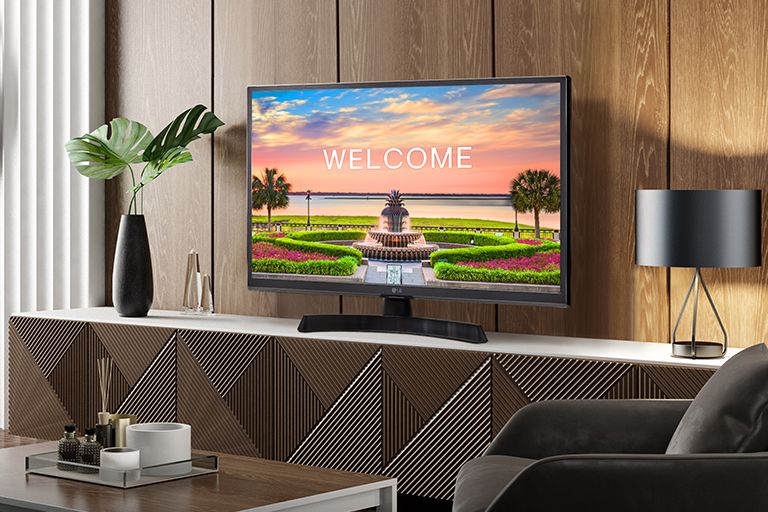

A TV is placed on the hotel room's main shelf, and a welcome message for guests is displayed on the screen.

* All images in this page are for illustrative purposes only.

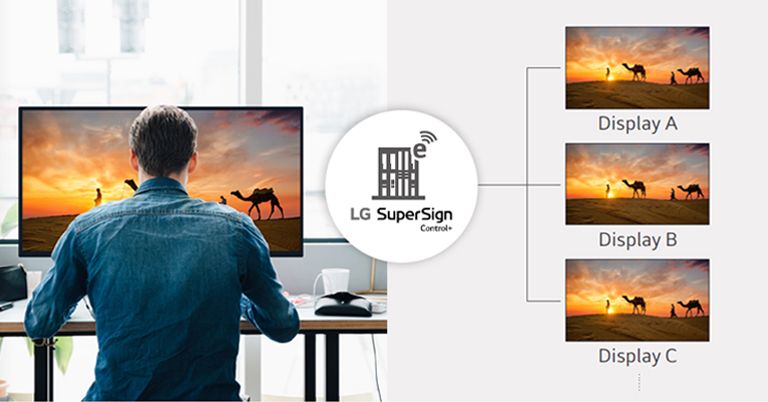

A man is managing several displays at once in his office using an LG SuperSign Control+ solution.

Easy Group Control

The LN341C supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

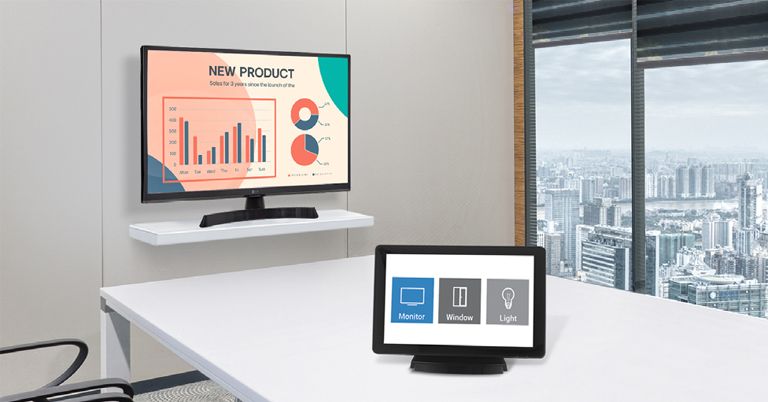

The LG TV Signage, windows, and lights are all connected to the controller placed on the desk.

Compatibility with AV Control Systems

The LN341C has Crestron Connected® Certification, a function that is dedicated to meeting room and that meets the growing need in corporate meeting space market.

* It is a network based control system. Available AV control systems may differ by regions.

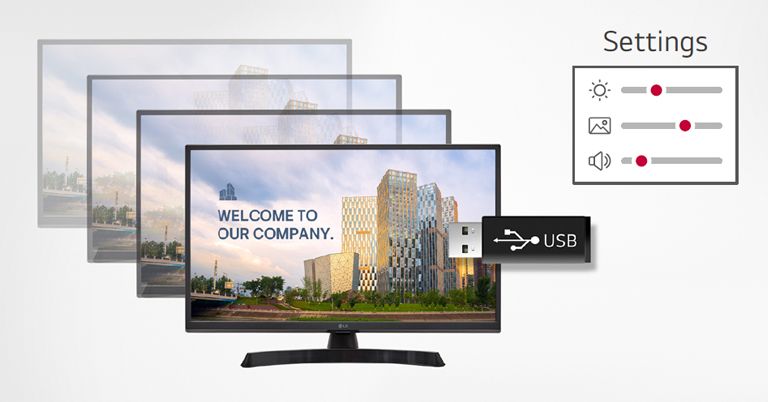

A TV is easily set up by copying pre-stored information onto a USB.

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays through a USB plug-in.

* USB is not provided by LG. FAT32 or NTFS formatting is recommended.

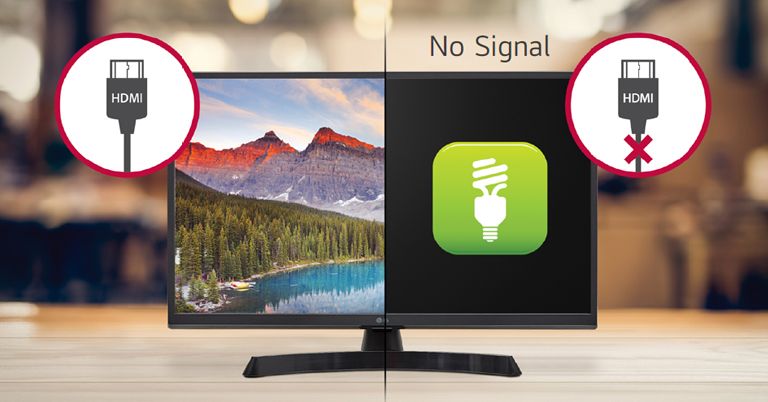

The TV is on when there's an HDMI signal, and it is off when there's no signal.

Display Power Management

DPM (Display Power Management) can be configured to be On only when there is a TV signal present to manage power efficiently.

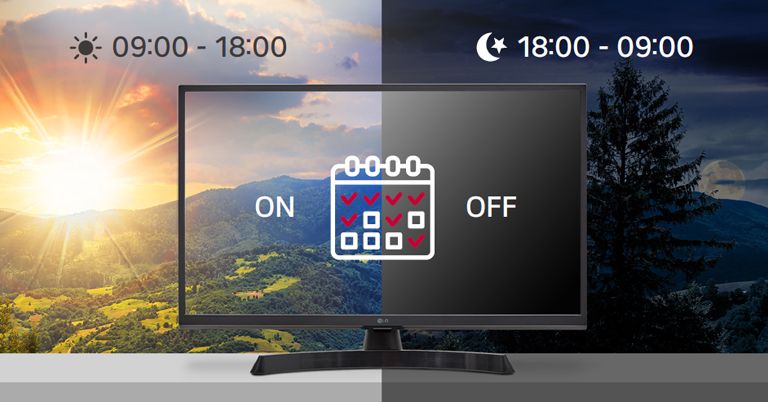

The TV automatically turns on or off according to the set time schedule.

On/Off Time Setting

Create your own time scheduler of your TV signage. Once you set opening/closing hours and holidays, the TV will turn on/off according to work schedule.

A TV is making sounds in one space, and a man and a woman are listening the sound of TV through external speakers in another space.

External Speaker Out

Enhance the entertainment experience with an additional speaker (sold separately). Guests can listen to the TV audio from other rooms within their suite, not only the room where the TV is located.

* Use only with the 3 pole 3.5 mm stereo jack when connecting external speakers.

All Spec

CONNECTIVITY

HDMI In
YES (2ea)
USB (Ver.)
YES(2ea / 2.0)
RF In
YES (1ea)
AV In
YES
Digital Audio Out (Optical)
YES
External Speaker Out(3.5mm Phone jack)
YES
Headphone Out
YES
CI Slot
YES (CI+ 1.4 ECP)
RJ45 (Usage Purpose)
1 (SNMP&MHEG)
RS-232C (D-Sub 9pin / Phone jack)
YES (Dsub-9)

POWER

Power Supply (Voltage, Hz)
AC 100~240V 50~60Hz
Power Consumption(Typ)
31.6W
Standby Power Consumption
Under 0.5W

ACCESSORY

Remote type
L-Con
Power Cable
YES (1.5M / Detached Angle)

BROADCASTING SYSTEM

Digital
DVB-T2/C/S2
Analog (NTSC / SECAM / PAL)
SECAM / PAL

DISPLAY

Size (Inch)
27"
Resolution
Full HD (1,920 x 1,080)
Brightness
250 nit

HOSPITALITY FEATURE

USB Cloning
YES
WOL
YES
SNMP
YES
Diagnostics
YES (Self Diagnostics(USB))
HTNG-CEC (Version)
YES (1.4)
Simplink(HDMI-CEC) (Version)
YES (1.4)
IR Out
YES (RS-232C)
Multi IR Code
YES
Hotel Mode / PDM / Installer Menu
YES
Welcome Video
YES
Welcome Screen (Splash Image)
YES
Insert Image
YES
External Speaker Out
YES
USB Auto playback / playback+
YES (USB Auto playback)
Lock mode
YES
RJP (remote jack pack) Compatibility
YES
Energy Saving mode
YES

DESIGN

Stand Type
1 Pole
front color
Rocky Black

SMART FUNCTION

webOS version
webOS 22
HDMI-ARC
YES (ARC, HDMI2)

MECHANICAL

VESA Compatible
100 x 100 mm
Kensington Lock
YES

DIMENSIONS/WEIGHT

Dimension with Stand (W x H x D)
623.5 x 433.6 x 187.5
Dimension without Stand (W x H x D)
623.5 x 374.9 x 63.1
Dimension in Shipping (W x H x D)
784 x 479 x 170
Bezel Width (L/R/U/B, On Bezel)
12.8/12.8/12.8/25.8
Bezel Width (L/R/U/B, Off Bezel)
12.1/12.1/12.1/25.1
Weight with Stand
5.4 kg
Weight without Stand
5.0 kg
Weight in Shipping
7.4 kg

STANDARD

Safety
CB, CU TR
EMC
CE

VERTICAL FUNCTION(CORPORATE/RETAIL)

Crestron Certi. Compatibility
YES
Time scheduler
YES
NTP sync timer
YES

SUPERSIGN SW COMPATIBILITY

Control Plus
YES (Free version)

STANDARD(EU_NEW LABEL(`21.3~))

SDR Grade
E
SDR On mode
22W

AUDIO(SOUND)

Speaker (Audio Output)
10W
LG Sound Sync
YES
