Filming of the model and car is taking place in a virtual production studio that features cube-shaped wall-mounted, ceiling, and floor LED displays. While only the model and car are physically present, the monitor displays AR effects, such as 3D rendering of the car, for verification purposes.
* All images in this page are for illustrative purposes only.

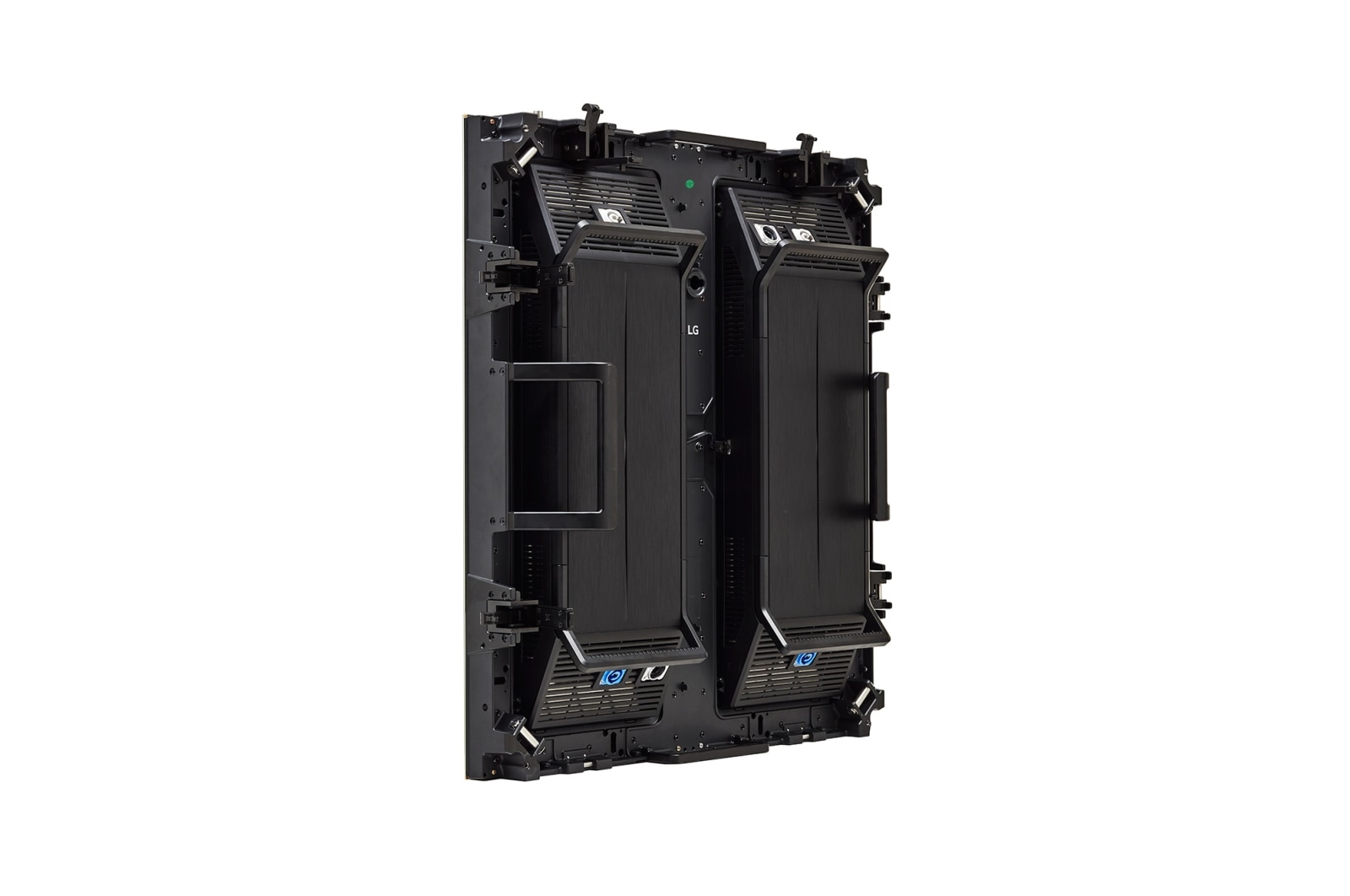

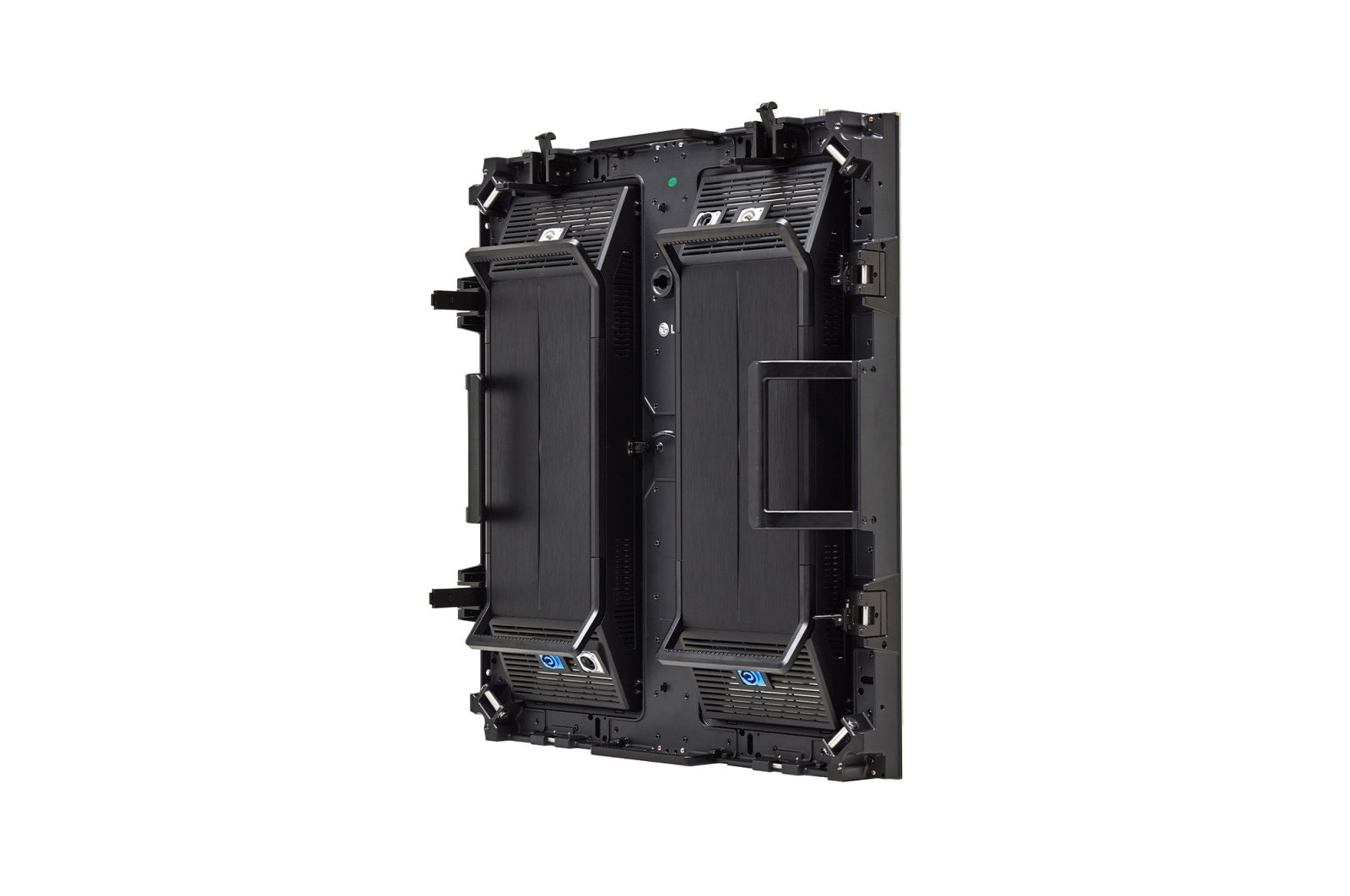

The module can be easily removed with even bare hands, as it features rear service access that does not require any tools. Additionally, the positioning pins and magnets help perform easy panel adjustments, resulting in a smooth screen assembly.
The cabinet parts, including 'Quick Lock
Thanks to the structure of LBAF series, it minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated even from the side angles, captivating various pedestrians even if it is installed in a large public places.
Even when viewed from a side angle, the LBAF technology accurately represents true colors due to its elongated and wide format.
When connected with LG's CBAF system controller, the LBAF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
The LG employee is remotely monitoring the LBAF series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LBAF series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Pixel Configuration
Micro
Pixel Pitch (mm)
1.56
Module Resolution (W x H)
96 x 108
Module Dimensions (W x H, mm)
150 x 168.75
Weight per Module (kg)
0.15
No. of Modules per Cabinet (W × H)
4 x 4
Cabinet Resolution (W × H)
384 x 432
Cabinet Dimensions (W × H × D)
600 x 675 x 125
Cabinet Surface Area (m²)
0.41
Weight per Cabinet (kg/unit)
15.5
Weight per Square Meter (kg/m²)
38.3
Physical Pixel Density (pixels/m²)
409,600
Flatness of Cabinet (mm)
±0.15
Cabinet Material
Die Casting Magnesium Alloy
Service Access
Rear
Max. Brightness (After Calibration, nit)*
Max. 1,500
Color Temperature (K)
3,200~9,300 / Default 6,500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
≥ 95%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
Max. 100,000:1
Processing Depth (bit)
20 (HDR10, HDR10 Pro, PQ, HLG)
Notice
* These values represent the maximum measurable specifications of the product. Actual performance or specifications may vary depending on the specific product and usage environment.
Power Consumption (W/Cabinet, Max.)
200
Power Consumption (W/Cabinet, Avg.)
175
Power Consumption (W/m², Max.)
494
Heat Dissipation (BTU/h/Cabinet, Max.)
682
Heat Dissipation (BTU/h/Cabinet, Avg.)
597
Heat Dissipation (BTU/h/m², Max.)
1,684
Power Supply (V)
100 to 240
Frame Rate (Hz)
96 / 100 / 120
Refresh Rate (Hz)
7,680
LED Lifetime (Half brightness)
100,000
Operating Temperature (°C)
0∘ to +40∘
Operating Humidity
10 ~ 80%RH
IP Rating Front
IP50
IP Rating Rear
IP20
Certification
Safety 62368-1, EMC Class A
Certification (Fire Protection)
BS476 Part7 Class1
Environment
RoHS/REACH
Controller
CBAF-0153
Series
LBAF
