55LV762M (MEA) component-copyModelName

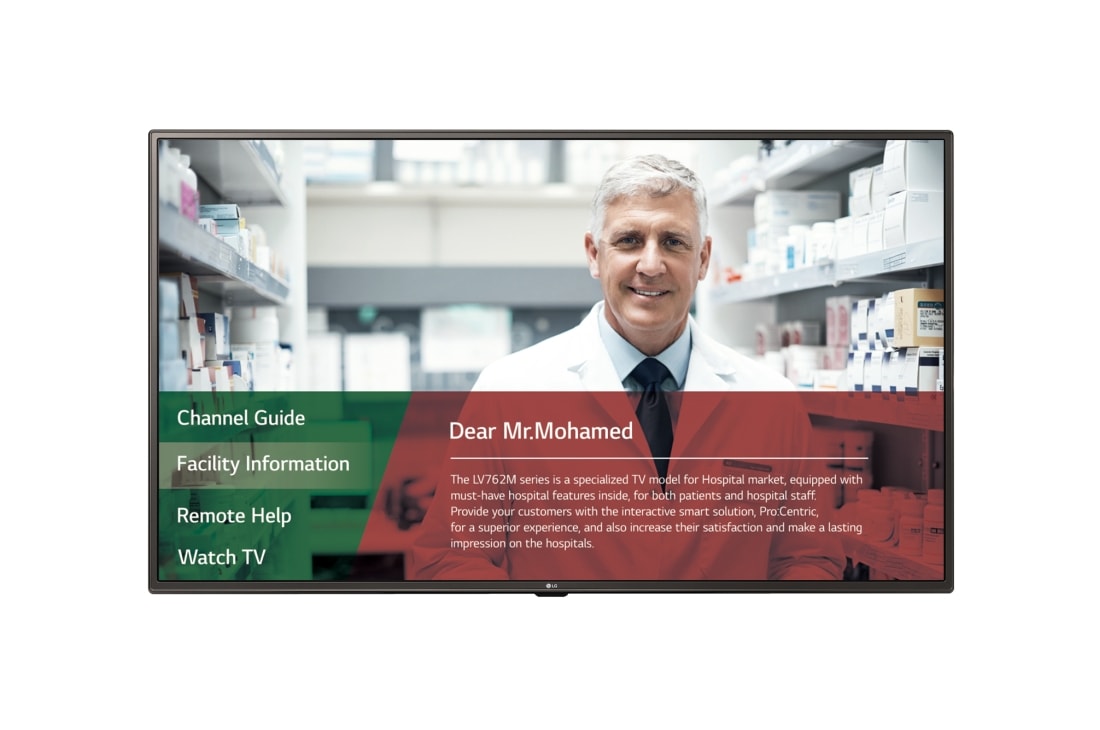

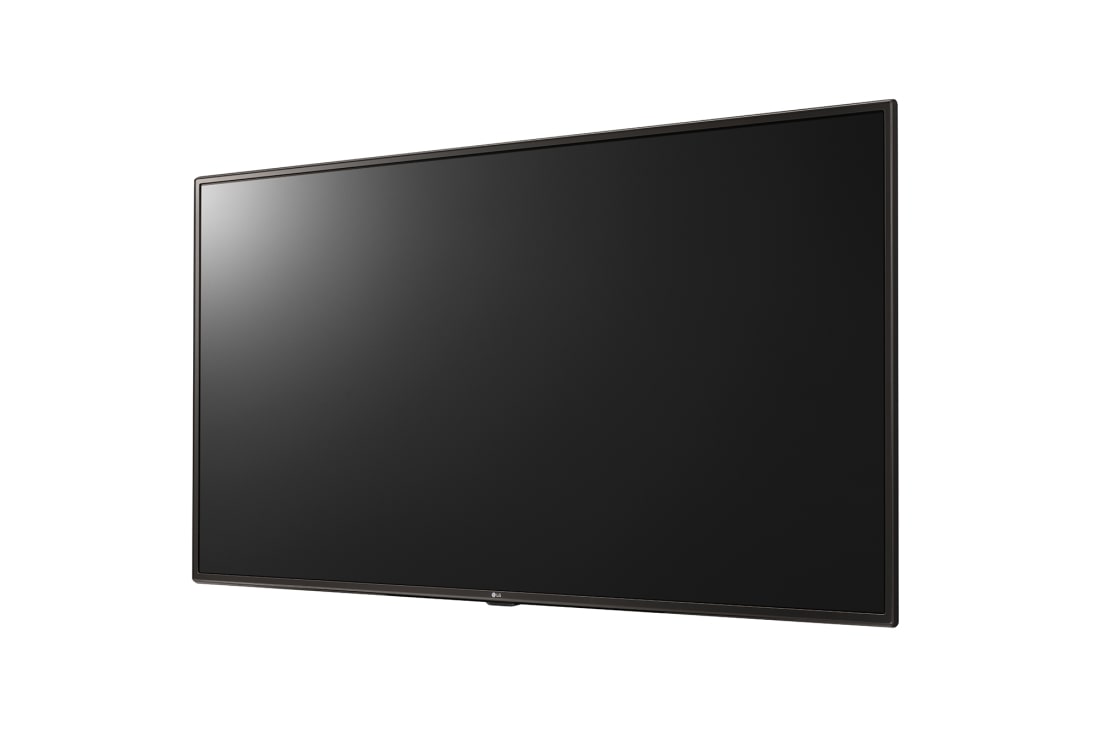

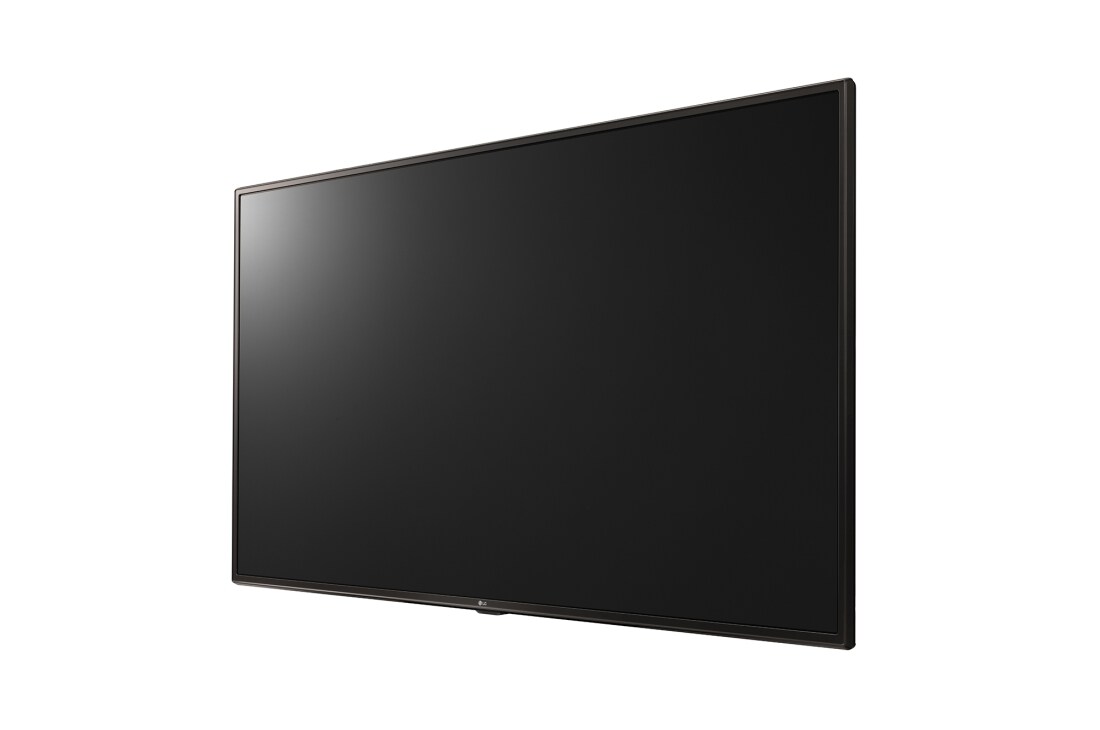

55'' Pro:Centric Hospital TV

Key Features

Choose your Size

component-OBScountrySelectDesc

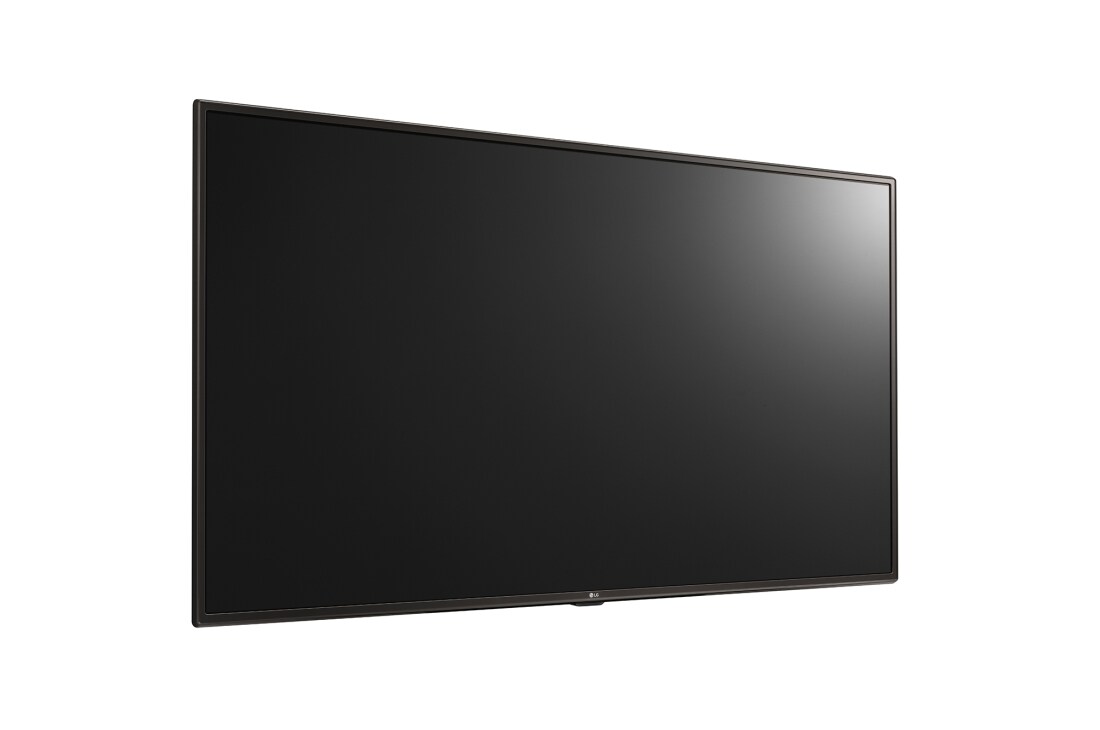

55" Pro:Centric Hospital TV
Display
  • Inch
    55"
    Backlight Type
    Edge
  • Resolution
    1,920 x 1,080 (FHD)
    Brightness (cd/m²)
    400
Broadcasting System
  • Analog
    • (PAL/SECAM)
    Digital
    DVB-T2/C/S2
Video
  • XD Engine
    Aspect Ratio
    • 8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

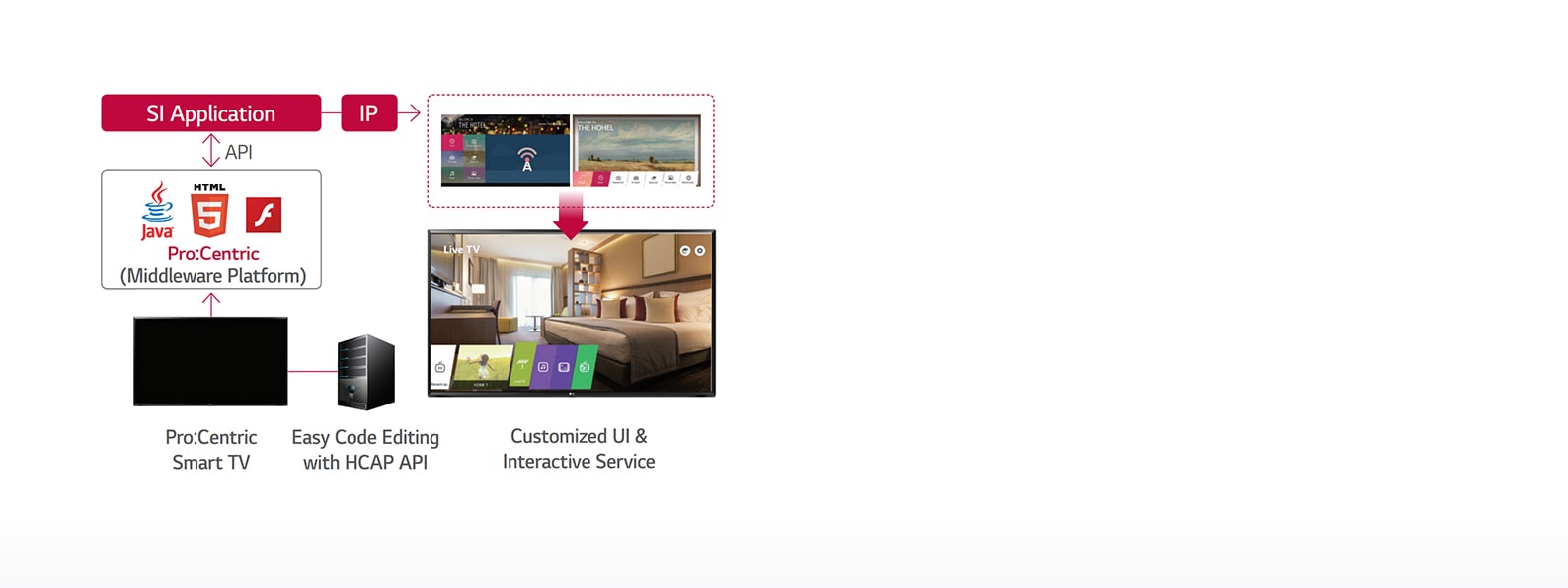

Hospitality Solution
  • Solution Type

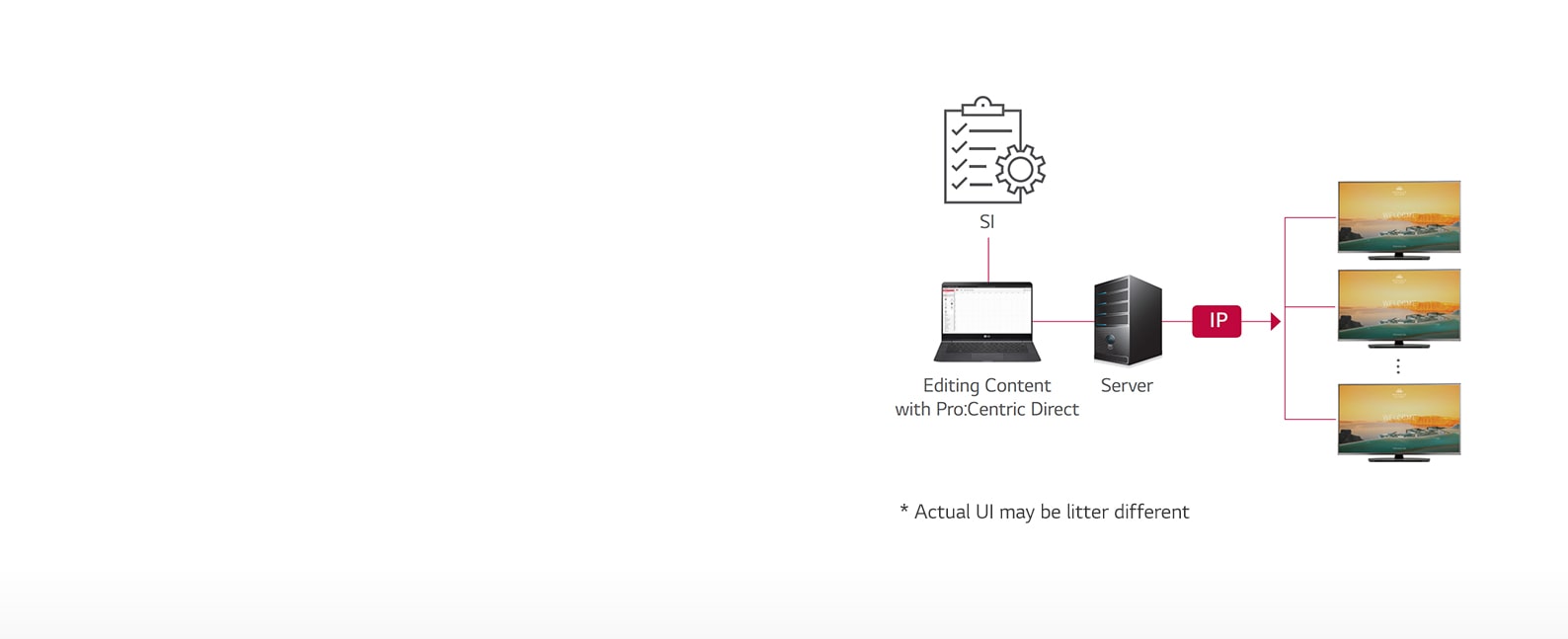

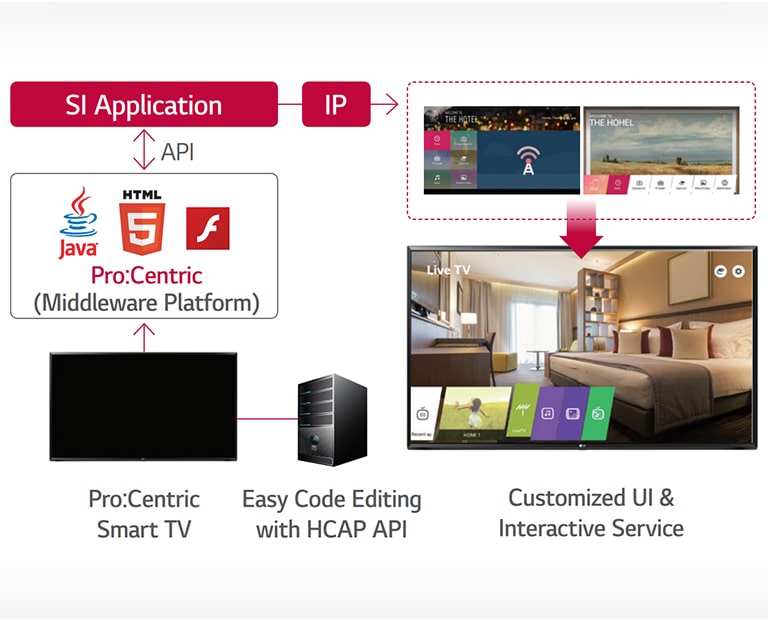

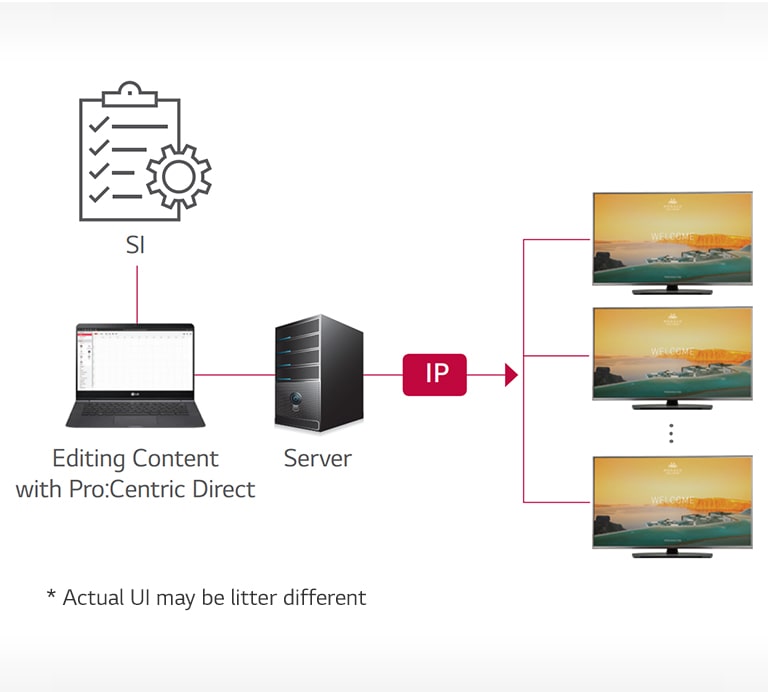

    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP &RF)
  • RF
    • (1 Tuner, Saterlite)
    HCAP (SDK)
    GEM / Flash / HTML5

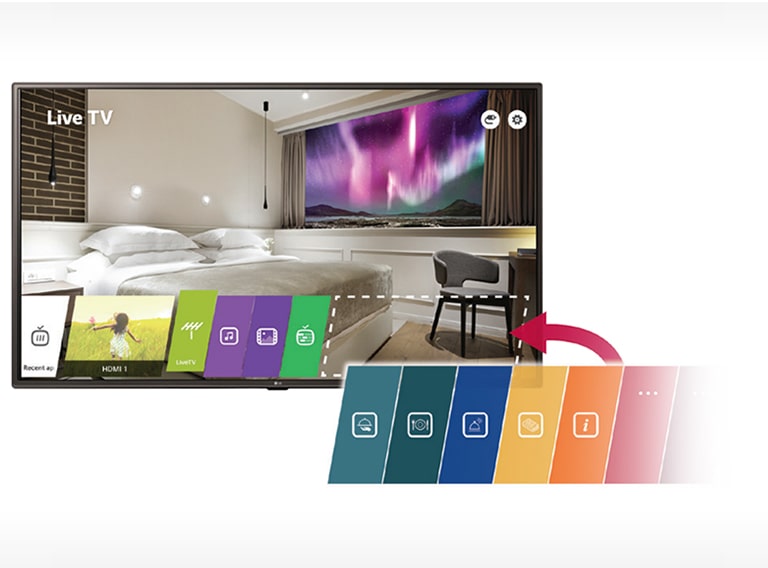

  • Pro:Centric Application
    PCA 3.7
    DRM
    Pro:Idiom (S/W Type)
Feature
  • Hospitality

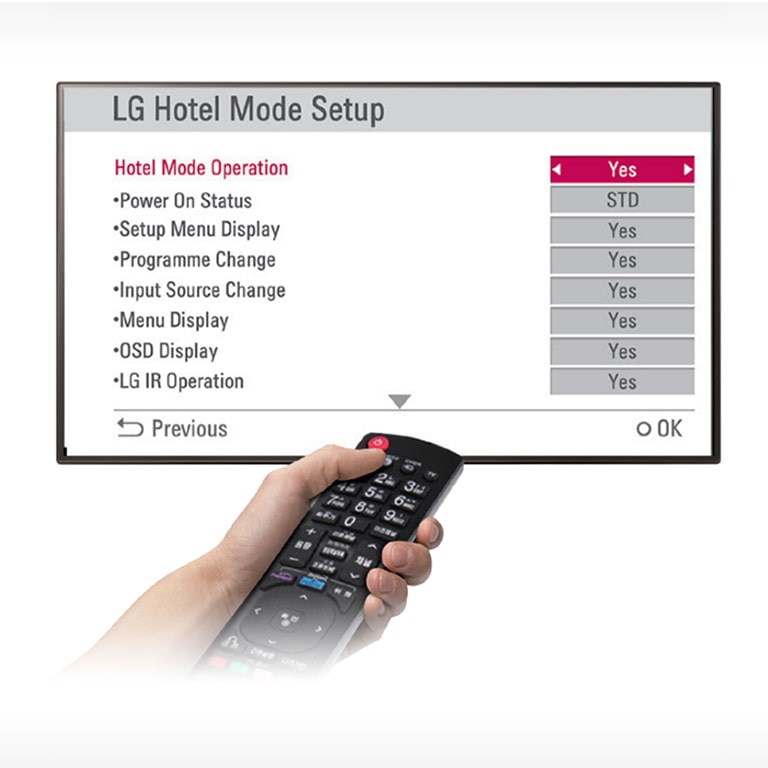

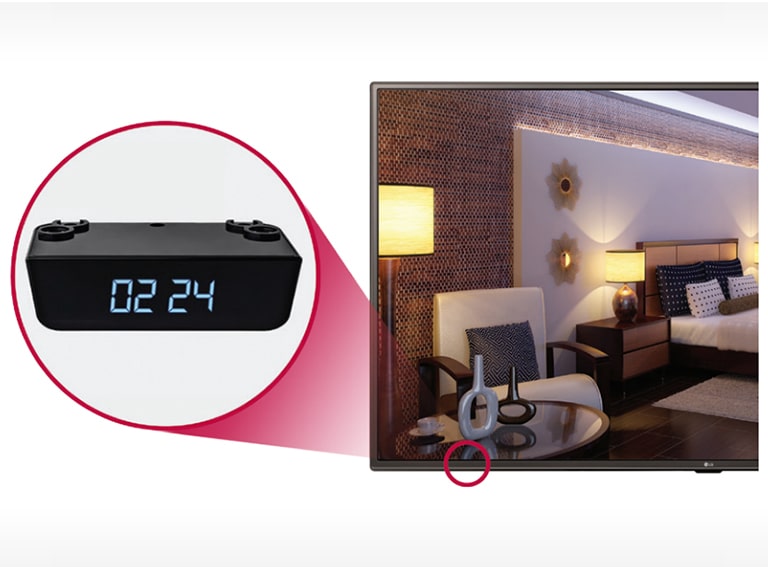

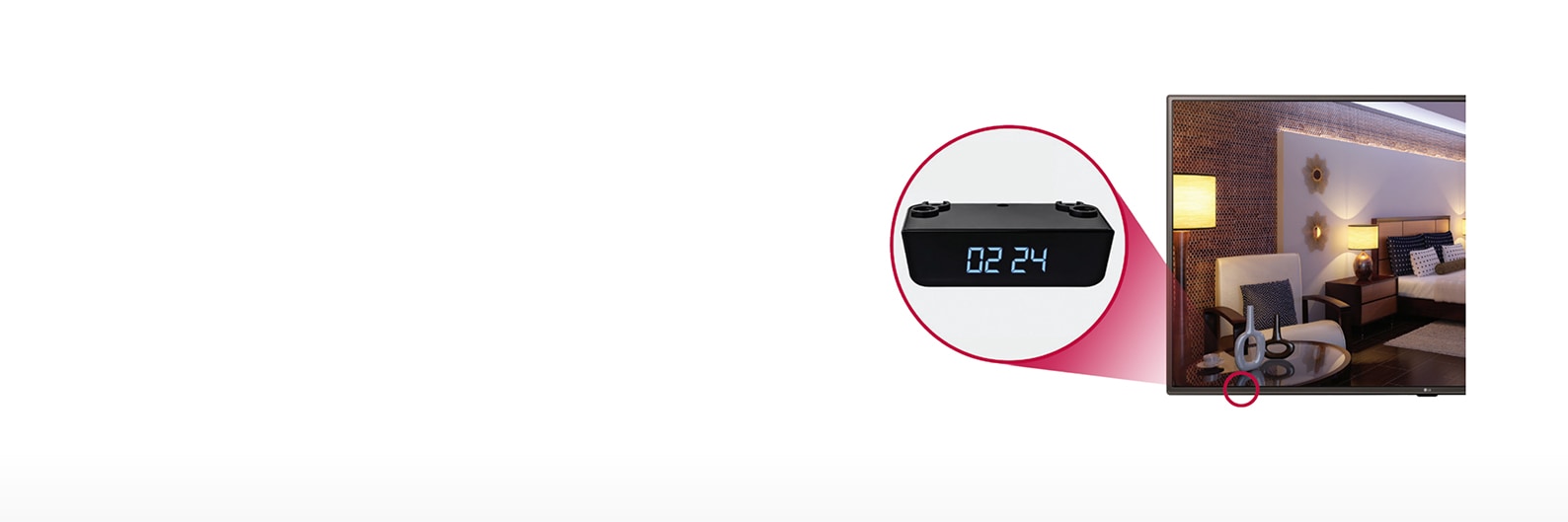

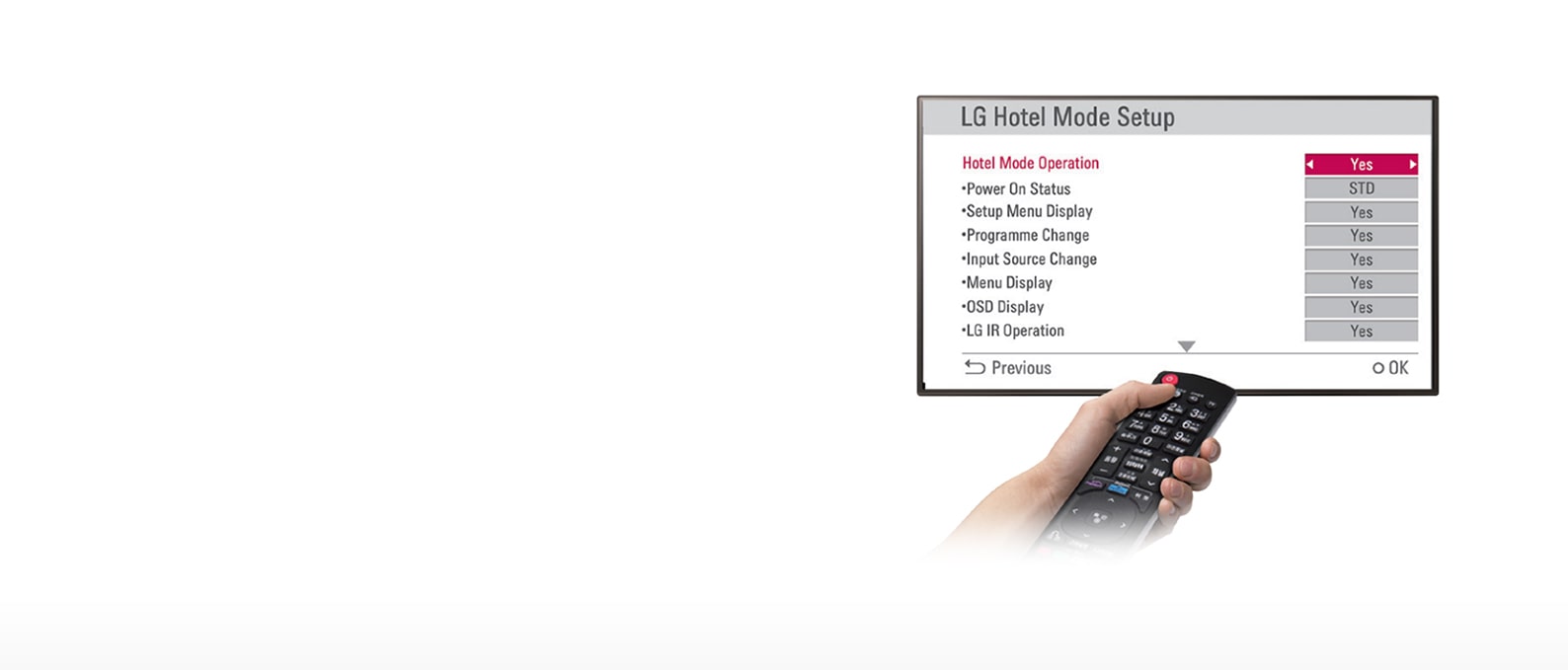

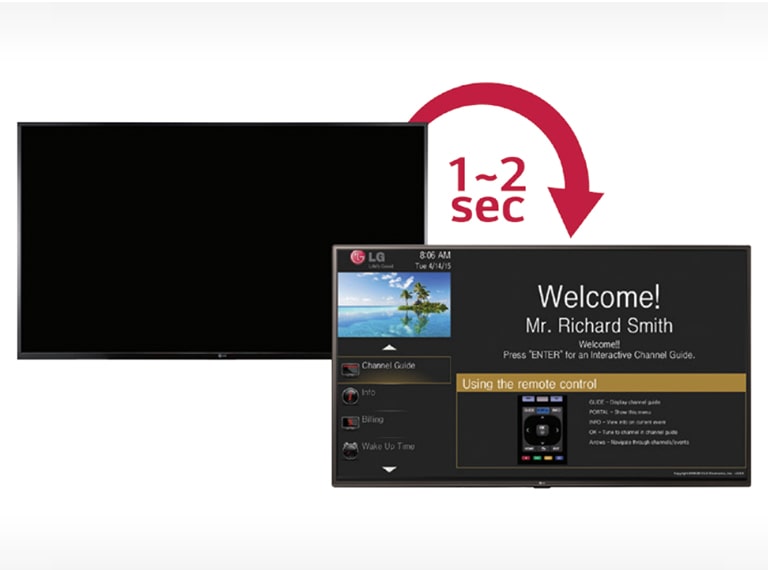

    Hotel Mode, Lock Mode (Limited), Welcome Screen, One Channel Map, Instant On, RJP Interface, RJP Compatibility, External Clock Compatibility, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Jack Interface
  • Set Side
    Headphone Out, HDMI In, USB 2.0, CI Slot
    Set Rear

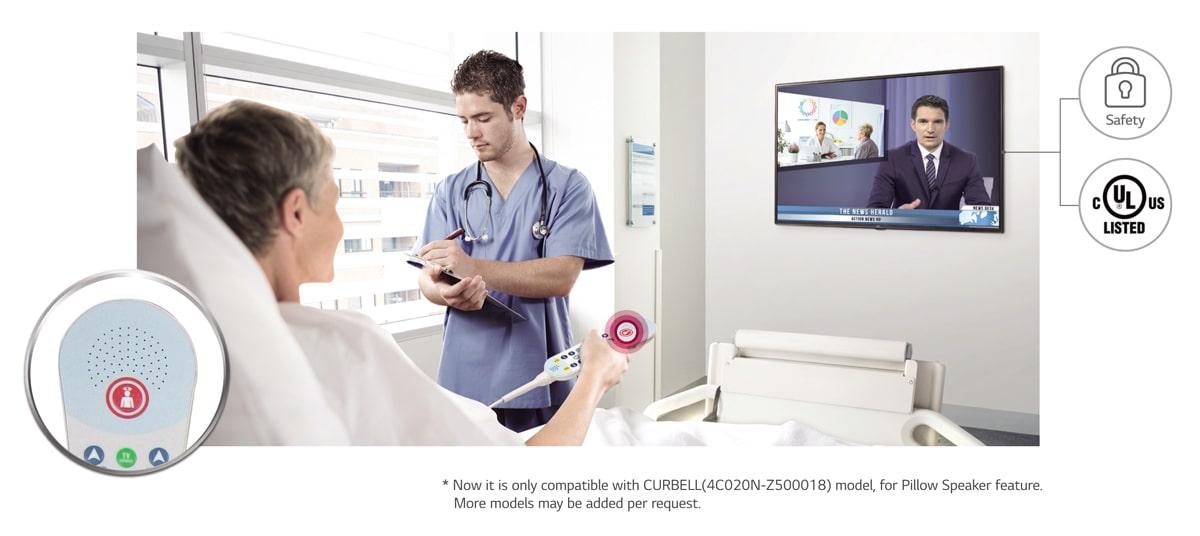

    RF In (2), Digital Audio Out (Optical), RS-232C (Control & Service), Clock Interface, RJ45, Debug (Phone Jack Type), Pillow Speaker Interface
Dimension(Unit: mm)
  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    TBD
  • W x H x D / Weight (without stand)
    1,241 x 720 x 41.5 mm (SPK: 63.0) / 16.34 kg
    W x H x D / weight (packing)
    1,360 x 835 x 152 mm / 21.04 kg
Power(Unit : Watts)
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    129.5
  • Typical
    102.5
    Energy saving (Min / Med / Max)
    66 / 45 / 21
  • Stand-by
    0.5 ↓
General
  • Region
    Middle East & Africa
  • Dimension
    • [Dimension] 55LV762M (MEA).dwg
    • [Dimension] 55LV762M (MEA).pdf
  • Datasheet
    • LV762M_MEA_B_ver_low.pdf
